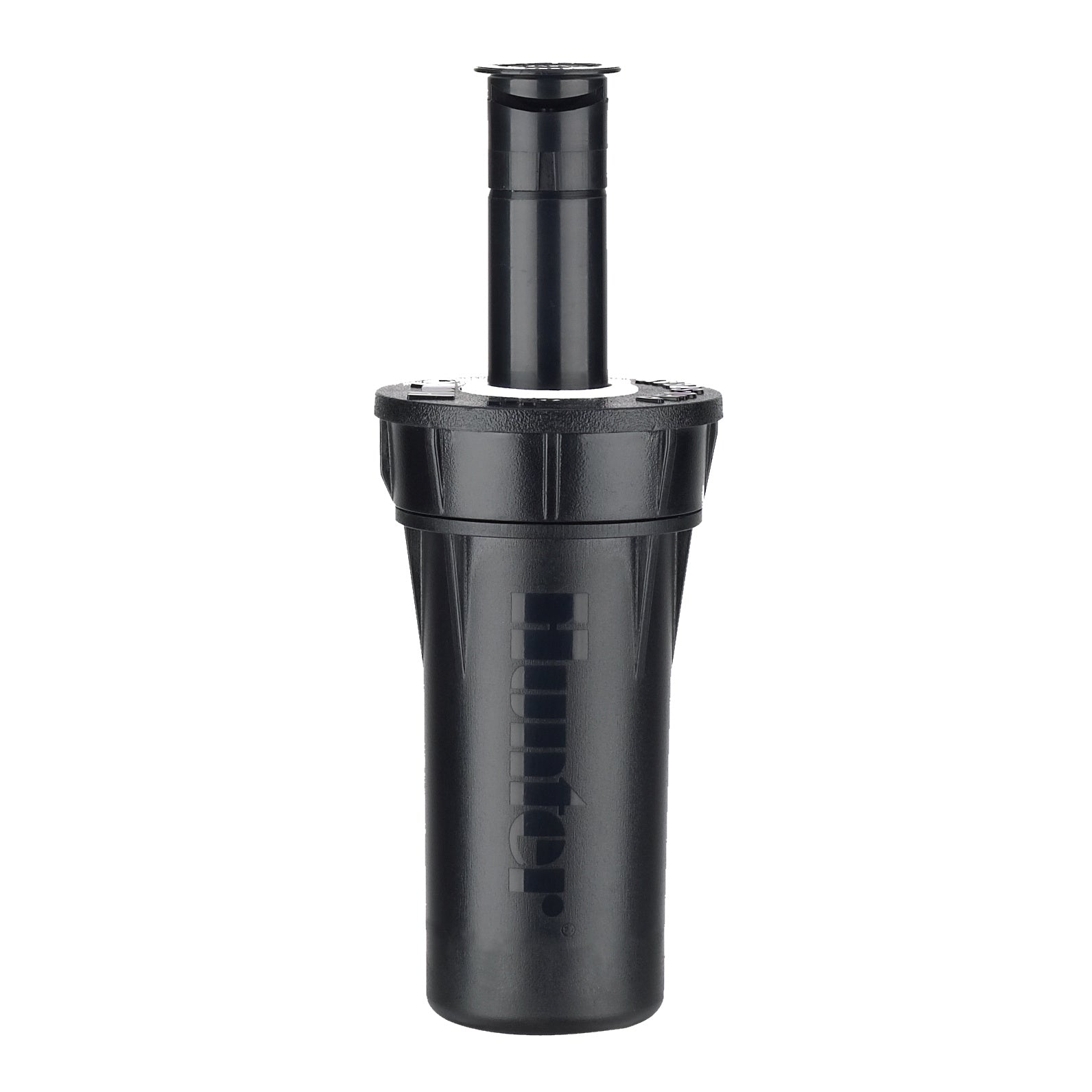

Hunter Pro-Spray pop-up sprinkler bodies are suited to lawn and landscape irrigation using separately selected spray or rotary nozzles. The riser extends during watering and retracts when the system switches off. Choose the pop-up riser height to clear the surrounding lawn or planting.
Each body has a 15mm (1/2") Female BSP inlet and accepts industry-standard female-threaded sprinkler nozzles, including Hunter Pro Fixed, Pro Adjustable, Pro High-Efficiency and female-threaded MP Rotator nozzles. Coverage, spray pattern and flow depend on the nozzle fitted. Nozzles are sold separately.
Standard Pro-Spray bodies have no built-in pressure regulation. PRS30 bodies regulate nozzle pressure to 210 kPa, suiting standard spray nozzles and MP Rotator minimum-radius settings. PRS40 bodies regulate nozzle pressure to 280 kPa, Hunter’s recommended pressure for normal MP Rotator operation. Choose the pressure setting using the selected nozzle’s performance chart and required watering distance. The PRS30 and PRS40 models in this range include a check valve to help prevent water draining from low-lying sprinklers after watering stops.
Side-inlet models include both bottom and side inlets for easy installation. A heavy-duty retraction spring returns the riser after watering, while the wiper seal helps keep debris out and reduce leakage around the riser.
Pop-up bodies are supplied with a grey flush cap. After installing the sprinkler body and before fitting a nozzle, run water through the system to flush dirt and debris that may have fallen into the pipe line during installation.
5 Year Hunter Warranty
To close an unused sprinkler, fit the Pro-Spray body shut-off cap to the body, or the shut-off nozzle in place of the watering nozzle.
Hunter Pro-Spray Pop-Up Body Brochure
Hunter Pro-Spray Pop-Up Body Specifications
Video 1
Video 2
Video 3
Video 4
Video 5

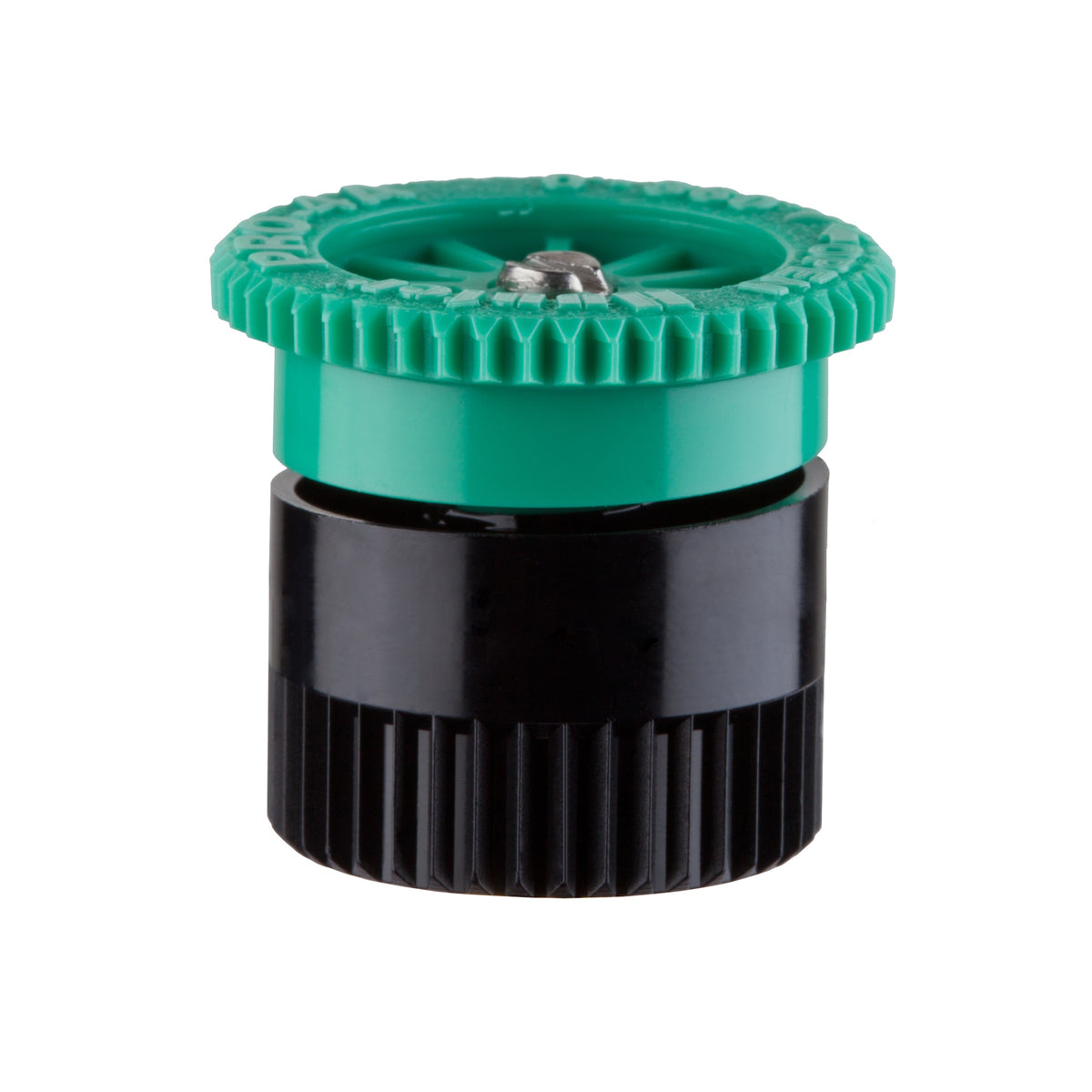

Hunter Pro Fixed, Adjustable and Strip Spray Nozzles for lawn and garden irrigation.
Large water droplets help maintain coverage in wind and reduce misting.
The range offers fixed circular spray patterns and adjustable 0°–360° patterns, with radius options from 1.2 to 5.2 metres, plus rectangular strip patterns. Strip dimensions vary by model.
On adjustable models, the easy-grip top sets how far around the sprinkler the water sprays, from 0° to 360°. The top adjustment screw lets you shorten the watering distance.
Female nozzle thread suits Hunter Pro-Spray sprinkler bodies. Sprinkler body sold separately. The nozzle can also be used with matching shrubhead adaptors where pop-up is not required, typically installed on top of a riser.
Precipitation rate describes how quickly water is applied across the area, measured in millimetres per hour.
The short-radius 4A and 6A models have higher precipitation rates than the larger Pro Adjustable models. Use model-specific rates and suitable spacing when planning a shared zone.
Warranty: Two years.
Hunter Pro Fixed Nozzle Specifications & Performance Charts
Hunter Pro Adjustable Nozzle Specifications & Performance Charts
Video 1

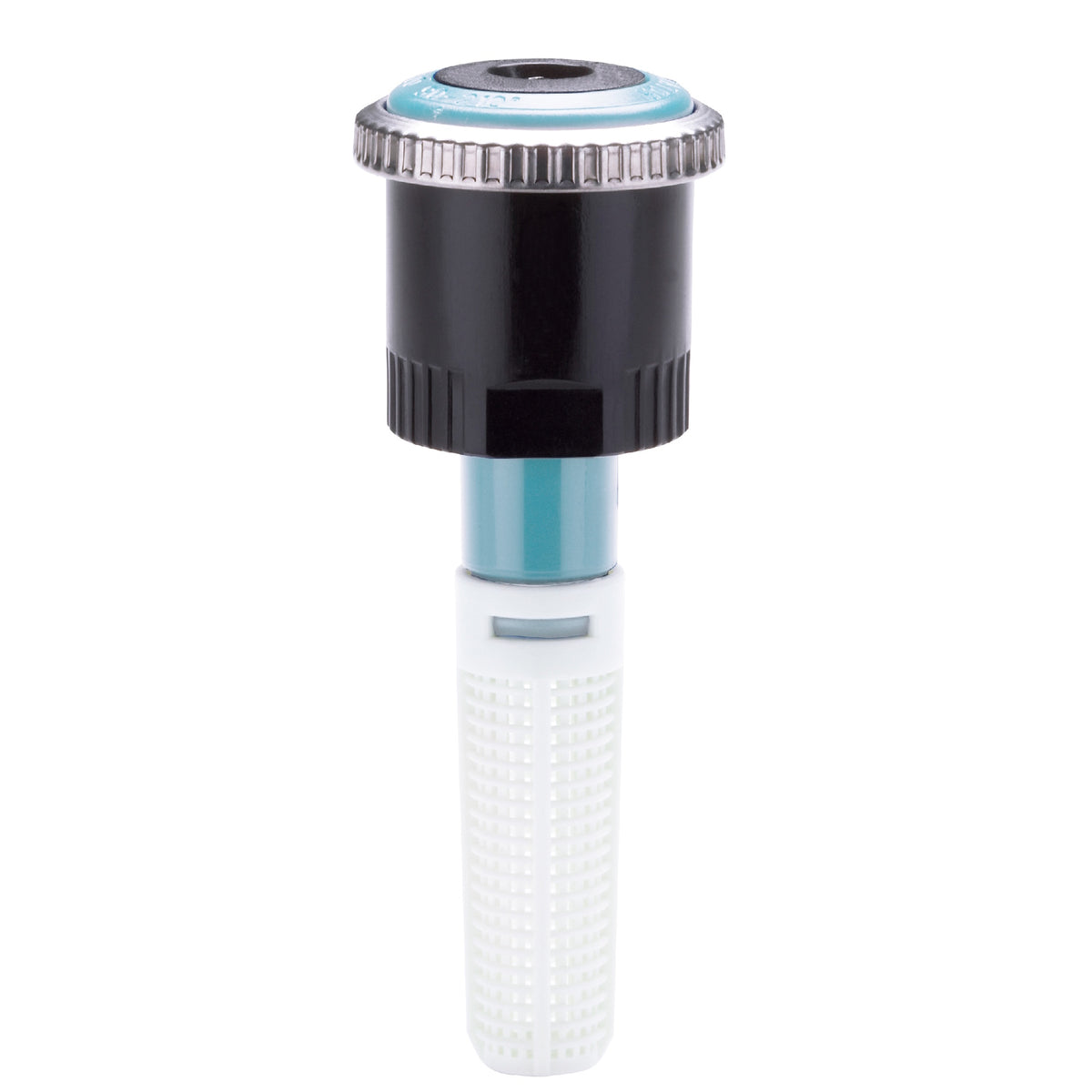

Hunter MP Rotator Female-Threaded Rotary Nozzles for lawn and garden irrigation.
Multiple rotating streams spread water evenly and help maintain coverage in wind. Standard MP models apply water slowly, giving the soil more time to absorb water and helping reduce runoff, while their low flow allows more sprinklers to run on a zone where the water supply is limited.
Standard MP radius ranges from 2.5 to 10.7 metres; MP800 ranges from 1.8 to 7.3 metres. The range includes adjustable part-circle, fixed full-circle and rectangular strip patterns.
The double-pop design helps protect the nozzle from dirt and debris during startup. On adjustable models, the adjustment ring sets the spray arc. The top adjustment screw lets you shorten the watering distance.

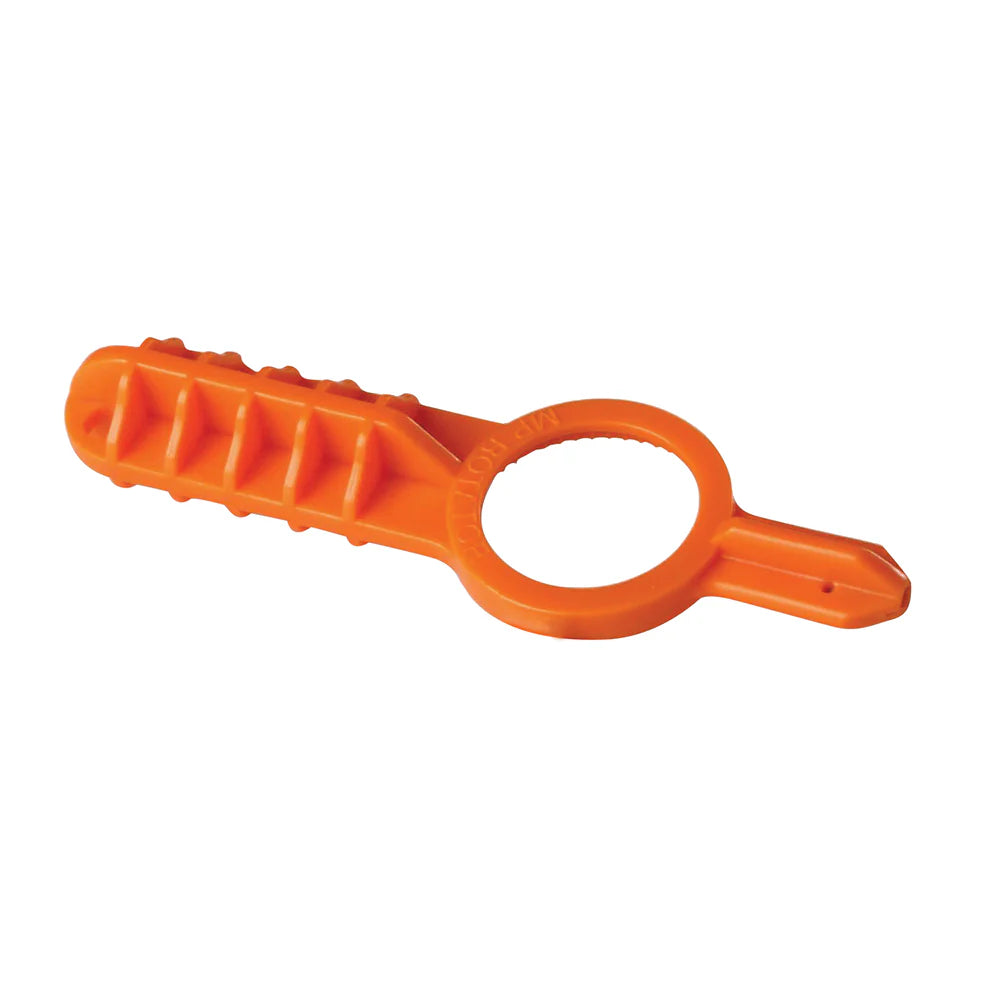

The Hunter MP Rotator adjustment tool helps turn the radius adjustment screw and grip the arc adjustment ring on adjustable-arc models. Female nozzle thread suits Hunter Pro-Spray sprinkler bodies. Sprinkler body sold separately. The nozzle can also be used with matching shrubhead adaptors where pop-up is not required, typically installed on top of a riser.
Precipitation rate describes how quickly water is applied across the area, measured in millimetres per hour.
Standard MP Rotators apply approximately 10mm/hour. MP800 models apply approximately 20mm/hour. Keep these families on separate irrigation zones. MP strip matching depends on spacing and layout.
Warranty: Three years.
Hunter MP Rotator Nozzle Specifications & Performance Charts
Hunter MP Rotator Nozzle Brochure
Hunter MP Rotator Nozzle System Design Guide
Hunter MP Rotator Nozzle Reference Card
Video 1
Video 2
Video 3
Video 4
Video 5
Video 6

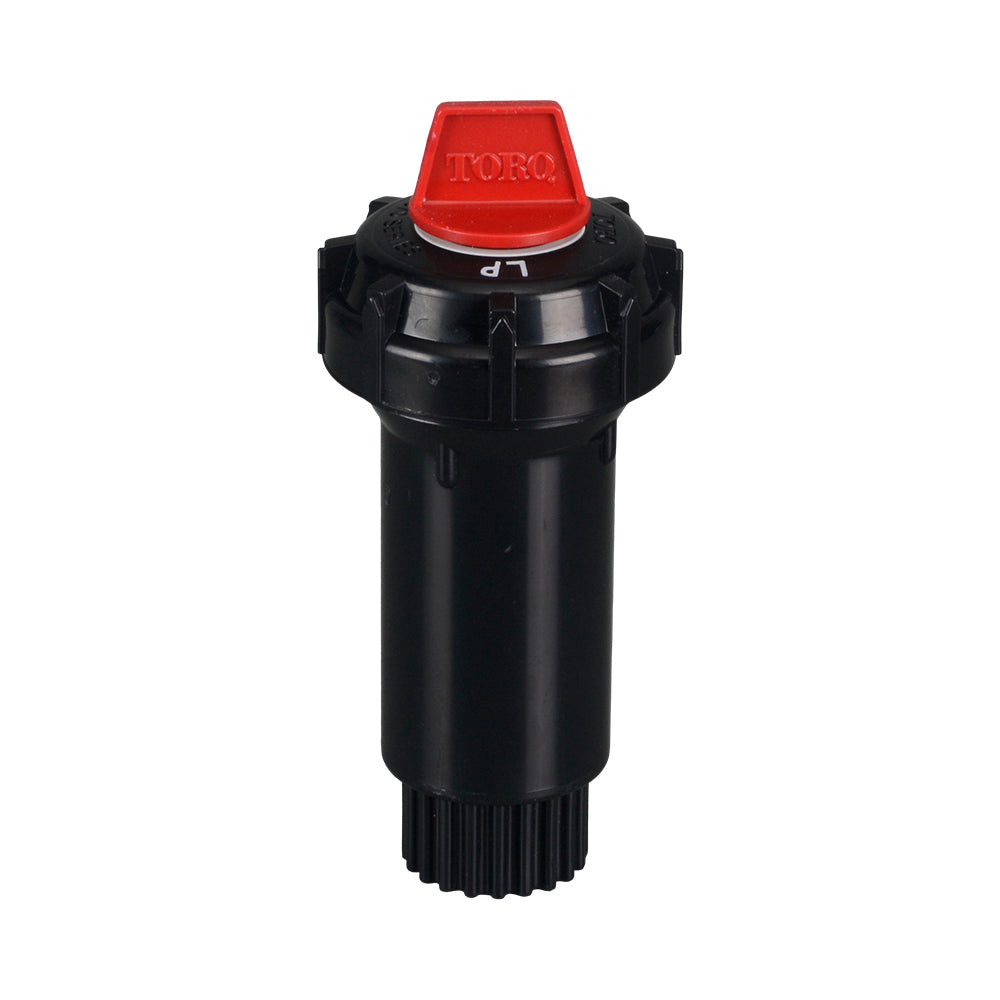

Toro 570Z LP pop-up sprinkler bodies for lawn and landscape irrigation. The inch measurement refers to how far the riser extends above the body during watering. When the system switches off, the riser retracts into the body.
The bodies have a 15mm (1/2") female-threaded inlet and accept male-threaded nozzles designed for Toro 570 bodies, including Toro 570 fixed and adjustable nozzles, male-threaded Toro Precision nozzles and male-threaded Hunter MP Rotator nozzles. Coverage, spray pattern and flow depend on the nozzle fitted. Nozzles sold separately.
A stainless steel spring retracts the riser after watering. The wiper seal prevents flushing around the riser as it rises and allows flushing as it retracts to help clear debris. The LP design allows operation at lower pressures, with a body operating pressure range of 100–520 kPa. The required watering pressure depends on the selected nozzle.
The 12-inch models include both bottom and side inlets for easy installation.
Pop-up bodies are supplied with a red flush plug. After installing the sprinkler body and before fitting a nozzle, run water through the system to flush dirt and debris that may have fallen into the pipe line during installation.
2 Year Toro Warranty

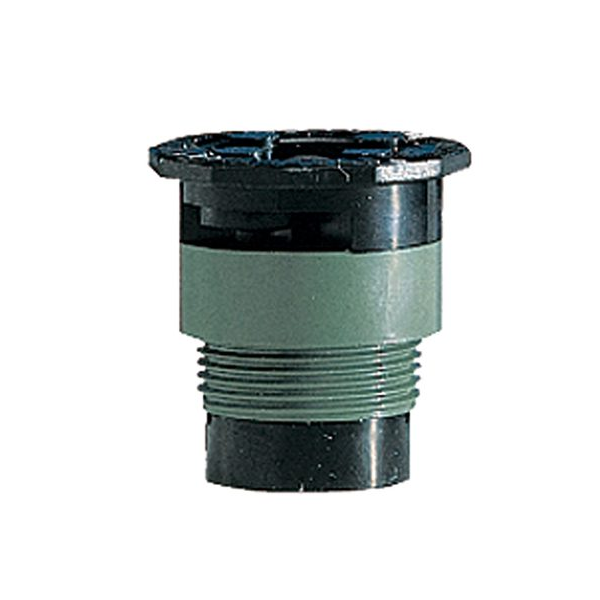

Toro 570 Fixed, Adjustable and Strip Spray Nozzles for lawn and garden irrigation.
The removable pressure compensator at the base of the nozzle helps control flow and reduce misting caused by excess pressure.
The range offers fixed circular spray patterns and adjustable 0°–360° patterns, with radius options from 1.5 to 5.2 metres, plus rectangular strip patterns. Strip dimensions vary by model.
On TVAN adjustable models, the easy-grip top lets you set how far around the sprinkler the water sprays by hand, with the sprinkler running or switched off. The top adjustment screw lets you shorten the watering distance.
Male nozzle thread suits Toro 570Z sprinkler bodies. Sprinkler body sold separately. The nozzle can also be used with matching shrubhead adaptors where pop-up is not required, typically installed on top of a riser.
Warranty: Two years.
Toro 570 Fixed Spray Nozzles Specifications & Performance Charts
Toro 570 Adjustable Spray Nozzles Specifications & Performance Charts
Toro pressure-compensating flood bubbler nozzles for watering shrubs, small trees and garden beds. They release water close to the plant, where it can soak into the soil around the roots. Pressure compensation helps limit changes in flow as water pressure varies. Choose a fixed-flow model or the adjustable model to suit the amount of water needed.
FB-25-PC: fixed nominal flow of 0.95 L/min.
FB-50-PC: fixed nominal flow of 1.9 L/min.
FB-100-PC: fixed nominal flow of 3.8 L/min.
FB-200-ADJ-PC: adjustable flow from 0 to 7.6 L/min using the top screw.
Operating pressure is 140–520 kPa. Pressure compensation helps keep the output more consistent as pressure changes, although flow can still vary across the operating range.
Fits Toro 570Z pop-up bodies or the Toro-compatible shrub-head adaptor for mounting on a threaded riser. Nozzle only; the body, adaptor and riser are sold separately.
Position the nozzle so water soaks into the soil around the plant. Match the watering time to the soil and plant needs, and check for pooling or runoff. Manufacturer warranty: 2 years.
Toro Pressure-Compensating Flood Bubbler Specifications & Performance Charts
Toro Precision fixed spray nozzles for lawns and landscape areas.
The H₂O chip produces rapidly oscillating streams for an even spray using less flow than conventional spray nozzles, with large droplets that help resist wind drift. Slower water application helps soil absorb water. A one-piece housing provides durable construction without a moving spray mechanism.
The range offers fixed circular spray patterns, with radius options from 1.5 to 4.6 metres.
The removable pressure compensator at the base of the nozzle helps control flow and reduce misting caused by excess pressure. The top adjustment screw lets you shorten the watering distance.
Male nozzle thread suits Toro 570Z sprinkler bodies. Sprinkler body sold separately. The nozzle can also be used with matching shrubhead adaptors where pop-up is not required, typically installed on top of a riser.
Warranty: Two years.
Toro Precision Fixed Nozzles Specifications & Performance Charts
Hunter MP Rotator Male-Threaded Rotary Nozzles for lawn and garden irrigation.
Multiple rotating streams spread water evenly and help maintain coverage in wind. Slow water application gives the soil more time to absorb water, helping reduce runoff, while low flow allows more sprinklers to run on a zone where the water supply is limited.
Standard MP radius ranges from 2.5 to 10.7 metres. The range includes adjustable part-circle, fixed full-circle and rectangular strip patterns.
The double-pop design helps protect the nozzle from dirt and debris during startup. On adjustable models, the adjustment ring sets the spray arc. The top adjustment screw lets you shorten the watering distance.
The Hunter MP Rotator adjustment tool helps turn the radius adjustment screw and grip the arc adjustment ring on adjustable-arc models. Male nozzle thread suits Toro 570Z sprinkler bodies. Sprinkler body sold separately. The nozzle can also be used with matching shrubhead adaptors where pop-up is not required, typically installed on top of a riser.
Precipitation rate describes how quickly water is applied across the area, measured in millimetres per hour.
Standard MP Rotators apply approximately 10mm/hour. MP800 models apply approximately 20mm/hour. Keep these families on separate irrigation zones. MP strip matching depends on spacing and layout.
Warranty: Three years.
Hunter MP Rotator Nozzle Specifications & Performance Charts
Hunter MP Rotator Nozzle Brochure
Hunter MP Rotator Nozzle System Design Guide
Hunter MP Rotator Nozzle Reference Card
Video 1
Video 2
Video 3
Video 4
Video 5
Video 6
Hunter sprinkler tools and accessories for adjusting watering patterns, servicing gear-drive sprinklers and shutting off individual Pro-Spray or PS Ultra heads.
The white gear-drive adjustment tool has a plastic key for the arc control and a 3/32-inch Allen key for the radius adjustment screw. The orange MP Rotator tool turns the top radius adjustment screw and helps grip the arc adjustment ring on adjustable nozzles.
Replacement riser seals fit around the moving sprinkler stem to help limit leakage during operation. The PGP Ultra / I-20 seal and current-model SRM / PGJ seal fit their respective sprinkler families. The SRM / PGJ spring seat supports the retraction spring within the riser assembly.
The six-nozzle black short-radius rack suits PGP Ultra and I-20 sprinklers, covering a 4.9–7.6 metre radius across the nozzle and pressure options. It provides shorter watering distances than the standard blue nozzles. Radius is the distance from the sprinkler to the outer edge of the watering pattern.
The Pro-Spray body shut-off cap threads onto the sprinkler body to close an unused head. The shut-off nozzle fits at the nozzle position on Pro-Spray and PS Ultra bodies. Both stop watering from the selected head while the rest of the zone can continue operating.
Choose the tool or spare to match the sprinkler model. The SRM replacement seal suits the version with its nozzle in the side of the riser. It does not fit the older SRM with a green nozzle in the top of the riser.

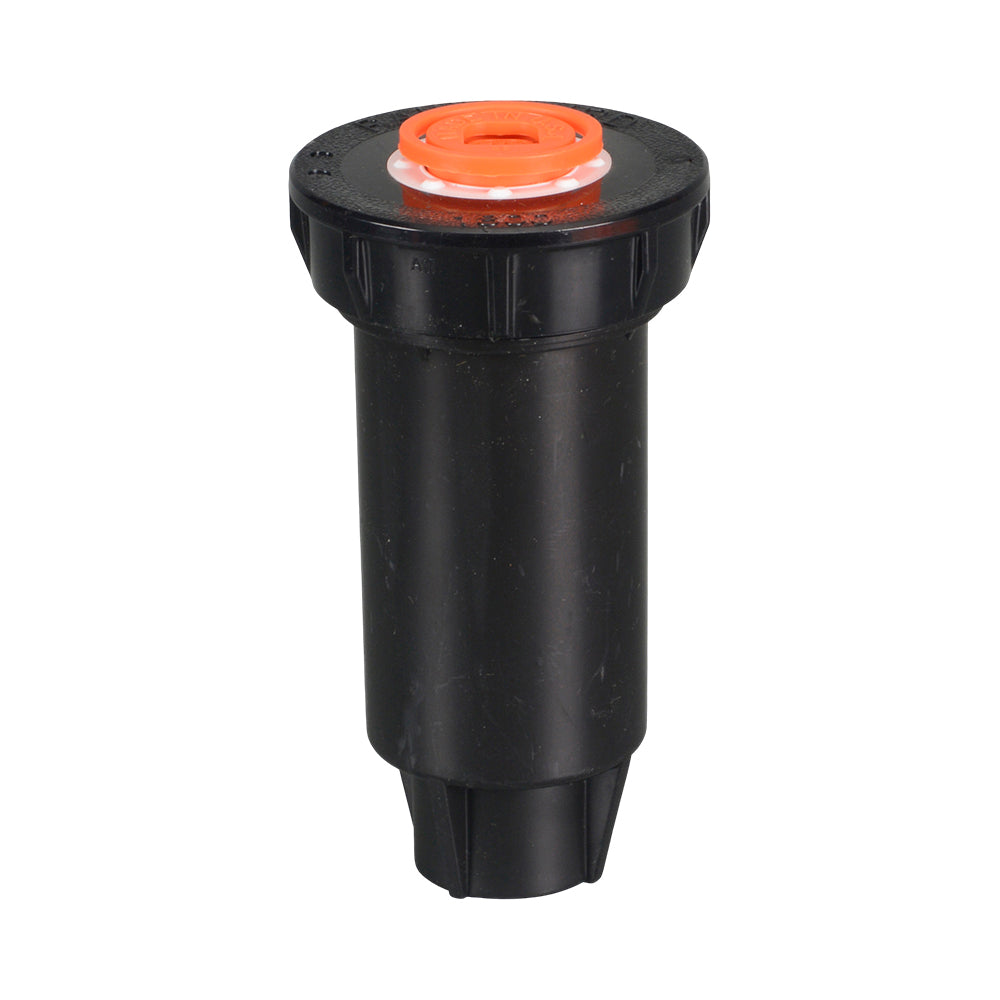

Rain Bird 1800 pop-up sprinkler bodies suit lawn and landscape irrigation using separately selected spray or rotary nozzles. Choose from 2", 3", 4", 6" and 12" pop-up heights to clear the surrounding grass or planting. The inch measurement describes how far the riser extends above the body during watering, rather than the overall body height.
Each body has a 15mm (1/2") female-threaded inlet. Accepts compatible female-threaded sprinkler nozzles. Coverage, spray pattern and flow depend on the nozzle fitted. Nozzles sold separately.
UV-resistant plastic body and corrosion-resistant stainless steel parts. A stainless steel spring retracts the riser after watering. The pressure-activated wiper seal helps limit leakage around the riser and clean debris from the stem as it retracts. Body operating pressure range: 100-480 kPa. Flow and required watering pressure depend on the nozzle fitted. Use the selected nozzle’s performance chart to match coverage and flow to the available pressure.
The ratcheting riser can be turned by hand to aim the nozzle’s watering pattern. Spray distance and arc adjustment depend on the nozzle fitted; follow its adjustment instructions.
The standard 6" and 12" bodies include both bottom and side inlets, giving you a choice of connection position. Single bodies and box quantities are listed in the range.
Supplied with an orange Pop-Top flush plug. After installing the body and before fitting a nozzle, run water through the system to flush dirt and debris from the pipework.
Five-year Rain Bird trade warranty.
Rain Bird Pop-up Body Specifications
Rain Bird Pop-up Body Adjustment & Troubleshooting Guide
Rain Bird MPR spray nozzles for lawns and landscape areas suited to quarter-circle, half-circle, full-circle or rectangular strip coverage.
UV-resistant construction and a stainless steel adjustment screw provide durability.
The range includes fixed circular spray patterns with radius options from 2.4 to 4.6 metres, plus rectangular strip patterns. Strip dimensions vary by model.
Matched watering rates help compatible nozzles apply a similar depth of water across an irrigation zone. The top adjustment screw lets you shorten the watering distance.
Female nozzle thread suits Rain Bird 1800 sprinkler bodies. Sprinkler body sold separately. The nozzle can also be used with matching shrubhead adaptors where pop-up is not required, typically installed on top of a riser.
Precipitation rate describes how quickly water is applied across the area, measured in millimetres per hour.
Rain Bird MPR and HE-VAN nozzles have compatible matched precipitation rates when installed with appropriate spacing.
Warranty: Three years.
Rain Bird MPR Nozzle Specifications & Performance Charts
Rain Bird MPR Nozzle Troubleshooting Guide
Rain Bird Pop-up Body Adjustment and Troubleshooting Guide
Rain Bird HE-VAN Adjustable Spray Nozzles for lawn and garden irrigation.
Large droplets help resist wind drift. Flow Control Technology provides close-in watering to help cover the ground near the sprinkler and reduce dry spots.
The range offers radius options from 2.4 to 4.6 metres, with spray patterns adjustable from 0° to 360°.
Turn the centre collar to set how far around the sprinkler the water sprays; ExactEdge helps hold the chosen setting. The top adjustment screw lets you shorten the watering distance.
Female nozzle thread suits Rain Bird 1800 sprinkler bodies. Sprinkler body sold separately. The nozzle can also be used with matching shrubhead adaptors where pop-up is not required, typically installed on top of a riser.
Precipitation rate describes how quickly water is applied across the area, measured in millimetres per hour.
Rain Bird MPR and HE-VAN nozzles have compatible matched precipitation rates when installed with appropriate spacing.
Warranty: Three years.
Rain Bird HE-VAN High Efficiency Adjustable Nozzle Specifications & Performance Charts
Rain Bird HE-VAN High Efficiency Adjustable Nozzle Brochure
Rain Bird HE-VAN High Efficiency Adjustable Nozzle Troubleshooting Guide
Rain Bird R-VAN Rotary Nozzles for lawn and garden irrigation.
Rotating streams deliver even coverage, with large droplets that help resist wind drift. Water is applied more slowly than with traditional spray nozzles, giving the soil more time to absorb it. UV-resistant construction and a stainless steel protective cap provide durability.
Radius ranges from 2.4 to 7.3 metres. The range includes adjustable part-circle, fixed full-circle and rectangular strip patterns.
Adjustments can be made by hand while the sprinkler is running. Full-circle and strip patterns remain fixed. The pull-up flushing feature helps clear debris, and the mesh filter can be removed for cleaning.
Female nozzle thread suits Rain Bird 1800 sprinkler bodies. Sprinkler body sold separately. The nozzle can also be used with matching shrubhead adaptors where pop-up is not required, typically installed on top of a riser.
Precipitation rate describes how quickly water is applied across the area, measured in millimetres per hour.
R-VAN family rate: Approximately 16mm/hour with square spacing. Match nozzle precipitation rates and layout on a shared irrigation zone.
Warranty: Three-year trade warranty.
Rain Bird R-VAN Rotary Nozzle Brochure
Rain Bird R-VAN Rotary Nozzle Performance Charts
Video 1

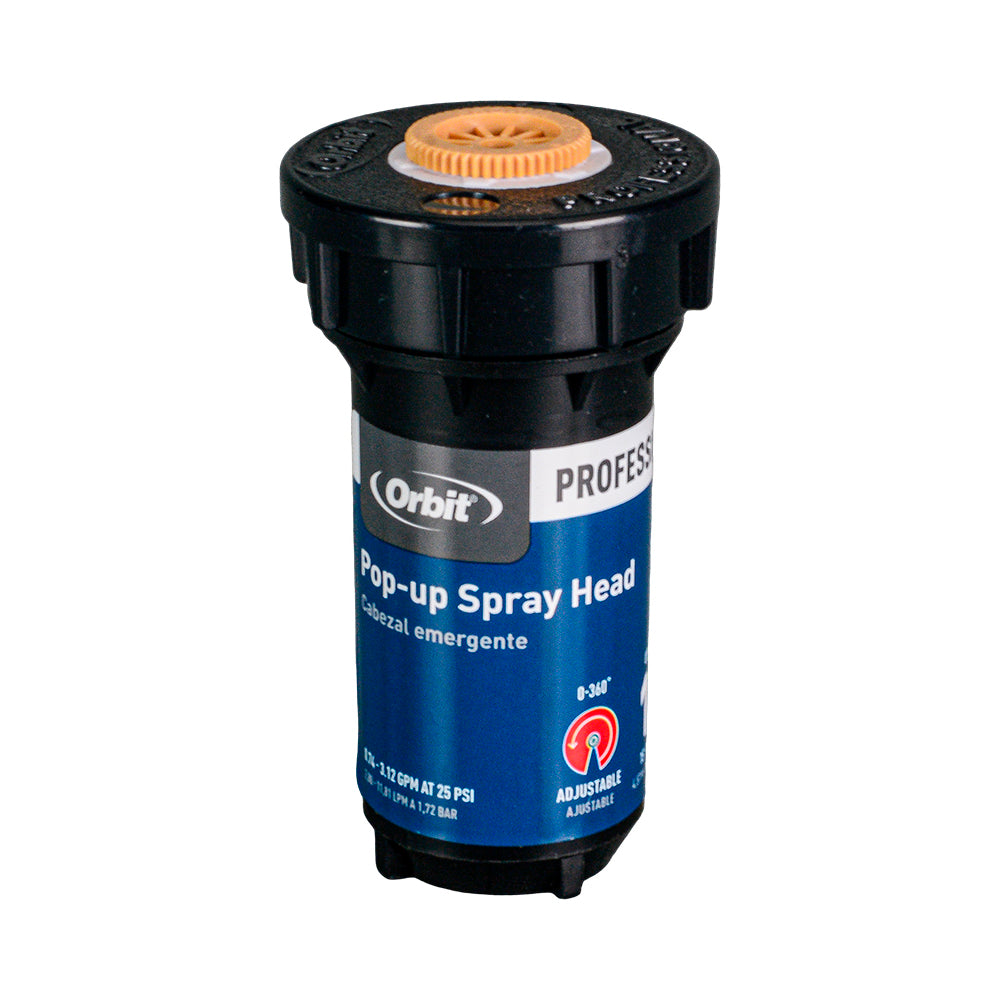

Orbit Professional pop-up sprinklers supplied with adjustable spray nozzles for lawn and garden irrigation. The riser extends during watering and retracts when the system switches off. Adjust the watering sector for corners, edges or open areas, and use the nozzle screw to reduce the watering radius by up to 25%.
The 50mm (2") pop-up is available with 10A, 12A, 15A and 18A nozzles. The 100mm (4") pop-up comes with a 12A nozzle and raises the spray higher above the surrounding grass. Choose a pop-up height that allows the spray to clear the grass.
Flush the pipework before installing the sprinkler to clear dirt and debris. Set the cap level with the finished ground surface and make sure the extended nozzle clears the surrounding grass.
The spray arc is how far around the sprinkler the water sprays. Adjust the arc at the nozzle to cover the required part of the lawn, or open it to a full circle for an open area.
Use the screw on top of the nozzle to reduce the watering radius by up to 25%. Make small adjustments with a flat-blade screwdriver and check the coverage with the water running.
Supplied nozzle performance
| Pop-up height | Supplied nozzle | Watering radius | Flow at 172 kPa |
|---|---|---|---|
| 50mm (2") pop-up | 10A | Up to approximately 3.0m | 2.23–8.97L/min |
| 50mm (2") pop-up | 12A | Up to approximately 3.7m | 2.65–10.56L/min |
| 50mm (2") pop-up | 15A | Up to approximately 4.6m | 2.84–11.39L/min |
| 50mm (2") pop-up | 18A | Up to approximately 5.5m | 2.80–11.81L/min |
| 100mm (4") pop-up | 12A | Up to approximately 3.7m | 2.65–10.56L/min |
Radius is the distance from the sprinkler to the outer edge of the watered area. The approximate maximum watering distances above correspond to the 10ft, 12ft, 15ft and 18ft nozzle sizes. Actual reach changes with pressure and distance adjustment.
Flow figures are at 172 kPa and vary with the spray-arc setting. Both the 50mm and 100mm pop-ups with a 12A nozzle use the same nozzle flow figures.
For head-to-head coverage, space sprinklers so the spray from each one reaches the next. Use the watering distance after adjustment when planning the spacing.
Water use changes with the nozzle, arc setting and pressure. Opening the arc further increases the flow needed by the sprinkler. Check the combined flow of all heads that will run on the same zone.

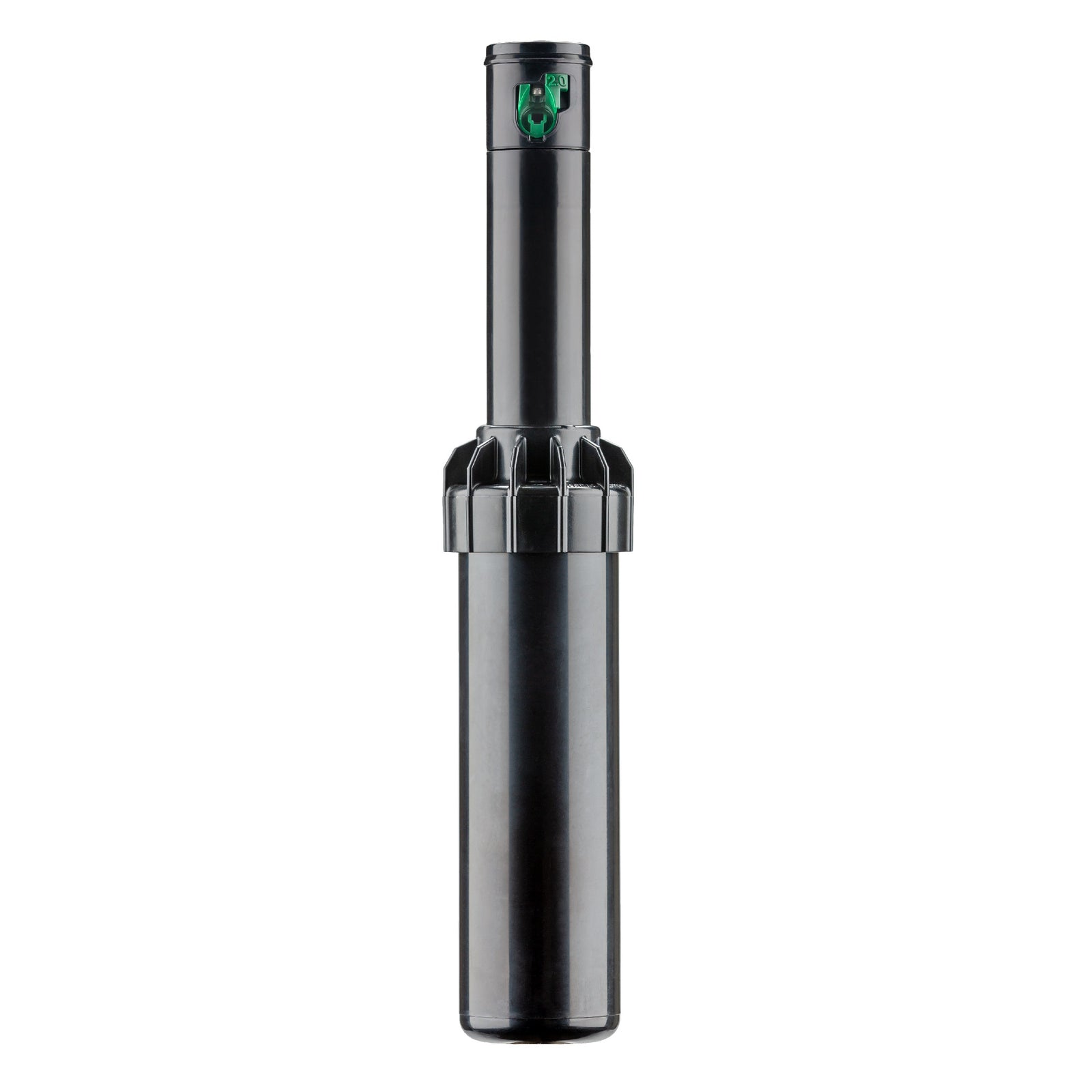

Hunter SRM Gear Drive Sprinklers for lawn reticulation.
This compact, economical gear drive waters smaller turf areas with a rotating stream. Interchangeable nozzles suit different watering distances.
The supplied nozzle options cover a 4.3–10.7 metre radius across the recommended operating pressure range of 170–380 kPa. Radius is the distance from the sprinkler to the outer edge of the watering pattern.
The arc adjusts from 40° to 360° for part-circle or full-circle watering. The top adjustment screw lets you shorten the watering distance. Choose the nozzle for both watering distance and arc so sprinklers on the same zone apply water at similar rates.
The Hunter gear drive adjustment tool is required for arc adjustment and is also used for nozzle installation and radius adjustment.
The plastic body has a 100mm pop-up height and a 15mm (1/2") BSP female inlet. Its overall height when retracted is 180mm. The removable filter screen can be cleaned if debris builds up.
Eight standard nozzle choices are supplied, with the 2.0 nozzle factory fitted. The nozzle trajectory is approximately 14°.
Warranty: One year.
Service parts include the replacement riser seal and spring seat. Check the seal’s model-identification information before ordering.

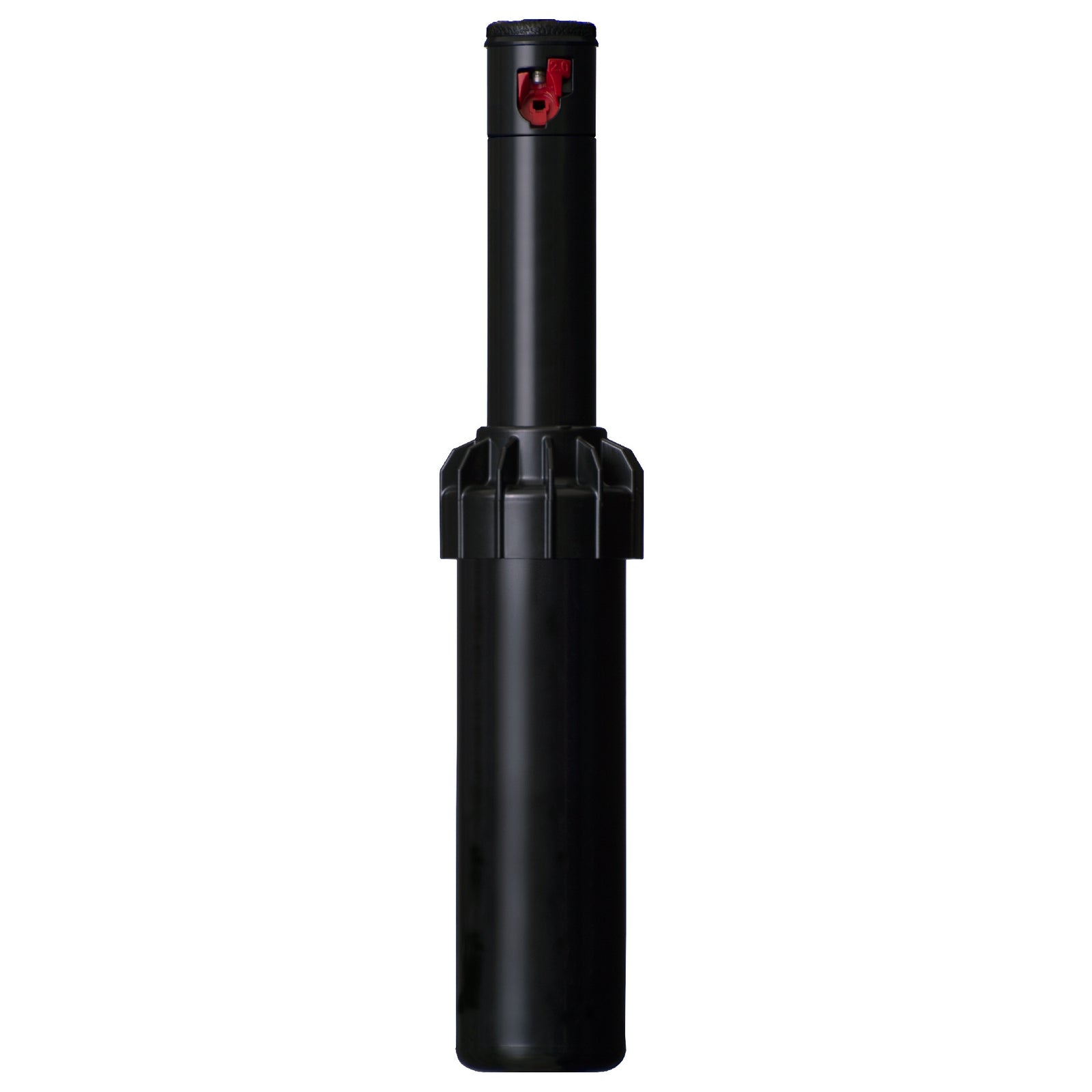

Hunter PGJ Gear Drive Sprinklers for lawn reticulation.
Its compact body suits smaller lawn areas, with interchangeable nozzles for different watering distances. Durable construction supports a long service life.
The PGJ provides a 4.3–10.7 metre radius across the supplied nozzle options. Radius is the distance from the sprinkler to the outer edge of the watering pattern. Recommended operating pressure is 170–380 kPa.
The spray arc adjusts from 40° to 360°. The top adjustment screw lets you shorten the watering distance. Choose the nozzle for both watering distance and arc so sprinklers on the same zone apply water at similar rates.
The Hunter gear drive adjustment tool is required for arc adjustment and is also used for nozzle installation and radius adjustment.
The plastic body has a 100mm pop-up height and a 15mm BSP female inlet. Its overall height when retracted is 180mm. The removable filter screen can be cleaned if debris builds up.
QuickCheck lets you turn the sprinkler head by hand and feel the stops at either end of the watering arc.
Nozzle trajectory: Approximately 15°. Eight standard nozzle choices are supplied. The 2.0 nozzle is factory fitted.
Warranty: Two years.
Service parts include the replacement riser seal and spring seat. Check the seal’s model-identification information before ordering.
Hunter PGJ Gear Drive Sprinkler Specifications
Hunter PGJ Nozzle Performance Guide

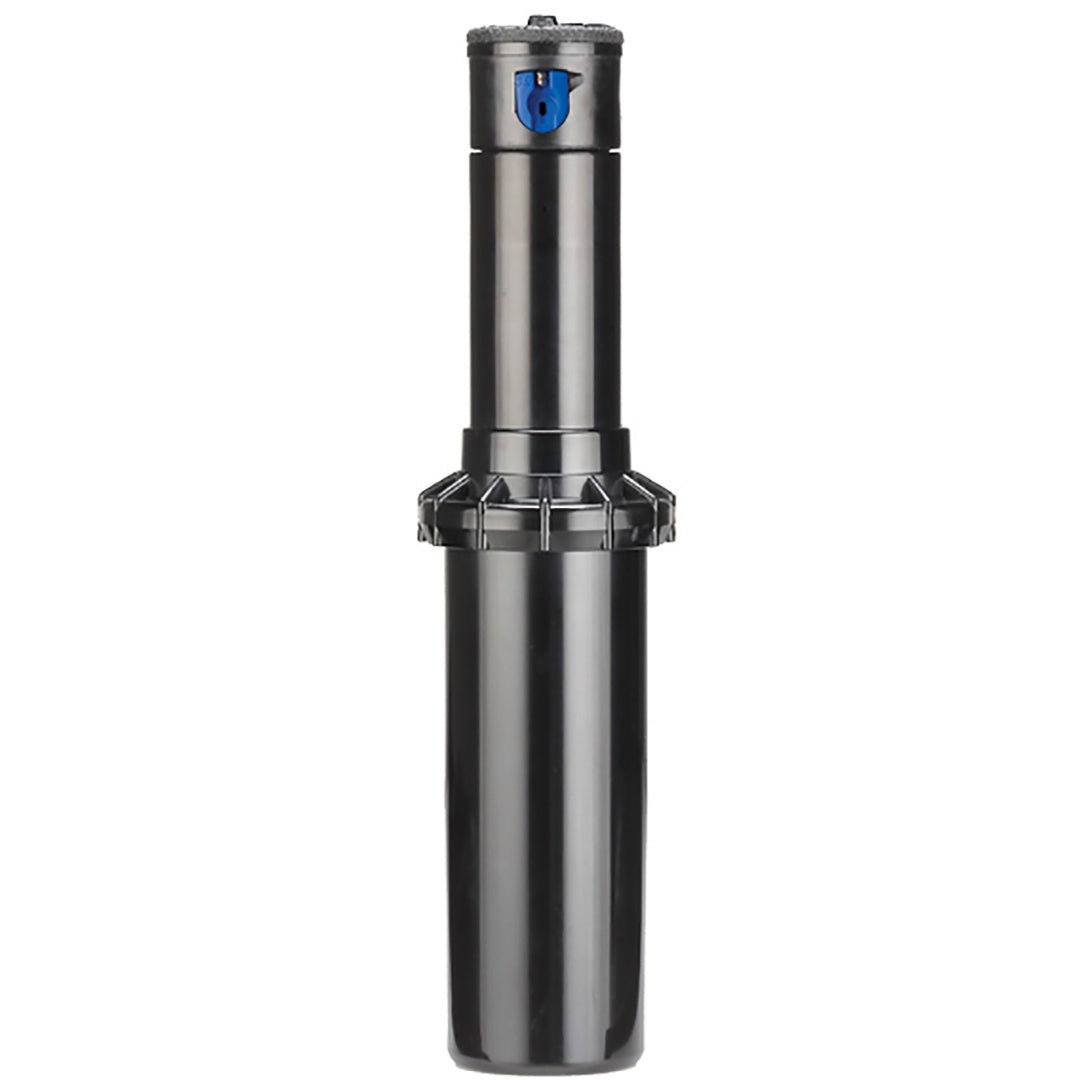

Hunter PGP Ultra Gear Drive Sprinklers for lawn reticulation.
Automatic arc return brings the sprinkler back to its chosen pattern if the turret is turned out of position. A non-strippable drive helps protect the mechanism, while standard and low-angle nozzles provide flexibility across open lawn areas.
The PGP Ultra provides a 7.3–14 metre radius across the supplied nozzle options. Radius is the distance from the sprinkler to the outer edge of the watering pattern. Recommended operating pressure is 170–450 kPa.
The spray arc adjusts from 50° to 360°. The top adjustment screw lets you shorten the watering distance. Choose the nozzle for both watering distance and arc so sprinklers on the same zone apply water at similar rates.
The Hunter gear drive adjustment tool is required for arc adjustment and is also used for nozzle installation and radius adjustment.
The 100mm pop-up retracts after watering, while the fixed shrub model provides above-ground watering. Both have a 20mm BSP female inlet and a 190mm body height.
QuickCheck lets you turn the sprinkler head by hand and feel the stops at either end of the watering arc.
Each sprinkler comes with eight blue standard and four grey low-angle nozzles. Standard trajectory: 25°. Low-angle trajectory: 13°.
Warranty: Five years.
For shorter watering distances, the black short-radius nozzle rack provides a 4.9–7.6 metre radius across nozzle and pressure options.
A replacement riser seal is available for servicing PGP Ultra and I-20 sprinklers.
Hunter PGP Gear Drive Sprinkler Specifications
Hunter PGP Nozzle Performance Guide

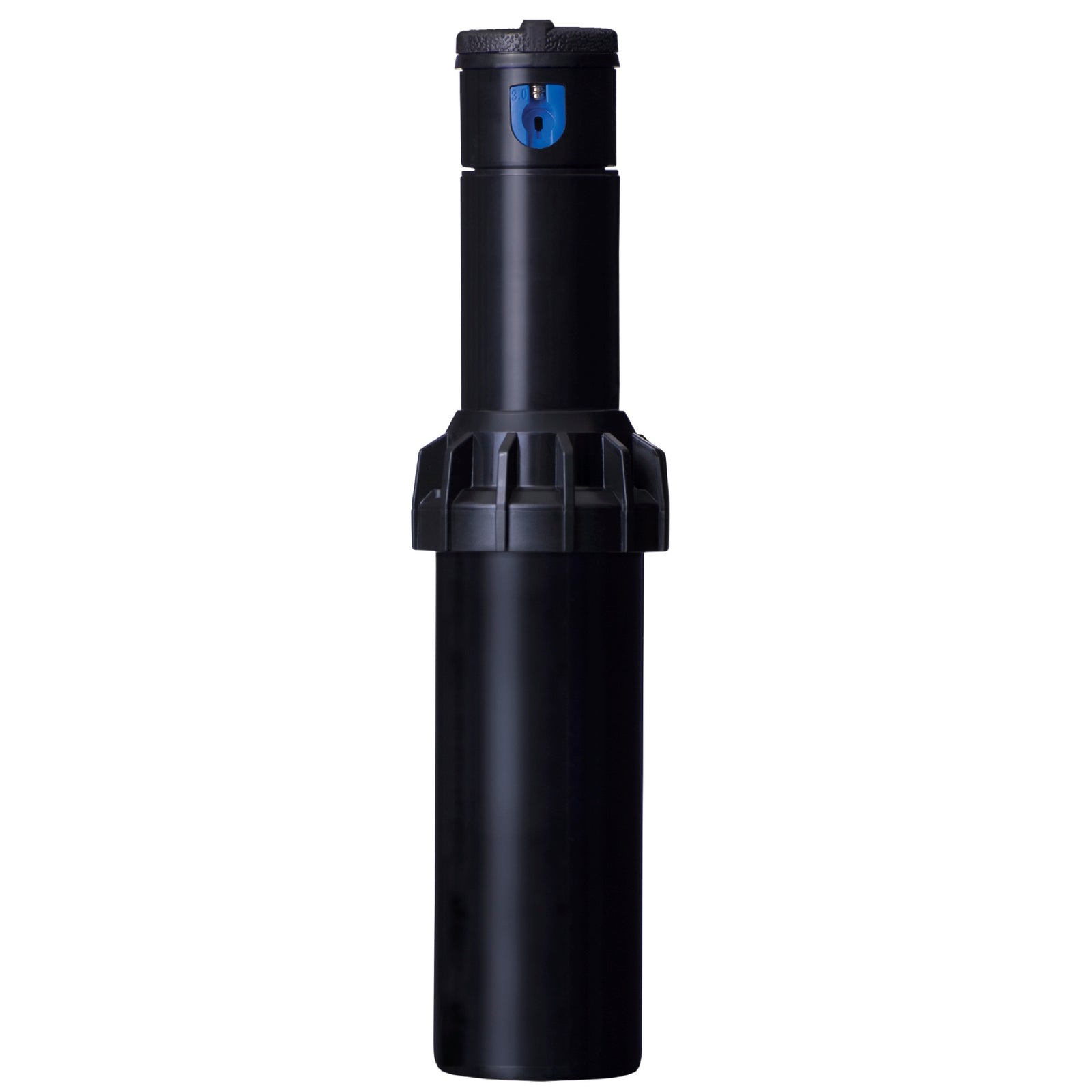

Hunter I-20 gear drive sprinklers combine tough body construction with individual flow shutoff and a built-in check valve for lawn and commercial turf irrigation.
The 100mm pop-up models have a tough rubber cover and a choice of plastic or stainless steel riser. The stainless steel riser adds wear resistance in demanding conditions. Both have automatic arc return, which restores the chosen watering pattern if the turret is turned out of position. The non-strippable drive helps protect the mechanism if the sprinkler is turned against its normal direction of travel.
The supplied blue standard and grey low-angle nozzles cover a 7.3–14 metre radius across the recommended pressure range of 170–450 kPa. Radius is the distance from the sprinkler to the outer edge of the watering pattern. Standard nozzles have a 25° trajectory, while the grey nozzles produce a lower 13° stream.
The spray arc adjusts from 50° to 360°, and the top adjustment screw lets you shorten the watering distance. Choose the nozzle for both watering distance and arc so sprinklers on the same zone apply water at similar rates.
The Hunter gear drive adjustment tool is required for arc adjustment and is also used for nozzle installation and radius adjustment.
FloStop allows water to be stopped at one sprinkler for nozzle changes and servicing while the rest of the zone continues operating. A built-in check valve helps prevent water draining through lower sprinkler heads after the system switches off, holding back up to 3 metres of elevation.
Each sprinkler has a 20mm (3/4") BSP female inlet and is supplied with eight standard and four low-angle nozzles. Plastic and stainless steel models are available individually or in boxes of 20.
The overall body height is 190mm when retracted.
Warranty: Five years.
For shorter watering distances, the black short-radius nozzle rack provides a 4.9–7.6 metre radius across nozzle and pressure options.
A replacement riser seal is available for servicing PGP Ultra and I-20 sprinklers.
Hunter I-20 Gear Drive Sprinkler Specifications
Hunter I-20 Nozzle Performance Guide

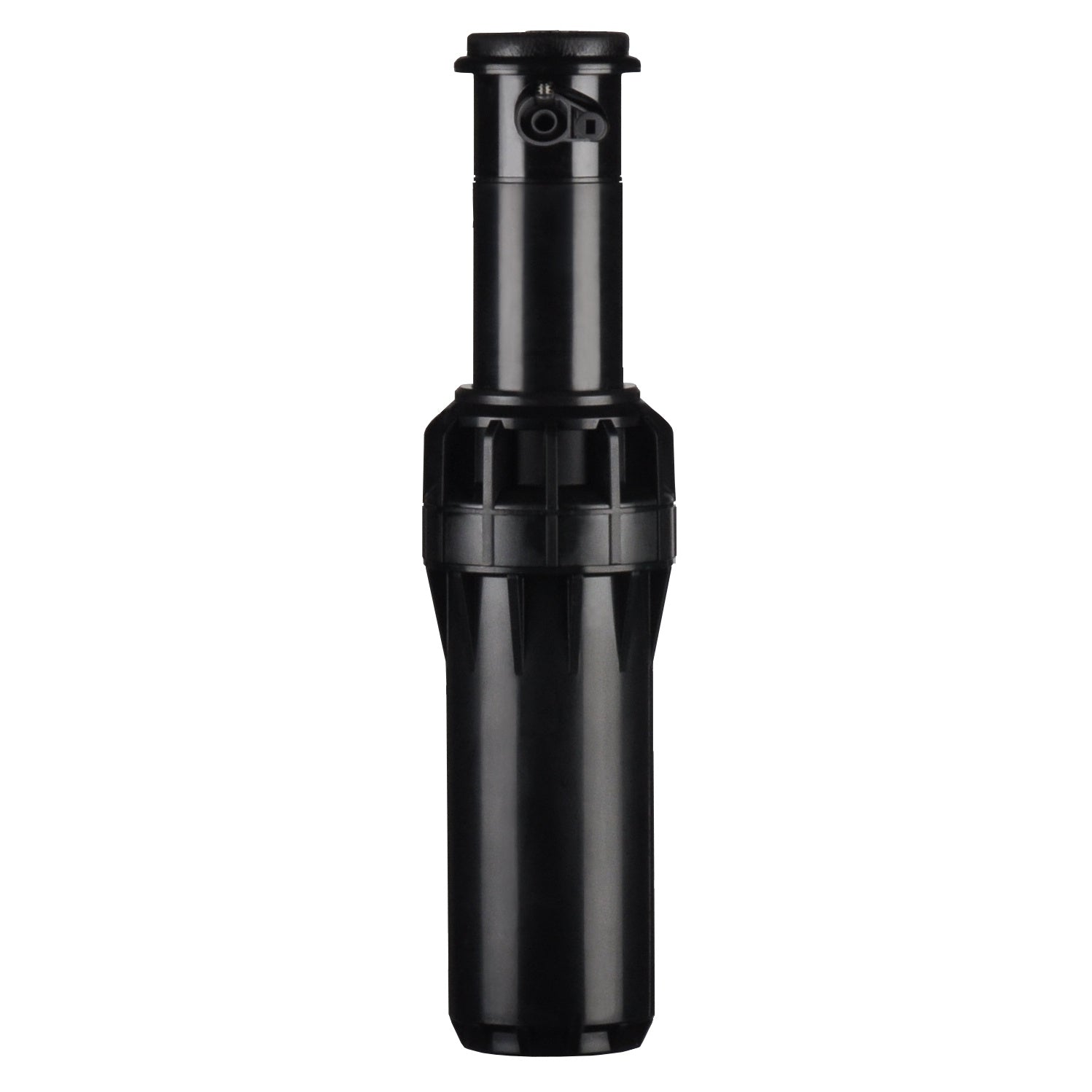

Hunter I-25 gear drive sprinklers for large turf irrigation. Its sturdy construction supports a long service life.
Automatic arc return restores the chosen pattern after the turret is moved, while the non-strippable drive helps protect the mechanism. The colour coding makes the different nozzle sizes easy to identify.
The I-25 provides an 11.9–21.6 metre radius across its nozzle configurations. Radius is the distance from the sprinkler to the outer edge of the watering pattern. Recommended operating pressure is 250–700 kPa.
The spray arc adjusts from 50° to 360°. The top adjustment screw lets you shorten the watering distance. Choose the nozzle for both watering distance and arc so sprinklers on the same zone apply water at similar rates.
The Hunter gear drive adjustment tool is required for arc adjustment and is also used for nozzle installation and radius adjustment.
The 100mm pop-up is available with a plastic or stainless steel riser. Both versions have a 25mm BSP female inlet and a 200mm retracted body height.
The built-in check valve holds back up to 3 metres of elevation, reducing drainage through lower heads after watering.
Five nozzle choices are supplied, with a 25° trajectory. The overall coverage and flow ranges include nozzle sizes beyond the five supplied.
Warranty: Five years.
Hunter I-25 Gear Drive Sprinkler Specifications
Hunter I-25 Nozzle Performance Guide

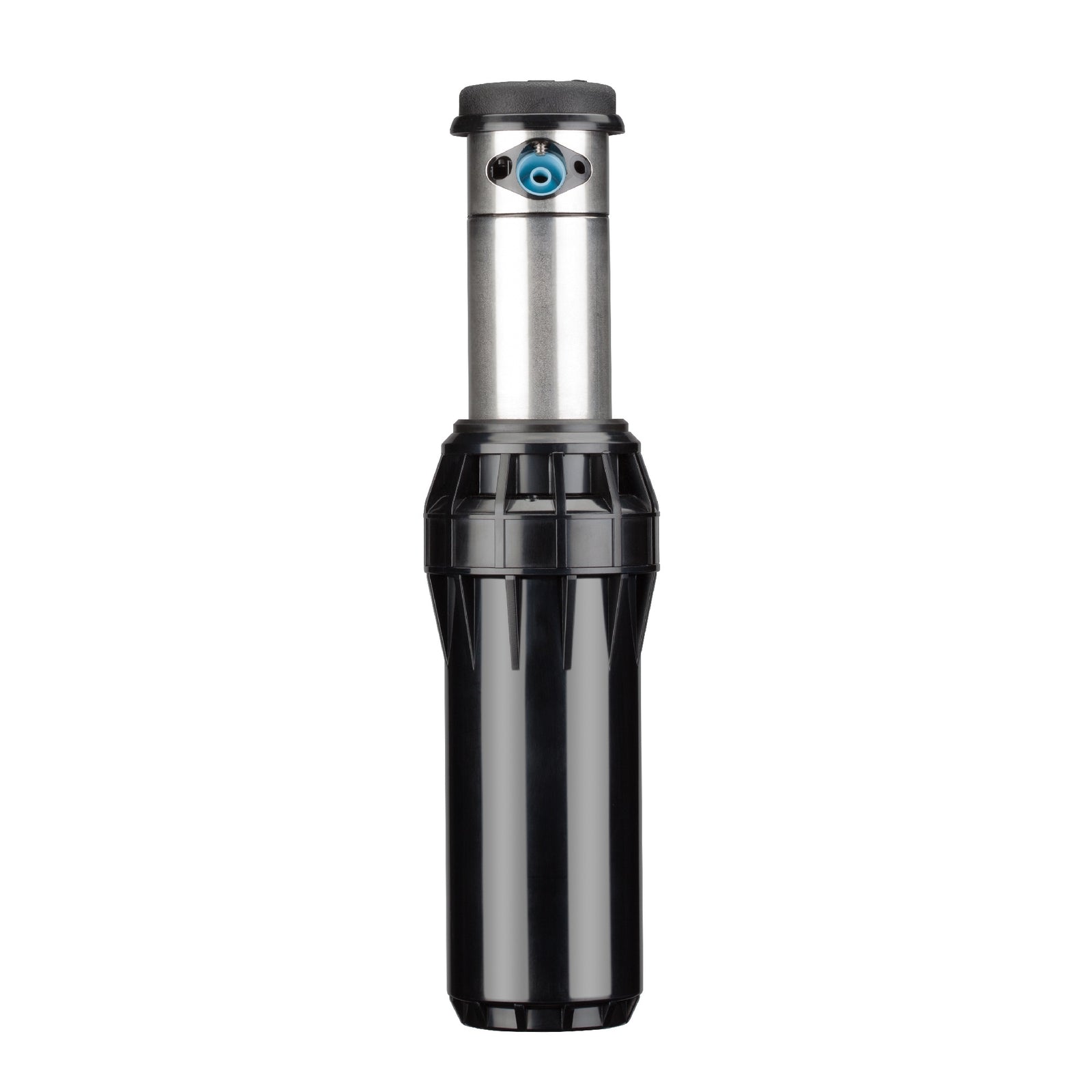

Hunter I-40 Gear Drive Sprinklers for large turf irrigation.
The Hunter gear drive adjustment tool is required for arc adjustment and is also used for nozzle installation and radius adjustment.
The I-40 combines a rugged body and stainless steel riser to help withstand wear over time. The adjustable model has automatic arc return and a non-strippable drive; the opposing-nozzle model provides fixed full-circle watering.
The adjustable model covers a 13.1–21.3 metre radius across its nozzle configurations. The opposing-nozzle model covers 15.2–23.2 metres, with additional streams for distribution nearer the sprinkler. Recommended operating pressure is 250–700 kPa.
The adjustable model sets from 50° to 360°. The opposing-nozzle model has a fixed 360° pattern. Nozzle selection and operating pressure determine watering distance and flow. Choose the nozzle for both watering distance and arc so sprinklers on the same zone apply water at similar rates.
Both models use a stainless steel riser with a 100mm pop-up height. The overall body height is 200mm when retracted, with a 25mm BSP female inlet.
The built-in check valve holds back up to 4.5 metres of elevation, reducing drainage through lower heads after watering.
Six nozzle choices are supplied per sprinkler, with a 25° trajectory.
Warranty: Five years.
Hunter I-40 Gear Drive Sprinkler Specifications
Hunter I-40 Nozzle Performance Guide

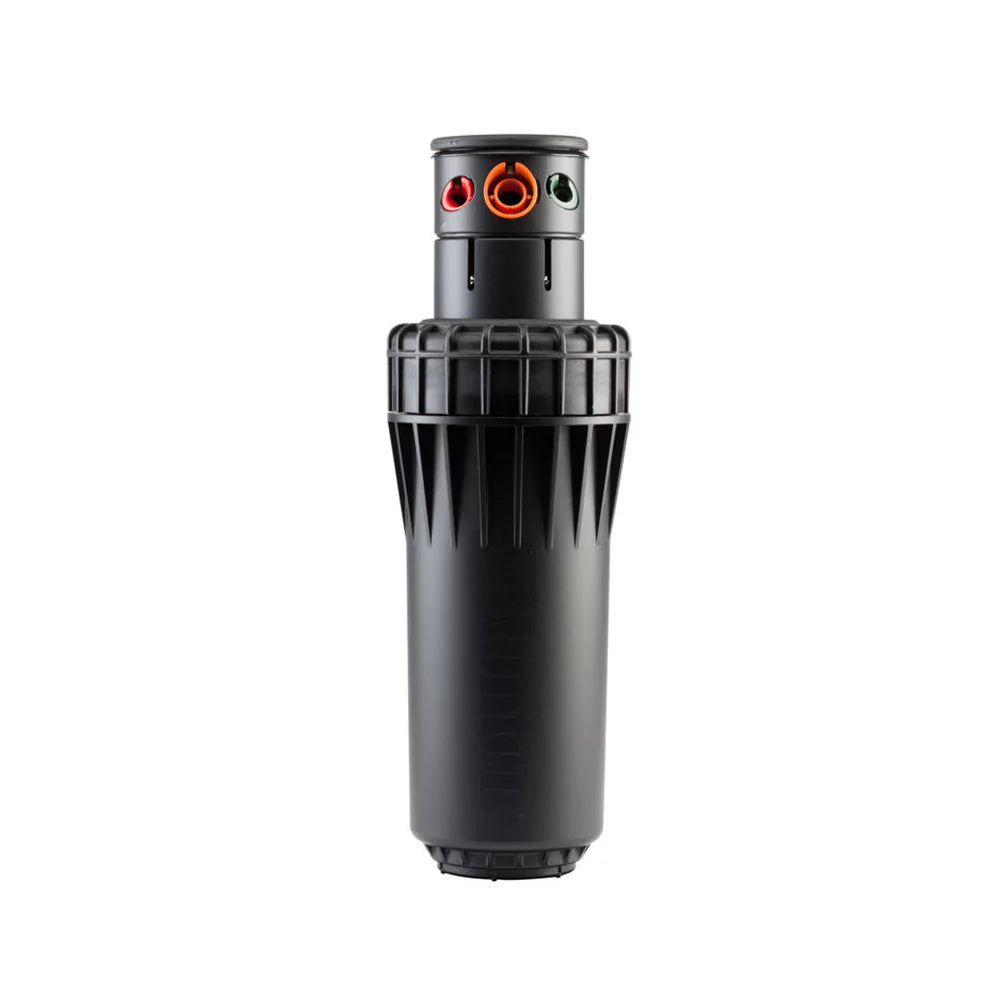

Hunter I-90 Gear Drive Sprinklers for large turf irrigation. Its robust body is built for a long service life.
The Hunter gear drive adjustment tool is required for arc adjustment and is also used for nozzle installation and radius adjustment.
The I-90 provides long-range watering for large parks, sports fields and other open turf areas. Three nozzles distribute water across the throw, with forward-facing nozzles on the adjustable model and opposing nozzles on the full-circle model.
The adjustable model covers a 20.1–29.6 metre radius across its nozzle configurations. The opposing-nozzle model covers a 22.3–31.4 metre radius. Recommended operating pressure is 550–830 kPa.
The adjustable model sets from 40° to 360°. The opposing-nozzle model waters a fixed 360° full circle. Nozzle selection and operating pressure determine watering distance and flow. Choose the nozzle for both watering distance and arc so sprinklers on the same zone apply water at similar rates.
The 80mm pop-up retracts into a 280mm body with a 40mm BSP female inlet.
The built-in check valve holds back up to 2 metres of elevation, reducing drainage through lower heads after watering.
Supplied with 8 nozzle choices.
Warranty: Five years.
K-Rain RPS Select 111mm Pop-Up Rotor for turf irrigation.
Four built-in nozzle settings let you adjust flow to suit the arc with a turn of a screwdriver. This helps balance watering across the zone, with no loose nozzle inserts to change.
Coverage is a 10–14 metre radius across the nozzle settings. Operating pressure is 210–480 kPa.
The spray arc adjusts from 40° to 360° at the top of the sprinkler. The top radius adjustment screw lets you shorten the watering distance.
The body has a 111mm pop-up height and a 20mm (3/4") BSP female inlet. Its overall height when retracted is 187mm. The nozzle trajectory is 24°.
Warranty: Five years.
K-Rain RPS Select Gear Drive Sprinkler Brochure & Performance Charts
K-Rain RPS Select Gear Drive Sprinkler Installation Guide

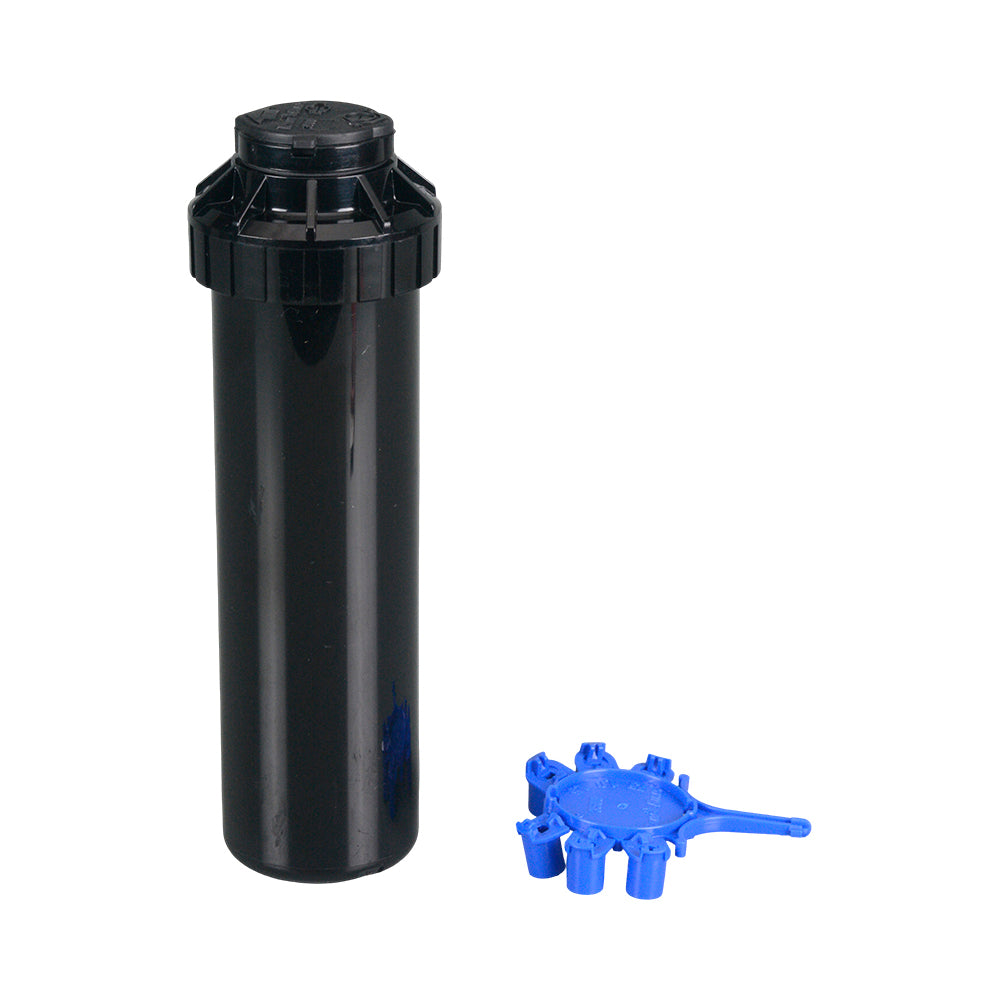

Rain Bird 3500 pop-up rotor for lawn and garden reticulation.
The compact 3500 rotor suits smaller lawn areas, with Rain Curtain nozzles for close-in watering and consistent coverage across the throw. The removable filter screen can be cleaned if debris builds up.
The nozzle choices provide a 4.6–10.7 metre radius. Radius is the distance from the sprinkler to the outer edge of the watering pattern. Operating pressure is 170–380 kPa.
Adjust the arc from the top using a flat-blade screwdriver. The top adjustment screw lets you shorten the watering distance by up to 35%. Choose the nozzle for both watering distance and arc so sprinklers on the same zone apply water at similar rates.
Six Rain Curtain nozzle choices are supplied. The water-lubricated gear drive supports dependable rotation. The wiper seal protects the moving stem from debris, and the factory arc setting is 180°.
The plastic riser raises the nozzle 102mm above the cover. The body is 168mm tall when retracted, with a 15mm (1/2") female threaded inlet.
Warranty: Three-year trade warranty.
Rain Bird 3500 Series Sprinkler Specifications
Rain Bird 3500 Series Sprinkler User Guide
Rain Bird 5000 Series rotors for lawn and landscape irrigation.
Rain Curtain nozzles produce large droplets to help resist wind drift, with close-in watering around the sprinkler. The heavy-duty case and wiper seal help protect the working parts from debris. The removable filter can be cleaned during servicing.
The standard-pressure models cover a 7.6–15.2 metre radius across nozzle and pressure options. The stainless steel PRS model covers 8.8–14.1 metres across its supplied nozzles at 400 kPa inlet pressure. Radius is the distance from the sprinkler to the outer edge of the watering pattern.
The spray arc adjusts from 40° to 360°. The top adjustment screw lets you shorten watering distance by up to 25%. Eight standard and four low-angle nozzles provide different flow and coverage options. Choose the nozzle for both watering distance and arc so sprinklers on the same zone apply water at similar rates.
The plastic 5000 PLUS model adds individual flow shutoff and a SAM check valve. Shutoff allows nozzle changes and servicing while the rest of the zone remains on; SAM reduces drainage through lower heads after watering.
The stainless steel PLUS model adds a stainless steel-covered riser, SAM check valve and PRS pressure regulation. SAM reduces drainage from lower heads after watering, while PRS regulates nozzle pressure to approximately 310 kPa.
The nominal 100mm pop-up bodies have a 20mm female inlet. Nozzle selection, pressure and model determine watering radius and flow; the specifications separate the standard and pressure-regulated configurations.
The overall body height is 185mm when retracted.
Warranty: Five-year Rain Bird trade warranty.
Rain Bird 5000 Series Gear Drive Sprinkler Brochure
Rain Bird 5000 Series Sprinkler User Guide

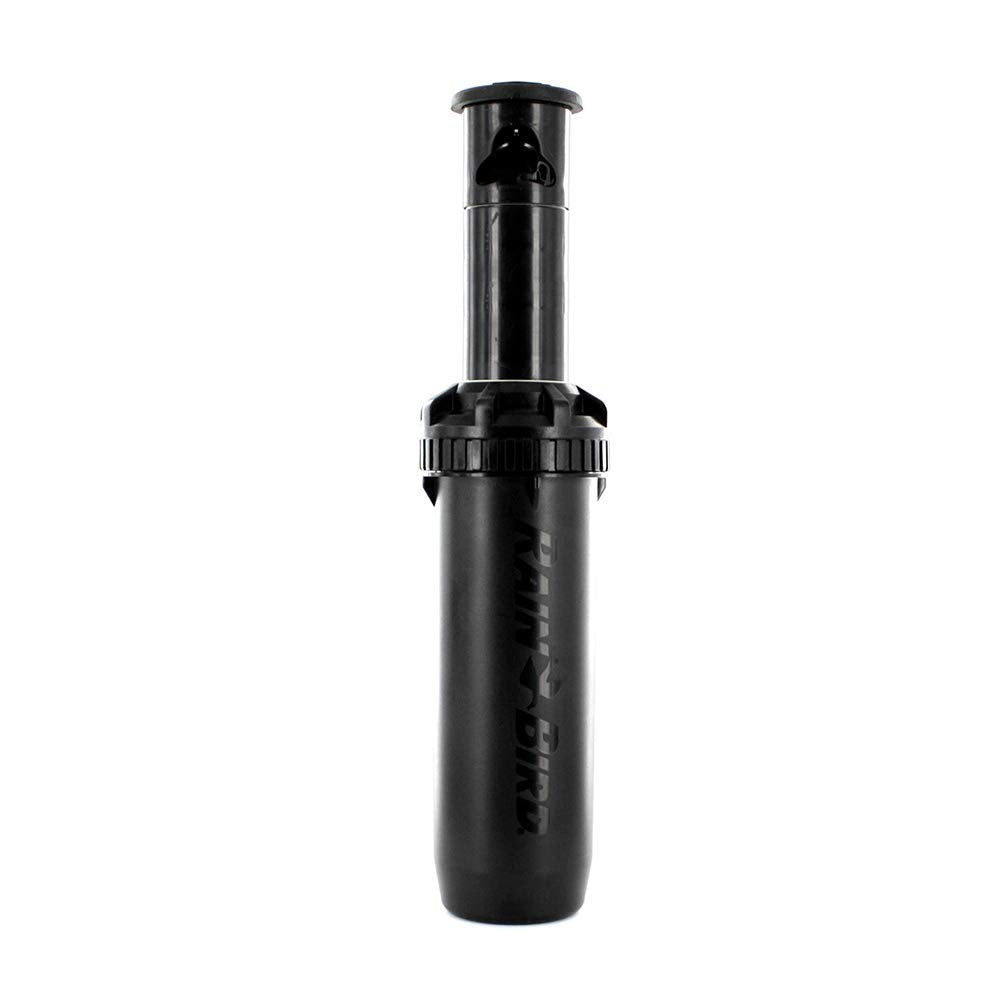

Rain Bird Falcon 6504 Pop-Up Rotor for parks, playing fields and large turf areas.
Its three-port Rain Curtain nozzles spread water close to the sprinkler, through the middle of the throw and out to the edge. A heavy-duty spring helps retract the riser after watering, while the wiper seal helps keep debris out.
The nozzle choices provide an 11.3–19.8 metre radius. Radius is the distance from the sprinkler to the outer edge of the watering pattern. Operating pressure is 210–620 kPa.
Adjust the arc from the top using a flat-blade screwdriver. The top adjustment screw lets you shorten the watering distance. Choose the nozzle for both watering distance and arc so sprinklers on the same zone apply water at similar rates.
The Seal-A-Matic check device holds back up to 3.1 metres of elevation to reduce low-head drainage. A water-lubricated gear drive and stainless steel trip gears provide durable operation.
The plastic riser raises the nozzle 102mm above the cover. The body is 216mm tall when retracted, with a 25mm (1") female threaded inlet.
Warranty: Five-year trade warranty.

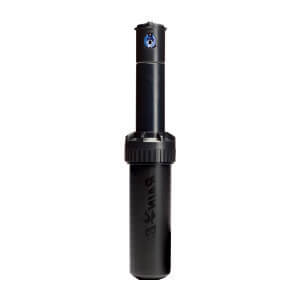

Rain Bird 8005 Pop-Up Rotor for parks, playing fields and large turf areas.
Rain Curtain nozzles provide long-range watering. Memory Arc restores the watering pattern if the turret is moved, while the non-strippable drive helps protect the mechanism from damage.
The nozzle choices provide an 11.9–24.7 metre radius. Radius is the distance from the sprinkler to the outer edge of the watering pattern. Operating pressure is 350–690 kPa.
Both arc stops adjust from the top using a slotted screwdriver, with the sprinkler running or switched off. Set a part circle from 50° to 330°, or a non-reversing full circle. Nozzles can be changed from the front without special tools. Choose the nozzle for both watering distance and arc so sprinklers on the same zone apply water at similar rates.
The SAM check device holds back up to 3.1 metres of elevation. A heavy-duty spring retracts the riser after watering.
The plastic riser raises the nozzle 127mm above the cover. The body is 257mm tall when retracted, with a 25mm (1") BSP female inlet.
Warranty: Five-year trade warranty.
Rain Bird 8005 Sprinkler Specifications
Rain Bird 8005 Sprinkler User Guide

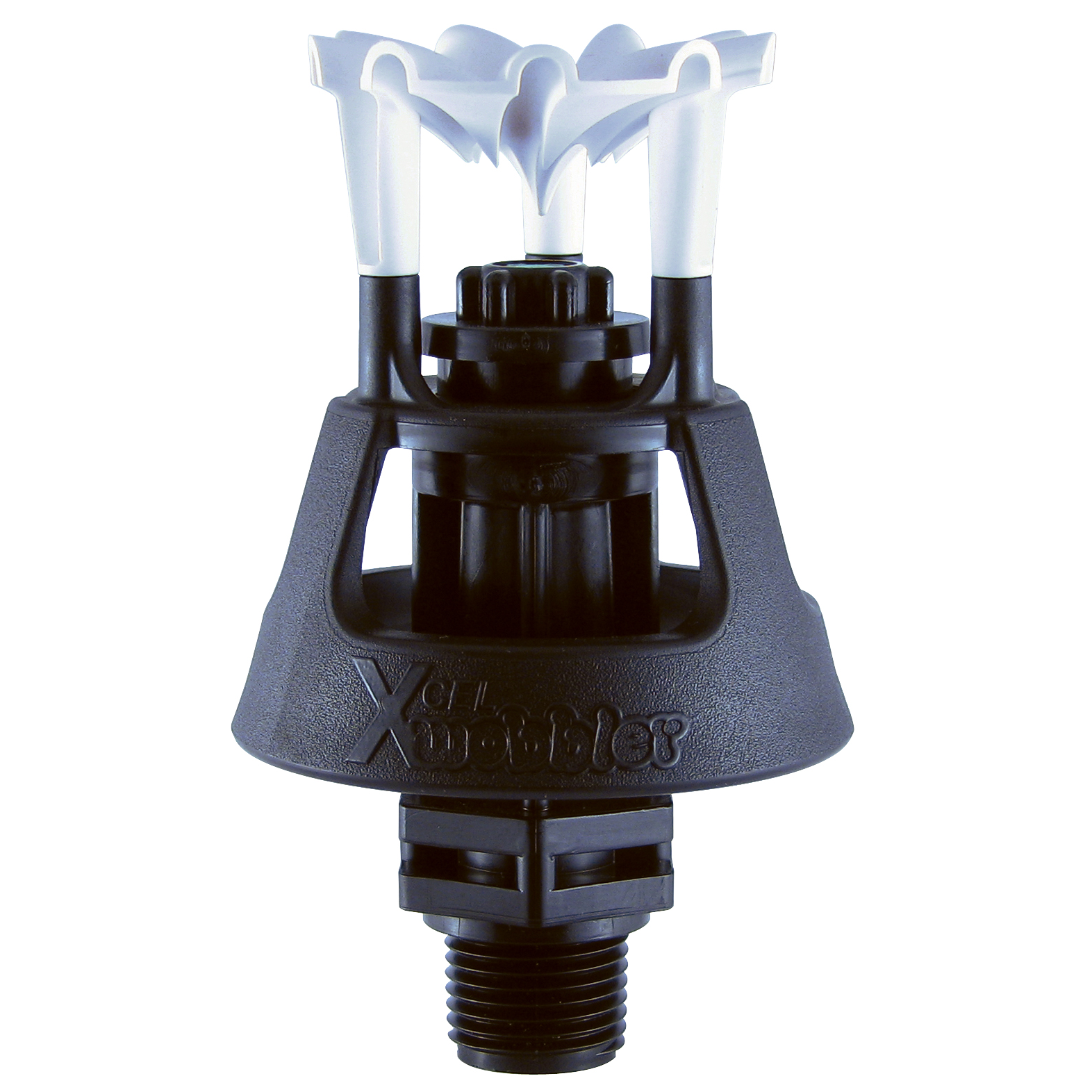

Senninger Xcel-Wobbler sprinklers for nurseries, crop beds and under-tree irrigation. Water turns a grooved deflector with a wobbling action, spreading a rain-like full-circle pattern over a broad area at low pressure. Choose the 18° white-top or 24° black-top model to suit the spray height and coverage needed.
Sprinkler heads are supplied without nozzles.
The moving deflector spreads water across the area around the head continuously. This reduces the concentration of water in one place as it waters, helping protect the soil surface and maintain water infiltration. A counterbalanced design reduces vibration for smoother operation.
White-top 18° models have a lower trajectory. Black-top 24° models produce a higher trajectory and a larger wetted diameter in the chart. Both angles are available with 15mm or 20mm male inlets. The best choice depends on the available clearance and required coverage.
Nozzle comparison at 138 kPa
Diameters below are measured at a 0.46m riser height. Select the nozzle to suit the required flow and coverage.
| Nozzle | Opening | Flow (L/h) | 18° White Diameter (m) | 24° Black Diameter (m) |
|---|---|---|---|---|
| #6 Gold | 2.38mm | 250 | 11.7 | 13.7 |
| #7 Lime | 2.78mm | 341 | 12.4 | 14.3 |
| #8 Lavender | 3.18mm | 450 | 12.5 | 14.3 |
| #9 Grey | 3.57mm | 577 | 12.8 | 15.4 |
| #10 Turquoise | 3.97mm | 713 | 13 | 15.4 |
| #11 Yellow | 4.37mm | 865 | 13.1 | 15.7 |
| #12 Red | 4.76mm | 1038 | 13.6 | 15.9 |
| #13 White | 5.16mm | 1222 | 13.6 | 16 |
| #14 Blue | 5.56mm | 1415 | 13.7 | 16.2 |
Coverage figures are wetted diameters measured at a 0.46m riser height. Actual coverage depends on nozzle size, pressure, mounting height and field conditions. Wetted diameter is not sprinkler spacing.
Mount upright on a firm, well-supported riser at least 460mm high. Keep the spray clear of nearby plants. Use the selected nozzle and trajectory data when planning overlapping coverage and spacing.
Warranty: 2 years.

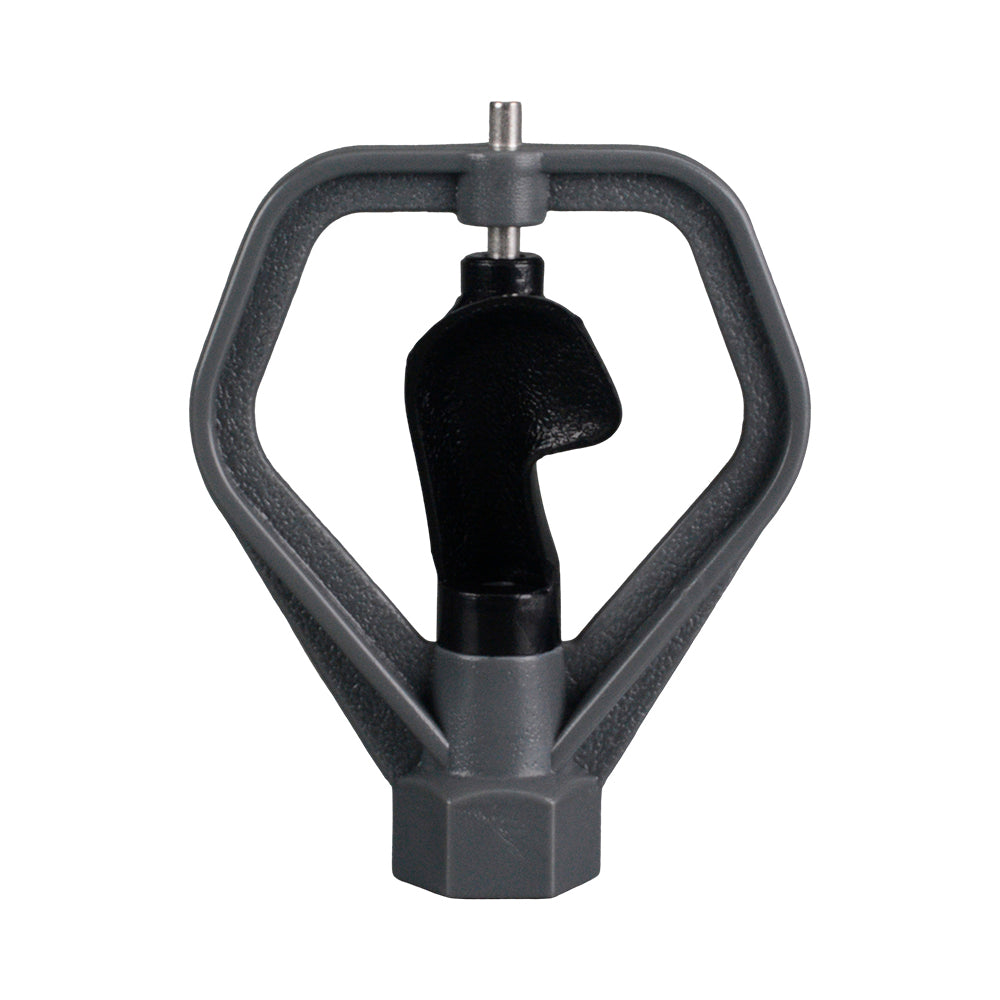

Butterfly sprinklers for garden and agricultural watering. Water turns the spinner, throwing the spray upwards and around the head. The water then falls onto the plants from above, helping it reach those behind nearer foliage.
Position each head so the spray can clear nearby foliage. How well it reaches behind plants depends on the mounting height and the height and density of the foliage.
Both standard brass inlet sizes operate at 150–250 kPa. At 200 kPa they use 16L/min and reach a 6.1m radius, equivalent to a 12.2m wetted diameter. The chart gives 14.5L/min and a 6.0m radius at 150 kPa, or 18L/min and a 6.2m radius at 250 kPa.
The Raindrop models use 17L/min at 200 kPa, with a maximum operating pressure of 200 kPa. Space them up to 6m apart in a triangular layout with staggered rows, or up to 5m apart in a square layout. These measurements describe the distance between heads rather than the watering radius of one sprinkler.
Rotoframe models have a 15mm or 20mm female BSP inlet and a 5mm nozzle. Both the spinner and frame rotate. At 200 kPa, the manufacturer performance table gives 14.7L/min and a 12m wetted diameter, equivalent to a 6m radius.
The zinc/chrome model has a 15mm male inlet and a 6m watering radius.
Detailed manufacturer specifications and performance data are not available for the basic plastic butterfly sprinkler (15mm female thread).
15mm & 20mm Brass Butterfly Sprinkler Specifications
15mm & 20mm Raindrop Butterfly Sprinkler Specifications
15mm & 20mm Rotoframe Butterfly Sprinkler Specifications
Antelco Rotor Max butterfly sprinklers for greenhouses, vegetable beds and under-tree watering. Water turns a spinner with two outlets, spraying upwards and around the head in a full circle. The 25° spray rises above the sprinkler before falling onto the surrounding plants.
Each sprinkler is supplied with the colour-coded nozzle for that model. The nozzle opening controls water flow, while water pressure also affects flow and coverage.
Mount upright on a suitable riser with a matching female BSP connection. Position the head so nearby leaves and stems do not block the spray. Allow for overlapping coverage when planning sprinkler spacing.
Nozzle comparison
At 200 kPa, the green nozzle uses the least water and covers a smaller area. The red and black nozzles both reach a 13m wetted diameter at this pressure, but the black nozzle delivers more water. The purple nozzle has the highest flow and reaches a 13.8m diameter.
| Supplied Nozzle | Flow at 200 kPa | Wetted Diameter at 200 kPa |
|---|---|---|
| 2.4mm green | 315L/h | 10m |
| 2.8mm red | 400L/h | 13m |
| 3.2mm black | 540L/h | 13m |
| 3.8mm purple | 775L/h | 13.8m |
Across 100–300 kPa, the four stocked nozzles cover 7.6–14m wetted diameters and use 215–975L/h. Use the figures for the selected nozzle and pressure when planning the system.
Performance figures are for upright 25° sprinklers on a 200mm riser. Wetted diameter is the width of the watered circle, not the distance between sprinklers.
The UV stabilised polypropylene frame and acetal spinner and nozzle suit outdoor use. The sprinkler can be taken apart for inspection and cleaning.
15mm Antelco Rotor Max Upright Butterfly Sprinkler Specifications
Video 1

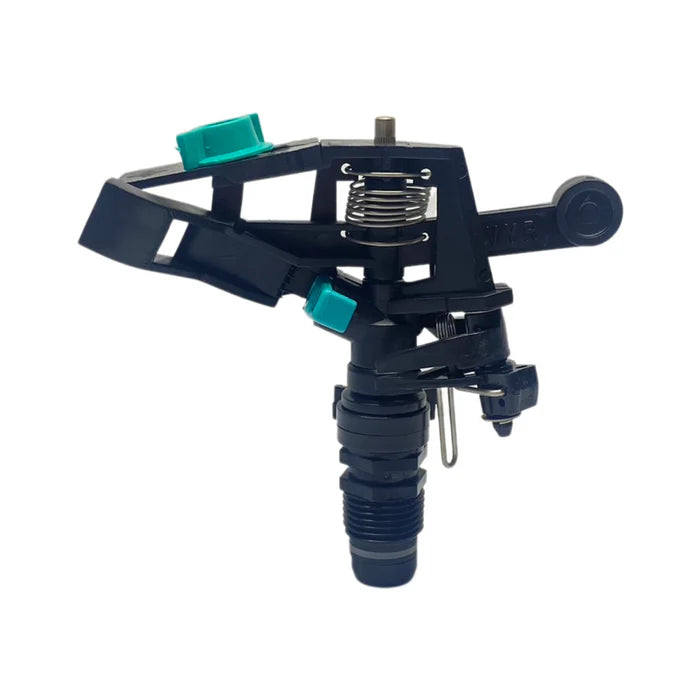

Plastic impact sprinklers for gardens, crops and agricultural irrigation. Full-circle models water all the way around the sprinkler; adjustable models let you limit watering to a selected part of the surrounding area.
An impact sprinkler uses the water stream to drive a spring-loaded arm, turning the sprinkler in steps as it waters.
11–14m radius across the listed configurations. Coverage and flow vary with nozzle size, pressure and adjustment. Use the performance chart when selecting sprinkler spacing.
The models are supplied with the nozzle configurations shown in the specifications.
The spray arc is how far around the sprinkler the water sprays. On the VYR-802 and VYR-66, move the two stop clips around the base to set where the sprinkler reverses. Check the sweep while watering and reposition the clips as needed. The VYR-37 and stocked D-Net 8550 are fixed full-circle models.
Narrowing the arc concentrates the same flow over a smaller area, increasing the watering rate. Match nozzle flow, arc and spacing when combining sprinklers on one zone to avoid uneven watering. Changing nozzle size can also change the watering distance.
For models with a 15mm or 20mm male inlet, use an impact sprinkler coupling to leave room for the moving parts that extend below the sprinkler’s threaded inlet. Sold separately.
15mm Part Circle VYR-802 Specifications
20mm Full Circle VYR-37 Specifications
20mm Part Circle VYR-66 Specifications
15mm Full Circle Netafim D-Net 8550 Specifications

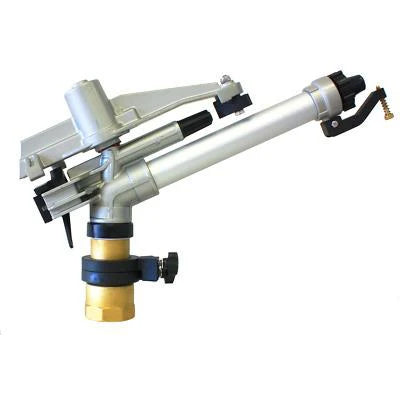

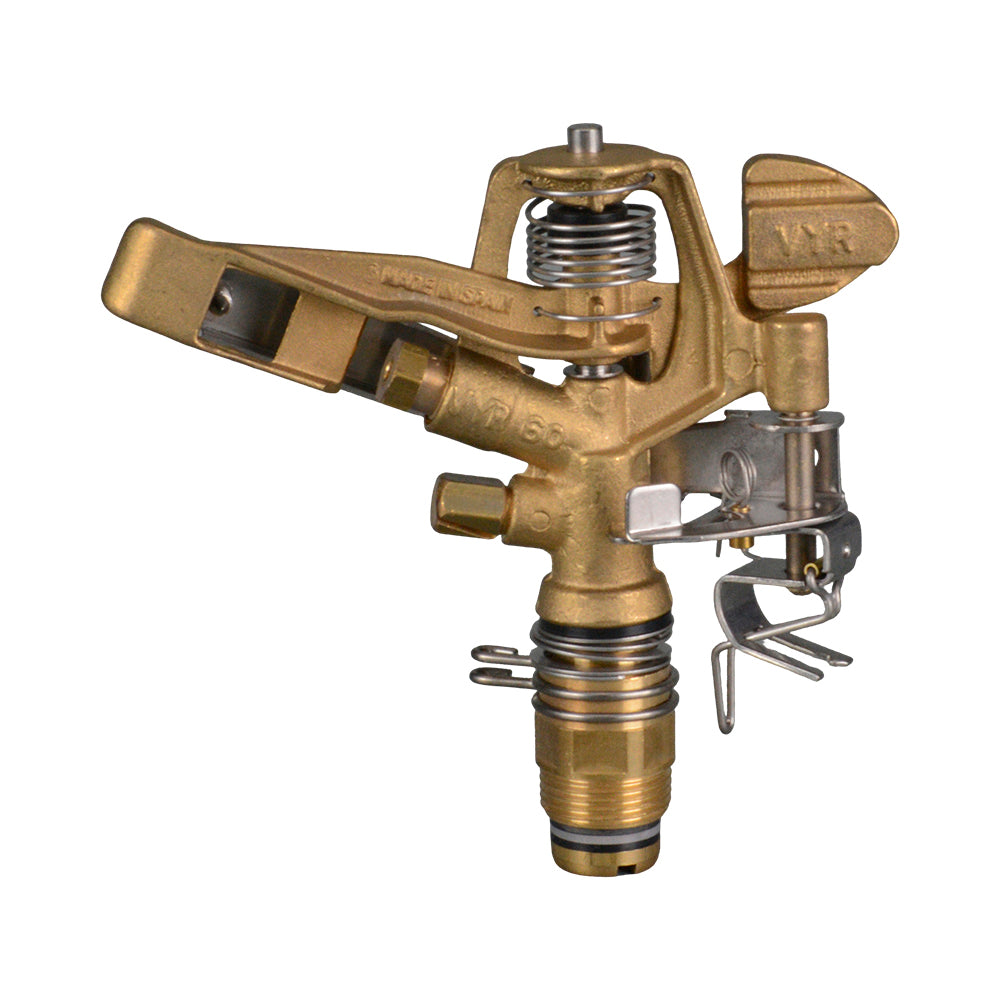

Brass and zinc impact sprinklers for gardens, crops and agricultural irrigation. Full-circle models water all the way around the sprinkler; adjustable models let you limit watering to a selected part of the surrounding area.
An impact sprinkler uses the water stream to drive a spring-loaded arm, turning the sprinkler in steps as it waters.
Approximately 6.1–36m radius across the listed configurations. Coverage and flow vary with nozzle size, pressure and adjustment. Use the performance chart when selecting sprinkler spacing.
VYR models are supplied with the nozzle combinations shown in the specifications.
The spray arc is how far around the sprinkler the water sprays. On the VYR part-circle models, move the two stop clips around the base to set the turning points. On the Orbit 55015, lower the trip pin to engage the stop collars for part-circle watering, or raise it for full-circle watering. Fixed full-circle models have no arc adjustment.
Narrowing the arc concentrates the same flow over a smaller area, increasing the watering rate. Match nozzle flow, arc and spacing when combining sprinklers on one zone to avoid uneven watering. Changing nozzle size can also change the watering distance.
For models with a 15mm or 20mm male inlet, use an impact sprinkler coupling to leave room for the moving parts that extend below the sprinkler’s threaded inlet. Sold separately.
15mm Full Circle VYR-25 Specifications
15mm Part Circle VYR-80 Specifications
15mm Part Circle Orbit 55015 Specifications
20mm Full Circle VYR-70 Specifications
20mm Part Circle VYR-60 Specifications
25mm Full Circle VYR-70V Specifications
25mm Part Circle VYR-65 Specifications
32mm Full Circle VYR-155 Specifications
32mm Part Circle VYR-150 Specifications

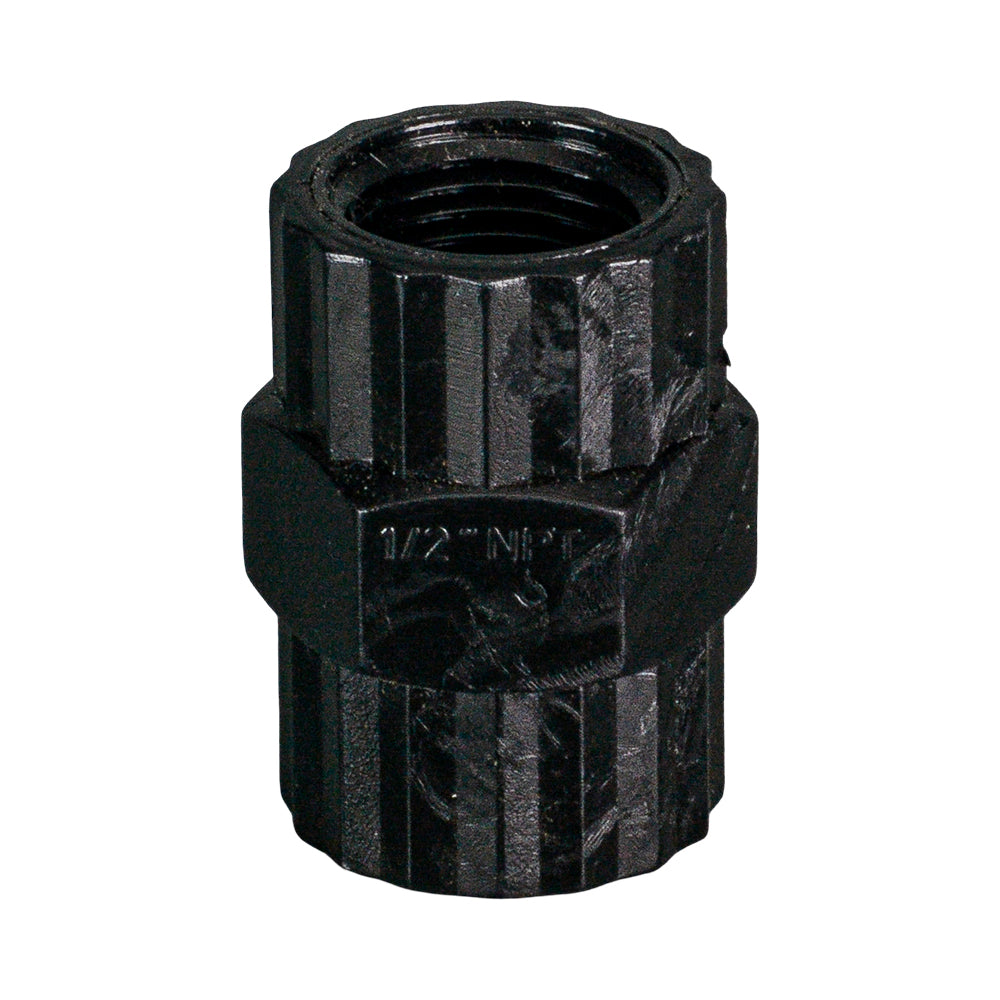

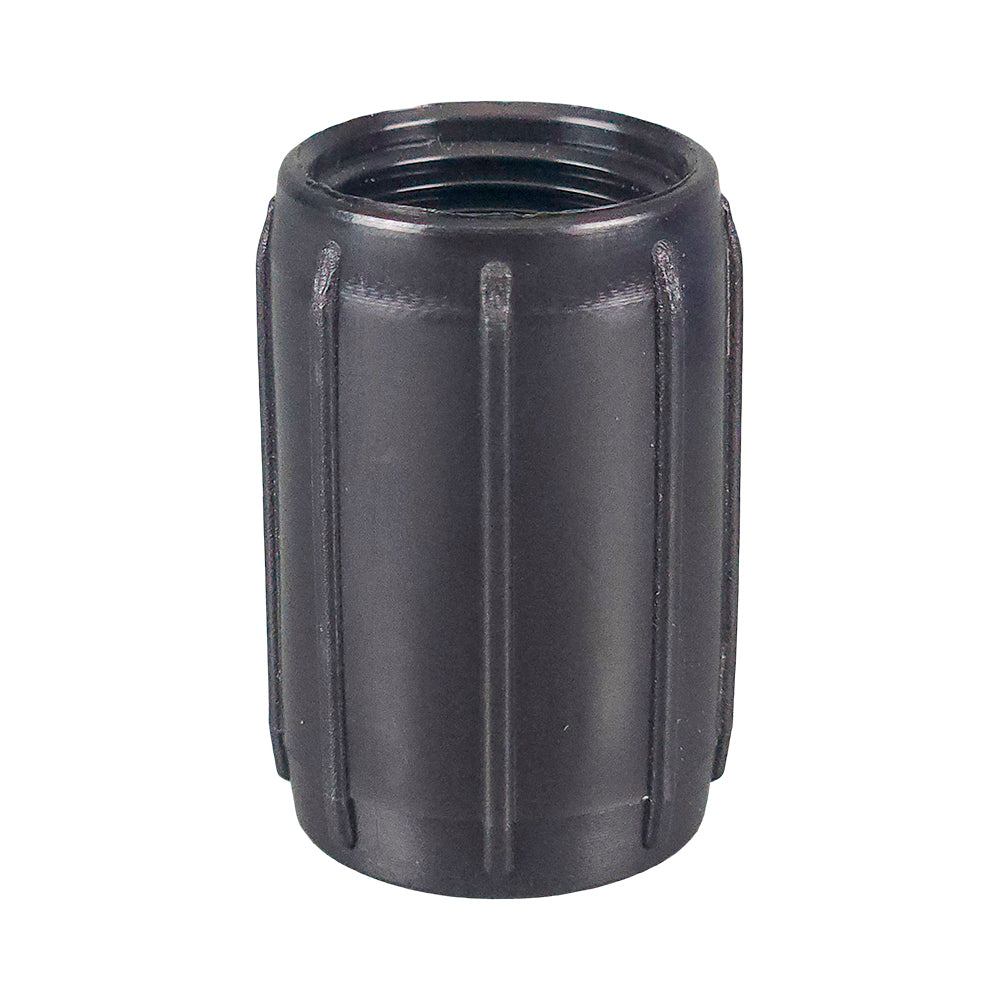

Impact sprinkler couplings for connecting sprinklers to threaded risers. They provide room for the moving parts that extend below the sprinkler’s threaded inlet so the sprinkler can turn freely.
An ordinary coupling can obstruct the moving parts on some impact sprinklers, even when the thread size matches.
Where an arrow is marked, point it towards the sprinkler. Fit reducing couplings with the smaller end upwards towards the sprinkler.

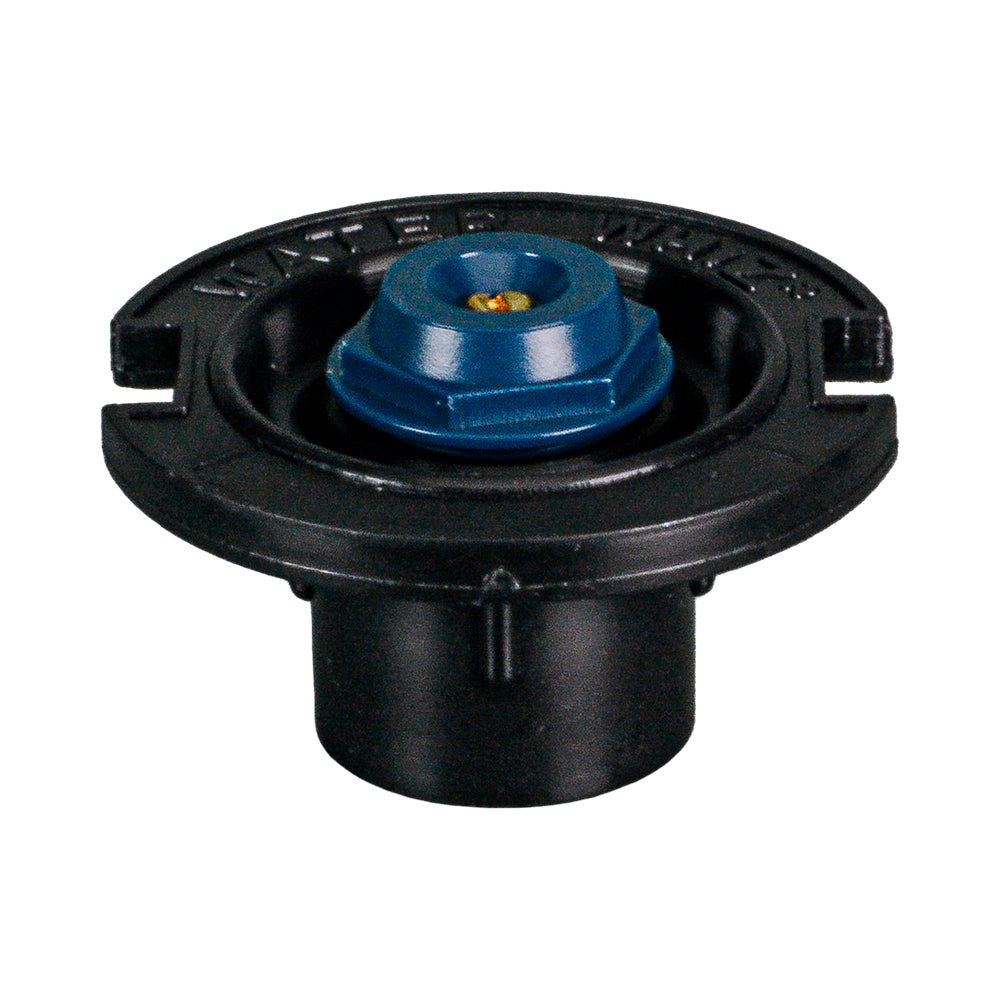

Plastic flush-head sprinklers for fixed-pattern garden watering. Water sprays out level with the head rather than upwards. Colour-coded heads provide quarter-, half- or full-circle coverage to suit corners, edges and open areas.
Each head has an attached plastic nozzle. The spray pattern is fixed: use a quarter circle for a corner, a half circle along an edge or a full circle to water all the way around the head.
At 137 kPa, each pattern reaches a 3.65m radius. Flow is 2.83L/min for the blue quarter circle, 5.67L/min for the brown half circle and 11.35L/min for the green full circle.
The nominal 3.6m radius varies with pressure. The performance table gives a 3.35m radius at 103 kPa, increasing to 4.57m at 206 kPa. Match sprinkler spacing to the radius at the available operating pressure.
Includes one plastic sprinkler body with its attached nozzle in the selected pattern.
Plastic Flush Head Sprinkler Specifications & Performance Charts
Rainmist conical spray sprinkler for home garden watering. Its stainless steel top and internal baffle spread water in a full circle with no moving parts. The flat top allows flush installation in lawn.
At 200 kPa, it covers a 5m diameter circle, equivalent to a 2.5m radius, and uses 17L/min. Maximum operating pressure is 200 kPa.
The internal baffle directs the water into a cone-shaped spray around the head. The top stays in a fixed position during watering.
The 15mm (1/2") female BSP inlet connects to a matching male threaded fitting.
Rainmist Stainless Steel Conical Spray Sprinkler Specifications

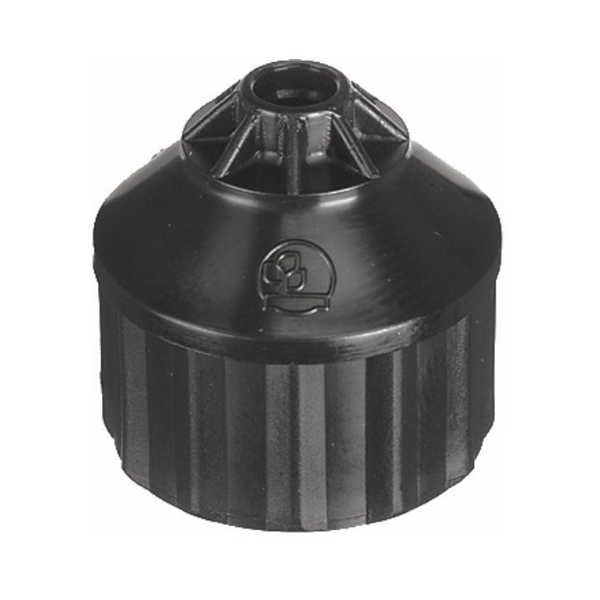

Shrub-head adaptors mount a spray nozzle onto a threaded riser for watering garden beds, shrubs and planters. The nozzle stays above ground, so it can be positioned above nearby plants without using a pop-up body. Choose the adaptor to suit the thread on your nozzle.
The Toro-compatible adaptor has a female nozzle connection for Toro-style male-threaded nozzles. The Hunter/Rain Bird-compatible adaptor has a male nozzle connection for female-threaded nozzles. Both have a 15mm (1/2") female BSP inlet for a male-threaded riser.
Position the riser so the spray clears nearby plants. Use fixed above-ground risers in garden beds and other areas away from foot traffic. The fitted nozzle determines the watering pattern, distance, flow and operating pressure.

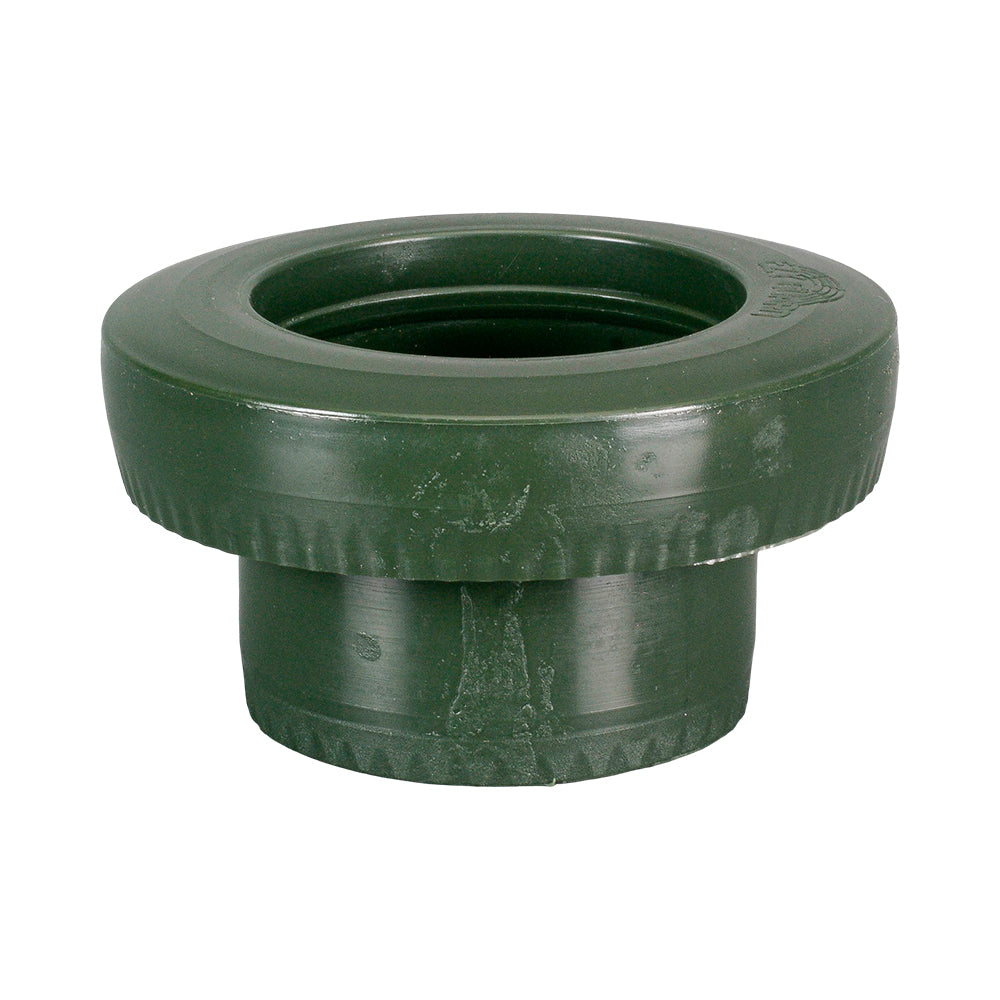

Sprinkler surrounds help protect pop-up sprinklers during lawn maintenance and keep grass clear of the spray. A visible border around the head makes it easier to find, trim around and adjust. The large commercial concrete models are designed to spread vehicle loads around the sprinkler.
The full concrete surround has a round outside edge. The half surround has one flat side for positioning beside an edge, while the quarter surround has two flat sides for a corner. The large commercial models are available in round and square shapes. Plastic guards are available in small and large sizes.
Small plastic surrounds suit typical pop-up spray bodies. Large plastic surrounds and concrete surrounds suit larger pop-up sprinklers, such as gear drives.
Choose an opening large enough to fit around your sprinkler. Make sure the sprinkler can pop up and spray freely without touching the surround. Set the top level with the surrounding ground and pack the soil firmly underneath and around it.
- Small Plastic: 100mm outside diameter.
- Large Plastic: 130mm outside diameter.
- Full, Half and Quarter Concrete: 200mm size.
- Large Round Concrete: 270mm outside diameter.
- Large Square Concrete: 300mm × 300mm outside dimensions.
Concrete surrounds need protective packaging and can be expensive to freight to the eastern states.
K-Rain MiniPro 100mm Pop-Up Rotor for turf irrigation.
Its compact body and interchangeable nozzles suit smaller lawn areas.
Coverage is a 5.5–10.1 metre radius across the nozzle choices. Operating pressure is 140–480 kPa.
The spray arc adjusts from 40° to 360° at the top of the sprinkler. The top radius adjustment screw lets you shorten the watering distance. Choose the nozzle for both watering distance and arc so sprinklers on the same zone apply water at similar rates.
The plastic body has a 100mm pop-up height and a 15mm (1/2") BSP female inlet. Its overall height when retracted is 150mm.
Five nozzle sizes are supplied, with the 1.5 nozzle factory fitted.
Warranty: Five years.
