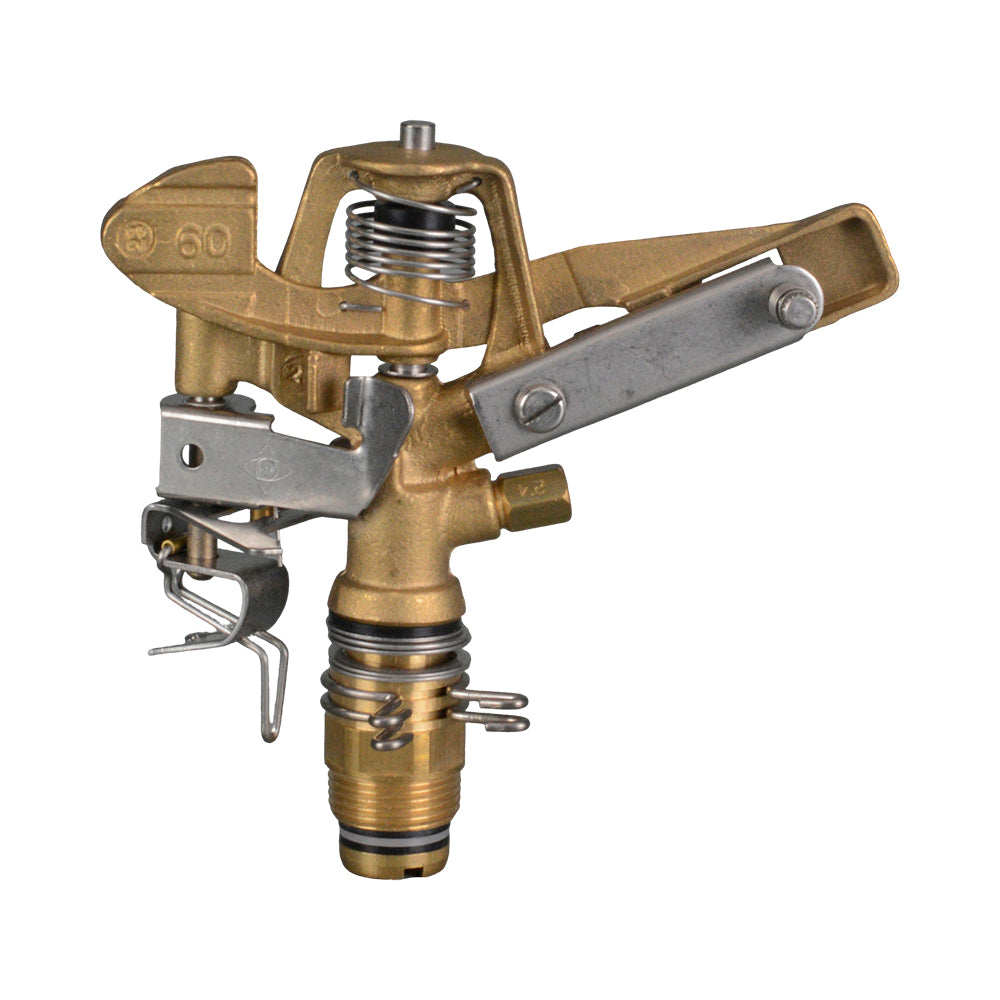

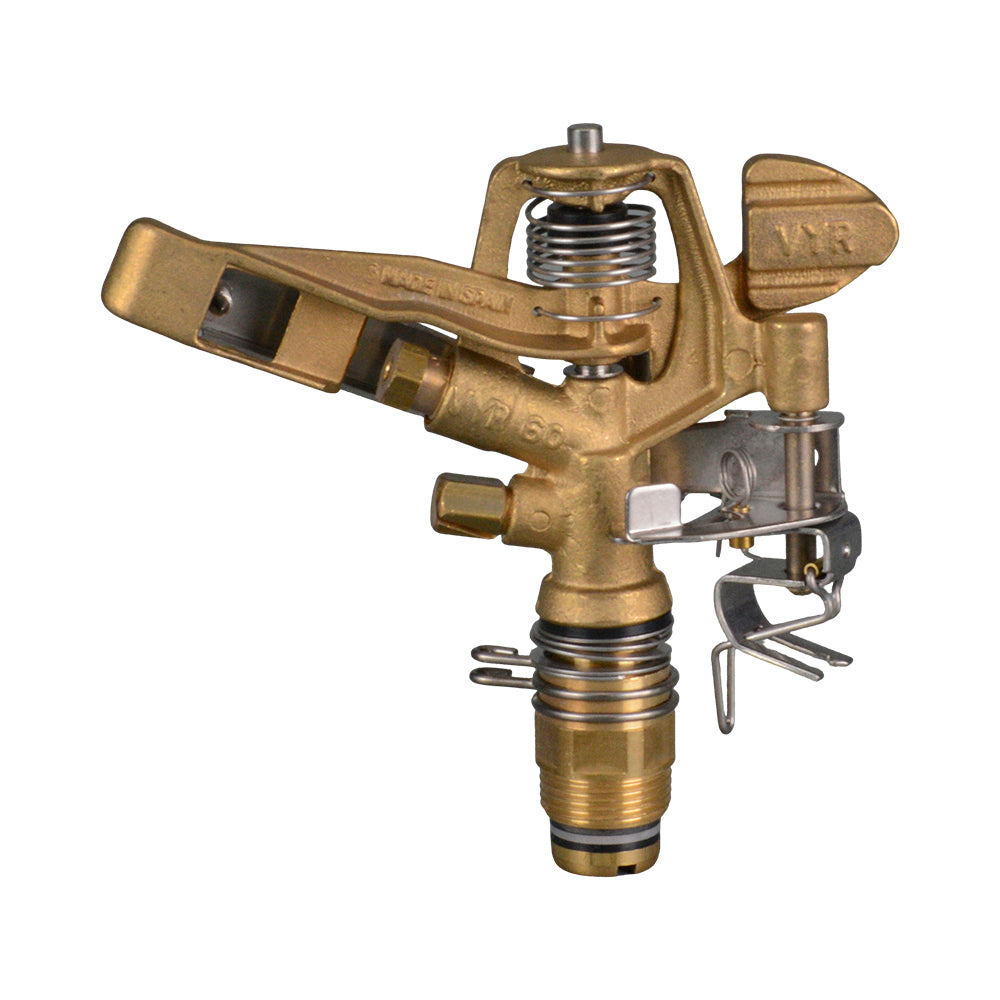

VYR-60 brass impact sprinkler for agricultural and garden irrigation.
Two nozzles spray at different angles to distribute water across the area.
With the supplied 4.4mm + 2.4mm nozzles, the sprinkler waters a 15.6m radius at 320 kPa. Radius is the distance from the sprinkler to the outer edge of the watered area.
Flow is 28.1 L/min at this pressure.
The spray arc is how far around the sprinkler the water sprays. Move the two stop clips around the base, setting one at each end of the area to be watered. The reversing lever meets each clip and changes the sprinkler’s direction. Check both turning points while watering and reposition the clips as needed. Full-circle operation is also available.
Connection: 20mm (3/4") male BSP inlet.
Narrowing the arc concentrates the same flow over a smaller area, increasing the watering rate. Match nozzle flow, arc and spacing when combining sprinklers on one zone to avoid uneven watering. Changing nozzle size can also change the watering distance.
Use a 20mm impact sprinkler coupling to leave room for the moving parts that extend below the sprinkler’s threaded inlet. Sold separately.
Supplier code: VYR-604424.
