Poly Camlock Fittings
Used extensively in the chemical and agricultural sector. Excellent chemical resistance. Camlock couplings provide quick and tool-free connect & disconnect functionality and have long been integrated into PE Piping Systems. Generally used on pumps, filters and are particularly useful in fertiliser and chemical applications.
Aluminium Camlock Fittings
Aluminium camlocks are commonly used where a quick, convenient connection and disconnection of piping and hose is required. All of our aluminium camlocks are suitable to a temperature up to 100 degrees celsius. Threads are cut according to the ISO 228 standard all of our camlocks have been produced to Mil Spec A-A 59326. These products conform to ASTM B 26B 26M and are typically used for general use, agriculture and industrial applications. They are also suitable for general air and water applications.
|

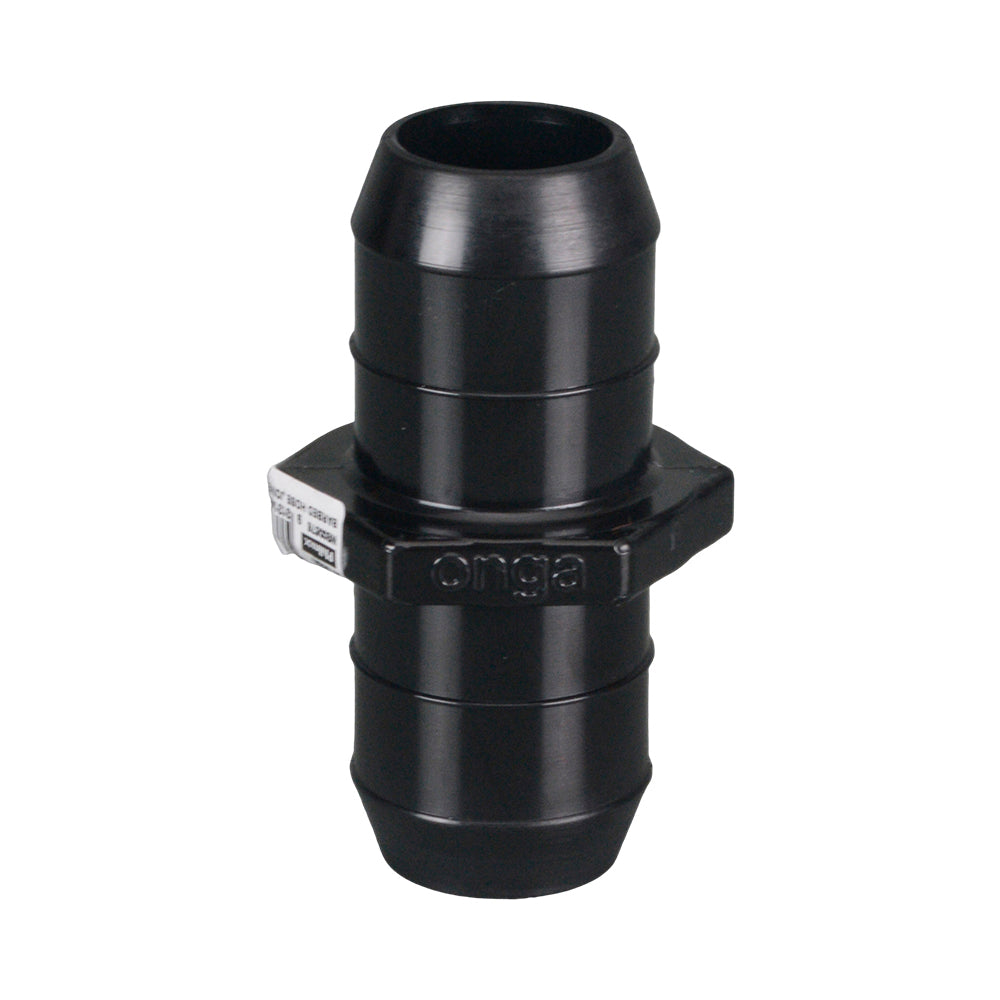

Hose Fitting Poly Barb Connectors x MI BSP Thread High quality glass fibre reinforced nylon rated for temperatures up to 60 degrees celsius Pressure Rating: 1/8" to 2" = 1600kPa 2 1/2" = 1200 kPa ... 3" and 4" = 1000 kPa Tapered Threads that have been engineered to maximise sealing performance |
Poly barb hose connectors are used to connect flexible hose to BSP threaded fittings, valves, pumps and pipework. They are suitable for irrigation, rural water, plumbing and general water systems where a hose connection is required from a male threaded adaptor.
Made from UVB stabilised glass fibre reinforced Nylon 6, these hose connectors provide a male BSP thread on one end and a hose tail connection on the other. Use Teflon thread tape or a suitable sealing compound on the BSP thread and secure the hose with a suitable hose clamp.
Poly hose nut and tails are used to connect flexible hose to male BSP threaded fittings, outlets and pipework with a removable nut and sealing washer connection. They are suitable for irrigation, rural water, plumbing and general water systems where a hose tail connection needs to be fitted to a male threaded outlet.
Made from UVB stabilised glass fibre reinforced Nylon 6 with an NBR sealing washer, these fittings provide a female BSP nut connection on one end and a hose tail connection on the other. Secure the hose with a suitable hose clamp and ensure the washer is correctly seated during installation.
Hansen Nyglass hose tails are used to connect flexible hose or pipe to female BSP threaded fittings, outlets and pipework. They are suitable for irrigation, horticultural, agricultural, plumbing, marine and general water applications where a male threaded connection is required on one end and a hose tail connection is required on the other.
Made from glass fibre reinforced nylon, these hose tails provide a male BSPT thread and a hose tail connection for compatible flexible hose. Use a suitable thread sealant on the threaded connection, push the hose onto the tail and secure with a suitable hose clamp.
Brass male threaded hose barbs are used to connect flexible hose to BSP threaded fittings, valves, pumps and pipework. They are suitable for plumbing, irrigation, rural water and general water systems where a hose connection is required from a male threaded adaptor.
Made from DR lead free brass, these hose barbs provide a male BSP thread on one end and a hose barb connection on the other. Use suitable thread sealant or PTFE tape on the BSP thread and secure the hose with a suitable hose clamp.
Brass Threaded Hose Barb Male BSP x Hose Barb Specifications
Brass male threaded swivel hose barbs are used to connect flexible hose to BSP threaded fittings, valves, pumps and pipework while allowing the hose barb connection to rotate during installation. They are suitable for plumbing, irrigation, rural water and general water systems where hose alignment is important.
These fittings use brass threaded and hose barb components with a stainless steel circlip and EPDM O-ring. Use suitable thread sealant or PTFE tape on the BSP thread and secure the hose with a suitable hose clamp.
Brass Threaded Swivel Hose Barb Male BSP x Hose Barb Specifications
Brass hose nut and tails are used to connect flexible hose to male BSP threaded fittings, outlets and pipework with a removable nut and sealing washer connection. They are suitable for plumbing, irrigation, rural water and general water systems where a hose tail connection needs to be fitted to a male threaded outlet.
Made with a brass nut, DR lead free brass tail and EPDM washer, these fittings provide a female BSP nut connection on one end and a hose tail connection on the other. Secure the hose with a suitable hose clamp and ensure the washer is correctly seated during installation.
Brass Hose Nut and Tail Female BSP x Hose Tail Specifications

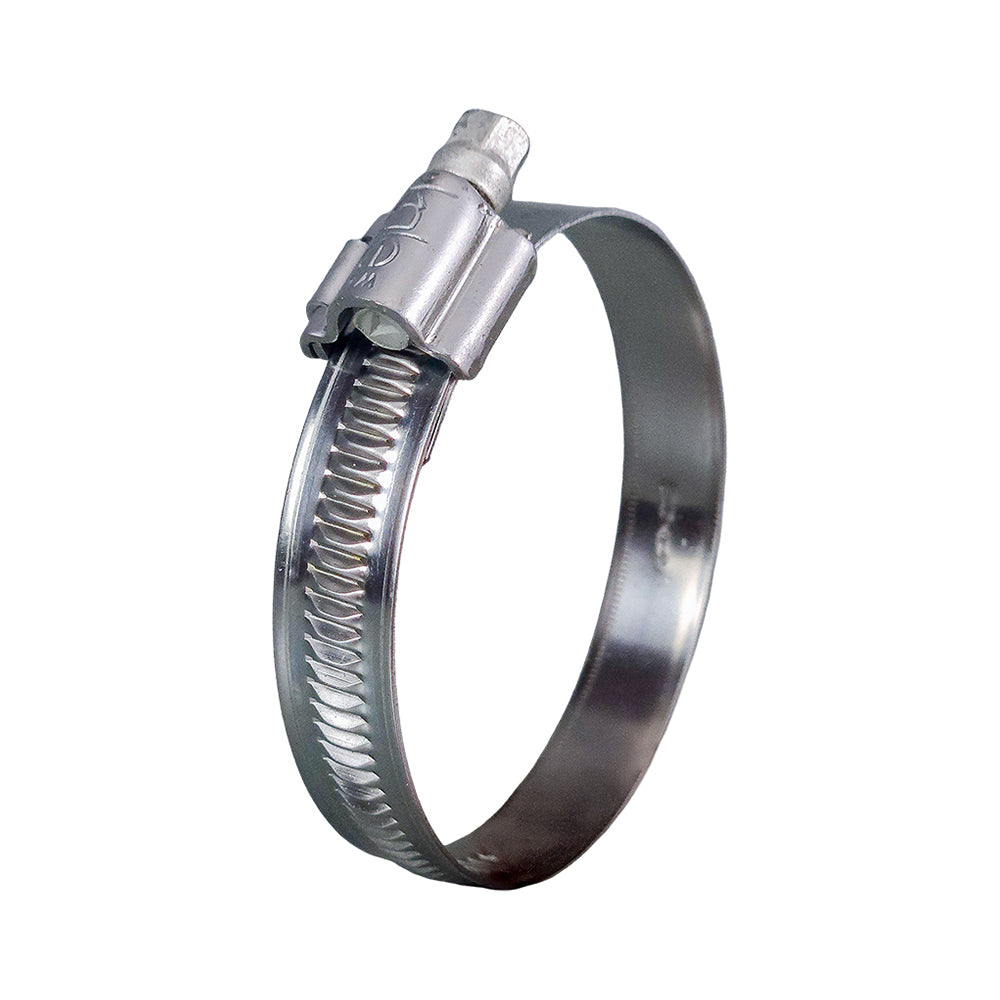

Stainless Steel (S/S) Hose Clamps
The Stainless Steel Hose Clamp is a general purpose hose clamp that is ideal for sealing hoses of different applications with a high mechanical load.
Complies with DIN 3017

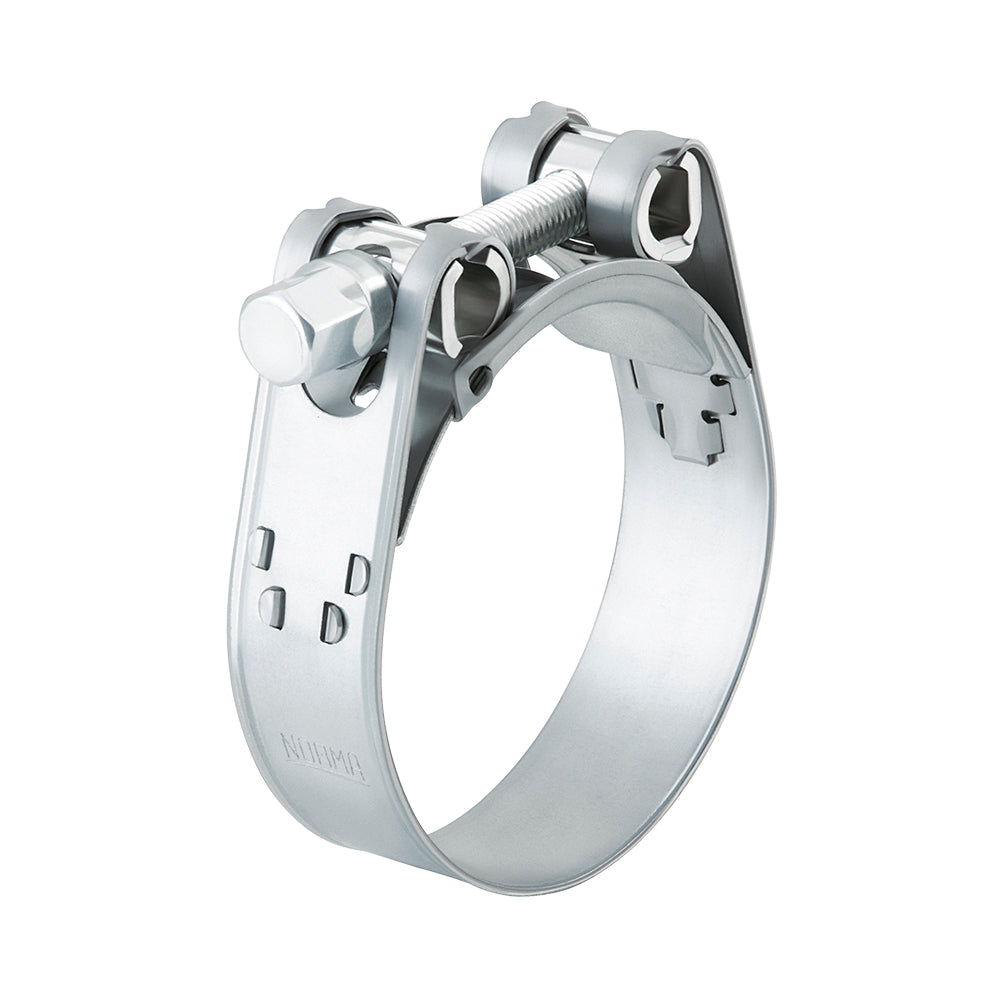

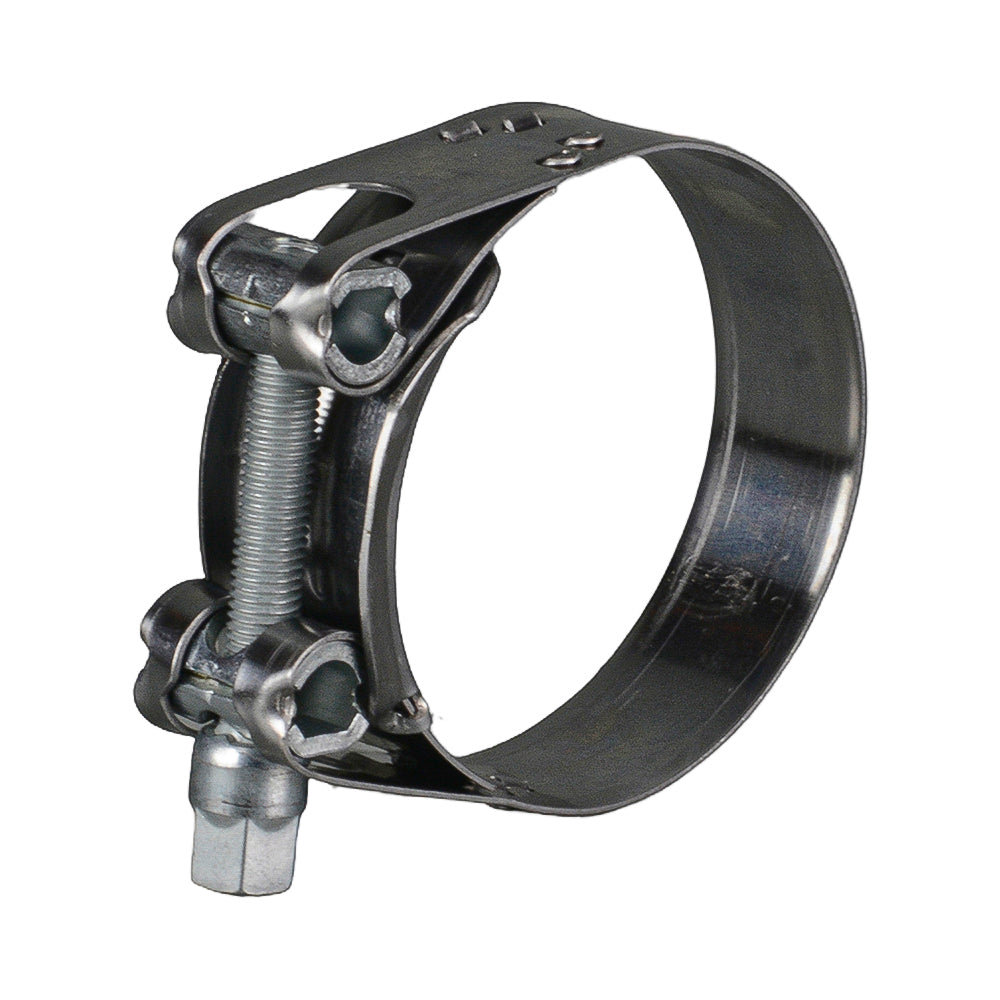

Stainless Steel Heavy Duty Clamp
The stainless steel clamp is a reliable and heavy duty clamp. It can be used for machinery, construction, sewer cleaning equipment, agricultural applications, draining pipes, tankers and commercial vehicles.
The clamp complies with DIN 3017, meets stringent requirements.
Water Hose

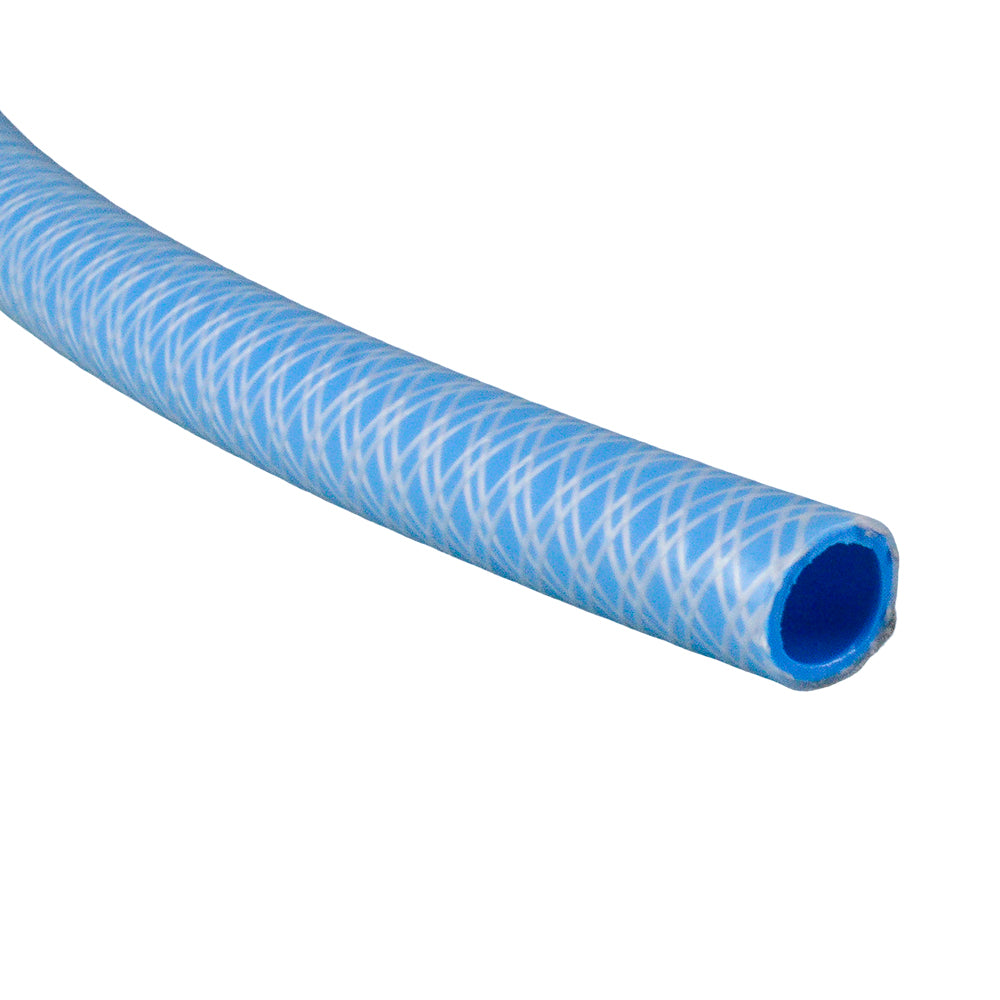

This caravan drinking water hose meets Australian standards AS4020 and AS2070, made from food grade poly-olefin material. Australian Made product.
Ideal for caravans, motor homes, boats and water tanks, and comes with a 6 year manufacturer warranty.

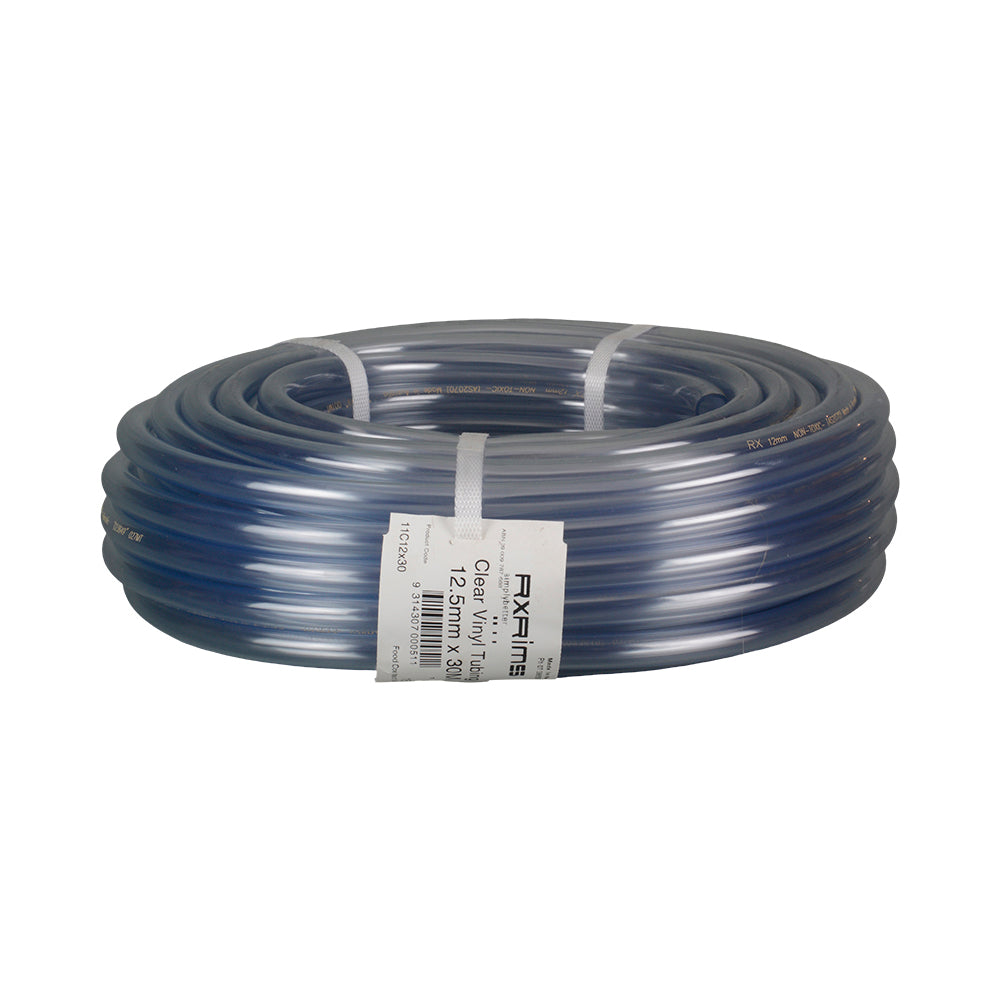

Clear vinyl tubing is designed for low-pressure transfer of food and beverages and for general delivery lines.
It is made from food-grade clear PVC without reinforcement.
The tubing has a temperature range of 0°C to +50°C.
Clear braided hose is a multipurpose PVC hose for water and food and beverage transfer, including potable water, syrup and fruit juice delivery.
It combines food-grade clear PVC with polyester braid reinforcement and petroleum resistance.
The hose has a working-pressure rating of 1400 kPa (203.1 psi) and a temperature range of -5°C to +50°C.

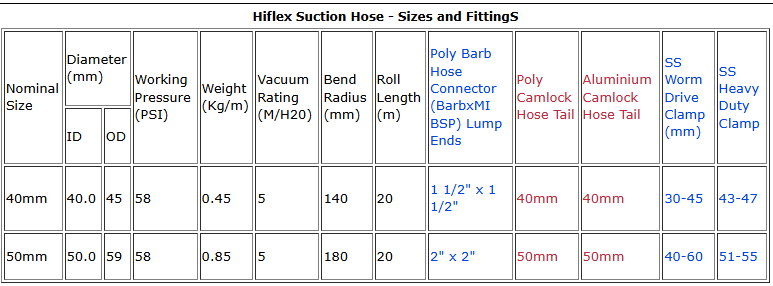

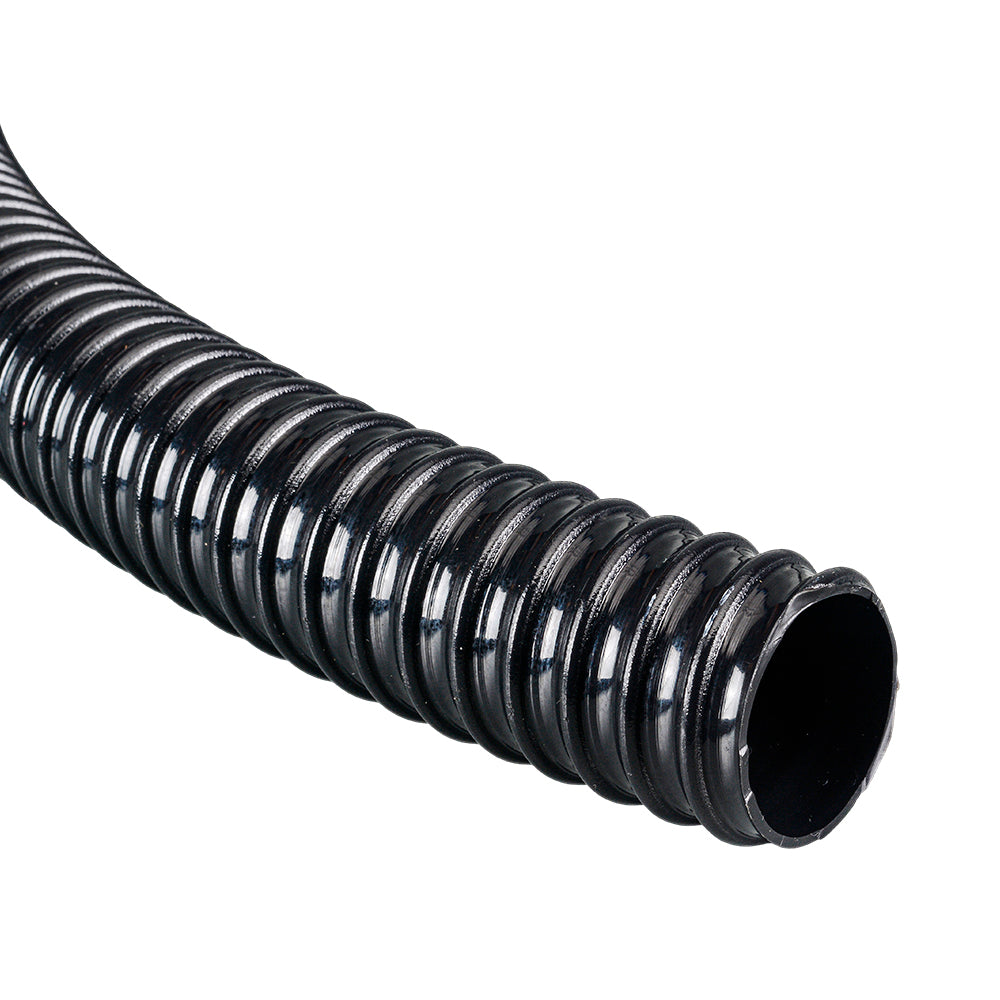

Black HiFlex light corrugated hose is a flexible PVC hose for general-purpose suction, drainage and water transfer.
The hose has a smooth inner wall and corrugated outer wall, with rigid PVC spiral reinforcement. Its flexible construction suits hose routing, and it has UV resistance. It can also be used for dust extraction and light-duty air-seeder applications.
Working pressure differs by hose size. Check the size-specific ratings in the Specifications tab.

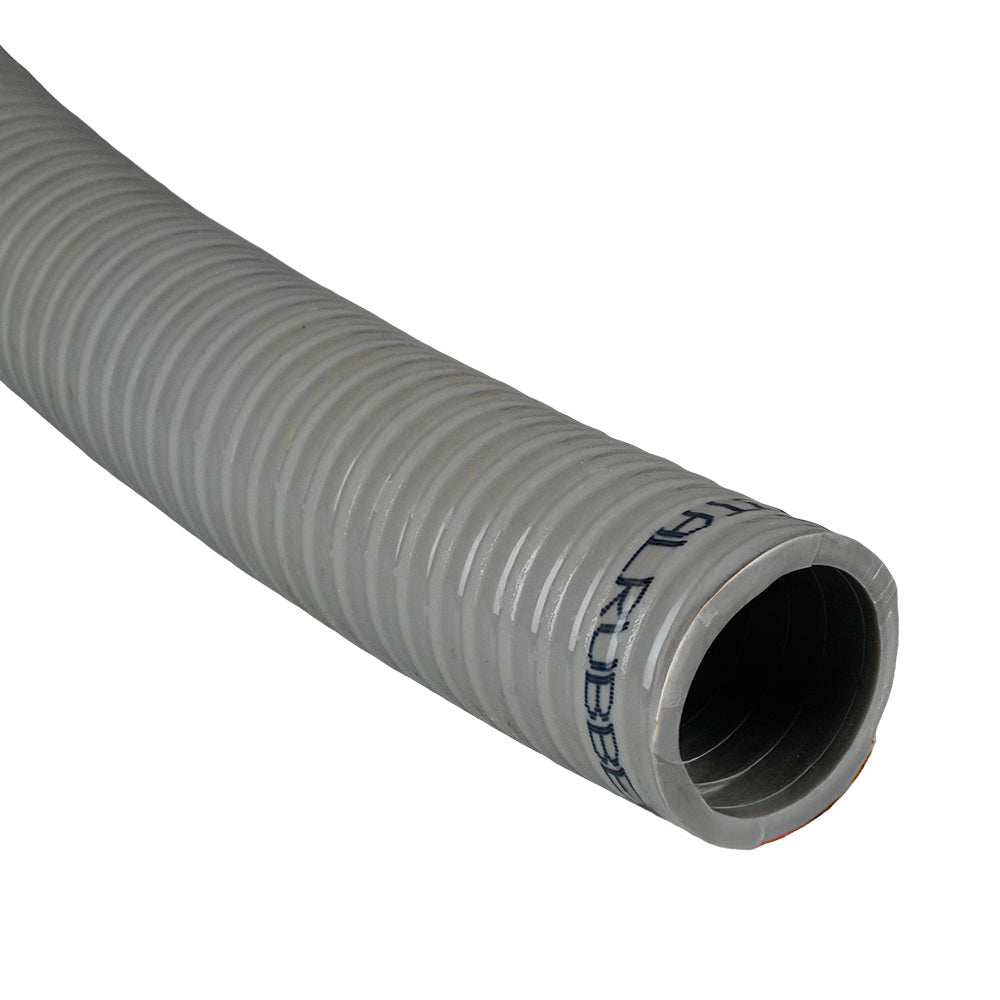

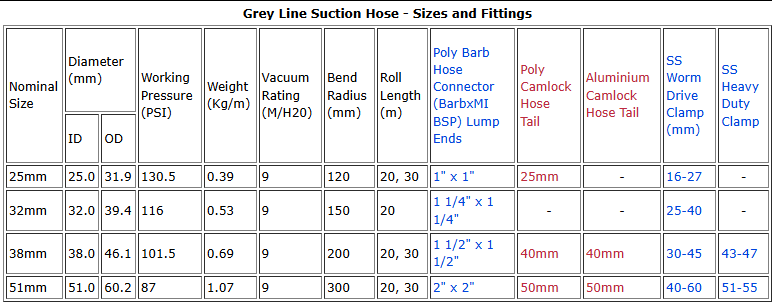

Grey line high density suction hose is designed for general-purpose suction and delivery of water and slurries.
It is made from flexible grey PVC with a smooth bore and rigid PVC helix reinforcement. Applications include pump suction lines and water-truck hose connections.
Video 1

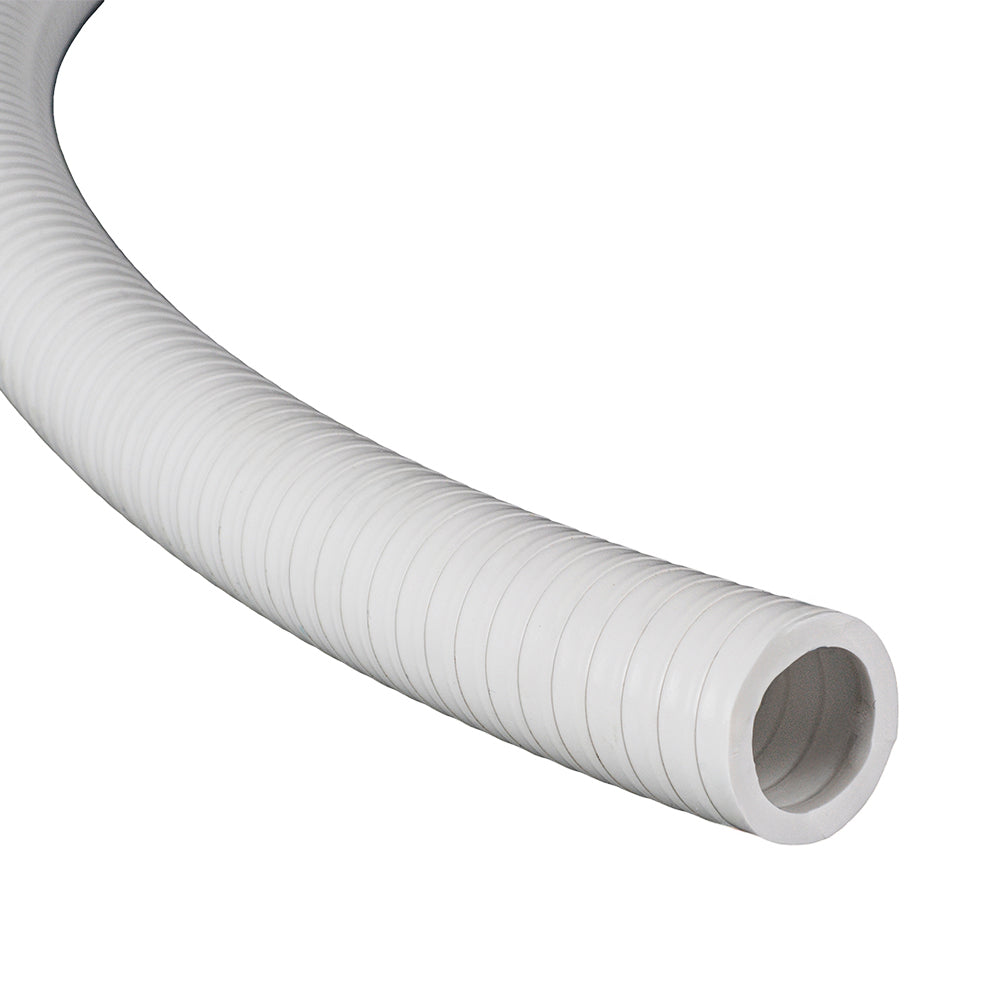

White sanitation hose is designed for suction and discharge in sanitation systems on boats, caravans and recreational vehicles.
The flexible hose has rigid PVC spiral reinforcement. Its odour-resistant formulation helps reduce odour permeation - the passage of odours through the hose wall.
Working pressure differs by hose size. The size-specific ratings are shown in the Specifications tab.
Purple sullage hose is designed for transferring wastewater and reclaimed water in household, caravan and boating applications.
The flexible, unreinforced hose has a lilac-purple colour to identify reclaimed-water use. It can also be used as a discharge hose for bilge pumps.
Supplied as a 20m roll.

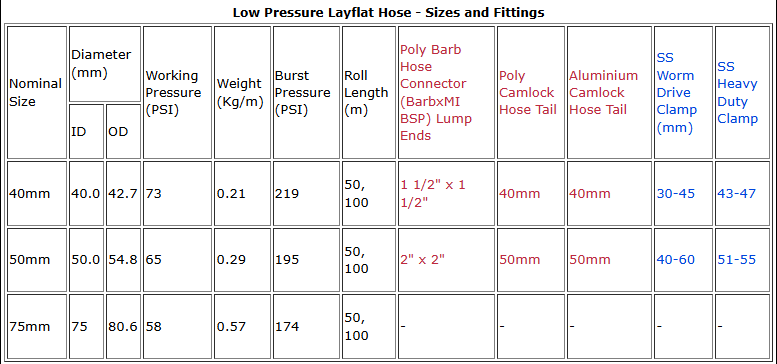

Low Pressure Layflat
Commonly used for temporary water supply and drainage
Lightweight with synthetic
Resists most chemical agents

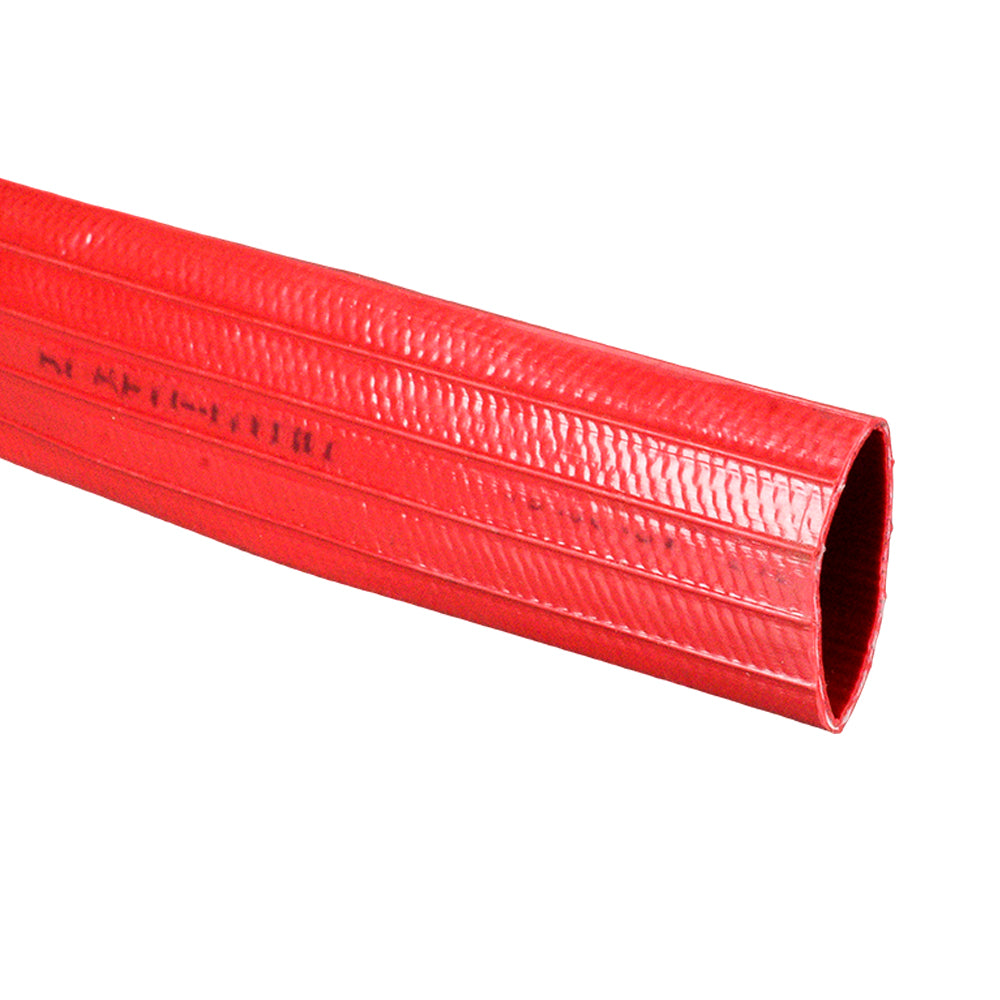

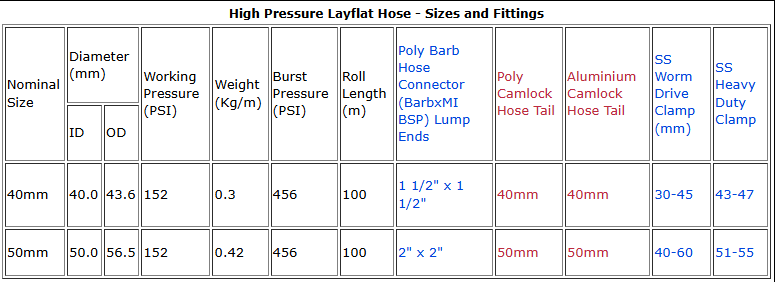

High Pressure Layflat
Commonly used for temporary water supply and drainage
Tough with a very high resistance to abrasion, with a heavy synthetic reinforced PVC wall
Resists most chemical agents
Blue Line
Working temperature -5 to 60 degrees C
Highly flexible suction and discharge hose designed for the transfer of hydro-carbon based materials such as diesel fuel, petrol, oils, greases and lubricants
Blue hose with a rigid PVC spiral reinforcement

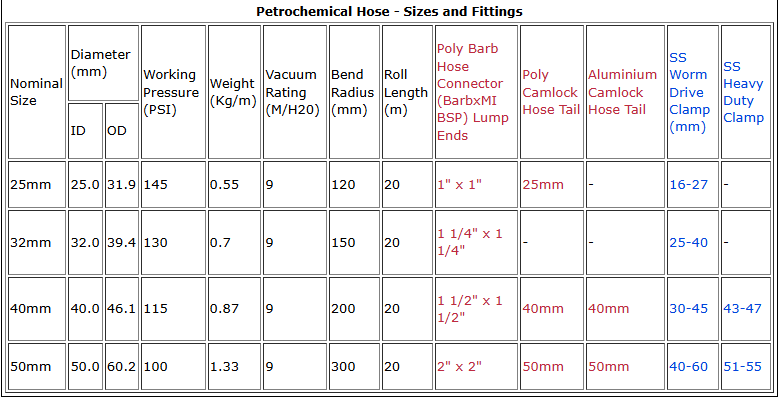

Black petrochemical suction hose is designed for environmental waste collection, grease-trap servicing and septic-tank applications.
Its nitrile/PVC construction provides resistance to mineral oils and animal fats. Rigid PVC spiral reinforcement supports the hose, while the flexible construction and UV stability suit its waste-transfer applications.
Working pressure differs by hose size. Suitability for a chemical depends on the particular liquid, concentration and operating temperature.
Multipurpose
Non-conductive extruded rubber hose reinforced with nylon. The temperature ranges from -20 to 70 degrees C. It is suitable for water, air, oil and petroleum based products with up to 30% aromatic content
20 Bar WP at 3:1 SF
Yellow Flex Air hose is a general-purpose hose for air and water supply.
It has a black inner wall and a safety-yellow outer wall, with a flexible construction for hose routing. The hose is resistant to oil mist and UV exposure.
The hose has a working-pressure rating of 1586 kPa (230 psi).

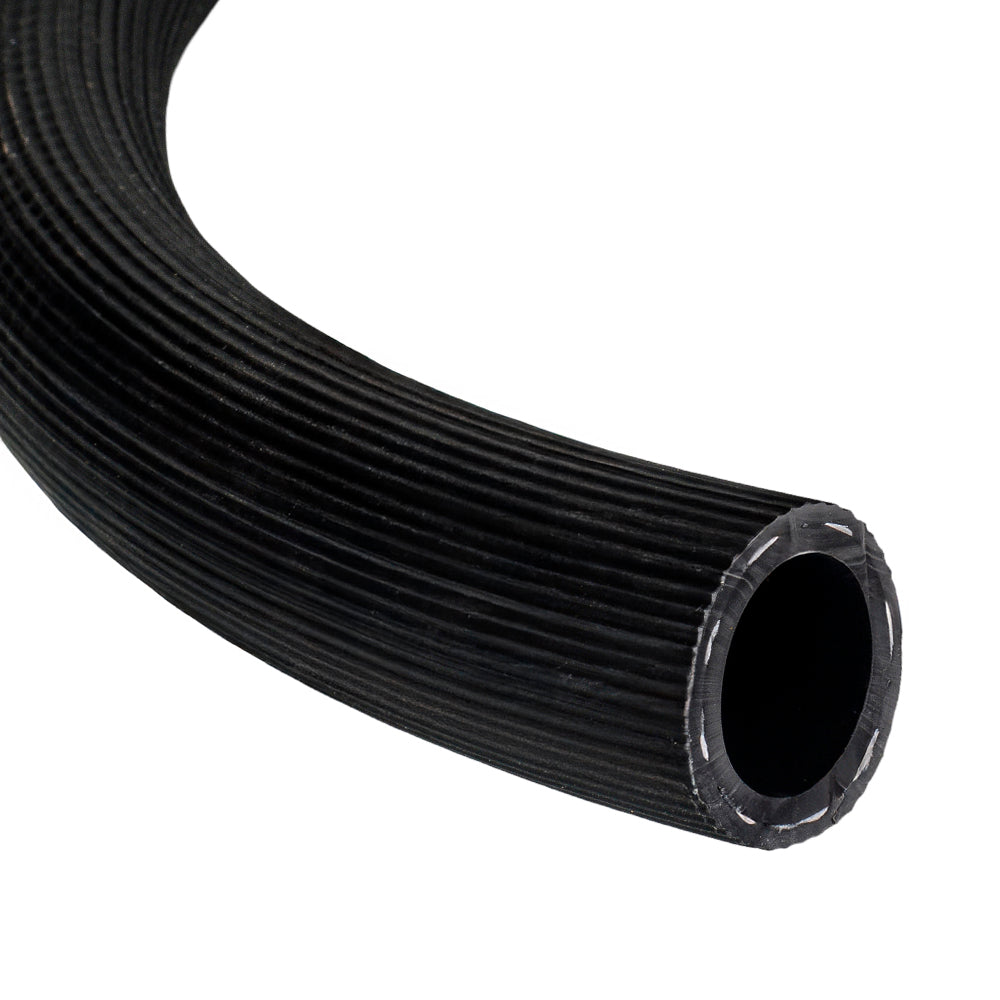

Black fire reel hose is designed for use on fire reels and for general water delivery. It has a black inner wall and a UV-stabilised black outer wall.
The hose has a working-pressure rating of 1000 kPa (145 psi). The 19mm and 25mm sizes have different outside diameters, which are shown in the Specifications tab.
Steel fire hose reels store the delivery hose on a hand-wound drum, keeping it supported between uses. Fully fitted models include black fire reel hose and a nozzle. Reels with fittings are supplied assembled for fitting a hose and nozzle separately. Reinforced black PVC fire reel hose is supplied separately, per metre or in complete rolls.
The HRFF19 fitted reel carries 25m of 19mm (3/4") black PVC fire reel hose with a nozzle. The HRFF25 fitted reel carries 20m of 25mm (1") black PVC fire reel hose with a nozzle and a 25mm (1") side swivel tailpiece.
The HRSR40-18F reel suits 19mm (3/4") hose and the HRSR40-25F suits 25mm (1") hose. These with-fittings versions are supplied assembled, with no hose, hose clamps or nozzle. They allow the hose and nozzle to be fitted separately.
A hand crank turns the drum to rewind the hose. The powder coated steel construction and supporting stand keep the hose on a drum between uses. The stand has fixing feet for securing the reel.
Separate black PVC fire reel hose is supplied in 19mm and 25mm bore. The 19mm hose comes per metre or in 20m, 36m, 50m and 100m rolls. The 25mm hose comes per metre or in 20m, 30m and 100m rolls. The hose working pressure is 1000kPa (145psi) and its standard reference is AS/NZS1221. Hose is supplied without a reel, fittings or nozzle.
