Hunter X-Core Outdoor Controllers provide local dial and button control for residential and light commercial irrigation. The range includes fixed 4, 6 and 8 station models, each with a separate P/MV output for a master valve or pump start relay.
Outdoor models have a plastic wall-mount enclosure with a built-in key lock.
The X-Core provides 3 independent programs with 4 start times per program and station run times from 1 minute to 4 hours. Scheduling options include days of the week, odd/even dates and interval watering.
Seasonal adjustment changes watering duration by percentage. Cycle and Soak splits watering into shorter cycles with soak periods, while delay between stations allows time for slow-closing valves or pump recharge. Manual watering and programmable rain off provide further control.
Optional Hunter Solar Sync provides weather-based run-time adjustment. Suitable Clik sensors, including Soil-Clik, and Hunter ROAM or ROAM LR remotes are also compatible through the relevant connections. Use Residential mode on the ROAM LR handheld remote with X-Core.
QuickCheck and short-circuit protection help identify wiring faults. Non-volatile memory retains programming, the CR2032 battery maintains the clock, and Easy Retrieve saves a schedule backup. AC power is required to operate the valves.
2 Year Hunter Warranty.
Hunter X-Core Quick Start Guide
Hunter X-Core Specifications
Hunter X-Core Door Card
Hunter X-Core Hidden Features Card
How watering programs work
The X-Core has three separate watering programs, labelled A, B and C. Each program is its own watering schedule, with separate watering days, start times and station run times. Choose days of the week, odd/even dates or an interval between watering days.
Each station controls a watering zone, such as a lawn or garden bed. Within each program, select the stations to water and set how long each one runs. Station run times range from 1 minute to 4 hours.
Each program allows up to four start times on its selected watering days. Each start time begins the whole program, watering its stations one after another for their set run times.
For example, Program A could start at 6am, water the lawn for 10 minutes, then water a garden bed for 5 minutes. That needs one start time. Add another start time to repeat the same sequence later that day. Programs B and C can have their own schedules. Use only the programs and start times you need.
Avoiding common programming mistakes
- Avoid unintended repeat cycles. One start time runs the whole program. Each additional start repeats it. Set unused start times to OFF. You do not need a separate start time for each station.
- Check all programs. A station included in more than one active program can water again under each schedule. Keep it in multiple programs only when that extra watering is intended.
- Space start times for the whole cycle. Allow time for the complete watering cycle, including all stations and any programmed delays, before scheduling another start.
Video 1
Video 2
Video 3
Video 4
Hunter X-Core Indoor Controllers provide local dial and button control for residential and light commercial irrigation. The range includes fixed 4, 6 and 8 station models, each with a separate P/MV output for a master valve or pump start relay.
Install indoor models in a dry, protected indoor location, away from UV light, rain, moisture and weather.
The X-Core provides 3 independent programs with 4 start times per program and station run times from 1 minute to 4 hours. Scheduling options include days of the week, odd/even dates and interval watering.
Seasonal adjustment changes watering duration by percentage. Cycle and Soak splits watering into shorter cycles with soak periods, while delay between stations allows time for slow-closing valves or pump recharge. Manual watering and programmable rain off provide further control.
Optional Hunter Solar Sync provides weather-based run-time adjustment. Suitable Clik sensors, including Soil-Clik, and Hunter ROAM or ROAM LR remotes are also compatible through the relevant connections. Use Residential mode on the ROAM LR handheld remote with X-Core.
QuickCheck and short-circuit protection help identify wiring faults. Non-volatile memory retains programming, the CR2032 battery maintains the clock, and Easy Retrieve saves a schedule backup. AC power is required to operate the valves.
2 Year Hunter Warranty.
Hunter X-Core Quick Start Guide
Hunter X-Core Specifications
Hunter X-Core Door Card
Hunter X-Core Hidden Features Card
How watering programs work
The X-Core has three separate watering programs, labelled A, B and C. Each program is its own watering schedule, with separate watering days, start times and station run times. Choose days of the week, odd/even dates or an interval between watering days.
Each station controls a watering zone, such as a lawn or garden bed. Within each program, select the stations to water and set how long each one runs. Station run times range from 1 minute to 4 hours.
Each program allows up to four start times on its selected watering days. Each start time begins the whole program, watering its stations one after another for their set run times.
For example, Program A could start at 6am, water the lawn for 10 minutes, then water a garden bed for 5 minutes. That needs one start time. Add another start time to repeat the same sequence later that day. Programs B and C can have their own schedules. Use only the programs and start times you need.
Avoiding common programming mistakes
- Avoid unintended repeat cycles. One start time runs the whole program. Each additional start repeats it. Set unused start times to OFF. You do not need a separate start time for each station.
- Check all programs. A station included in more than one active program can water again under each schedule. Keep it in multiple programs only when that extra watering is intended.
- Space start times for the whole cycle. Allow time for the complete watering cycle, including all stations and any programmed delays, before scheduling another start.
Video 1
Video 2
Video 3
Video 4

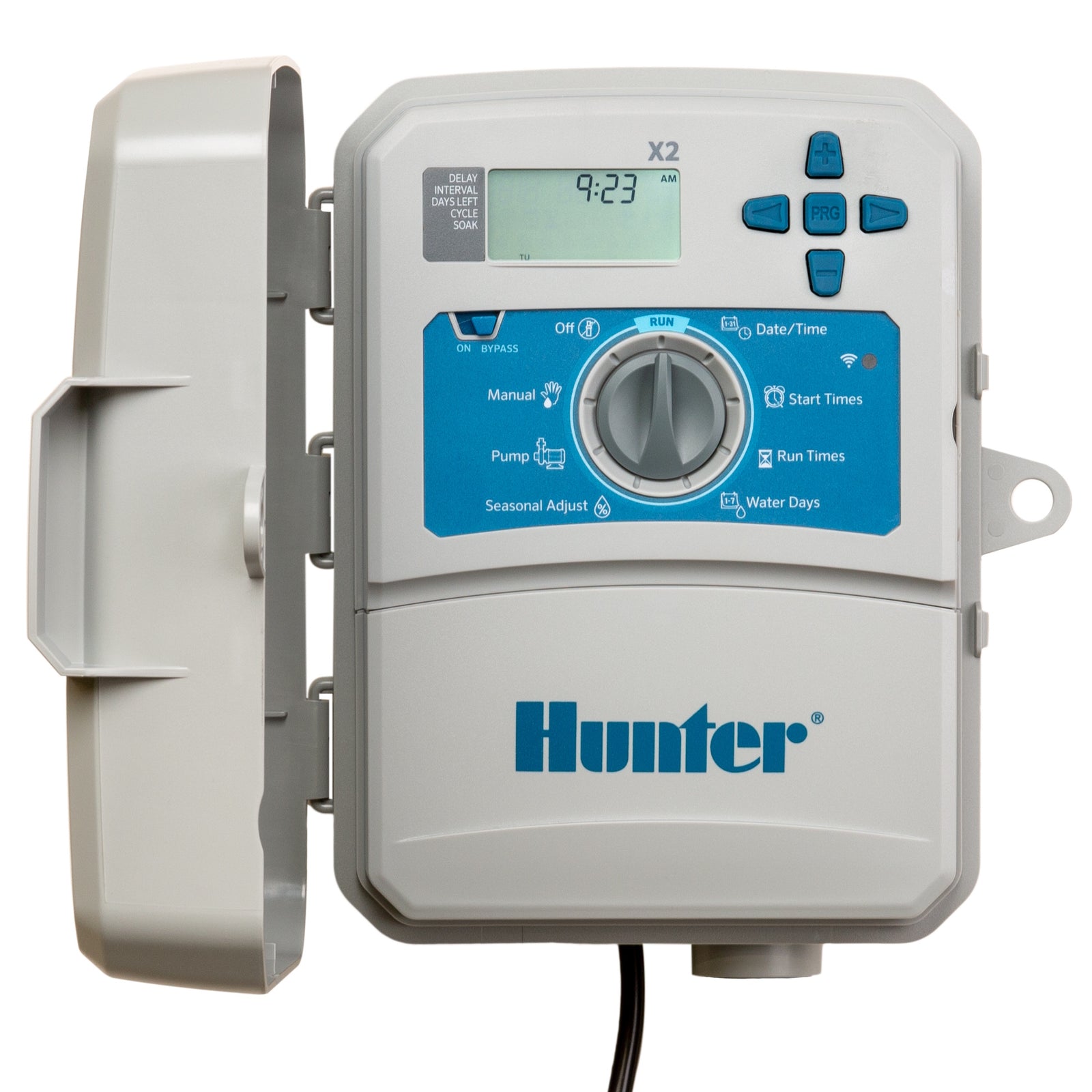

Hunter X2 Outdoor Controllers provide local dial and button programming, with optional Hydrawise control through a WAND Wi-Fi module. The fixed 4, 6, 8 and 14 station models have a backlit display and a separate P/MV output for a master valve or pump start relay.
Without WAND, the X2 provides 3 independent programs with 4 start times per program and station run times from 1 minute to 6 hours. Scheduling options include days of the week, odd/even dates and interval watering.
Add the optional WAND module for Hydrawise app and web access, weather-based adjustment, controller status and alerts. It requires a suitable 2.4 GHz Wi-Fi network and internet access for online functions. Standard Hydrawise programming provides three programs with six start times per program and station run times up to 24 hours.
WAND also provides Bluetooth connection to a nearby smartphone through the Hydrawise app. Use it to set up the Wi-Fi connection, operate watering manually when Wi-Fi is unavailable, and check connection diagnostics. Remote access from away from the property and online weather-based adjustment require Wi-Fi and internet access.
For standalone installations, Rapid Programming lets you transfer a schedule prepared in Hydrawise into the X2 through WAND using Bluetooth. Remove WAND after the transfer and the X2 runs the transferred schedule on its own. This is useful when setting up several controllers with the same or similar schedules.
During normal online WAND operation, Hydrawise manages the active schedule. The original dial-and-button schedule is inactive. Manual station, program and test functions remain available at the controller. Keep the dial in RUN for Hydrawise operation. OFF stops watering. Removing WAND restores the original local programs and settings, unless these have been replaced using Rapid Programming.
Seasonal adjustment, Cycle and Soak, delay between stations and programmable rain off provide further control. The sensor input supports suitable Clik sensors, including Rain-Clik and Soil-Clik. Solar Sync is not compatible, with or without WAND.
QuickCheck, short-circuit protection and Easy Retrieve assist with fault finding and schedule backup. Optional ROAM and ROAM LR remotes provide on-site manual operation.
2 Year Hunter Warranty.
Controller documents
Hunter X2 Controller Quick Start Guide
Hunter X2 Controller Specifications
Hunter X2 Controller Door Card
Hunter X2 Controller Hidden Feature Card
Hunter X2 Controller Wiring Diagram
Optional WAND Wi-Fi upgrade
Hunter X2 WAND Network Requirements & Troubleshooting
Hunter X2 WAND Quick Start Guide
Hunter X2 WAND Specifications
How watering programs work
Without WAND, the X2 has three separate watering programs, labelled A, B and C. Each program is its own watering schedule, with separate watering days, start times and station run times. Choose days of the week, odd/even dates or an interval between watering days.
Each station controls a watering zone, such as a lawn or garden bed. Within each program, select the stations to water and set how long each one runs. Station run times range from 1 minute to 6 hours.
Each program allows up to four start times on its selected watering days. Each start time begins the whole program, watering its stations one after another for their set run times.
For example, Program A could start at 6am, water the lawn for 10 minutes, then water a garden bed for 5 minutes. That needs one start time. Add another start time to repeat the same sequence later that day. Programs B and C can have their own schedules. Use only the programs and start times you need.
Avoiding common programming mistakes
- Avoid unintended repeat cycles. One start time runs the whole program. Each additional start repeats it. Disable or remove starts you do not need.
- Check all programs. A station included in more than one active program can water again under each schedule. Keep it in multiple programs only when that extra watering is intended.
- Space start times for the whole cycle. Allow time for the complete watering cycle, including all stations and any programmed delays, before scheduling another start.
- With WAND, edit the Hydrawise schedule. The active schedule is managed in Hydrawise. Changing the original dial-and-button program will not change the connected watering schedule. Check the app for suspended watering or weather-related skips.
Video 1
Video 2
Video 3
Video 4
Video 5
Video 6
Video 7
Video 8
Video 9

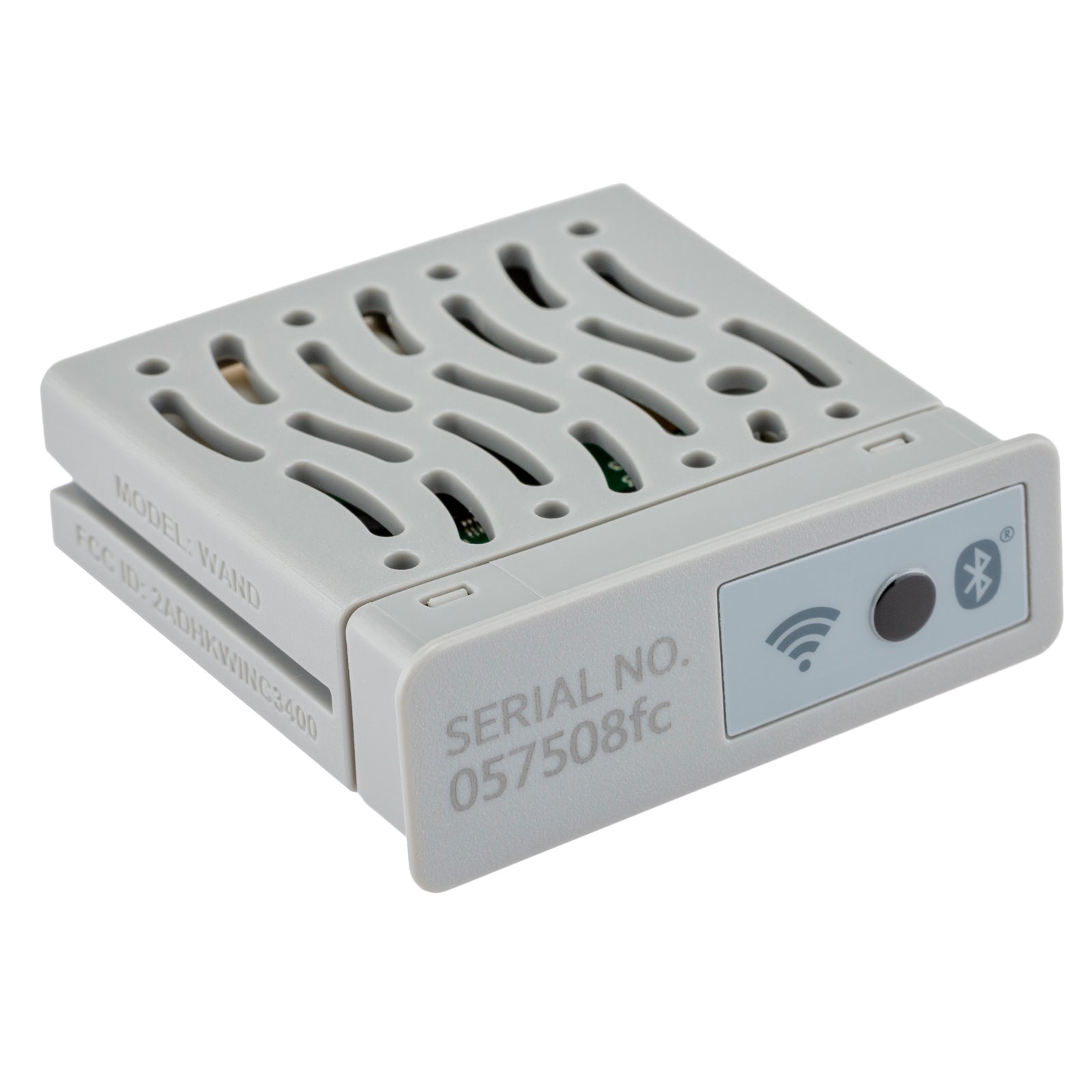

The Hunter WAND adds Hydrawise connectivity to a compatible X2 controller. Online management provides app and web access, weather-based watering adjustment, controller status and alerts. It requires a suitable 2.4 GHz Wi-Fi network and internet access for online services.
With Bluetooth, a nearby smartphone can set up the Wi-Fi connection through the Hydrawise app, operate watering manually when Wi-Fi is unavailable, and check connection diagnostics. Bluetooth local control has a different purpose from accessing the controller over the internet when away from the property.
Rapid Programming transfers a schedule prepared in Hydrawise through WAND into the X2’s memory using Bluetooth. Remove WAND after the transfer for standalone operation. This is useful when setting up multiple controllers with the same or similar schedules.
In normal online operation, Hydrawise manages the active schedule and the original dial-and-button schedule is inactive. Standard Hydrawise programming supports three programs with six start times per program and station run times up to 24 hours. Manual station, program and test functions remain available at the controller.
Keep the X2 dial in RUN for Hydrawise operation. OFF stops watering. Removing WAND normally restores the original local schedule and settings, unless they have been replaced using Rapid Programming.
Install the module in the X2’s Wi-Fi connection compartment following the setup guide. Bluetooth, SoftAP and WPS provide Wi-Fi setup options. WAND does not add station outputs or change the X2’s fixed station capacity.
2 Year Hunter Warranty.
WAND module documents
Hunter X2 WAND Network Requirements & Troubleshooting
Hunter X2 WAND Quick Start Guide
Hunter X2 WAND Specifications
Compatible X2 controller documents
Hunter X2 Controller Quick Start Guide
Hunter X2 Controller Specifications
Hunter X2 Controller Door Card
Hunter X2 Controller Hidden Feature Card
Hunter X2 Controller Wiring Diagram
Video 1
Video 2
Video 3
Video 4
Video 5
Video 6

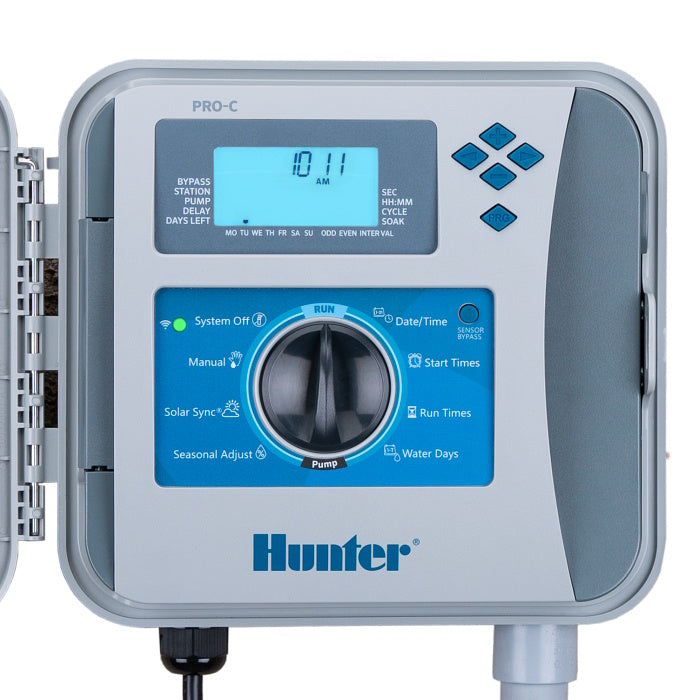

The Hunter Pro-C Modular 4 Station Base Controller provides local irrigation control through a dial and backlit display, with modular expansion for residential and light commercial systems.
The controller includes four conventional stations and a separate P/MV output for a master valve or pump start relay. The table shows the modules added to this four-station base to reach each final conventional station count. Expansion modules are purchased separately.
Conventional station expansion
Totals include the four stations supplied with the controller. Expansion modules are purchased separately.
| Total stations | Modules to add |
|---|---|
| 4 stations | No expansion module |
| 7 stations | 1 x PCM-300 |
| 10 stations | 2 x PCM-300 |
| 13 stations | 3 x PCM-300 |
| 16 stations | 1 x PCM-300 + 1 x PCM-900 |
| 23 stations | 1 x PCM-300 + 1 x PCM-1600 |
Install PCM-300 in the first expansion slot before PCM-900 or PCM-1600. The PCM-900 or PCM-1600 then occupies the upper two expansion slots.
The optional PC-DM module and EZ-1 or EZ-LR field decoders enable two-wire operation, where a shared pair of wires connects the controller to decoders at the valves. Capacity is up to 32 total stations: four conventional outputs and up to 28 decoder stations. Adding one PCM-300 changes this to seven conventional outputs and up to 25 decoder stations. PC-DM occupies the upper two expansion slots, so it replaces the PCM-900 or PCM-1600 arrangement. The module and decoders are purchased separately.
The Pro-C provides 3 independent programs with 4 start times per program and normal station run times from 1 minute to 6 hours. Scheduling options include a seven-day calendar, odd/even dates and interval watering.
Optional Seconds Mode provides run times from 1 second to 5 minutes in 1-second increments. Seasonal adjustment, Cycle and Soak, delay between stations and programmable off provide further control.
An optional Solar Sync sensor provides weather-based adjustment, while suitable Clik sensors can interrupt watering. QuickCheck assists with wiring diagnostics, and non-volatile memory retains programming. Compatible ROAM and ROAM LR remotes provide on-site manual control.
For Wi-Fi control while retaining the Pro-C dial, the PC-WIFI module provides Centralus online management on compatible P2C controllers. This is a separate upgrade path from the HPC-FP Hydrawise panel. Upgrade hardware is purchased separately.
The optional HPC-FP replacement panel upgrades compatible Pro-C controllers manufactured March 2014 or newer to Hydrawise Wi-Fi control with a touchscreen. The panel is purchased separately. Expansion compatibility depends on the existing controller base.
2 Year Hunter Warranty.
Controller and expansion documents
Hunter Pro-C Controller User Manual
Hunter Pro-C Controller Specifications
Hunter Pro-C Controller PCM-1600 Expansion Module Installation Guide
Hunter Pro-C Controller PC-DM Decoder Module Installation Guide
EZ Decoder System documents - for optional PC-DM installation
Hunter EZ Decoder System Brochure
Hunter EZ Decoder System Specifications
Hunter EZ-1 Decoder Installation Guide
Hunter EZ-LR Decoder Installation Guide
HPC-FP Hydrawise upgrade panel
Hunter HPC-FP Replacement / Retrofit Panel Specifications
Hunter HPC-FP Replacement / Retrofit Panel Specifications
How watering programs work
The Pro-C has three separate watering programs, labelled A, B and C. Each program is its own watering schedule, with separate watering days, start times and station run times. Choose days of the week, odd/even dates or an interval between watering days.
Each station controls a watering zone, such as a lawn or garden bed. Within each program, select the stations to water and set how long each one runs. Normal station run times range from 1 minute to 6 hours.
Each program allows up to four start times on its selected watering days. Each start time begins the whole program, watering its stations one after another for their set run times.
For example, Program A could start at 6am, water the lawn for 10 minutes, then water a garden bed for 5 minutes. That needs one start time. Add another start time to repeat the same sequence later that day. Programs B and C can have their own schedules. Use only the programs and start times you need.
Avoiding common programming mistakes
- Avoid unintended repeat cycles. One start time runs the whole program. Each additional start repeats it. Set unused start times to OFF. You do not need a separate start time for each station.
- Check all programs. A station included in more than one active program can water again under each schedule. Keep it in multiple programs only when that extra watering is intended.
- Space start times for the whole cycle. Allow time for the complete watering cycle, including all stations and any programmed delays, before scheduling another start. If programs overlap, the later program waits for the first to finish, so watering can start and finish later than expected.
How two-wire decoder wiring works
Conventional valve wiring uses a separate station wire from the controller to each watering station, together with a shared common wire. A two-wire decoder system uses a shared pair of field wires to carry power and control signals to decoders near the valves.
The PC-DM output module fits inside the compatible controller. Each EZ-1 or EZ-LR field decoder connects to the shared cable and a local valve solenoid. It is programmed with a station number. Starting that station operates the valve connected to its decoder.
The cable can branch in different directions to reach separate valve locations. At each split, join each conductor separately using suitable waterproof irrigation connectors inside a valve box. Both branches remain part of the shared two-wire path.
With a compatible four-station base, PC-DM provides decoder stations 5 to 32. Stations 1 to 4 remain conventional outputs. Adding one PCM-300 extends the conventional outputs to station 7 and moves the decoder range to stations 8 to 32. These share a 32-station total. Follow the PC-DM guide for module placement.
Choose cable size for the distance to the furthest decoder and the number of solenoids running at the same time on the shared path. More simultaneous solenoids reduce the permitted distance. Include a master valve if it is operated through a decoder. Use the EZ-1 or EZ-LR wiring tables in the guides above.
Video 1
Video 2
Video 3
Video 4

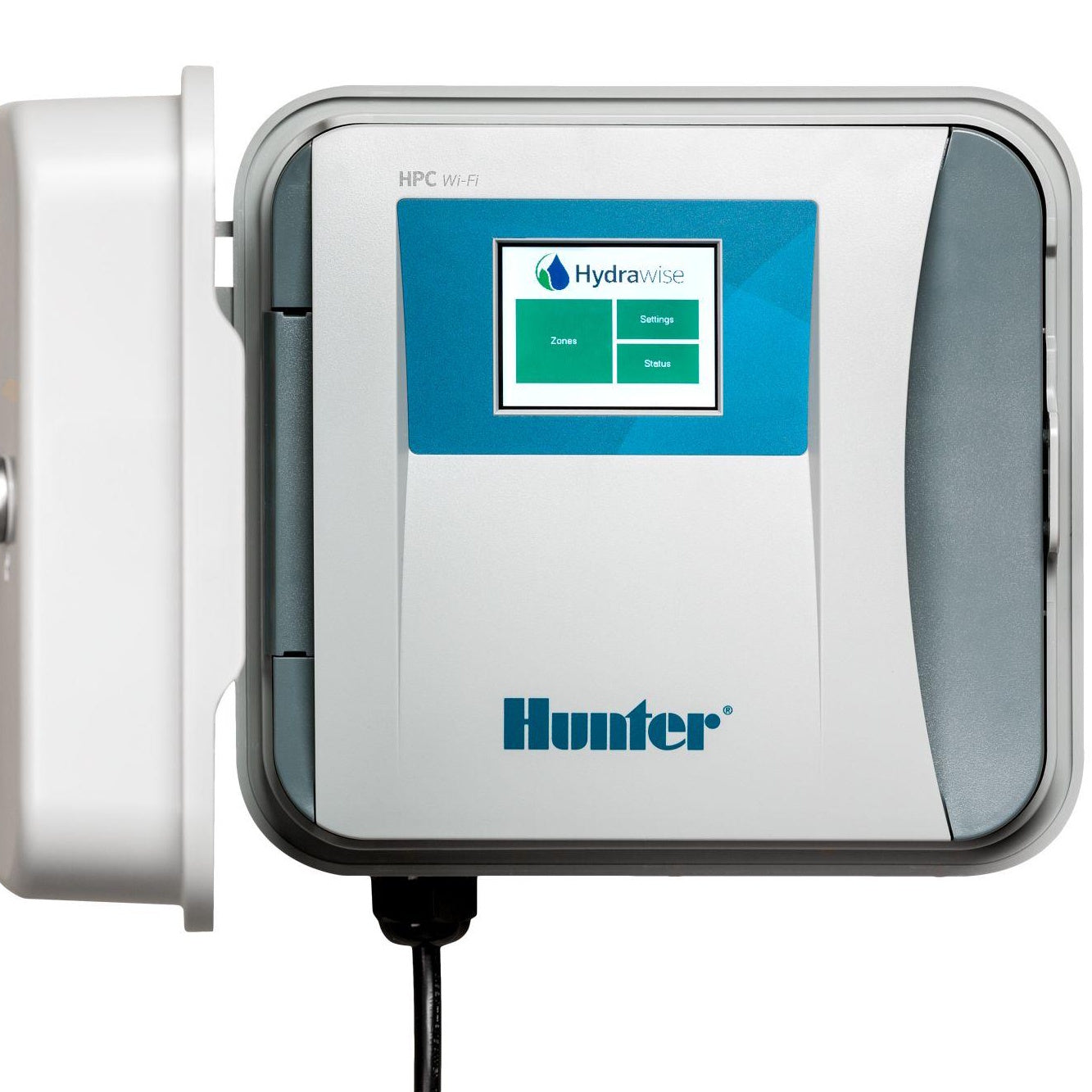

The Hunter HPC Wi-Fi Modular 4 Station Base Controller combines built-in Hydrawise control with modular expansion for residential and light commercial irrigation. App and web access provide remote management and weather-based adjustment, while the full-colour touchscreen provides on-site control and offline programming.
The controller includes four conventional stations and a separate P/MV output for a master valve or pump start relay. The table shows the modules added to this four-station base to reach each final conventional station count. Expansion modules are purchased separately.
Conventional station expansion
Totals include the four stations supplied with the controller. Expansion modules are purchased separately.
| Total stations | Modules to add |
|---|---|
| 4 stations | No expansion module |
| 7 stations | 1 x PCM-300 |
| 10 stations | 2 x PCM-300 |
| 13 stations | 3 x PCM-300 |
| 16 stations | 1 x PCM-300 + 1 x PCM-900 |
| 23 stations | 1 x PCM-300 + 1 x PCM-1600 |
Install PCM-300 in the first expansion slot before PCM-900 or PCM-1600. The PCM-900 or PCM-1600 then occupies the upper two expansion slots.
The optional PC-DM module and EZ-1 or EZ-LR field decoders enable two-wire operation, where a shared pair of wires connects the controller to decoders at the valves. Capacity is up to 32 total stations: four conventional outputs and up to 28 decoder stations. Adding one PCM-300 changes this to seven conventional outputs and up to 25 decoder stations. PC-DM occupies the upper two expansion slots, so it replaces the PCM-900 or PCM-1600 arrangement. The module and decoders are purchased separately.
Standard Hydrawise programming provides 6 independent programs with 6 start times per program and station run times up to 24 hours.
Online Hydrawise functions require a suitable 2.4 GHz Wi-Fi network and internet access. Advanced Hydrawise programming offers station-based scheduling with up to six total start times. This differs from the standard program-based mode.
Cycle and Soak and seasonal adjustment provide further watering control. Two sensor inputs support compatible Clik sensors or an added HC Flow Meter for water-use monitoring and flow alerts. Built-in milliamp sensing detects wiring faults, and non-volatile memory retains irrigation programming.
The HPC-FP is available separately to replace a faulty HPC front panel. It can also upgrade compatible Pro-C controllers manufactured March 2014 or newer to Hydrawise. Panel only.
2 Year Hunter Warranty.
Controller and expansion documents
Hunter Hydrawise Wi-Fi Network Requirements & Troubleshooting
Hunter HPC Controller Specifications
Hunter HPC Controller Installation Guide
Hunter HPC Controller Door Card
Hunter HPC Controller PCM-1600 Expansion Module Installation Guide
Hunter HPC Controller PC-DM Decoder Module Installation Guide
EZ Decoder System documents - for optional PC-DM installation
Hunter EZ Decoder System Brochure
Hunter EZ Decoder System Specifications
Hunter EZ-1 Decoder Installation Guide
Hunter EZ-LR Decoder Installation Guide
HPC-FP replacement panel
Hunter HPC-FP Replacement / Retrofit Panel Specifications
How watering programs work
In standard Hydrawise programming, the HPC has six separate watering programs. Each program is its own watering schedule, with separate watering days, start times and station run times.
Each station controls a watering zone, such as a lawn or garden bed. Within each program, select the stations to water and set how long each one runs. Station run times can be set up to 24 hours.
Each program allows up to six start times on its selected watering days. Each start time begins the whole program, watering its stations one after another for their set run times.
For example, one program could start at 6am, water the lawn for 10 minutes, then water a garden bed for 5 minutes. That needs one start time. Add another start time to repeat the same sequence later that day. The other programs can have their own schedules. Use only the programs and start times you need.
Avoiding common programming mistakes
- Avoid unintended repeat cycles. One start time runs the whole program. Each additional start repeats it. Disable or remove starts you do not need.
- Check all programs. A station included in more than one active program can water again under each schedule. Keep it in multiple programs only when that extra watering is intended.
- Space start times for the whole cycle. Allow time for the complete watering cycle, including all stations and any programmed delays, before scheduling another start.
How two-wire decoder wiring works
Conventional valve wiring uses a separate station wire from the controller to each watering station, together with a shared common wire. A two-wire decoder system uses a shared pair of field wires to carry power and control signals to decoders near the valves.
The PC-DM output module fits inside the compatible controller. Each EZ-1 or EZ-LR field decoder connects to the shared cable and a local valve solenoid. It is programmed with a station number. Starting that station operates the valve connected to its decoder.
The cable can branch in different directions to reach separate valve locations. At each split, join each conductor separately using suitable waterproof irrigation connectors inside a valve box. Both branches remain part of the shared two-wire path.
With a compatible four-station base, PC-DM provides decoder stations 5 to 32. Stations 1 to 4 remain conventional outputs. Adding one PCM-300 extends the conventional outputs to station 7 and moves the decoder range to stations 8 to 32. These share a 32-station total. Follow the PC-DM guide for module placement.
Choose cable size for the distance to the furthest decoder and the number of solenoids running at the same time on the shared path. More simultaneous solenoids reduce the permitted distance. Include a master valve if it is operated through a decoder. Use the EZ-1 or EZ-LR wiring tables in the guides above.
Video 1
Video 2
Video 3
Video 4
Video 5
Video 6
Hunter PCM modules provide additional conventional wired station outputs for compatible Pro-C and HPC modular irrigation controllers. Each output controls a separate watering zone through the controller. Select the modules by the total number of stations required, rather than treating the module rating as the controller’s final capacity.
Check the controller model and date code before ordering for an existing system. Hunter lists PCM-1600 and PC-DM compatibility with P2C controllers and PC-400 controllers dated February 2020 or newer. Older Pro-C generations have different module compatibility and station limits. The configuration totals here refer to compatible four-station modular Pro-C and HPC systems.
Conventional station expansion
Totals include the four stations supplied with the controller. Expansion modules are purchased separately.
| Total stations | Modules to add |
|---|---|
| 4 stations | No expansion module |
| 7 stations | 1 x PCM-300 |
| 10 stations | 2 x PCM-300 |
| 13 stations | 3 x PCM-300 |
| 16 stations | 1 x PCM-300 + 1 x PCM-900 |
| 23 stations | 1 x PCM-300 + 1 x PCM-1600 |
Install PCM-300 in the first expansion slot for stations 5–7 before fitting PCM-900 or PCM-1600 in the upper two expansion slots. The larger modules do not fit or operate in other output slots. Additional PCM-300 modules fit the remaining expansion slots.
Use the controller Power Lock to unlock the output slots, fit the modules in their required positions, then lock them in place. The controller normally recognises the station count automatically. Hunter notes that a reset or power cycle may sometimes be needed.
For two-wire expansion, use PC-DM with compatible EZ-1 or EZ-LR field decoders. That is a different expansion arrangement from PCM conventional station outputs. Controller and expansion hardware are selected separately.
2 Year Hunter Warranty.
Hunter Pro-C / HPC Controller PCM-1600 Expansion Module Installation Guide
Hunter Pro-C Controller User Manual
Hunter Pro-C Controller Specifications
Hunter HPC Controller Installation Guide
Hunter HPC Controller Specifications
Video 1
Video 2
Video 3
The Hunter PC-DM is the EZ decoder output module for compatible Pro-C and HPC controllers. It fits inside the controller and sends power and station commands along one shared two-wire path to EZ-1 or EZ-LR field decoders at the valves.
PC-DM supports station numbers up to 32. The four-station base reserves stations 1–4 for conventional wiring, leaving stations 5–32 for up to 28 decoder stations. The conventional outputs may be left unused, but their numbers cannot be reassigned to decoders.
Add one PCM-300 in the first expansion slot when seven conventional outputs are needed. Conventional stations then use numbers 1–7 and decoder stations use 8–32, giving up to 25 decoder stations. The table shows the available station numbers for each layout.
PC-DM station-number layouts
| Layout | Conventional station numbers | Decoder station numbers |
|---|---|---|
| Four-station base | 1–4 available | 5–32: up to 28 |
| Base + PCM-300 | 1–7 available | 8–32: up to 25 |
Install PC-DM in the upper two station-output slots. These are also used by PCM-900 or PCM-1600, so those larger conventional modules cannot be fitted alongside PC-DM. PCM-300 is an option for a hybrid layout and is not required for every PC-DM installation.
Check the existing controller model and date code before ordering. Hunter lists PC-DM compatibility with P2C controllers and PC-400 controllers dated February 2020 or newer. Older Pro-C generations have different compatibility. The layouts here assume a compatible four-station Pro-C or HPC base.
The module has one two-wire path connection, a programming port, PRG button and status LED. Assign each field decoder its station number through the programming port following the installation guide. Decoder assignment for a pump/master valve is also available using Hunter’s procedure.
Use adequately sized direct-burial irrigation cable and waterproof splices. Cable run and active solenoid load must stay within the applicable wiring table. Field decoders, valves and cable are separate items.
3 Year Hunter Warranty.
Hunter Pro-C / HPC Controller PC-DM Decoder Module Installation Guide
Hunter EZ Decoder System Specifications
Hunter EZ Decoder System Brochure
Hunter ICC2 / HCC Controller EZ-DM Decoder Module Installation Guide
Hunter EZ-1 Decoder Installation Guide
Hunter EZ-LR Decoder Installation Guide
How two-wire decoder systems work
Conventional valve wiring uses a separate station wire from the controller to each watering station, together with a shared common wire. A two-wire decoder system uses a shared pair of field wires to carry power and control signals to decoders near the valves.
The decoder output module fits inside the compatible controller. Each field decoder taps into the shared two-wire cable and connects to its local valve solenoid. The decoder is programmed with a station number. When that station starts, the matching decoder operates its connected solenoid.
The two-wire cable can branch in different directions to reach separate valve locations. At each split, join each conductor separately using suitable waterproof irrigation connectors. Cable sizing must account for the furthest decoder and the solenoids running at the same time across the shared path.
For example, decoders programmed as stations 5 and 6 can share the same two-wire cable. Starting station 5 operates the solenoid connected to the decoder assigned to station 5. The controller’s watering schedule determines when each station runs.
In a hybrid system, some stations use conventional wires and others use decoders. The output module, conventional modules and controller determine which station numbers are available to each wiring method. Give each decoder a unique station assignment and avoid assigning a decoder to a station already used by conventional wiring.
Video 1
Video 2
Video 3
Video 4
Video 5
Video 6
Hunter EZ Field Decoders are installed near the irrigation valves and connect each watering station to the controller’s shared two-wire cable. The range includes the standard EZ-1 and long-range EZ-LR. Each provides one station output.
Use PC-DM inside a compatible Pro-C or HPC controller, or EZ-DM inside a compatible ICC2 or HCC controller. The output module sends power and station commands along the cable. The field decoder operates its connected valve solenoid when its programmed station number is selected.
EZ-LR supports twice the cable distance of EZ-1 in Hunter’s metric wiring table. For example, with 1.5mm² cable and one solenoid operating, the listed distance is 458m for EZ-1 or 916m for EZ-LR. The table below compares the distances for each cable size.
EZ-1 and EZ-LR cable distances
| Cable size | EZ-1: 1 active solenoid | EZ-1: 2 active solenoids | EZ-LR: 1 active solenoid | EZ-LR: 2 active solenoids |
|---|---|---|---|---|
| 1.0mm² | 289m | 145m | 578m | 289m |
| 1.5mm² | 458m | 229m | 916m | 458m |
| 2.0mm² | 689m | 344m | 1,378m | 689m |
| 2.5mm² | 730m | 365m | 1,460m | 730m |
| 4.0mm² | 1,160m | 580m | 2,320m | 1,160m |
| 6.0mm² | 1,843m | 921m | 3,686m | 1,842m |
Count the solenoids running at the same time on the two-wire path, not all the valves connected to the system. A system with many valves can use the one-active-solenoid column when only one solenoid runs at a time.
Two active solenoids reduce the permitted distance to approximately half. For example, on 1.5mm² cable the EZ-LR distance changes from 916m with one active solenoid to 458m with two. A watering valve and a master valve both operated through decoders count as two active solenoids, even when only one watering zone is running. A master valve wired directly to the controller’s conventional output does not add a solenoid load to the two-wire path.
Distances are measured along the cable from the decoder output module to the field decoder. Hunter’s metric wiring table uses 50Hz, a cable temperature of 50°C and a 10% safety factor. For additional simultaneous loads, see Hunter EZ Decoder System Wiring and Active-Solenoid Guidance. Its EZ-1 examples show approximately one-third of the single-solenoid distance for three active solenoids, one-quarter for four and one-fifth for five. Use the relevant model and cable table when sizing the installation.
Program each decoder through the compatible output module, then label it with its assigned station number. No individual decoder serial-number entry is required. The built-in status LED assists with programming checks and field diagnostics.
The IP68 field decoders use direct-burial irrigation cable with waterproof splices. The EZ two-wire path does not require special in-line grounding or surge arrestors. Follow the controller’s own grounding instructions.
Each decoder can also be assigned to pump/master-valve operation using the output module’s procedure. Valve solenoids must be compatible Hunter 24VAC types. Compatible MCC controllers can also use EZ-DM.
3 Year Hunter Warranty.
Hunter EZ-1 Decoder Installation Guide
Hunter EZ-LR Decoder Installation Guide
Hunter EZ Decoder System Specifications
Hunter EZ Decoder System Brochure
Hunter Pro-C / HPC Controller PC-DM Decoder Module Installation Guide
Hunter ICC2 / HCC Controller EZ-DM Decoder Module Installation Guide
How two-wire decoder systems work
Conventional valve wiring uses a separate station wire from the controller to each watering station, together with a shared common wire. A two-wire decoder system uses a shared pair of field wires to carry power and control signals to decoders near the valves.
The decoder output module fits inside the compatible controller. Each field decoder taps into the shared two-wire cable and connects to its local valve solenoid. The decoder is programmed with a station number. When that station starts, the matching decoder operates its connected solenoid.
The two-wire cable can branch in different directions to reach separate valve locations. At each split, join each conductor separately using suitable waterproof irrigation connectors. Cable sizing must account for the furthest decoder and the solenoids running at the same time across the shared path.
For example, decoders programmed as stations 5 and 6 can share the same two-wire cable. Starting station 5 operates the solenoid connected to the decoder assigned to station 5. The controller’s watering schedule determines when each station runs.
In a hybrid system, some stations use conventional wires and others use decoders. The output module, conventional modules and controller determine which station numbers are available to each wiring method. Give each decoder a unique station assignment and avoid assigning a decoder to a station already used by conventional wiring.
Video 1
Video 2
Video 3

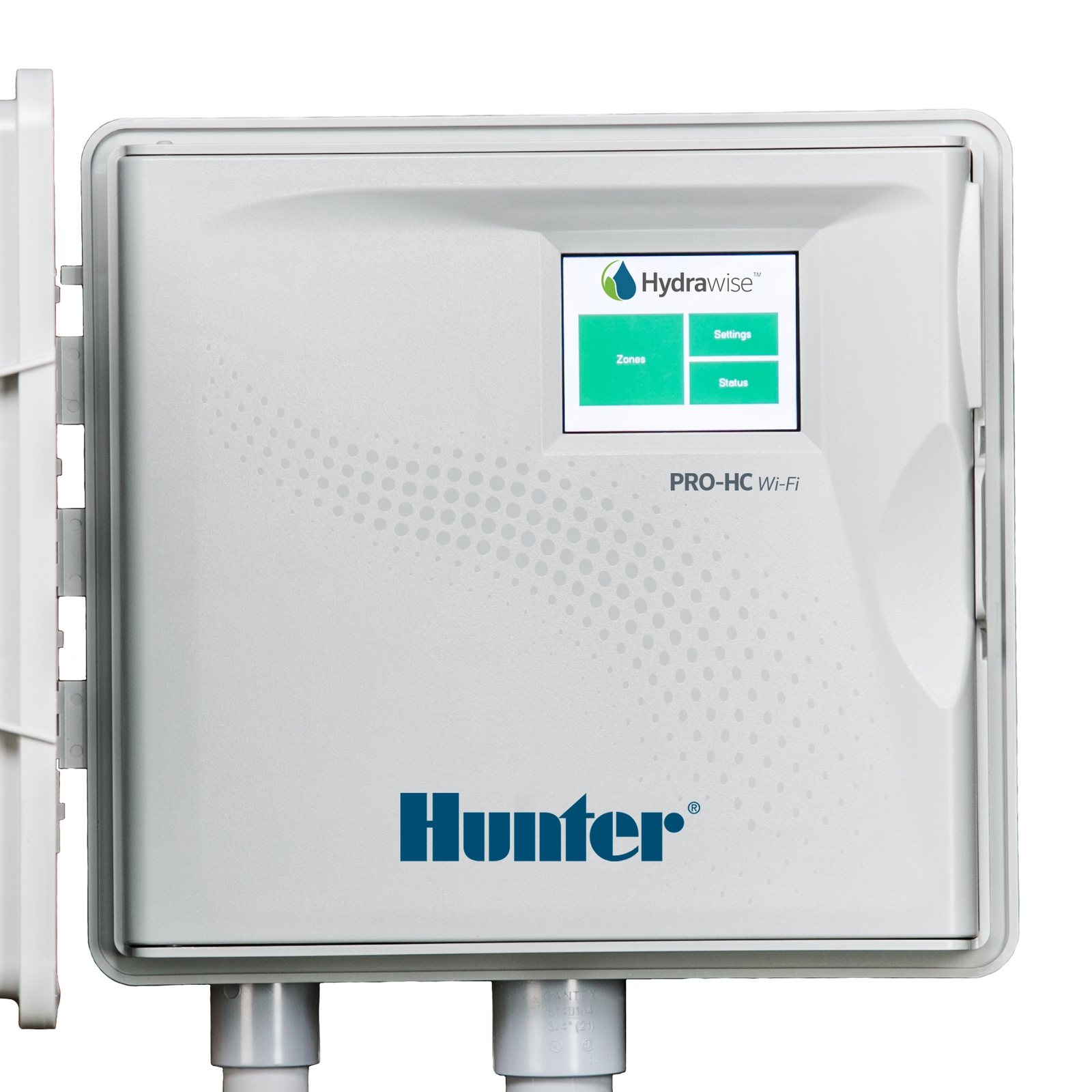

The Hunter Pro-HC Hydrawise Controller range includes fixed 6, 12 and 24 station outdoor controllers for residential and light commercial irrigation systems. Built-in Hydrawise® control allows irrigation to be managed from a smartphone, tablet or computer, making it easier to adjust watering whether you are on-site or away.
Hydrawise® Predictive Watering uses local weather data to help adjust irrigation schedules based on conditions such as temperature, rainfall, humidity and wind. When configured with compatible sensors and flow monitoring, the controller can also provide alerts for wiring faults, high flow, low flow and other system issues.
The Pro-HC range features a full-colour touchscreen, large terminal strips, two sensor inputs, a dedicated pump/master valve output and built-in milliamp monitoring for wire fault detection. It is a professional-grade Wi-Fi controller suited to residential landscapes and light commercial watering systems.
2 Year Hunter Warranty
Hunter Pro-HC Controller Brochure
Hunter Hydrawise Wi-Fi Network Requirements & Troubleshooting
Hunter Pro-HC Controller Installation Guide
Hunter Pro-HC Controller Door Card
Hunter Pro-HC Controller Specifications
Video 1
Video 2
Video 3
Video 4
Video 5
Video 6

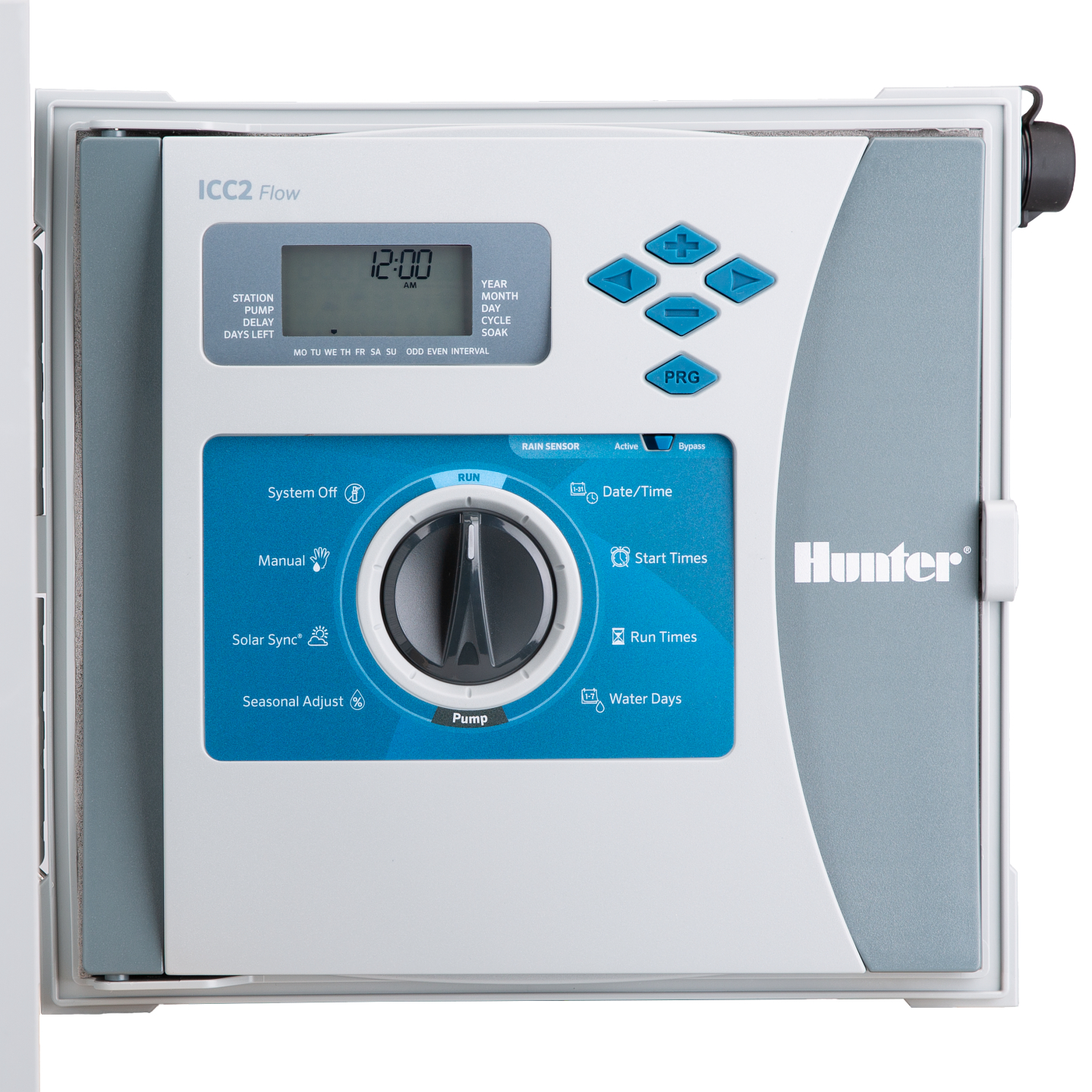

Hunter ICC2 modular controllers provide automatic watering for larger gardens, commercial landscapes and municipal sites. The dial, buttons and display provide local programming and manual operation without an internet connection.
The ICC2 provides 4 separate programs, labelled A, B, C and D, with 8 start times per program and station run times from 1 minute to 12 hours. Scheduling options include days of the week, odd/even dates and intervals up to 31 days. Seasonal adjustment changes run times by percentage. Cycle and Soak splits watering into shorter cycles, and a delay between stations allows a pause between valve operations.
Up to two programs can operate at the same time, plus the separate pump/master-valve output. Plan overlapping watering only where the water supply and electrical load can support it.
The supplied ICM-800 module provides eight conventional station outputs. The controller also has a separate P/MV output for a master valve or pump start relay. Add ICM modules to expand to 38 conventional stations in plastic cabinets or 54 in metal cabinets. Additional ICM-400, ICM-800 and ICM-2200 modules provide four, eight and 22 more outputs respectively.
Conventional station expansion
Examples below show modules added to the supplied eight-station base. The factory-fitted ICM-800 is already included in that base and is not counted again. These are common configurations, rather than every possible combination.
| Final conventional capacity | Additional modules | Plastic cabinet | Metal cabinet |
|---|---|---|---|
| 8 stations | No additional module | Yes | Yes |
| 12 stations | 1 x ICM-400 | Yes | Yes |
| 16 stations | 1 x ICM-800 | Yes | Yes |
| 24 stations | 2 x ICM-800 | Yes | Yes |
| 32 stations | 3 x ICM-800 | Yes | Yes |
| 38 stations | 1 x ICM-800 + 1 x ICM-2200 | Yes | No |
| 40 stations | 4 x ICM-800 | No | Yes |
| 48 stations | 5 x ICM-800 | No | Yes |
| 54 stations | 3 x ICM-800 + 1 x ICM-2200 | No | Yes |
Install standard modules in slot order. ICM-2200 is limited to one per controller and must occupy the last two slots: slots 3 and 4 in plastic cabinets, or slots 5 and 6 in metal cabinets. Fill every earlier slot with an ICM-800 before fitting ICM-2200. Press the Reset button on the back of the control panel after module changes so the controller recognises the new station count.
For two-wire operation, add an EZ-DM (ICC2 / HCC) output module and compatible EZ-1 or EZ-LR field decoders. All-decoder operation supports up to 54 stations. In a hybrid system, conventional and decoder outputs share the same 54 station numbers, rather than providing 54 extra stations on top of the conventional outputs. Keep conventional modules in the lower-numbered slots and install EZ-DM in the next available slot, as described in its guide. The EZ-DM page explains slot use, station assignments and the field-decoder options.
The ICC2 includes a dedicated flow-sensor input and built-in flow monitoring. Connect and configure a compatible HC Flow Meter, purchased separately, to measure flow and generate high/low-flow alarms. A separate weather-sensor input accepts suitable Clik sensors or an optional Solar Sync sensor for weather-based run-time adjustment.
Centralus online management requires a separate compatible communication module. A prewired SmartPort supports optional ROAM or ROAM LR handheld remotes. Non-volatile memory retains programming, and Easy Retrieve saves a separate schedule backup. QuickCheck helps locate faults on conventional station wiring and does not diagnose EZ field decoders.
Both the plastic and metal wall-mount cabinets are rated IP55 for outdoor installation. The plastic model is supplied corded. The controller operates compatible 24VAC irrigation solenoids from an internal transformer. Follow the installation instructions for power supply, mounting and wiring.
For an original ICC installation, the ICC-FPUP2 kit provides a retrofit route to the ICC2 platform. For Hydrawise control on an existing compatible ICC or ICC2 installation, consider the HCC-FPUP kit. An ICC-FPUP2 kit can replace failed control electronics in an original ICC while upgrading it to ICC2. See Hunter ICC2 Retrofit Kit Installation Instructions and Hunter HCC / HCC-FPUP Installation and Quick Start Guide.
5 Year Hunter Warranty.
Controller documents
Hunter ICC2 Controller User Manual
Hunter ICC2 Controller Installation Guide
Hunter ICC2 Controller Programming Guide
Hunter ICC2 Controller Specifications
Hunter ICC2 Controller Door Card
Optional EZ Decoder System documents
Hunter EZ Decoder System Brochure
Hunter ICC2 / HCC Controller EZ-DM Decoder Module Installation Guide
Hunter EZ Decoder System Specifications
Hunter EZ-1 Decoder Installation Guide
Hunter EZ-LR Decoder Installation Guide
How watering programs work
The ICC2 has four separate watering programs, labelled A, B, C and D. Each program is its own watering schedule, with its own watering days, start times and station run times.
Each station controls a watering zone, such as a lawn or garden bed. Within a program, choose the stations to water and set how long each one runs.
Each program allows up to eight start times. One start begins the whole program, running its selected stations in sequence for their set run times. Another program can run at the same time where the controller and installation allow it.
For example, one program could start at 6am, water the lawn for 10 minutes, then a garden bed for 5 minutes. That needs one start time. Add another start time to repeat the same sequence later that day. Use only the programs and start times needed.
Avoiding common programming mistakes
- Avoid unintended repeat cycles. Each additional start time repeats the whole program. Set unused start times to OFF. You do not need a separate start time for each station.
- Check all programs. A station included in more than one active program can water again under each schedule. Keep it in multiple programs only when that extra watering is intended.
- Plan overlapping watering. This controller can run two programs at once. Overlapping schedules can therefore increase the flow required from the water supply. Allow for complete program durations and any master valve. For decoder wiring, count all solenoids running at the same time on the shared path when checking cable range.
How two-wire decoder wiring works
Conventional valve wiring uses a separate station wire from the controller to each watering station, together with a shared common wire. A two-wire decoder system uses a shared pair of field wires to carry power and control signals to decoders near the valves.
The EZ-DM output module fits inside the compatible controller. Each EZ-1 or EZ-LR field decoder connects to the shared cable and a local valve solenoid. It is programmed with a station number. Starting that station operates the valve connected to its decoder.
The cable can branch in different directions to reach separate valve locations. At each split, join each conductor separately using suitable waterproof irrigation connectors inside a valve box. Both branches remain part of the shared two-wire path.
EZ-DM supports up to 54 total stations in both plastic and metal cabinet models. In a hybrid installation, conventional outputs and decoder stations share those 54 station numbers. Assign decoders to numbers not already used by conventional outputs. Follow the EZ-DM guide for the module layout.
Choose cable size for the distance to the furthest decoder and the number of solenoids running at the same time on the shared path. More simultaneous solenoids reduce the permitted distance. Include a master valve if it is operated through a decoder. Use the EZ-1 or EZ-LR wiring tables in the guides above.
Video 1
Video 2
Video 3
Video 4
Hunter HCC Wi-Fi modular controllers provide automatic watering for larger gardens, commercial landscapes and municipal sites. Built-in Hydrawise Wi-Fi provides app and web management, weather-based adjustment and controller alerts. The 8cm full-colour touchscreen provides local programming and manual operation.
Standard Hydrawise programming provides 6 separate watering programs with 6 start times per program and station run times up to 24 hours. Advanced mode uses station-based scheduling with up to 6 total start times.
Up to two stations can operate at the same time, plus the separate pump/master-valve output. Plan overlapping watering only where the water supply and electrical load can support it.
The supplied ICM-800 module provides eight conventional station outputs. The controller also has a separate P/MV output for a master valve or pump start relay. Add ICM modules to expand to 38 conventional stations in plastic cabinets or 54 in metal cabinets. Additional ICM-400, ICM-800 and ICM-2200 modules provide four, eight and 22 more outputs respectively.
Conventional station expansion
Examples below show modules added to the supplied eight-station base. The factory-fitted ICM-800 is already included in that base and is not counted again. These are common configurations, rather than every possible combination.
| Final conventional capacity | Additional modules | Plastic cabinet | Metal cabinet |
|---|---|---|---|
| 8 stations | No additional module | Yes | Yes |
| 12 stations | 1 x ICM-400 | Yes | Yes |
| 16 stations | 1 x ICM-800 | Yes | Yes |
| 24 stations | 2 x ICM-800 | Yes | Yes |
| 32 stations | 3 x ICM-800 | Yes | Yes |
| 38 stations | 1 x ICM-800 + 1 x ICM-2200 | Yes | No |
| 40 stations | 4 x ICM-800 | No | Yes |
| 48 stations | 5 x ICM-800 | No | Yes |
| 54 stations | 3 x ICM-800 + 1 x ICM-2200 | No | Yes |
Install standard modules in slot order. ICM-2200 is limited to one per controller and must occupy the last two slots: slots 3 and 4 in plastic cabinets, or slots 5 and 6 in metal cabinets. For the maximum-capacity ICM-2200 configurations shown, fill the earlier slots with ICM-800 modules. Press the Reset button on the back of the control panel after module changes so the controller recognises the new station count.
For two-wire operation, add an EZ-DM (ICC2 / HCC) output module and compatible EZ-1 or EZ-LR field decoders. All-decoder operation supports up to 54 stations. In a hybrid system, conventional and decoder outputs share the same 54 station numbers, rather than providing 54 extra stations on top of the conventional outputs. Keep conventional modules in the lower-numbered slots and install EZ-DM in the next available slot, as described in its guide. The EZ-DM page explains slot use, station assignments and the field-decoder options.
Flow monitoring, high/low-flow alerts and water-use reporting require a compatible HC Flow Meter, purchased separately and configured in Hydrawise. Two sensor inputs accept suitable flow or Clik sensors. Online weather adjustment, remote access and alerts require a suitable 2.4 GHz Wi-Fi network and internet connection. The controller can also be programmed at its touchscreen.
A prewired SmartPort supports optional ROAM or ROAM LR handheld remotes for on-site manual operation. The built-in milliamp sensor helps identify wiring faults and supports controller alerts.
Both the plastic and metal wall-mount cabinets are rated IP55 for outdoor installation. The plastic model is supplied corded. The controller operates compatible 24VAC irrigation solenoids from an internal transformer. Follow the installation instructions for power supply, mounting and wiring.
For an existing compatible ICC or ICC2 installation, the HCC-FPUP kit provides a retrofit route to Hydrawise. The HCC-FPUP kit can also replace a damaged HCC facepack, power module or ribbon cable. Match the replacement part numbers before ordering. See Hunter HCC / HCC-FPUP Installation and Quick Start Guide.
2 Year Hunter Warranty.
Controller documents
Hunter HCC Controller Brochure
Hunter Hydrawise Wi-Fi Network Requirements & Troubleshooting
Hunter HCC Controller Specifications
Hunter HCC Controller Door Card
Optional EZ Decoder System documents
Hunter EZ Decoder System Brochure
Hunter ICC2 / HCC Controller EZ-DM Decoder Module Installation Guide
Hunter EZ Decoder System Specifications
Hunter EZ-1 Decoder Installation Guide
Hunter EZ-LR Decoder Installation Guide
How watering programs work
In standard Hydrawise mode, the HCC has six separate watering programs. Each program is its own watering schedule, with its own watering days, start times and station run times.
Each station controls a watering zone, such as a lawn or garden bed. Within a program, choose the stations to water and set how long each one runs.
Each program allows up to six start times. One start begins the whole program, running its selected stations in sequence for their set run times. Another program can run at the same time where the controller and installation allow it.
For example, one program could start at 6am, water the lawn for 10 minutes, then a garden bed for 5 minutes. That needs one start time. Add another start time to repeat the same sequence later that day. Use only the programs and start times needed.
Avoiding common programming mistakes
- Avoid unintended repeat cycles. Each additional start time repeats the whole program. Disable or remove starts you do not need.
- Check all programs. A station included in more than one active program can water again under each schedule. Keep it in multiple programs only when that extra watering is intended.
- Plan overlapping watering. This controller can run two stations at once. Overlapping schedules can therefore increase the flow required from the water supply. Allow for complete program durations and any master valve. For decoder wiring, count all solenoids running at the same time on the shared path when checking cable range.
How two-wire decoder wiring works
Conventional valve wiring uses a separate station wire from the controller to each watering station, together with a shared common wire. A two-wire decoder system uses a shared pair of field wires to carry power and control signals to decoders near the valves.
The EZ-DM output module fits inside the compatible controller. Each EZ-1 or EZ-LR field decoder connects to the shared cable and a local valve solenoid. It is programmed with a station number. Starting that station operates the valve connected to its decoder.
The cable can branch in different directions to reach separate valve locations. At each split, join each conductor separately using suitable waterproof irrigation connectors inside a valve box. Both branches remain part of the shared two-wire path.
EZ-DM supports up to 54 total stations in both plastic and metal cabinet models. In a hybrid installation, conventional outputs and decoder stations share those 54 station numbers. Assign decoders to numbers not already used by conventional outputs. Follow the EZ-DM guide for the module layout.
Choose cable size for the distance to the furthest decoder and the number of solenoids running at the same time on the shared path. More simultaneous solenoids reduce the permitted distance. Include a master valve if it is operated through a decoder. Use the EZ-1 or EZ-LR wiring tables in the guides above.
Video 1
Video 2
Video 3
Video 4
Video 5
Video 6

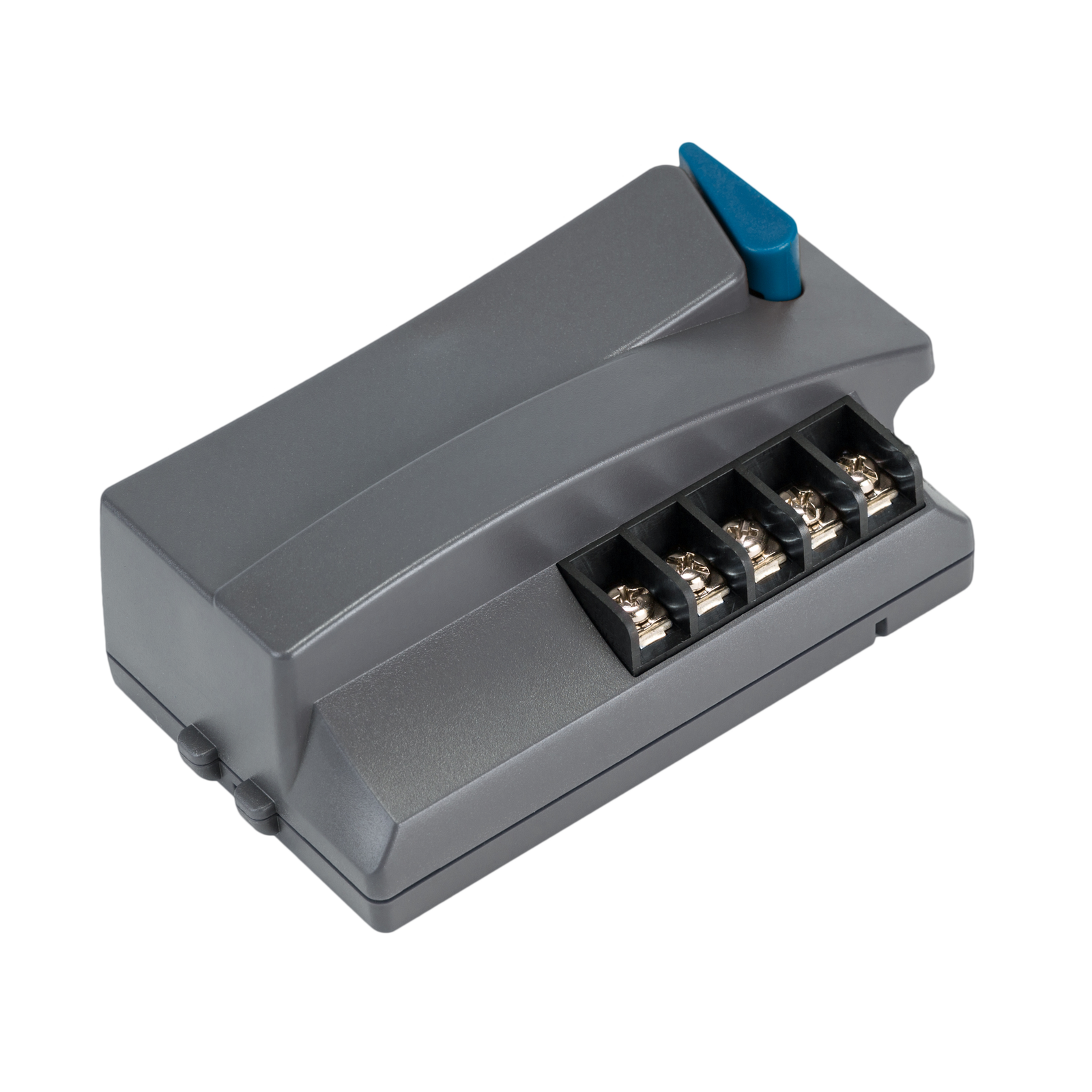

Hunter ICM expansion modules add conventional wired station outputs to ICC2 and HCC controllers. Choose ICM-400 for four extra outputs, ICM-800 for eight or ICM-2200 for 22. Select the combination needed for the final controller capacity.
Each output operates a conventional wired watering station. The module range includes ICM-400, ICM-800 and ICM-2200. Maximum conventional capacity is 38 stations in plastic ICC2/HCC cabinets or 54 in metal cabinets, using the appropriate module layout.
ICM-400 and ICM-800 each occupy one module slot. ICM-2200 occupies two slots and is limited to one per controller. Install ICM-2200 last in slots 3 and 4 for plastic cabinets or slots 5 and 6 for metal cabinets.
Example conventional expansion configurations
Modules below are added to a compatible eight-station ICC2 or HCC base. The factory-fitted eight-station module is already included in the base and is not counted again. These are common examples, rather than every possible module combination.
| Final conventional capacity | Modules added to the eight-station base | Plastic cabinet | Metal cabinet |
|---|---|---|---|
| 8 stations | No additional module | Yes | Yes |
| 12 stations | 1 x ICM-400 | Yes | Yes |
| 16 stations | 1 x ICM-800 | Yes | Yes |
| 24 stations | 2 x ICM-800 | Yes | Yes |
| 32 stations | 3 x ICM-800 | Yes | Yes |
| 38 stations | 1 x ICM-800 + 1 x ICM-2200 | Yes | No |
| 40 stations | 4 x ICM-800 | No | Yes |
| 48 stations | 5 x ICM-800 | No | Yes |
| 54 stations | 3 x ICM-800 + 1 x ICM-2200 | No | Yes |
Install standard modules in slot order. ICM-2200 occupies the last two slots: slots 3 and 4 in plastic cabinets or slots 5 and 6 in metal cabinets. Use ICM-800 modules in the earlier slots for the maximum-capacity layouts shown. Hunter’s ICC2 instructions specifically require ICM-800 modules in every slot before ICM-2200. Press Reset after changing modules so the controller recognises the station count.
Lock the module in place with the controller’s blue locking lever, then press the Reset button on the back of the facepack so the controller recognises the new outputs. Follow the controller installation instructions when connecting the station and common wires.
For the alternative two-wire expansion route, use an EZ-DM (ICC2 / HCC) output module with EZ-1 or EZ-LR field decoders. ICM modules provide conventional wired outputs and do not take the place of EZ field decoders. The EZ-DM page explains hybrid slot layouts and the shared station-number limit.
5 Year Hunter Warranty.
Hunter ICC2 Controller Specifications
Hunter HCC Controller Specifications
Hunter ICC2 Controller User Manual
Hunter HCC Station Module Installation Instructions
Video 1
Video 2
Video 3
Video 4
The Hunter EZ-DM is the decoder output module for compatible ICC2 and HCC controllers. It sends power and station commands along two-wire cabling to EZ-1 or EZ-LR field decoders installed near the valves. The controller, output module and field decoders have separate roles.
The module provides two wire-path connections. Both share the same controller station-number range, up to 54 stations plus pump/master-valve operation. Two paths do not provide two separate sets of 54 station numbers.
For an all-decoder layout, install EZ-DM in the first module slot and reset the controller as directed in the installation guide. Station numbers 1–54 can then be assigned to field decoders.
For hybrid wiring, retain compatible ICM-400 or ICM-800 conventional modules in the lower-numbered slots and place EZ-DM in the next available slot, as Hunter recommends. Conventional modules retain the station numbers marked for their slots. Assign decoders only to the remaining station numbers up to 54.
For example, an eight-station conventional module can operate stations 1–8, with decoders assigned to stations 9–54 for up to 46 decoder stations. That remains 54 total station numbers. Reusing a conventional station number for a decoder can activate both outputs together.
EZ-DM station-number examples
| Example layout | Conventional station numbers | Decoder station numbers |
|---|---|---|
| All decoder | None | 1–54: up to 54 |
| Eight conventional outputs retained | 1–8 | 9–54: up to 46 |
A programming port, PRG button and status LED let each decoder be assigned its station number without entering individual serial numbers. Pump/master-valve decoder operation uses Hunter’s separate assignment and jumper procedure. The controller’s ordinary P/MV output can also be wired directly as specified.
Use direct-burial irrigation cable sized for the distance and active solenoid load. Tee-splicing is permitted. Use waterproof irrigation splices to protect the connections. Existing conventional cable may be suitable for conversion when its condition, size and routing meet the installation requirements.
Compatible MCC controllers can also use EZ-DM. Confirm the exact controller and module combination for an existing installation. The compatibility explained here focuses on the ICC2 and HCC controllers sold in this range.
3 Year Hunter Warranty.
Hunter ICC2 / HCC Controller EZ-DM Decoder Module Installation Guide
Hunter EZ Decoder System Specifications
Hunter EZ Decoder System Brochure
Hunter Pro-C / HPC Controller PC-DM Decoder Module Installation Guide
Hunter EZ-1 Decoder Installation Guide
Hunter EZ-LR Decoder Installation Guide
How two-wire decoder systems work
Conventional valve wiring uses a separate station wire from the controller to each watering station, together with a shared common wire. A two-wire decoder system uses a shared pair of field wires to carry power and control signals to decoders near the valves.
The decoder output module fits inside the compatible controller. Each field decoder taps into the shared two-wire cable and connects to its local valve solenoid. The decoder is programmed with a station number. When that station starts, the matching decoder operates its connected solenoid.
The two-wire cable can branch in different directions to reach separate valve locations. At each split, join each conductor separately using suitable waterproof irrigation connectors. Cable sizing must account for the furthest decoder and the solenoids running at the same time across the shared path.
For example, decoders programmed as stations 5 and 6 can share the same two-wire cable. Starting station 5 operates the solenoid connected to the decoder assigned to station 5. The controller’s watering schedule determines when each station runs.
In a hybrid system, some stations use conventional wires and others use decoders. The output module, conventional modules and controller determine which station numbers are available to each wiring method. Give each decoder a unique station assignment and avoid assigning a decoder to a station already used by conventional wiring.
Video 1
Video 2
Video 3
Video 4

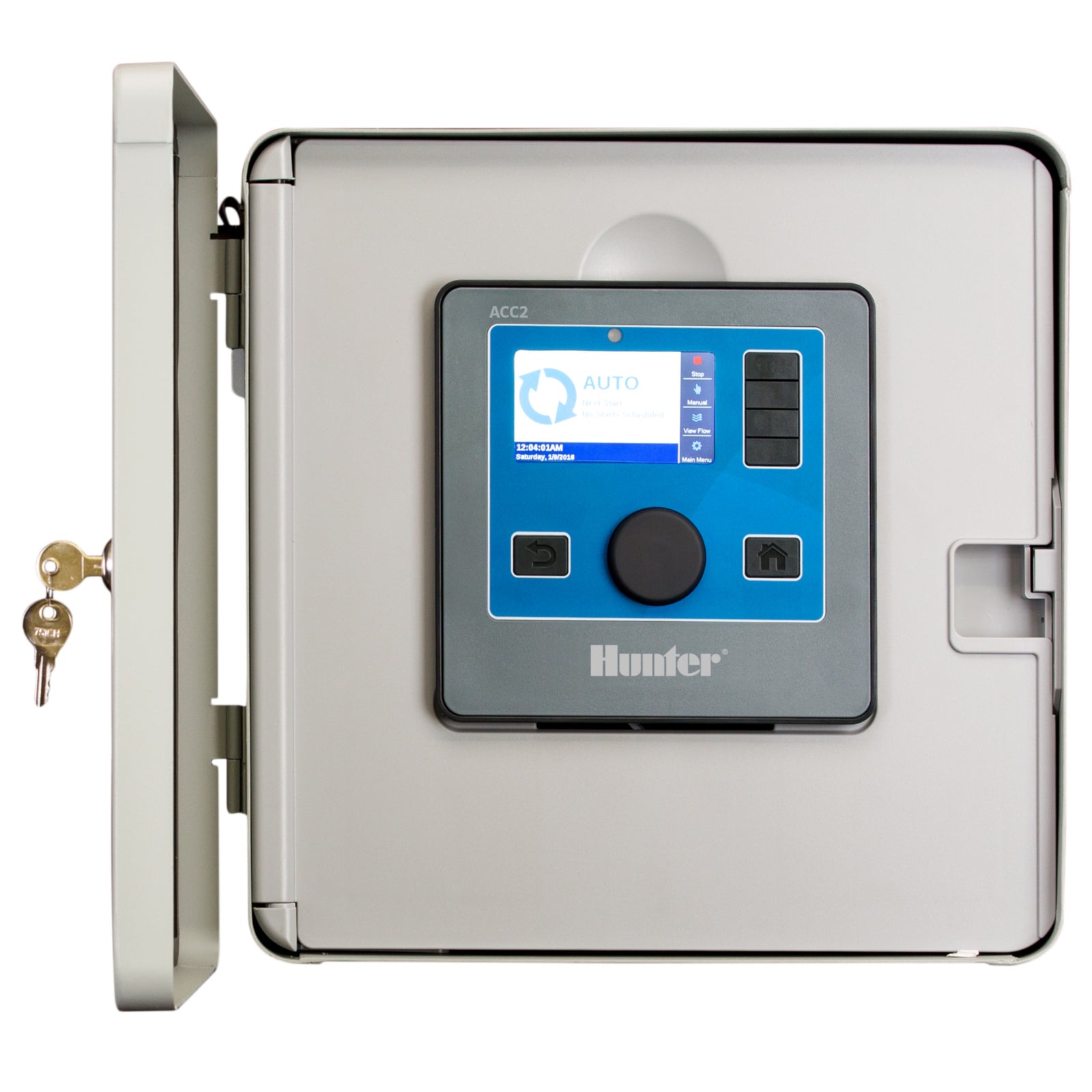

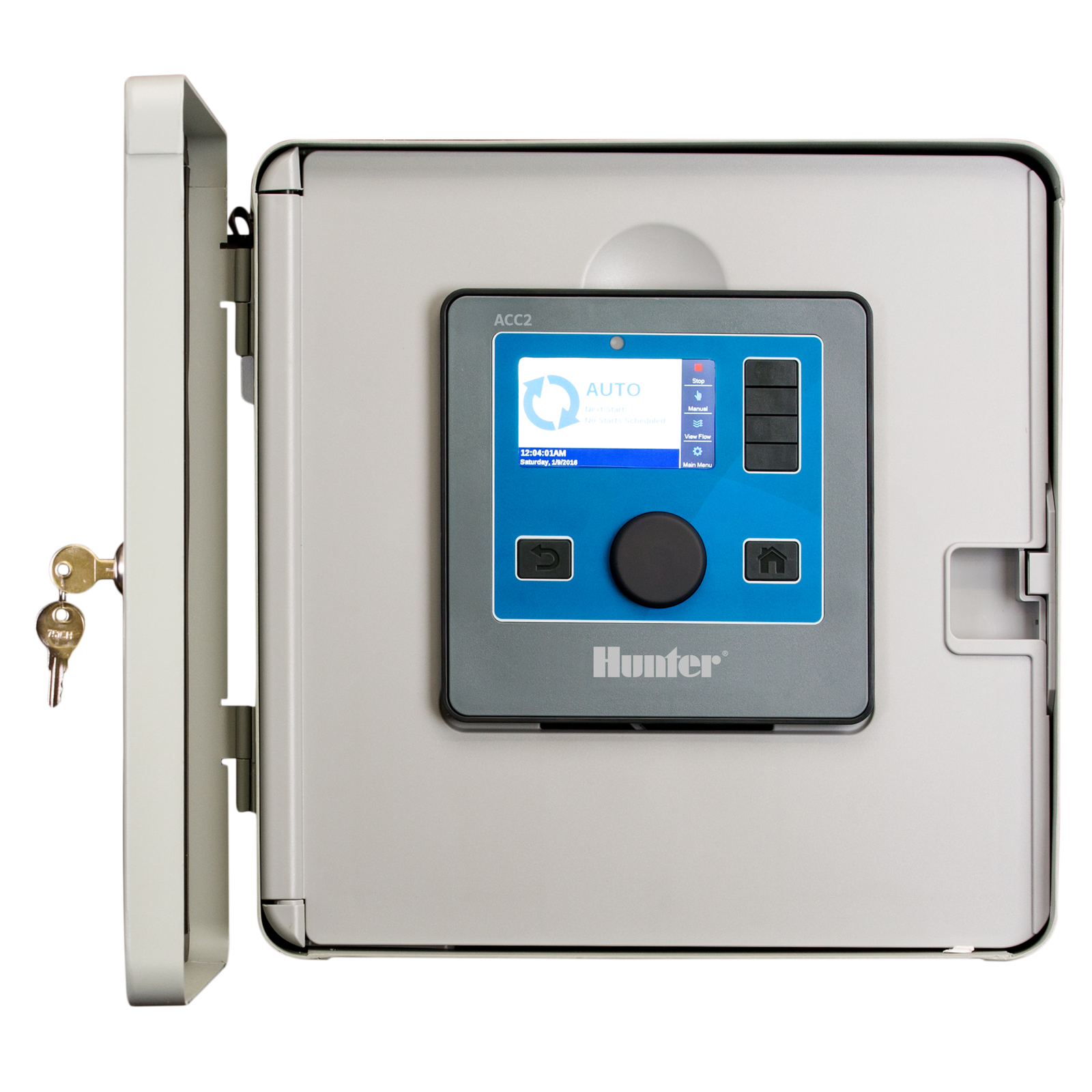

The Hunter ACC2 Conventional A2C-1200-M provides conventional wired irrigation control for large landscapes with multiple watering areas. It combines flexible scheduling, simultaneous station operation and flow management in a grey steel outdoor wall-mount cabinet. The full-colour backlit display and dial provide local programming and manual operation. The facepack reverses for access during installation and servicing.
There are 32 separate programs with up to 10 start times per program and station run times from 1 second to 12 hours. Select days of the week, odd or even dates, or interval watering. Choose Stack to make a program wait until it can run by itself, or Overlap to allow it to run alongside other programs and operate multiple watering stations at the same time. Blocks let selected stations start together. Non-Water Windows reserve periods when automatic irrigation is prevented.
Up to 14 Hunter solenoids can operate together, including pump/master-valve loads. Solenoid current, operating conditions and configured station limits can reduce this number.
Seasonal adjustment changes run times by percentage across the controller, by program or through a preset monthly schedule. Cycle and Soak divides watering into shorter cycles with pauses for absorption. A delay between stations allows a pause between valve operations.
The base supplies 12 station outputs. Each A2M-600 adds six stations. Up to seven additional modules fit inside the controller, giving 54 stations in total.
Station expansion
| Additional A2M-600 modules | Total stations |
|---|---|
| 0 | 12 |
| 1 | 18 |
| 2 | 24 |
| 3 | 30 |
| 4 | 36 |
| 5 | 42 |
| 6 | 48 |
| 7 | 54 |
The table shows additional modules beyond the supplied base. Follow Hunter’s module installation sequence and isolate controller power before fitting or servicing modules.
Three flow-sensor inputs are built in. With suitable flow sensors installed and configured, Flow Monitor measures actual flow and detects abnormal high or low flow. Flow Manager schedules stations within the available flow for each area, allowing suitable stations to water together. Entered station flow values can also be used for flow management. An A2C-F3 module adds three more hardwired flow inputs, giving six in total.
Three dedicated pump/master-valve outputs are built in. Up to three regular station outputs can be reassigned for additional pump/master-valve control, giving six in total. Reassigned outputs are then dedicated to that function.

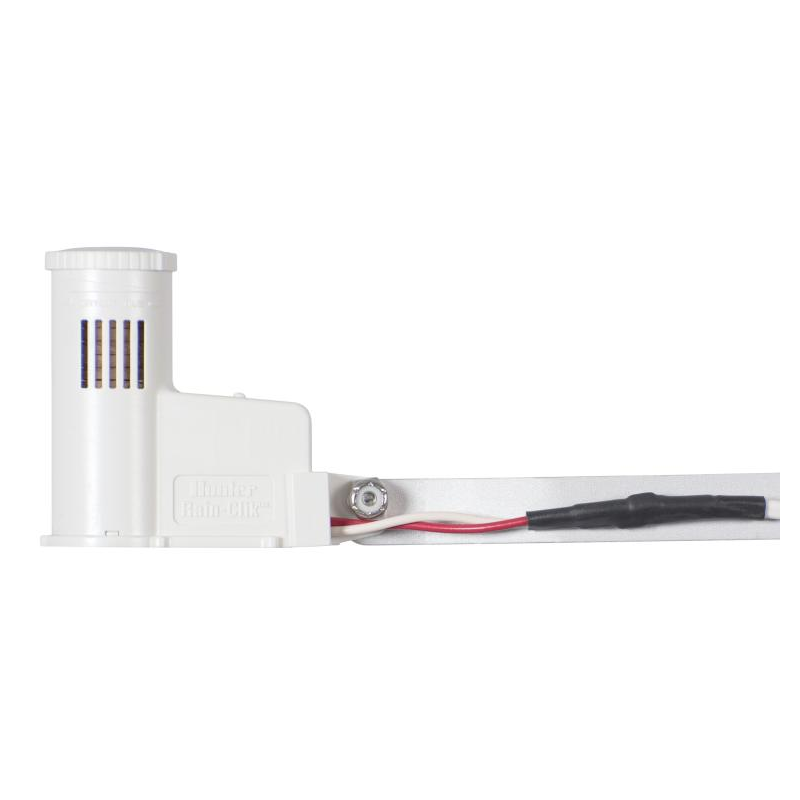

Three Clik sensor inputs support sensor-based watering control. Add a separately sold Hunter Solar Sync sensor for automatic run-time adjustment from local weather measurements. Conditional Response lets the installer configure actions in response to sensor conditions, such as changing the water source when a level sensor is triggered.
Easy Retrieve saves controller settings for later restoration. Detailed alarm logs help trace watering, flow and electrical problems.
Add the separately sold A2C-WIFI module for Centralus access through an internet-connected 2.4GHz Wi-Fi network. Use a smartphone, tablet or computer browser to change schedules, operate watering manually and view controller status, alarms and irrigation history. Flow reporting requires the appropriate sensors and setup. Hunter also provides LAN and cellular connection options.
For ICD two-wire installations, see the ACC2 Decoder controller.
5 Year Hunter Warranty.
Controller and system documents
Hunter ACC2 Conventional Quick Start Guide
Hunter ACC2 Controller Installation and Wiring
Hunter ACC2 Conventional and Decoder Specifications
Hunter ACC2 Conventional Programming Door Card
Hunter ACC2 Conventional Brochure
Centralus Wi-Fi documents
Hunter A2C-WIFI Installation Guide
Hunter Centralus System Overview
How watering programs work
ACC2 has 32 separate watering programs. Each program is its own schedule, with its own watering days, station run times and up to 10 start times. You can select days of the week, odd or even dates, or an interval between watering days.
Each station controls a watering zone, such as a lawn or garden bed. Within a program, choose the stations to water and how long each runs. Station run times range from 1 second to 12 hours.
A start time begins the whole program. With individual stations listed in the program, the controller runs them in sequence for their set run times. For example, Program 1 could start at 6am, water a lawn station for 10 minutes, then a garden-bed station for 5 minutes. That needs one start time. Add another start time to repeat the same sequence later that day. Other programs can have their own schedules.
ACC2 also lets you put several stations into a block so they water together. Select a block in a program when simultaneous watering is intended and the water supply and electrical capacity support it.
Avoiding common programming mistakes
- Avoid unintended repeat cycles. Each extra start time runs the same program again. Leave unused start times off. Check whether a station also appears in another active program.
- Choose Stack or Overlap deliberately. Stack makes a program run by itself, so it may begin later if another program is still running. Overlap allows programs to run together, subject to the configured station limits and electrical capacity.
- Allow for the whole watering cycle. Include all station run times, soak periods and delays when planning starts. Simultaneous watering must also suit the available flow and pressure. Current protection can suspend stations when the combined electrical load is too high.
Video 1
Video 2
Video 3
Video 4

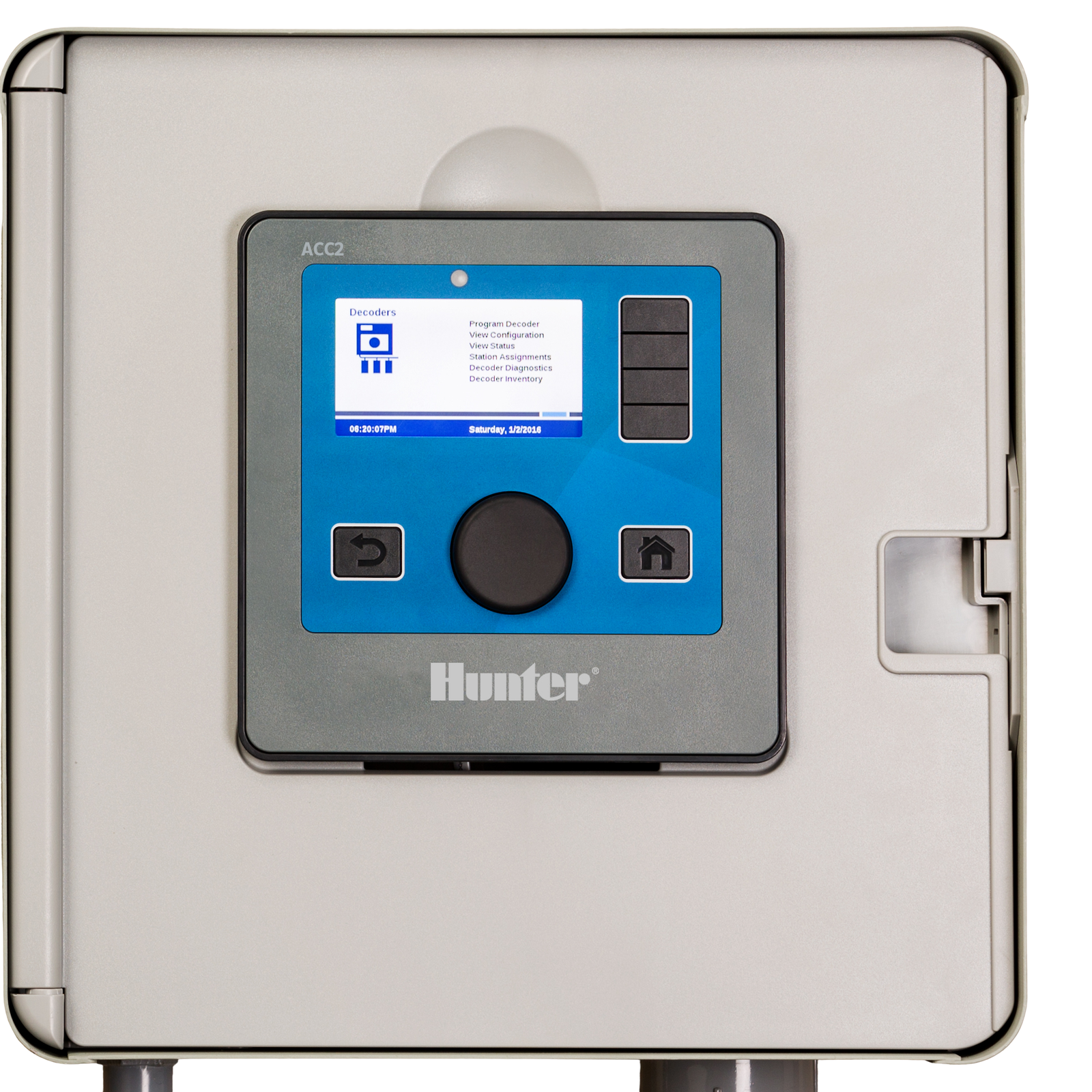

The Hunter ACC2 Decoder A2C-75D-M provides two-wire decoder irrigation control for large landscapes with multiple watering areas. It combines flexible scheduling, simultaneous station operation and flow management in a grey steel outdoor wall-mount cabinet. The full-colour backlit display and dial provide local programming and manual operation. The facepack reverses for access during installation and servicing.
There are 32 separate programs with up to 10 start times per program and station run times from 15 seconds to 12 hours. Select days of the week, odd or even dates, or interval watering. Choose Stack to make a program wait until it can run by itself, or Overlap to allow it to run alongside other programs and operate multiple watering stations at the same time. Blocks let selected stations start together. Non-Water Windows reserve periods when automatic irrigation is prevented.
Up to 20 Hunter solenoids can operate together with the included output module. With multiple modules installed, the controller supports up to 30 in total, with a maximum of 20 per module. Include pump/master-valve loads. Cable length, solenoid current and configured limits can reduce these numbers.
Seasonal adjustment changes run times by percentage across the controller, by program or through a preset monthly schedule. Cycle and Soak divides watering into shorter cycles with pauses for absorption. A delay between stations allows a pause between valve operations.
The base includes one A2C-D75 output module for 75 watering stations. Add one A2C-D75 for 150 stations or two for 225. Field decoders are purchased separately. Choose ICD-100 (1 station), ICD-200 (2 stations), ICD-400 (4 stations), ICD-600 (6 stations) to suit the valves at each location.
Station expansion
| Additional A2C-D75 modules | Total stations |
|---|---|
| 0 | 75 |
| 1 | 150 |
| 2 | 225 |
The table shows additional modules beyond the supplied base. Follow Hunter’s module installation sequence and isolate controller power before fitting or servicing modules.
Three flow-sensor inputs are built in. With suitable flow sensors installed and configured, Flow Monitor measures actual flow and detects abnormal high or low flow. Flow Manager schedules stations within the available flow for each area, allowing suitable stations to water together. Entered station flow values can also be used for flow management. An A2C-F3 module adds three more hardwired flow inputs, giving six in total.
Three pump/master-valve outputs are built in. Up to six can be configured across the system, with ICD decoders allowing pump or master-valve control over the two-wire path.
Three Clik sensor inputs support sensor-based watering control. Add a separately sold Hunter Solar Sync sensor for automatic run-time adjustment from local weather measurements. Conditional Response lets the installer configure actions in response to sensor conditions, such as changing the water source when a level sensor is triggered.
Decoder diagnostics include inventory, status, solenoid finding, wire testing and firmware updates. An ICD-SEN sensor decoder can return compatible sensor signals over the two-wire path. Follow the manual for the supported sensor and connection.
Easy Retrieve saves controller settings for later restoration. Detailed alarm logs help trace watering, flow and electrical problems.
Add the separately sold A2C-WIFI module for Centralus access through an internet-connected 2.4GHz Wi-Fi network. Use a smartphone, tablet or computer browser to change schedules, operate watering manually and view controller status, alarms and irrigation history. Flow reporting requires the appropriate sensors and setup. Hunter also provides LAN and cellular connection options.
For conventional station wiring, see the ACC2 Conventional controller.
5 Year Hunter Warranty.
Controller and system documents
Hunter ACC2 Decoder Owner’s Manual
Hunter ACC2 Conventional and Decoder Specifications
Hunter ICD Decoder Specifications
Hunter ACC2 Decoder Design Guide
Hunter A2C-D75 Installation Guide
Hunter ACC2 ICD Decoder Installation
Hunter ACC2 Decoder Troubleshooting Guide
Hunter ACC2 Decoder Programming Door Card
Hunter ACC2 Decoder Brochure
Centralus Wi-Fi documents
Hunter A2C-WIFI Installation Guide
Hunter Centralus System Overview
How watering programs work
ACC2 has 32 separate watering programs. Each program is its own schedule, with its own watering days, station run times and up to 10 start times. You can select days of the week, odd or even dates, or an interval between watering days.
Each station controls a watering zone, such as a lawn or garden bed. Within a program, choose the stations to water and how long each runs. Station run times range from 15 seconds to 12 hours.
A start time begins the whole program. With individual stations listed in the program, the controller runs them in sequence for their set run times. For example, Program 1 could start at 6am, water a lawn station for 10 minutes, then a garden-bed station for 5 minutes. That needs one start time. Add another start time to repeat the same sequence later that day. Other programs can have their own schedules.
ACC2 also lets you put several stations into a block so they water together. Select a block in a program when simultaneous watering is intended and the water supply and electrical capacity support it.
Avoiding common programming mistakes
- Avoid unintended repeat cycles. Each extra start time runs the same program again. Leave unused start times off. Check whether a station also appears in another active program.
- Choose Stack or Overlap deliberately. Stack makes a program run by itself, so it may begin later if another program is still running. Overlap allows programs to run together, subject to the configured station limits and electrical capacity.
- Allow for the whole watering cycle. Include all station run times, soak periods and delays when planning starts. Simultaneous watering must also suit the available flow and pressure. Current protection can suspend stations when the combined electrical load is too high.
How two-wire decoder wiring works
Conventional wiring uses a separate station wire from the controller to each watering station, together with a shared common wire. A two-wire system uses one shared pair of field wires to carry power and control signals to decoders near the valves. This reduces the number of separate wires running back to the controller on large sites.
The A2C-D75 output module fits inside the ACC2 Decoder controller. An ICD field decoder connects to the shared cable near a valve or group of valves. Each decoder output connects to a local 24VAC valve solenoid and is assigned a station number. Starting that station operates its assigned valve.
The shared cable can branch in different directions to reach separate valve locations. At each split, join the red wires together and the blue wires together in separate waterproof splices inside a valve box. Use Hunter IDWIRE or an approved substitute and the specified decoder-path connectors. Both branches remain part of the shared two-wire path.
Each A2C-D75 adds 75 stations of controller capacity and provides three cable connections. Those connections share the module’s station allocation. With additional modules installed, the Station Assignments settings can allocate more than 75 stations to one module’s field wiring while keeping within the controller’s total installed capacity. Follow the design guide for assignments and loading.
Cable size, the complete route to the end of each branch and the solenoids operating at the same time determine the permitted distance. The published maximums are 3km on 2mm² IDWIRE1 and 4.5km on 4mm² IDWIRE2, subject to Hunter’s design limits. The separate decoder-to-solenoid lead has a maximum recommended length of 45m.
Provide earth grounding at least every 12 decoders or every 300m of two-wire cable, whichever comes first. Follow Hunter’s design guide for the grounding hardware and placement. Leave approximately 1.5m of cable slack at decoder locations for service access. The linked design guide covers cable sizing, simultaneous loads, branching, waterproof splices and grounding.
ACC2 Decoder uses the ICD decoder system. EZ-1 and EZ-LR decoders belong to a different Hunter system and are incompatible with these output modules.
Video 1
Video 2
Video 3
Video 4
The A2C-WIFI adds Centralus online control to ACC2 Conventional and ACC2 Decoder controllers. Fit the module to the controller facepack, connect the antenna and configure the site’s 2.4GHz Wi-Fi network and Centralus registration.
Centralus provides browser-based scheduling and manual watering, controller status, map-based navigation, alarm reporting and irrigation history. Flow reporting is available when the connected controller has the appropriate sensors and setup.
Centralus Predictive Watering uses the forecast for the controller’s address to suspend scheduled watering when the chance of rain exceeds your selected percentage or the forecast temperature falls below your selected threshold. Set the triggers to suit the site.
For automatic daily increases or decreases in watering duration based on conditions measured on site, add a separate Hunter Solar Sync sensor to the controller. Its adjustment settings can also be managed through Centralus.
An internet connection is required for online access. The module supports 2.4GHz 802.11 b/g/n Wi-Fi with supported WPA/WPA2 Personal security.
Check the controller facepack date code during installation. Facepacks dated May 2022 or earlier connect without the ribbon cable. Later facepack designs require the ribbon-cable connection shown in Hunter’s installation guide.
Hunter also lists A2C-WIFI for compatible MCC and SkyCommand systems. For installations needing another network connection, Hunter offers LAN/Ethernet and cellular modules.
2 Year Hunter Warranty.
Wi-Fi and Centralus documents
Hunter A2C-WIFI Installation Guide
Hunter Centralus System Overview
ACC2 Conventional documents
Hunter ACC2 Conventional Quick Start Guide
Hunter ACC2 Controller Installation and Wiring
Hunter ACC2 Conventional and Decoder Specifications
Hunter ACC2 Conventional Programming Door Card
Hunter ACC2 Conventional Brochure
ACC2 Decoder and ICD documents
Hunter ACC2 Decoder Owner’s Manual
Hunter ICD Decoder Specifications
Hunter ACC2 Decoder Design Guide
Hunter A2C-D75 Installation Guide
Hunter ACC2 ICD Decoder Installation
Hunter ACC2 Decoder Troubleshooting Guide
Hunter ACC2 Decoder Programming Door Card
Hunter ACC2 Decoder Brochure
Hunter Hydrawise HC Flow Meters are flow sensors used with compatible Hydrawise-enabled Hunter controllers to monitor irrigation water use, station-level flow rates and system flow conditions. They are a practical addition to smart irrigation systems where customers want better visibility over water use, flow faults and system performance.
Available in 20mm, 25mm, 40mm and 50mm male BSP models, the HC Flow Meter range suits a variety of residential and commercial irrigation systems. When configured in Hydrawise®, the flow meter can report total system water use, individual station water use, and flow rates for more accurate water budgeting and tracking.
Hydrawise® can send alerts for high-flow, low-flow or unscheduled flow conditions, helping identify possible leaks, broken pipes, stuck valves or other irrigation issues. Each flow meter features robust brass construction, union fittings for easier installation and removal, and an analogue dial on the face of the meter for manual flow reading.
HC Flow Meters are installed in the mainline between the master valve and zone valves. They must be installed horizontally with the dial facing up, in the correct flow direction, and with suitable straight pipe lengths before and after the meter. Wired installations require dedicated shielded direct-burial cable, with an optional Wireless HC Flow Meter Kit available where running cable is difficult.
2 Year Hunter Warranty
Hunter HC Flow Meter Brochure
Hunter HC Flow Meter Installation Guide
Hunter HC Flow Meter Specifications
Video 1
Video 2
Video 3
Video 4
Video 5
Video 6
Video 7

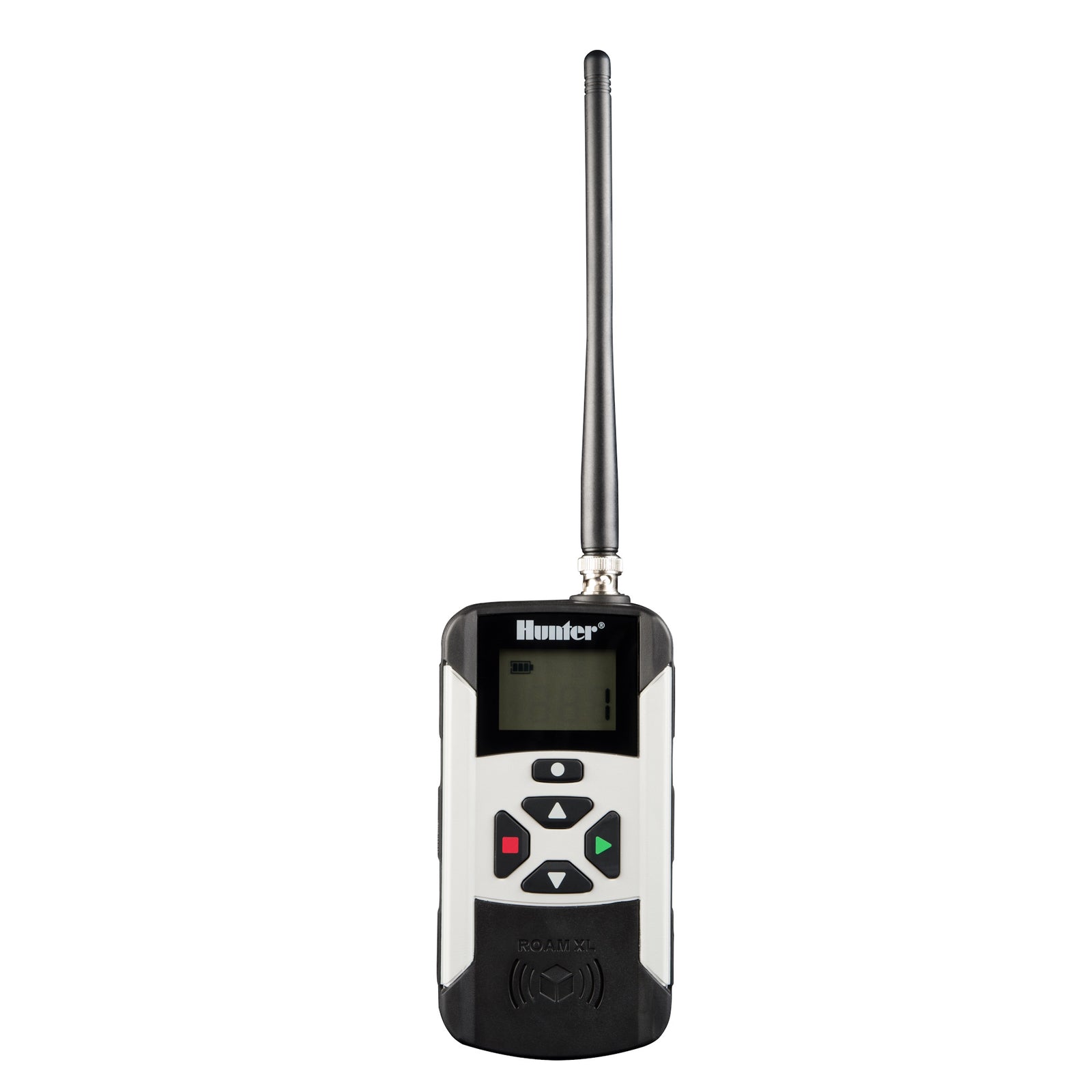

The Hunter ROAM Remote Control System is a handheld wireless remote designed for convenient irrigation controller operation from a distance. Compatible with Hunter controllers fitted with a SmartPort® connection, the ROAM allows users to manually start and stop stations or programs without needing to access the controller directly.
Suitable for residential and light commercial irrigation systems, the ROAM is commonly used for maintenance checks, troubleshooting, system commissioning and routine irrigation management. The handheld transmitter features simple push-button operation, programmable run times and support for up to 240 stations, providing flexibility across a wide range of irrigation installations.
The system includes a transmitter, receiver and SmartPort® wiring harness. With up to 300 metres line-of-sight operating range, the ROAM provides reliable wireless communication while maintaining existing controller programming. Manual run times can be set from 1 to 90 minutes without affecting automatic irrigation schedules. Compatible controllers include Hunter X-Core®, X2™, Pro-C®, HPC, ICC2, HCC, ACC2 and selected legacy Hunter controllers.
Video 1
The Hunter ROAM LR Remote Control System is a long-range wireless remote designed for professional irrigation management across large residential, commercial and municipal irrigation systems. Using licence-free 915 MHz LoRa® radio technology, the ROAM LR provides reliable long-distance communication between the transmitter and compatible Hunter irrigation controllers.
The ROAM LR allows users to manually start and stop stations or programs from significant distances, making it ideal for maintenance inspections, troubleshooting, commissioning and operational testing. With support for up to 240 stations and programmable run times from 1 to 90 minutes, the system delivers flexible remote irrigation control without affecting existing controller schedules.
Compatible with Hunter X2™, Pro-C®, HPC, HCC, ICC2, ACC2 and selected legacy Hunter controllers, the system connects through the Hunter SmartPort® Wiring Harness. The rugged water-resistant transmitter features simple push-button operation, battery status indication and 128 programmable wireless addresses to minimise interference when multiple remotes are operating nearby. The ROAM LR provides up to 3.2 kilometres line-of-sight range, making it suitable for large irrigation installations where standard remote systems may not provide sufficient coverage.
Video 1
Rain Bird ESP-TM2 Outdoor Controllers provide local dial and button programming for residential garden reticulation and light commercial irrigation. The range includes fixed 4, 6, 8 and 12 station models. Each has a separate master-valve / pump-start circuit.
The ESP-TM2 provides 3 independent programs with 4 start times per program and station run times from 1 minute to 6 hours. Choose days of the week, odd/even calendar dates or a watering interval from 1 to 30 days. Station capacity is fixed, so choose the model for the number of zones required.
Add the optional LNK2 Wi-Fi module for Rain Bird app control, remote access and automatic weather-based seasonal adjustment. A suitable 2.4GHz Wi-Fi network and internet connection are required for online functions. The controller can still be programmed locally using its dial and buttons. LNK2 is sold separately.
Bluetooth assists LNK2 setup. For nearby app access without a site internet connection, connect to the module’s Wi-Fi hotspot. This local connection is separate from remote access when away from the property.
Seasonal adjustment changes station run times by percentage, either across all programs or for an individual program. Delay Watering can suspend eligible scheduled watering for up to 14 days. Permanent Days Off can exclude selected weekdays from odd/even or cyclic schedules.
A compatible rain or rain/freeze sensor can stop scheduled watering. Sensor bypass is available globally or by station. Delay Watering also follows the station’s sensor-bypass setting, so stations set to ignore the sensor can continue watering during a delay.
Manual watering can run a station, a program or a test of all stations. The controller supports one 24VAC irrigation solenoid per station plus a master valve or pump-start relay. The master-valve output can be enabled or disabled by station, and an adjustable delay between stations provides further control.
The outdoor cabinet is weather-resistant and rated IP24. A backlit LCD assists local programming. Automatic short detection reports the affected station. Non-volatile memory retains the schedule, an internal lithium battery maintains the clock during outages, and Contractor Default lets you save and restore a schedule backup. AC power is required to operate the valves.
3 Year Rain Bird Trade Warranty.
Controller documents
Rain Bird ESP-TM2 Controller Brochure
Rain Bird ESP-TM2 Controller User Manual
Rain Bird ESP-TM2 Controller Specifications
Optional LNK2 Wi-Fi module
Rain Bird LNK2 Wi-Fi Module Brochure
Rain Bird LNK2 Wi-Fi Module User Guide
Rain Bird LNK2 Wi-Fi Module Specifications
Rain Bird LNK2 Amazon Alexa Integration Guide
How watering programs work
The ESP-TM2 has three separate watering programs, labelled A, B and C. Each program is its own schedule, with separate watering days, start times and station run times.
Each station controls a watering zone, such as a lawn or garden bed. Within each program, choose which stations will water and set how long each runs. Run times range from 1 minute to 6 hours.
Each program allows up to four start times on its selected watering days. One start time begins the whole program. The controller waters its stations one after another for their set run times.
For example, Program A could start at 6am, water the lawn for 10 minutes, then water a garden bed for 5 minutes. That needs one start time. Add another start time to repeat the same sequence later that day. Programs B and C can have different schedules. Use only the programs and start times you need.
Avoiding common programming mistakes
- Avoid unintended repeat cycles. One start time runs the whole program. Each extra start repeats it. Turn unused start times OFF.
- Check all programs. A station included in more than one active program can water again under each schedule. Use multiple programs for the same station only when that extra watering is intended.
- Allow time for the whole watering cycle. Overlapping start times are queued rather than running stations together. A later cycle can therefore finish later than expected. Allow for every station, seasonal adjustment and any delay between stations when spacing starts.
Video 1
Video 2
Video 3
Video 4
Video 5
Video 6
Video 7
Video 8
Video 9
Video 10

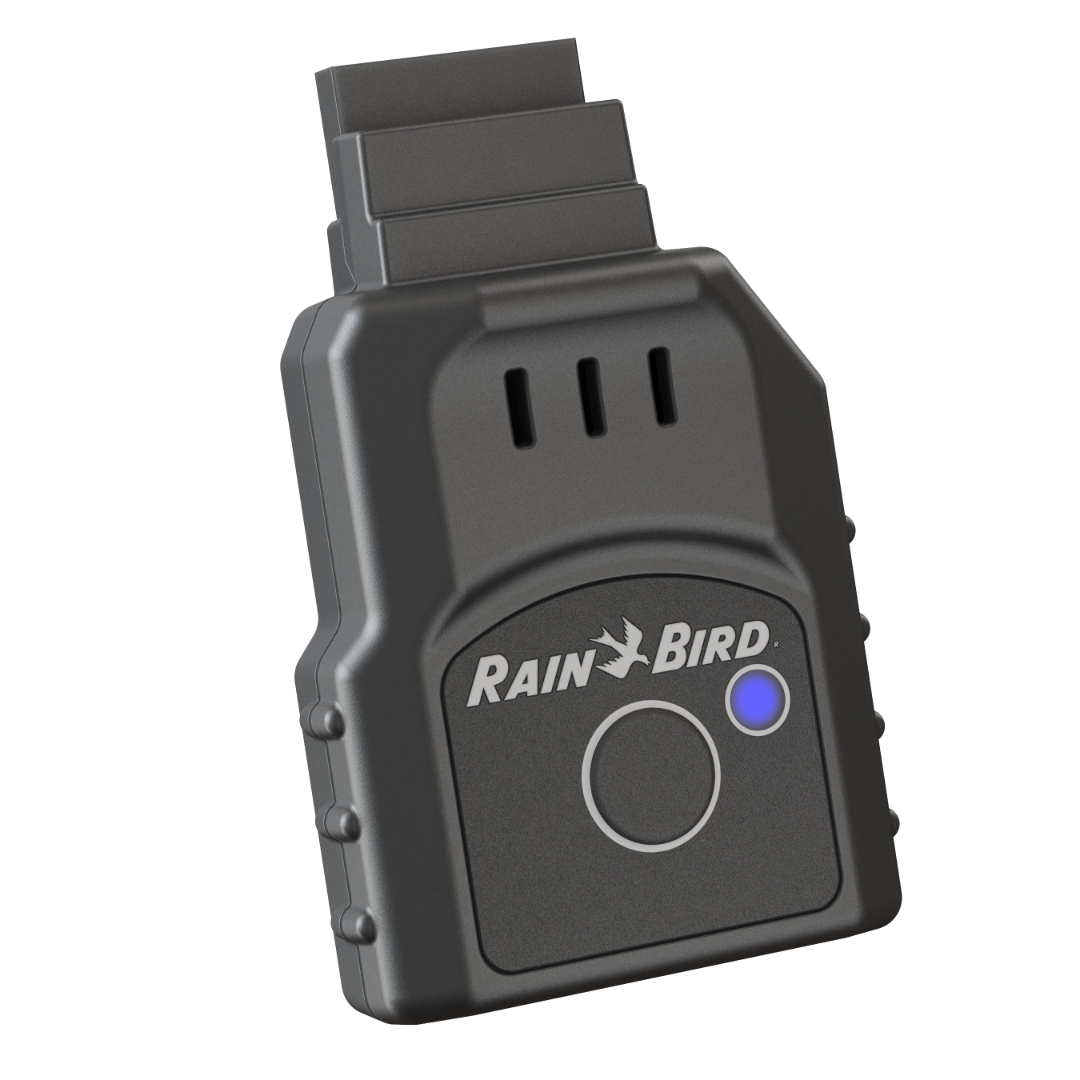

The Rain Bird LNK2 Wi-Fi Module adds Rain Bird app control to compatible irrigation controllers. Use the app to change watering schedules, start manual watering, view upcoming irrigation and manage weather-based seasonal adjustment.
LNK2 plugs directly into the controller accessory port. It is compatible with ESP-TM2, ESP-ME3, ESP-RZXe, ESP-LXME2 and ESP-LXIVM controllers, plus Wi-Fi-ready ESP-Me controllers. Check the controller’s LNK Ready / Wi-Fi symbol and model before ordering.
For remote access and automatic weather-based adjustment, connect LNK2 to a suitable 2.4GHz Wi-Fi network with internet access. A 5GHz-only network is not supported. Online weather information adjusts watering duration through seasonal adjustment.
Bluetooth assists setup. For nearby app access without site internet, connect the phone to the module’s Wi-Fi hotspot.
Station capacity, programming options, sensor inputs and flow monitoring depend on the connected controller.
Supported smart-home services can provide voice control where available. Follow the service and app setup instructions for the connected controller.
3 Year Rain Bird Trade Warranty.
LNK2 module documents
Rain Bird LNK2 Wi-Fi Module Brochure
Rain Bird LNK2 Wi-Fi Module User Guide
Rain Bird LNK2 Wi-Fi Module Specifications
Compatible controller specifications
Rain Bird ESP-TM2 Controller Specifications
Rain Bird ESP-ME3 Controller Specifications
LNK2 Amazon Alexa integration
Rain Bird LNK2 Amazon Alexa Integration Guide
Video 1
Video 2
Video 3
Video 4
Video 5
Video 6
Video 7

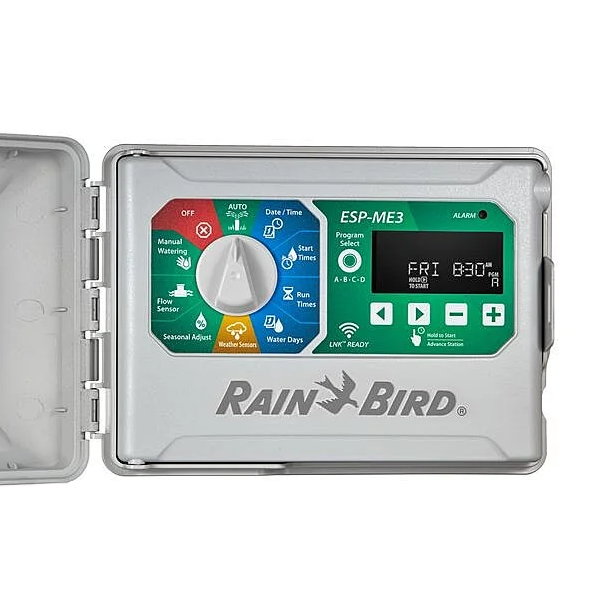

The Rain Bird ESP-ME3 Modular 4 Station Base Outdoor Controller manages residential and light commercial irrigation through a dial, buttons and backlit display. It starts with four station outputs and a separate master-valve / pump-start circuit. Add ESP-ME modules as more watering zones are required.
Three expansion bays accept a 3 station module or 6 station module each. Expansion modules are purchased separately. For straightforward station sequencing, Rain Bird recommends placing 6-station modules before any 3-station module. Each expansion bay can accept either module size. The table shows recommended layouts from left to right.
Recommended ESP-ME3 module layouts
Bay 1 contains the supplied four-station base (stations 1–4). The table shows recommended module layouts in Bays 2, 3 and 4, from left to right. Modules are purchased separately.
| Total stations | Bay 2 Stations 5–10 |
Bay 3 Stations 11–16 |
Bay 4 Stations 17–22 |
|---|---|---|---|
| 4 | None | None | None |
| 7 | 3-station | None | None |
| 10 | 6-station | None | None |
| 13 | 6-station | 3-station | None |
| 16 | 6-station | 6-station | None |
| 19 | 6-station | 6-station | 3-station |
| 22 | 6-station | 6-station | 6-station |
A 6-station module uses all six station numbers assigned to its bay. A 3-station module uses only the first three: 5–7 in Bay 2, 11–13 in Bay 3, or 17–19 in Bay 4. The remaining numbers in that bay are skipped.
There are 4 independent programs, A, B, C and D, with 6 start times per program. Station run times range from 1 minute to 6 hours. Choose weekdays, odd/even calendar dates or a cyclic interval from 1 to 30 days. Manual watering can run one station, a program or a test of all stations.
Add the optional LNK2 Wi-Fi module for Rain Bird app access, remote control and online weather-based seasonal adjustment. Online functions require a suitable 2.4GHz Wi-Fi network and internet access. Bluetooth assists module setup. Nearby access without site internet uses the module’s Wi-Fi hotspot. The controller can also be programmed locally without the module.
A compatible wired flow sensor is purchased separately. Once installed and configured, it lets the controller learn normal station flow and respond to detected high flow by skipping an affected automatically scheduled station.
Seasonal adjustment changes run times from 5% to 200%, globally or by program. Delay Watering suspends eligible watering for up to 14 days. Stations set to ignore the rain sensor are not delayed. Permanent Days Off can exclude weekdays from odd/even or cyclic schedules.
A compatible normally closed rain or rain/freeze sensor can stop scheduled watering, with bypass available globally or by station. Other controls include adjustable delay between stations and master-valve operation set by station.
The Australian outdoor model uses a 230VAC supply and a weather-resistant locking cabinet. Non-volatile memory retains schedules, an internal lithium battery maintains the clock, and Contractor Default saves a schedule backup. A separate 9V battery can power the detached panel for programming. Battery power does not operate irrigation valves. Short detection identifies electrical faults with an alarm indicator.
3 Year Rain Bird Trade Warranty.
Controller documents
Rain Bird ESP-ME3 Controller 230V Installation and Programming Guide
Rain Bird ESP-ME3 Controller Brochure
Rain Bird ESP-ME3 Controller Specifications
Rain Bird ESP-ME3 Controller Quick Reference
Optional LNK2 Wi-Fi module
Rain Bird LNK2 Wi-Fi Module Brochure
Rain Bird LNK2 Wi-Fi Module User Guide
Rain Bird LNK2 Wi-Fi Module Specifications
Rain Bird LNK2 Amazon Alexa Integration Guide
How watering programs work
The ESP-ME3 has four separate watering programs, labelled A, B, C and D. Each program is its own schedule, with separate watering days, start times and station run times.
Each station controls a watering zone, such as a lawn or garden bed. Within each program, choose which stations will water and set how long each runs. Run times range from 1 minute to 6 hours.
Each program allows up to six start times on its selected watering days. One start time begins the whole program. The controller waters its stations one after another for their set run times.
For example, Program A could start at 6am, water the lawn for 10 minutes, then water a garden bed for 5 minutes. That needs one start time. Add another start time to repeat the same sequence later that day. Programs B, C and D can have different schedules. Use only the programs and start times you need.
Avoiding common programming mistakes
- Avoid unintended repeat cycles. One start time runs the whole program. Each extra start repeats it. Turn unused start times OFF.
- Check all programs. A station included in more than one active program can water again under each schedule. Use multiple programs for the same station only when that extra watering is intended.
- Allow time for the whole watering cycle. Overlapping start times are queued rather than running stations together. A later cycle can therefore finish later than expected. Allow for every station, seasonal adjustment and any delay between stations when spacing starts.
Video 1
Video 2
Video 3
Video 4
Video 5
Video 6
Video 7
Video 8
Video 9
Rain Bird ESP-ME Station Expansion Modules add conventional station outputs to compatible ESP-ME3 and ESP-Me modular irrigation controllers. Each output controls a separate watering zone through the controller. The range includes 3- and 6-station modules. These are expansion accessories, not complete controllers.
Check that the existing controller is a compatible ESP-ME3 or ESP-Me and has an available expansion bay before ordering.
The module slides into an available compatible bay and is secured with its locking lever. The controller supplies power to the module. Follow the controller’s installation guide for fitting.
The ESP-ME3 includes four base stations and has three expansion bays. Each bay accepts a compatible 3- or 6-station module. For straightforward station sequencing, Rain Bird recommends placing 6-station modules before any 3-station module. Each expansion bay can accept either module size. The table shows recommended layouts from left to right.
Recommended ESP-ME3 module layouts
Bay 1 contains the supplied four-station base (stations 1–4). The table shows recommended module layouts in Bays 2, 3 and 4, from left to right. Modules are purchased separately.
| Total stations | Bay 2 Stations 5–10 |
Bay 3 Stations 11–16 |
Bay 4 Stations 17–22 |
|---|---|---|---|
| 4 | None | None | None |
| 7 | 3-station | None | None |
| 10 | 6-station | None | None |
| 13 | 6-station | 3-station | None |
| 16 | 6-station | 6-station | None |
| 19 | 6-station | 6-station | 3-station |
| 22 | 6-station | 6-station | 6-station |
A 6-station module uses all six station numbers assigned to its bay. A 3-station module uses only the first three: 5–7 in Bay 2, 11–13 in Bay 3, or 17–19 in Bay 4. The remaining numbers in that bay are skipped.
LNK2 is available separately for Rain Bird app connectivity on compatible controllers.
3 Year Rain Bird Trade Warranty.
Compatible ESP-ME3 controller and installation documents
Rain Bird ESP-ME3 Controller 230V Installation and Programming Guide
Rain Bird ESP-ME3 Controller Brochure
Rain Bird ESP-ME3 Controller Specifications
Rain Bird ESP-ME3 Controller Quick Reference
Separate LNK2 Wi-Fi module
Rain Bird LNK2 Wi-Fi Module Brochure
Rain Bird LNK2 Wi-Fi Module User Guide
Rain Bird LNK2 Wi-Fi Module Specifications
Rain Bird LNK2 Amazon Alexa Integration Guide
Video 1
Video 2
Video 3
Video 4
Video 5
Video 6
Video 7
Video 8
Video 9

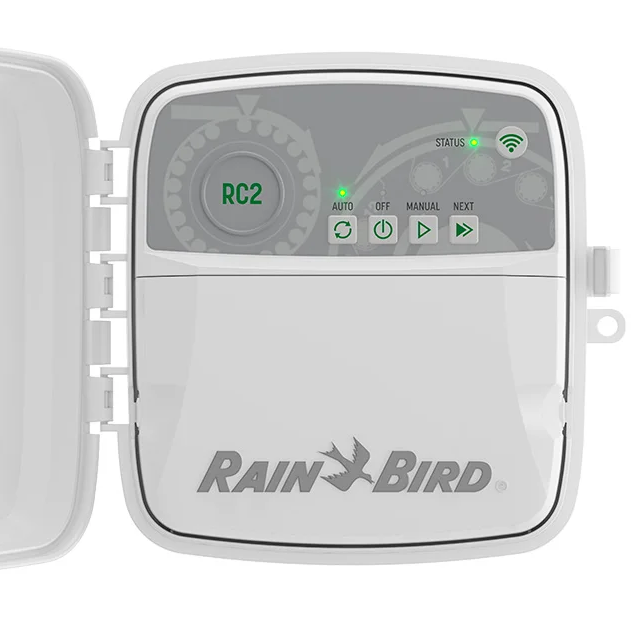

The Rain Bird RC2 8 Station Outdoor WiFi Controller is a fixed-station smart irrigation controller for residential and light commercial watering systems. It has built-in WiFi and is designed to be set up and programmed through the Rain Bird 2.0 App.
This 8 station controller supports 3 independent programs with 4 start times per program, allowing different areas of the landscape to be watered on suitable schedules. Station run times can be set from 1 minute to 6 hours, with watering options including custom days, odd or even calendar days and cyclic watering.
The RC2 includes smart watering features through the Rain Bird app, including automatic seasonal adjustment, predictive rain delay, Cycle & Soak™ by station, manual watering, program templates and remote access when connected to WiFi. It can also be programmed through the app in AP Hotspot mode when site WiFi is not available.
The controller includes a rain / freeze sensor input, master valve circuit, electronic short detection and simple local control buttons for Auto, Off, Manual Watering and Next Zone. It is WaterSense certified out of the box and does not require a separate LNK WiFi module.
3 Year Rain Bird Trade Warranty
Rain Bird RC2 Brochure
Rain Bird RC2 User Manual
Rain Bird RC2 Wi-Fi Troubleshooting Guide
Rain Bird RC2 Specifications
Video 1
Video 2
Video 3
Video 4
The Orbit B-Hyve 4 Station Indoor WiFi Controller is a smart irrigation controller designed for home garden and residential watering systems. It allows programming through the B-Hyve app from a compatible Apple iOS or Android smart device.
The controller includes 4 programs, 4 start times per program, 1–240 minute station run times, seasonal adjustment, rain delay, watering history and smart watering features. It can operate with or without WiFi, with programmed schedules stored in non-volatile memory so watering settings are not lost if power is interrupted.
When connected to a 2.4GHz WiFi network, the B-Hyve controller can use WeatherSense™ technology to adjust watering based on local weather and site conditions such as soil type, slope, sun or shade and plant type. Bluetooth pairing is used during setup, with full programming and smart features managed through the B-Hyve app.
The indoor model includes a plug-in transformer and is suitable for protected indoor installation.
Orbit 2 Year Limited Warranty
Orbit B-Hyve Range Brochure
Orbit B-Hyve Indoor 4 Station Controller User Manual
Orbit B-Hyve Indoor 4 Station Controller Specifications
Video 1
Video 2
Orbit B-Hyve Indoor/Outdoor WiFi Controllers are smart irrigation controllers designed for residential and light commercial watering systems. Available in 6 and 12 station models, they provide app-based programming from a compatible Apple iOS or Android smart device, while still allowing programming directly at the controller.
The controllers include 4 programs, 4 start times per program, 1–240 minute station run times, seasonal adjustment, rain delay, watering history and smart watering features. They can operate with or without WiFi, with programmed schedules stored in non-volatile memory so watering settings are not lost if power is interrupted.
When connected to a 2.4GHz WiFi network, B-Hyve controllers can use WeatherSense™ technology to adjust watering based on local weather and site conditions such as soil type, slope, sun or shade and plant type. Bluetooth pairing is used during setup, with full programming and smart features managed through the B-Hyve app.
The indoor/outdoor models include a lockable cabinet, swing panel access to the wiring terminals and conduit knock-outs for station wiring.
Orbit 2 Year Limited Warranty
Orbit B-Hyve Range Brochure
Orbit B-Hyve Outdoor 6/12 Station Controller User Manual
Orbit B-Hyve Outdoor 6/12 Station Controller Specifications
Video 1
Video 2

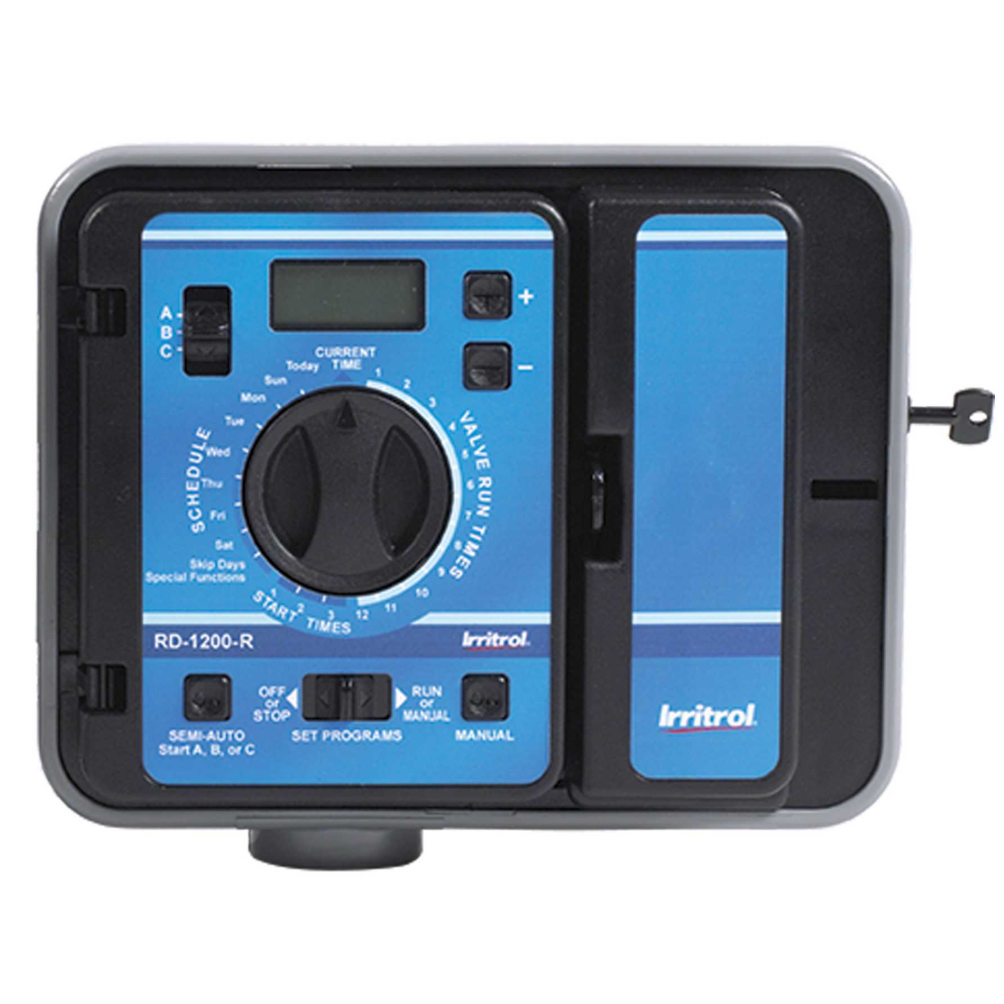

Irritrol Rain Dial outdoor corded controllers are proven irrigation controllers for long-term reticulation and landscape watering systems. Available in 6, 9 and 12 station models, the Rain Dial range is suited to customers who want a durable, reliable controller with straightforward local programming rather than a basic entry-level timer.
Rain Dial controllers are built around a weather-resistant outdoor key-lock cabinet with an internal transformer, electrical surge protection and self-diagnostic circuit protection. The removable control module also allows convenient programming or service access without disturbing the field wiring.
Each controller supports 3 independent programs with 3 start times per program, making it suitable for sites with different watering requirements across lawns, gardens, drip areas or separate irrigation zones. Watering can be scheduled by day of the week, skip day interval or odd/even date watering, with water budgeting available for seasonal run time adjustment.
The Rain Dial range is rain sensor ready, remote control ready and compatible with optional Climate Logic and SMRT Logic accessories where required. It also includes master valve / pump start control, station testing, manual watering, semi-automatic operation and delay between stations for well recovery or slow-closing valves.
Available in 6, 9 and 12 station outdoor corded models.
5 Year Irritrol Warranty
Irritrol Rain Dial Controller Brochure
Irritrol Rain Dial Controller User Manual
Irritrol Rain Dial Controller Quick Reference Card
Video 1
Video 2
Video 3
Video 4

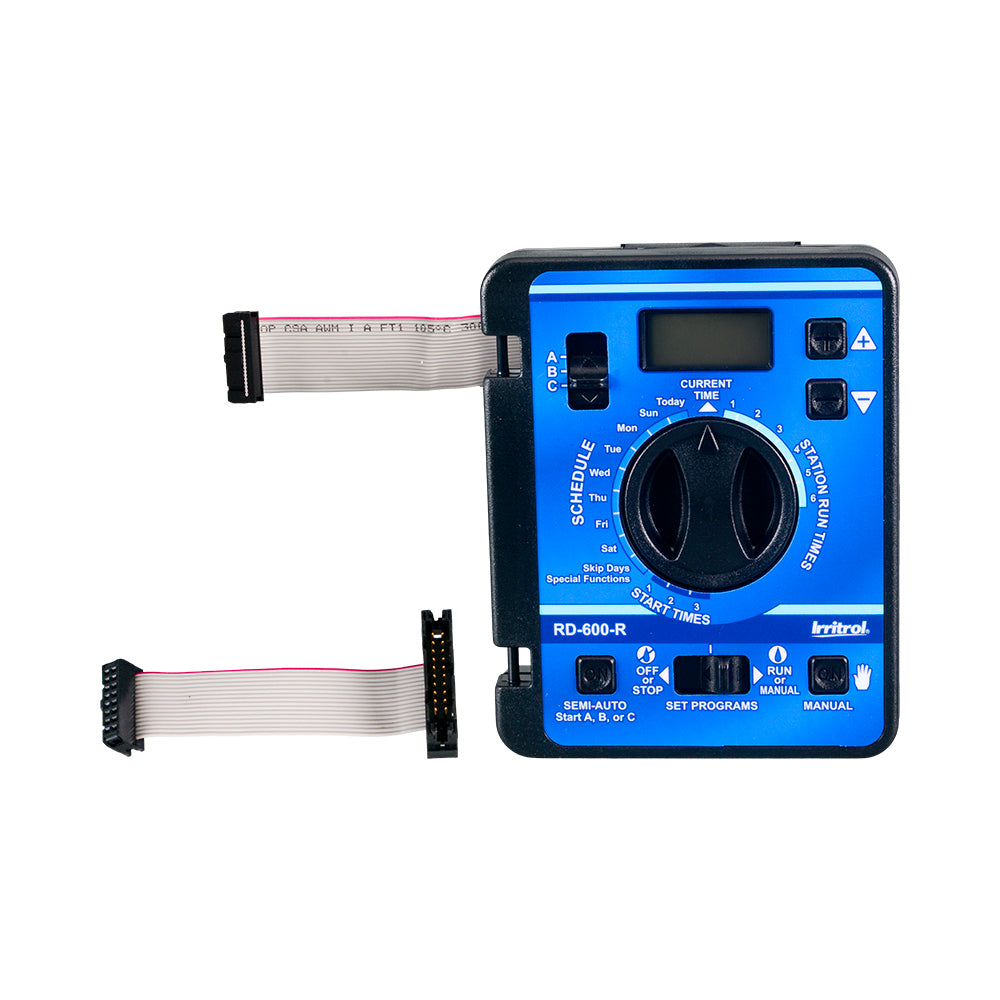

Irritrol Rain Dial replacement panels are replacement control modules for compatible Rain Dial irrigation controllers. They are available in 6, 9 and 12 station versions to match the station capacity of the existing Rain Dial controller.
Rain Dial controllers use a removable control module design, allowing the front control panel to be replaced without replacing the full controller cabinet and field wiring assembly. This makes the replacement panel a practical repair option where the existing cabinet, transformer and wiring base are still suitable for use.
The correct replacement panel must be selected by matching the station count of the existing controller. A 6 station controller should be matched with a 6 station replacement panel, a 9 station controller with a 9 station panel, and a 12 station controller with a 12 station panel.
These replacement panels are not complete irrigation controllers and should not be confused with station expansion modules. They are replacement control panels only and must be fitted to a compatible Rain Dial controller assembly.
Available in 6, 9 and 12 station replacement panel models.
5 Year Irritrol Warranty
Irritrol Rain Dial Controller Brochure
Irritrol Rain Dial Controller User Manual
Irritrol Rain Dial Controller Quick Reference Card
Video 1
Video 2
Video 3
Video 4

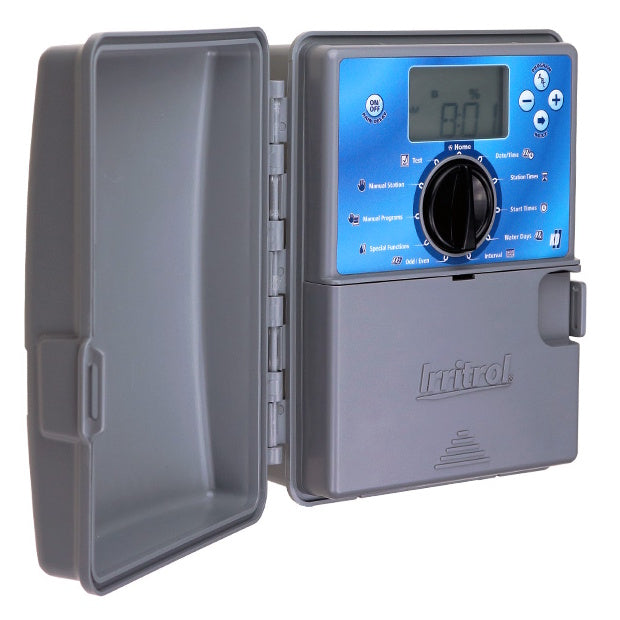

Irritrol Kwik Dial-II outdoor corded controllers provide straightforward irrigation control with a durable outdoor cabinet and flexible scheduling. Available in 4, 6 and 9 station models, the range suits reticulation and landscape watering systems that need dependable local programming without unnecessary complexity.
Kwik Dial-II controllers combine simple dial-and-button operation with practical scheduling features, including 3 independent programs, 3 start times per program and station run times up to 4 hours. Watering can be scheduled by days of the week, odd/even dates or repeating day intervals, giving flexibility for different lawn, garden and drip irrigation areas.
The outdoor models include a weather-resistant plastic case with internal transformer and provision for a padlock. Built-in surge protection, self-diagnostic electronic circuit breaker protection and 24-hour memory backup help protect the controller and maintain programming through short power interruptions.
The Kwik Dial-II range is rain sensor ready, remote control ready and compatible with optional Irritrol Climate Logic where weather-based adjustment is required. It also includes manual operation, semi-automatic operation, test mode, water budgeting and programmable Rain Off delay.
Available in 4, 6 and 9 station outdoor corded models.
5 Year Irritrol Warranty
Irritrol Kwik Dial II Controller Brochure
Irritrol Kwik Dial II Controller User Manual

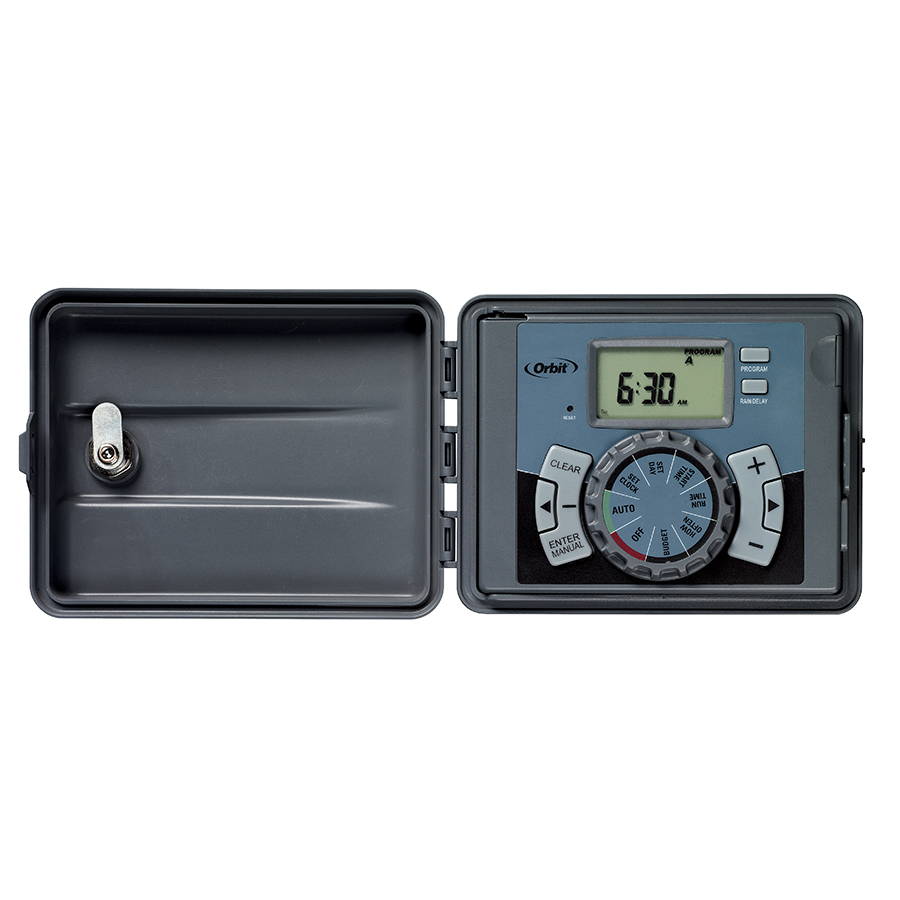

Orbit Easy Set Logic indoor/outdoor controllers provide simple, practical irrigation control for home watering systems. Available in 4, 6 and 12 station models, the range is suited to standard 24VAC sprinkler systems where customers want straightforward programming without WiFi or app setup.
The Easy Set Logic interface uses a large dial, clear LCD display and dedicated programming buttons to make everyday controller setup easier. Each controller supports 3 independent programs, up to 4 start times per program and station run times from 1 to 240 minutes, giving flexibility for lawns, gardens, drip irrigation and new planting areas.
The controller includes selectable 7 day watering, interval watering, odd/even day watering, water budgeting, manual watering by program or station and rain delay for 24, 48 or 72 hours. Start time stacking helps prevent overlapping watering cycles.
These indoor/outdoor models include a heavy-duty UV and water-resistant cabinet, swing door wiring access, rain sensor input with bypass switch, pump/master valve terminal, non-volatile memory, replaceable CR2032 lithium battery backup and auto-reset circuit breaker with no fuses.
3 Year Orbit Limited Warranty
Orbit Easy Set Logic Controller Quick Start Guide
Orbit Easy Set Logic Controller User Manual
Orbit Easy Set Logic Controller Specifications
Video 1
Video 2
Video 3
Hunter NODE battery-operated controllers provide automatic irrigation control for sites where mains power is unavailable or difficult to access. Available across 1, 2, 4 and 6 station models, the NODE range is suited to valve boxes, isolated irrigation areas, temporary watering, remote garden zones and small reticulation systems.
The NODE range includes node-only controllers, single-station models supplied with a DC-latching solenoid, single-station controller and valve options, and kit options such as a 2 station controller with solenoid valves and manifold components. This makes the range useful for both replacing an existing battery controller and setting up a new valve box installation.
NODE controllers use standard Hunter push-button programming with 3 independent programs, 4 start times per program and station run times up to 6 hours. They also include seasonal adjustment, manual watering, programmable off up to 99 days and Easy Retrieve™ memory for saving and restoring a preferred watering schedule.
NODE controllers operate Hunter DC-latching solenoids only. Standard 24VAC irrigation solenoids will not operate with NODE controllers, so the correct DC-latching solenoids must be used when installing or replacing valves.
The NODE operates from one or two 9V alkaline batteries. A Hunter solar panel kit may be available by special order where maintenance-free power is required.
2 Year Hunter Warranty
Hunter Node Battery Operated Controller User Manual
Hunter Node Battery Operated Controller Specifications
Video 1

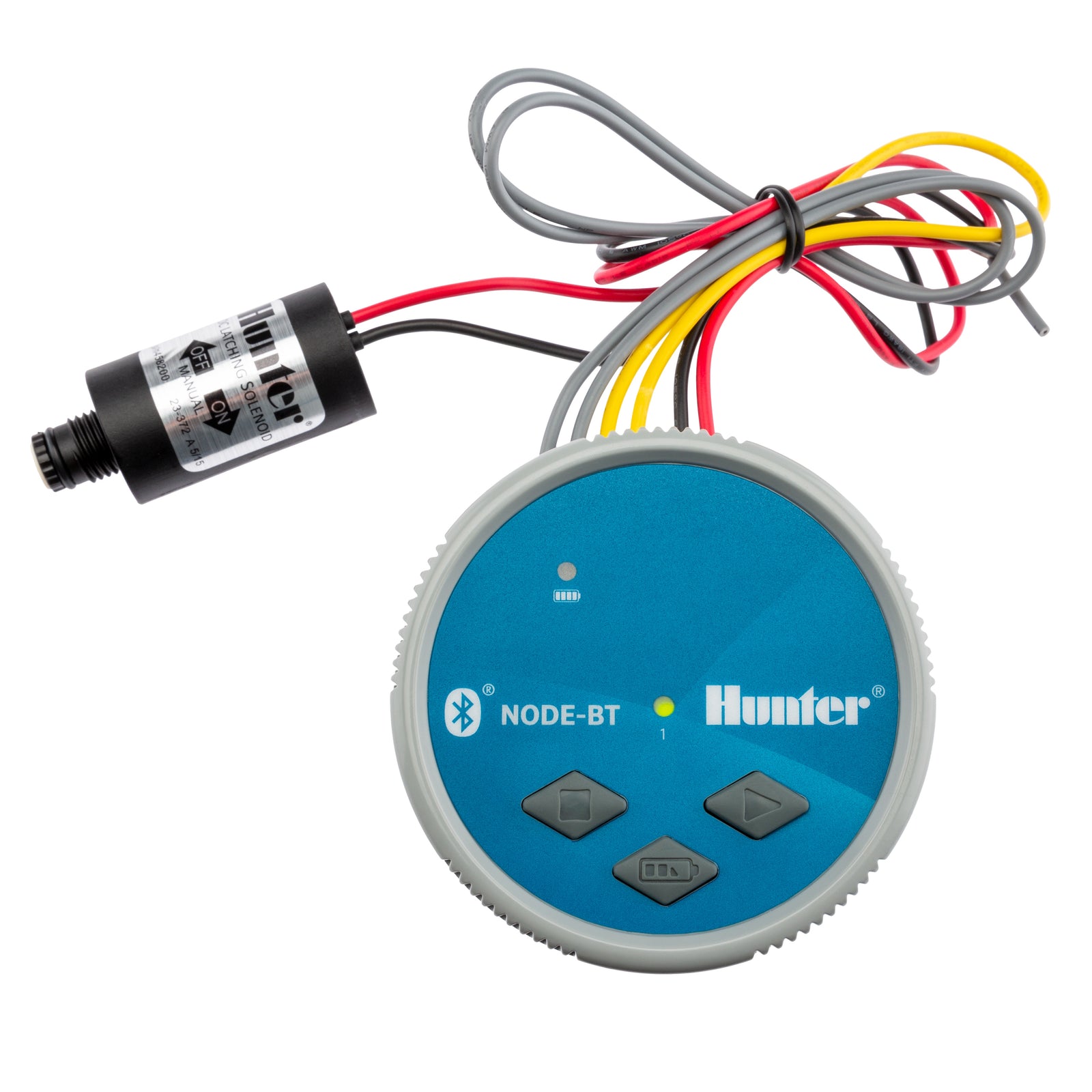

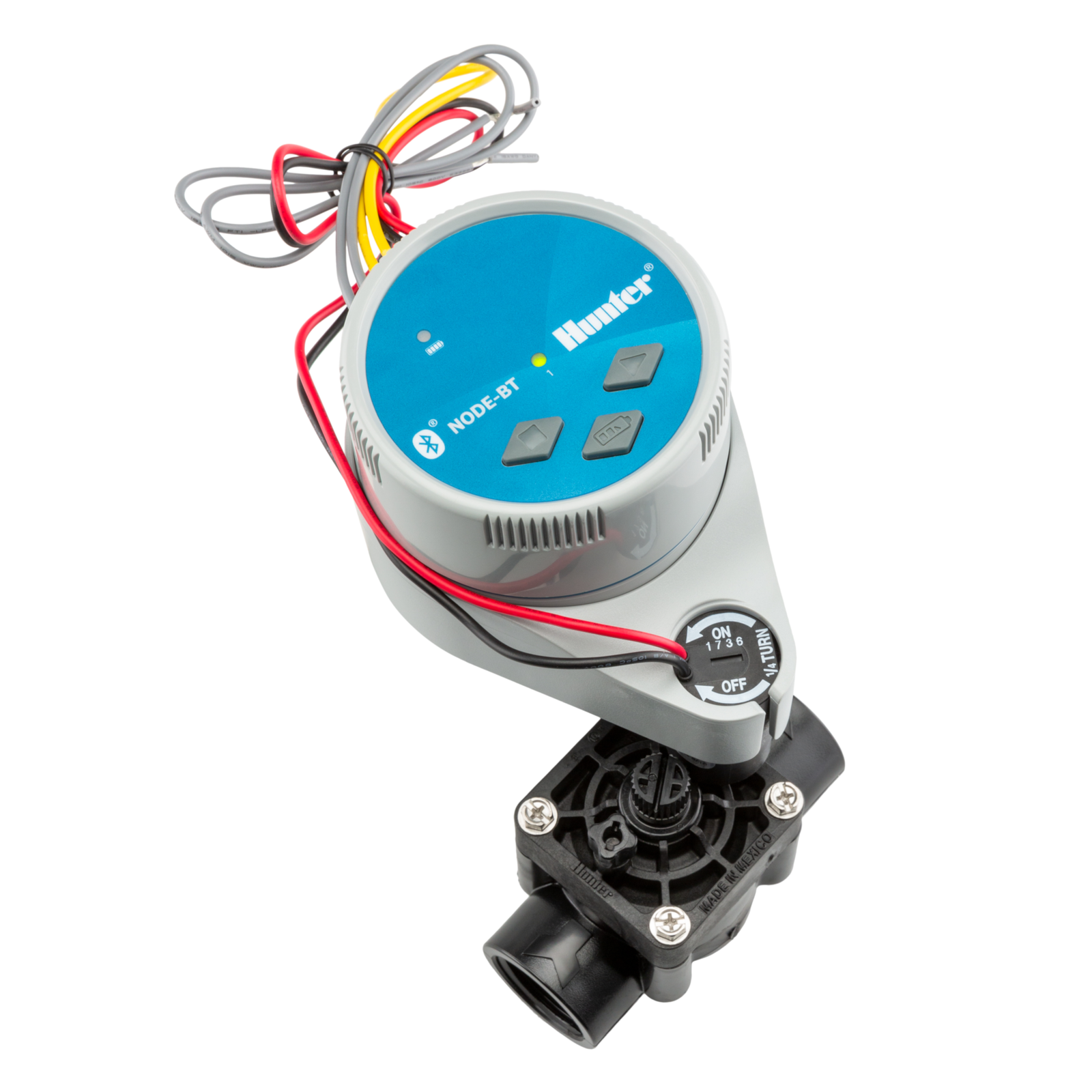

Hunter NODE-BT Bluetooth battery-operated controllers provide automatic irrigation control for sites where mains power is unavailable, with programming managed from a nearby smartphone using the Hunter NODE-BT app. Available in 1, 2 and 4 station models, the NODE-BT range is suited to valve boxes, gardens, medians, greenhouses, temporary irrigation and remote landscape zones.
The NODE-BT range includes node-only controllers as well as single-station controller and valve options with a DC-latching solenoid. This gives customers the choice between replacing an existing battery controller or purchasing a more complete valve box control setup.
NODE-BT controllers allow irrigation schedules to be adjusted without opening the valve box for normal programming. Bluetooth communication provides local wireless access up to approximately 15 metres, making it useful for contractors, maintenance staff and customers managing controllers installed below ground or in difficult access locations.
The NODE-BT supports 3 programs, 8 start times per program and station run times from 1 second to 12 hours. It also includes manual push-button operation at the controller, Cycle and Soak, delay between stations, seasonal adjustment, programmable off and app tools such as controller naming, station naming, battery reminders and schedule copying.
NODE-BT controllers operate Hunter DC-latching solenoids only. Standard 24VAC irrigation solenoids will not operate with NODE-BT controllers, so the correct DC-latching solenoids must be used when installing or replacing valves.
A Hunter NODE-BT solar panel kit may be available by special order where solar-assisted battery operation is required.
2 Year Hunter Warranty
Hunter Node BT Bluetooth Battery Operated Controller Quick Start Guide
Hunter Node BT Bluetooth Battery Operated Controller Specifications

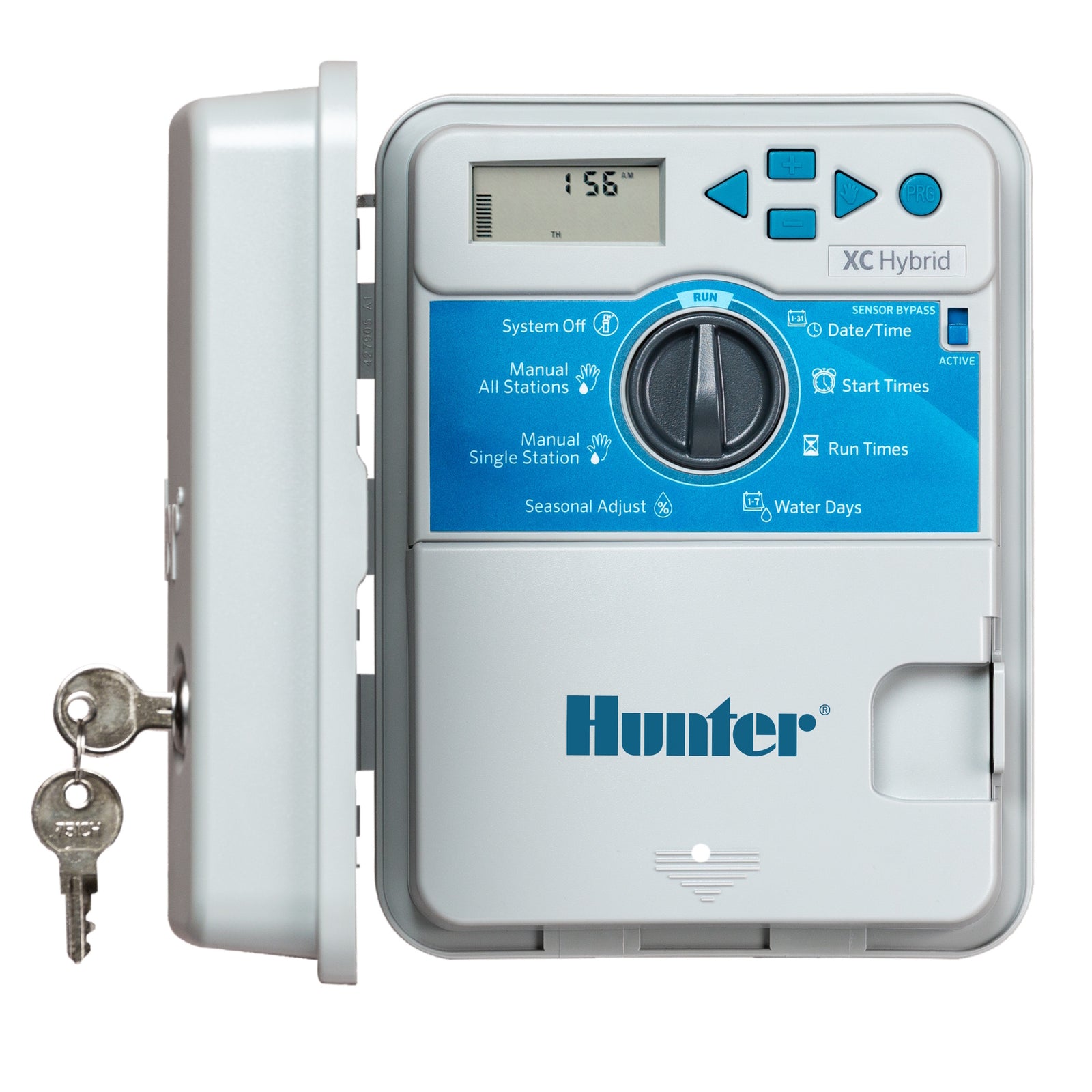

The Hunter XC Hybrid 6 Station Outdoor Controller is a battery-operated irrigation controller for sites where mains power is unavailable or difficult to access. It is suited to remote or isolated irrigation areas such as gardens, parks, road verges, medians, roundabouts and other outdoor watering applications.
This 6 station XC Hybrid model runs on six AA alkaline batteries and is designed to operate Hunter DC-latching solenoids. Standard 24VAC irrigation solenoids will not operate with this controller, so the correct DC-latching solenoids must be used when installing or replacing valves.
The XC Hybrid uses familiar Hunter dial-based programming with 3 independent programs, 4 start times per program and station run times up to 4 hours. It also includes seasonal adjustment, manual watering, programmable rain off, sensor bypass and Easy Retrieve™ memory backup for restoring a saved watering schedule.
The controller can also accept a compatible wired rain, freeze or wind sensor input. If AC power becomes available later, the XC Hybrid can be powered by an optional plug-in transformer, but the station output remains DC and the system must still use DC-latching solenoids.
2 Year Hunter Warranty
Hunter XC Hybrid Controller Brochure
Hunter XC Hybrid Controller Quick Start Guide
Hunter XC Hybrid Controller User Manual
Hunter XC Hybrid Controller Door Card
Hunter XC Hybrid Controller Specifications
Video 1
Video 2
Video 3
The Irritrol Wired Rain Sensor RS500 is a wired rain sensor for standard 24VAC irrigation controllers. It helps prevent unnecessary watering by interrupting the controller schedule when sufficient rainfall has been detected.
The RS500 is suitable for most 24VAC irrigation controllers and includes a 25ft UV-resistant cable for installation flexibility. It uses industry-standard hygroscopic discs to sense accumulated rainfall, with adjustable shutoff points from 1/8" to 3/4" so the sensor can be set to suit the site and watering requirements.
Once the sensor has dried out, the irrigation controller can resume normal scheduled watering. The dry-out rate can also be adjusted, allowing the reset delay to be shortened or extended depending on how quickly the system should return to operation after rain.
The RS500 is a simple wired option for residential and light commercial irrigation systems where rain shutoff is required without adding wireless receiver components. It can be converted to normally open operation if required, making it suitable for a wide range of controller installations.
5 Year Irritrol Warranty
Irritrol Rain Sensor Brochure
Irritrol Wired Rain Sensor Specifications
Video 1
Hunter Rain-Clik sensors help prevent unnecessary watering by stopping irrigation when rainfall is detected. Wired Rain-Clik sensors connect directly to a compatible irrigation controller, while Wireless Rain-Clik kits use a transmitter and receiver where running sensor cable is less practical.
Both models use Quick Response Technology to trigger rain shutoff without waiting for a set amount of rainfall to accumulate. An adjustable vent ring controls how quickly the sensor dries and resets after rain, allowing the reset period to be shortened or lengthened.
The wired RAIN-CLIK sensor has a mounting arm and 7.5m of cable for connection to the controller. The WR-CLIK wireless kit includes the Wireless Rain/Freeze-Clik Sensor, receiver and gutter mount. The wireless sensor also stops irrigation at approximately 3°C and communicates with the receiver over a line-of-sight distance of up to 243m.
Rain-Clik sensors are compatible with most normally open or normally closed irrigation controllers. Mount the sensor where it receives unobstructed rainfall and is clear of sprinkler spray. The wireless sensor has a sealed, maintenance-free battery, and kits are supplied with the transmitter and receiver paired.
5 Year Hunter Warranty
Hunter Rain-Clik Sensor Brochure
Hunter Sensor Product Range & Controller Compatibility Guide
Hunter Wireless Rain-Clik Sensor User Manual
Hunter Rain-Clik Sensor Specifications
Hunter Solar Sync Weather Sensors automatically adjust compatible Hunter irrigation controller run times based on local weather conditions. By measuring on-site solar radiation and air temperature, Solar Sync calculates evapotranspiration (ET) and adjusts the controller’s seasonal adjustment value each day.
The Solar Sync range includes wired and wireless models. The wired Solar Sync Weather Sensor includes the wired sensor, sensor wire and gutter mount, while the wireless Solar Sync Weather Sensor Kit includes the wireless sensor, receiver and gutter mount for installations where running sensor cable back to the controller is less practical.
Solar Sync is compatible with selected Hunter controllers that support Solar Sync ET adjustment, including X-Core, Pro-C, ICC2, I-Core, ACC and ACC2. It is not compatible with Hunter X2 controllers, with or without WAND, and is not compatible with Hydrawise controllers such as HC, Pro-HC, HPC and HCC.
Solar Sync also includes Quick Response® rain shutoff and freeze shutoff at approximately 3°C. This helps stop irrigation during rainfall or freezing conditions, making it a useful upgrade where watering should respond to changing on-site weather.
The wireless model provides up to 243m line-of-sight range from sensor to receiver.
5 Year Hunter Warranty
Hunter Solar Sync Weather Sensor Brochure
Hunter Sensor Product Range & Controller Compatibility Guide
Hunter Solar Sync Weather Sensor Recommended Adjustment by Location
Hunter Solar Sync Weather Sensor Quick Start Guide
Hunter Solar Sync Weather Sensor Specifications
Video 1

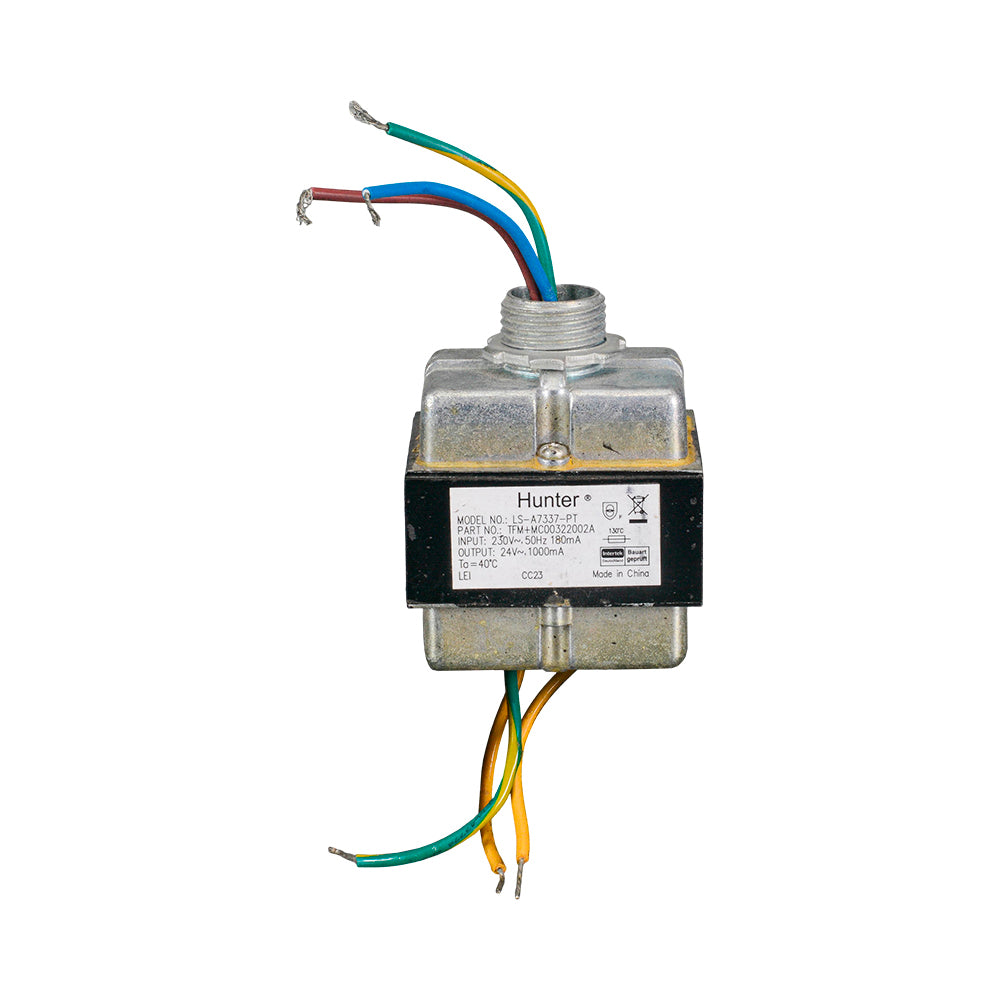

Hunter Replacement Transformers are used to replace the power supply in compatible Hunter Pro-C and X-Core irrigation controllers. These parts convert 240VAC mains power to 24VAC controller power, but the correct transformer depends on whether the controller is an indoor plug-in model or an outdoor hard-wired model.
Use the Hunter 545500 plug-in transformer for compatible Pro-C and X-Core indoor controllers. Indoor controllers are normally installed in a dry, protected location and use an external plug-in transformer that connects to a standard power outlet.
Use the Hunter 545600 hard-wired transformer power supply for compatible Pro-C and X-Core outdoor controllers. Outdoor controllers use a different internal hard-wired power supply arrangement and should not be matched with the indoor plug-in transformer.
These are replacement transformer parts only and are not complete irrigation controllers. Before ordering, check the existing controller model and confirm whether it is an indoor plug-in controller or an outdoor hard-wired controller. Hard-wired electrical work should be carried out by a suitably qualified person.
2 Year Hunter Warranty

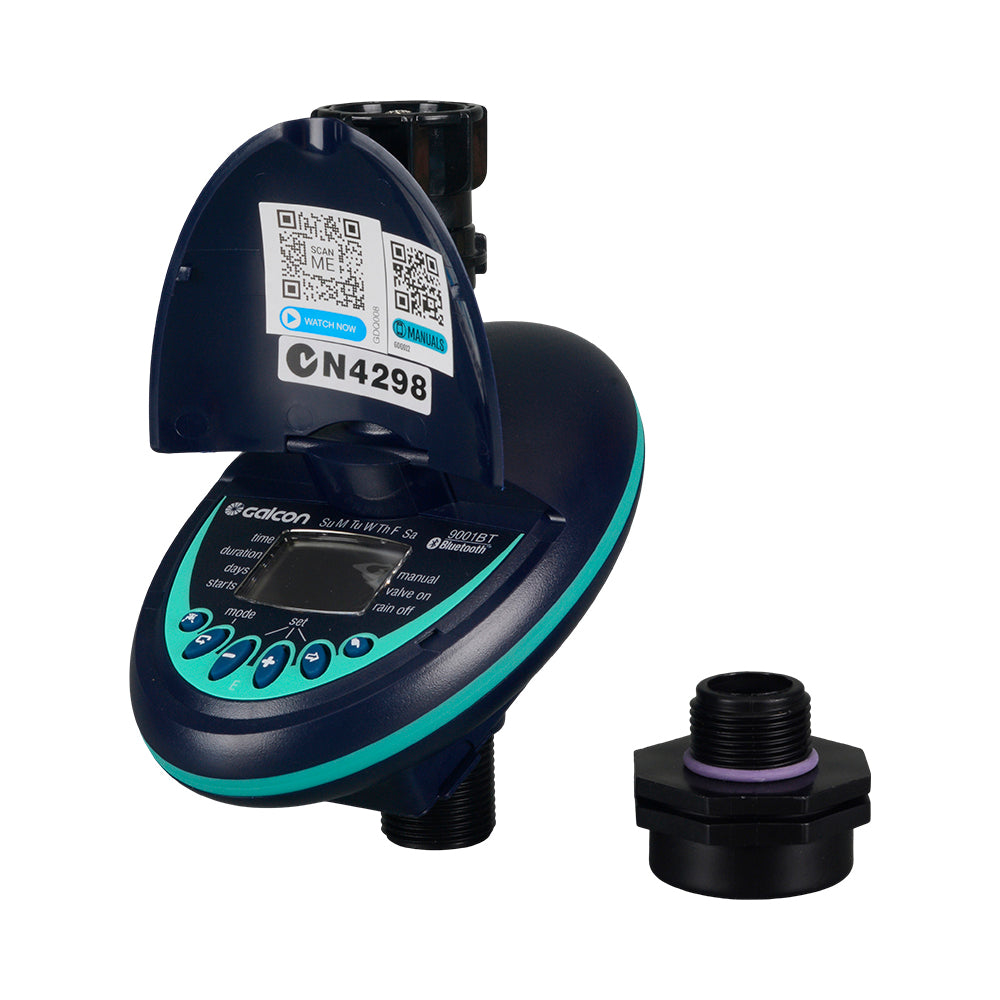

The Galcon 9001BT Bluetooth Tap Timer is a single-station battery-operated irrigation controller for garden taps. It is suited to home gardens, drip irrigation, sprinkler systems, flower pots, roof gardens and garden beds where simple tap-mounted automatic watering is required.
This tap timer can be programmed directly at the controller or through the GalconBT app using Bluetooth. Bluetooth control is for nearby setup and operation from a compatible smartphone, not WiFi remote access from anywhere.
The 9001BT supports run times from 1 minute to 12 hours, with up to 4 start times per day. Watering can be set using 7 day programming or an interval from 1 to 30 days, giving flexibility for everyday garden watering, less frequent irrigation or simple seasonal schedules.
The timer operates from 1 x 9V alkaline battery and includes manual activation at the controller, rain off suspension, low battery indication and rain sensor shutdown compatibility. It is designed for cold water outdoor irrigation systems only.
2 Year Galcon Limited Warranty
Galcon 9001BT Blueooth Tap Timer User Manual
Galcon 9001BT Blueooth Tap Timer Specifications
Video 1

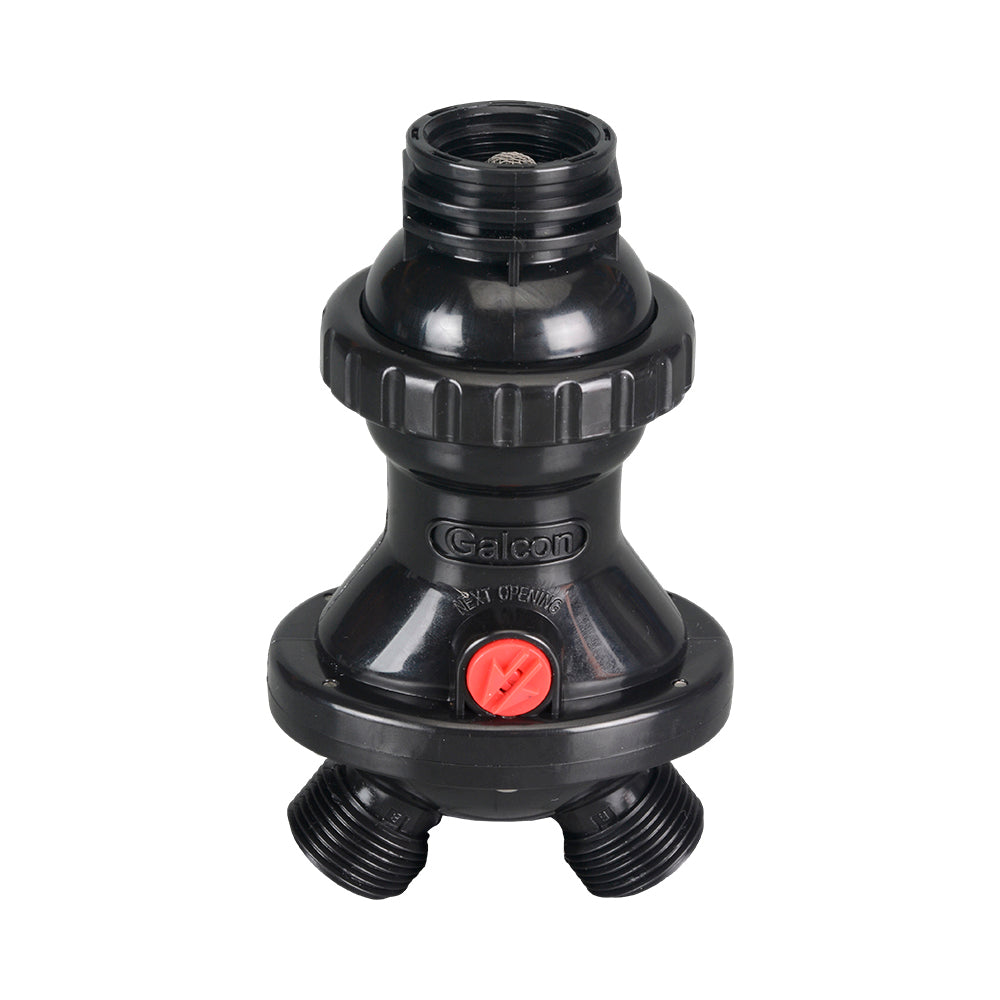

The Galcon 9001 Series 2-Way Alternating Valve is an accessory used to create two watering zones from a single tap timer outlet. It is designed for use with compatible Galcon 9001 series tap timers where two separate garden areas need to be watered without running both zones at the same time.
The valve automatically alternates between outlets each watering cycle. On the first programmed start time, one outlet opens. On the next start time, the valve changes over and opens the opposite outlet, allowing two separate irrigation zones to be watered from one tap timer.
This is useful where a single tap does not have enough flow or pressure to run two areas together. Because only one outlet operates at a time, each zone can be watered separately while still using one tap-mounted controller.
The alternating valve is an accessory only. It does not replace the tap timer and does not provide independent electronic control of each outlet. The watering sequence is created by the timer start times and the valve’s alternating operation.
Galcon 9001BT Blueooth Tap Timer User Manual
Galcon 9001BT Blueooth Tap Timer Specifications
Video 1

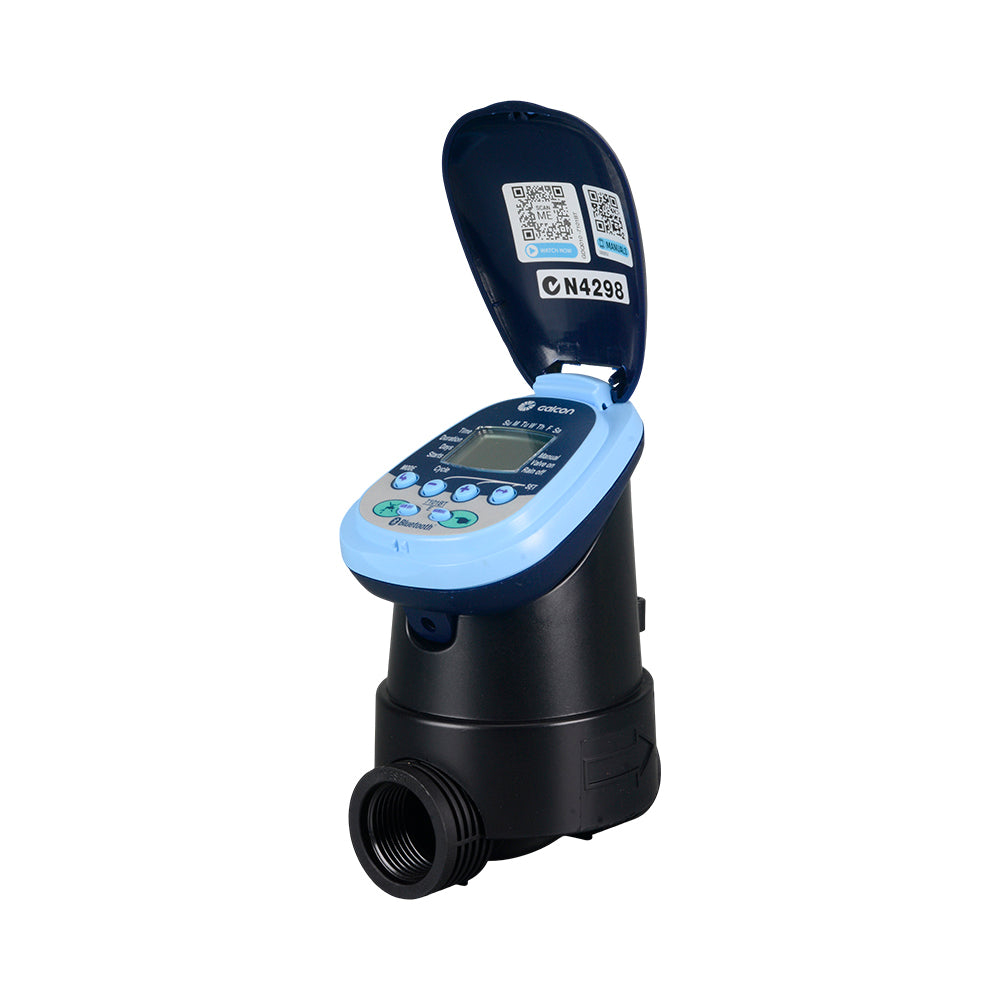

The Galcon 7101BT Bluetooth Battery Operated Controller with 25mm Valve is a single-station automatic irrigation valve for sites where mains power is unavailable or difficult to access. It is suited to home gardens, drip irrigation, sprinkler systems, flower pots, roof gardens and garden beds.
The 7101BT combines a 25mm solenoid valve with a Bluetooth programming module in one battery-operated unit. It can be installed in an irrigation line or valve box and is IP68 rated for outdoor and in-ground irrigation environments.
Programming can be completed directly at the controller or through the GalconBT app using Bluetooth. Bluetooth control is for nearby setup and operation from a compatible smartphone, not WiFi remote access from anywhere. The controller can be programmed through the valve box lid, reducing the need to open the valve box for normal schedule changes.
The controller supports run times from 1 minute to 12 hours, with up to 4 start times per day. Watering can be set using 7 day programming or an interval from 1 to 30 days, with manual activation, rain off suspension, low battery indication and rain sensor shutdown compatibility.
For cold water outdoor irrigation systems only.
2 Year Galcon Limited Warranty
Galcon 7101BT Blueooth Valve Controller User Manual
Galcon 7101BT Blueooth Valve Controller Specifications
Video 1

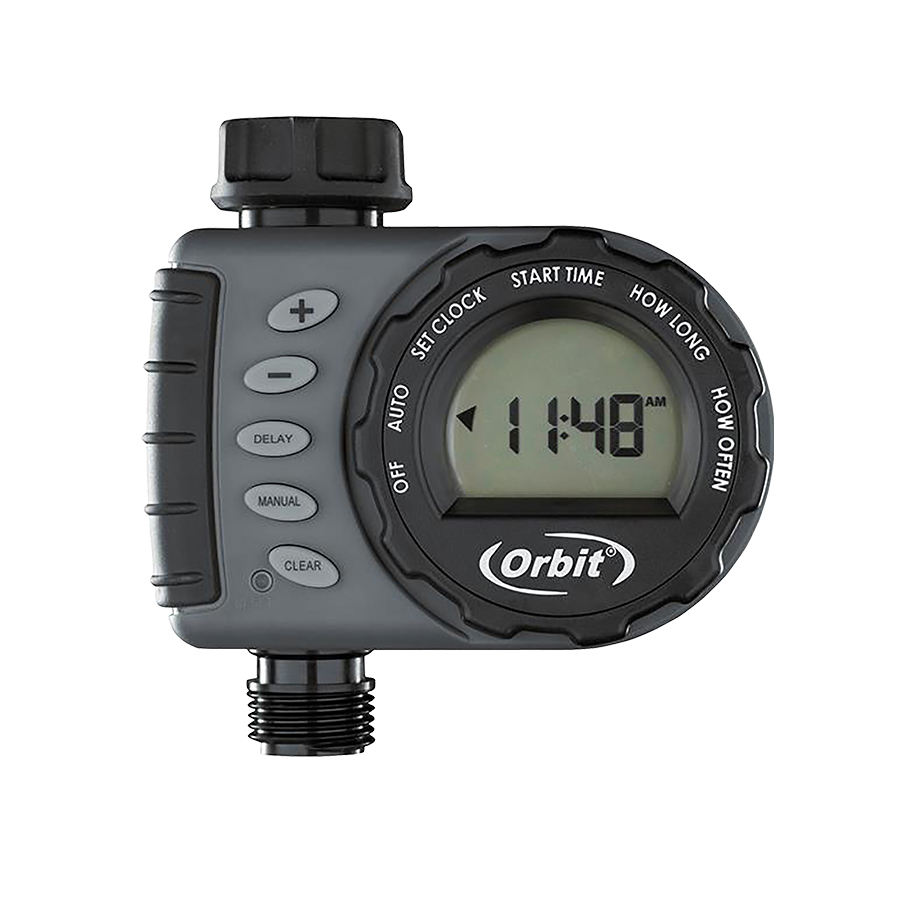

The Orbit 1 Station Tap Timer is a simple hose-end irrigation timer for turning a garden tap into an automatic watering point. It is suited to garden beds, lawn sprinklers, pots and basic drip or hose watering systems where a fixed irrigation controller is not required.
This single outlet tap timer uses a large LCD screen and simple dial-style programming for everyday garden watering. It supports 7 day and interval programming, with up to 4 watering start times and watering durations from 1 to 360 minutes.
Manual On/Off control allows watering to be started or stopped at the timer without changing the stored program. A rain delay function can also pause watering for up to 72 hours when irrigation is not required.
Suitable for cold water irrigation systems only. Maximum operating pressure: 680kPa.
Orbit Tap Timer 1 Station Specifications
Orbit Tap Timer 2 Station Specifications
Video 1

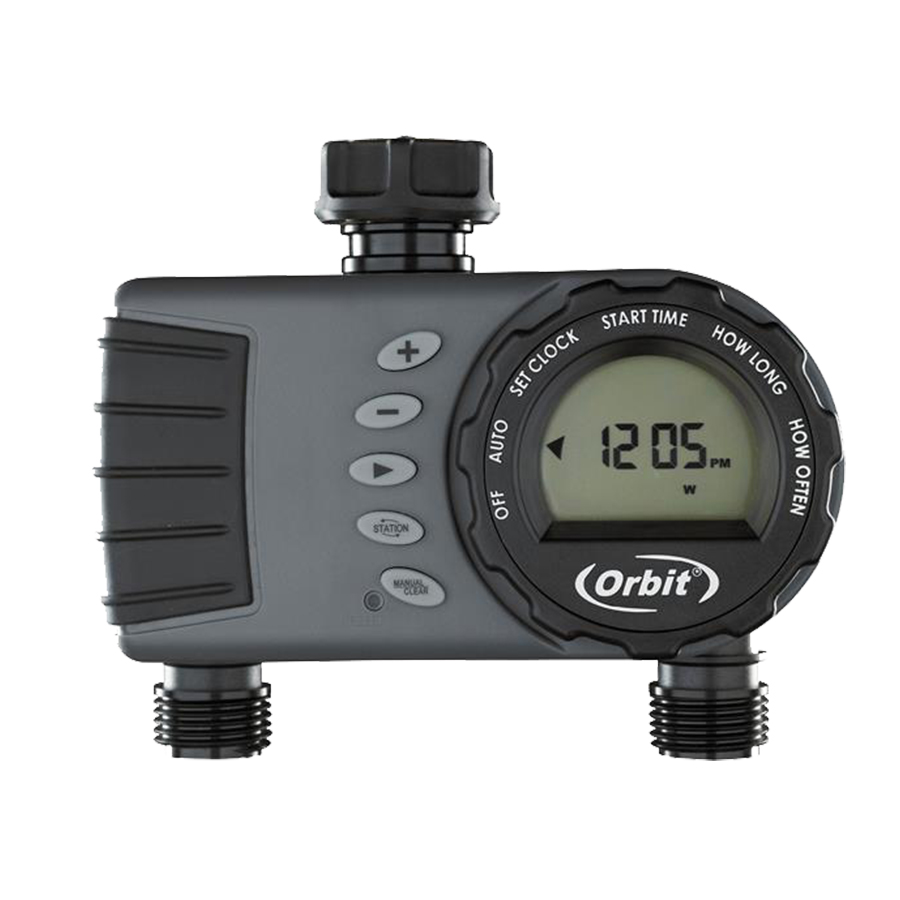

The Orbit 2 Station Tap Timer is a hose-end irrigation timer for running two watering outlets from one garden tap. It is suited to garden beds, lawn sprinklers, pots and basic drip or hose watering systems where two separate tap outlets are required.
This two outlet tap timer provides simple programmed watering with days-of-the-week scheduling, interval programming and watering durations from 1 to 360 minutes. It includes 3 independent start times, allowing flexible watering times for standard garden use.
The timer includes manual bypass for easy faucet use, along with a built-in rain delay that can pause watering for 1 to 7 days. It is weather resistant, IP35 certified and fitted with an overmolded brass hose faucet swivel.
The Orbit 2 Station Tap Timer operates using two AA batteries, which are not included. Suitable for cold water irrigation systems only. Maximum operating pressure: 680kPa.
Orbit Tap Timer 1 Station Specifications
Orbit Tap Timer 2 Station Specifications
Video 1

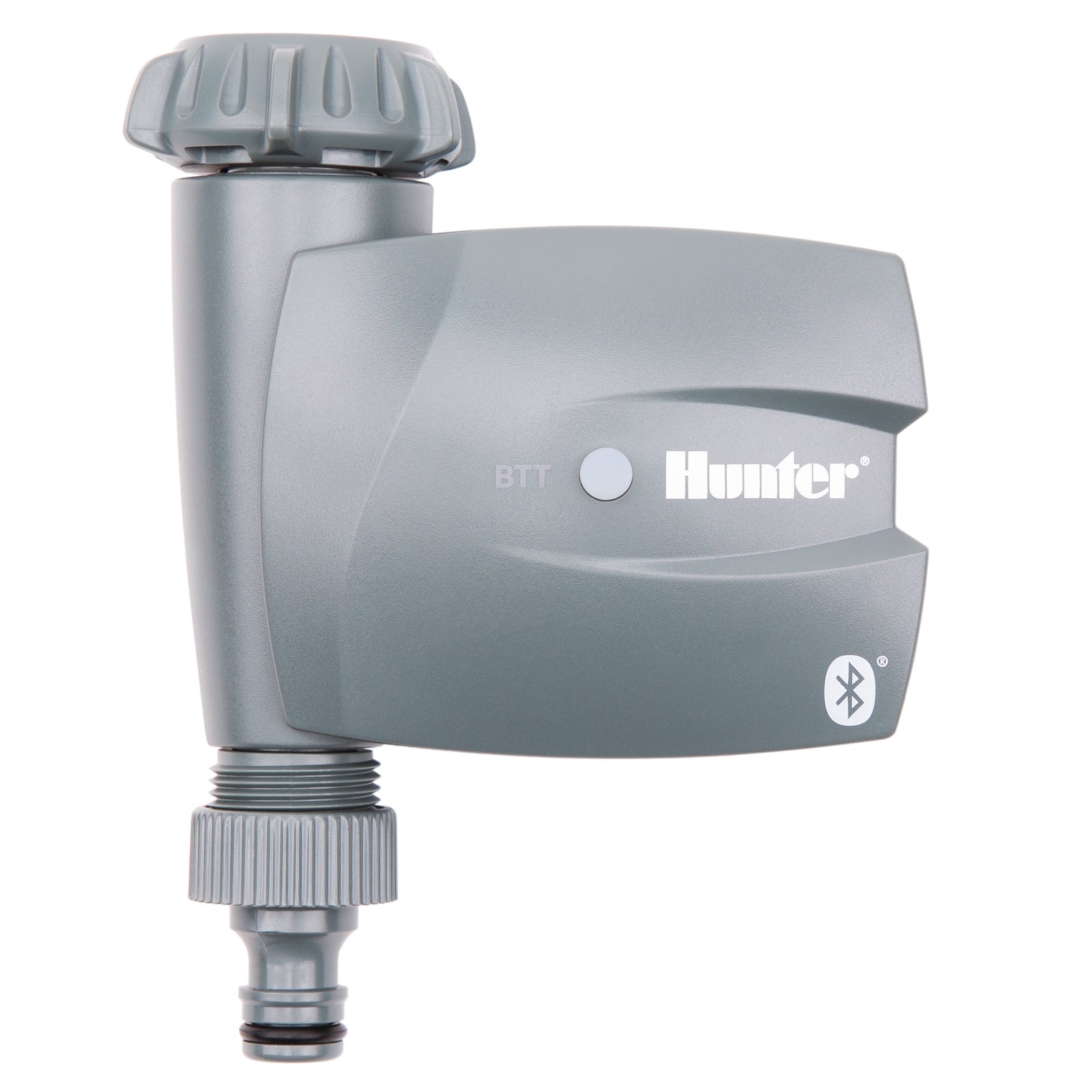

The Hunter BTT Bluetooth Tap Timer is a single-zone battery-operated tap timer for automatic watering from a standard garden tap. It is suited to gardens, pots, flower beds, drip systems, greenhouses, terraces and small lawn areas where simple hose-end irrigation control is required.
The BTT is programmed from a nearby smartphone using the Hunter BTT app. Bluetooth control allows local wireless setup and schedule adjustment within range of the timer, without needing to crouch down at the tap or use small timer buttons. It is not a WiFi controller and does not provide remote access from anywhere.
This 1-zone model supports Timer and Cycling modes for flexible watering. Cycling mode is useful for drip irrigation, seed germination and applications where watering needs to repeat within a set watering window. Manual push-button operation is also available at the timer, with automatic shutoff after 1 hour.
The BTT-101 connects to standard hose tap outlets and includes a quick coupler adapter for hose-end watering setups. It operates using two AA alkaline batteries, includes low-battery indication, passcode protection, a rugged screen filter and IPX6 outdoor protection.
2 Year Hunter Warranty
Video 1
The Hunter BTT Bluetooth Dual Port Tap Timer is a 2-zone battery-operated tap timer for automatic watering from a standard garden tap. It is suited to gardens, pots, flower beds, drip systems, greenhouses, terraces and small lawn areas where two separate hose-end watering zones are required.
The BTT-201 is programmed from a nearby smartphone using the Hunter BTT app. Bluetooth control allows local wireless setup and schedule adjustment within range of the timer, without needing to operate small buttons at the tap. It is not a WiFi controller and does not provide remote access from anywhere.
This dual port model provides independent control of two watering outlets from one tap. It supports Timer and Cycling modes, with Cycling mode useful for drip irrigation, seed germination and applications where watering needs to repeat within a set watering window. Manual push-button operation is also available at the timer.
The BTT-201 connects to standard hose tap outlets and includes two 3/4" outlets for separate watering lines. It operates using two AA alkaline batteries, includes low-battery indication, passcode protection, a rugged screen filter and IPX6 outdoor protection.
2 Year Hunter Warranty
Video 1
The Orbit B-Hyve Tap Timer Bluetooth with WiFi Hub Gen 2 is a smart hose tap watering kit for residential garden irrigation. It includes the Gen 2 Bluetooth tap timer and matching Gen 2 WiFi hub for B-Hyve app-based watering control.
The tap timer is designed for hose tap watering control, while the included Gen 2 WiFi Hub connects the system to the home network for WiFi remote access and smart watering features. The Gen 2 hub is added through the B-Hyve app as a Gen 2 Hub and plugs into an indoor outlet within range of the timer and WiFi signal.
The Gen 2 timer has a maximum operating pressure of 689 kPa and is suitable for standard hose tap watering applications. Use Gen 2 timers and Gen 2 hubs together when setting up this product family.
Orbit B-Hyve Range Brochure
Orbit B-Hyve Tap Timer Hub Gen 2 User Manual
The Orbit B-Hyve Tap Timer Bluetooth with WiFi Hub Gen 1 is a smart hose tap watering kit for residential garden irrigation. It includes the Gen 1 Bluetooth tap timer and matching Gen 1 WiFi hub for app-based watering control.
The tap timer can be programmed by Bluetooth through the B-Hyve app and can operate with or without WiFi connectivity. When connected through the included Gen 1 WiFi Hub, it supports remote access, watering history, smart watering settings and WeatherSense™ adjustments based on local weather and site conditions.
The timer is designed for outdoor cold water use on a standard hose tap and has a 10–100 PSI operating pressure range, equivalent to approximately 69–689 kPa. The Gen 1 WiFi Hub plugs into an indoor outlet within range of the timer and home WiFi signal.
Orbit B-Hyve Range Brochure
Orbit B-Hyve Tap Timer with Hub Gen 1 User Manual
Orbit B-Hyve Tap Timer with Hub Gen 1 Specifications
Orbit B-Hyve Tap Timer Hub Gen 1 User Manual
The Holman Low Pressure 2 Dial Tap Timer is a battery-operated tap timer for simple automatic watering from tanks, gravity-fed systems and standard garden taps. It is suited to pots, hanging baskets, shrub areas, flower beds, small lawns and short-run micro spray or drip irrigation setups.
This low pressure tap timer is designed to operate from 0 to 600kPa, making it useful where some standard solenoid-based tap timers may not perform reliably. It uses a ball valve rather than a solenoid valve, which allows it to run from low pressure water sources such as tanks while still being suitable for regular tap use.
Programming is interval-based rather than clock-based. The left dial sets how often the timer waters, while the right dial sets how long it runs. Once the interval and run time are selected and confirmed, the timer counts down and waters after the chosen interval has elapsed. It cannot be set to a specific clock time, although the start can be delayed in 1 hour steps after the program is confirmed.
The timer supports automatic and manual operation, with frequency options from every 1 hour through to weekly watering and run time options from 1 to 120 minutes. It is powered by 2 x AAA alkaline batteries and includes an LED battery indicator.
For above-ground cold water irrigation use only. Do not use without the appropriate filter. As with most tap timers, remove or protect the timer if freezing conditions are expected.
Video 1

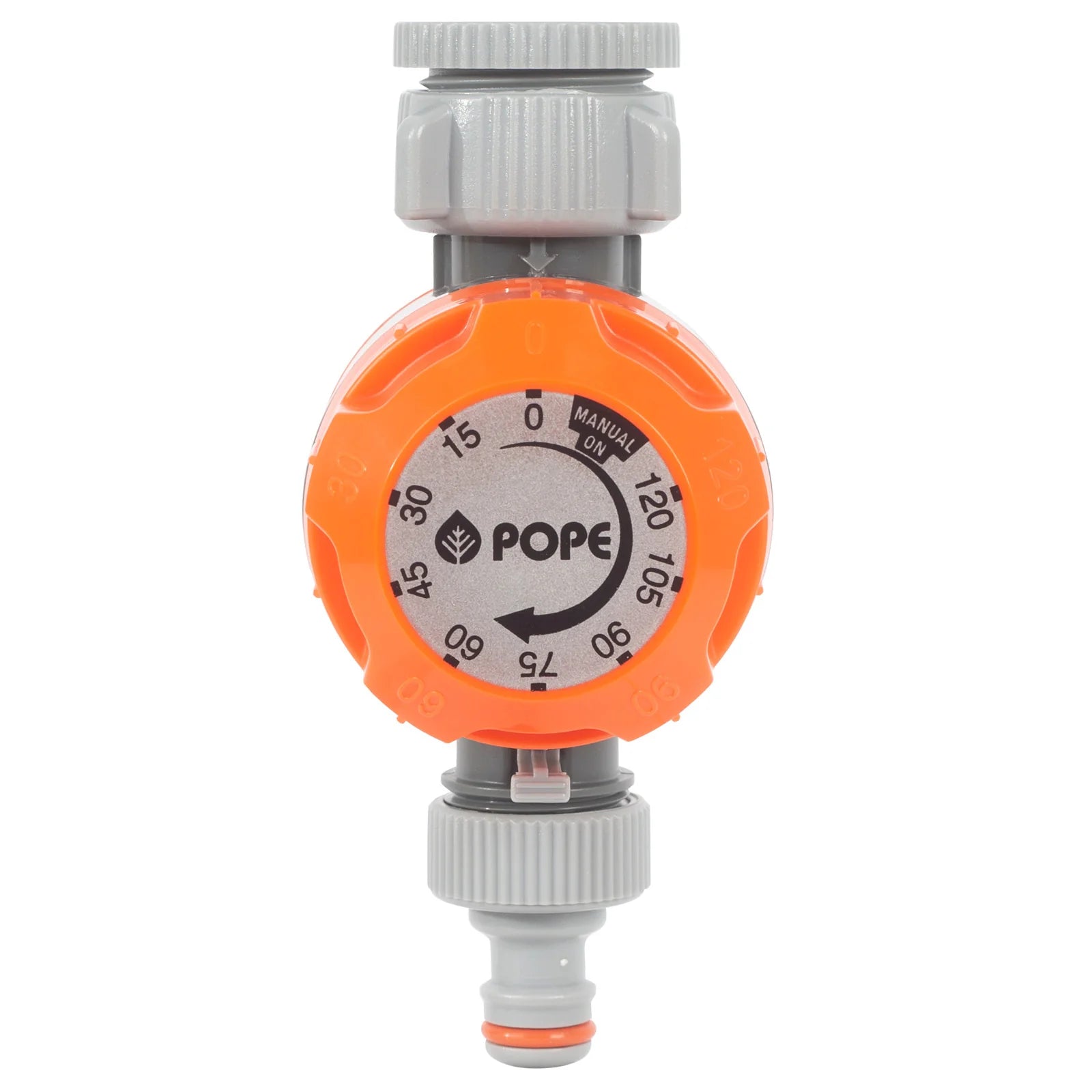

Pope mechanical tap timers provide simple manual-start watering with automatic shutoff from a standard garden tap. Available in 2 hour and 6 hour models, they are suited to hose watering, sprinklers, drip lines and spray systems where a full electronic controller is not required.
These timers are mechanical, so no batteries are required. Turn the dial to the desired watering duration and the timer will shut off automatically once the selected time has elapsed. This makes them useful for customers who want a simple way to avoid leaving the tap running.
The 2 hour model allows watering in 5 minute increments up to 120 minutes, while the 6 hour model allows watering in 15 minute increments up to 360 minutes. Both models include a universal swivel tap nut to suit 20mm or 25mm BSP taps, manual override for untimed water flow and UV stabilised plastic construction.
Suitable for standard tap-based watering applications only. Not recommended where water pressure exceeds 1000kPa, where bore or unfiltered water is used, where a pump is used to draw water, or for commercial applications.
1 Year Pope Guarantee

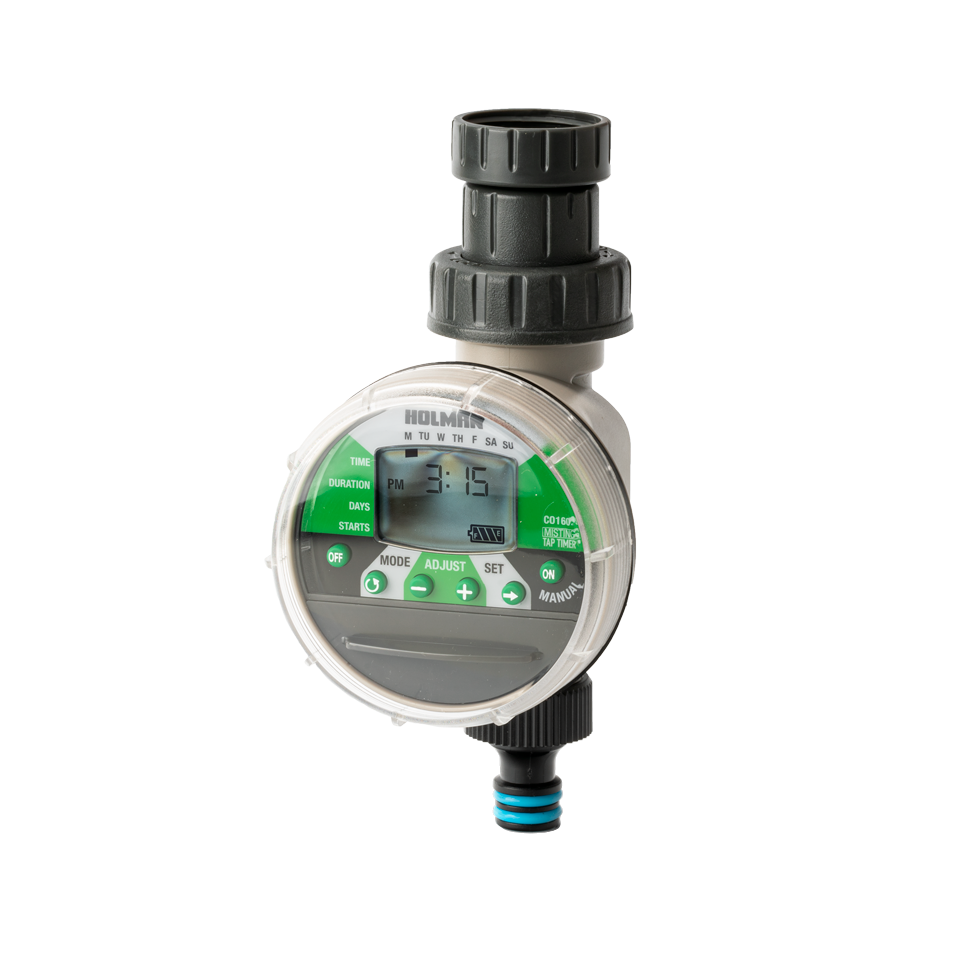

The Holman Misting Tap Timer is a battery-operated tap timer designed for short-burst misting and cooling applications. It is suited to greenhouses, vertical gardens, GreenWalls™, patios, pots, outdoor plant areas and other misting setups where watering needs to run for short repeated intervals.
Unlike a standard tap timer that simply runs for one longer watering period, this misting timer operates on a cyclical ON/OFF pattern. A start time and stop time set the active watering window, while the ON and OFF durations control how long the misting runs and rests within that window.
The timer allows misting duration to be set in hours, minutes or seconds, making it useful for greenhouse humidity control, plant cooling and regular short-cycle misting. It also includes 7 day scheduling, manual operation, suspend mode, low battery warning and an easy-to-read digital display.
The timer is designed for above-ground cold water irrigation use only, with a 600kPa maximum pressure rating. As with most tap timers, avoid freezing conditions and remove or protect the timer if very cold weather is expected.
2 Year Holman Replacement Guarantee
The Orbit Automatic Yard Watering Kit Valve is a valve-only replacement or add-on part for compatible Orbit Automatic Yard Watering System installations. This is a discontinued product and is intended for customers maintaining an existing Orbit yard watering kit, not for setting up a new complete watering system from scratch.
The original Orbit Automatic Yard Watering System was designed to turn a garden tap into a programmed sprinkler system, with the ability to control multiple watering areas. This valve was used as part of that system where additional or replacement watering outlets were required.
This item is the valve only. It does not include the tap timer/controller, batteries, complete watering kit, fittings or additional valves. Check compatibility with your existing Orbit Automatic Yard Watering System before ordering.
For outdoor cold water irrigation systems only. Operating pressure range: 170kPa to 680kPa.
