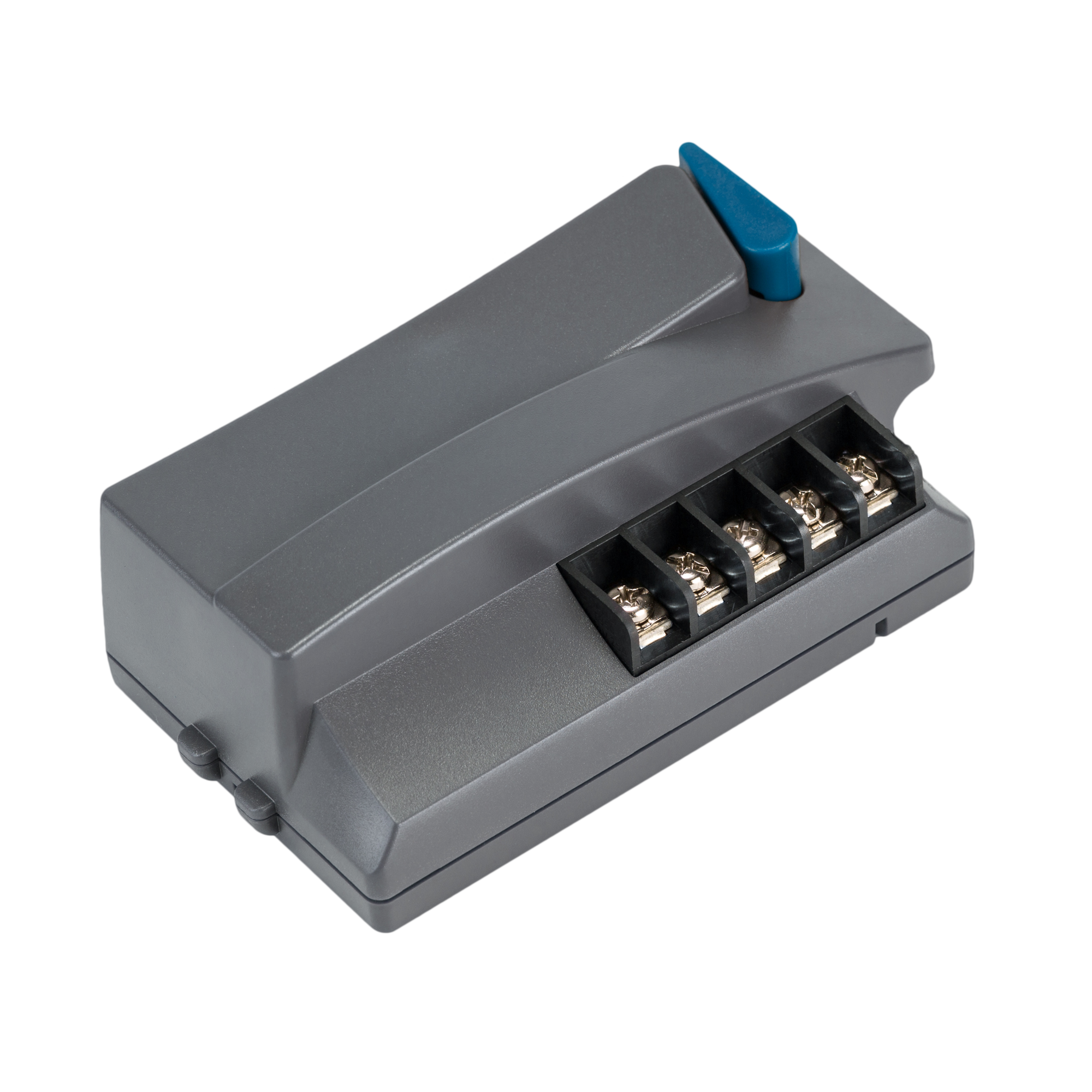

Hunter ICC2 and HCC expansion module with screw terminals and blue latch
Hunter ICC2 and HCC expansion module with screw terminals and blue latch

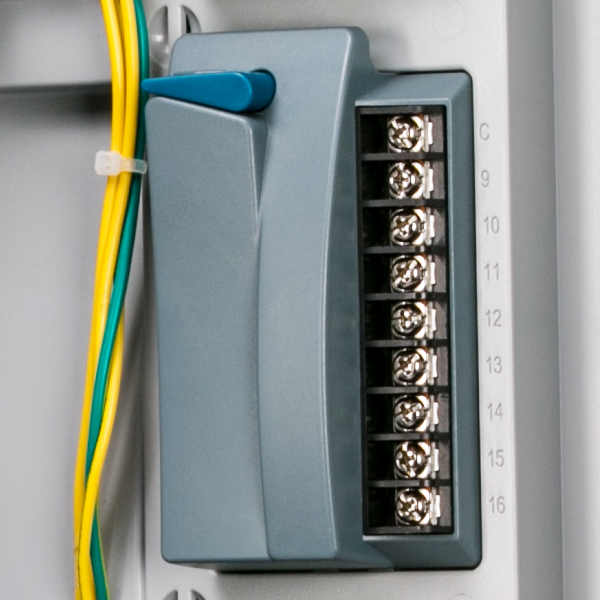

Hunter expansion module installed beside controller terminal strip
Hunter expansion module installed beside controller terminal strip
Hunter ICC2 and HCC expansion module with screw terminals and blue latch
Hunter expansion module installed beside controller terminal strip

HUNTER ICC2 / HCC ICM EXPANSION MODULES

Hunter ICM expansion modules add conventional wired station outputs to ICC2 and HCC controllers. Choose ICM-400 for four extra outputs, ICM-800 for eight or ICM-2200 for 22. Select the combination needed for the final controller capacity.

✓ ICM-400: 4 Outputs. ICM-800: 8. ICM-2200: 22
✓ For ICC2 and HCC Conventional Wired Expansion
✓ Up to 38 Conventional Stations (Plastic) or 54 (Metal)
✓ ICM-2200 Occupies the Last Two Slots
✓ One ICM-2200 per Controller
✓ 5 Year Hunter Warranty

Hunter ICC2 Controller Specifications
Hunter HCC Controller Specifications

Hunter ICC2 and HCC expansion module with screw terminals and blue latch

Hunter ICM expansion modules add conventional wired station outputs to ICC2 and HCC controllers. Choose ICM-400 for four extra outputs, ICM-800 for eight or ICM-2200 for 22. Select the combination needed for the final controller capacity.

Each output operates a conventional wired watering station. The module range includes ICM-400, ICM-800 and ICM-2200. Maximum conventional capacity is 38 stations in plastic ICC2/HCC cabinets or 54 in metal cabinets, using the appropriate module layout.

ICM-400 and ICM-800 each occupy one module slot. ICM-2200 occupies two slots and is limited to one per controller. Install ICM-2200 last in slots 3 and 4 for plastic cabinets or slots 5 and 6 for metal cabinets.

Example conventional expansion configurations

Modules below are added to a compatible eight-station ICC2 or HCC base. The factory-fitted eight-station module is already included in the base and is not counted again. These are common examples, rather than every possible module combination.

Final conventional capacity Modules added to the eight-station base Plastic cabinet Metal cabinet
8 stations No additional module Yes Yes
12 stations 1 x ICM-400 Yes Yes
16 stations 1 x ICM-800 Yes Yes
24 stations 2 x ICM-800 Yes Yes
32 stations 3 x ICM-800 Yes Yes
38 stations 1 x ICM-800 + 1 x ICM-2200 Yes No
40 stations 4 x ICM-800 No Yes
48 stations 5 x ICM-800 No Yes
54 stations 3 x ICM-800 + 1 x ICM-2200 No Yes

Install standard modules in slot order. ICM-2200 occupies the last two slots: slots 3 and 4 in plastic cabinets or slots 5 and 6 in metal cabinets. Use ICM-800 modules in the earlier slots for the maximum-capacity layouts shown. Hunter’s ICC2 instructions specifically require ICM-800 modules in every slot before ICM-2200. Press Reset after changing modules so the controller recognises the station count.

Lock the module in place with the controller’s blue locking lever, then press the Reset button on the back of the facepack so the controller recognises the new outputs. Follow the controller installation instructions when connecting the station and common wires.

For the alternative two-wire expansion route, use an EZ-DM (ICC2 / HCC) output module with EZ-1 or EZ-LR field decoders. ICM modules provide conventional wired outputs and do not take the place of EZ field decoders. The EZ-DM page explains hybrid slot layouts and the shared station-number limit.

5 Year Hunter Warranty.

Hunter ICC2 Controller Specifications
Hunter HCC Controller Specifications
Hunter ICC2 Controller User Manual
Hunter HCC Station Module Installation Instructions

✓ Application
Conventional wired station expansion for compatible ICC2 and HCC controllers.

✓ Warranty
5 Year Hunter Warranty.

✓ Model & Outputs
Range: ICM-400 adds 4 station outputs. ICM-800 adds 8. ICM-2200 adds 22.

✓ Controller Capacity
Plastic Cabinet: Up to 38 conventional stations.
Metal Cabinet: Up to 54 conventional stations.
Capacity depends on the installed module combination.

✓ Slot Use & Installation
ICM-400 / ICM-800: One slot per module.
ICM-2200: Two slots. One per controller.
ICM-2200 Position: Slots 3 and 4 in plastic cabinets or slots 5 and 6 in metal cabinets.
Maximum-Capacity Layouts: Use ICM-800 modules before ICM-2200. ICC2 instructions specifically require ICM-800 modules in every preceding slot.
Securing: Blue module locking lever.
Recognition: Press Reset after adding or changing modules.

✓ Decoder Alternative
EZ-DM with EZ-1 or EZ-LR decoders provides the separate two-wire expansion route.
Conventional and decoder slot arrangements must follow the EZ-DM installation guide.
