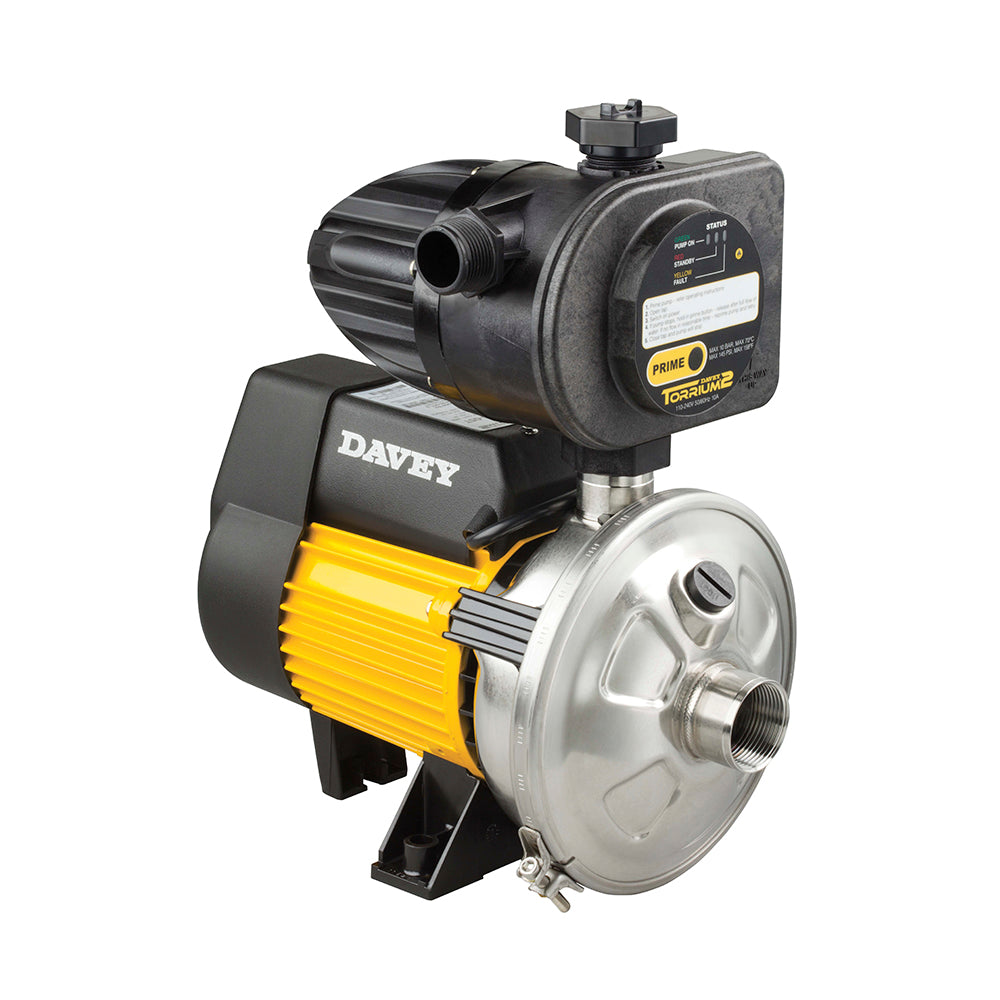

Davey HP45-05T and HP65-06T twin-stage pressure pumps provide automatic clean-water supply for household use, irrigation, water transfer and washing systems. Their Torrium2 controllers start and stop the pumps as water is used.
Both pumps use a 1 1/4" BSP female inlet and deliver through a 1" BSP male Torrium2 outlet.
They handle clean, non-volatile liquids without fibres or solids at water temperatures from 1°C to 50°C.

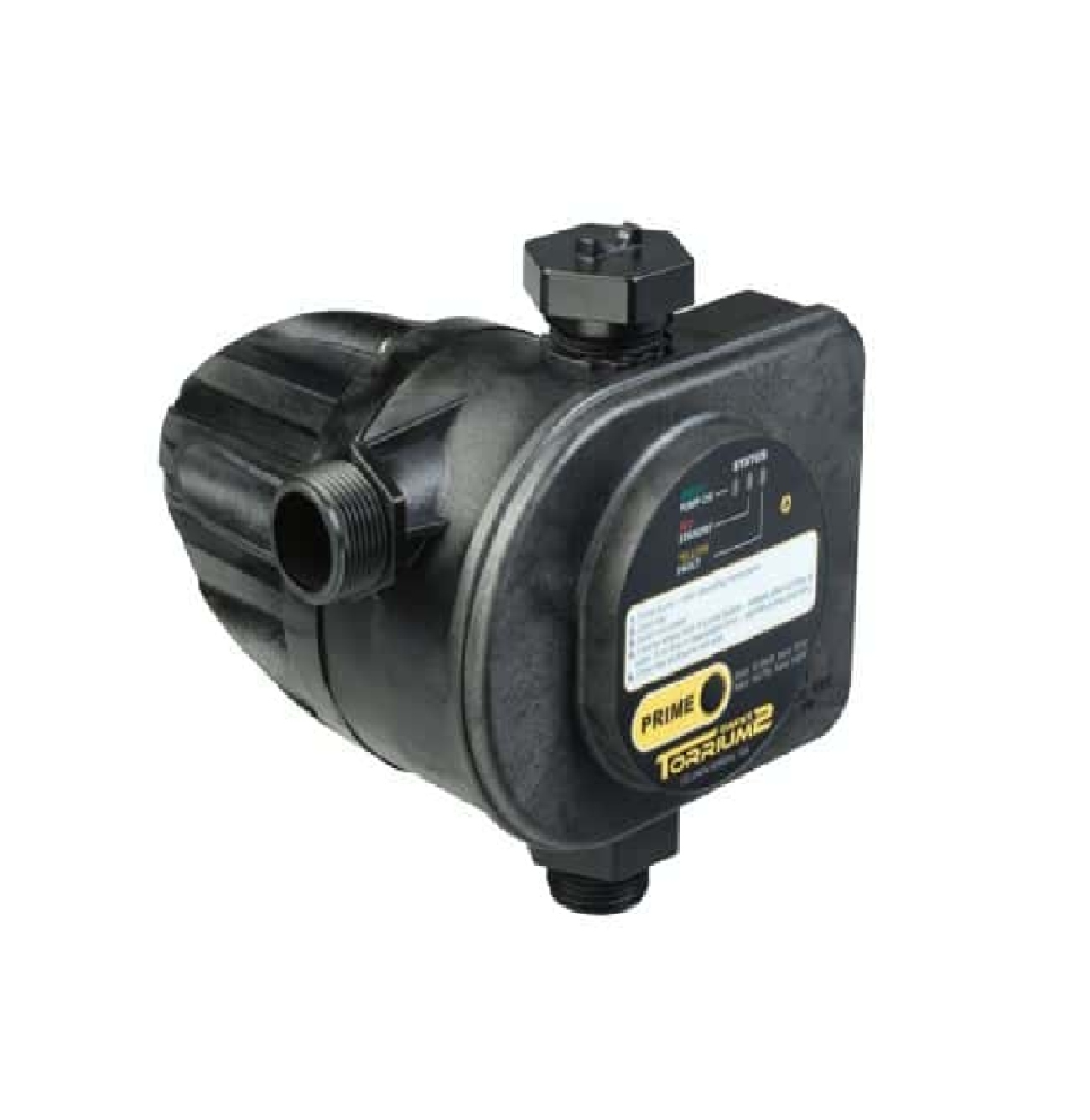

The supplied Torrium2 controller automatically starts the pump when water pressure falls and stops it when water demand ends. It automatically sets the starting pressure to suit the pump and installation, adapting during very low demand to reduce repeated starts. Its built-in accumulator allows a small amount of water to be drawn before the pump restarts.
The two-stage pump design uses a 304 stainless steel casing and backplate, glass-filled Noryl stage body and glass-filled polycarbonate impellers. The motor shell is marine-grade aluminium with a baked polyester finish.
Loss-of-prime protection stops the pump if its water supply is lost, with automatic retry to check whether water has returned. The controller also provides high-water-temperature and excessive-current cut-outs. The motor has its own automatic-reset thermal overload protection.
Install horizontally on a firm base in a ventilated, weather-protected position with drainage. Fill the pump casing and suction line with water before starting. Suction-lift installations require a foot valve to retain prime. The maximum suction lift is 6m; actual performance depends on the suction pipework and installation.
Each complete pressure system has a 450kPa maximum system pressure limit and uses a 220-240V single-phase, 50Hz supply.
Two-year Davey warranty, subject to its terms.
Davey HP45-05T & HP65-06T Specifications
Davey Torrium2 Controller Specifications
Davey Torrium2 Installation & Operating Instructions

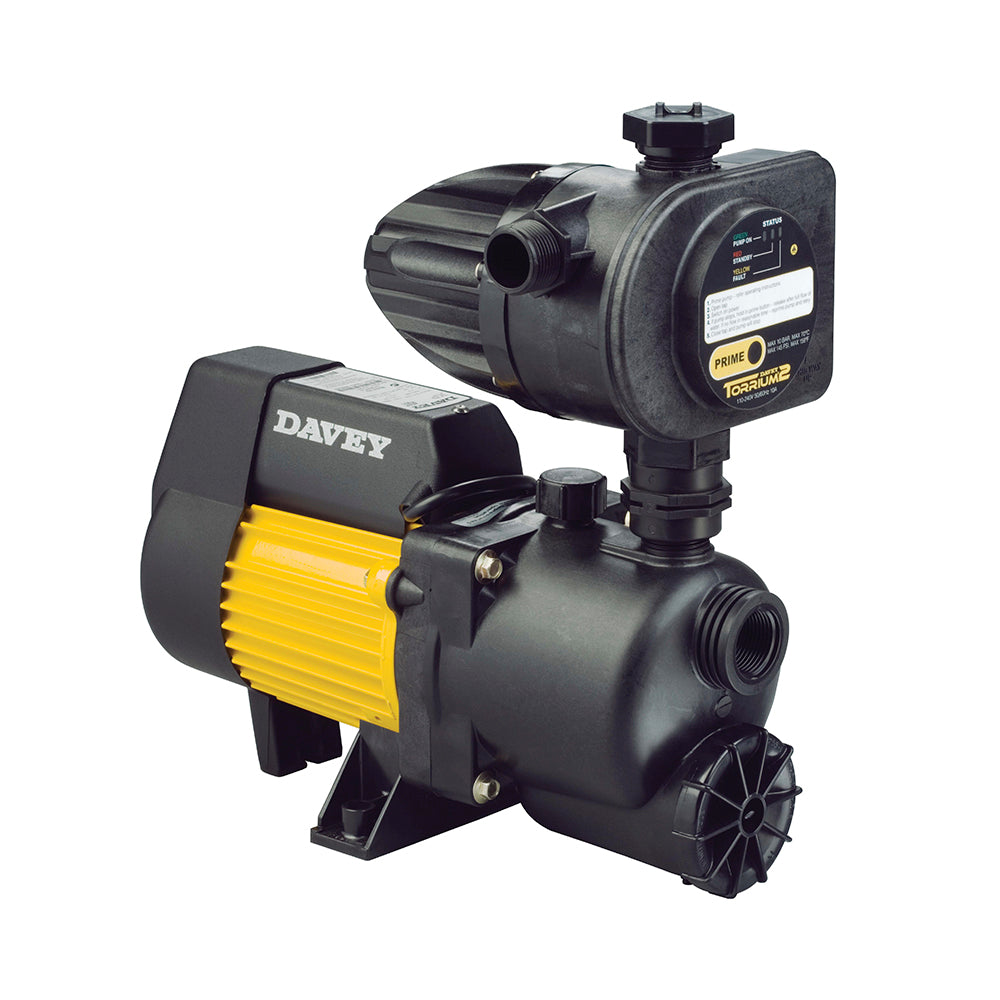

The Davey XP45T is a single-stage jet-assisted pressure pump for household water supply, irrigation, water transfer and washing systems. It delivers up to 45 LPM with a maximum total head of 32m. Actual flow depends on vertical lift and pipe resistance and decreases as head increases.
The pump has a 1" BSP female thread inlet and supplies water through a 1" BSP male Torrium2 system outlet. It is designed for clean, non-volatile liquids without fibres or solids, at water temperatures from 1°C to 50°C.
The supplied Torrium2 controller automatically starts the pump when water pressure falls and stops it when water demand ends. It automatically sets the starting pressure to suit the pump and installation, adapting during very low demand to reduce repeated starts. Its built-in accumulator allows a small amount of water to be drawn before the pump restarts.
Loss-of-prime protection stops the pump if its water supply is lost, with automatic retry to check whether water has returned. The controller also provides high-water-temperature and excessive-current cut-outs. The motor has its own automatic-reset thermal overload protection.
The jet-assisted hydraulic design uses a glass-filled Noryl casing and venturi, an acetal jet and a glass-filled polycarbonate impeller. A ceramic/carbon mechanical seal and nitrile O-rings seal the pump.
Install horizontally on a firm base in a ventilated, weather-protected position with drainage. Fill the pump casing and suction line with water before starting. Suction-lift installations require a foot valve to retain prime. The maximum suction lift is 6m; actual performance depends on the suction pipework and installation.
The complete system has a maximum system pressure of 450kPa. Its 220-240V single-phase motor provides 0.45kW output power from 0.65kW input power.
Two-year Davey warranty, subject to its terms.
Davey XP45T Specifications
Davey Torrium2 Controller Specifications
Davey Torrium2 Installation & Operating Instructions

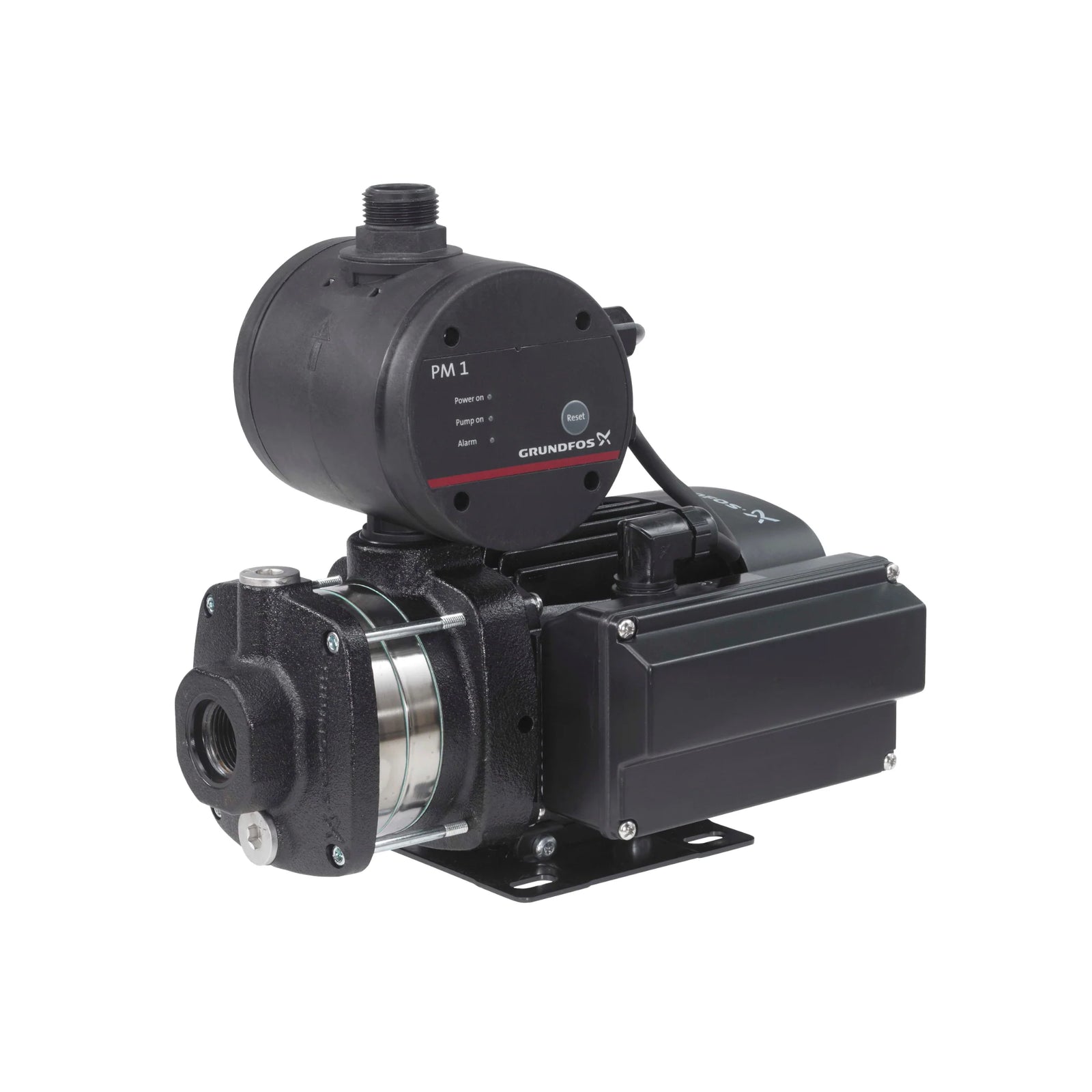

Grundfos CM boosters provide automatic household and light commercial water supply from clean-water tanks and other suitable water sources. Their fixed-speed multistage design provides pressure for taps, showers and garden irrigation.
CMB 1-36: rated duty 28.3LPM at 23.7m head.
CMB 3-37: rated duty 51.7LPM at 27.7m head.
CMB 5-46: rated duty 78.3LPM at 38.6m head.
The CMB 1-36 and CMB 3-37 have a 1" BSP female inlet.
The CMB 5-46 has a 1 1/4" BSP female inlet.
All three have a 1" BSP male controller outlet.
The controller starts the pump when water use causes pressure to fall below its fixed starting threshold, and stops it when water use ends. The starting threshold cannot be adjusted on the controller. Pressure while the pump runs depends on water flow, inlet pressure and losses through the controller and pipework.

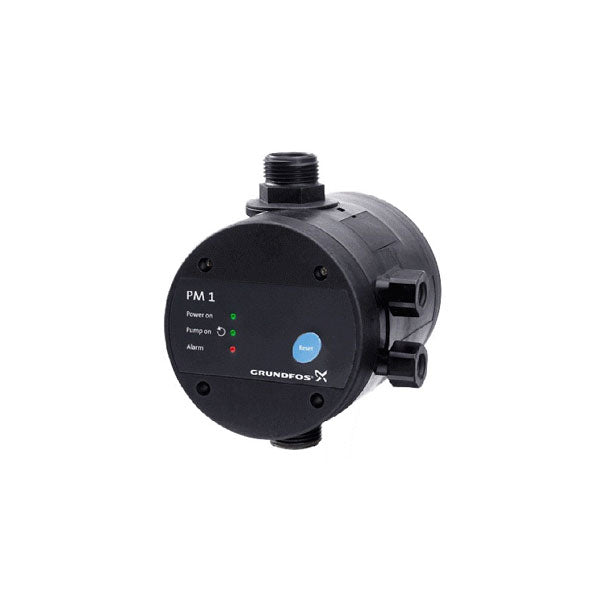

The CMB 1-36 and CMB 3-37 use PM1 controllers with a fixed 150kPa starting threshold.
The CMB 5-46 uses PM1 with a fixed 220kPa starting threshold.
Dry-running protection stops the pump if the controller detects a lack of water. Anti-cycling protection detects repeated starts caused by small leaks and stops the pump with an alarm. Correct the cause and restore the water supply before resetting the controller, as described in the manual.
Rated duty pairs show flow at the stated head; they are not maximum-flow ratings.
Flow decreases as head increases. Choose the pump for the required flow and pressure at the point of use.
Use clean, thin, non-aggressive and non-explosive water without solid particles or fibres, at temperatures from 0°C to 40°C.
These pumps are not self-priming. Fill the pump casing and inlet pipe with clean water before starting, following the installation instructions. Install on a firm, level base in a ventilated position protected from direct sun, rain and frost.
The pump has a cast iron housing, 304 stainless steel impellers and an AVBE shaft seal with EPDM rubber components. The controller includes a non-return valve. The single-phase motor has built-in overload protection.
Two-year Grundfos Australian consumer warranty from purchase, subject to its terms.

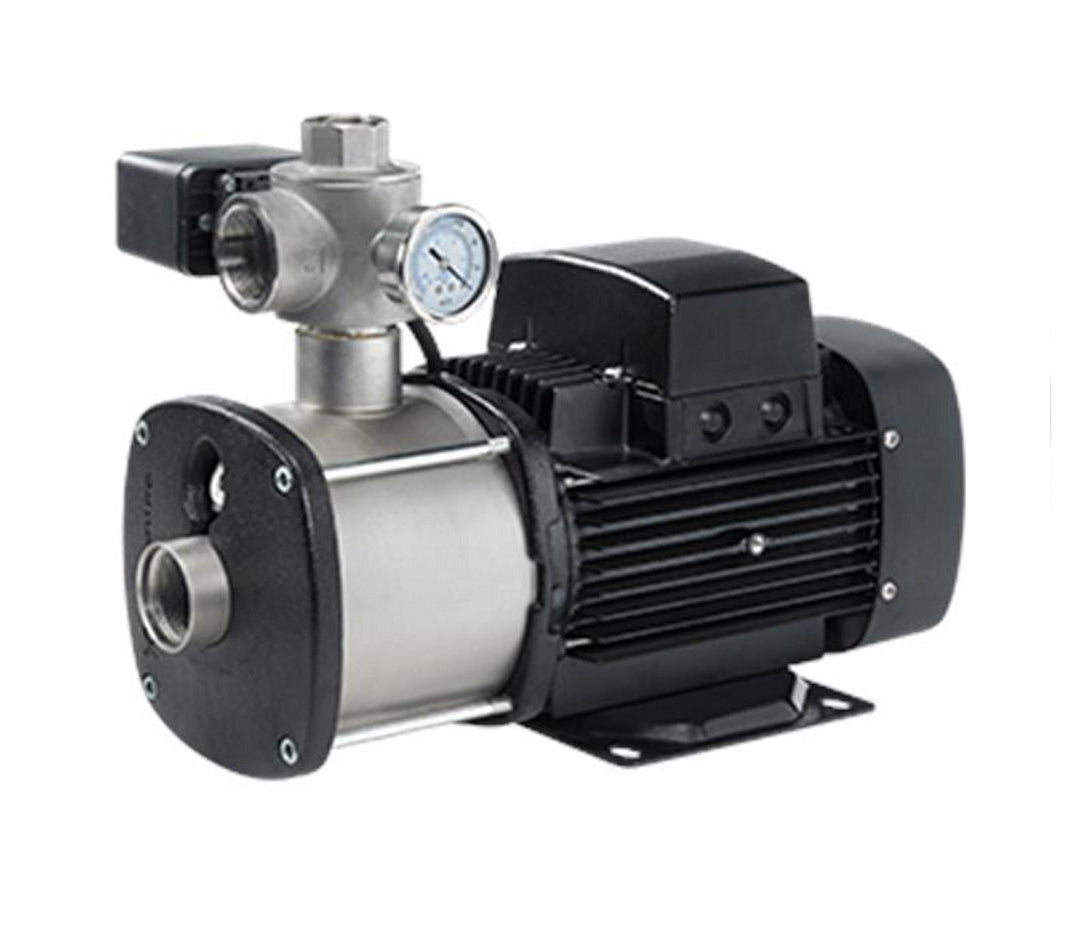

Grundfos CM pressure-switch boosters use fixed-speed multistage pumps for household, irrigation, agricultural and light commercial water supply.
CMB 1-36: rated duty 28.3LPM at 24.2m head.
CMB 3-37: rated duty 51.7LPM at 27.4m head.
CMB 5-47: rated duty 78.3LPM at 38.6m head.
CMB 5-56: rated duty 78.3LPM at 46.5m head.
CMB 5-75: rated duty 78.3LPM at 62.4m head.
CMB 10-47: rated duty 166.7LPM at 38m head.
The CMB 1-36 and CMB 3-37 have a 1" BSP female inlet.
The CMB 5-47, CMB 5-56 and CMB 5-75 have a 1 1/4" BSP female inlet.
The CMB 10-47 has a 1 1/2" BSP female inlet.
All six have a 1" BSP male system outlet.
A suitable pressure tank is required and is supplied separately. It stores water under pressure, allowing small amounts of water to be drawn before the pump needs to restart.
Supplied with a pressure switch that automatically starts the pump when water pressure falls and stops it when pressure rises.
Rated duty pairs show flow at the stated head; they are not maximum-flow ratings.
Flow decreases as head increases. Select the pump for the required flow and pressure, allowing for inlet conditions, height differences and losses through fittings and pipework.
Use clean fresh water without solid particles or fibres, at temperatures from 0°C to 60°C.
These pumps are not self-priming. Before starting, fill the pump casing and inlet pipe with clean water, following the installation instructions. Maximum suction lift is 1m at 20°C, including inlet pipe losses. Install in a ventilated, weather-protected position with drainage and protection from frost.
An installer can adjust the start and stop pressures to suit the system, within the pump’s capacity and the pressure tank’s limits.
CMB 1-36, CMB 3-37 and CMB 5-47: 100-500kPa switch start-pressure adjustment range.
CMB 5-56, CMB 5-75 and CMB 10-47: 300-1200kPa switch start-pressure adjustment range.
These are switch adjustment limits, not the pressures the pump can necessarily deliver. The stop pressure must be achievable by the pump and below both its 1000kPa operating limit and the tank’s pressure limit.
The pump housing, impellers and shaft are stainless steel, with polymer diffusers. A pressure switch, pressure gauge, five-way fitting and non-return valve are supplied. The single-phase motor has thermal overload protection.
Two-year Grundfos Australian consumer warranty from purchase, subject to its terms.
Grundfos CM Pump Installation & Operating Instructions
Grundfos CM-PS & CM-PT Pressure-Switch Instructions
Grundfos CMB-SP PM2 boosters use fixed-speed multistage pumps for automatic clean-water supply from tanks and other suitable water sources.
CMB-SP 3-28: rated duty 50LPM at 20.5m head.
Approximately 28m maximum pump head; 0.5kW motor.
CMB-SP 3-37: rated duty 50LPM at 27.7m head.
Approximately 37m maximum pump head; 0.5kW motor.
CMB-SP 3-47: rated duty 50LPM at 34.9m head.
Approximately 47m maximum pump head; 0.5kW motor.
CMB-SP 3-56: rated duty 50LPM at 42.1m head.
Approximately 56m maximum pump head; 0.67kW motor.
CMB-SP 5-28: rated duty 78.3LPM at 22.1m head.
Approximately 28m maximum pump head; 0.5kW motor.
CMB-SP 5-47: rated duty 78.3LPM at 38m head.
Approximately 47m maximum pump head; 0.9kW motor.
Inlet: 1" BSP female thread.
System outlet: 1" BSP male thread.
The supplied PM2 pressure manager starts the pump automatically when water is used and stops it when demand ends.
Rated duties are manufacturer flow-and-head reference points at 2900rpm, not maximum-flow ratings. Flow decreases as head increases. Select the pump for the flow and pressure required, allowing for suction lift, pipe friction and height differences.
Use clean fresh water without solid particles or fibres, at temperatures from 0°C to 40°C.
Self-priming does not mean the pump can start dry. Fill the pump casing with clean water through the filling opening before first use, then refit the plug and follow the startup instructions. The standard assembly supports a suction lift of up to 4m, including inlet-pipe losses at 20°C. Keep the suction pipe airtight and the pump close to the water source.
Install on a firm base in a ventilated, weather-protected position, with drainage and protection from frost.
An installer can adjust the starting pressure from 150kPa to 500kPa in 50kPa steps using switches behind the control panel, with the power isolated. This sets when the pump starts; water pressure while it runs depends on the pump and the water being used.
The controller range is wider than the usable range of some pumps. In normal demand control, the pump must be able to provide at least 40kPa above the selected starting pressure, after allowing for inlet conditions.
The pump sleeve, impellers and shaft are stainless steel, with polymer components in the water path. The motor has built-in overload protection, and the pressure manager provides dry-running protection and a non-return valve.
Two-year Grundfos Australian consumer warranty from purchase, subject to its terms.
Grundfos CM Booster Self-Priming Product Brochure
Grundfos CM Pump Installation & Operating Instructions
Grundfos PM1 & PM2 Installation & Operating Instructions
Grundfos CMB & CMB-SP PM2 Booster Instructions

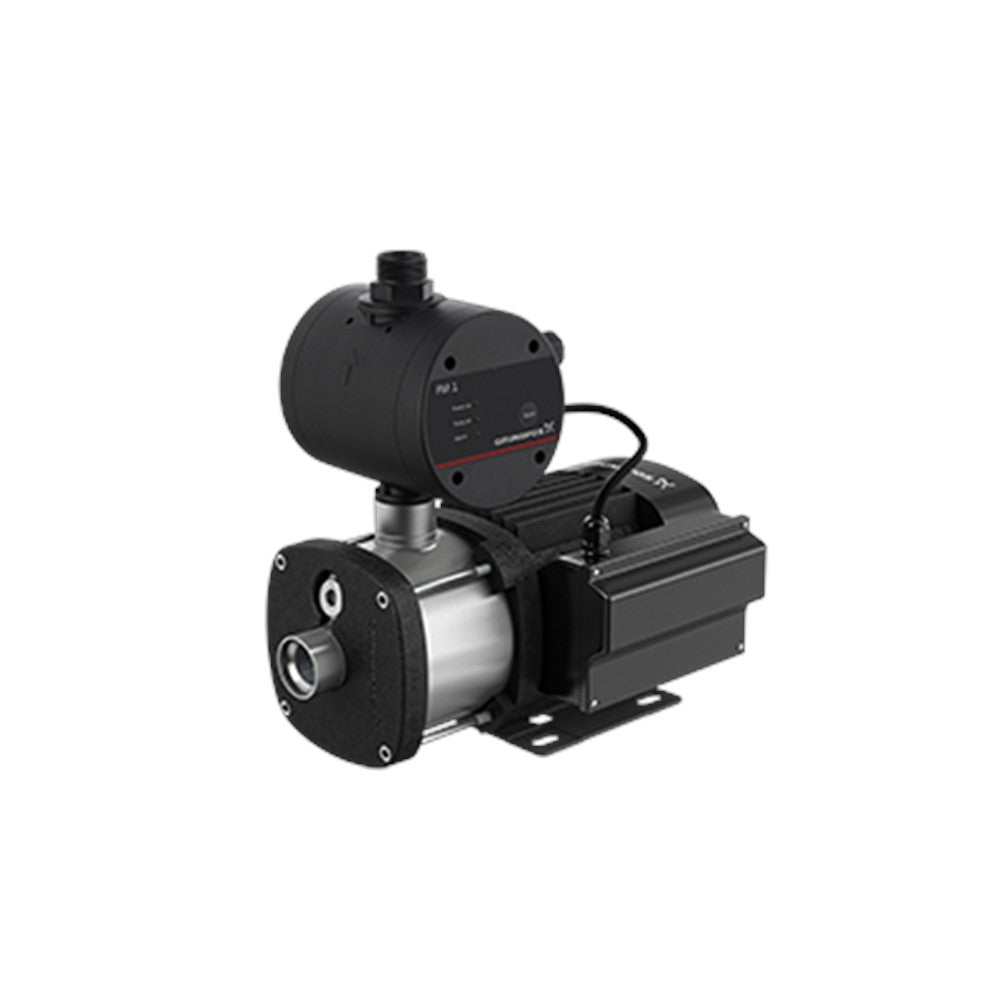

The Grundfos CMB-SP 1-36 uses a 0.3kW fixed-speed multistage pump for automatic clean-water supply from tanks and other suitable water sources.
CMB-SP 1-36: rated duty 20LPM at 29.7m head.
Approximately 36m maximum pump head; 0.3kW motor.
Inlet: 1" BSP female thread.
System outlet: 1" BSP male thread.
The supplied PM1-15 pressure manager starts the pump automatically as water is used, with a fixed starting pressure of 150kPa. It stops the pump when demand ends. The starting pressure is not adjustable; water pressure while the pump runs depends on the pump and the water being used.
Rated duties are manufacturer flow-and-head reference points at 2900rpm, not maximum-flow ratings. Flow decreases as head increases. Select the pump for the flow and pressure required, allowing for suction lift, pipe friction and height differences.
Use clean fresh water without solid particles or fibres, at temperatures from 0°C to 40°C.
Self-priming does not mean the pump can start dry. Fill the pump casing with clean water through the filling opening before first use, then refit the plug and follow the startup instructions. The standard assembly supports a suction lift of up to 4m, including inlet-pipe losses at 20°C. Keep the suction pipe airtight and the pump close to the water source.
Install on a firm base in a ventilated, weather-protected position, with drainage and protection from frost.
The pump sleeve, impellers and shaft are stainless steel, with polymer components in the water path. The motor has built-in overload protection, and the pressure manager provides dry-running protection and a non-return valve.
Two-year Grundfos Australian consumer warranty from purchase, subject to its terms.
Grundfos CM Booster Self-Priming Product Brochure
Grundfos CM Pump Installation & Operating Instructions
Grundfos PM1 & PM2 Installation & Operating Instructions

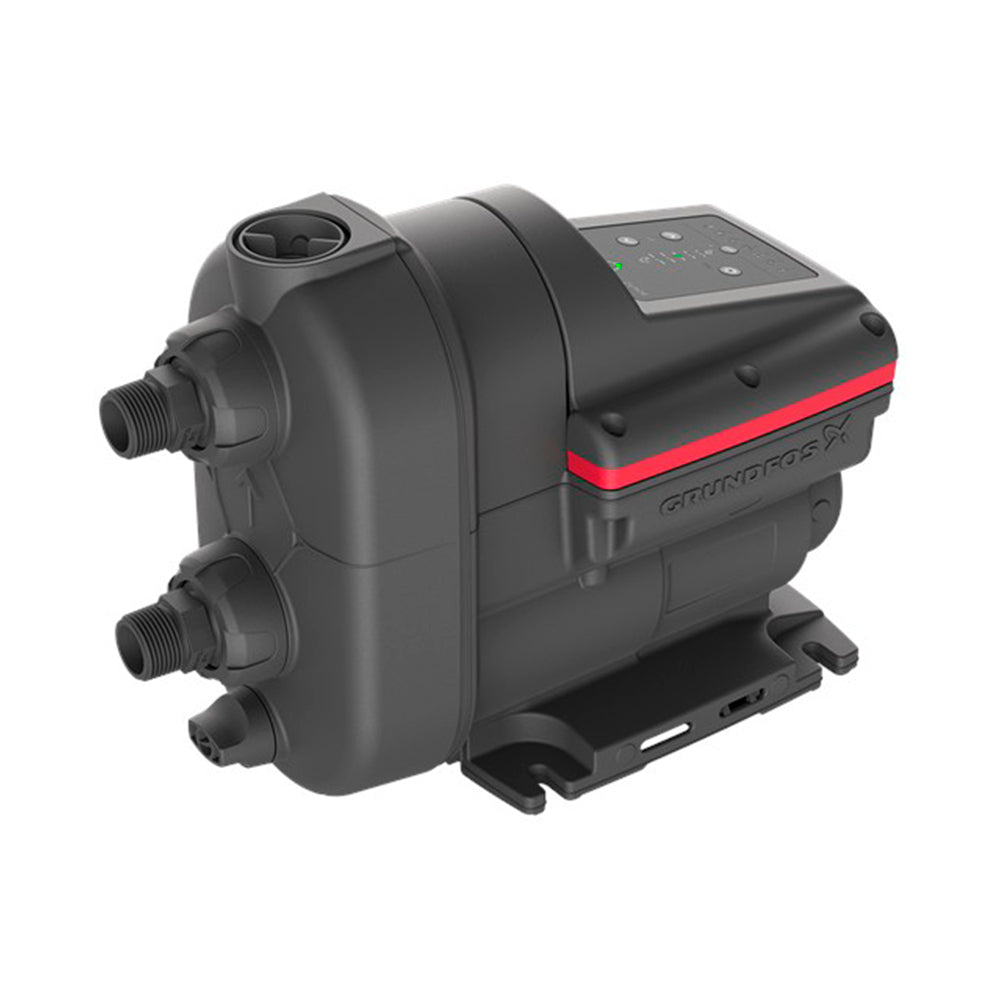

The Grundfos SCALA2 3-45 supplies clean water for household taps, showers and garden watering. Its variable-speed motor responds to changes in water use, helping keep outlet pressure steady as taps open and close. The pump, controller, pressure sensor, pressure tank and non-return valves are integrated into one compact unit.
Rated duty: 50LPM at 27m head.
Maximum flow: 76.7LPM.
Maximum head: 45m.
The rated duty gives a flow and head together. Maximum flow and maximum head occur at different operating points. Available flow falls as the pump works against more head; pipe losses and height differences also affect pressure at the tap.
Inlet: 1" BSP male thread.
Outlet: 1" BSP male thread.
Set the outlet pressure with the up and down buttons on the control panel. The setting changes in 50kPa steps from 150 to 550kPa; the factory setting is 300kPa. The indicator lights show the selected pressure.
Settings of 400–550kPa require water that is already under pressure as it enters the pump. The pump then adds to that incoming pressure. These settings are not suitable for drawing from a tank below the pump. Grundfos limits the pressure increase between inlet and outlet to 350kPa when choosing a setting; an installer should select a setting the pump can maintain at the required flow.
Use clean, fresh water at 0°C to 45°C. Sand and debris can wear or block the pump; use suitable inlet filtration where the water source requires it.
Self-priming means the pump can clear air from the inlet pipe and draw water up to the pump after its housing has been filled with water. Before starting, remove the priming plug, pour at least 1.7L of clean water into the pump housing and refit the plug. Do not switch it on with an empty housing or let it run without a water supply.
Maximum suction lift is 8m; pipe resistance and inlet conditions affect the usable lift. Install on a firm base with drainage and protection from frost, following the installation instructions.
Dry-running and thermal protection help protect the pump. The built-in tank needs no separate pressure tank for normal operation. Check its gas precharge annually and when changing the pressure setting; Grundfos recommends 70% of the selected outlet pressure, checked with the water side depressurised. The installation instructions explain the procedure.
Supplied with a 1.5m power lead and Australian three-pin plug for a 200–240V single-phase, 50/60Hz supply.
Two-year Grundfos Australian consumer warranty from purchase, subject to its terms.
Grundfos SCALA2 Installation & Operating Instructions
Grundfos SCALA2 Data Sheet
Grundfos SCALA2 Australian Safety Instructions
Video 1
Video 2
Video 3

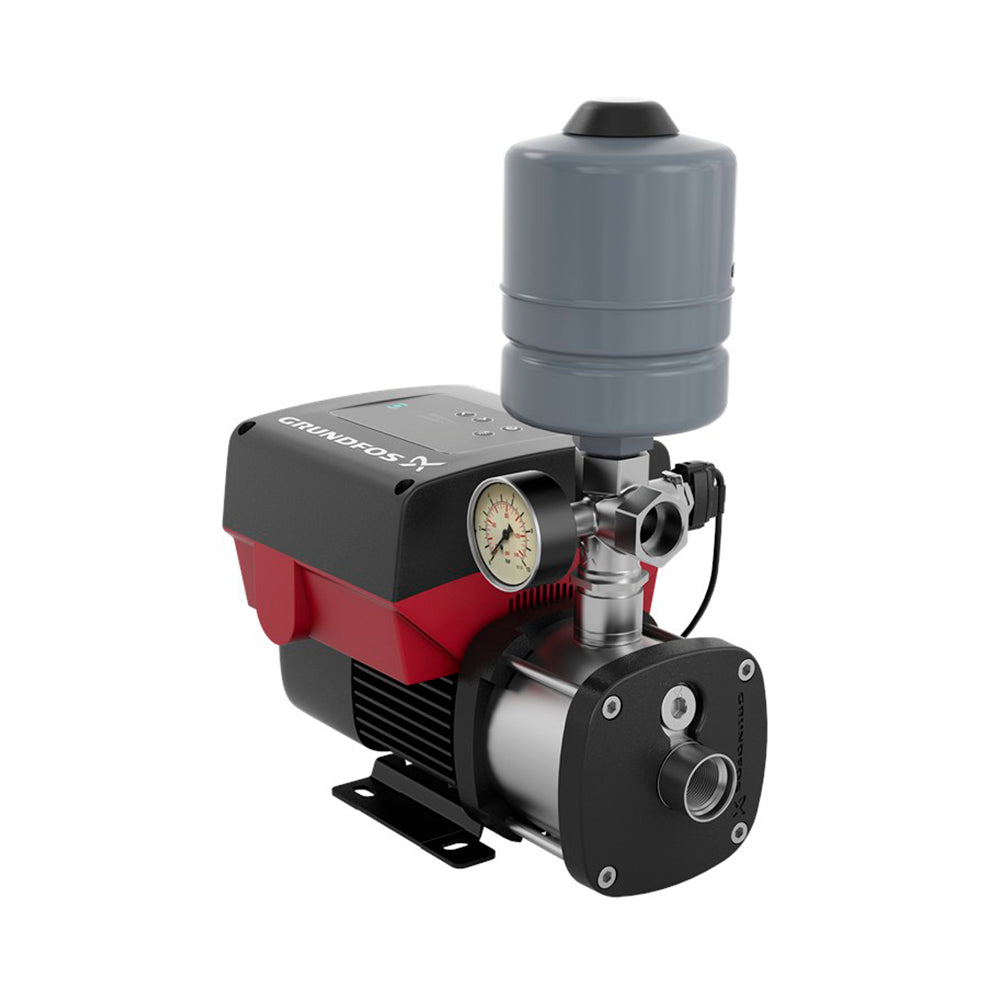

Grundfos CMBE variable-speed boosters provide automatic clean-water supply for domestic and light commercial use. They adjust motor speed as water demand changes to help maintain steady outlet pressure.
CMBE 1-44: rated duty 40LPM at 28.7m head.
CMBE 3-62: rated duty 70LPM at 45.2m head.
CMBE 5-62: rated duty 100LPM at 47.8m head.
Rated duty pairs show flow at the stated head; they are not maximum-flow ratings.
Maximum operating pressure is 1000kPa. Inlet pressure and the pressure added by the pump must remain within this limit. Flow decreases as head increases; the pressure available at a tap also depends on elevation and pipe resistance.
The CMBE 1-44 and CMBE 3-62 both have a 1" BSP female inlet.
The CMBE 5-62 has a larger 1 1/4" BSP female inlet.
All three have a 1" BSP female outlet.
These pumps are for clean, thin, non-aggressive, non-toxic and non-explosive liquids without solid particles or fibres, at liquid temperatures from 0°C to 60°C.
Set the desired outlet pressure using the up/down buttons on the motor control panel. Illuminated bars indicate the setting, while the fitted gauge shows actual outlet pressure. The pump uses an outlet pressure sensor to adjust its speed as demand changes, maintaining the selected pressure within its capacity. Readjust the tank precharge whenever the selected outlet pressure changes.
The pump housing, impellers and shaft are 304 stainless steel. A 2L diaphragm tank, pressure sensor and gauge are supplied as part of the booster assembly. Dry-running protection stops the pump when a lack of water is detected and provides automatic restart attempts. Built-in motor protection covers thermal overload and blocking; no separate external motor protection is required.
CMBE pumps are not self-priming. Before starting, fill the pump casing with clean water through the priming opening and let trapped air escape, following the installation instructions. Maximum suction lift is 1m at a water temperature of 20°C, including inlet pipe pressure loss. Install horizontally on a firm base with space for motor cooling and suitable weather protection and drainage.
All three Australian plug versions use a 200-240V single-phase, 50/60Hz supply.
Two-year Grundfos Australian consumer warranty from purchase, subject to its terms.

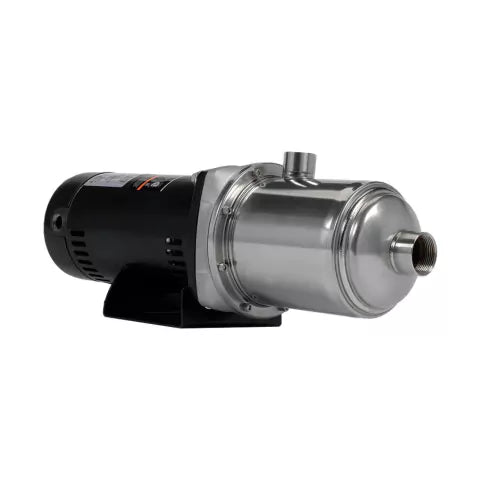

Franklin 3AMH pressure pump packages supply clean water for household use, garden irrigation and water distribution. Choose a pump model for the required flow and pressure, then select an 8L, 18L, 35L or 60L tank. Each package includes a fixed-speed multistage pump, pressure switch and the selected tank.
3AMH2B-51: 50LPM at 15.5m head; maximum head 22.4m.
3AMH3B-51: 50LPM at 22.5m head; maximum head 33.2m.
3AMH4B-51: 50LPM at 29.1m head; maximum head 43.7m.
3AMH5B-51: 50LPM at 35.2m head; maximum head 54m.
3AMH6B-51: 50LPM at 42.8m head; maximum head 65.1m.
These paired reference points show flow at a stated head. Maximum head is the zero-flow figure and occurs separately. Select the pump for the flow needed at the working head, allowing for pipe losses and height differences.
Pump inlet: 1 1/4" BSP female thread.
Pump outlet: 1" BSP female thread.
The pump determines the available flow and pressure. Changing tank size does not increase the pump’s performance. A larger tank generally stores more usable water between pump starts, helping reduce how often the pump starts during intermittent use.

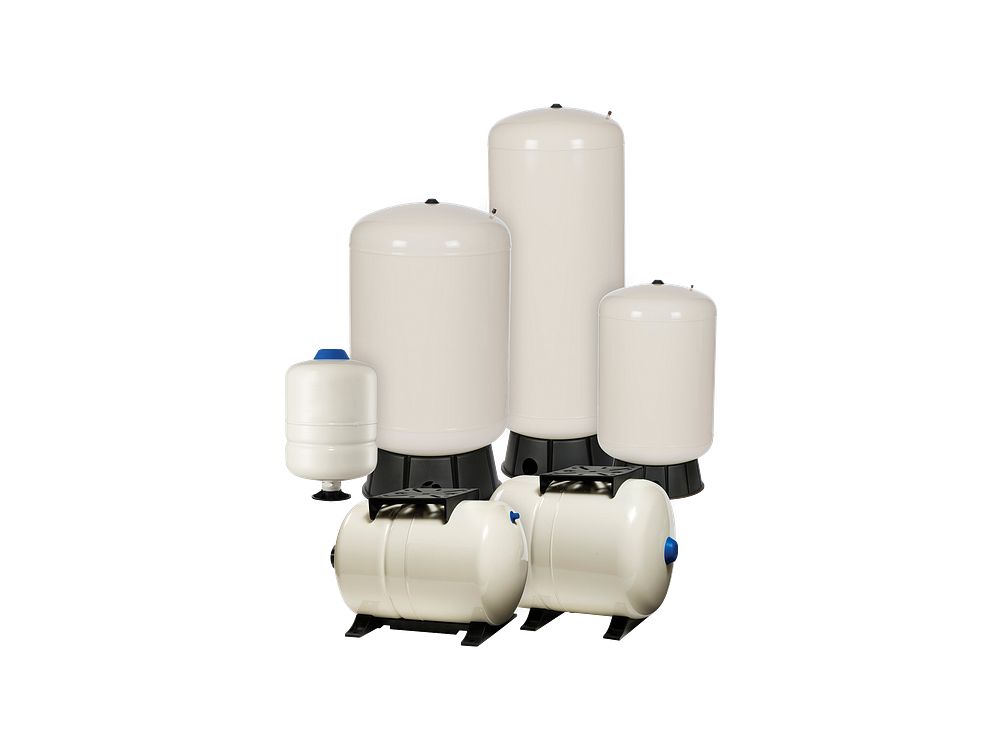

Tank choices: 8L, 18L, 35L or 60L nominal capacity. These are vessel sizes, not the amounts of water available between starts; usable storage depends on the switch settings and tank precharge.
The pressure switch starts the pump when pressure falls to its start setting and stops it at its stop setting. Pressure varies between these settings during use. An installer sets the switch and tank precharge to suit the pump, required water supply and component pressure limits.
Use clean water without sand, solids or fibres. The pump body, impellers and diffusers use 300-series stainless steel.
The pump is not self-priming. Fill the pump and suction pipe with clean water before starting, and use a suitable valve arrangement to retain that water where suction lift is required. Install on a firm base with drainage and motor ventilation, following the pump manual.
Supplied for a 220–240V single-phase, 50Hz supply with an AU/NZ plug. Do not let the pump run without water; arrange suitable protection against loss of supply.
Franklin MH Pump Installation & Operating Manual
Franklin MH Australian Product Brochure
Franklin 5AMH pressure pump packages supply clean water for household use, garden irrigation and water distribution. Choose a pump model for the required flow and pressure, then select an 8L, 18L, 35L or 60L tank. Each package includes a fixed-speed multistage pump, pressure switch and the selected tank.
5AMH2B-51: 75LPM at 15m head; maximum head 23.5m.
5AMH3B-51: 75LPM at 21.3m head; maximum head 34.8m.
5AMH4B-51: 75LPM at 28.4m head; maximum head 46.2m.
5AMH5B-51: 75LPM at 34m head; maximum head 57.3m.
5AMH6B-51: 75LPM at 43.2m head; maximum head 69.5m.
These paired reference points show flow at a stated head. Maximum head is the zero-flow figure and occurs separately. Select the pump for the flow needed at the working head, allowing for pipe losses and height differences.
Pump inlet: 1 1/4" BSP female thread.
Pump outlet: 1" BSP female thread.
The pump determines the available flow and pressure. Changing tank size does not increase the pump’s performance. A larger tank generally stores more usable water between pump starts, helping reduce how often the pump starts during intermittent use.
Tank choices: 8L, 18L, 35L or 60L nominal capacity. These are vessel sizes, not the amounts of water available between starts; usable storage depends on the switch settings and tank precharge.
The pressure switch starts the pump when pressure falls to its start setting and stops it at its stop setting. Pressure varies between these settings during use. An installer sets the switch and tank precharge to suit the pump, required water supply and component pressure limits.
Use clean water without sand, solids or fibres. The pump body, impellers and diffusers use 300-series stainless steel.
The pump is not self-priming. Fill the pump and suction pipe with clean water before starting, and use a suitable valve arrangement to retain that water where suction lift is required. Install on a firm base with drainage and motor ventilation, following the pump manual.
Supplied for a 220–240V single-phase, 50Hz supply with an AU/NZ plug. Do not let the pump run without water; arrange suitable protection against loss of supply.
Franklin MH Pump Installation & Operating Manual
Franklin MH Australian Product Brochure

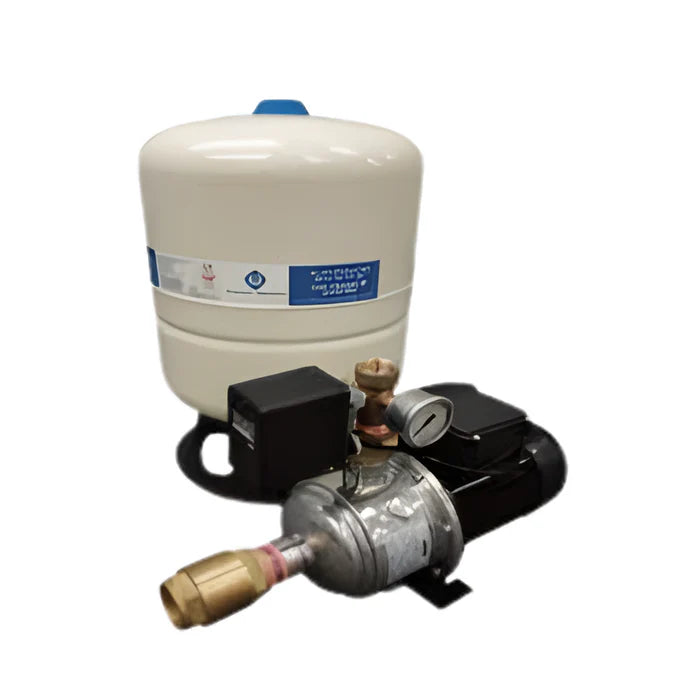

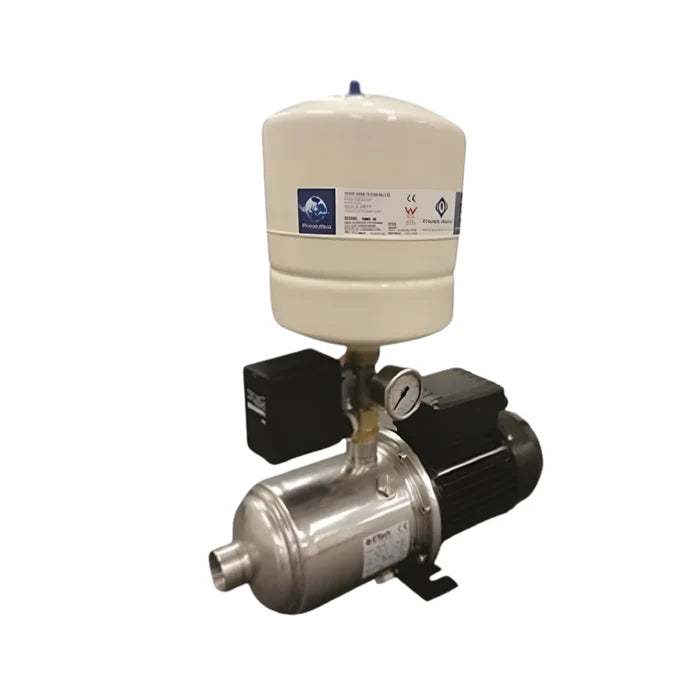

Franklin 9AMH pressure pump packages supply clean water for household use, garden irrigation and water distribution. Choose a pump model for the required flow and pressure, then select an 8L, 18L, 35L or 60L tank. Each package includes a fixed-speed multistage pump, pressure switch and the selected tank.
9AMH2B-51: 166.7LPM at 15.6m head; maximum head 23.7m.
9AMH3B-51: 166.7LPM at 22.8m head; maximum head 35.3m.
9AMH4B-51: 166.7LPM at 31.7m head; maximum head 47.4m.
These paired reference points show flow at a stated head. Maximum head is the zero-flow figure and occurs separately. Select the pump for the flow needed at the working head, allowing for pipe losses and height differences.
Pump inlet: 1 1/2" BSP female thread.
Pump outlet: 1 1/4" BSP female thread.
The pump determines the available flow and pressure. Changing tank size does not increase the pump’s performance. A larger tank generally stores more usable water between pump starts, helping reduce how often the pump starts during intermittent use.
Tank choices: 8L, 18L, 35L or 60L nominal capacity. These are vessel sizes, not the amounts of water available between starts; usable storage depends on the switch settings and tank precharge.
The pressure switch starts the pump when pressure falls to its start setting and stops it at its stop setting. Pressure varies between these settings during use. An installer sets the switch and tank precharge to suit the pump, required water supply and component pressure limits.
Use clean water without sand, solids or fibres. The pump body, impellers and diffusers use 300-series stainless steel.
The pump is not self-priming. Fill the pump and suction pipe with clean water before starting, and use a suitable valve arrangement to retain that water where suction lift is required. Install on a firm base with drainage and motor ventilation, following the pump manual.
Supplied for a 220–240V single-phase, 50Hz supply with an AU/NZ plug. Do not let the pump run without water; arrange suitable protection against loss of supply.
Franklin MH Pump Installation & Operating Manual
Franklin MH Australian Product Brochure

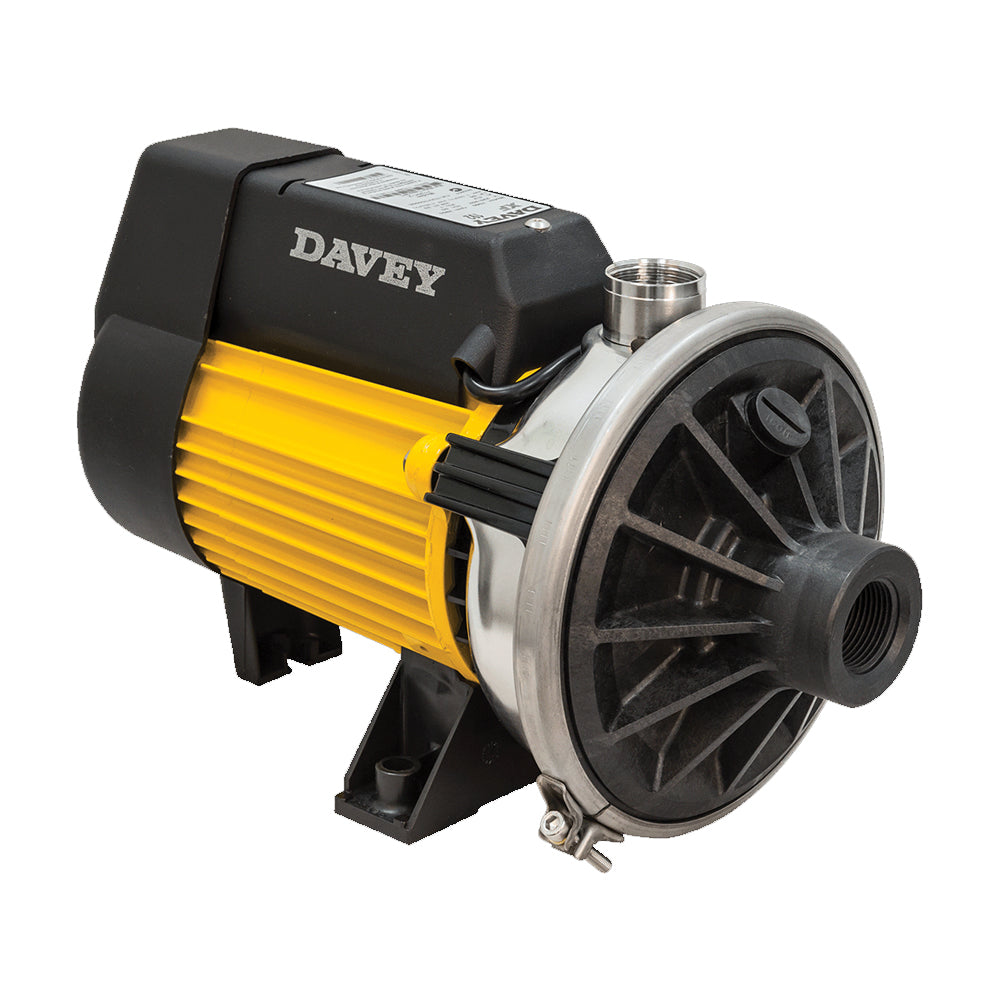

Davey XF transfer pumps supply clean water for irrigation, water transfer, washdown, aquaculture and hydroponics. XF171 and XF221 are single-stage pumps; XF192 is a twin-stage pump for duties needing more head.
XF171: maximum flow 175LPM; maximum head 17m; 0.53kW motor.
XF221: maximum flow 225LPM; maximum head 20m; 0.7kW motor.
XF192: maximum flow 190LPM; maximum head 33m; 0.8kW motor.
Maximum flow and maximum head are separate limits. Available flow decreases as the pump works against more head. Use the performance curve to check the required flow and pressure, including pipe losses and height differences.
XF171 and XF221: 1" BSP female inlet; 1" BSP male outlet.
XF192: 1" BSP female inlet; 1" BSP female outlet.
These are standard transfer pumps. They do not automatically start and stop as taps open and close; automatic operation requires suitable separate controls. The supplied motor has automatic-reset thermal-overload protection.
Maximum suction lift is 7.5m, with usable lift depending on inlet conditions and suction-pipe losses. Before starting, fill the pump casing and suction line through the priming opening above the inlet, then refit the plug. Suction-lift installations need a good-quality foot valve to retain prime.
Use clean, non-volatile liquids without fibres, solids or abrasive material, at temperatures from 1°C to 50°C. Do not run the pump dry, with loss of prime or for prolonged periods against a closed outlet.
Install horizontally on a firm base near the water source, with drainage and a weatherproof, frost-free, ventilated enclosure. Support the pipework and keep suction connections airtight.
Each pump uses a 220–240V single-phase, 50Hz supply and comes with a 2m power lead and Australian 10amp three-pin plug.
Davey provides a two-year warranty, subject to its terms.
Davey XF Series Specifications
Davey XF Series Installation & Operating Instructions
The Davey Boremaster 60061R is a single phase single stage centrifugal transfer pump designed for shallow well applications, garden reticulation and general water transfer. It delivers flow rates up to 315 LPM with a maximum total head of 31.6m. Flow decreases as head increases.
Specially designed to suit Western Australian conditions, the Boremaster 60061R is suitable for drawing water from depths up to 7m. It includes a 1 1/2" BSP female inlet, 1 1/4" BSP female outlet and glass filled Noryl pump casing with strengthened inlet and outlet ports.
The single phase motor includes IP56 protection, built-in thermal overload protection with automatic reset and a 2m power lead with Australian 10amp plug. Correct installation, priming and use of a suitable foot valve are required for reliable suction lift operation.
Davey 2 Year Warranty.
Davey 60061R Specifications
Davey 60061R Installation & User Manual

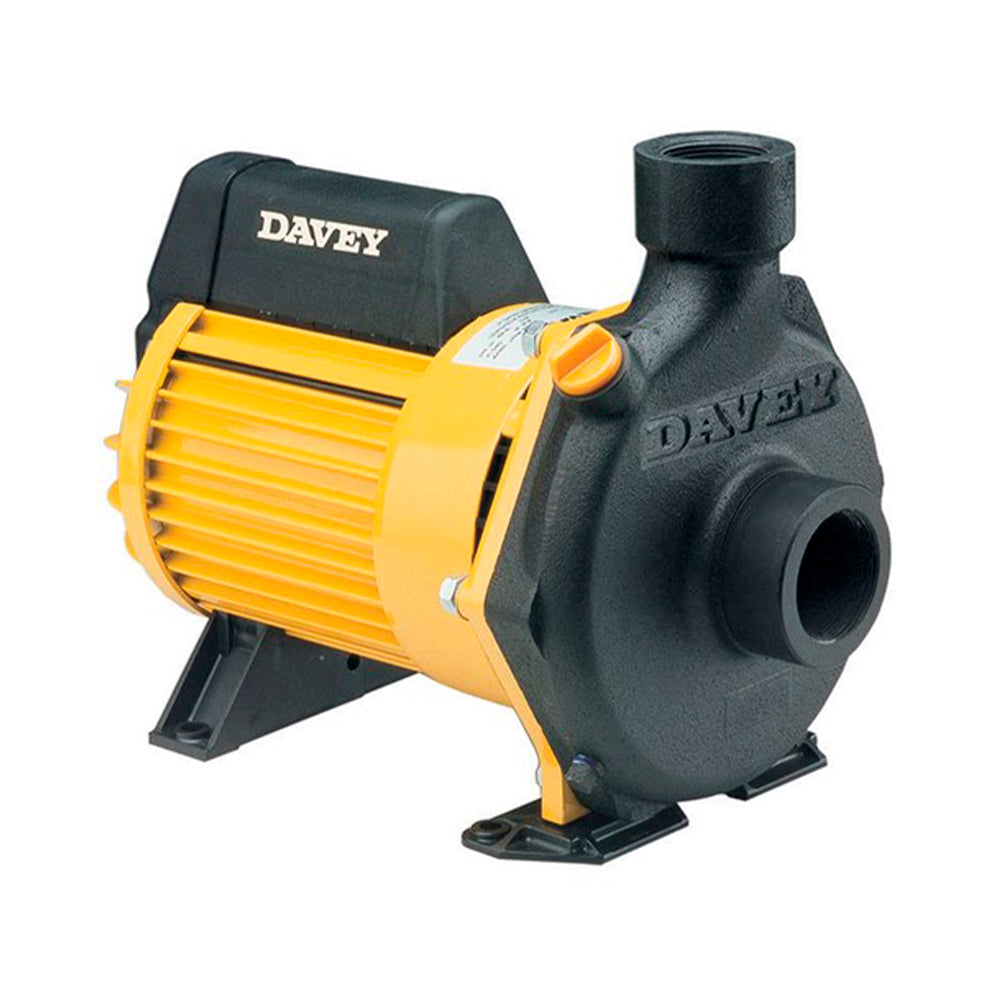

The Davey Dynaflo 6220-3 is a three phase single stage centrifugal transfer pump designed for water supply, water transfer, tank filling, sprinkler supply and garden reticulation. It delivers flow rates up to 360 LPM with a maximum total head of 38.7m. Flow decreases as head increases.
The Dynaflo 6220-3 includes a 2" BSP female inlet and 1 1/2" BSP female outlet, making it suitable for higher flow transfer and irrigation applications. The cast iron pump casing features a baked polyester finish inside and outside for long service life.
The Davey manufactured three phase motor includes IP56 protection for reliable operation in farm, irrigation and light commercial applications. Correct installation, priming, pipework support and three phase electrical connection are required for safe and reliable pump operation.
Davey 2 Year Warranty.
Davey 6220-3 Specifications
Davey 6220-3 Installation & User Manual
Franklin MH3 horizontal multistage pumps supply clean water for water transfer, pressure boosting, irrigation and washdown. Choose the stage count for the required flow and pressure, then select single-phase or three-phase supply.
These listings are for bare pump-and-motor units. Suitable separate controls are required for automatic operation as taps open and close; a pressure tank is not included.
3AMH2B: 50LPM at 15.5m head; maximum head 22.4m.
3AMH3B: 50LPM at 22.5m head; maximum head 33.2m.
3AMH4B: 50LPM at 29.1m head; maximum head 43.7m.
3AMH5B: 50LPM at 35.2m head; maximum head 54m.
3AMH6B: 50LPM at 42.8m head; maximum head 65.1m.
3AMH7B: 50LPM at 48.7m head; maximum head 75.3m.
3AMH8B: 50LPM at 58.8m head; maximum head 87.6m.
3AMH9B: 50LPM at 65.2m head; maximum head 98m.
The paired figures show flow at a stated head. Maximum head occurs at zero flow, separately from the listed flow. Allow for inlet conditions, height differences and pipe losses when selecting the pump.
Inlet: 1 1/4" BSP female thread.
Outlet: 1" BSP female thread.
The pump body, impellers and diffusers are 304 stainless steel. Use clean water without solid particles or fibres, compatible with the pump materials. Maximum water temperature is 55°C for single-phase models and 85°C for three-phase models in domestic and commercial use. The higher 110°C three-phase limit is for industrial applications only.
The pump is not self-priming. Fill the pump casing and suction pipe before starting, and use suitable inlet valves to retain prime where suction lift is required. Install on a firm base with drainage, supported pipework, ventilation and protection from weather and freezing. Do not run without water or against a closed outlet.
Maximum operating pressure is 1000kPa; inlet pressure and the pressure added by the pump must remain within this limit.
Single-phase versions use a 220–240V, 50Hz supply, have an AU/NZ plug and include motor thermal overload protection. Three-phase versions use a 380–415V, 50Hz supply and require an electrician connection and external motor protection.
Two-year Franklin Electric pump warranty, subject to its terms.
Franklin MH5 horizontal multistage pumps supply clean water for water transfer, pressure boosting, irrigation and washdown. Choose the stage count for the required flow and pressure, then select single-phase or three-phase supply.
These listings are for bare pump-and-motor units. Suitable separate controls are required for automatic operation as taps open and close; a pressure tank is not included.
5AMH2B: 75LPM at 15m head; maximum head 23.5m.
5AMH3B: 75LPM at 21.3m head; maximum head 34.8m.
5AMH4B: 75LPM at 28.4m head; maximum head 46.2m.
5AMH5B: 75LPM at 34m head; maximum head 57.3m.
5AMH6B: 75LPM at 43.2m head; maximum head 69.5m.
5AMH7B: 75LPM at 49.2m head; maximum head 80.7m.
5AMH8B: 75LPM at 60.6m head; maximum head 93.9m.
5AMH9B: 75LPM at 67.4m head; maximum head 105.4m.
The paired figures show flow at a stated head. Maximum head occurs at zero flow, separately from the listed flow. Allow for inlet conditions, height differences and pipe losses when selecting the pump.
Inlet: 1 1/4" BSP female thread.
Outlet: 1" BSP female thread.
The pump body, impellers and diffusers are 304 stainless steel. Use clean water without solid particles or fibres, compatible with the pump materials. Maximum water temperature is 55°C for single-phase models and 85°C for three-phase models in domestic and commercial use. The higher 110°C three-phase limit is for industrial applications only.
The pump is not self-priming. Fill the pump casing and suction pipe before starting, and use suitable inlet valves to retain prime where suction lift is required. Install on a firm base with drainage, supported pipework, ventilation and protection from weather and freezing. Do not run without water or against a closed outlet.
Maximum operating pressure is 1000kPa; inlet pressure and the pressure added by the pump must remain within this limit.
Single-phase versions use a 220–240V, 50Hz supply, have an AU/NZ plug and include motor thermal overload protection. Three-phase versions use a 380–415V, 50Hz supply and require an electrician connection and external motor protection.
Two-year Franklin Electric pump warranty, subject to its terms.
Franklin MH9 horizontal multistage pumps supply clean water for water transfer, pressure boosting, irrigation and washdown. Choose the stage count for the required flow and pressure, then select single-phase or three-phase supply.
Suitable uses include domestic and commercial water supply, light industrial water transfer and compatible circulation systems. Supplied as a bare pump-and-motor unit. Suitable separate controls are required for automatic operation as taps open and close; a pressure tank is not included.
9AMH2B: 166.7LPM at 15.6m head; maximum head 23.7m.
9AMH3B: 166.7LPM at 22.8m head; maximum head 35.3m.
9AMH4B: 166.7LPM at 31.7m head; maximum head 47.4m.
9AMH5B: 166.7LPM at 42.1m head; maximum head 60.1m.
9AMH6B: 166.7LPM at 49.5m head; maximum head 71.8m.
The paired figures show flow and head together; they are reference points, not maximum-flow ratings or a nominated ideal duty. Maximum head occurs at zero flow. Allow for inlet conditions, height differences and pipe losses when selecting the pump.
Inlet: 1 1/2" BSP female thread.
Outlet: 1 1/4" BSP female thread.
The pump body, impellers and diffusers are 304 stainless steel. Use clean water without solids or fibres, compatible with the pump materials. Maximum water temperature is 55°C for single-phase models and 85°C for three-phase models in domestic and commercial use. The higher 110°C three-phase limit is for industrial applications only.
The pump is not self-priming. Fill the pump casing and suction pipe before starting, and use suitable inlet valves to retain prime where suction lift is required. Install on a firm base with drainage, supported pipework, ventilation and protection from weather and freezing. Do not run without water or against a closed outlet.
Maximum operating pressure is 1000kPa; inlet pressure and the pressure added by the pump must remain within this limit.
Single-phase versions use a 220–240V, 50Hz supply, have an AU/NZ plug and include motor thermal overload protection. Three-phase versions use a 380–415V, 50Hz supply and require connection by an electrician and external motor overload protection.
Pump covers are available separately; check clearance and ventilation for the selected pump.
Two-year Franklin Electric pump warranty, subject to its terms.

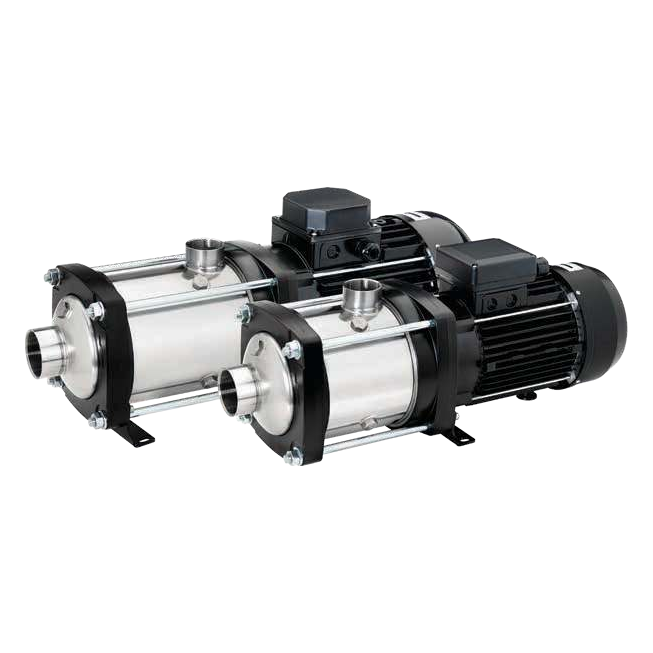

Franklin MH15 horizontal multistage pumps supply clean water for pressure boosting, water transfer, irrigation and washdown.
Suitable applications include commercial, agricultural and industrial water distribution and compatible circulation systems.
Supplied as a bare pump-and-motor unit. Automatic start/stop operation requires a suitable separate controller; a pressure tank is not included.
15AMH2B-53: 283.3LPM at 19.2m head; maximum head 28.5m; 1.5kW motor.
15AMH3B-53: 283.3LPM at 29.9m head; maximum head 43.3m; 2.2kW motor.
15AMH4B-53: 283.3LPM at 40.3m head; maximum head 57.9m; 3kW motor.
15AMH5B-53: 283.3LPM at 50.8m head; maximum head 72.6m; 4kW motor.
15AMH6B-53: 283.3LPM at 62.1m head; maximum head 87.5m; 5.5kW motor.
15AMH7B-53: 283.3LPM at 71.7m head; maximum head 101.9m; 5.5kW motor.
The paired figures show flow and head together; they are reference points, not maximum-flow ratings or a nominated ideal duty. Maximum head occurs at zero flow. Allow for inlet conditions, height differences and pipe losses when selecting the pump.
Inlet: 2" BSP female thread.
Outlet: 1 1/2" BSP female thread.
The pump body, impellers and diffusers are 304 stainless steel, with reinforced tie-rod construction and a carbon/silicon-carbide mechanical seal with EPDM elastomer. Use clean water without solids or fibres, compatible with the pump materials. Maximum water temperature is 85°C for domestic and commercial use; the 110°C limit is for industrial applications only.
The pump is not self-priming. Fill the pump casing and suction pipe before starting, and use suitable inlet valves to retain prime where suction lift is required. Install on a firm base with drainage, supported pipework, ventilation and protection from weather and freezing. Do not run without water or against a closed outlet.
Maximum operating pressure is 1000kPa; inlet pressure and the pressure added by the pump must remain within this limit.
The stocked versions use a 380–415V three-phase, 50Hz supply. Connection by an electrician and suitable external motor overload protection are required.
Two-year Franklin Electric pump warranty, subject to its terms.
Franklin MH20 horizontal multistage pumps supply clean water for pressure boosting, water transfer, irrigation and washdown.
Suitable applications include commercial, agricultural and industrial water distribution and compatible circulation systems.
Supplied as a bare pump-and-motor unit. Automatic start/stop operation requires a suitable separate controller; a pressure tank is not included.
20AMH2B-53: 333.3LPM at 23.1m head; maximum head 31.2m; 2.2kW motor.
20AMH3B-53: 333.3LPM at 34.6m head; maximum head 46.8m; 3kW motor.
20AMH4B-53: 333.3LPM at 46.3m head; maximum head 62.5m; 4kW motor.
20AMH5B-53: 333.3LPM at 58.9m head; maximum head 78.5m; 5.5kW motor.
The paired figures show flow and head together; they are reference points, not maximum-flow ratings or a nominated ideal duty. Maximum head occurs at zero flow. Allow for inlet conditions, height differences and pipe losses when selecting the pump.
Inlet: 2" BSP female thread.
Outlet: 1 1/2" BSP female thread.
The pump body, impellers and diffusers are 304 stainless steel, with reinforced tie-rod construction and a carbon/silicon-carbide mechanical seal with EPDM elastomer. Use clean water without solids or fibres, compatible with the pump materials. Maximum water temperature is 85°C for domestic and commercial use; the 110°C limit is for industrial applications only.
The pump is not self-priming. Fill the pump casing and suction pipe before starting, and use suitable inlet valves to retain prime where suction lift is required. Install on a firm base with drainage, supported pipework, ventilation and protection from weather and freezing. Do not run without water or against a closed outlet.
Maximum operating pressure is 1000kPa; inlet pressure and the pressure added by the pump must remain within this limit.
The stocked versions use a 380–415V three-phase, 50Hz supply. Connection by an electrician and suitable external motor overload protection are required.
Two-year Franklin Electric pump warranty, subject to its terms.

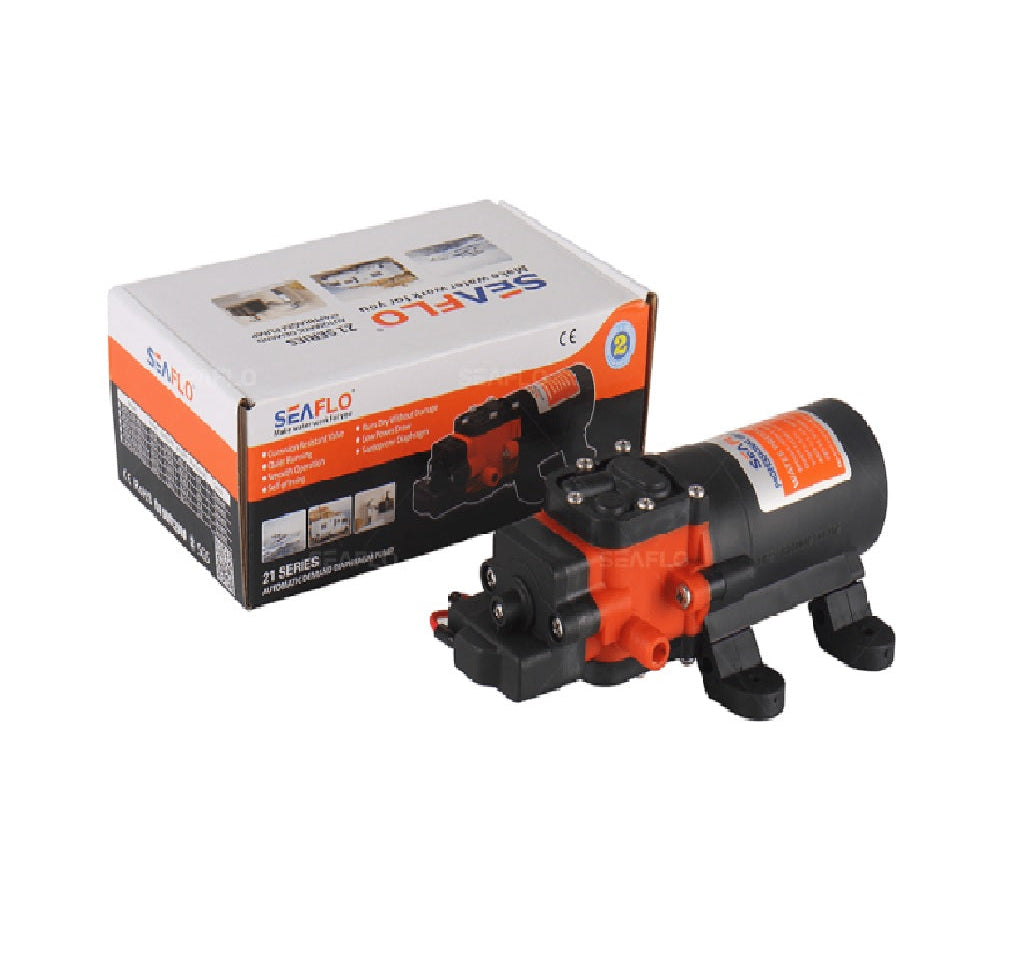

The Seaflo AG 21 is a compact 12V DC diaphragm pump for agricultural spraying and compatible liquid transfer. Its built-in pressure switch starts the pump as system pressure falls and stops it when shutoff pressure is reached.
The pump has Viton valves and a Santoprene diaphragm. Check compatibility with the intended liquid, concentration and temperature before using agricultural chemicals. The valve material does not establish compatibility with every chemical.
Maximum open flow is 4LPM. The pressure switch stops the pump at 70psi (about 480kPa). These figures are separate limits: flow decreases as pressure rises, and the pump does not deliver its maximum flow at shutoff pressure.
Inlet: 10mm (3/8") hose barb.
Outlet: 10mm (3/8") hose barb.
The automatic pressure switch provides demand operation as an outlet opens and closes. Consult Seaflo before changing the preset pressure, as changes may affect the warranty.
The pump is self-priming with a suction lift up to 1.2m. Actual lift depends on the inlet hose, air leaks and the liquid being pumped. Brief dry-running capability does not provide automatic shutdown when a tank is empty; switch off when the liquid supply runs out.
Use intermittently, allowing the motor to cool between runs. Use liquid at temperatures up to 60°C, subject to chemical compatibility. Mount the pump securely using its rubber feet without overtightening them, and fit a suitable inlet strainer. Use flexible reinforced hose and keep the motor and electrical connections protected from water.
The pump requires a 12V DC supply. Maximum current is 4A. It is supplied with two-pin leads.
Two-year warranty, subject to its terms.

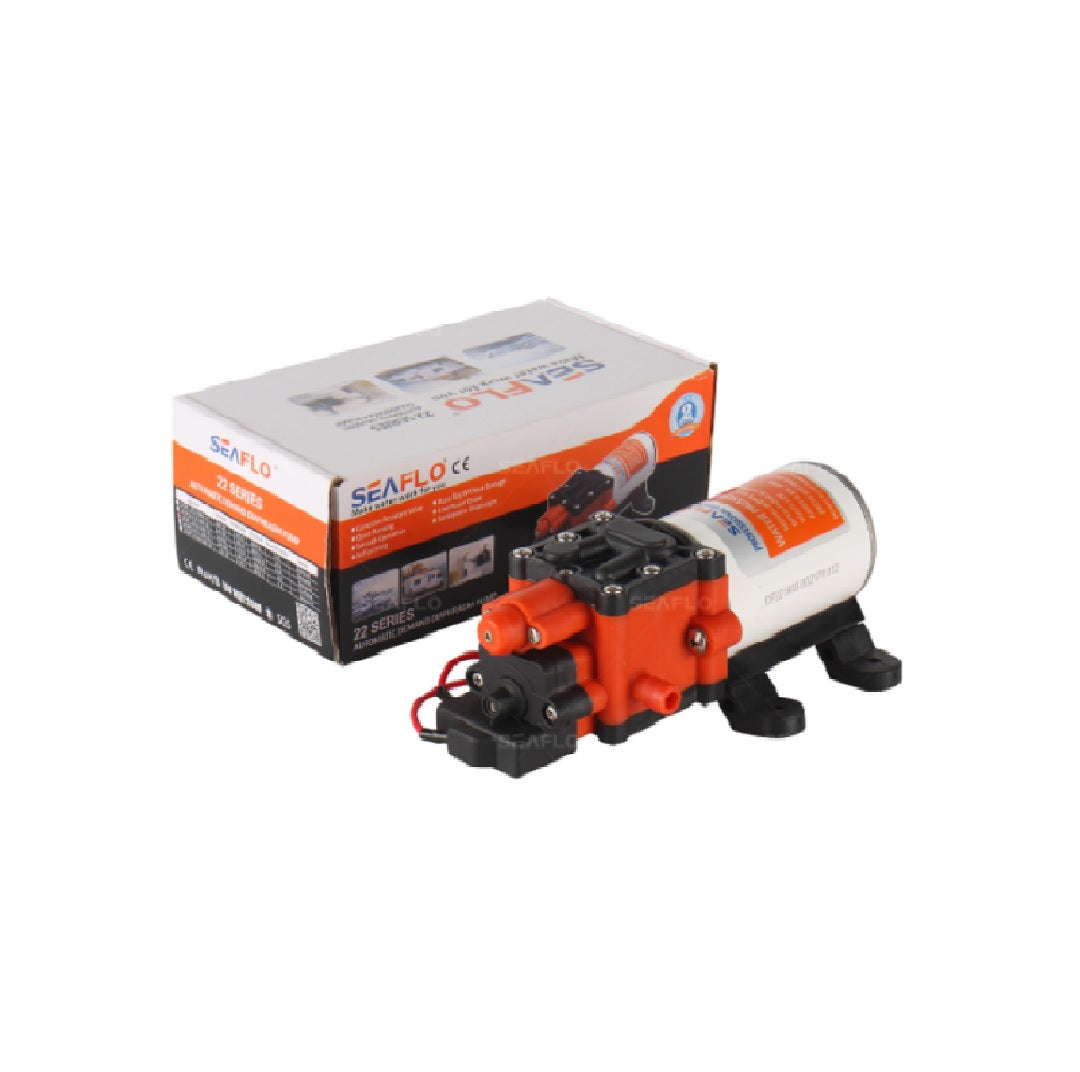

The Seaflo AG 22 is a compact 12V DC diaphragm pump for agricultural spraying and compatible liquid transfer. Its built-in pressure switch starts the pump as system pressure falls and stops it when shutoff pressure is reached. An internal bypass helps reduce rapid on/off cycling.
The pump has Viton valves and a Santoprene diaphragm. Check compatibility with the intended liquid, concentration and temperature before using agricultural chemicals. The valve material does not establish compatibility with every chemical.
Maximum open flow is 5LPM. The pressure switch stops the pump at 100psi (about 690kPa). These figures are separate limits: flow decreases as pressure rises, and the pump does not deliver its maximum flow at shutoff pressure.
Inlet: 10mm (3/8") hose barb.
Outlet: 10mm (3/8") hose barb.
The automatic pressure switch provides demand operation as an outlet opens and closes. The internal bypass recirculates some liquid within the pump at low demand, helping reduce rapid switching. Consult Seaflo before changing the preset pressure, as changes may affect the warranty.
The pump is self-priming with a suction lift up to 1.2m. Actual lift depends on the inlet hose, air leaks and the liquid being pumped. Brief dry-running capability does not provide automatic shutdown when a tank is empty; switch off when the liquid supply runs out.
Use according to the duty-cycle instructions supplied with the pump. Use liquid at temperatures up to 60°C, subject to chemical compatibility. Mount the pump securely using its rubber feet without overtightening them, and fit a suitable inlet strainer. Use flexible reinforced hose and keep the motor and electrical connections protected from water.
The pump requires a 12V DC supply. Maximum current is 5A. It is supplied with two-pin leads.
Two-year warranty, subject to its terms.

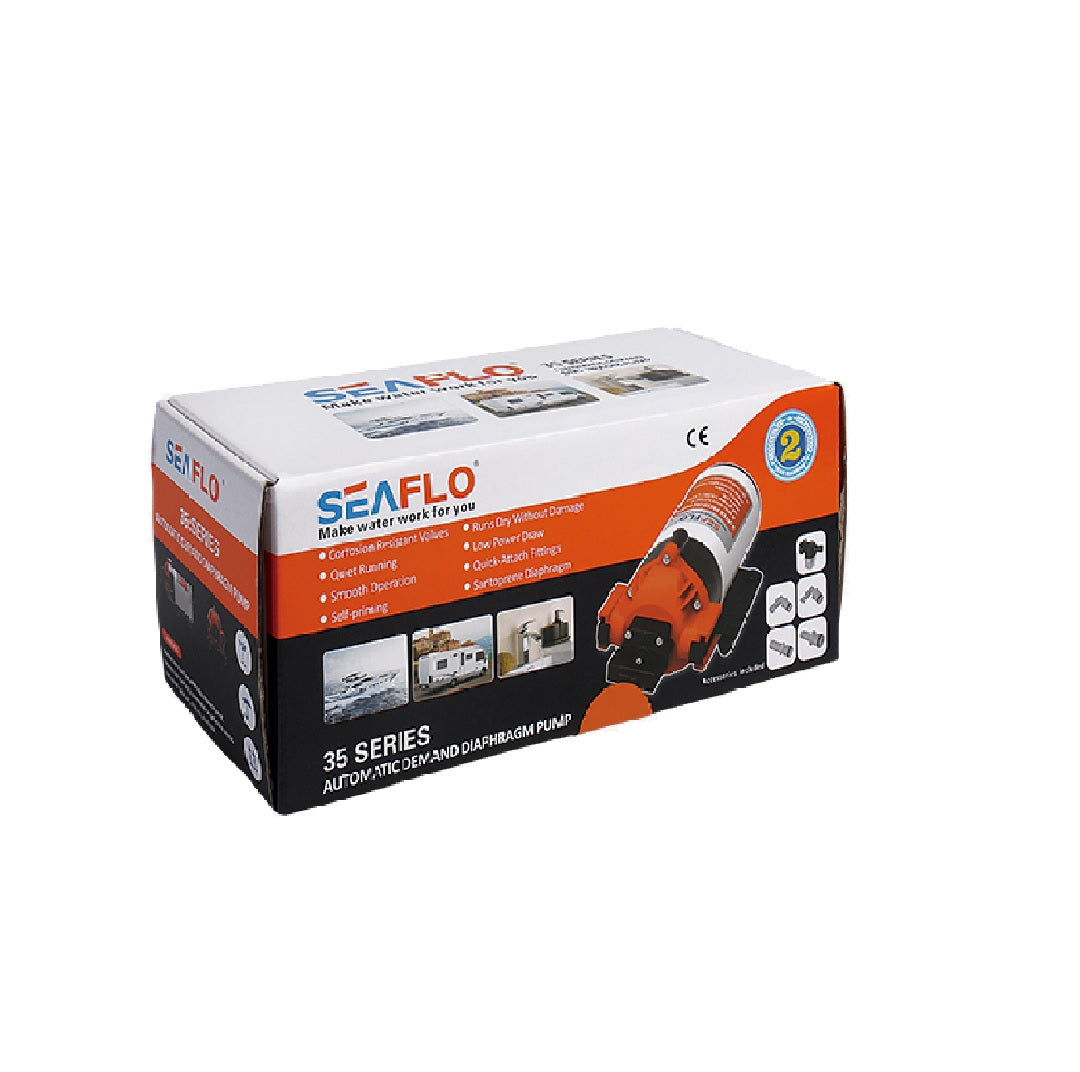

The Seaflo AG 35 is a 12V DC diaphragm pump for agricultural spraying and compatible liquid transfer. Its built-in pressure switch starts the pump as system pressure falls and stops it when shutoff pressure is reached.
The pump is supplied with two-pin leads. Use Seaflo Quick Attach fittings matched to the pump ports to connect the inlet and outlet hoses.
Maximum open flow is 7LPM. The pressure switch stops the pump at 120psi (about 830kPa). These are separate limits: flow decreases as pressure rises, and the pump does not deliver its maximum flow at shutoff pressure.
Inlet: 16mm (5/8") Seaflo Quick Attach port.
Outlet: 16mm (5/8") Seaflo Quick Attach port.
Viton valves and a Santoprene diaphragm suit compatible agricultural liquids. Check the liquid, concentration and temperature against all wetted materials before pumping chemicals. The valve material does not establish compatibility with every chemical or approval for drinking-water and food applications.
The three-chamber diaphragm design provides automatic demand operation for moderate-flow, higher-pressure spraying and transfer systems. Keep the supplied pressure setting; refer any setting change to Seaflo.
The pump is self-priming with a suction lift up to 1.8m. Usable lift depends on the inlet hose, air leaks and the liquid being pumped. Dry-running capability does not provide automatic shutdown when a tank is empty; switch off when the liquid supply runs out.
Continuous duty; follow the operating limits in the supplied instructions. Use liquid at temperatures up to 60°C, subject to chemical compatibility.
Fit a suitable inlet strainer and flexible reinforced hose, keeping suction joints airtight. Secure the pump using its rubber mounting feet without overtightening them, and protect the motor and electrical connections from water.
The pump requires a 12V DC supply. Maximum current is 12A.
Two-year warranty, subject to its terms.

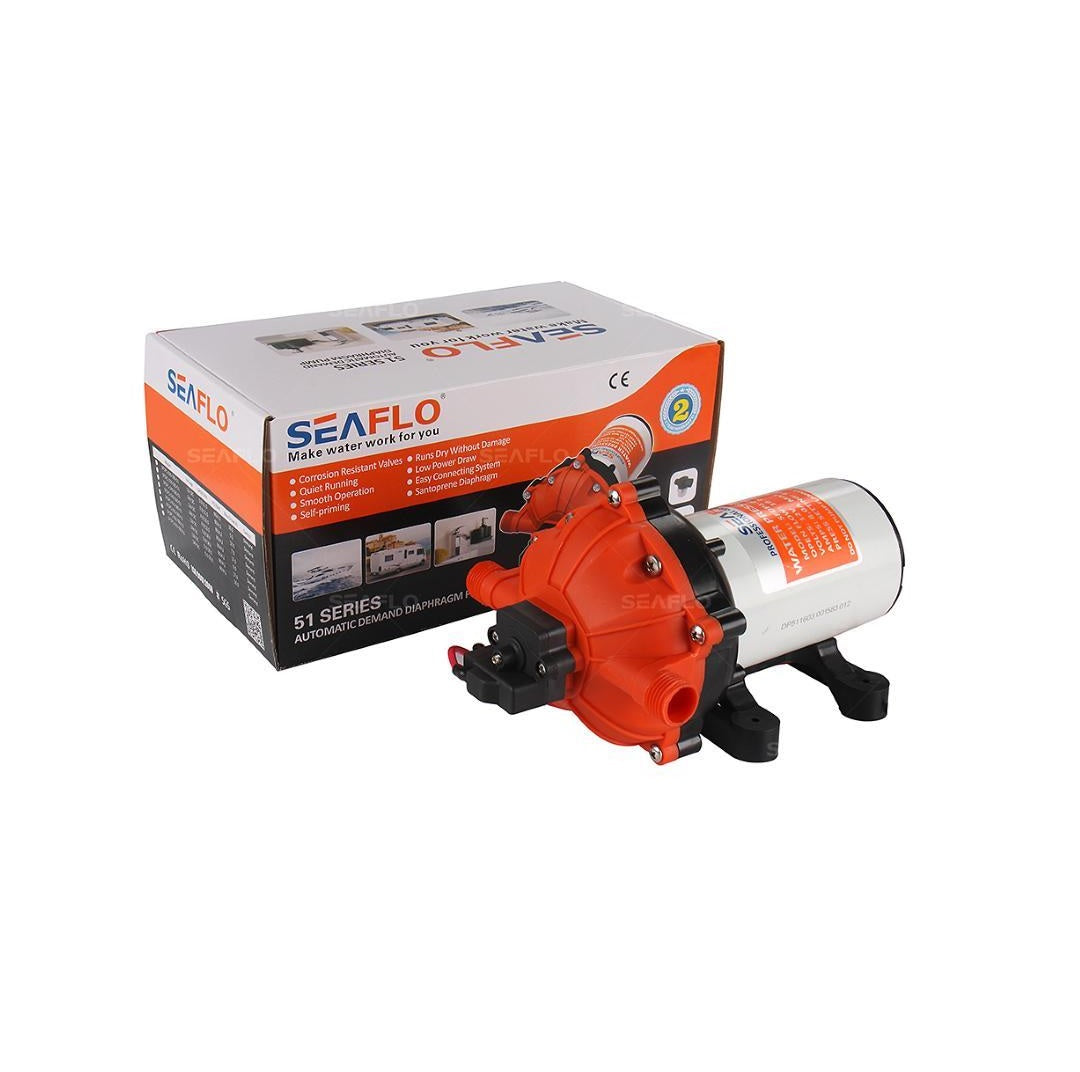

The Seaflo AG 51 is a 12V DC diaphragm pump for agricultural spraying and compatible liquid transfer. Its built-in pressure switch starts the pump as system pressure falls and stops it when shutoff pressure is reached.
The pump is supplied with two 1/2" female NPT x 1/2" hose-barb fittings and two-pin leads.
Maximum open flow is 11.5LPM. The pressure switch stops the pump at 60psi (about 410kPa). These are separate limits: flow decreases as pressure rises, and the pump does not deliver its maximum flow at shutoff pressure.
Inlet: 1/2" male NPT thread.
Outlet: 1/2" male NPT thread.
Viton valves and a Santoprene diaphragm suit compatible agricultural liquids. Check the liquid, concentration and temperature against all wetted materials before pumping chemicals. The valve material does not establish compatibility with every chemical or approval for drinking-water and food applications.
The five-chamber diaphragm design helps smooth the flow and reduce cycling. The pressure switch provides automatic demand operation as an outlet opens and closes.
Supplied with the pressure switch preset to 60psi. Consult Seaflo before changing the setting, as changes may affect the warranty.
The pump is self-priming with a suction lift up to 1.8m. Usable lift depends on the inlet hose, air leaks and the liquid being pumped. Dry-running capability does not provide automatic shutdown when a tank is empty; switch off when the liquid supply runs out.
Follow the duty-cycle instructions supplied with the pump. Use liquid at temperatures up to 60°C, subject to chemical compatibility.
Fit a suitable inlet strainer and flexible reinforced hose, keeping suction joints airtight. Secure the pump using its rubber mounting feet without overtightening them, and protect the motor and electrical connections from water.
The pump requires a 12V DC supply. Maximum current is 10A.
Two-year warranty, subject to its terms.
The Seaflo AG 55 is a 12V DC diaphragm pump for agricultural spraying and compatible liquid transfer. Its built-in pressure switch starts the pump as system pressure falls and stops it when shutoff pressure is reached. An internal bypass helps reduce rapid on/off cycling at low demand.
The pump is supplied with two 1/2" female NPT x 1/2" hose-barb fittings and two-pin leads.
Maximum open flow is 18.9LPM. The pressure switch stops the pump at 60psi (about 410kPa). These are separate limits: flow decreases as pressure rises, and the pump does not deliver its maximum flow at shutoff pressure.
Inlet: 1/2" male NPT thread.
Outlet: 1/2" male NPT thread.
Viton valves and a Santoprene diaphragm suit compatible agricultural liquids. Check the liquid, concentration and temperature against all wetted materials before pumping chemicals. The valve material does not establish compatibility with every chemical or approval for drinking-water and food applications.
The five-chamber design and internal bypass help reduce rapid cycling at low demand. A separate accumulator tank is not required for normal operation. The number of outlets that can run together depends on their combined flow and pressure requirements.
Keep the supplied pressure setting. Refer pressure-switch and bypass adjustments to Seaflo; incorrect settings may prevent the pump from switching off or affect the warranty.
The pump is self-priming with a suction lift up to 1.8m. Usable lift depends on the inlet hose, air leaks and the liquid being pumped. Dry-running capability does not provide automatic shutdown when a tank is empty; switch off when the liquid supply runs out.
Follow the duty-cycle instructions supplied with the pump. Use liquid at temperatures up to 60°C, subject to chemical compatibility.
Fit a suitable inlet strainer and flexible reinforced hose, keeping suction joints airtight. Secure the pump using its rubber mounting feet without overtightening them, and protect the motor and electrical connections from water.
The pump requires a 12V DC supply. Maximum current is 17A.
Two-year warranty, subject to its terms.

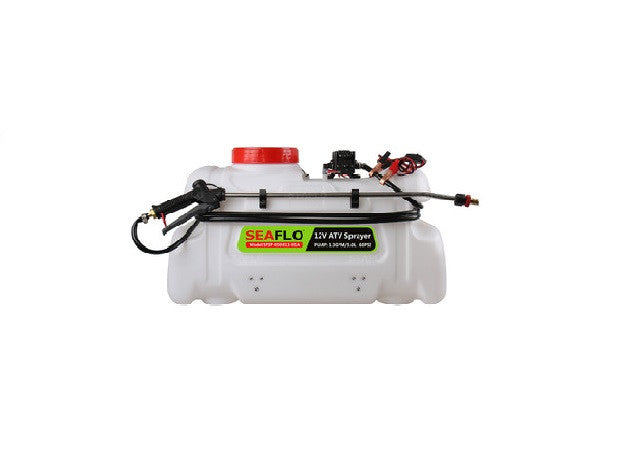

The Seaflo AG ATV spot sprayers provide electric spot spraying for weed and pest control, fertiliser application and property maintenance. The tank, 12V diaphragm pump, hose and hand spray gun form a portable unit for mounting on an ATV, utility vehicle or trailer.
Choose the 50L SFSP-050-013-01A or 100L SFSP-100-013-01A to suit the required tank capacity.
The supplied equipment includes a 6m spray hose, stainless steel lance with adjustable nozzle, lance storage clips, water inlet filter and a 2.5m battery cable with a DC quick-plug and battery clips. The pump provides spraying without manual pumping.
Maximum pump flow is 5LPM. The pump pressure limit is 100psi (about 690kPa). Maximum flow and maximum pressure are separate limits; flow decreases as pressure rises, and actual delivery through the spray nozzle depends on its setting.
The 10mm internal-diameter spray hose is rated to 20bar (2000kPa). This is the hose rating, rather than the operating pressure of the sprayer.
The HDPE tank has a filling lid and carry handles. Filtration helps keep sediment out of the pump. Use liquids compatible with the complete sprayer and follow the chemical label for mixing and application.
Secure the unit to a suitable support and account for the filled tank weight when selecting a mounting position. Clean the tank, filter, hose and gun after use in accordance with the liquid and sprayer instructions.
The pump uses a 12V DC supply and draws up to 5A. The supplied battery cable is 2.5m long.
One-year warranty, subject to its terms.
The Seaflo 16L electric backpack sprayer provides portable spraying for weed and pest control, fertiliser application and garden or property maintenance. Its rechargeable 12V battery powers the diaphragm pump, so no manual pumping is required. A battery, charger and charging stand are included.
The supplied spray gun, lance and nozzle options let the spray pattern suit the task. The 1.2m hose connects the tank to the hand-held gun, while padded shoulder straps support the backpack during use. Filtration helps keep debris out of the pump and nozzle.
Maximum pump flow is 2.6LPM, with a pressure limit of 70psi (about 480kPa). These are separate limits; flow decreases as pressure rises, and delivery through the nozzle depends on the nozzle fitted and its setting.
The sprayer includes a 12V rechargeable battery and a 14V, 1A charger. Use the supplied charging equipment for the battery fitted to the sprayer.
Use intermittently, allowing cooling breaks between runs. Battery endurance depends on the nozzle, pressure, use pattern and battery condition.
Use liquids compatible with the complete sprayer and follow the chemical label for mixing and application. Clean the tank, filter, hose and gun after use in accordance with the liquid and sprayer instructions.
One-year warranty, subject to its terms.

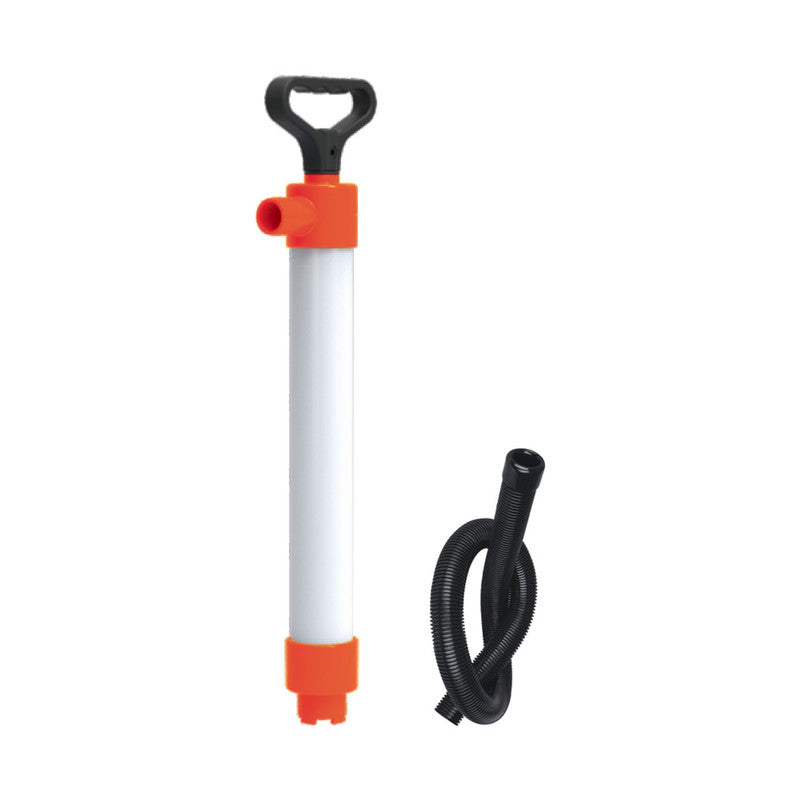

The Seaflo piston hand pump removes water from small bilge areas, kayaks, canoes and other accessible spaces without electricity. Its plunger handle provides manual pumping, and the supplied flexible hose carries the discharge away from the pump.
The compact pump can be carried between jobs or kept as a backup for marine, camping and general water-transfer tasks. Lower the pump intake into the water and operate the plunger handle to discharge through the hose.
A 0.5m flexible outlet hose is included, with a nominal diameter of 25mm (1"). The 1" hose connection is on the discharge side; water enters at the pump base.
The pump is 477mm long and has a maximum suction lift of 1m. Delivery depends on the pumping rate, lift and hose arrangement.
Suitable uses include fresh and saltwater transfer, small bilge areas and aquarium water changes. The lightweight construction and removable discharge hose help with storage and transport.
One-year warranty, subject to its terms.

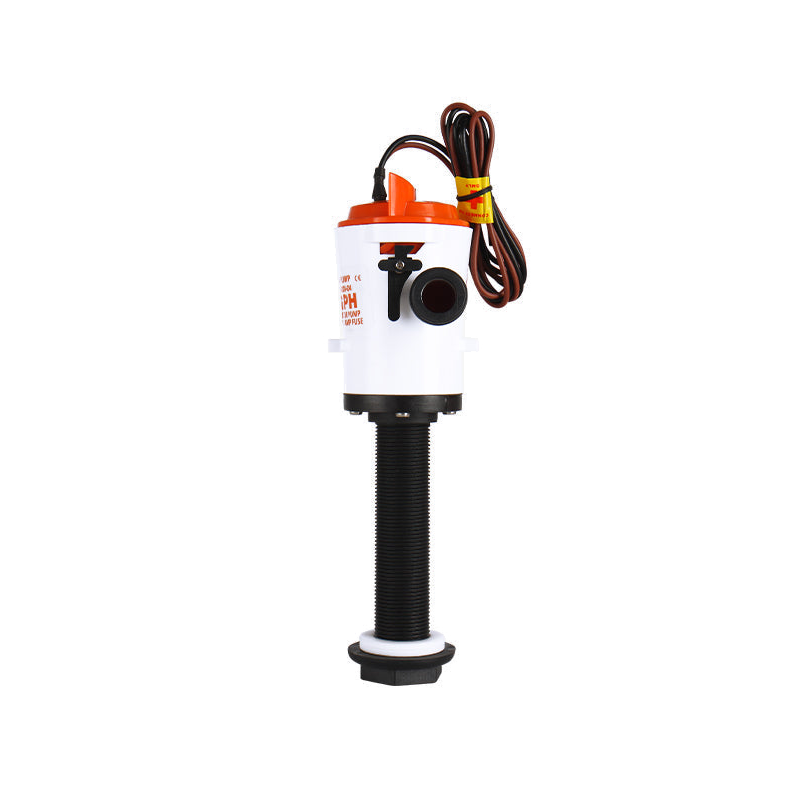

The Seaflo 800GPH 04 Series livewell pump supplies water to bait tanks and fish-holding livewells from a flooded inlet. Its removable motor cartridge gives access to the motor and impeller for cleaning or replacement without disconnecting the fixed plumbing.
Maximum flow is 61LPM and maximum head is 4m. These are separate limits: flow decreases as the delivery height and hose resistance increase. Actual flow through the livewell depends on the hose and spray-bar arrangement.
The straight threaded intake mounts through the hull or transom below the waterline. The discharge connects to 19mm (3/4") hose. Sealing nut and washers are included for the through-hull mounting.
The pump uses a 12V DC supply and has 1m leads. It requires water at the inlet and does not lift water into a dry suction line.
Use intermittently, allowing cooling breaks between runs. The pump supplies water to a livewell or bait tank; it does not provide a guaranteed oxygen level or fish-holding time.
The cartridge release allows access to the motor and impeller for maintenance. Keep the intake and impeller clear of debris. Maximum liquid temperature is 43°C. Do not rely on dry-running capability as an automatic shutdown when the water supply is lost.
Two-year warranty, subject to its terms.

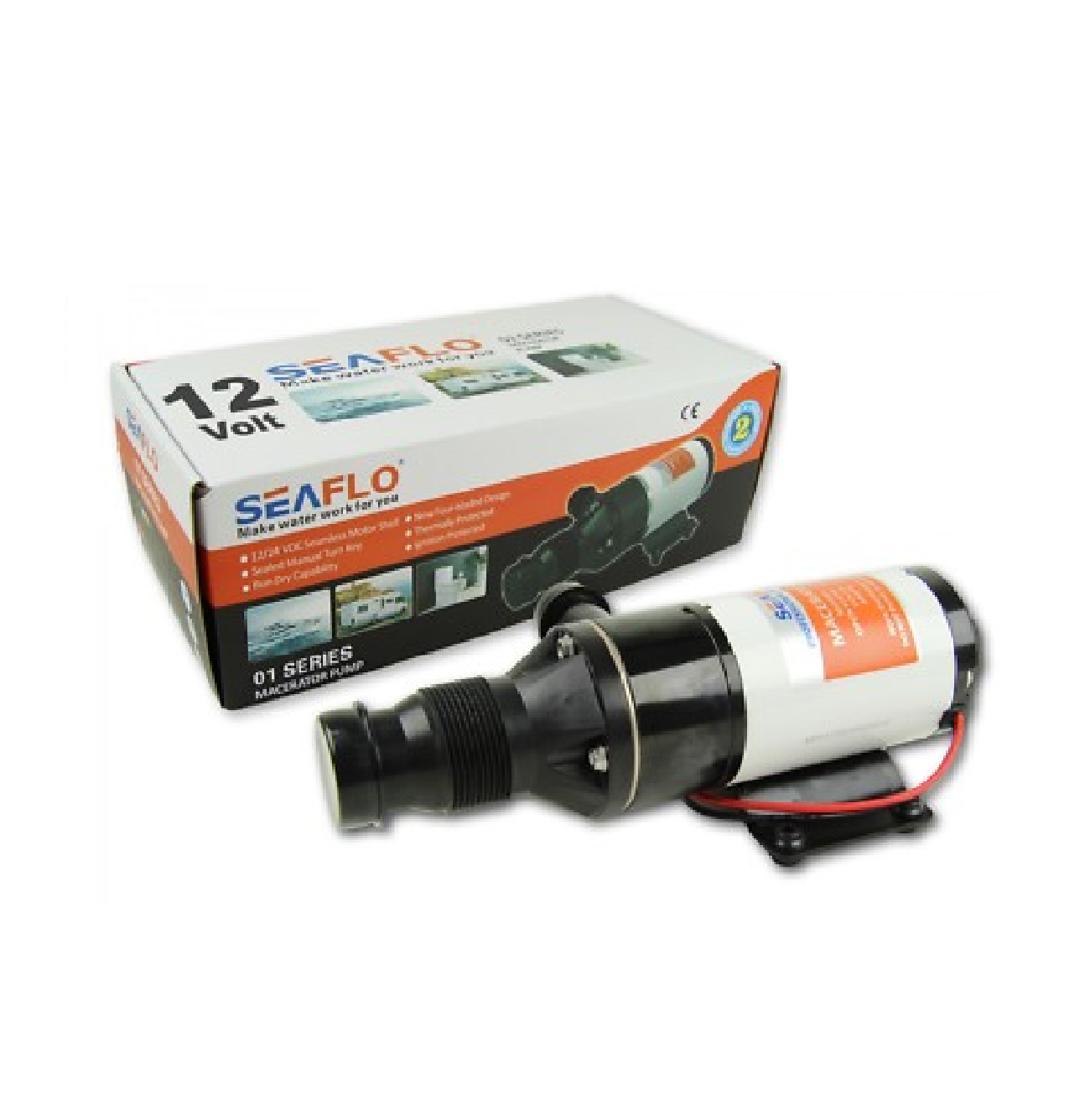

The Seaflo 12V macerator pump empties marine and RV holding tanks and transfers waste from fish boxes or livewell receptacles. Its four-blade stainless steel cutter breaks down normal waste before it passes through the pump and discharge hose.
Maximum open flow is 45LPM. Delivery decreases as discharge pressure and hose resistance increase, and also depends on the waste being pumped.
Inlet: 1 1/2" male NPT thread, with a 38mm (1 1/2") hose barb.
Outlet: 25mm (1") hose barb.
The sealed motor has sealed bearings, O-ring seals and a corrosion-resistant coating. Motor thermal protection helps protect against overheating. The pump is ignition protected.
The flexible-impeller pump is self-priming. The installation sheet gives a suction lift of up to 1.5m with a wet impeller or 1.2m with a dry impeller. Mount close to the holding tank to reduce suction losses and time spent without liquid.
Use intermittently and allow cooling breaks between runs. Switch the pump off as soon as the tank empties; brief dry-running capability does not provide automatic empty-tank shutdown. Flush the tank and pump with water after use.
The pump handles normal holding-tank waste and fish-box residues such as scales. It is not suitable for hard objects, rags, cloth wipes or sanitary products. Waste must be discharged to an appropriate collection or disposal point.
The pump requires a 12V DC supply and has a maximum current draw of 12A.
Two-year warranty, subject to its terms.

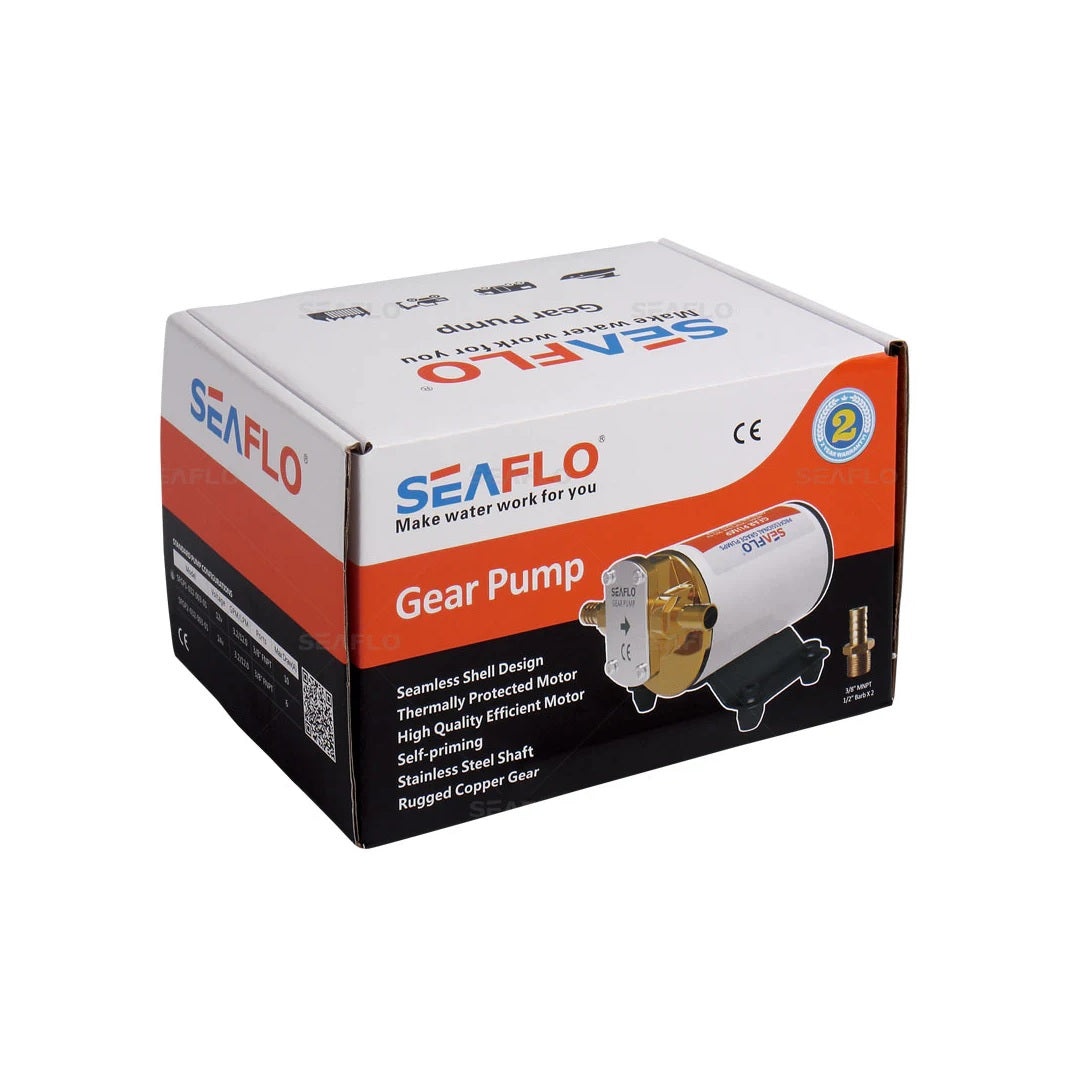

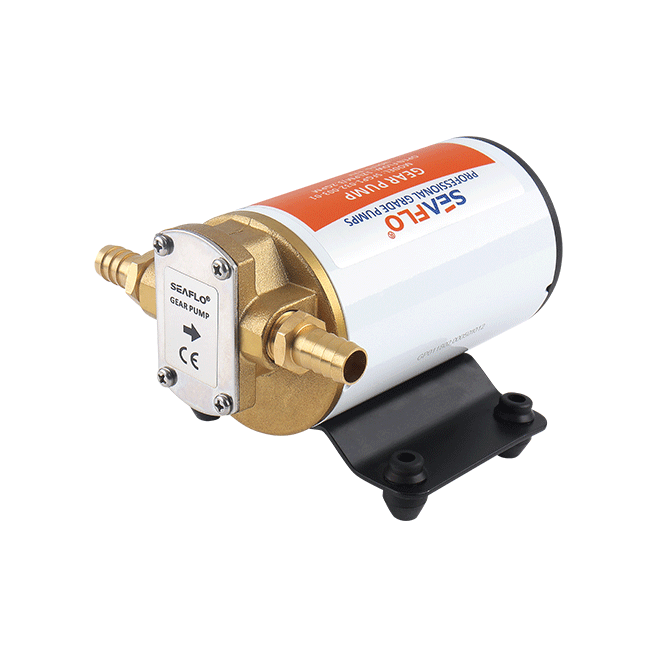

Seaflo gear transfer pumps move diesel, engine oil, transmission fluid, lubricants and other compatible viscous liquids for workshop, machinery, agricultural and marine servicing. The positive-displacement gear design can pump in either direction.
SFGP1-032-003-01: 12V DC; maximum current 10A.
SFGP2-032-003-01: 24V DC; maximum current 6A.
Maximum open flow is 12LPM. Actual delivery depends on the liquid viscosity and temperature, suction conditions and discharge resistance.
Inlet: 3/8" female NPT thread.
Outlet: 3/8" female NPT thread.
Two 3/8" male NPT × 1/2" hose-barb fittings are supplied for nominal 12.5mm (1/2") hose. The motor has wire leads.
The pump suits oil changes and fluid transfer in vehicles, machinery, workshops and marine equipment. Use compatible hydraulic oils and other lubricants within the pump’s liquid-temperature limit of 60°C. Do not use for petrol, gasoline or other volatile fuels.
The self-priming design and reversible pumping direction provide flexibility for transfer tasks. Liquid viscosity and the inlet arrangement affect priming and delivery.
Use intermittently, allowing the motor to cool between runs. Follow the operating limits in the instructions supplied with the pump.
The pump has a metal head and gears, a stainless steel shaft and a thermally protected motor. Thermal protection helps protect against overheating during operation.
Two-year warranty, subject to its terms.

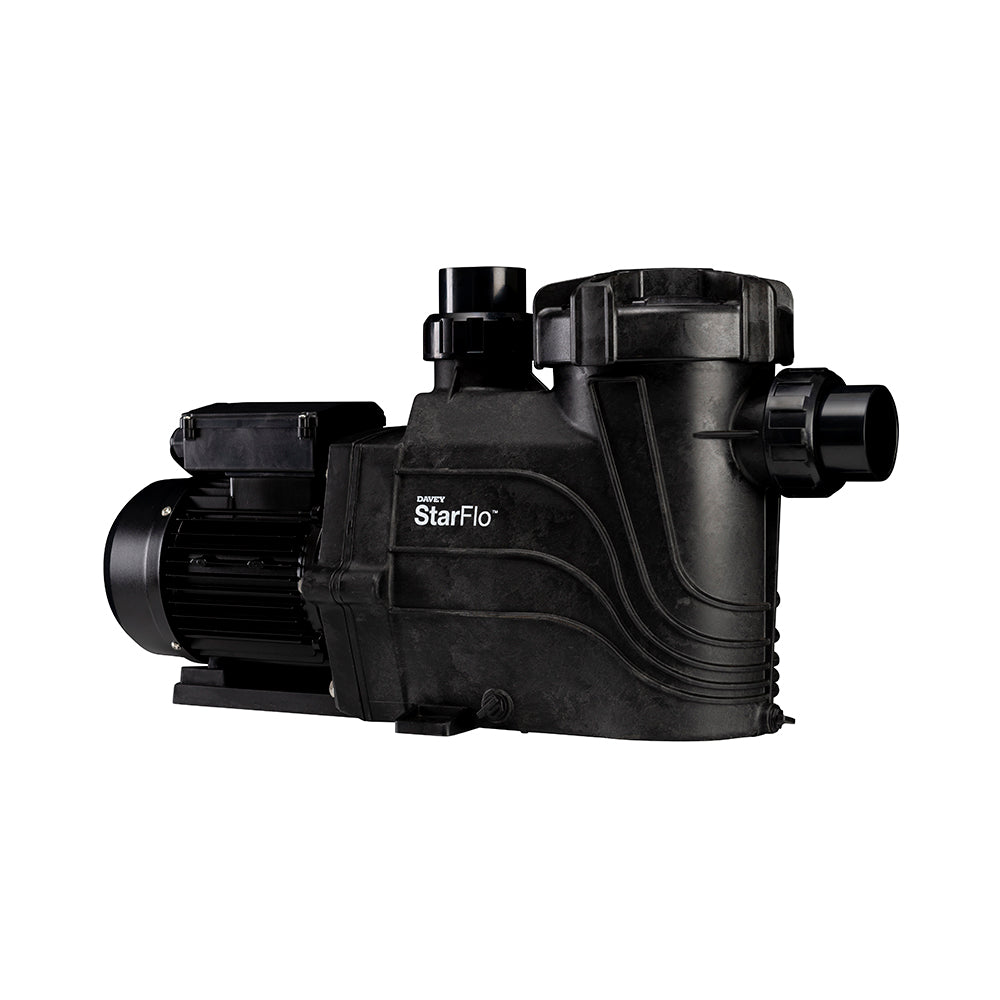

The Davey StarFlo DSF300 is a single-speed pool circulation pump for filtration, sanitising systems and solar heating. Its multi-fit design and 40mm and 50mm barrel unions suit replacement installations, in-ground and above-ground pools, large swim spas and plunge pools.
The motor has an electrical input of 1.1kW and a shaft output of 0.75kW. Available flow depends on the system head, pipework, filter condition and connected equipment; use the DSF300 performance curve to select the operating point.
Inlet: 40mm and 50mm PVC barrel-union connections.
Outlet: 40mm and 50mm PVC barrel-union connections.
The included barrel unions and multi-fit design help with replacement installations. Check the dimension drawing and existing pipework before choosing a replacement. A 3m power lead with an Australian 10amp three-pin plug is included.
The corrosion-resistant, UV-resistant construction includes a Noryl impeller, 316 stainless steel motor shaft and silicon carbide/Viton mechanical seal. The totally enclosed motor has self-resetting thermal overload protection. The water circuit is double insulated and has an equipotential bonding point.
A removable clear strainer lid provides basket access, and drain plugs allow water to be drained for maintenance. The pump is serviceable.
The pump uses a 220–240V single-phase, 50Hz supply. Maximum water temperature is 40°C and maximum ambient temperature is 50°C. Sound level is 62dBA at 1m.
Three-year Davey warranty, subject to its terms.
Davey StarFlo DSF300 Specifications
Davey StarFlo Installation & Operating Instructions
The Davey SureFlo DSF900 is a single-speed circulation pump for residential pool filtration, sanitising systems and solar heating. Its multi-fit design suits in-ground and above-ground pools, large swim spas and plunge pools, with self-aligning unions for installation.
The motor has an electrical input of 0.9kW and a shaft output of 0.65kW. Choose the pump from its flow-at-head curve, allowing for the filter, pipework, heating and other connected equipment.
Inlet: accepts 40mm PVC pipe internally or a 50mm PVC socket/bell end externally.
Outlet: accepts 40mm PVC pipe internally or a 50mm PVC socket/bell end externally.
Self-aligning barrel unions assist with installation. The multi-fit design supports replacement applications, but pipe centres and clearances should be checked against the dimension drawing. A 3m power lead with an Australian 10amp three-pin plug is included.
The pump uses corrosion-resistant and UV-resistant materials, a Noryl impeller, 316 stainless steel shaft and silicon carbide/Viton mechanical seal. The totally enclosed motor has self-resetting thermal overload protection. The water circuit is double insulated and has an equipotential bonding point.
The clear strainer lid gives access for basket maintenance, and drain plugs simplify draining and servicing. Davey publishes a 54–56dBA sound range for this family.
The pump uses a 220–240V single-phase, 50Hz supply. Maximum water temperature and ambient temperature are both 40°C.
Three-year Davey warranty, subject to its terms.
Davey SureFlo DSF900 Specifications
Davey StarFlo SF / DSF900 Installation & Operating Instructions

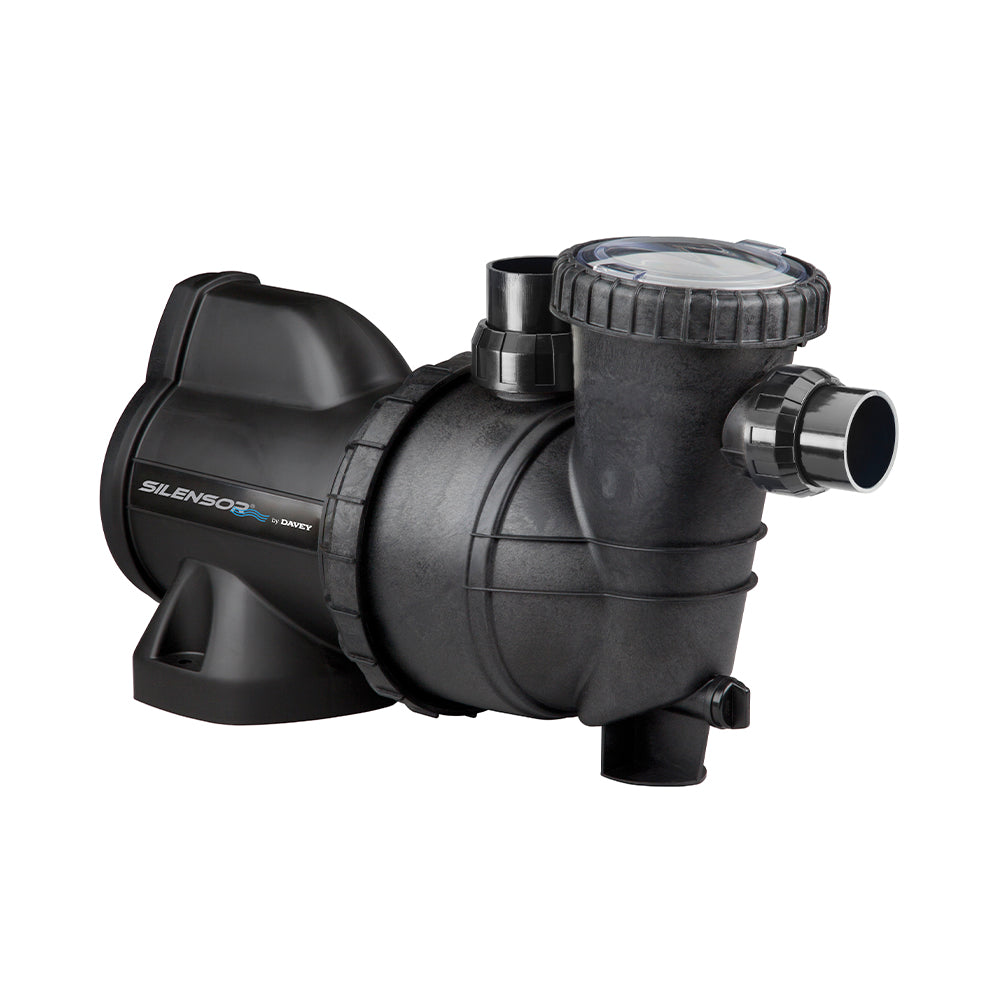

The Davey Silensor SLS200 is a single-speed, water-cooled pump for pool filtration, automatic pool cleaning, backwashing, water features and spa jets. It also suits solar, gas and heat-pump pool heating, with a quiet motor design and built-in dry-run and mechanical-seal protection.
The motor has an electrical input of 1.09kW and a shaft output of 0.775kW. Use the SLS200 hydraulic curve to check the flow available against the resistance of the pool pipework, filter, cleaner and heating equipment.
Inlet: 40mm PVC connection.
Outlet: 40mm PVC connection.
Quick-coupling barrel unions assist with installation and removal. The SLS layout suits retrofit applications; check the dimension drawing and pipework before choosing a replacement. A 3m power lead is included.
The water-cooled motor reduces transmitted noise and vibration, with a published sound level of 54–56dBA. It does not require air ventilation for motor cooling, giving more flexibility in positioning.
Built-in dry-run protection helps minimise pump damage if water is lost, and mechanical-seal protection supports service life. These protections do not remove the need to maintain the pump and water supply.
Corrosion-resistant and UV-resistant polypropylene components, a 316 stainless steel shaft and an epoxy-protected motor shell suit outdoor poolside conditions. The water circuit is double insulated and has an equipotential bonding point. ABS barrel unions and a drain plug assist with servicing.
The pump uses a 220–240V, 50Hz supply and has an IP56 motor enclosure. Maximum water temperature and ambient temperature are both 40°C.
Three-year Davey warranty, subject to its terms.
Davey Silensor SLS200 Specifications
Davey Silensor Installation & Operating Instructions
The Davey ProMaster PM400BT is a variable-speed, water-cooled pool pump with Bluetooth smartphone control and a selectable speed dial. It suits filtration, in-floor cleaning and pool heating systems, with a large 4.5L leaf basket and connections for external pool controls.
The speed can be adjusted from 1050 to 3100rpm using the dial or Bluetooth control. Lower speeds reduce energy use where they still provide the flow required by the filter, cleaner, chlorinator and heating equipment. The PM400BT application guide lists pools up to 140,000 litres; select the speed and operating time for the actual system.
Inlet: 50mm PVC connection.
Outlet: 50mm PVC connection.
The integrated variable-speed drive and Bluetooth connection support control and speed schedules through the Davey Pool Pump app for iOS and Android. A 3m power lead is included.
Programmable boost cycling improves surface skimming and supports in-floor cleaning. Flow/speed compensation helps respond as filter resistance increases. The weatherproof RJ45 port provides a connection for speed adjustment from compatible external pool controllers, gas heaters or heat pumps.
The backwash mode alternates selected low and high speeds to agitate filter media, with a two-minute automatic shutoff to limit accidental draining. Loss-of-prime protection helps protect the pump when water is lost, and a multicoloured LED indicates operating conditions and warnings.
The water-cooled motor is rated down to 50dBA, depending on operating speed. The 4.5L leaf basket provides capacity between cleanings, and a drain plug assists with draining and maintenance. The water circuit is double insulated and has an equipotential bonding point.
The pump uses a 220–240V, 50/60Hz supply. Electrical input varies with speed: 126W at dial 1, 728W at dial 5 and 1639W at dial 10. Maximum water temperature is 40°C and maximum ambient temperature is 50°C.
Three-year Davey warranty, subject to its terms.
Davey ProMaster PM400BT Specifications
Davey ProMaster PM400BT Installation & Operating Instructions
The Davey EcoPure DEP2540 is a 25" fibreglass media filter for swimming pools, swim spas and plunge pools. Its top-mounted six-way valve connects to 40mm PVC pressure pipe through the included barrel unions.
Water passes through the media bed to remove suspended dirt before returning to the pool. The filter suits fresh, salt and mineral-salt pool water, using glass, sand or Zelbrite media.
Inlet from pump: 40mm socket for PVC pressure pipe.
Outlet to pool: 40mm socket for PVC pressure pipe.
Waste/backwash: 40mm socket for PVC pressure pipe.
The filter includes the fibreglass tank, internal laterals, six-way valve, pressure gauge, backwash sight glass and barrel unions.
Glass media for the DEP2540:
Fine/medium glass: 5 × 15kg bags (75kg)
Medium/coarse glass: 3 × 15kg bags (45kg)
These glass quantities total 120kg. Sand and Zelbrite use different loading quantities; follow the instructions for the chosen media.
Match the pump to both duties: filtration flow must stay within 260LPM, and the pump must deliver at least 173LPM through the backwash circuit to clean the media. Allow for resistance in the pipework and waste line.
The valve provides Filter, Backwash, Rinse, Waste, Recirculate and Closed positions. The pressure gauge helps identify when cleaning is needed, and the sight glass shows the water leaving during backwashing. Stop the pump before changing valve position.
The tank is made from UV-stabilised, filament-wound fibreglass. ABS barrel unions allow pipe connections to be disconnected for servicing, while the internal lateral underdrain collects filtered water and distributes backwash flow.
Install on a firm, level base and allow at least 400mm above the valve for removal and servicing. Check the dimension drawing when replacing an existing filter. Maximum water temperature is 40°C.
Follow the installation guide for media loading, initial backwash and rinsing. Relieve pressure before servicing and never run the pump with the valve closed.
Davey warranty: 10 years on the tank, three years on the multiport valve and one year on other components, subject to its terms.
Davey EcoPure Media Filter Specifications
Davey EcoPure Installation & Operating Instructions
Davey CrystalClear Glass Media Specifications & Usage Chart

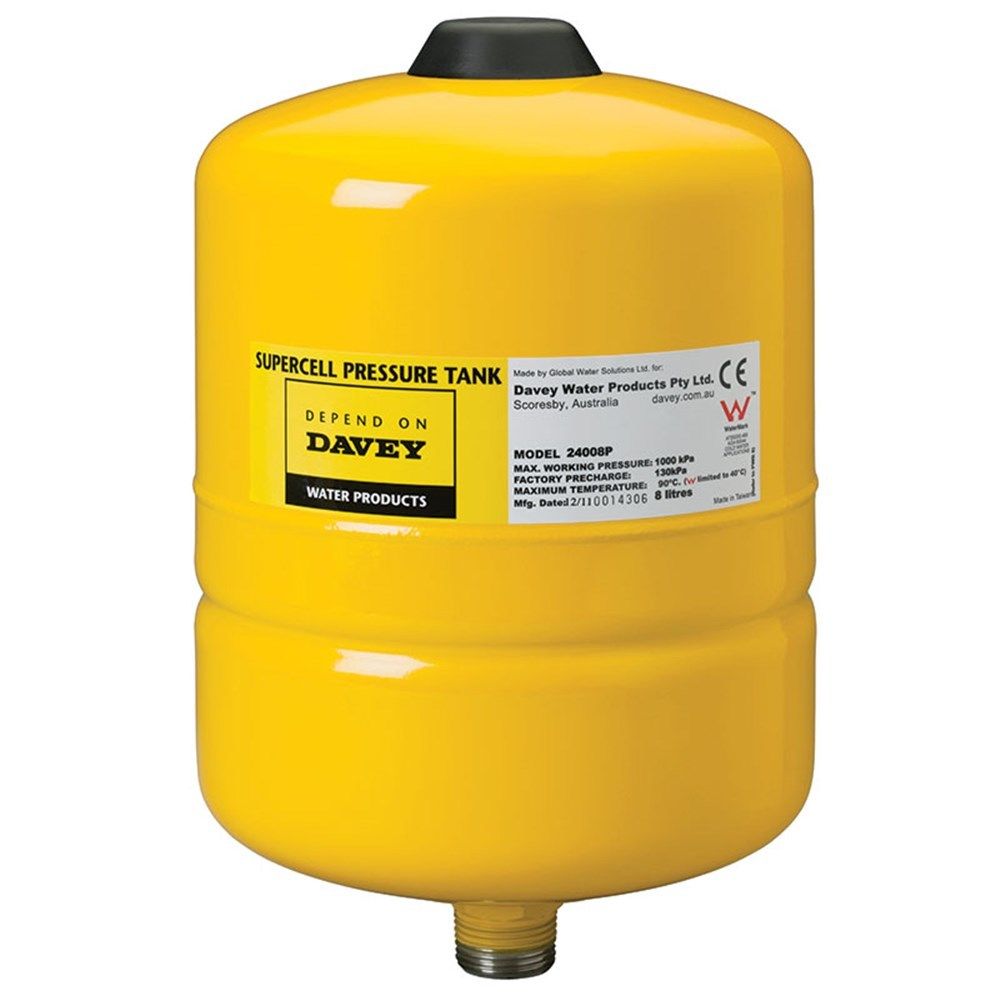

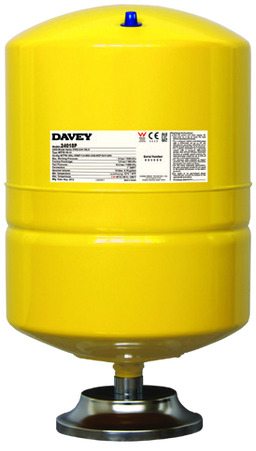

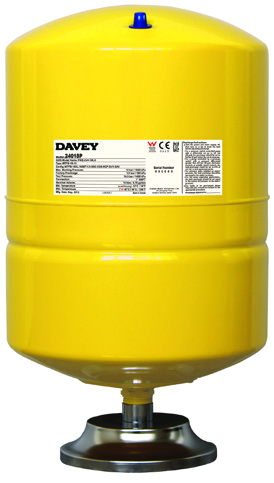

Davey Supercell P steel pressure tanks hold a reserve of water under pressure for household, farm and other water-pressure systems. A flexible rubber diaphragm separates the water from compressed air, which pushes water out when a tap opens. This reserve allows smaller amounts of water to be used without starting the pump each time. Fewer starts reduce wear from repeated starting and stopping, helping extend pump life, and can reduce electricity use and running costs. Pipe-mounted tanks connect vertically to the pump delivery pipework and need suitable support. Free-standing tanks sit upright on their own base, with an inlet elbow for horizontal pipework.
24008P: 8L; pipe mounted; 1" BSP male thread.
24018P: 18L; pipe mounted; 1" BSP male thread.
24040P: 40L; pipe mounted; 1" BSP male thread.
24060P: 60L; free standing; 1" BSP female thread.
24100P: 100L; free standing; 1" BSP female thread.
Nominal tank volume is the vessel size, not the amount of water available between pump starts. Usable draw-off depends on the pump’s start and stop pressures and the tank air charge. At pump start/stop pressures of 200–400kPa, usable water draw-off is roughly 40% of nominal tank volume. Other pressure settings and control types give different results.
The steel shell has an epoxy primer and two-part polyurethane enamel finish for corrosion and UV resistance. Inside, a butyl-rubber diaphragm and virgin polypropylene liner keep the water separated from the air cushion and steel shell. The water connection is stainless steel.
The diaphragm and liner are suitable for potable-water applications. Other uses include rainwater and booster systems, irrigation, water-hammer control and suitably designed hydronic expansion or mains-water toilet-flushing systems. Select the tank and controls for the application.
Maximum working pressure is 1000kPa and maximum water temperature is 90°C. Protect the tank and connected pipework from freezing.
Set the air charge to suit the pump controls and system pressures. Pressure-switch, electronic and variable-speed systems can require different settings; follow the tank and pump/controller instructions.
Install vertically in a covered, dry position with drainage and access for servicing. Pipe-mounted models need suitable support; free-standing models need a firm base. The 60L and 100L tanks have stainless steel inlet elbows for horizontal pipework. Release the water pressure before checking or adjusting the air charge.
Five-year Davey warranty, subject to its terms.
Davey Supercell P Specifications & Draw-off Table
Davey Supercell Pressure Tank Installation & Operating Instructions

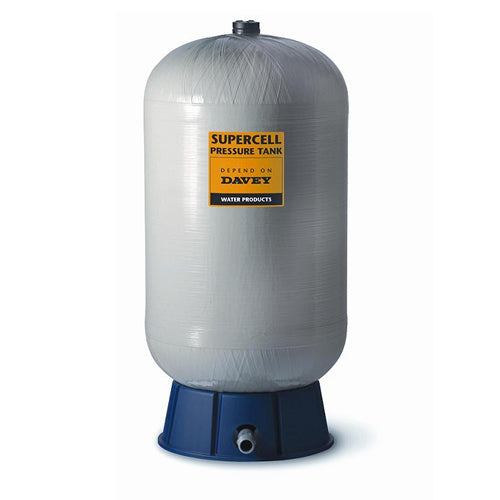

Davey Supercell F composite pressure tanks hold a reserve of water under pressure for household, farm and industrial water systems. A flexible rubber diaphragm separates the water from compressed air, which pushes water out when a tap opens. This reserve allows smaller amounts of water to be used without starting the pump each time. Fewer starts reduce wear from repeated starting and stopping, helping extend pump life, and can reduce electricity use and running costs. The fibreglass shell and non-metal water-contact components resist corrosion, making this range useful in coastal and humid locations. The free-standing tank sits upright on its own base.
24060F: 60L; 1" BSP male thread; free standing.
24080F: 80L; 1" BSP male thread; free standing.
24100F: 100L; 1" BSP male thread; free standing.
24130F: 130L; 1" BSP male thread; free standing.
24200F: 200L; 1 1/4" BSP male thread; free standing.
24250F: 250L; 1 1/4" BSP male thread; free standing.
Nominal tank capacity is the vessel size, not the amount of water available between pump starts. Usable draw-off depends on the start and stop pressures and the air charge. At pump start/stop pressures of 200–400 kPa, these tanks provide roughly 38% of their nominal volume between starts. Other pressure settings and control types give different results.
The tank has a continuous-strand fibreglass outer shell sealed with epoxy resin, a polypropylene inner shell and a virgin copolymer polypropylene liner. A butyl-rubber diaphragm separates the air and water, and the water connection is reinforced plastic. The non-metal water-contact components avoid corrosion of metal wetted parts. The diaphragm and liner are suitable for potable-water applications.
Maximum working pressure is 860 kPa. Water temperature must remain between 1°C and 50°C. Protect the tank and connected pipework from freezing.
Install upright on a firm base in a covered, dry position with drainage and access for servicing. The water connection is at the bottom of the tank and faces horizontally. Do not overtighten the plastic connection.
Set the air charge to suit the pump controls and system pressures. Pressure-switch, electronic and variable-speed systems can require different settings; follow the tank and pump/controller instructions. Release all water pressure before checking or adjusting the air charge.
Five-year Davey warranty, subject to its terms.
Davey Supercell F Specifications & Draw-off Table
Davey Supercell F Installation & Operating Instructions
This Franklin 35L pressure tank holds a reserve of water under pressure for domestic water supply, irrigation and pressure-boosting systems. A flexible rubber diaphragm separates the water from compressed air, which pushes water out when a tap opens. This reserve allows smaller amounts of water to be used without starting the pump each time. Fewer starts reduce wear from repeated starting and stopping, helping extend pump life, and can reduce electricity use and running costs. The tank stands upright on its own base.
Water connection: 1" BSP male thread.
Nominal tank capacity is the vessel size, not the amount of water available before the pump restarts. Usable draw-off depends on the pump’s start and stop pressures and the tank air charge. Size the tank for the usable draw-off and pump cycling requirements of the system.
The diaphragm separates the stored water from the air cushion. The tank has a corrosion-resistant stainless steel water connection, a butyl-rubber diaphragm and a polyurethane paint finish over an epoxy primer. It is suitable for potable-water systems.
The tank can also be used for suitably designed thermal-expansion applications. Match the tank to the system’s temperature and pressure requirements.
Maximum working pressure is 1000 kPa (145 psi). The tank stands upright on its own base. Place floor-mounted tanks on a firm base and support connected pipework.
Set the air charge to suit the pump/controller and system pressures. Release water pressure before checking or adjusting the air charge, and follow the instructions for the actual tank and control type.
Five-year manufacturer tank-replacement guarantee, subject to its terms.
Davey Torrium2 provides automatic pump control for clean-water household supply, irrigation and water transfer. It starts the pump when water use causes pressure to fall, keeps it running while water is being used, and stops it when flow falls below about 1LPM. Pre-wired and plug-and-play versions provide different ways to connect the pump motor.
Inlet: 1" BSP male thread.
Outlet: 1" BSP male thread. The horizontal outlet rotates to suit the pipework; a vertical outlet is also available.
Maximum controller system pressure is 1000 kPa. Water temperature must remain between 1°C and 70°C; maximum ambient temperature is 50°C. Use clean, non-volatile liquids without fibres or solids. Other applications include washing systems and pressure boosting.
The controller version must suit the pressure the pump can produce with all outlets closed, as well as the pump’s electrical load. The 1000 kPa rating is the controller’s pressure limit; it does not mean every version suits a pump that produces that pressure.
When you close a tap, flow falls and the pump builds pressure before Torrium2 stops it. The controller remembers the pressure reached. Next time water is used, it normally restarts the pump once pressure has fallen by about 20% from that remembered value. This sets the restart point automatically. A dripping tap or slowly leaking toilet cistern releases water a little at a time, so pressure falls slowly. Torrium2 can wait until the pressure has fallen further before restarting the pump, increasing the time between starts. When normal water use resumes, it returns to its normal starting behaviour.
Dry-run protection stops the pump when Torrium2 detects a loss of prime. This means the pump no longer has enough water inside it to pump normally, which can happen if a supply tank empties or air enters the suction pipe. Torrium2 then retries at increasing intervals. The controller also stops the pump if water becomes too hot or it detects excessive electrical current. Lights show whether the pump is running, standing by or has a fault.
A small internal spring-loaded chamber holds a little water under pressure, helping reduce repeated starts during very small water draws. It does not need air-charge checks. An optional pressure tank up to 18L can be fitted to the vertical outlet to store more water between pump starts.
The housing is glass-fibre-reinforced nylon, with a 316 stainless steel sensor plate and nitrile O-rings. A built-in check valve helps retain pressure when the pump stops. A built-in surge protector helps protect the controller electronics from power spikes.
The controller has a 2m incoming power lead with an Australian three-pin plug. Match the motor connection to the selected pre-wired or plug-and-play version. Plug-and-play pump sockets need suitable weather protection outdoors.
Mount the controller with access to the priming point, prime button and status lights.
Two-year Davey warranty, subject to its terms.
Davey Torrium2 Controller Specifications
Davey Torrium2 Plug & Play Specifications
Davey Torrium2 Installation & Operating Instructions
This Franklin MH kit includes a poly pump base and removable cover in Cream. The base supports the pump installation, while the cover fits over the pump and can be lifted off for access. It suits Franklin MH multistage pumps; the pump is sold separately.
Colour: Cream.
Allow space for the pump, connected pipework and controls, and keep the cover’s ventilation openings clear. The cover needs to remain removable for inspection and servicing.
One-year Franklin Electric accessory warranty, subject to its terms.
This brass five-way manifold brings the pump delivery connection, pipework and pressure-control fittings together in one compact fitting. Its three 1" BSP ports provide the main water connections, while two smaller 1/4" BSP ports connect pressure-control accessories such as a pressure switch and gauge. It suits Franklin Electric MH-series pump installations.
The manifold provides connection points for a pump pressure system. The pressure switch controls when the pump starts and stops; a gauge shows system pressure. These components connect to the manifold and are sold separately.
The 1" BSP male and female ports are in line, with a second 1" BSP female port branching off at 90°. The two 1/4" BSP side ports face opposite directions: one male and one female.

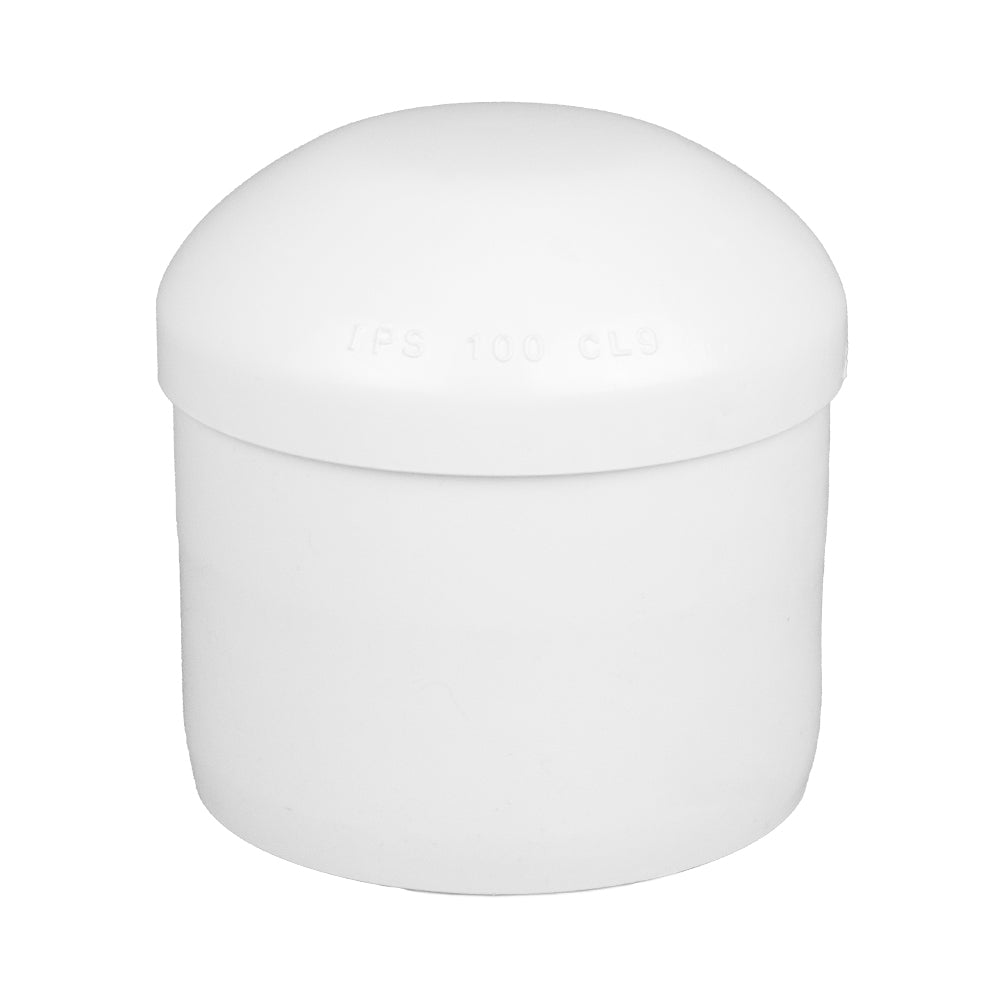

These PVC plugs fit inside the bottom of the bore casing, so they don’t stick out like a cap fitted over the pipe. This helps prevent the end from catching on the sides of the hole as the casing is lowered into the bore. Choose 100mm, 125mm or 150mm to suit Class 9–12 casing.
Sizes: 100mm, 125mm and 150mm.
The plug fits inside the casing rather than over its outside, maintaining a slim end profile for lowering. It also closes the bottom against material entering through the open end; water enters through the bore’s intended intake or screen section. Match the plug to the casing size and class.
BoreSaver Ultra C dissolves iron-oxide build-up and helps remove the associated bacterial slime from bores, pumps and pipework. It is used to rehabilitate an existing bore by loosening deposits so they can be flushed out, helping recover performance lost to iron build-up. This 10kg bucket contains the concentrated crystalline cleaner.
Iron-related bacteria can contribute to rusty, slimy deposits around bore screens and inside pumps and pipework, restricting water flow. Treatment dissolves the iron build-up and helps loosen the associated bacterial slime so it can be pumped out and flushed away.
The quantity needed depends on the bore’s internal diameter, the depth of water being treated and the amount of build-up. Select the treatment amount and method using the Australian application instructions.
Cleaning involves distributing the treatment through the affected area, allowing time for it to work, then pumping out the loosened material and flushing the system. The chosen method determines which parts of the bore and pump are reached.
Follow the product label, application instructions and current safety data sheet for handling, protective equipment and disposal of treatment water.
BoreSaver Ultra C Australian Application Instructions (2022)
