DAVEY XF221 TRANSFER PUMP 225 LPM 0.7KW

Single phase electric transfer pump for irrigation, aquaculture, washing systems and water transfer, with 225 LPM max flow, 1" BSP female inlet and 1" BSP male outlet.

✓ 225 LPM Maximum Flow
✓ 20m Maximum Total Head
✓ Single Phase 220–240V Operation
✓ 1" BSP Female Inlet
✓ 1" BSP Male Outlet
✓ Davey 2 Year Warranty

Davey XF Series Specifications
Davey XF Series Installation & User Manual

Product Descriptions
Product Specifications
Davey XF221 (225 LPM Max Flow, 0.7kW)
DAVEY XF221 TRANSFER PUMP 225 LPM 0.7KW
Davey XF171 (175 LPM Max Flow, 0.53kW)
Davey XF171 (175 LPM Max Flow, 0.53kW) PUDA71101
$620 /each
Davey XF192 (190 LPM Max Flow, 0.8kW)
Davey XF192 (190 LPM Max Flow, 0.8kW) PUDA71301
$984.31 /each
Davey XF221 (225 LPM Max Flow, 0.7kW)
Davey XF221 (225 LPM Max Flow, 0.7kW) PUDA71201
$772.93 /each

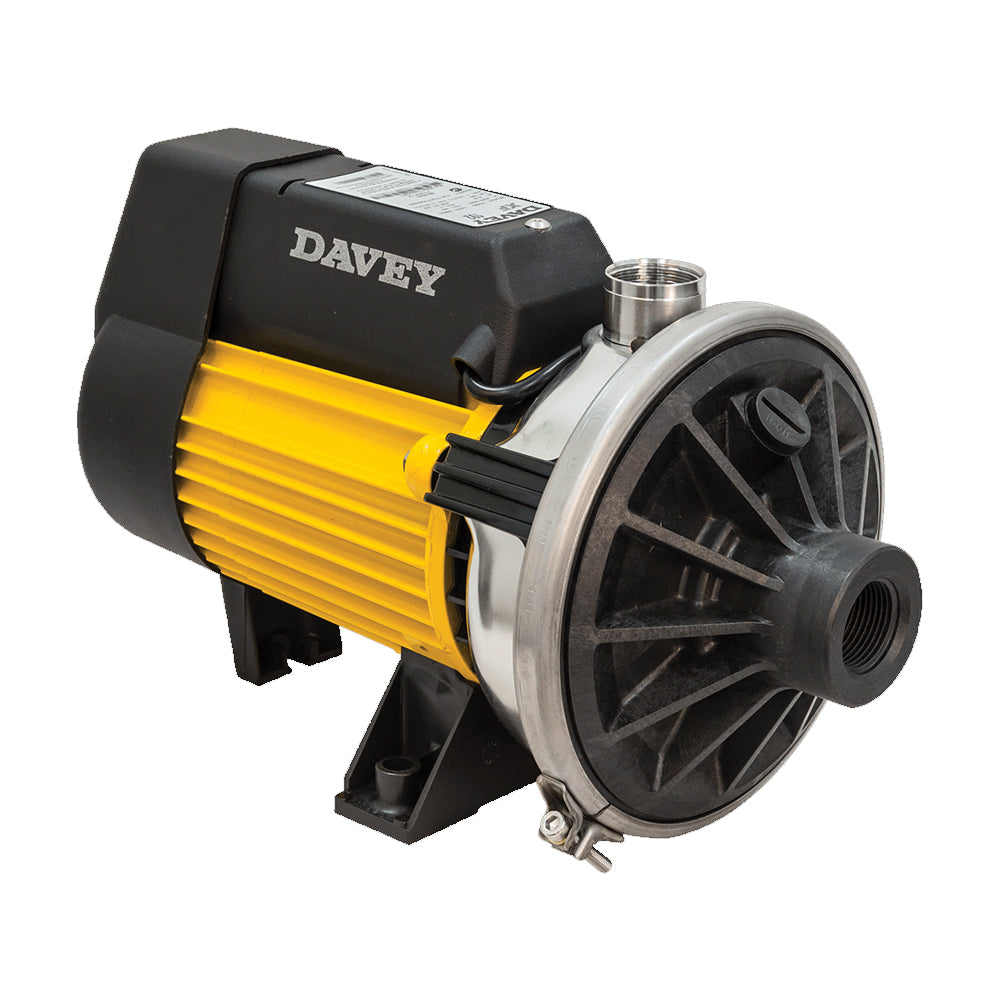

The Davey XF221 is a single phase single stage electric transfer pump designed for irrigation, aquaculture, water transfer, washing systems and hydroponics. It delivers flow rates up to 225 LPM with a maximum total head of 20m.

The XF221 includes a 1" BSP female inlet, 1" BSP male outlet and 0.7kW output motor. It is the highest flow model in the listed XF Series range, making it suitable for transfer applications requiring greater flow capacity.

The Davey manufactured TEFC IP55 motor includes in-built automatic-reset thermal overload protection and is supplied with a 2m power lead and Australian 10amp plug. XF Series pumps are suitable for clean, non-volatile liquids without fibres or solids.

Davey 2 Year Warranty

Davey XF Series Specifications
Davey XF Series Installation & User Manual

✓ Model
Davey XF221 transfer pump, part number 71201.

✓ Pump Type & Application
Single stage electric transfer pump suitable for irrigation, aquaculture, water transfer, washing systems and hydroponics.

✓ Phase
Single phase operation.

✓ Performance
Capacities up to 225 LPM with a maximum total head of 20m.

✓ Inlet Size
1" BSP female inlet.

✓ Outlet Size
1" BSP male outlet.

✓ Maximum Suction Head
7.5m maximum suction head.

✓ Power Details
220–240V ±6%, 50Hz single phase supply with 2,850 rpm speed, 1.05kW input power, 0.7kW output power, 4.5A full load current and 18.0A locked rotor current.

✓ Power Lead
2m power lead with Australian 10amp three pin plug.

✓ Motor Protection
TEFC IP55 motor with in-built automatic-reset thermal overload protection.

✓ Liquid Suitability
Suitable for clean, non-volatile liquids without fibres or solids.

✓ Water Temperature
Suitable for water temperatures from 1°C to 50°C.

✓ Maximum Ambient Temperature
50°C maximum ambient temperature.

✓ Priming
Pump body and suction line must be filled through the priming plug before operation.

✓ Installation Requirement
Installations with suction lift require a good quality foot valve to avoid loss of prime.

✓ Pump Casing
Glass filled Noryl pump casing.

✓ Impeller
Glass filled polycarbonate impeller.

✓ Shaft
304 stainless steel pump shaft.

✓ Seal
Ceramic stationary seal ring and carbon rotating seal ring.

✓ Net Weight
8.3kg net weight.

✓ Warranty
Davey 2 Year Warranty.
