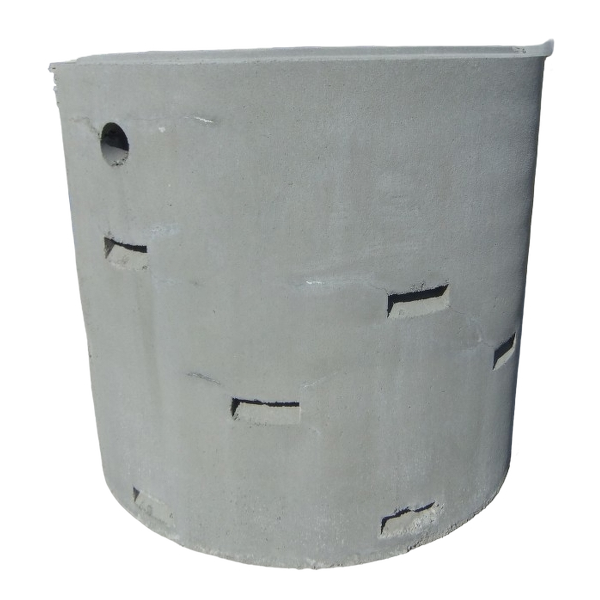

Concrete soakwells collect stormwater and allow it to disperse into the surrounding ground through round or louvre slots. The opening style depends on the soakwell size. Capacity is measured over the full internal height.
The interlocking spigot adds approximately 30mm to the listed depth. Wall thickness and lifting/piping-hole details vary by diameter. Select a compatible cover and base where required, and confirm the soakwell sizing and installation requirements for the site.
Concrete products are not stored in our Welshpool warehouse and require delivery/collection separate from other items. Delivery within the Perth Metro area is $297 including GST and generally takes up to a week after the order has been processed. During busy periods small orders of only one or two items may not be able to be delivered, and would require collection. Alternatively you may collect items from a separate yard in Maddington, provided you have a suitable vehicle for transport (trayback ute, trailer, or flatbed truck that can be loaded via forklift from above and rated for the required load).
Concrete 600mm Soakwell Specifications
Concrete 900mm Soakwell Specifications
Concrete 1200mm Soakwell Specifications
Concrete 1500mm Soakwell Specifications
Concrete 1800mm Soakwell Specifications

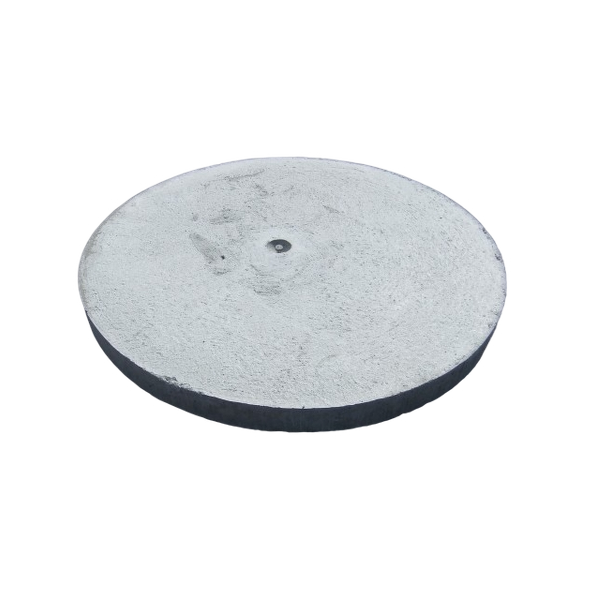

One-piece concrete solid covers close the top of compatible concrete tanks and soakwells. Standard covers are suitable for pedestrian use only. Heavy duty covers have a Class D, 8 tonne wheel load rating.
The nominal tank size identifies the tank the cover suits; the outside diameter is the actual width of the cover. Both measurements matter when matching a replacement cover. Cover thickness, lifting-point arrangement and approximate weight vary by size and duty; refer to the Specifications tab and matching specification sheet.
Concrete products are not stored in our Welshpool warehouse and require delivery/collection separate from other items. Delivery within the Perth Metro area is $297 including GST and generally takes up to a week after the order has been processed. During busy periods small orders of only one or two items may not be able to be delivered, and would require collection. Alternatively you may collect items from a separate yard in Maddington, provided you have a suitable vehicle for transport (trayback ute, trailer, or flatbed truck that can be loaded via forklift from above and rated for the required load).
Concrete Standard Cover Specifications
Concrete Heavy Duty Cover Specifications

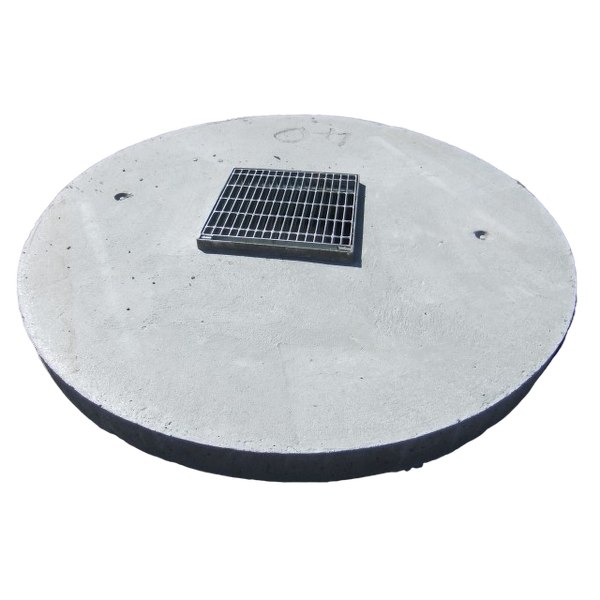

Concrete grated covers provide surface drainage into compatible tanks, soakwells and access openings. The galvanised square grate can sit flush with the concrete cover or be raised by 40mm or 100mm. These covers have a Class C, 5 tonne wheel load rating.
Match the cover to the tank size and outside diameter, then choose the grate height to suit the surface level. Grate/frame dimensions, clear opening dimensions and approximate weight vary by size and style. Refer to the Specifications tab and the matching flush or raised-cover specification sheet.
Concrete products are not stored in our Welshpool warehouse and require delivery/collection separate from other items. Delivery within the Perth Metro area is $297 including GST and generally takes up to a week after the order has been processed. During busy periods small orders of only one or two items may not be able to be delivered, and would require collection. Alternatively you may collect items from a separate yard in Maddington, provided you have a suitable vehicle for transport (trayback ute, trailer, or flatbed truck that can be loaded via forklift from above and rated for the required load).
Concrete Flush Grated Cover Specifications
Concrete Raised Grate Cover Specifications

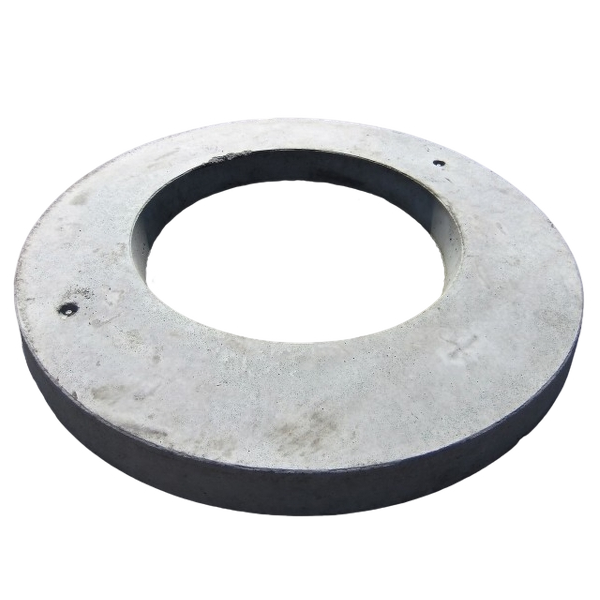

Concrete footing rings provide a supporting base section for compatible soakwells and liners. The large central opening allows drainage through the base.
Match the nominal tank size, ring outside diameter and central hole diameter to the soakwell or liner. These rings have an open centre and do not form a sealed base. Thickness and approximate weight vary by size.
For other available hole sizes, please contact us.
Concrete products are not stored in our Welshpool warehouse and require delivery/collection separate from other items. Delivery within the Perth Metro area is $297 including GST and generally takes up to a week after the order has been processed. During busy periods small orders of only one or two items may not be able to be delivered, and would require collection. Alternatively you may collect items from a separate yard in Maddington, provided you have a suitable vehicle for transport (trayback ute, trailer, or flatbed truck that can be loaded via forklift from above and rated for the required load).
Concrete septic tanks with cast-in bases are supplied as individual tanks or selected two-tank sets. The 1200mm tank has a listed capacity of 1269L and the 1500mm tank has a listed capacity of 1970L. Use the stated septic tank capacity when selecting a system; it is not the full-height storage capacity used for soakwells and liners.
Two-tank sets are available with standard non-traffic split covers or Class C split covers rated for a 5 tonne wheel load. Inlet and outlet heights, tank depth and approximate weight depend on the tank and cover selection.
Confirm system sizing, site suitability and local council approval requirements before ordering.
Concrete products are not stored in our Welshpool warehouse and require delivery/collection separate from other items. Delivery within the Perth Metro area is $297 including GST and generally takes up to a week after the order has been processed. During busy periods small orders of only one or two items may not be able to be delivered, and would require collection. Alternatively you may collect items from a separate yard in Maddington, provided you have a suitable vehicle for transport (trayback ute, trailer, or flatbed truck that can be loaded via forklift from above and rated for the required load).

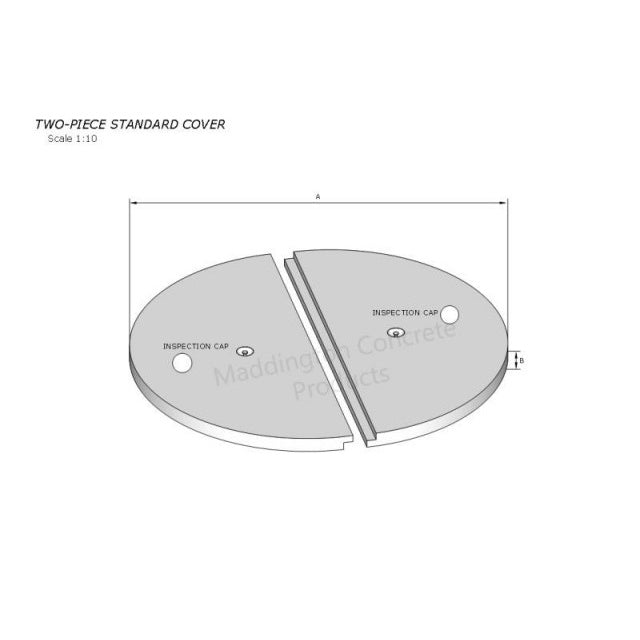

Concrete septic tank covers close off compatible septic tanks and tank access openings. The two-piece split covers are available in standard non-traffic and heavy duty Class C versions.
Standard covers are 70mm thick and suitable for pedestrian use only. Heavy duty covers are 150mm thick with a Class C, 5 tonne wheel load rating. Choose the cover by the tank size it suits and its outside diameter, then confirm the traffic requirements and tank compatibility.
Cover weights are stated per piece, rather than for the complete two-piece cover. Check the Specifications tab and the matching specification sheet for thickness, lifting points and approximate weight. Suitable lifting equipment and access for unloading are required.
Concrete products are not stored in our Welshpool warehouse and require delivery/collection separate from other items. Delivery within the Perth Metro area is $297 including GST and generally takes up to a week after the order has been processed. During busy periods small orders of only one or two items may not be able to be delivered, and would require collection. Alternatively you may collect items from a separate yard in Maddington, provided you have a suitable vehicle for transport (trayback ute, trailer, or flatbed truck that can be loaded via forklift from above and rated for the required load).
Concrete Standard Septic Cover Specifications
Concrete Heavy Duty Septic Cover Specifications

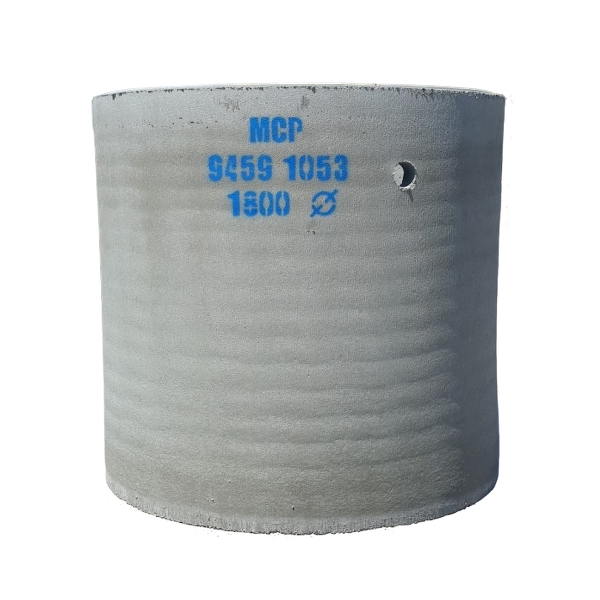

Concrete liners form the walls of drainage and silt pits. Internal diameter and height determine the pit size; listed capacities are measured over the full internal height. The interlocking design has a spigot of approximately 30mm in addition to the listed depth.
Piping openings and lifting arrangements vary by liner diameter. The 1050mm liners also have holes for bolt-on step irons. Refer to the Specifications tab for size-specific details.
Concrete products are not stored in our Welshpool warehouse and require delivery/collection separate from other items. Delivery within the Perth Metro area is $297 including GST and generally takes up to a week after the order has been processed. During busy periods small orders of only one or two items may not be able to be delivered, and would require collection. Alternatively you may collect items from a separate yard in Maddington, provided you have a suitable vehicle for transport (trayback ute, trailer, or flatbed truck that can be loaded via forklift from above and rated for the required load).
Concrete 900mm Liner Specification
Concrete 1050mm Liner Specifications
Concrete 1200mm Liner Specifications
Concrete 1500mm Liner Specifications
Concrete 1800mm Liner Specifications

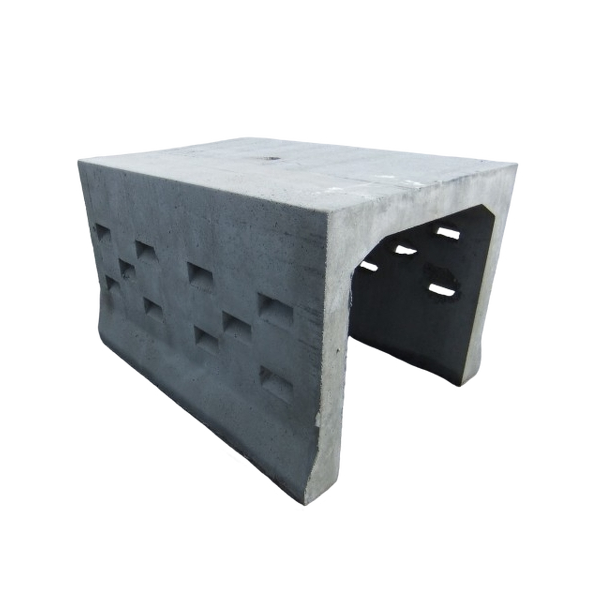

Concrete leach drain modules distribute effluent into a suitable leach drain area as part of an onsite wastewater disposal system. Each non-traffic module is 1200mm long. Its overall dimensions are 850mm wide and 685mm high. The internal width is 630mm.
End sections are sold individually. Order two ends to receive one blank end and one end with an outlet opening. The outlet end has a 120mm hole approximately 90mm from the top; the blank end has no hole. Each end weighs approximately 50kg. See the Specifications tab for dimensions.
Confirm system sizing, site suitability and local council approval requirements before ordering.
