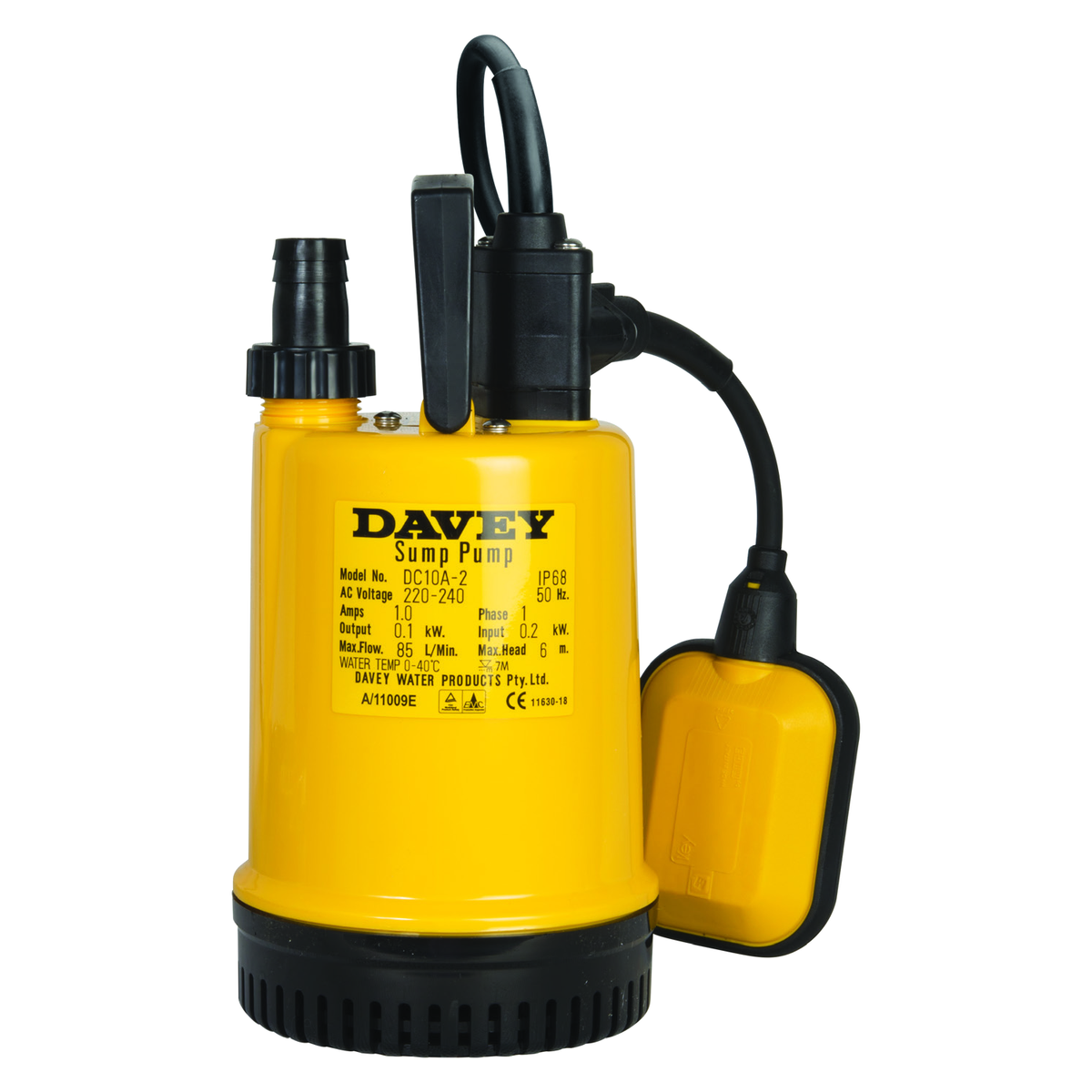

Davey DC10A and DC10M pumps handle clean-water sump emptying, water transfer and emergency flood relief, with a maximum flow of 80L/min and maximum total head of 6m. Actual flow depends on lift and pipe resistance; refer to the performance curve to assess expected flow. They also suit domestic fountains and waterfalls that are not used for fish or aquaculture. The DC10A has a preset-length float switch for automatic water-level control. The DC10M is supplied without a float switch and needs manual switching or a separately installed level controller. Performance is 40L/min at approximately 3.5m head.
Both models have a 25mm (1") BSP male thread outlet and can pump neutral-pH clean water containing up to 10% small soft organic solids below 4mm diameter. They are not intended for sewage, abrasive sand or grit, fishponds or aquaculture.
The 100W motor operates on 220-240V single-phase, 50Hz power and has automatic-reset thermal overload protection. Both models have a 10m oil-resistant lead with a 3-pin plug.
For a 10m lead, use a maximum installation submergence of 7m. Position the pump upright on a firm base, clear of silt, and use a rope attached to the handle for lifting. Allow the DC10A float to move freely. Switch the DC10M off when the water level falls to the top of the pump housing, unless a suitable external level controller performs this function.
The double casing directs pumped water around the motor shell before it leaves the outlet, providing cooling when the pump is only partially submerged. This makes the pumps useful in shallow pits where the water level falls below the top of the motor during pumping. The pump must still have water available at the inlet and must not run dry.
An ABS outer casing, strainer and handle surround a 304 stainless steel motor shell. The pump casing is glass-filled ABS and the impeller is polycarbonate. A silicon carbide/ceramic mechanical shaft seal operates in a captive oil bath, with an oil seal and sand-slinger lip seal providing additional protection.
The DC10A and DC10M carry a two-year Davey warranty, subject to the manufacturer conditions.
Davey DC10 Submersible Pump Specifications
Davey Sump Pumps Installation & Operating Instructions

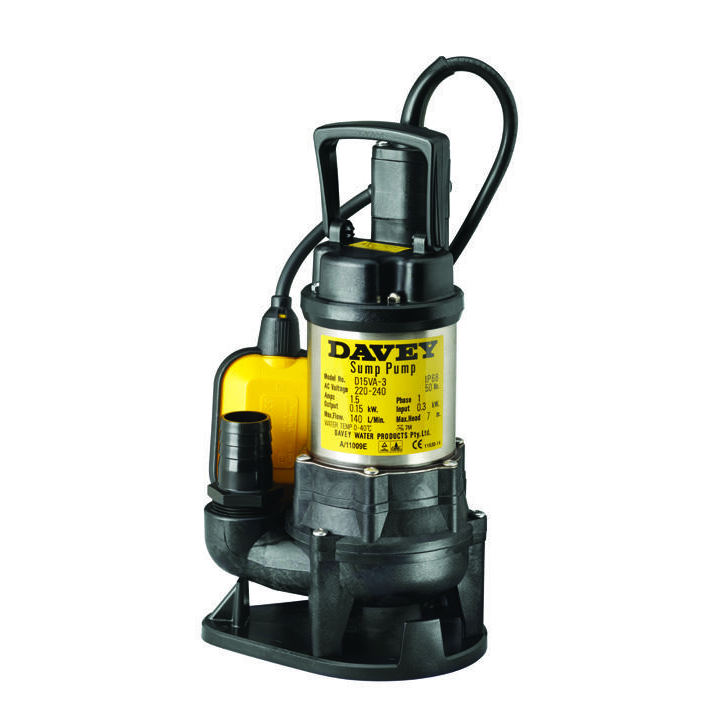

The Davey D15VA pumps clean or grey water from sumps, drainage pits and water-transfer systems, with a maximum flow of 140L/min and maximum head of 7m. Actual flow depends on lift and pipe resistance; refer to the performance curve to assess expected flow. It can also handle septic effluent and light waste streams within its fluid and solids limits. The fitted float switch turns the pump on as the water rises and off as the level falls. Performance is 100L/min at approximately 3.9m head.
The discharge connection is 32mm (1 1/4") BSP female thread. A semi-vortex, open impeller moves water containing small soft solids. A recirculation port agitates soft material in the sump to help it pass through the pump. The D15VA handles soft solids up to 20mm diameter and suits neutral-pH water containing up to 10% small soft solids or 1% fine solids.
The 150W motor operates on a 220-240V single-phase, 50Hz supply and has automatic-reset thermal overload protection. A 10m oil-resistant lead and 3-pin plug are supplied.
For the supplied 10m lead, maximum installation submergence is 7m. Install the pump upright on a firm base, clear of settled silt, and allow the float switch to move freely. Lift it by the handle using a rope, rather than the power cable. Do not run it dry or use it for abrasive sand, grit, stones or pool and spa circulation.
The polycarbonate impeller and glass-filled polycarbonate pump casing are paired with a 304 stainless steel motor shell, shaft, handle and fasteners. A single silicon carbide/ceramic mechanical seal operates in an oil bath, with a sand-slinger lip seal providing additional protection.
The D15VA carries a two-year Davey warranty, subject to the manufacturer's conditions.
Davey D15VA Submersible Pump Specifications
Davey Sump Pumps Installation & Operating Instructions

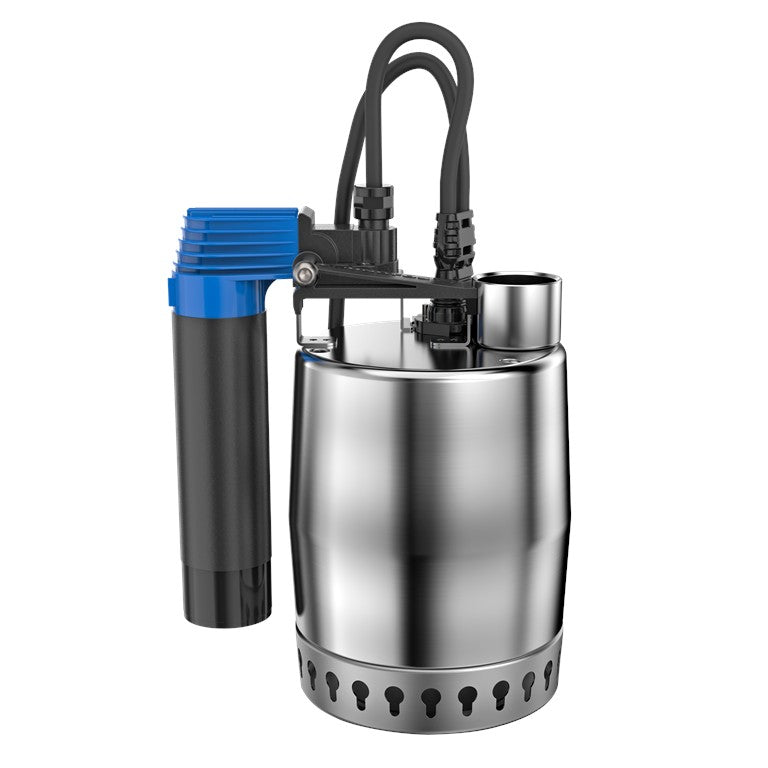

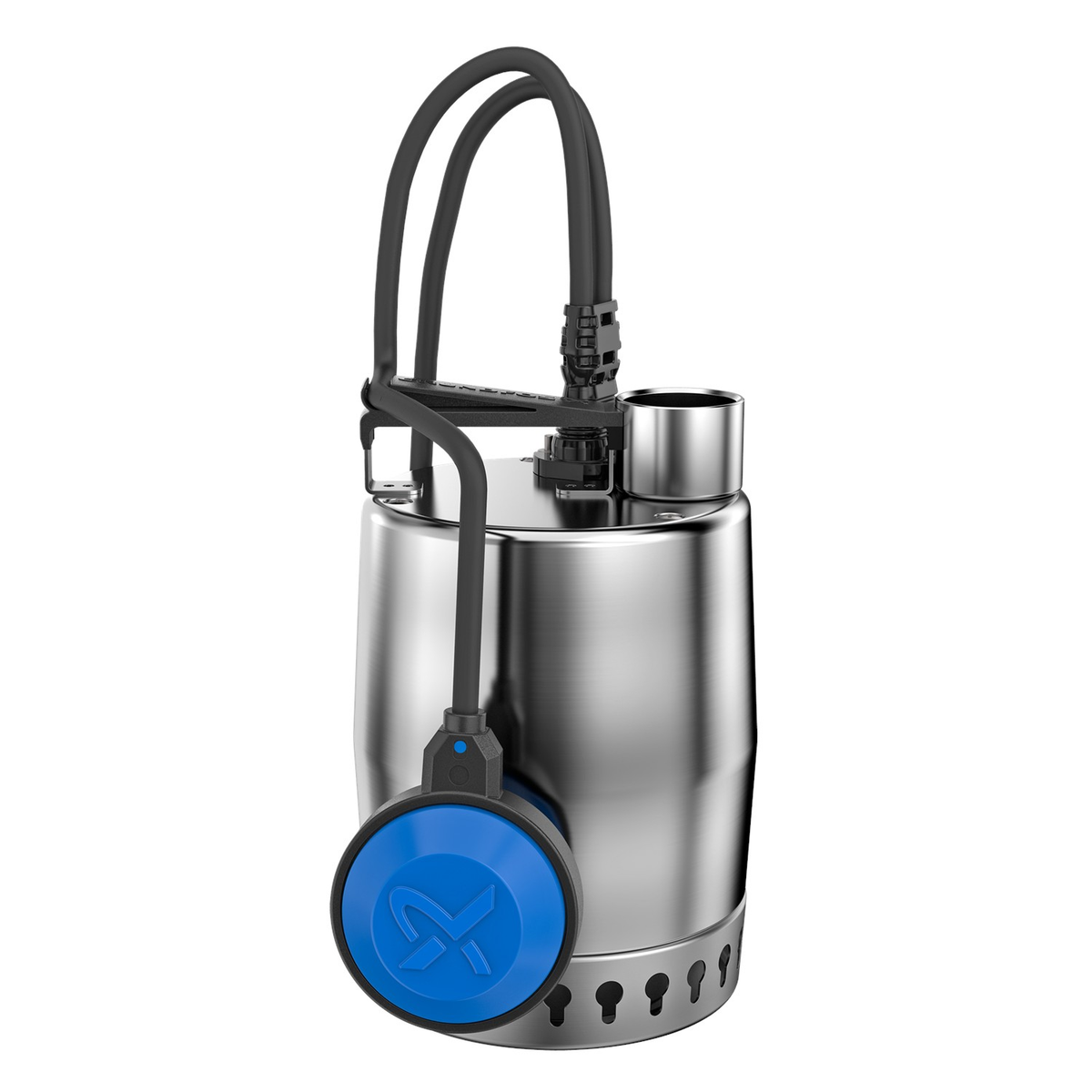

Grundfos UNILIFT KP150 pumps suit rainwater, groundwater and suitable non-aggressive grey-water drainage, with a maximum flow of 141.6L/min and maximum head of 5.5m. These are separate limits. Actual flow depends on lift and pipe resistance; the 50Hz performance curve helps assess expected flow for the installation. Performance is 66.7L/min at approximately 4.6m head.
The outlet is 32mm (1 1/4") Rp / BSP female thread. Maximum particle diameter is 10mm. Suitable for water containing small amounts of suspended solids. A and M versions suit appropriate grey-water duties; AV vertical-switch versions are intended for clean water. They are not sewage pumps and are unsuitable for long fibres, stones, abrasive solids or aggressive and flammable liquids.
The A version uses a tethered float to start and stop automatically as the water level changes. It needs room for the float to move freely. The M version has no level switch and requires supervised operation. The AV version uses a vertical level switch with fixed start and stop levels, making it suitable for smaller clean-water pits.
Allow a minimum pit width of 350mm and height of 400mm for the A version at the minimum free float-cable setting. The AV version requires a minimum pit diameter of 250mm and height of 400mm and must be installed upright. With the supplied 5m cable, maximum installation submergence is 2m. Keep at least 3m of cable above liquid level.
The pump uses a 220-240V single-phase, 50Hz supply and comes with a 5m cable and Australian plug. Suitable liquid temperature is 0-50°C and pH is 4-9. Internal thermal overload protection stops the motor if it overheats and resets after cooling. Keep the inlet covered during pumping and do not run dry.
The stainless-steel housing and semi-open stainless-steel impeller provide a compact, corrosion-resistant drainage pump. Pumped liquid flows through a cooling jacket around the motor, helping cool it during partly submerged operation. Two lip seals with grease between them seal the shaft.
Two-year manufacturer warranty, subject to Grundfos warranty terms and applicable consumer rights.
Grundfos UNILIFT KP Official 50Hz Performance Curve
KP Installation & Operating Instructions
Grundfos UNILIFT KP250 pumps suit rainwater, groundwater and suitable non-aggressive grey-water drainage, with a maximum flow of 186.6L/min and maximum head of 7.5m. These are separate limits. Actual flow depends on lift and pipe resistance; the 50Hz performance curve helps assess expected flow for the installation. Performance is 66.7L/min at approximately 6.8m head.
The outlet is 32mm (1 1/4") Rp / BSP female thread. Maximum particle diameter is 10mm. Suitable for water containing small amounts of suspended solids. A and M versions suit appropriate grey-water duties; AV vertical-switch versions are intended for clean water. They are not sewage pumps and are unsuitable for long fibres, stones, abrasive solids or aggressive and flammable liquids.
The A version uses a tethered float to start and stop automatically as the water level changes. It needs room for the float to move freely. The M version has no level switch and requires supervised operation. The AV version uses a vertical level switch with fixed start and stop levels, making it suitable for smaller clean-water pits.
Allow a minimum pit width of 350mm and height of 400mm for the A version at the minimum free float-cable setting. The AV version requires a minimum pit diameter of 250mm and height of 400mm and must be installed upright. With the supplied 5m cable, maximum installation submergence is 2m. Keep at least 3m of cable above liquid level.
The pump uses a 220-240V single-phase, 50Hz supply and comes with a 5m cable and Australian plug. Suitable liquid temperature is 0-50°C and pH is 4-9. Internal thermal overload protection stops the motor if it overheats and resets after cooling. Keep the inlet covered during pumping and do not run dry.
The stainless-steel housing and semi-open stainless-steel impeller provide a compact, corrosion-resistant drainage pump. Pumped liquid flows through a cooling jacket around the motor, helping cool it during partly submerged operation. Two lip seals with grease between them seal the shaft.
Two-year manufacturer warranty, subject to Grundfos warranty terms and applicable consumer rights.
Grundfos UNILIFT KP Official 50Hz Performance Curve
KP Installation & Operating Instructions
Grundfos UNILIFT KP350 pumps suit rainwater, groundwater and suitable non-aggressive grey-water drainage, with a maximum flow of 233.4L/min and maximum head of 9m. These are separate limits. Actual flow depends on lift and pipe resistance; the 50Hz performance curve helps assess expected flow for the installation. Performance is 66.7L/min at approximately 8m head.
The outlet is 32mm (1 1/4") Rp / BSP female thread. Maximum particle diameter is 10mm. Suitable for water containing small amounts of suspended solids. A and M versions suit appropriate grey-water duties; AV vertical-switch versions are intended for clean water. They are not sewage pumps and are unsuitable for long fibres, stones, abrasive solids or aggressive and flammable liquids.
The A version uses a tethered float to start and stop automatically as the water level changes. It needs room for the float to move freely. The M version has no level switch and requires supervised operation. The AV version uses a vertical level switch with fixed start and stop levels, making it suitable for smaller clean-water pits.
Allow a minimum pit width of 350mm and height of 400mm for the A version at the minimum free float-cable setting. The AV version requires a minimum pit diameter of 250mm and height of 400mm and must be installed upright. With the supplied 5m cable, maximum installation submergence is 2m. Keep at least 3m of cable above liquid level.
The pump uses a 220-240V single-phase, 50Hz supply and comes with a 5m cable and Australian plug. Suitable liquid temperature is 0-40°C and pH is 4-9. Internal thermal overload protection stops the motor if it overheats and resets after cooling. Keep the inlet covered during pumping and do not run dry.
The stainless-steel housing and semi-open stainless-steel impeller provide a compact, corrosion-resistant drainage pump. Pumped liquid flows through a cooling jacket around the motor, helping cool it during partly submerged operation. Two lip seals with grease between them seal the shaft.
Two-year manufacturer warranty, subject to Grundfos warranty terms and applicable consumer rights.
Grundfos UNILIFT KP Official 50Hz Performance Curve
KP Installation & Operating Instructions

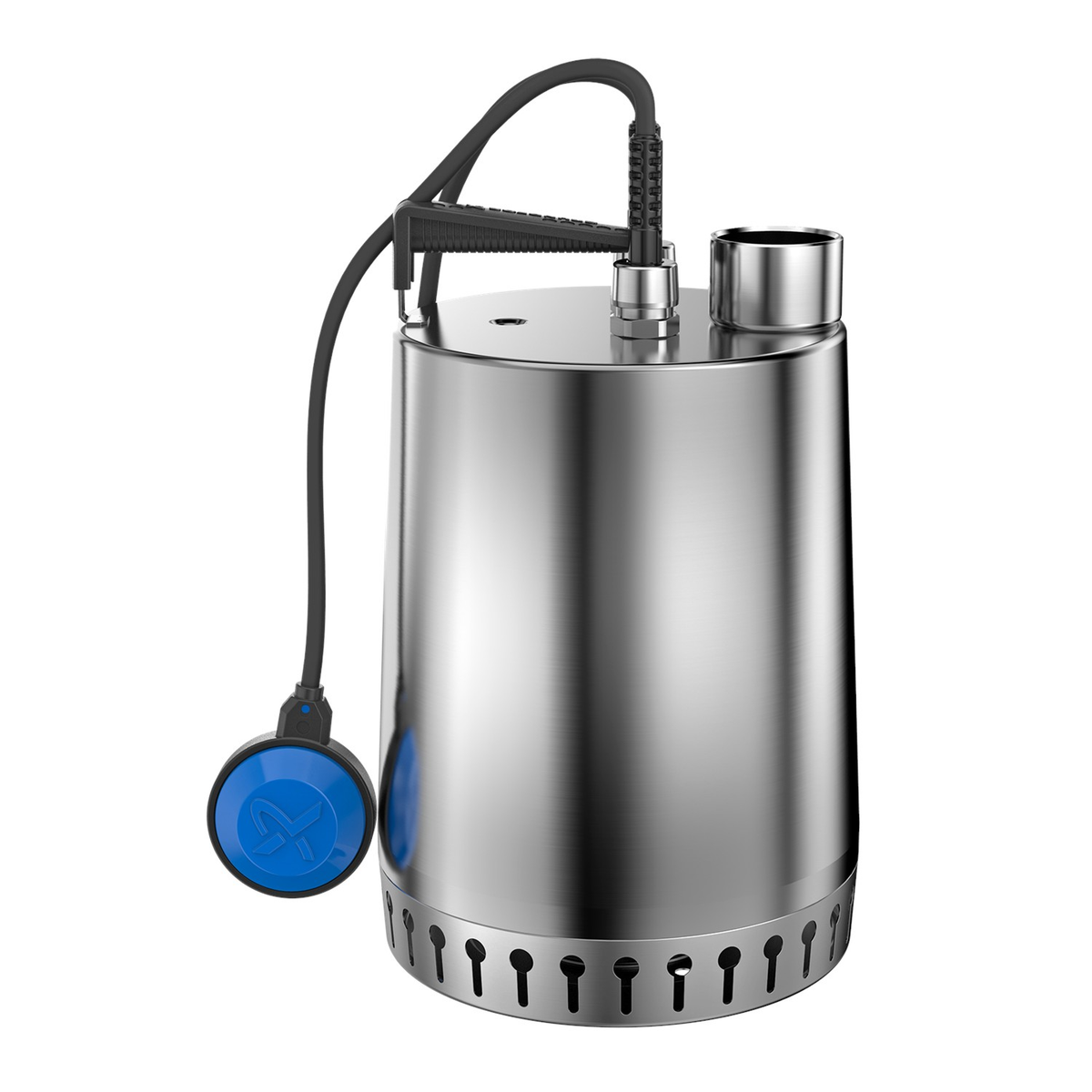

Grundfos UNILIFT AP12 pumps suit rainwater, groundwater and suitable non-aggressive grey-water drainage. The models have maximum flow ratings from 233.4 to 533.4L/min and maximum head ratings from 10 to 18m, depending on the motor version. Maximum flow and maximum head are separate limits. Actual flow depends on lift and pipe resistance; the matching 50Hz performance curve helps assess expected flow for the installation. Performance is 120L/min at approximately 7.9-14.8m head, depending on model.
AP12.40 models have a 40mm (1 1/2") Rp / BSP female thread outlet; AP12.50 models have a 50mm (2") Rp / BSP female thread outlet. Maximum particle diameter is 12mm. The pumps suit water containing small amounts of suspended solids, but not sewage, long fibres, stones or aggressive and flammable liquids.
Single-phase A models have a tethered float switch that starts and stops the pump as the water level changes. Three-phase A models are supplied with a separate float switch and a control box containing the motor starter and overload protection for automatic start/stop. No-float versions have no automatic low-water stop and need supervised operation or suitable external level control.
For a permanent float-switch installation, allow a minimum pit diameter of 550mm and depth of 600mm at the minimum free float-cable setting. The float must move freely. Maximum installation depth is 7m with the 10m cable. Keep at least 3m of cable above liquid level. Install on a firm base clear of sludge and mud. Keep the inlet strainer covered during pumping and do not run dry.
Single-phase models use 220-240V, 50Hz and have an Australian plug and internal thermal overload protection, which resets after cooling. Three-phase models use 400V, 50Hz and have no plug. Three-phase A models include motor starter and overload protection in the supplied control box. Three-phase no-float models require a separately provided motor starter and motor protection matched to the nameplate current.
Suitable liquid temperature is 0-55°C and pH is 4-10. The pump can operate upright or horizontally with its outlet at the highest point. For permanent installations, Grundfos recommends a union, non-return valve and isolating valve in the outlet pipe. Lift the pump by its handle.
The stainless-steel housing and semi-open stainless-steel impeller provide a compact drainage pump for portable or permanent use. A cooling jacket directs pumped liquid around the motor, supporting partly submerged operation while the inlet strainer remains covered. The removable inlet strainer gives access for cleaning.
Two-year manufacturer warranty, subject to Grundfos warranty terms and applicable consumer rights.
Grundfos UNILIFT AP12 Official Range Catalogue
AP Installation & Operating Instructions
AP Three-Phase Control Box Instructions

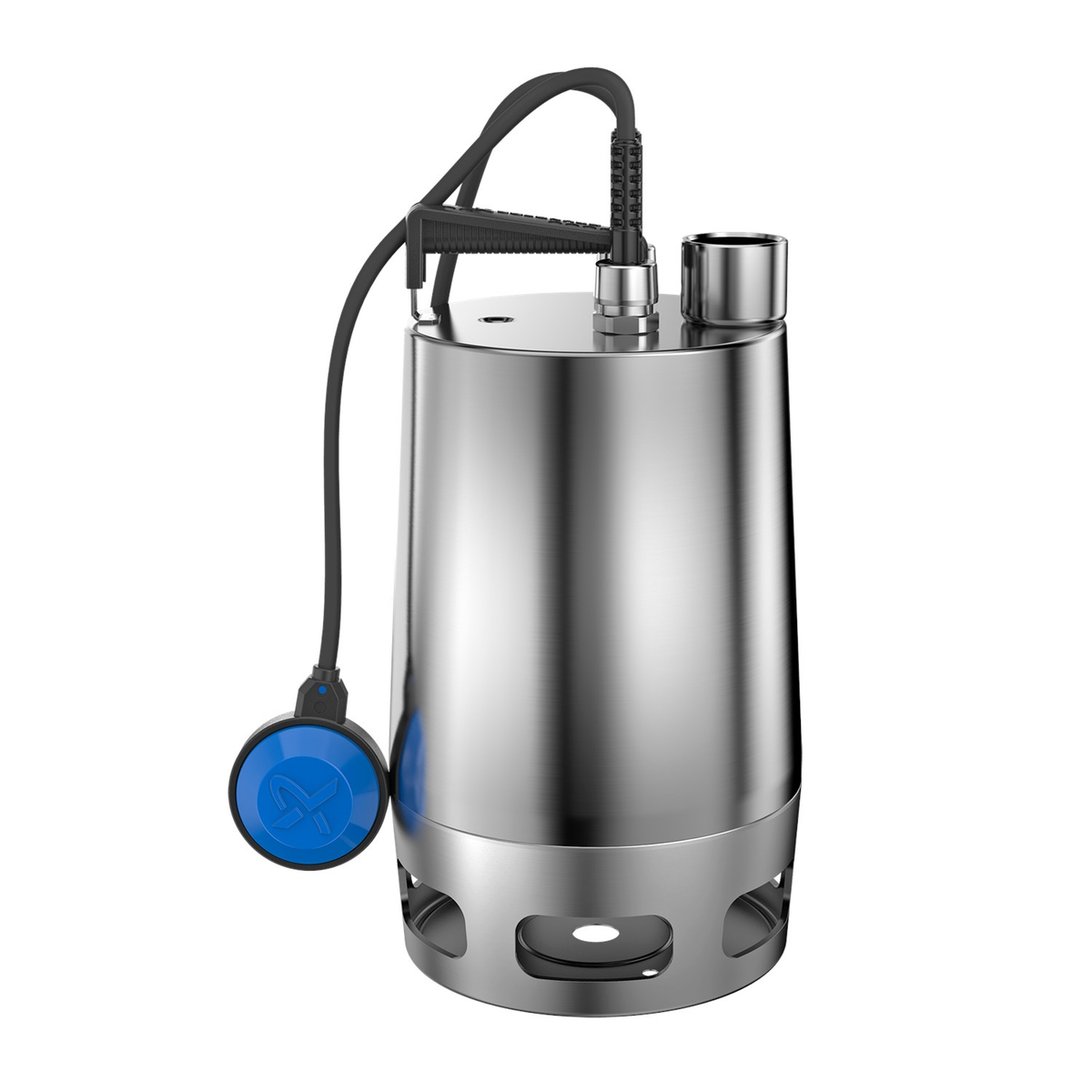

Grundfos UNILIFT AP35 and AP35B pumps handle dirty stormwater, groundwater and suitable non-aggressive wastewater. AP35 models have maximum flows of 250.2-300L/min and maximum heads of 10-11m; AP35B models have maximum flows of 300-349.8L/min and maximum heads of 11-13m. Maximum flow and maximum head are separate limits. Actual flow depends on lift and pipe resistance; use the matching 50Hz performance curve to assess expected flow. Performance is 100L/min at approximately 7.1-9.3m head, depending on model.
AP35 has a vertical 40mm (1 1/2") Rp / BSP female thread outlet; AP35B has a horizontal 50mm (2") Rp / BSP female thread outlet. Both pass spherical particles up to 35mm and suit water containing small amounts of suspended solids. Neither design is suitable for stones, long fibres, aggressive or flammable liquids.
Both designs suit collecting pits, dirty stormwater, suitable laundry and bathroom wastewater, and suitable septic-system effluent, excluding sewage and toilet discharge.
All four stocked models include a tethered float switch for automatic start/stop, a 10m cable and an Australian plug. They use 220-240V single-phase, 50Hz power. Internal thermal overload protection resets after cooling; no separate motor-protection control box is needed. Keep each float free to move and set it for the chosen design’s operating requirements.
AP35 has a motor cooling jacket supporting continuous running without scheduled cooling rests while partly submerged, provided the entire inlet strainer remains submerged in the liquid being pumped. Do not run dry.
AP35B requires the motor and pump inlet to remain completely submerged for continuous running. For intermittent pumping with cooling rests, keep at least half the motor submerged and follow the manual limit of maximum 5 minutes running per 30 minutes when the motor is not fully submerged. Set the float stop level to maintain the submergence required for the duty.
Both designs can stand on a firm base clear of sludge and mud. AP35B also supports an optional auto-coupling system for permanent installations; the coupling equipment is not supplied. Allow a minimum pit diameter of 550mm and depth of 600mm at the minimum free float-cable setting. Maximum installation depth is 7m with the 10m cable, leaving at least 3m of cable above liquid level. Lift by the handle. A union, non-return valve and isolating valve are recommended for permanent outlet pipework.
AP35 permits liquids at 0-55°C; AP35B permits 0-40°C. Both specify pH 4-10. The pump housings and vortex impellers are AISI 304 stainless steel. The Basic design has a composite ring stand and housing clips for access during cleaning.
Two-year manufacturer warranty, subject to Grundfos warranty terms and applicable consumer rights.
UNILIFT AP35 / AP50 Official Technical Data
UNILIFT AP35B / AP50B Official Technical Data
UNILIFT AP Installation & Operating Instructions
UNILIFT AP35B / AP50B Installation & Operating Instructions

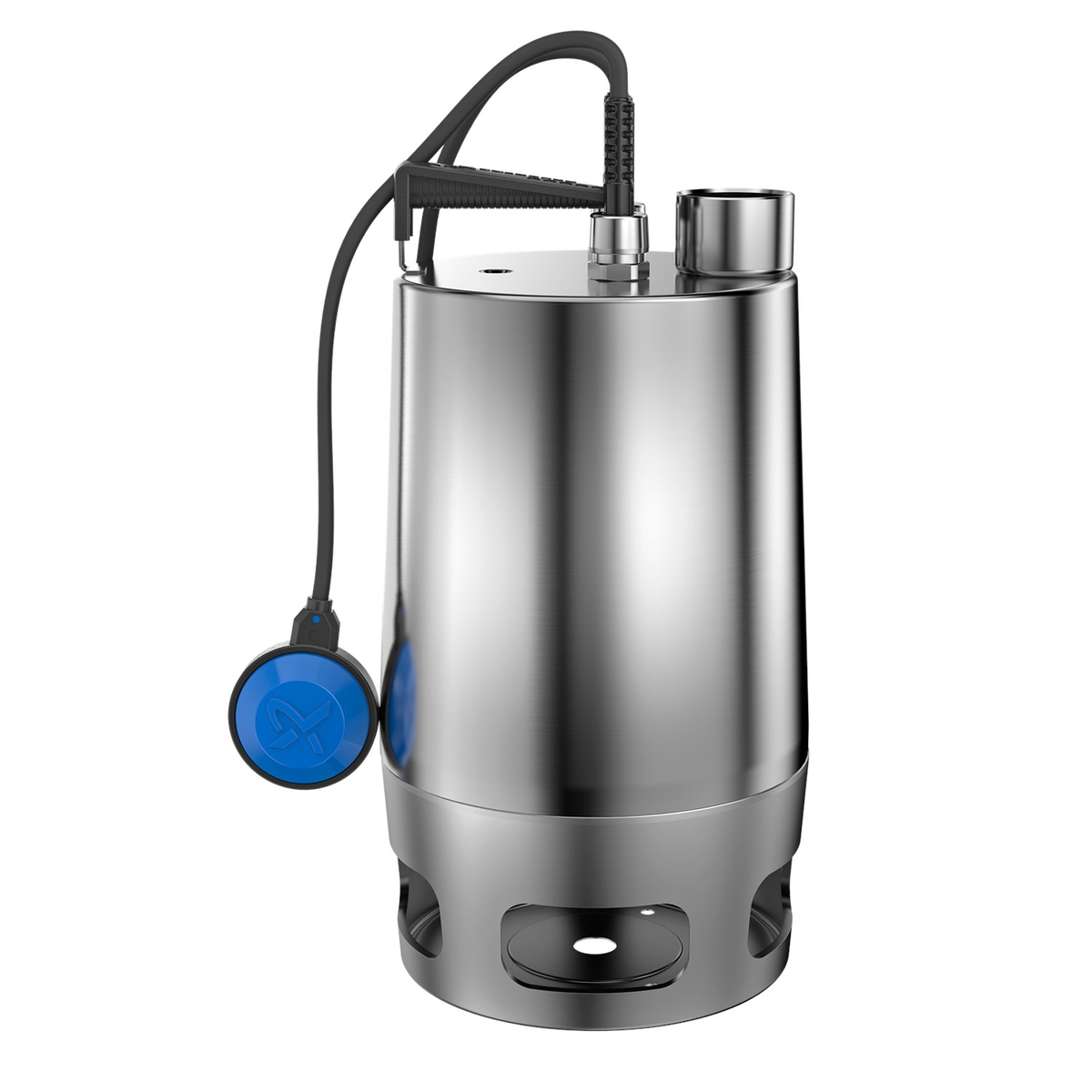

Grundfos UNILIFT AP50 and AP50B pumps handle dirty stormwater, groundwater and suitable non-aggressive wastewater. AP50 models have maximum flows of 416.4-499.8L/min and maximum heads of 9-12m; AP50B models have maximum flows of 400.2-466.8L/min and maximum heads of 11-14m. Maximum flow and maximum head are separate limits. Actual flow depends on lift and pipe resistance; use the matching 50Hz performance curve to assess expected flow. Performance is 200L/min at approximately 6.1-9.5m head, depending on model.
Both designs have a 50mm (2") Rp / BSP female thread outlet: vertical on AP50 and horizontal on AP50B. Both pass spherical particles up to 50mm and suit water containing small amounts of suspended solids. Neither design is suitable for stones, long fibres, aggressive or flammable liquids.
Both designs suit collecting pits, dirty stormwater and suitable domestic wastewater. AP50 excludes sewage and toilet discharge under its installation manual. The AP50B manual permits toilet-discharge use only where local regulations allow a 50mm free-passage vortex pump.
All four stocked models include a tethered float switch for automatic start/stop, a 10m cable and an Australian plug. They use 220-240V single-phase, 50Hz power. Internal thermal overload protection resets after cooling; no separate motor-protection control box is needed. Keep each float free to move and set it for the chosen design’s operating requirements.
AP50 has a motor cooling jacket supporting continuous running without scheduled cooling rests while partly submerged, provided the entire inlet strainer remains submerged in the liquid being pumped. Do not run dry.
AP50B requires the motor and pump inlet to remain completely submerged for continuous running. For intermittent pumping with cooling rests, keep at least half the motor submerged and follow the manual limit of maximum 5 minutes running per 30 minutes when the motor is not fully submerged. Set the float stop level to maintain the submergence required for the duty.
Both designs can stand on a firm base clear of sludge and mud. AP50B also supports an optional auto-coupling system for permanent installations; the coupling equipment is not supplied. Allow a minimum pit diameter of 550mm and depth of 600mm at the minimum free float-cable setting. Maximum installation depth is 7m with the 10m cable, leaving at least 3m of cable above liquid level. Lift by the handle. A union, non-return valve and isolating valve are recommended for permanent outlet pipework.
AP50 permits liquids at 0-55°C; AP50B permits 0-40°C. Both specify pH 4-10. The pump housings and vortex impellers are AISI 304 stainless steel. The Basic design has a composite ring stand and housing clips for access during cleaning.
Two-year manufacturer warranty, subject to Grundfos warranty terms and applicable consumer rights.
UNILIFT AP35 / AP50 Official Technical Data
UNILIFT AP35B / AP50B Official Technical Data
UNILIFT AP Installation & Operating Instructions
UNILIFT AP35B / AP50B Installation & Operating Instructions

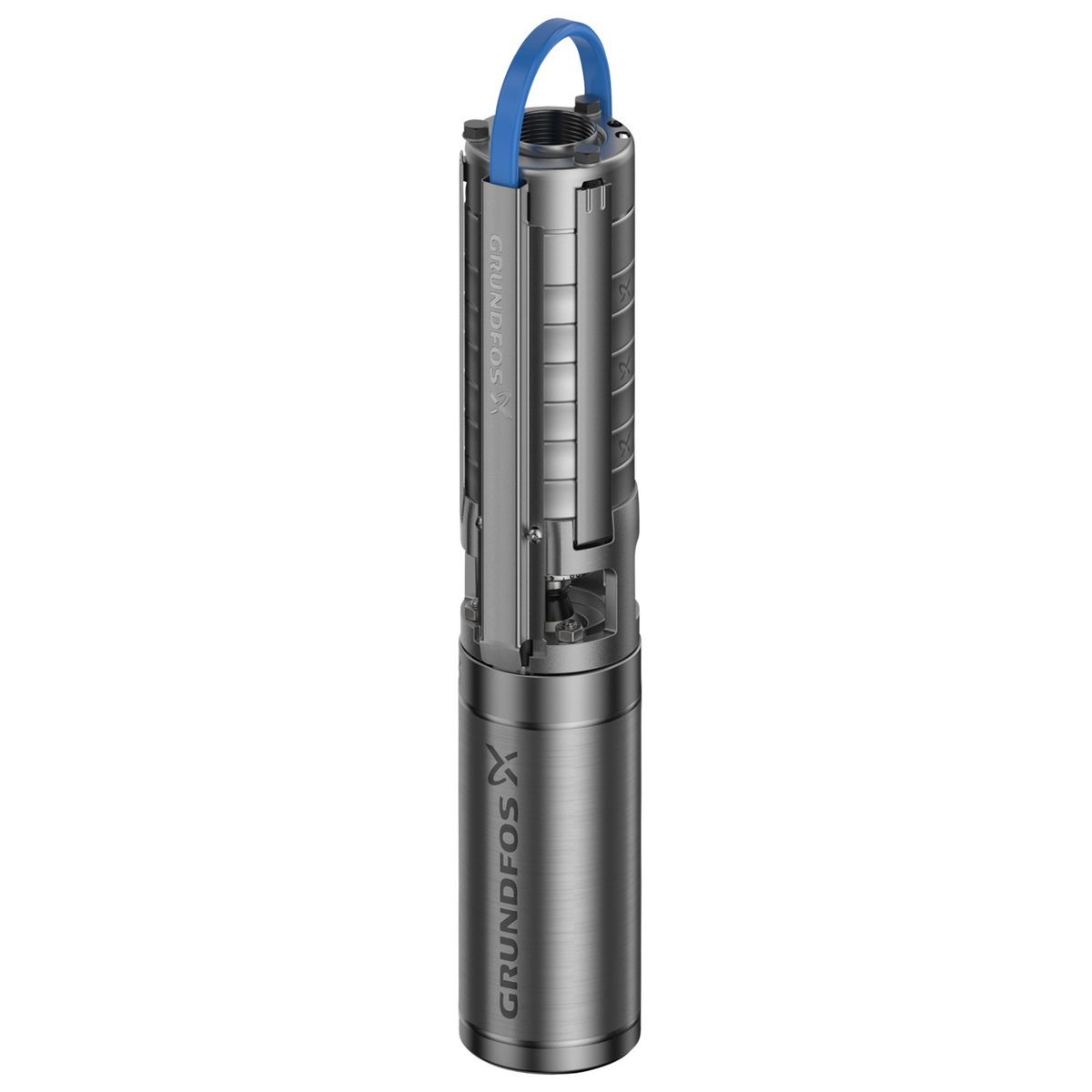

Grundfos SP 1A pumps supply clean groundwater for domestic water systems, irrigation and pressure boosting. Rated flow is 1m3/h (16.7L/min), with rated heads from 35m to 199m across these models. Each head rating is stated at that same rated flow; actual flow depends on pumping lift, required outlet pressure and pipe resistance. Use the matching 50Hz curve to assess expected flow for the installation.
The outlet is 32mm (1 1/4") Rp / BSP female thread. These pumps handle clean, thin, non-aggressive water with a maximum sand content of 50g/m3. They are not sewage or solids-handling drainage pumps. A built-in non-return valve reduces return flow when the pump stops.
The 240V single-phase three-wire versions include a starter. The 240V single-phase two-wire version has its starting device built into the motor. Both single-phase types have thermal protection that cuts power if the motor overheats. The 415V three-phase versions require a motor-protection device that cuts power if the motor overloads, with its settings matched to the motor nameplate.
For automatic operation, connect suitable tank-level or pressure controls. Where the water level could fall below the pump inlet, use dry-running protection to stop the pump before it draws in air. Extend the motor lead with correctly sized submersible cable and a suitable waterproof cable joint for the installation depth.
Keep the pump inlet submerged below the lowest water level reached while pumping. At least 0.5m of water above the inlet is recommended; greater submergence may be needed to maintain adequate pressure at the inlet. Maximum installation depth is 150m below the water surface. Install vertically with the motor below the pump and support the assembly with suitable pipework and installation hardware. Do not lift or suspend it by its electrical cable.
Liquid temperature is +2 to +40°C. Water must pass around the outside of the motor at a speed of at least 0.15m/s (15cm/s) to cool it. In a wider bore, the same pump flow moves more slowly around the motor. Fit a cooling sleeve if the installation cannot provide the required speed; the sleeve directs water past the motor. SP 1A pumps are suitable for continuous operation without scheduled cooling stops, provided the inlet stays submerged and the specified flow, motor cooling and liquid temperature limits are maintained.
The pump and impellers are AISI 304 stainless steel. Multiple impeller stages build head through the pump, while water-lubricated bearings support the rotating assembly. The Grundfos MS402 submersible motor is rated IP68 with Class B insulation.
Two-year limited manufacturer warranty, subject to Grundfos warranty terms and applicable consumer rights.
SP 1A Official 50Hz Performance Curve
SP Installation & Operating Instructions
Grundfos SP 2A pumps supply clean groundwater for domestic water systems, irrigation and pressure boosting. Rated flow is 2m3/h (33.3L/min), with rated heads from 24m to 191m across these models. Each head rating is stated at that same rated flow. Actual flow depends on pumping lift, required outlet pressure and pipe resistance; the matching 50Hz curve helps assess expected flow for the installation.
The outlet is 32mm (1 1/4") Rp / BSP female thread. The pump handles clean, thin, non-aggressive water with a maximum sand content of 50g/m3. A built-in non-return valve reduces return flow when the pump stops.
The 240V single-phase two-wire versions have their starting device and thermal protection built into the motor. The 240V single-phase three-wire SP 2A-6, SP 2A-9, SP 2A-13, SP 2A-18, SP 2A-28 and SP 2A-33 packages include a starter. SP 2A-23 requires a matching external starter and current protection.
Single-phase 0.37-0.75kW motors have built-in thermal protection that cuts power if the motor overheats. The 1.1kW single-phase motor also requires external current protection. The 1.5kW and 2.2kW single-phase motors require external motor protection, provided in a suitable starter/control box or as a separate device. All 415V three-phase motors require a motor-protection device that cuts power if the motor overloads. Protection settings must match the motor nameplate.
For automatic operation, connect suitable tank-level or pressure controls. Where the water level could fall below the pump inlet, use dry-running protection to stop the pump before it draws in air. Extend the motor lead with correctly sized submersible cable and a suitable waterproof cable joint for the installation depth.
Keep the pump inlet submerged below the lowest water level reached while pumping. At least 0.5m of water above the inlet is recommended; greater submergence may be needed to maintain adequate pressure at the inlet. Maximum installation depth below the water surface is 150m for SP 2A-6 to SP 2A-33 with MS402 motors, and 600m for SP 2A-40 and SP 2A-48 with MS4000 motors. Install vertically with the motor below the pump and support the assembly with suitable pipework and installation hardware. Do not lift or suspend it by its electrical cable.
Liquid temperature is +2 to +40°C. Water must pass around the outside of the motor at a speed of at least 0.15m/s (15cm/s) to cool it. In a wider bore, the same pump flow moves more slowly around the motor. Fit a cooling sleeve if the installation cannot provide the required speed; the sleeve directs water past the motor. These pumps are suitable for continuous operation without scheduled cooling stops, provided the inlet stays submerged and the specified flow, motor cooling and liquid temperature limits are maintained.
The pump and impellers are AISI 304 stainless steel. Multiple impeller stages build head through the pump, while water-lubricated bearings support the rotating assembly. MS402 motors have IP68 protection with Class B insulation; MS4000 motors have IP68 protection with Class F insulation.
Two-year limited manufacturer warranty, subject to Grundfos warranty terms and applicable consumer rights.
SP 2A Official 50Hz Performance Curve
SP Installation & Operating Instructions
Grundfos SP 3A pumps supply clean groundwater for domestic water systems, irrigation and pressure boosting. Rated flow is 3m3/h (50L/min), with rated heads from 27m to 280m across these models. Each head rating is stated at that same rated flow. Actual flow depends on pumping lift, required outlet pressure and pipe resistance; the matching 50Hz curve helps assess expected flow for the installation.
The outlet is 32mm (1 1/4") Rp / BSP female thread. The pump handles clean, thin, non-aggressive water with a maximum sand content of 50g/m3. A built-in non-return valve reduces return flow when the pump stops.
The 240V single-phase two-wire versions use MS402 motors at 0.37-0.75kW and ULTRA motors at 1.1kW. Two-wire versions have their starting equipment in the motor. The 240V single-phase three-wire packages include the external starter for their motor.
MS402 single-phase motors at 0.37-0.75kW have built-in thermal protection that cuts power if the motor overheats. The 1.1kW single-phase MS402 motor also requires external current protection. The 1.5kW single-phase MS402 and 2.2kW single-phase MS4000 motors require external motor protection, provided in a suitable starter/control box or as a separate device. All 415V three-phase versions require a motor-protection device that cuts power if the motor overloads. Match the protection settings to the motor nameplate.
For automatic operation, connect suitable tank-level or pressure controls. Where the water level could fall below the pump inlet, use dry-running protection to stop the pump before it draws in air. Extend the motor lead with correctly sized submersible cable and a suitable waterproof cable joint for the installation depth.
Keep the pump inlet submerged below the lowest water level reached while pumping. At least 0.5m of water above the inlet is recommended; greater submergence may be needed to maintain adequate pressure at the inlet. Maximum installation depth below the water surface is 150m for MS402 and ULTRA motor versions, and 600m for MS4000 versions. Install vertically with the motor below the pump and support the assembly with suitable pipework and installation hardware. Do not lift or suspend it by its electrical cable.
Liquid temperature is +2 to +40°C.
For the MS402 and MS4000 motor versions, water must pass around the outside of the motor at a speed of at least 0.15m/s (15cm/s) to cool it. In a wider bore, the same pump flow moves more slowly around the motor. Fit a cooling sleeve if the installation cannot provide the required speed; the sleeve directs water past the motor. The pump can run continuously without scheduled cooling stops while the inlet stays submerged and the specified flow, motor cooling and liquid temperature limits are maintained.
The pump and impellers are AISI 304 stainless steel. Multiple impeller stages build head through the pump, while water-lubricated bearings support the rotating assembly. MS402 motors have IP68 protection and Class B insulation; MS4000 motors have IP68 protection and Class F insulation.
Grundfos motor versions have a two-year limited manufacturer warranty. The Australian catalogue specifies a one-year motor warranty for ULTRA motors. Warranty terms and applicable consumer rights apply.
SP 3A Official 50Hz Performance Curve
SP Installation & Operating Instructions
Grundfos SP 5A pumps supply clean groundwater for domestic water systems, irrigation and pressure boosting. Rated flow is 5m3/h (83.3L/min), with rated heads from 16m to 180m across these models. Each head rating is stated at that same rated flow. Actual flow depends on pumping lift, required outlet pressure and pipe resistance; the matching 50Hz curve helps assess expected flow for the installation.
The outlet is 40mm (1 1/2") Rp / BSP female thread. The pump handles clean, thin, non-aggressive water with a maximum sand content of 50g/m3. A built-in non-return valve reduces return flow when the pump stops.
The 240V single-phase two-wire versions use MS402 motors at 0.37-0.75kW and an ULTRA RSIR motor at 1.1kW. Two-wire versions have their starting equipment in the motor. The 240V single-phase three-wire packages include the external starter for their motor.
MS402 single-phase motors at 0.37-0.75kW have built-in thermal protection that cuts power if the motor overheats. The 1.1kW single-phase MS402 motor also requires external current protection. The 1.5kW single-phase MS402 and 2.2kW single-phase MS4000 motors require external motor protection in a suitable starter/control box or as a separate device. All 415V three-phase versions require a motor-protection device that cuts power if the motor overloads. Match protection settings to the motor nameplate.
For automatic operation, connect suitable tank-level or pressure controls. Where the water level could fall below the pump inlet, use dry-running protection to stop the pump before it draws in air. Extend the motor lead with correctly sized submersible cable and a suitable waterproof cable joint for the installation depth.
Keep the pump inlet submerged below the lowest water level reached while pumping. At least 0.5m of water above the inlet is recommended; greater submergence may be needed to maintain adequate pressure at the inlet. Maximum installation depth below the water surface is 150m for MS402 and ULTRA versions, and 600m for MS4000 versions. Install vertically with the motor below the pump and support the assembly with suitable pipework and installation hardware. Do not lift or suspend it by its electrical cable.
Liquid temperature is +2 to +40°C. Water must pass around the outside of the motor at a speed of at least 0.15m/s (15cm/s) to cool it. In a wider bore, the same pump flow moves more slowly around the motor. Fit a cooling sleeve if the installation cannot provide the required speed; the sleeve directs water past the motor.
The MS402 and MS4000 versions can run continuously without scheduled cooling stops while the inlet stays submerged and the specified flow, motor cooling and liquid temperature limits are maintained.
The pump and impellers are AISI 304 stainless steel. Multiple impeller stages build head through the pump, while water-lubricated bearings support the rotating assembly. MS402 motors have IP68 protection and Class B insulation; MS4000 motors have IP68 protection and Class F insulation.
Grundfos motor versions have a two-year limited manufacturer warranty. The Australian catalogue specifies a one-year motor warranty for ULTRA motors. Warranty terms and applicable consumer rights apply.
SP 5A Official 50Hz Performance Curve
SP Installation & Operating Instructions
Grundfos SP 7 pumps supply clean groundwater for domestic water systems, irrigation and pressure boosting. Rated flow is 7m3/h (116.7L/min), with rated heads from 13m to 235m across these models. Each head rating is stated at that same rated flow. Actual flow depends on pumping lift, required outlet pressure and pipe resistance; the matching 50Hz curve helps assess expected flow for the installation.
The outlet is 40mm (1 1/2") Rp / BSP female thread. The pump handles clean, thin, non-aggressive water with a maximum sand content of 150g/m3. A built-in non-return valve reduces return flow when the pump stops.
240V single phase, two wire: the 0.55kW and 0.75kW MS402 versions have their starting device and thermal protection built into the motor. The 1.1kW two-wire version uses an ULTRA RSIR motor.
240V single phase, three wire: external starter included. The 0.55kW and 0.75kW MS402 versions have built-in thermal protection. The 1.1kW MS402 also requires external current protection. The 1.5kW MS402 and 2.2kW MS4000 versions require external motor protection in a suitable starter/control box or separately. The 3.7kW ULTRA PSC versions use a CSCR starter for the required starting torque.
415V three phase: External motor protection is required to cut power if the motor overloads. Match protection settings to the current shown on the motor nameplate. Use a suitable motor-protective circuit breaker or a motor-protection unit with an electrically operated switch.
For automatic operation, connect suitable tank-level or pressure controls. Where the water level could fall below the pump inlet, use dry-running protection to stop the pump before it draws in air. Extend the motor lead with correctly sized submersible cable and a suitable waterproof cable joint for the installation depth.
Keep the pump inlet submerged below the lowest water level reached while pumping. At least 0.5m of water above the inlet is recommended; greater submergence may be needed to maintain adequate pressure at the inlet. Maximum installation depth below the water surface is 150m for MS402 and ULTRA versions, and 600m for MS4000 versions. The SP 7-17 single-phase set uses MS4000; its three-phase counterpart uses MS402. Install vertically with the motor below the pump and support the assembly with suitable pipework and installation hardware. Do not lift or suspend it by its electrical cable.
Liquid temperature is +2 to +40°C. Water must pass around the outside of the motor at a speed of at least 0.15m/s (15cm/s) to cool it. In a wider bore, the same pump flow moves more slowly around the motor. Fit a cooling sleeve if the installation cannot provide the required speed; the sleeve directs water past the motor.
The MS402 and MS4000 versions can run continuously without scheduled cooling stops while the inlet stays submerged and the specified flow, motor cooling and liquid temperature limits are maintained.
The pump and impellers are AISI 304 stainless steel. Multiple impeller stages build head through the pump, while water-lubricated bearings support the rotating assembly.
Grundfos motor versions have a two-year limited manufacturer warranty. The Australian catalogue specifies a one-year motor warranty for ULTRA motors. Warranty terms and applicable consumer rights apply.
SP 7 Official 50Hz Performance Curve
SP Installation & Operating Instructions

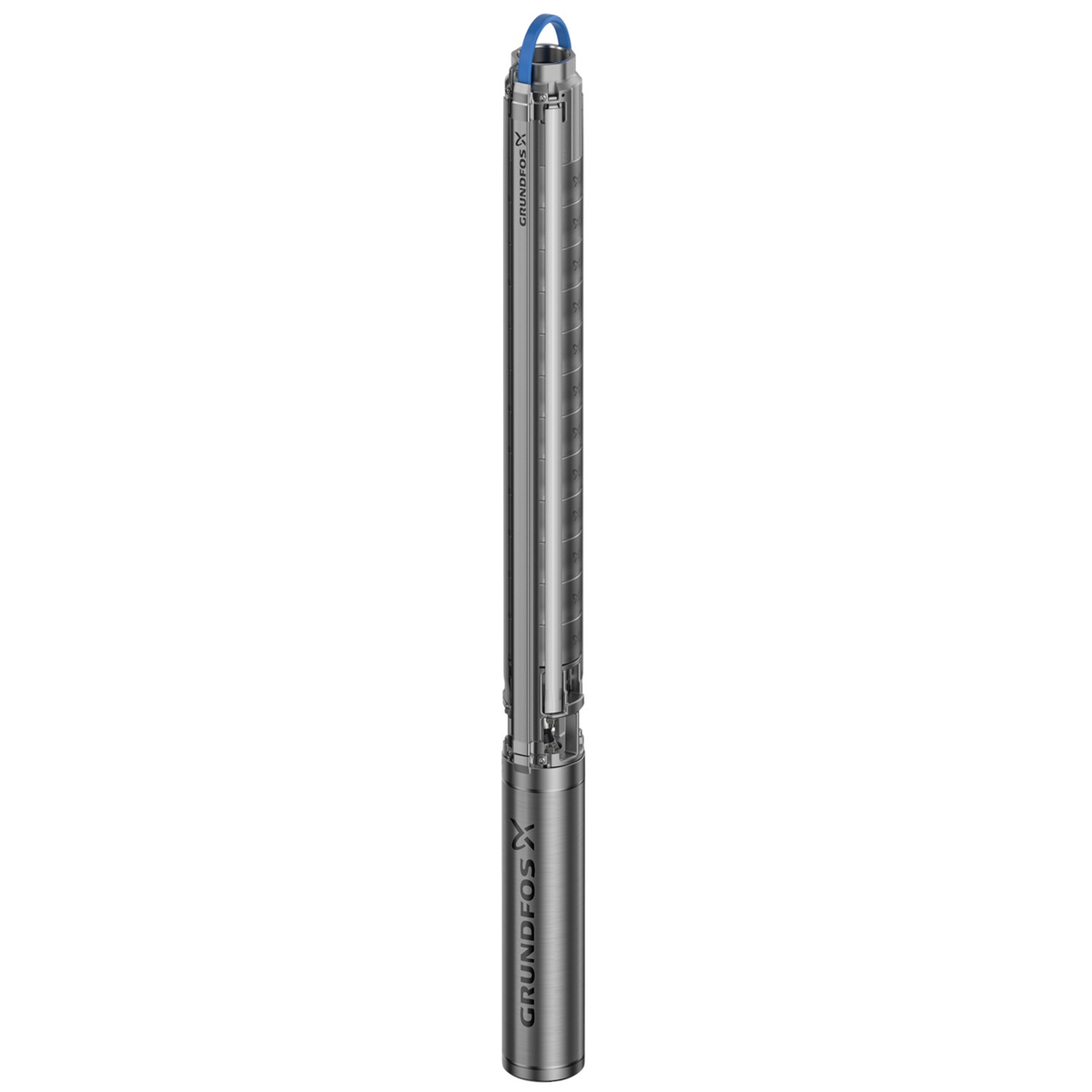

Grundfos SP 9 pumps supply clean groundwater for domestic water systems, irrigation and pressure boosting. Rated flow is 9m3/h (150L/min), with rated heads from 25m to 212m across these models. Each head rating is stated at that same rated flow. Actual flow depends on pumping lift, required outlet pressure and pipe resistance; the matching 50Hz curve helps assess expected flow for the installation.
The outlet is 50mm (2") Rp / BSP female thread. The pump handles clean, thin, non-aggressive water with a maximum sand content of 150g/m3. A built-in non-return valve reduces return flow when the pump stops.
240V single phase, two wire: the SP 9-5 uses a 1.1kW ULTRA RSIR motor with its starting equipment in the motor.
240V single phase, three wire: external starter included. The 1.1kW MS402 has built-in thermal protection and also requires external current protection. The 1.5kW MS402 and 2.2kW MS4000 require external motor protection in a suitable starter/control box or separately. The 3.7kW ULTRA PSC versions use a CSCR starter for the required starting torque.
415V three phase: External motor protection is required to cut power if the motor overloads. Match protection settings to the current shown on the motor nameplate. Use a suitable motor-protective circuit breaker or a motor-protection unit with an electrically operated switch.
For automatic operation, connect suitable tank-level or pressure controls. Where the water level could fall below the pump inlet, use dry-running protection to stop the pump before it draws in air. Extend the motor lead with correctly sized submersible cable and a suitable waterproof cable joint for the installation depth.
Keep the pump inlet submerged below the lowest water level reached while pumping. At least 0.5m of water above the inlet is recommended; greater submergence may be needed to maintain adequate pressure at the inlet. Maximum installation depth below the water surface is 150m for MS402 and ULTRA versions, and 600m for MS4000 versions. The SP 9-11 single-phase and three-phase sets both use MS4000 motors. Install vertically with the motor below the pump and support the assembly with suitable pipework and installation hardware. Do not lift or suspend it by its electrical cable.
Liquid temperature is +2 to +40°C. Water must pass around the outside of the motor at a speed of at least 0.15m/s (15cm/s) to cool it. In a wider bore, the same pump flow moves more slowly around the motor. Fit a cooling sleeve if the installation cannot provide the required speed; the sleeve directs water past the motor.
The MS402 and MS4000 versions can run continuously without scheduled cooling stops while the inlet stays submerged and the specified flow, motor cooling and liquid temperature limits are maintained.
The pump and impellers are AISI 304 stainless steel. Multiple impeller stages build head through the pump, while water-lubricated bearings support the rotating assembly.
Grundfos motor versions have a two-year limited manufacturer warranty. The Australian catalogue specifies a one-year motor warranty for ULTRA motors. Warranty terms and applicable consumer rights apply.
SP 9 Official 50Hz Performance Curve
SP Installation & Operating Instructions

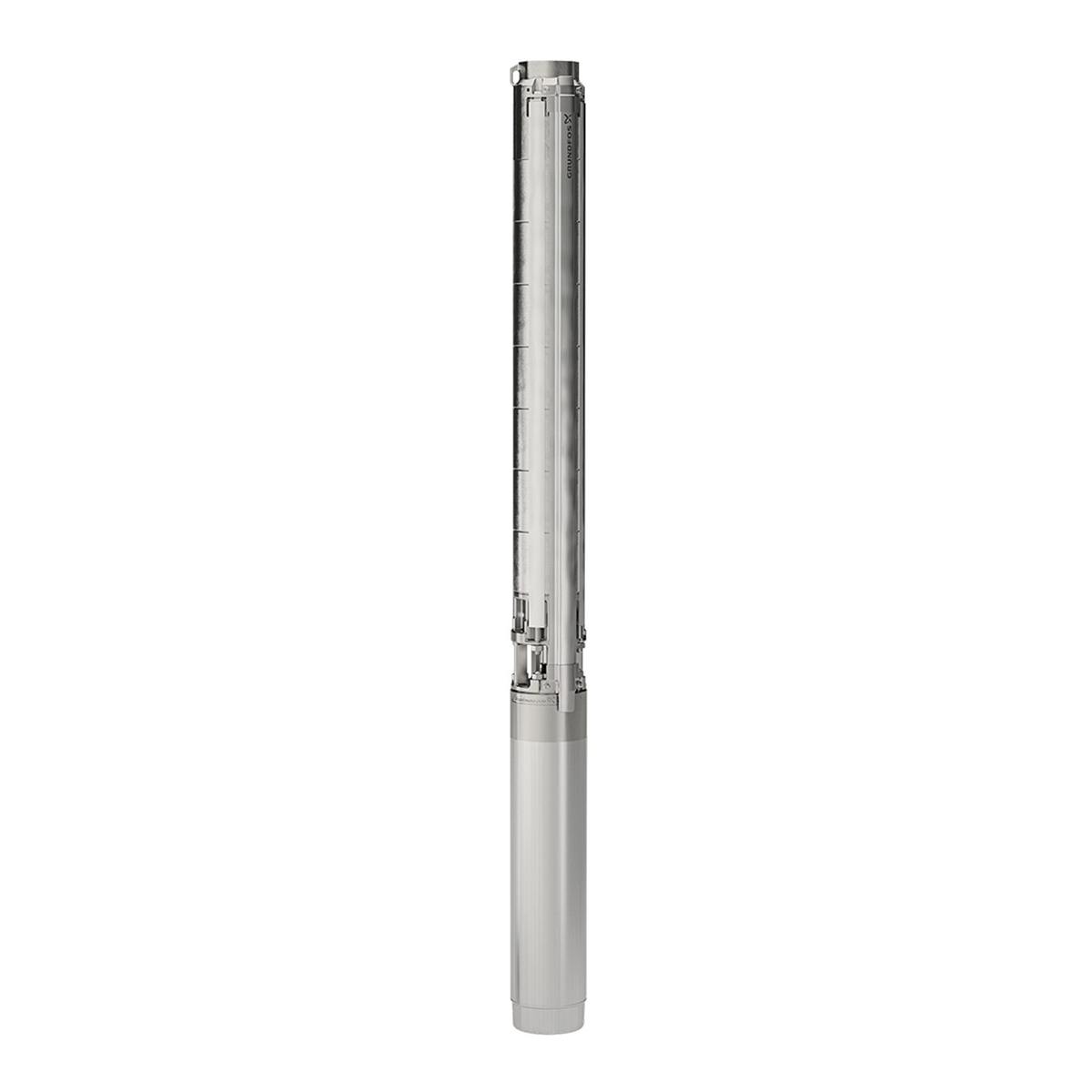

Grundfos SP 11 pumps supply clean groundwater for domestic water systems, irrigation and pressure boosting. Rated flow is 11m3/h (183.3L/min), with rated heads from 13m to 153m across these models. Each head rating is stated at that same rated flow. Actual flow depends on pumping lift, required outlet pressure and pipe resistance; the matching 50Hz curve helps assess expected flow for the installation.
The outlet is 50mm (2") Rp / BSP female thread. The pump handles clean, thin, non-aggressive water with a maximum sand content of 150g/m3. A built-in non-return valve reduces return flow when the pump stops.
240V single phase, two wire: starting equipment is in the motor.
240V single phase, three wire: external starter included. The 0.75kW MS402 has built-in thermal protection. The 1.1kW MS402 has built-in thermal protection and also requires external current protection. The 1.5kW MS402 and 2.2kW MS4000 require external motor protection in a suitable starter/control box or separately. The 3.7kW ULTRA PSC version uses a CSCR starter for the required starting torque.
415V three phase: External motor protection is required to cut power if the motor overloads. Match protection settings to the current shown on the motor nameplate. Use a suitable motor-protective circuit breaker or a motor-protection unit with an electrically operated switch.
For automatic operation, connect suitable tank-level or pressure controls. Where the water level could fall below the pump inlet, use dry-running protection to stop the pump before it draws in air. Extend the motor lead with correctly sized submersible cable and a suitable waterproof cable joint for the installation depth.
Keep the pump inlet submerged below the lowest water level reached while pumping. At least 0.5m of water above the inlet is recommended; greater submergence may be needed to maintain adequate pressure at the inlet. Maximum installation depth below the water surface is 150m for MS402 and ULTRA versions, and 600m for MS4000 versions. The SP 11-11 single-phase and three-phase sets both use MS4000 motors. Install vertically with the motor below the pump and support the assembly with suitable pipework and installation hardware. Do not lift or suspend it by its electrical cable.
Liquid temperature is +2 to +40°C. Water must pass around the outside of the motor at a speed of at least 0.15m/s (15cm/s) to cool it. In a wider bore, the same pump flow moves more slowly around the motor. Fit a cooling sleeve if the installation cannot provide the required speed; the sleeve directs water past the motor.
The MS402 and MS4000 versions can run continuously without scheduled cooling stops while the inlet stays submerged and the specified flow, motor cooling and liquid temperature limits are maintained.
The pump and impellers are AISI 304 stainless steel. Multiple impeller stages build head through the pump, while water-lubricated bearings support the rotating assembly.
Grundfos motor versions have a two-year limited manufacturer warranty. The Australian catalogue specifies a one-year motor warranty for ULTRA motors. Warranty terms and applicable consumer rights apply.
SP 11 Official 50Hz Performance Curve
SP Installation & Operating Instructions
Grundfos SP 14 pumps supply clean groundwater for domestic water systems, irrigation and pressure boosting. Rated flow is 14m3/h (233.3L/min), with rated heads from 16m to 117m across these models. Each head rating is stated at that same rated flow. Actual flow depends on pumping lift, required outlet pressure and pipe resistance; the matching 50Hz curve helps assess expected flow for the installation.
The outlet is 50mm (2") Rp / BSP female thread. The pump handles clean, thin, non-aggressive water with a maximum sand content of 150g/m3. A built-in non-return valve reduces return flow when the pump stops.
240V single phase, three wire: external starter included. The 1.1kW MS402 has built-in thermal protection and also requires external current protection. The 1.5kW MS402 and 2.2kW MS4000 require external motor protection in a suitable starter/control box or separately. The 3.7kW ULTRA PSC version uses a CSCR starter for the required starting torque.
415V three phase: External motor protection is required to cut power if the motor overloads. Match protection settings to the current shown on the motor nameplate. Use a suitable motor-protective circuit breaker or a motor-protection unit with an electrically operated switch.
For automatic operation, connect suitable tank-level or pressure controls. Where the water level could fall below the pump inlet, use dry-running protection to stop the pump before it draws in air. Extend the motor lead with correctly sized submersible cable and a suitable waterproof cable joint for the installation depth.
Keep the pump inlet submerged below the lowest water level reached while pumping. At least 0.5m of water above the inlet is recommended; greater submergence may be needed to maintain adequate pressure at the inlet. Maximum installation depth below the water surface is 150m for MS402 and ULTRA versions, and 600m for MS4000 versions. The SP 14-8 single-phase and three-phase sets both use MS4000 motors. Install vertically with the motor below the pump and support the assembly with suitable pipework and installation hardware. Do not lift or suspend it by its electrical cable.
Liquid temperature is +2 to +40°C. Water must pass around the outside of the motor at a speed of at least 0.15m/s (15cm/s) to cool it. In a wider bore, the same pump flow moves more slowly around the motor. Fit a cooling sleeve if the installation cannot provide the required speed; the sleeve directs water past the motor.
The MS402 and MS4000 versions can run continuously without scheduled cooling stops while the inlet stays submerged and the specified flow, motor cooling and liquid temperature limits are maintained.
The pump and impellers are AISI 304 stainless steel. Multiple impeller stages build head through the pump, while water-lubricated bearings support the rotating assembly.
Grundfos motor versions have a two-year limited manufacturer warranty. The Australian catalogue specifies a one-year motor warranty for ULTRA motors. Warranty terms and applicable consumer rights apply.
SP 14 Official 50Hz Performance Curve
SP Installation & Operating Instructions

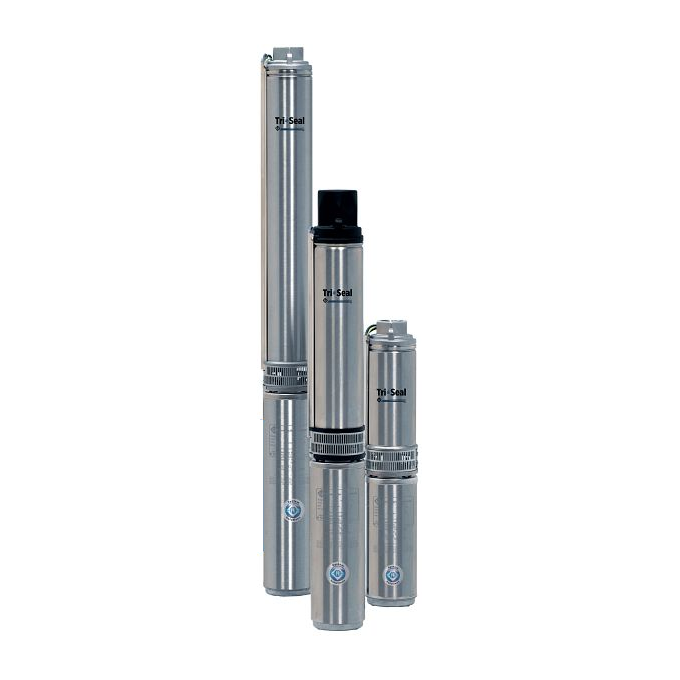

Franklin FPS 1A TriSeal multistage bore pumps supply bore water with minimal sand or sediment for domestic water supply, irrigation and pressure boosting. At 18L/min, these models deliver approximately 55-205m head, depending on model. Two-wire, three-wire with starter and three-phase packages combine a TriSeal pump with a Franklin 4" motor.
Actual flow depends on pumping lift, required outlet pressure and pipe resistance. Use the 50Hz performance curve to assess expected flow for the installation. The recommended pump operating range is 4-26L/min, with best efficiency at 11-24L/min.
The outlet is 32mm (1 1/4") BSPP female thread. A removable spring-loaded non-return valve reduces return flow when the pump stops. The pump is intended for bore water with minimal sand or sediment; the TriSeal design helps resist sand wear.
230V single phase, two wire. The BIAC starting switch is built into the motor. Motor overload protection stops the motor if it overheats or overloads. Two supply conductors plus protective earth.
230V single phase, three wire. Matching capacitor starter/control box included. The motor has built-in overload protection. Three motor conductors plus protective earth.
400V three phase. Requires a motor starter and motor-overload protection matched to the supplied motor nameplate. This protection cuts power if the motor overloads.
For automatic operation, connect suitable tank-level or pressure controls. Where the bore water level could fall below the pump, use dry-running protection to stop it before it draws in air. Extend the motor lead with correctly sized submersible cable and a waterproof cable joint for the installation depth.
Install vertically with the motor below the pump and allow clearance around the 99.1mm maximum diameter. Maximum motor submergence is 150m below the water surface. Keep the assembly at least 1.5m above the bore bottom and position it so water passes the motor before entering the pump. Support it with suitable pipework and a safety cable; never lift or suspend it by the electrical cable.
Standard motor application allows water up to 30°C. Higher temperatures require manufacturer assessment of motor loading and cooling. Water must flow around the outside of the motor to remove heat. Fit a flow sleeve where the installation cannot provide the cooling flow required by the motor nameplate, including tank and open-water installations. Keep the complete pump and motor submerged; do not run dry.
TriSeal independently floating impellers and seals at each impeller hub and eye reduce internal recirculation and resist wear from sand. The discharge and outer casing are AISI 304 stainless steel; the impellers are thermoplastic acetal and the diffusers are modified PPO. A ceramic sleeve and rubber bearing protect the shaft in abrasive water.
Three-year manufacturer warranty when the TriSeal pump is coupled to a new Franklin 4-inch motor, subject to Franklin Australia warranty terms, installation-period conditions and applicable consumer rights.
FPS 1A Official 50Hz Performance Curve
Franklin Bore Pump Installation & Operation
Franklin 4-inch Motor Installation & Operation
Franklin Motor Technical Guide (Australia & NZ)
Franklin FPS 1B TriSeal multistage bore pumps supply bore water with minimal sand or sediment for domestic water supply, irrigation and pressure boosting. At 25L/min, these models deliver approximately 35-150m head, depending on model. Two-wire, three-wire with starter and three-phase packages combine a TriSeal pump with a Franklin 4" motor.
Actual flow depends on pumping lift, required outlet pressure and pipe resistance. Use the 50Hz performance curve to assess expected flow for the installation. The recommended pump operating range is approximately 7-34L/min, with best efficiency at approximately 13-31L/min.
The outlet is 32mm (1 1/4") BSPP female thread. A removable spring-loaded non-return valve reduces return flow when the pump stops. The pump is intended for bore water with minimal sand or sediment; the TriSeal design helps resist sand wear.
230V single phase, two wire. The BIAC starting switch is built into the motor. Motor overload protection stops the motor if it overheats or overloads. Two supply conductors plus protective earth.
230V single phase, three wire. Matching capacitor starter/control box included. The motor has built-in overload protection. Three motor conductors plus protective earth.
400V three phase. Requires a motor starter and motor-overload protection matched to the supplied motor nameplate. This protection cuts power if the motor overloads.
For automatic operation, connect suitable tank-level or pressure controls. Where the bore water level could fall below the pump, use dry-running protection to stop it before it draws in air. Extend the motor lead with correctly sized submersible cable and a waterproof cable joint for the installation depth.
Install vertically with the motor below the pump and allow clearance around the 99.1mm maximum diameter. Maximum motor submergence is 150m below the water surface. Keep the assembly at least 1.5m above the bore bottom and position it so water passes the motor before entering the pump. Support it with suitable pipework and a safety cable; never lift or suspend it by the electrical cable.
Standard motor application allows water up to 30°C. Higher temperatures require manufacturer assessment of motor loading and cooling. Water must flow around the outside of the motor to remove heat. Fit a flow sleeve where the installation cannot provide the cooling flow required by the motor nameplate, including tank and open-water installations. Keep the complete pump and motor submerged; do not run dry.
TriSeal independently floating impellers and seals at each impeller hub and eye reduce internal recirculation and resist wear from sand. The discharge and outer casing are AISI 304 stainless steel; the impellers are thermoplastic acetal and the diffusers are modified PPO. A ceramic sleeve and rubber bearing protect the shaft in abrasive water.
Three-year manufacturer warranty when the TriSeal pump is coupled to a new Franklin 4-inch motor, subject to Franklin Australia warranty terms, installation-period conditions and applicable consumer rights.
FPS 1B Official 50Hz Performance Curve
Franklin Bore Pump Installation & Operation
Franklin 4-inch Motor Installation & Operation
Franklin Motor Technical Guide (Australia & NZ)
Franklin FPS 2A TriSeal multistage bore pumps supply bore water with minimal sand or sediment for domestic water supply, irrigation and pressure boosting. At 30L/min, these models deliver approximately 30-400m head, depending on model. Two-wire, three-wire with starter and three-phase packages combine a TriSeal pump with a Franklin 4" motor.
Actual flow depends on pumping lift, required outlet pressure and pipe resistance. Use the 50Hz performance curve to assess expected flow for the installation. The recommended pump operating range is approximately 7-43L/min, with best efficiency at approximately 24-41L/min.
The outlet is 32mm (1 1/4") BSPP female thread. A removable spring-loaded non-return valve reduces return flow when the pump stops. The pump is intended for bore water with minimal sand or sediment; the TriSeal design helps resist sand wear.
230V single phase, two wire. The BIAC starting switch is built into the motor. Motor overload protection stops the motor if it overheats or overloads. Two supply conductors plus protective earth.
230V single phase, three wire. Matching capacitor starter/control box included. The motor has built-in overload protection. Three motor conductors plus protective earth.
400V three phase. Requires a motor starter and motor-overload protection matched to the supplied motor nameplate. This protection cuts power if the motor overloads.
For automatic operation, connect suitable tank-level or pressure controls. Where the bore water level could fall below the pump, use dry-running protection to stop it before it draws in air. Extend the motor lead with correctly sized submersible cable and a waterproof cable joint for the installation depth.
Install vertically with the motor below the pump and allow clearance around the 99.1mm maximum diameter. Maximum motor submergence is 150m below the water surface. Keep the assembly at least 1.5m above the bore bottom and position it so water passes the motor before entering the pump. Support it with suitable pipework and a safety cable; never lift or suspend it by the electrical cable.
Standard motor application allows water up to 30°C. Higher temperatures require manufacturer assessment of motor loading and cooling. Water must flow around the outside of the motor to remove heat. Fit a flow sleeve where the installation cannot provide the cooling flow required by the motor nameplate, including tank and open-water installations. Keep the complete pump and motor submerged; do not run dry. FPS-2A-37TS, FPS-2A-59TS and FPS-2A-78TS need water to pass the motor at least 0.0762m/s (7.62cm/s) for cooling.
TriSeal independently floating impellers and seals at each impeller hub and eye reduce internal recirculation and resist wear from sand. The discharge and outer casing are AISI 304 stainless steel; the impellers are thermoplastic acetal and the diffusers are modified PPO. A ceramic sleeve and rubber bearing protect the shaft in abrasive water.
Three-year manufacturer warranty when the TriSeal pump is coupled to a new Franklin 4-inch motor, subject to Franklin Australia warranty terms, installation-period conditions and applicable consumer rights.
FPS 2A Official 50Hz Performance Curve
Franklin Bore Pump Installation & Operation
Franklin 4-inch Motor Installation & Operation
Franklin Motor Technical Guide (Australia & NZ)
Franklin FPS 3A TriSeal multistage bore pumps supply bore water with minimal sand or sediment for domestic water supply, irrigation and pressure boosting. At 45L/min, these models deliver approximately 25-315m head, depending on model. Two-wire, three-wire with starter and three-phase packages combine a TriSeal pump with a Franklin 4" motor.
Actual flow depends on pumping lift, required outlet pressure and pipe resistance. Use the 50Hz performance curve to assess expected flow for the installation. The recommended pump operating range is approximately 13-60L/min, with best efficiency at approximately 30-55L/min.
The outlet is 32mm (1 1/4") BSPP female thread. A removable spring-loaded non-return valve reduces return flow when the pump stops. The pump is intended for bore water with minimal sand or sediment; the TriSeal design helps resist sand wear.
230V single phase, two wire. The BIAC starting switch is built into the motor. Motor overload protection stops the motor if it overheats or overloads. Two supply conductors plus protective earth.
230V single phase, three wire. Matching capacitor starter/control box included. The motor has built-in overload protection. Three motor conductors plus protective earth.
400V three phase. Requires a motor starter and motor-overload protection matched to the supplied motor nameplate. This protection cuts power if the motor overloads.
For automatic operation, connect suitable tank-level or pressure controls. Where the bore water level could fall below the pump, use dry-running protection to stop it before it draws in air. Extend the motor lead with correctly sized submersible cable and a waterproof cable joint for the installation depth.
Install vertically with the motor below the pump and allow clearance around the 99.1mm maximum diameter. Maximum motor submergence is 150m below the water surface. Keep the assembly at least 1.5m above the bore bottom and position it so water passes the motor before entering the pump. Support it with suitable pipework and a safety cable; never lift or suspend it by the electrical cable.
Standard motor application allows water up to 30°C. Higher temperatures require manufacturer assessment of motor loading and cooling. Water must flow around the outside of the motor to remove heat. Fit a flow sleeve where the installation cannot provide the cooling flow required by the motor nameplate, including tank and open-water installations. Keep the complete pump and motor submerged; do not run dry. FPS-3A-31TS, FPS-3A-46TS and FPS-3A-62TS need water to pass the motor at least 0.0762m/s (7.62cm/s) for cooling.
TriSeal independently floating impellers and seals at each impeller hub and eye reduce internal recirculation and resist wear from sand. The discharge and outer casing are AISI 304 stainless steel; the impellers are thermoplastic acetal and the diffusers are modified PPO. A ceramic sleeve and rubber bearing protect the shaft in abrasive water.
Three-year manufacturer warranty when the TriSeal pump is coupled to a new Franklin 4-inch motor, subject to Franklin Australia warranty terms, installation-period conditions and applicable consumer rights.
FPS 3A Official 50Hz Performance Curve
Franklin Bore Pump Installation & Operation
Franklin 4-inch Motor Installation & Operation
Franklin Motor Technical Guide (Australia & NZ)
Franklin FPS 3B TriSeal multistage bore pumps supply bore water with minimal sand or sediment for domestic water supply, irrigation and pressure boosting. At 60L/min, these models deliver approximately 30-320m head, depending on model. Two-wire, three-wire with starter and three-phase packages combine a TriSeal pump with a Franklin 4" motor.
Actual flow depends on pumping lift, required outlet pressure and pipe resistance. Use the 50Hz performance curve to assess expected flow for the installation. The recommended pump operating range is approximately 16-86L/min, with best efficiency at approximately 44-80L/min.
The outlet is 32mm (1 1/4") BSPP female thread. A removable spring-loaded non-return valve reduces return flow when the pump stops. The pump is intended for bore water with minimal sand or sediment; the TriSeal design helps resist sand wear.
230V single phase, two wire. The BIAC starting switch is built into the motor. Motor overload protection stops the motor if it overheats or overloads. Two supply conductors plus protective earth.
230V single phase, three wire. Matching capacitor starter/control box included. The motor has built-in overload protection. Three motor conductors plus protective earth.
400V three phase. Requires a motor starter and motor-overload protection matched to the supplied motor nameplate. This protection cuts power if the motor overloads.
For automatic operation, connect suitable tank-level or pressure controls. Where the bore water level could fall below the pump, use dry-running protection to stop it before it draws in air. Extend the motor lead with correctly sized submersible cable and a waterproof cable joint for the installation depth.
Install vertically with the motor below the pump and allow clearance around the 99.1mm maximum diameter. Maximum motor submergence is 150m below the water surface. Keep the assembly at least 1.5m above the bore bottom and position it so water passes the motor before entering the pump. Support it with suitable pipework and a safety cable; never lift or suspend it by the electrical cable.
Standard motor application allows water up to 30°C. Higher temperatures require manufacturer assessment of motor loading and cooling. Water must flow around the outside of the motor to remove heat. Fit a flow sleeve where the installation cannot provide the cooling flow required by the motor nameplate, including tank and open-water installations. Keep the complete pump and motor submerged; do not run dry. FPS-3B-26TS, FPS-3B-39TS and FPS-3B-52TS need water to pass the motor at least 0.0762m/s (7.62cm/s) for cooling.
TriSeal independently floating impellers and seals at each impeller hub and eye reduce internal recirculation and resist wear from sand. The discharge and outer casing are AISI 304 stainless steel; the impellers are thermoplastic acetal and the diffusers are modified PPO. A ceramic sleeve and rubber bearing protect the shaft in abrasive water.
Three-year manufacturer warranty when the TriSeal pump is coupled to a new Franklin 4-inch motor, subject to Franklin Australia warranty terms, installation-period conditions and applicable consumer rights.
FPS 3B Official 50Hz Performance Curve
Franklin Bore Pump Installation & Operation
Franklin 4-inch Motor Installation & Operation
Franklin Motor Technical Guide (Australia & NZ)
Franklin FPS 4A TriSeal multistage bore pumps supply bore water with minimal sand or sediment for domestic water supply, irrigation and pressure boosting. At 70L/min, these models deliver approximately 40-250m head, depending on model. Two-wire, three-wire with starter and three-phase packages combine a TriSeal pump with a Franklin 4" motor.
Actual flow depends on pumping lift, required outlet pressure and pipe resistance. Use the 50Hz performance curve to assess expected flow for the installation. The recommended pump operating range is approximately 32-104L/min, with best efficiency at approximately 46-94L/min.
The outlet is 32mm (1 1/4") BSPP female thread. A removable spring-loaded non-return valve reduces return flow when the pump stops. The pump is intended for bore water with minimal sand or sediment; the TriSeal design helps resist sand wear.
230V single phase, two wire. The BIAC starting switch is built into the motor. Motor overload protection stops the motor if it overheats or overloads. Two supply conductors plus protective earth.
230V single phase, three wire. Matching capacitor starter/control box included. The motor has built-in overload protection. Three motor conductors plus protective earth.
400V three phase. Requires a motor starter and motor-overload protection matched to the supplied motor nameplate. This protection cuts power if the motor overloads.
For automatic operation, connect suitable tank-level or pressure controls. Where the bore water level could fall below the pump, use dry-running protection to stop it before it draws in air. Extend the motor lead with correctly sized submersible cable and a waterproof cable joint for the installation depth.
Install vertically with the motor below the pump and allow clearance around the 99.1mm maximum diameter. Maximum motor submergence is 150m below the water surface. Keep the assembly at least 1.5m above the bore bottom and position it so water passes the motor before entering the pump. Support it with suitable pipework and a safety cable; never lift or suspend it by the electrical cable.
Standard motor application allows water up to 30°C. Higher temperatures require manufacturer assessment of motor loading and cooling. Water must flow around the outside of the motor to remove heat. Fit a flow sleeve where the installation cannot provide the cooling flow required by the motor nameplate, including tank and open-water installations. Keep the complete pump and motor submerged; do not run dry. FPS-4A-22TS, FPS-4A-35TS and FPS-4A-44TS need water to pass the motor at least 0.0762m/s (7.62cm/s) for cooling.
TriSeal independently floating impellers and seals at each impeller hub and eye reduce internal recirculation and resist wear from sand. The discharge and outer casing are AISI 304 stainless steel; the impellers are thermoplastic acetal and the diffusers are modified PPO. A ceramic sleeve and rubber bearing protect the shaft in abrasive water.
Three-year manufacturer warranty when the TriSeal pump is coupled to a new Franklin 4-inch motor, subject to Franklin Australia warranty terms, installation-period conditions and applicable consumer rights.
FPS 4A Official 50Hz Performance Curve
Franklin Bore Pump Installation & Operation
Franklin 4-inch Motor Installation & Operation
Franklin Motor Technical Guide (Australia & NZ)

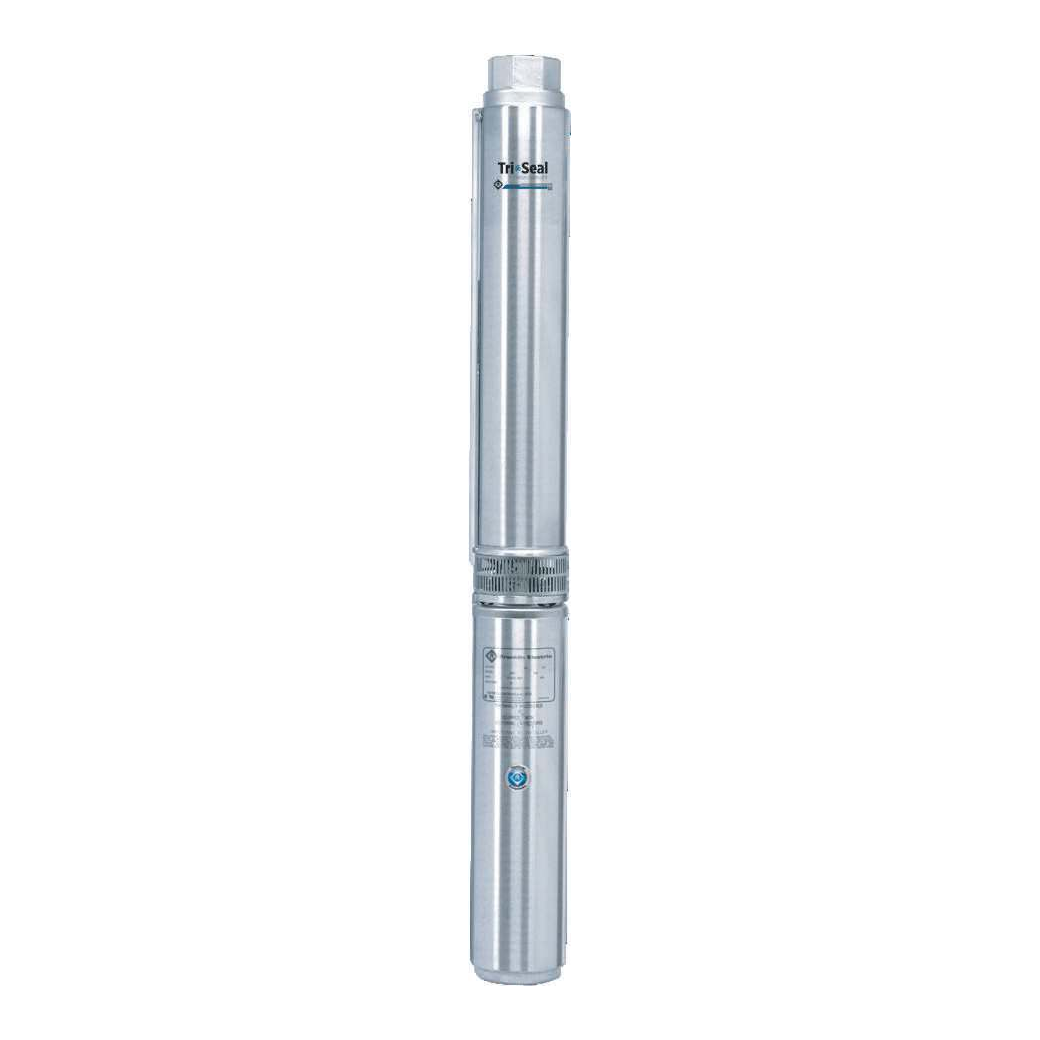

Franklin FPS 6A High Capacity multistage bore pumps supply water for irrigation, tank filling and domestic or commercial water systems. At 100L/min, these models deliver 28-220m head, depending on model. These figures exclude check-valve losses. Packages combine a High Capacity pump with a Franklin 4-inch motor.
The performance figures describe the pump end without check-valve losses. Actual delivery depends on pumping lift, required outlet pressure, check-valve losses and pipe resistance. Use the 50Hz performance chart to assess expected flow for the installation. The pump operating range is approximately 30-140L/min, with best efficiency at approximately 65-125L/min.
The outlet is 50mm (2") BSP female thread. An integrated stainless-steel wafer-style non-return valve reduces return flow when the pump stops. These pumps are for bore water with minimal sand or sediment.
230V single phase, two wire. The BIAC starting switch is built into the motor. Motor overload protection stops the motor if it overheats or overloads. Two supply conductors plus protective earth.
230V single phase, three wire. Matching capacitor starter/control box included. The motor has built-in overload protection. Three motor conductors plus protective earth.
400V three phase. Requires a motor starter and motor-overload protection matched to the supplied motor nameplate. This protection cuts power if the motor overloads.
For automatic operation, connect suitable tank-level or pressure controls. Where the bore water level could fall below the pump, use dry-running protection to stop it before it draws in air. Extend the motor lead with correctly sized submersible cable and a waterproof joint for the installation depth.
Install vertically with the motor below the pump, allowing clearance for the pump, cable and pipe connections. Maximum motor submergence is 150m below the water surface. Keep the assembly at least 1.5m above the bore bottom and position it so water passes the motor before entering the pump. Support it with suitable pipework and a safety cable; never lift or suspend it by the electrical cable.
Standard motor application allows water up to 30°C. Higher temperatures require manufacturer assessment of motor loading and cooling. Water must flow around the outside of the motor to remove heat. Fit a flow sleeve where the installation cannot provide the cooling flow required by the motor nameplate, including tank and open-water installations. Keep the complete pump and motor submerged; do not run dry. FPS-6A-20, FPS-6A-29 and FPS-6A-38 require water to pass the motor at least 0.0762m/s (7.62cm/s) for cooling.
The discharge head, outer casing, motor bracket and shaft are stainless steel. Thermoplastic impellers and diffuser assemblies provide the hydraulic stages. Impeller eye and hub seals reduce internal recirculation; a ceramic sleeve and rubber bearing help resist sand wear.
Three-year manufacturer warranty when the FPS4400 pump is coupled to a new Franklin 4-inch motor, subject to Franklin Australia warranty terms, installation-period conditions and applicable consumer rights.
FPS 6A Official 50Hz Performance Curve
Franklin Bore Pump Installation & Operation
Franklin 4-inch Motor Installation & Operation
Franklin Motor Technical Guide (Australia & NZ)
Franklin FPS 9A High Capacity multistage bore pumps supply water for irrigation, tank filling and domestic or commercial water systems. At 140L/min, these models deliver 23-146m head, depending on model. These figures exclude check-valve losses. Packages combine a High Capacity pump with a Franklin 4-inch motor.
The performance figures describe the pump end without check-valve losses. Actual delivery depends on pumping lift, required outlet pressure, check-valve losses and pipe resistance. Use the 50Hz performance chart to assess expected flow for the installation. The pump operating range is approximately 50-190L/min, with best efficiency at approximately 90-170L/min.
The outlet is 50mm (2") BSP female thread. An integrated stainless-steel wafer-style non-return valve reduces return flow when the pump stops. These pumps are for bore water with minimal sand or sediment.
230V single phase, two wire. The BIAC starting switch is built into the motor. Motor overload protection stops the motor if it overheats or overloads. Two supply conductors plus protective earth.
230V single phase, three wire. Matching capacitor starter/control box included. The motor has built-in overload protection. Three motor conductors plus protective earth.
400V three phase. Requires a motor starter and motor-overload protection matched to the supplied motor nameplate. This protection cuts power if the motor overloads.
For automatic operation, connect suitable tank-level or pressure controls. Where the bore water level could fall below the pump, use dry-running protection to stop it before it draws in air. Extend the motor lead with correctly sized submersible cable and a waterproof joint for the installation depth.
Install vertically with the motor below the pump, allowing clearance for the pump, cable and pipe connections. Maximum motor submergence is 150m below the water surface. Keep the assembly at least 1.5m above the bore bottom and position it so water passes the motor before entering the pump. Support it with suitable pipework and a safety cable; never lift or suspend it by the electrical cable.
Standard motor application allows water up to 30°C. Higher temperatures require manufacturer assessment of motor loading and cooling. Water must flow around the outside of the motor to remove heat. Fit a flow sleeve where the installation cannot provide the cooling flow required by the motor nameplate, including tank and open-water installations. Keep the complete pump and motor submerged; do not run dry. FPS-9A-16, FPS-9A-25 and FPS-9A-31 require water to pass the motor at least 0.0762m/s (7.62cm/s) for cooling.
The discharge head, outer casing, motor bracket and shaft are stainless steel. Thermoplastic impellers and diffuser assemblies provide the hydraulic stages. Impeller eye and hub seals reduce internal recirculation; a ceramic sleeve and rubber bearing help resist sand wear.
Three-year manufacturer warranty when the FPS4400 pump is coupled to a new Franklin 4-inch motor, subject to Franklin Australia warranty terms, installation-period conditions and applicable consumer rights.
FPS 9A Official 50Hz Performance Curve
Franklin Bore Pump Installation & Operation
Franklin 4-inch Motor Installation & Operation
Franklin Motor Technical Guide (Australia & NZ)
Franklin FPS 12A High Capacity multistage bore pumps supply water for irrigation, tank filling and domestic or commercial water systems. At 200L/min, these models deliver 28-91m head, depending on model. These figures exclude check-valve losses. Packages combine a High Capacity pump with a Franklin 4-inch motor.
Flow decreases as head increases. The stated flow and head describe the same performance point. Maximum head is the zero-flow value. The performance curve describes the pump end without check-valve losses. Actual delivery depends on pumping lift, required outlet pressure, check-valve losses and pipe resistance. Use the 50Hz performance chart to assess expected flow for the installation. The pump operating range is approximately 60-240L/min, with best efficiency at approximately 110-210L/min.
The outlet is 50mm (2") BSP female thread. An integrated stainless-steel wafer-style non-return valve reduces return flow when the pump stops. These pumps are for bore water with minimal sand or sediment.
230V single phase, three wire. Matching capacitor starter/control box included. The motor has built-in overload protection. Three motor conductors plus protective earth.
400V three phase. Requires a motor starter and motor-overload protection matched to the supplied motor nameplate. This protection cuts power if the motor overloads.
For automatic operation, connect suitable tank-level or pressure controls. Where the bore water level could fall below the pump, use dry-running protection to stop it before it draws in air. Extend the motor lead with correctly sized submersible cable and a waterproof joint for the installation depth.
Install vertically with the motor below the pump, allowing clearance for the pump, cable and pipe connections. Maximum motor submergence is 150m below the water surface. Keep the assembly at least 1.5m above the bore bottom and position it so water passes the motor before entering the pump. Support it with suitable pipework and a safety cable; never lift or suspend it by the electrical cable.
Standard motor application allows water up to 30°C. Higher temperatures require manufacturer assessment of motor loading and cooling. Water must flow around the outside of the motor to remove heat. Fit a flow sleeve where the installation cannot provide the cooling flow required by the motor nameplate, including tank and open-water installations. Keep the complete pump and motor submerged; do not run dry. FPS-12A-16, FPS-12A-23 and FPS-12A-30 require water to pass the motor at least 0.0762m/s (7.62cm/s) for cooling.
The discharge head, outer casing, motor bracket and shaft are stainless steel. Thermoplastic impellers and diffuser assemblies provide the hydraulic stages. Impeller eye and hub seals reduce internal recirculation; a ceramic sleeve and rubber bearing help resist sand wear.
Three-year manufacturer warranty when the FPS4400 pump is coupled to a new Franklin 4-inch motor, subject to Franklin Australia warranty terms, installation-period conditions and applicable consumer rights.
FPS 12A Official 50Hz Performance Curve
Franklin Bore Pump Installation & Operation
Franklin 4-inch Motor Installation & Operation
Franklin Motor Technical Guide (Australia & NZ)
Franklin FPS 16A High Capacity multistage bore pumps supply water for irrigation, tank filling and domestic or commercial water systems. At 240L/min, these models deliver 17-74m head, depending on model, before check-valve losses. Packages combine a High Capacity pump with a Franklin 4-inch motor.
The stated flow and head describe the same performance point. The nominal flow class is 270L/min; actual delivery depends on pumping lift, required outlet pressure, check-valve losses and pipe resistance. Use the 50Hz performance chart to assess expected flow for the installation. The pump operating range is approximately 95-350L/min, with best efficiency at approximately 160-325L/min.
The outlet is 50mm (2") BSP female thread. An integrated stainless-steel wafer-style non-return valve reduces return flow when the pump stops. These pumps are for bore water with minimal sand or sediment.
230V single phase, two wire. The starting switch is built into the motor. Motor overload protection stops the motor if it overheats or overloads. Two supply conductors plus protective earth.
230V single phase, three wire. Matching capacitor starter/control box included. The motor has built-in overload protection. Three motor conductors plus protective earth.
400V three phase. Requires a motor starter and motor-overload protection matched to the supplied motor nameplate. This protection cuts power if the motor overloads.
For automatic operation, connect suitable tank-level or pressure controls. Where the bore water level could fall below the pump inlet, use dry-running protection to stop it before it draws in air. Extend the motor lead with correctly sized submersible cable and a waterproof joint for the installation depth.
Install vertically with the motor below the pump, allowing clearance for the pump, cable and pipe connections. Maximum motor submergence is 150m below the water surface. Keep the assembly at least 1.5m above the bore bottom and position it so water passes the motor before entering the pump. Support it with suitable pipework and a safety cable; never lift or suspend it by the electrical cable.
Standard motor application allows water up to 30°C. Higher temperatures require manufacturer assessment of motor loading and cooling. Water must flow around the outside of the motor to remove heat. Fit a flow sleeve where cooling flow is inadequate and in tank or open-water installations. Keep the complete pump and motor submerged; do not run dry. FPS-16A-13, FPS-16A-21 and FPS-16A-25 require water to pass the motor at least 0.0762m/s (7.62cm/s) for cooling.
The discharge head, outer casing, motor bracket and shaft are stainless steel. Thermoplastic impellers and diffuser assemblies provide the hydraulic stages. Impeller eye and hub seals reduce internal recirculation; a ceramic sleeve and rubber bearing help resist sand wear.
Three-year manufacturer warranty when the FPS4400 pump is coupled to a new Franklin 4-inch motor, subject to Franklin Australia warranty terms, installation-period conditions and applicable consumer rights.
FPS 16A Official 50Hz Performance Curve
Franklin Bore Pump Installation & Operation
Franklin 4-inch Motor Installation & Operation
Franklin Motor Technical Guide (Australia & NZ)

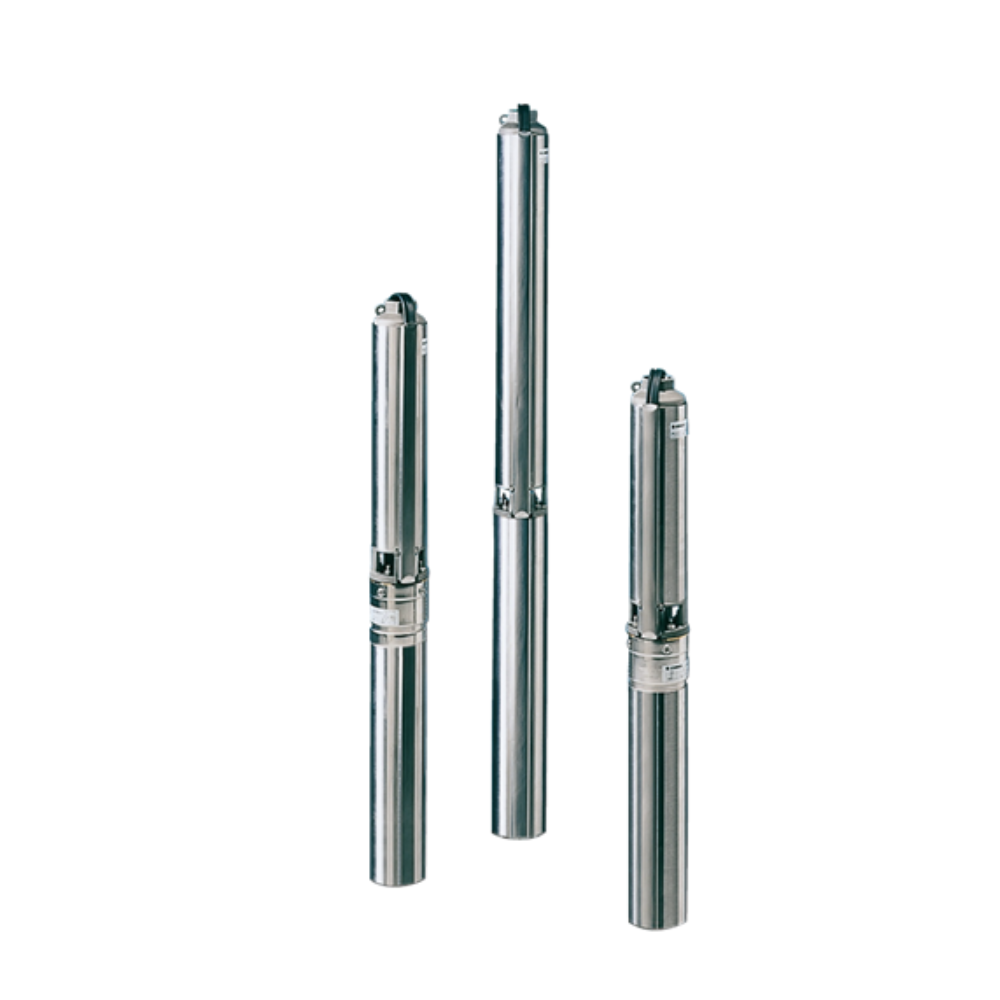

Lowara 2GS multistage bore pumps supply water for irrigation, tank filling and domestic or commercial water systems. At 30L/min, the stocked models provide 36-104m head, depending on model. Single-phase and three-phase packages combine an e-GS pump with a 4-inch submersible motor.
Flow and head are paired hydraulic reference values at approximately 2900rpm, 50Hz. Actual flow depends on the pumping lift, required outlet pressure and pipe resistance. Use the matching performance curve to assess expected flow for the installation.
The outlet is 32mm (1 1/4") BSP female thread. A built-in non-return valve reduces backflow when the pump stops. These pumps handle clean bore water with up to 150g/m3 of sand.
All single-phase models include a starter. Three-phase models require a suitable external starter and motor overload protection. Protection must be set to the current on the supplied motor nameplate.
For automatic tank filling or pressure operation, connect suitable level or pressure controls. Use dry-running protection where a falling water level could expose the pump. Extend the motor lead with correctly sized submersible cable and a suitable waterproof joint; secure the cable to the delivery pipe every 2-3m.
Install with the motor below the pump and keep the complete assembly submerged. While pumping, keep at least 1m of water above the pump outlet. Allow at least 3mm difference between the pump outside diameter and the bore internal diameter, with room for the cable and fittings. Position the pump clear of the bore bottom and accumulated sediment. Support it using suitable pipework and installation hardware; never lift or suspend it by its electrical cable.
Water temperature is limited to 35°C. Water must move around the outside of the motor at least 0.08m/s (8cm/s) to remove heat. Fit a cooling sleeve if the installation cannot provide that flow, including unsuitable wide-bore or tank arrangements. Keep the pump submerged and do not run it dry.
The pump casing, shaft, strainer and cable guard are stainless steel, with a cast stainless-steel discharge head and motor adapter. Floating PPO technopolymer impellers and diffusers help resist wear from sand. The pump head contains a stainless-steel non-return valve.
Suitable clean-water geothermal or fountain installations also require the correct motor cooling, submergence and controls.
One-year warranty, subject to warranty terms and applicable consumer rights.
Lowara 2GS Official 50Hz Performance Curve
Lowara e-GS Technical Data & Installation Guidance

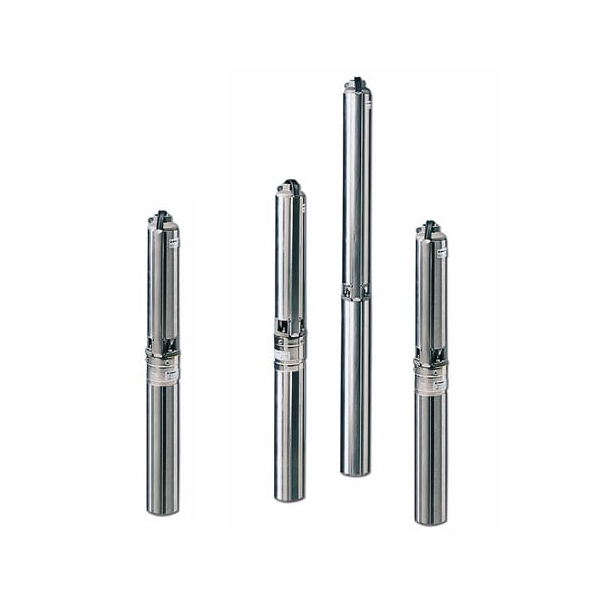

Lowara 4GS multistage bore pumps supply water for irrigation, tank filling and domestic or commercial water systems. At 60L/min, the stocked models provide 33-127m head, depending on model. Single-phase and three-phase packages combine an e-GS pump with a 4-inch submersible motor.
Flow and head are paired hydraulic reference values at approximately 2900rpm, 50Hz. Actual flow depends on the pumping lift, required outlet pressure and pipe resistance. Use the matching performance curve to assess expected flow for the installation.
The outlet is 32mm (1 1/4") BSP female thread. A built-in non-return valve reduces backflow when the pump stops. These pumps handle clean bore water with up to 150g/m3 of sand.
All single-phase models include a starter. Three-phase models require a suitable external starter and motor overload protection. Protection must be set to the current on the supplied motor nameplate.
For automatic tank filling or pressure operation, connect suitable level or pressure controls. Use dry-running protection where a falling water level could expose the pump. Extend the motor lead with correctly sized submersible cable and a suitable waterproof joint; secure the cable to the delivery pipe every 2-3m.
Install with the motor below the pump and keep the complete assembly submerged. While pumping, keep at least 1m of water above the pump outlet. Allow at least 3mm difference between the pump outside diameter and the bore internal diameter, with room for the cable and fittings. Position the pump clear of the bore bottom and accumulated sediment. Support it using suitable pipework and installation hardware; never lift or suspend it by its electrical cable.
Water temperature is limited to 35°C. Water must move around the outside of the motor at least 0.08m/s (8cm/s) to remove heat. Fit a cooling sleeve if the installation cannot provide that flow, including unsuitable wide-bore or tank arrangements. Keep the pump submerged and do not run it dry.
The pump casing, shaft, strainer and cable guard are stainless steel, with a cast stainless-steel discharge head and motor adapter. Floating PPO technopolymer impellers and diffusers help resist wear from sand. The pump head contains a stainless-steel non-return valve.
Suitable clean-water geothermal or fountain installations also require the correct motor cooling, submergence and controls.
One-year warranty, subject to warranty terms and applicable consumer rights.
Lowara 4GS Official 50Hz Performance Curve
Lowara e-GS Technical Data & Installation Guidance
Lowara 6GS multistage bore pumps supply water for irrigation, tank filling and domestic or commercial water systems. At 100L/min, the stocked models provide 40.3-87.7m head, depending on model. Single-phase and three-phase packages combine an e-GS pump with a 4-inch submersible motor.
Flow and head are paired hydraulic reference values at approximately 2900rpm, 50Hz. Actual flow depends on the pumping lift, required outlet pressure and pipe resistance. Use the matching performance curve to assess expected flow for the installation.
The outlet is 32mm (1 1/4") BSP female thread. A built-in non-return valve reduces backflow when the pump stops. These pumps handle clean bore water with up to 150g/m3 of sand.
All single-phase models include a starter. Three-phase models require a suitable external starter and motor overload protection. Protection must be set to the current on the supplied motor nameplate.
For automatic tank filling or pressure operation, connect suitable level or pressure controls. Use dry-running protection where a falling water level could expose the pump. Extend the motor lead with correctly sized submersible cable and a suitable waterproof joint; secure the cable to the delivery pipe every 2-3m.
Install with the motor below the pump and keep the complete assembly submerged. While pumping, keep at least 1m of water above the pump outlet. Allow at least 3mm difference between the pump outside diameter and the bore internal diameter, with room for the cable and fittings. Position the pump clear of the bore bottom and accumulated sediment. Support it using suitable pipework and installation hardware; never lift or suspend it by its electrical cable.
Water temperature is limited to 35°C. Water must move around the outside of the motor at least 0.08m/s (8cm/s) to remove heat. Fit a cooling sleeve if the installation cannot provide that flow, including unsuitable wide-bore or tank arrangements. Keep the pump submerged and do not run it dry.
The pump casing, shaft, strainer and cable guard are stainless steel, with a cast stainless-steel discharge head and motor adapter. Floating PPO technopolymer impellers and diffusers help resist wear from sand. The pump head contains a stainless-steel non-return valve.
Suitable clean-water geothermal or fountain installations also require the correct motor cooling, submergence and controls.
One-year warranty, subject to warranty terms and applicable consumer rights.
Lowara 6GS Official 50Hz Performance Curve
Lowara e-GS Technical Data & Installation Guidance
Lowara 8GS multistage bore pumps supply water for irrigation, tank filling and domestic or commercial water systems. At 120L/min, the stocked models provide 32-70.2m head, depending on model. Single-phase and three-phase packages combine an e-GS pump with a 4-inch submersible motor.
Flow and head are paired hydraulic reference values at approximately 2900rpm, 50Hz. Actual flow depends on the pumping lift, required outlet pressure and pipe resistance. Use the matching performance curve to assess expected flow for the installation.
The outlet is 50mm (2") BSP female thread. A built-in non-return valve reduces backflow when the pump stops. These pumps handle clean bore water with up to 150g/m3 of sand.
All single-phase models include a starter. Three-phase models require a suitable external starter and motor overload protection. Protection must be set to the current on the supplied motor nameplate.
For automatic tank filling or pressure operation, connect suitable level or pressure controls. Use dry-running protection where a falling water level could expose the pump. Extend the motor lead with correctly sized submersible cable and a suitable waterproof joint; secure the cable to the delivery pipe every 2-3m.
Install with the motor below the pump and keep the complete assembly submerged. While pumping, keep at least 1m of water above the pump outlet. Allow at least 3mm difference between the pump outside diameter and the bore internal diameter, with room for the cable and fittings. Position the pump clear of the bore bottom and accumulated sediment. Support it using suitable pipework and installation hardware; never lift or suspend it by its electrical cable.
Water temperature is limited to 35°C. Water must move around the outside of the motor at least 0.08m/s (8cm/s) to remove heat. Fit a cooling sleeve if the installation cannot provide that flow, including unsuitable wide-bore or tank arrangements. Keep the pump submerged and do not run it dry.
The pump casing, shaft, strainer and cable guard are stainless steel, with a cast stainless-steel discharge head and motor adapter. Floating PPO technopolymer impellers and diffusers help resist wear from sand. The pump head contains a stainless-steel non-return valve.
Suitable clean-water geothermal or fountain installations also require the correct motor cooling, submergence and controls.
One-year warranty, subject to warranty terms and applicable consumer rights.
Lowara 8GS Official 50Hz Performance Curve
Lowara e-GS Technical Data & Installation Guidance
Lowara 16GS multistage bore pumps supply water for irrigation, tank filling and domestic or commercial water systems. At 260L/min, the stocked models provide 33.2m head. Single-phase and three-phase packages combine an e-GS pump with a 4-inch submersible motor.
Flow and head are paired hydraulic reference values at approximately 2900rpm, 50Hz. Actual flow depends on the pumping lift, required outlet pressure and pipe resistance. Use the matching performance curve to assess expected flow for the installation.
The outlet is 50mm (2") BSP female thread. A built-in non-return valve reduces backflow when the pump stops. These pumps handle clean bore water with up to 150g/m3 of sand.
All single-phase models include a starter. Three-phase models require a suitable external starter and motor overload protection. Protection must be set to the current on the supplied motor nameplate.
For automatic tank filling or pressure operation, connect suitable level or pressure controls. Use dry-running protection where a falling water level could expose the pump. Extend the motor lead with correctly sized submersible cable and a suitable waterproof joint; secure the cable to the delivery pipe every 2-3m.
Install with the motor below the pump and keep the complete assembly submerged. While pumping, keep at least 1m of water above the pump outlet. Allow at least 3mm difference between the pump outside diameter and the bore internal diameter, with room for the cable and fittings. Position the pump clear of the bore bottom and accumulated sediment. Support it using suitable pipework and installation hardware; never lift or suspend it by its electrical cable.
Water temperature is limited to 35°C. Water must move around the outside of the motor at least 0.08m/s (8cm/s) to remove heat. Fit a cooling sleeve if the installation cannot provide that flow, including unsuitable wide-bore or tank arrangements. Keep the pump submerged and do not run it dry.
The pump casing, shaft, strainer and cable guard are stainless steel, with a cast stainless-steel discharge head and motor adapter. Floating PPO technopolymer impellers and diffusers help resist wear from sand. The pump head contains a stainless-steel non-return valve.
Suitable clean-water geothermal or fountain installations also require the correct motor cooling, submergence and controls.
One-year warranty, subject to warranty terms and applicable consumer rights.
Lowara 16GS Official 50Hz Performance Curve
Lowara e-GS Technical Data & Installation Guidance
