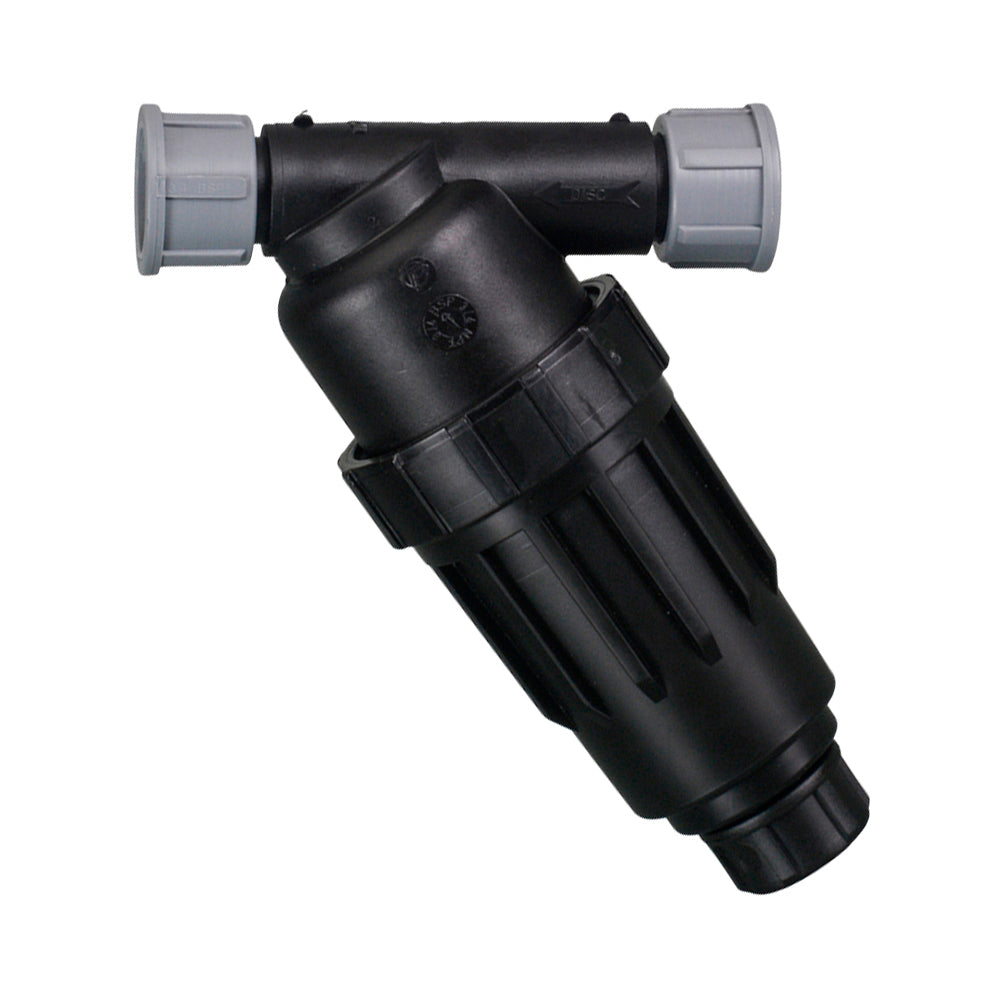

Mesh screen filters are used to help protect drip, spray, micro jet and sprinkler systems by filtering sand and inorganic particles before they reach emitters, valves and sprinkler nozzles. This range includes complete plastic body mesh screen filters and replacement screen elements for ongoing filter maintenance.
The supplied range includes 20mm and 25mm Female BSP filters with 120 mesh screens, 40mm and 50mm Male BSP filters with 120 mesh screens, and replacement screen elements for compatible 20mm/25mm, 40mm and 50mm filter bodies. Select by filter size, connection type, mesh rating, colour, flow requirement and filter body compatibility before ordering.
20mm and 25mm Mesh Screen Filter Specifications
40mm and 50mm Mesh Screen Filter Specification
Tavlit fitler Specifications Sheet 1
Tavlit Filter Specifications Sheet 2
Netafim Disc Filter Plastic Body
Features:
-
Red 120 mesh disc element (130 Microns).
- Maximum working pressure: 10 BAR (1000 kpa).
- Innovative design captures large amounts of solids on the surface of compressed discs.
- Long life span and excellent corrosion resistance.
- Durable polyamide housing resistant to harsh environmental conditions.
Product Specifications
Contact us to special order other disc elements.
| Product | Netafim Code | Max. Flow | Max. Pressure |
| A. 20mm | 70640-001200 | 4,000 | 10 BAR |
| B. 25mm | 70640-002090 | 6,000 | 10 BAR |
| C. 25mm Super | 70640-002448 | 8,000 | 10 BAR |
| D. 40mm Super | 70640-003400 | 12,000 | 10 BAR |

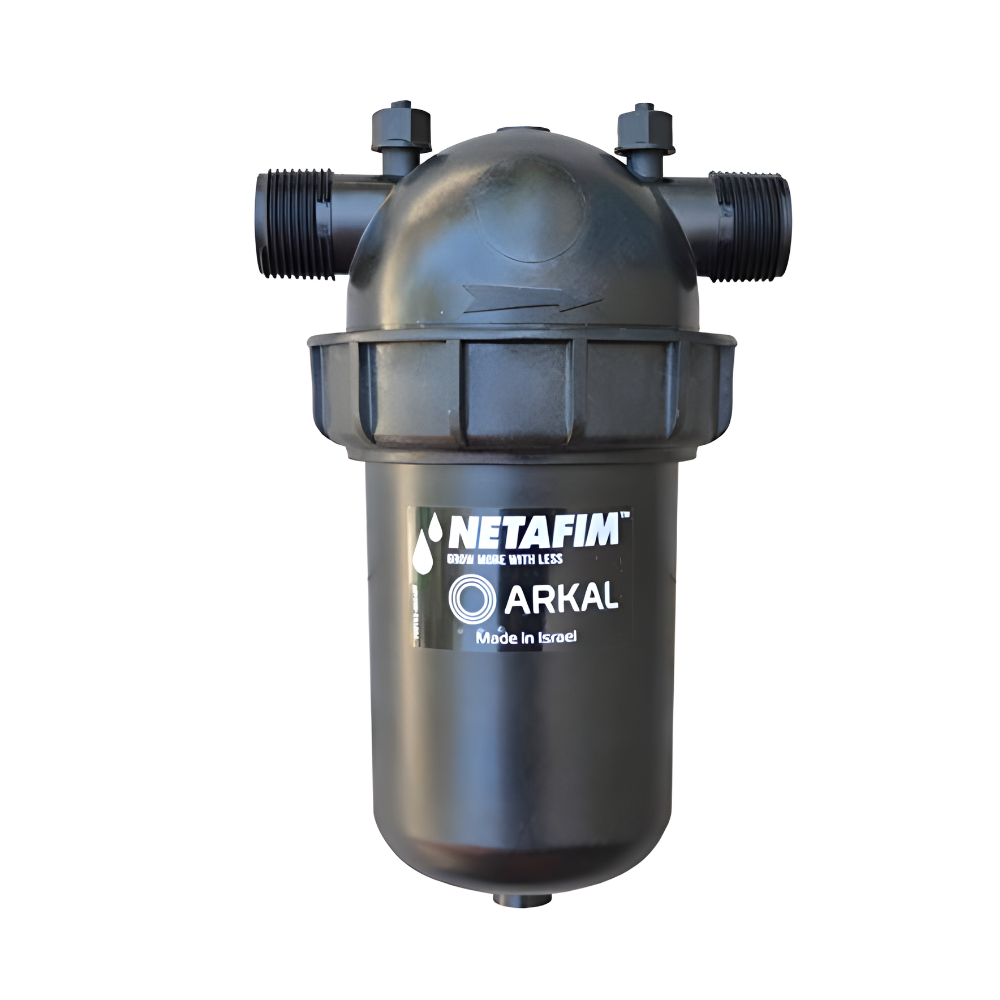

| E. 50mm Leader | 70640-005340 | 25,000 | 10 BAR |

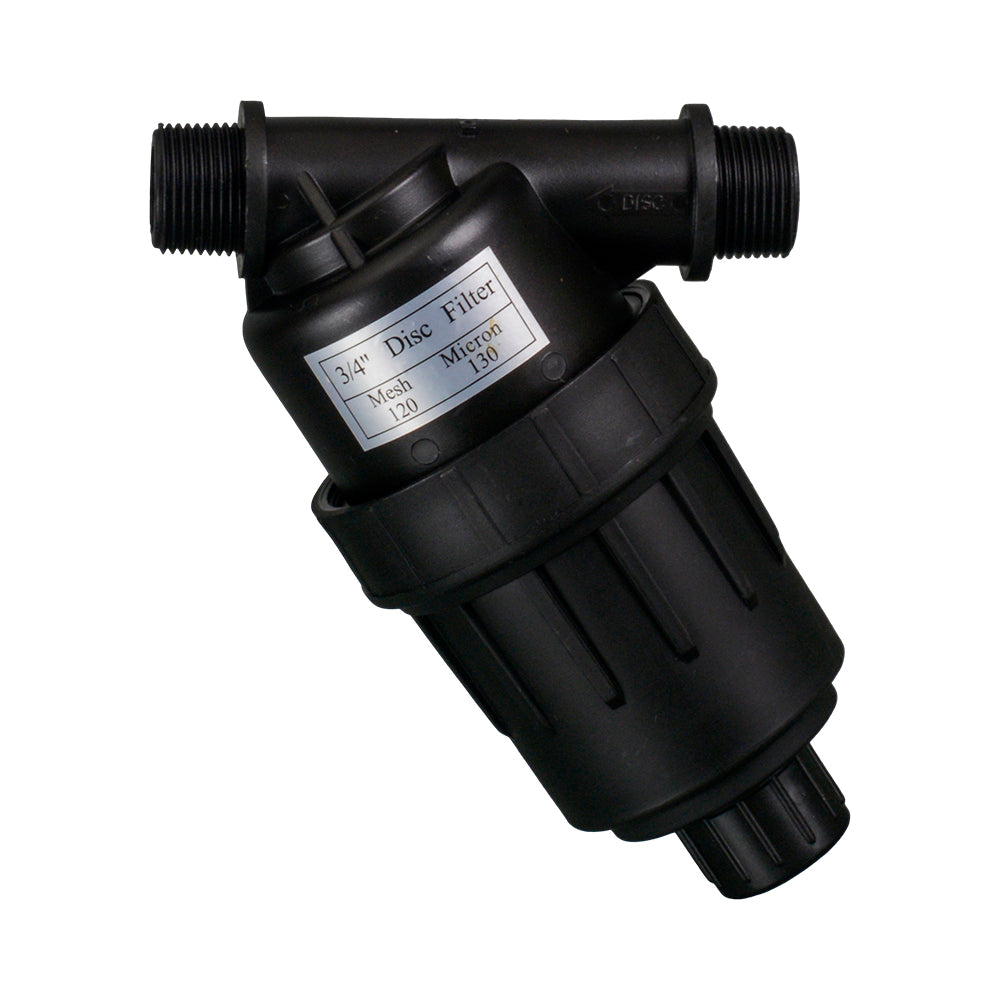

Disc Filters
Durable high quality disc filters for a wide range of filtration applications. Designed for effective removal of organic substances. The disc elements are designed into a telescopic core, stacked on top of each other. The compressed discs provide filtration by suspending organic particles to the grooved disc surface.
Yellow - 100 Micron - 155 Mesh
Red - 130 Micron - 120 Mesh
Purple - 180 Micron - 80 Mesh
Brown - 250 Micron - 60 Mesh
Puretec EM2-60 is a dual-stage 10" whole house rainwater filter system designed for rainwater and other suitable cold water supplies. It helps reduce sediment, dirt, rust, algae, taste and odour before water is distributed through a small to medium home or building.
This model has a 5 micron nominal rating, 60 Lpm maximum flow rate and 1" BSP / 25mm connection. It includes PL05MP1 and DP10MP1 cartridges and does not require power. This is a filtration system only – use suitable disinfection where bacterial protection is required.
Puretec PL Series Cartridge Specifications
Puretec DP Series Cartridge Specifications
Video 1
Video 2
Puretec Hybrid E7 is a twin 20" whole house rainwater filtration and UV treatment system designed for common rainwater supplies. It combines dual-stage cartridge filtration with Radfire™ UV treatment to help reduce sediment, taste, odour and bacteria before water is distributed through the home.
This model has a 130 Lpm maximum flow rate, 1" BSP Male / 25mm connection, 5 micron nominal rating and 300–875 kPa operating pressure range. It includes PL05MP2 pleated sediment cartridge, DP10MP2 dual purpose cartridge and RL7 UV lamp. Confirm water quality, flow demand, pressure, power supply, surge protection and installation requirements before ordering.
Puretec Hybrid E Brochure
Puretec Hybrid E Series Installation Guide
Puretec Hybrid E Series Maintenance Guide
Puretec Hybrid E7 & E6 Specifications
Puretec PL Series Cartridge Specifications
Puretec DP Series Cartridge Specifications
Video 1

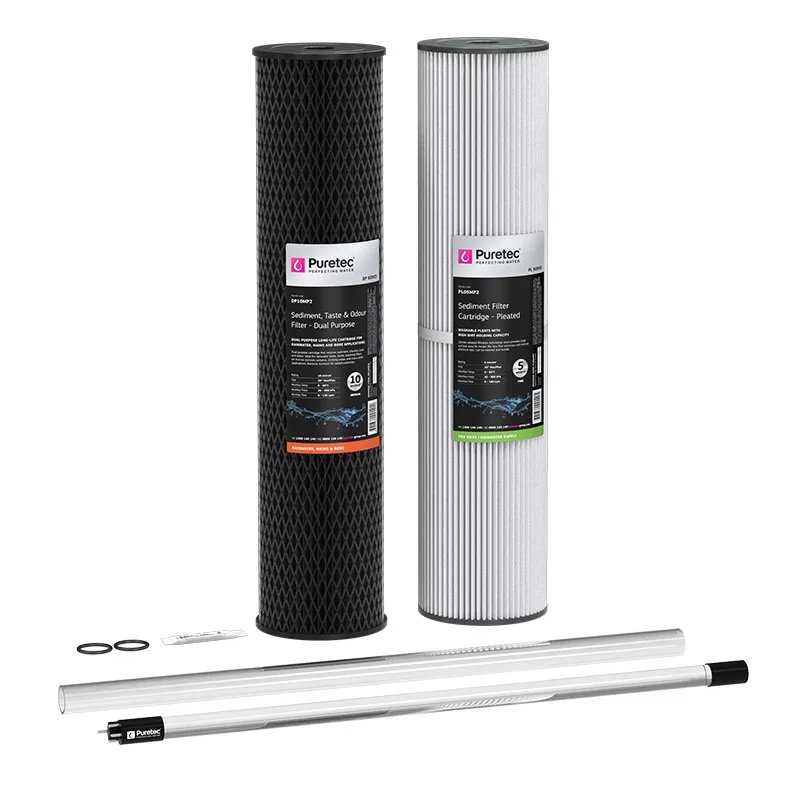

Puretec maintenance kit for Hybrid E7/I7 is used for routine servicing of compatible Puretec Hybrid E7, Hybrid I7 and Hybrid E7AMC rainwater filtration and UV systems. It is a maintenance kit only, not a complete filtration and UV system.
The kit includes PL05MP2 20" pleated sediment cartridge, DP10MP2 20" dual purpose carbon cartridge, RL7 UV lamp, RQS6 quartz sleeve and O-rings. Routine replacement helps maintain filtration performance, UV performance and system reliability. Confirm the installed system model and kit compatibility before ordering.
Puretec PL Series Cartridge Specifications
Puretec DP Series Cartridge Specifications

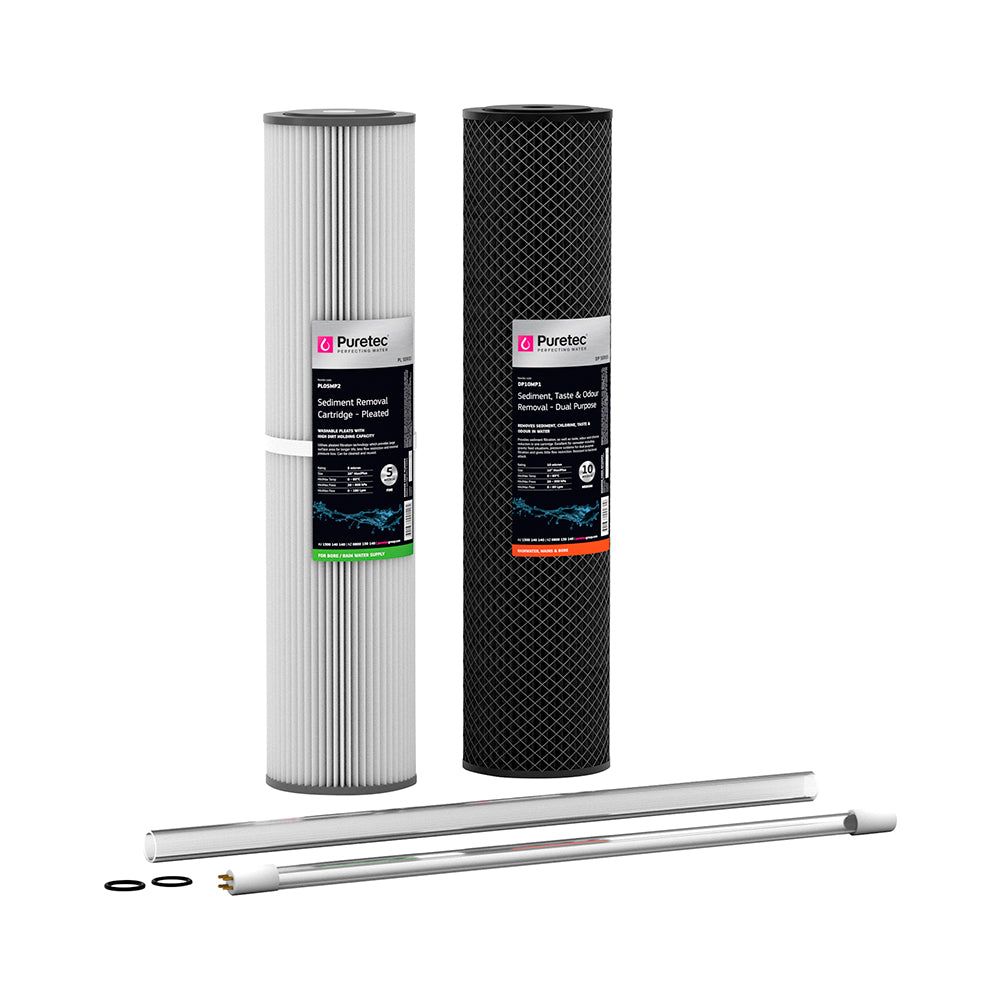

Puretec maintenance kit for Hybrid G7/R2 is used for routine servicing of compatible Puretec Hybrid UV and filtration systems. It is a maintenance kit only, not a complete filtration and UV system.
The kit includes PL05MP2 20" MaxiPlus™ sediment filter, DP10MP2 taste and odour removal filter, RL6 UV replacement lamp, RQS6 replacement quartz sleeve and 2 x ROR2 O-rings. Routine replacement helps maintain filtration performance, UV performance and system reliability. Confirm the installed system model and kit compatibility before ordering.
Puretec HybridCare Flyer
Puretec PL Series Cartridge Specifications
Puretec DP Series Cartridge Specifications
Video 1
Puretec TW1 is a twin undersink drinking water filter system designed for mains / town water supplies. It provides filtered water through the included OT250 high loop faucet and helps reduce sediment, chlorine, taste and odour at the kitchen tap.
This system includes MB051 sediment cartridge and EC951 taste and odour cartridge, with a 0.5 micron nominal rating, 0–7 Lpm flow range, 100–500 kPa pressure range and 1/4" QC connection. TW1 does not include a pressure limiting valve. Confirm site pressure, water quality and installation requirements before ordering.
Puretec Basic SIB_TW User Guide
Puretec Basic TW Series Specifications
Puretec MB Series Cartridge Specifications
Puretec OT User Guide
Puretec Basic OT Series Faucets Specifications
The Puretec WH2-55 is a high-capacity whole house filtration system designed for medium to large homes using mains water. Featuring a twin filter setup with PX05MP2 sediment and CB10MP2 carbon cartridges, it effectively reduces sediment, chlorine, chemicals, taste and odour, delivering clean, filtered water to every tap. Designed for reliable performance and easy maintenance, this system helps protect plumbing and household appliances while improving overall water quality.
Key Features
- Twin filter system including PX05MP2 sediment and CB10MP2 carbon cartridges
- High flow rate up to 55 L/min for whole house supply
- Reduces sediment, chlorine, taste, odour and chemicals
- 5 micron filtration for effective water treatment
- Protects appliances and plumbing from sediment build-up
- No power required for operation
- Easy maintenance with simple cartridge replacement
- Suitable for mains/town water supply
Applications
- Whole house water filtration
- Medium to large residential homes
- Improving drinking and bathing water quality
- Protecting plumbing and household appliances
Warranty 10 Years
SF24-2 cartridges are sold separately as twin packs (includes two cartridges). Suits SF240-CH & SF240 filters only. Made of KDF/carbon.
X3 tap and filter kit includes the cartridge (IL149Q) and tap pictured, and plumbing fittings listed at the bottom of this page.
IL149Q: 2.5” x 10” KDF/Carbon cartridge, 1 micron, maximum 1.9 litres per minute filtering capacity
Easy to install with 1/4” quick connect fittings. Required plumbing fittings and a multifunction control valve for pressure reduction are included. Compact design perfectly suited to under sink installation. Can be installed horizontally or vertically. No shelf cut-outs required.
10 year manufacturer’s warranty.
Product Specifications
User Guide & Installation Instructions
Fittings included:
KASV47: Smart Tee Angle Stop Valve, 1/4“ tube x 1/2” BSPM x 1/2” BSPF
KTU4W-2: 1/4“ White Tubing (2 metre pack)
PVM43PH: Multivalve, PLV, 350kpa, 1/4“ tube, plastic, Watermark
RA-MB: Wall Bracket 2.5 Inch, suits Inline Filter & Membrane Housing
DFU180: Designer Faucet, High Loop, 1/4 Turn, LED

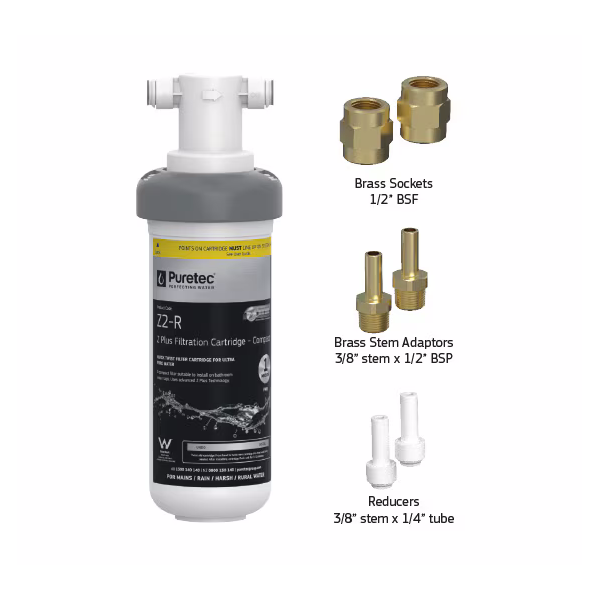

Z2-HFR retrofit under sink water filter kit includes one Z2-R cartridge and fittings for installation (see bottom of page).
Z2-R: carbon cartridge, 1 micron, maximum 8 litres per minute filtering capacity.
Contact us for replacement cartridges.
Replace an existing under sink water filter with the premium Puretec Z2 system! This complete kit includes a Z2-R water filter and parts typically required to connect this filter to mixer taps and dedicated water filter taps.
Compact design suited to under sink installation. Can be installed horizontally or vertically.
1 year manufacturer’s warranty.
Product Specifications
User Guide & Installation Instructions
Fittings included:
2x 1/2” BSP female brass sockets
2x 3/8” stem x 1/2” BSP male adaptors
2x 3/8” stem x 1/4” tube reducers.
Puretec - PureMix Z6 High Flow Inline Undersink Filter System 0.1 Micron
The PureMix Z6 system uses Ultra Z Filtration Technology to reduce unwelcome elements in your water. With 3 levels of filtration, the PureMix Z6 filters out sediment down to 0.1 micron as well as filtering out bad taste, odour, chlorine and protects against cysts and bacteria such as E. coli. Leaving you with healthy, great tasting, clean, safe and pure water.
Valve-in-head Technology
Puretec has introduced valve-in-head technology, which means the cartridge can be quickly and easily changed without having to turn off the water supply.
See below for Product Video.
Puretec PureMix Z6 | High Flow Inline Water Filter
Filters As Easy To Change As A Light Globe
The Puretec PureMix Z6 quick-change cartridge can be easily replaced - just like changing a light globe. It also incorporates Puretec’s long life filter technology, so you can go longer between filter replacements, and comes with Puretec's *10 Year Platinum Protection Warranty.
*10 year warranty is 1 year parts and labour, plus 9 years parts only. Excludes cartridges.
No Extra Tap Required - Fits Any Standard Mixer Tap
The PureMix Z6 can be used with your existing mixer tap and installs right under your kitchen bench. This unit can be installed vertically or horizontally, so it won’t clutter up your cupboard.
FEATURES & BENEFITS
• Specifically designed for mains water supply.
• Using Ultra Z Filtration Technology, this Z6 cartridge has the ability to protect against cysts and bacteria such as E. coli. Reduces Trihalomethane (THM's).
• Provides pure, safe, filtered water, free of chlorine.
• Sediment, dirt and other particles filtered down to 0.1 micron including Giardia and Cryptosporidium cysts.
• No need for a separate filter tap. Connects to any mixer tap.
• Quick and easy installation, ideal for stone bench tops. Mounts horizontally or vertically - no shelf cutouts required.
Important Note: Use only genuine Puretec replacement cartridge.
PUREMIX-Z7 under sink water filter includes one Z7-R cartridge.
Z7-R cartridge: four-stage filtration, 1 micron, maximum 9.5 litres per minute filtering capacity, suits Puremix Z7 filter only.
Fits to existing standard two-way mixer taps, can be installed horizontally or vertically. No shelf cut-outs required.
Enjoy clean and good-tasting water, even from harsh water supplies. Suitable for mains, rainwater and rural water supplies. Specifically designed to cope with harsh water conditions such as rural areas and older pipe infrastructure.
Four level filtration: removes sediment, reduces chlorine and other bad tastes and odours, prevents calcium build-up, and has antibacterial qualities. Filters dirt and rust down to 1 micron.
Recommended for low-pressure, high sediment applications.
Z Plus Technology inhibits bacterial growth.
Anti-scaling protection.
Valve-in-head technology: cartridge can be changed quickly and easily without turning off your water supply.
Included cartridge can filter chlorine from up to 63,500 litres of water across its lifespan (based on 2 parts per million chlorine to water).
Puretec - Z18 Quick Twist Drinking Water Filter System
with Ultra Z Technology includes DFU180
Compact, quick-change water filter with long reach LED faucet turns from blue to red when the filter needs replacing. This premium filter system easily fits under your existing kitchen bench. The Puretec Z18 utilises Ultra Z Filtration Technology to finely filter water down to 0.1 micron through an advanced three stage process. This all-in-one cartridge provides reduction of unwelcome elements in your water such as sediment, chlorine, bad tastes and odours and also protects against cysts and bacteria such E.coli.
FEATURES & BENEFITS
Designed to filter your Mains and Town water supply.
• Quick and easy installation.• Valve-in-head means no mess, quick-twist hygienic cartridge change. • Uses Ultra Z Filtration Technology to finely filter water down to 0.1 micron through an advanced three stage process. • Reduces sediment, chemicals including chlorine, bad taste, odour and also protects against cysts and bacteria & E. coli. • Includes high loop LED faucet that turns from blue to red when the filter needs replacing.

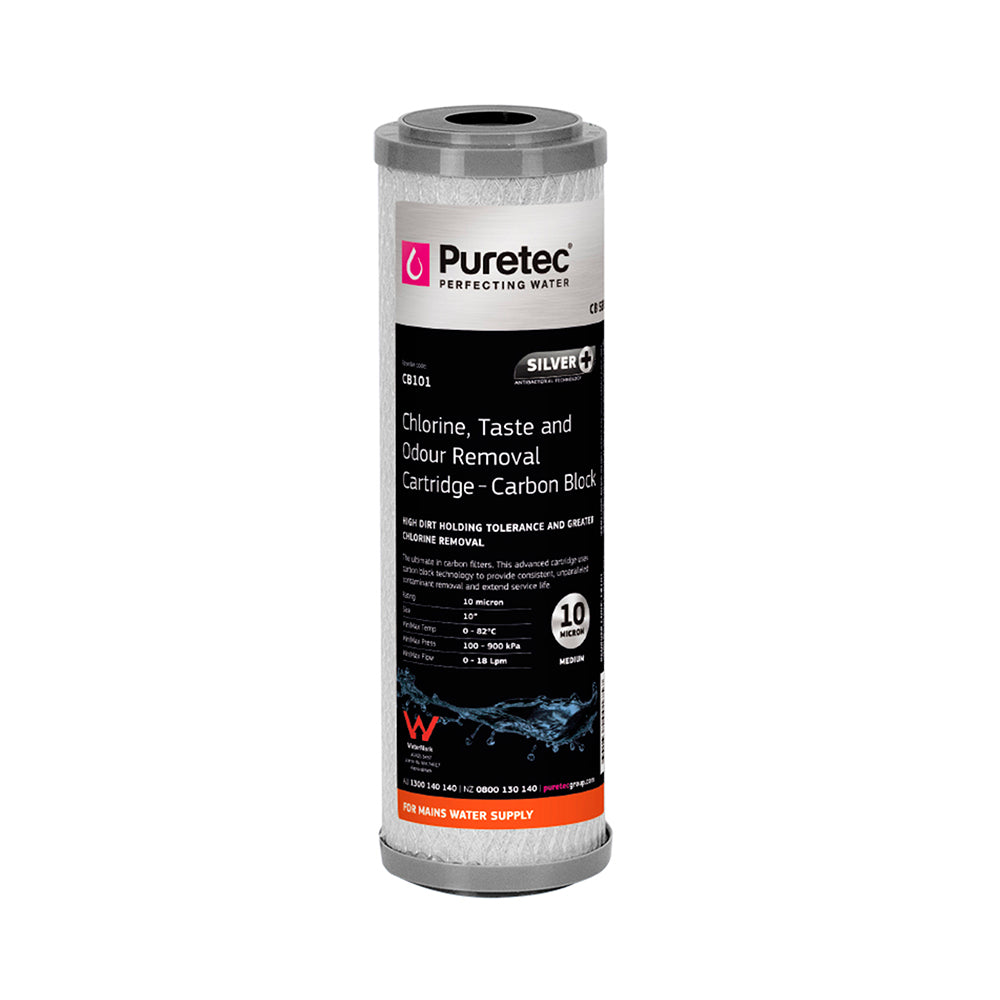

CB101: 2.5" x 10" carbon cartridge, 10 Microns, maximum 18 litres per minute filtering capacity
CB10MP1: 4.5” x 10” carbon cartridge, 10 microns, maximum 30 litres per minute filtering capacity
CB10MP2: 4.5” x 20” carbon cartridge, 10 microns, maximum 60 litres per minute filtering capacity
Carbon Block Cartridge
10 Micron Replacement Cartridge
Effectively reduces bad tastes, odours, chlorine and sediment, so you can enjoy clean and great-tasting drinking water.
Made of bonded activated carbon, offering powerful water treatment without releasing carbon fines.
High contaminant capacity and dirt-holding tolerances extend cartridge life and usefulness.

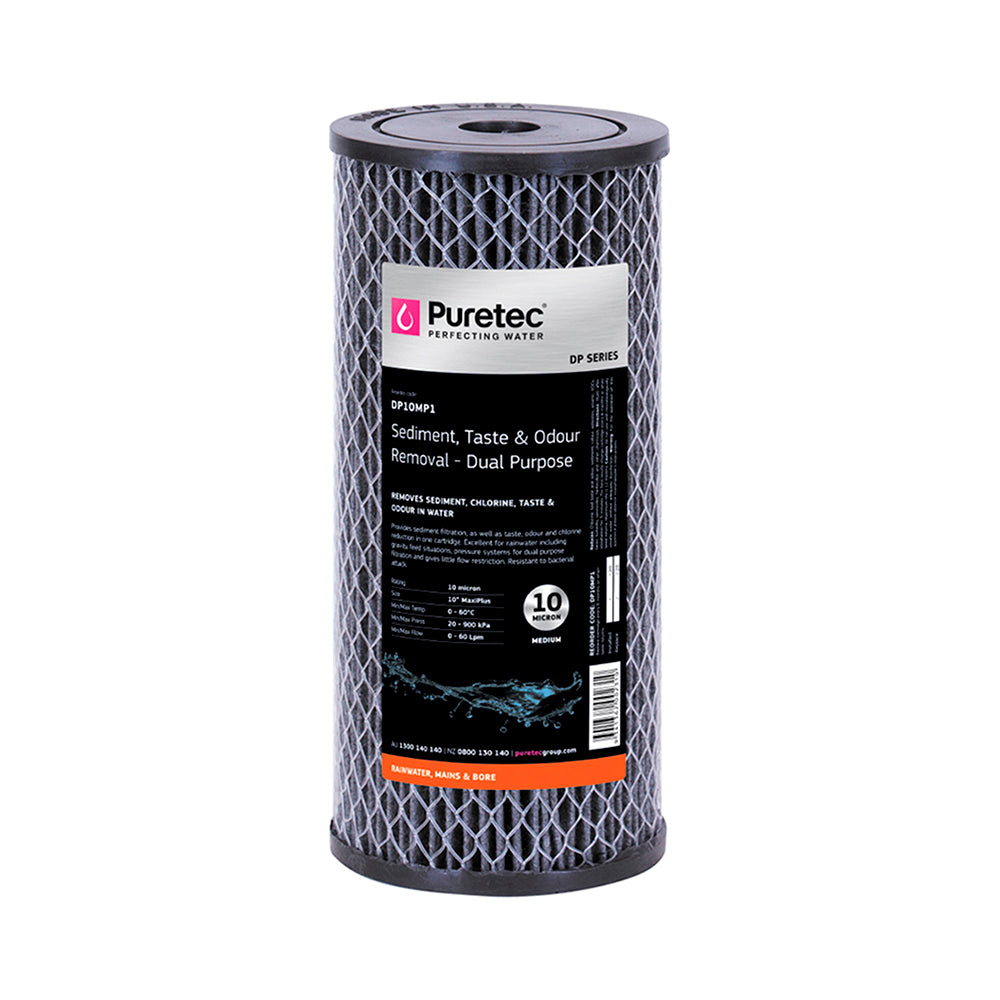

DP10MP1: 4.5" x 10" dual-purpose cartridge, 10 microns, maximum 60 litres per minute filtering capacity

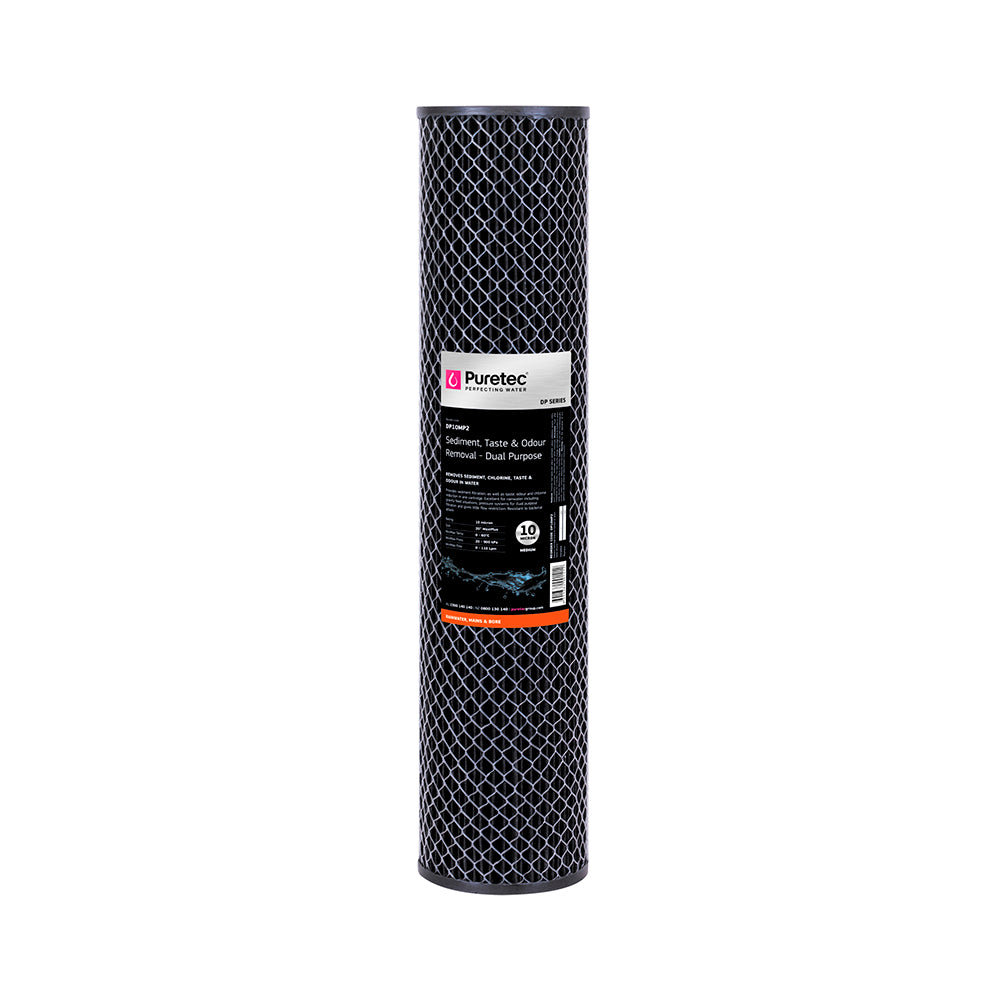

DP10MP2: 4.5” x 20” dual-purpose cartridge, 10 microns, maximum 110 litres per minute filtering capacity
Suited for rainwater tanks, bore water, polishing filters in reverse osmosis machines, and drinking water applications.
Non-cellulose construction provides strong resistance to bacteria, making this cartridge suited for non-chlorinated water applications.
Reduces bad tastes, odours, chlorine, and sediment in water.
Made of carbon-impregnated non-cellulose pleated polyester media, with long service life.
Pleated design provides high dirt-loading capacity while minimising pressure loss.
The Puretec EC951 cartridge is a high performance extruded carbon filter designed for drinking water applications where fine filtration and improved water quality are required. With a 0.5 micron rating, the EC951 provides effective reduction of chlorine, taste, odour and cysts while maintaining consistent flow and minimal pressure loss. The high porosity carbon block construction maximises adsorption capacity, helping prevent premature clogging and ensuring longer service life compared to standard carbon cartridges. This cartridge is commonly used in Puretec SIB1 and TW series systems for residential drinking water filtration and point of use applications.
FEATURES
- Extruded carbon block construction for consistent filtration performance
- 0.5 micron rating for cyst reduction and fine filtration
- Effective chlorine, taste and odour removal
- High porosity design reduces pressure drop and extends cartridge life
- Designed to suit Puretec SIB1 and TW Series systems
- Improves drinking water clarity and quality
APPLICATIONS
- Drinking water filtration
- Under sink filtration systems
- Rainwater filtration for potable use
- Town water taste and odour improvement
- Point of use water filtration systems
SPECIFICATIONS
- Model EC951
- Micron Rating 0.5 micron
- Cartridge Size Standard 2.5 inch x 10 inch
- Flow Rate 14 L/min
- Filtration Type Extruded carbon block
- Primary Function Chlorine reduction, taste and odour removal, cyst reduction
- Compatible Systems Puretec SIB1 and TW Series housings
EC951: 2.5" x 10" extruded carbon cartirdge, 0.5 microns, maximum 14 litres per minute filtering capacity
Suits SIB1 & TW Series Water Filters

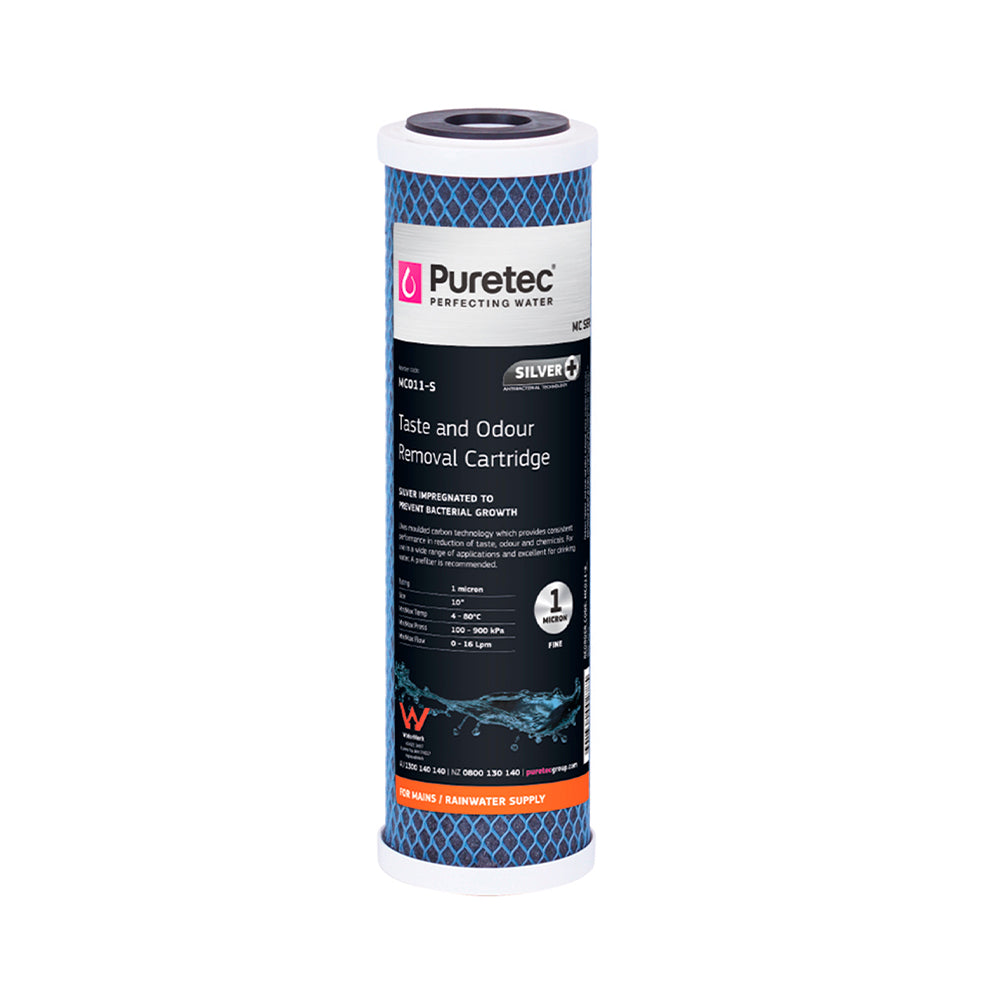

MC011-S: 2.5” x 10” dual-purpose cartridge, 1 micron, maximum 16 litres per minute filtering capacity, silver-impregnated
Carbon Block Cartridge, Silver-impregnated
1 Micron Replacement Cartridge
Highly effective reduction of bad tastes, odours, chlorine, and sediment in water. Combines the benefits of sediment and carbon filters.
Holds up to three times as much chlorine taste, odour, and dirt compared to other filter media.
High contaminant capacity and dirt-holding tolerances extend cartridge life and usefulness.
Made of FDA-compliant materials, ideal for diverse applications including residential, food sesrvice, commercial, and industrial use.
Low pressure drop across the service life of the filter due to the unique filter media design and materials.
Created by attaching powdered activated carbon to a cellulose-free synthetic fibre matrix, manufactured with proprietary technology.
Post-filtration layer ensures carbon fines are not released into water.

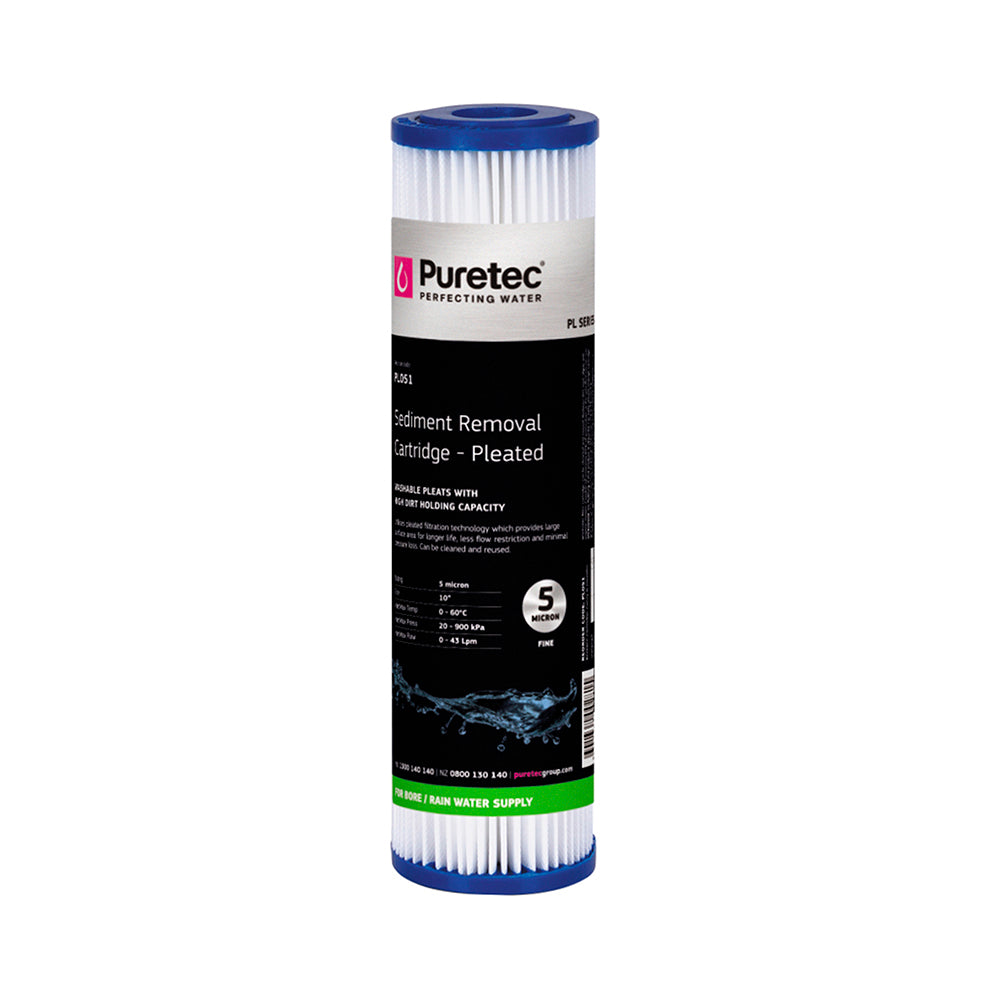

PL051: 2.5” x 10” sediment cartridge, 5 microns, maximum 43 litres per minute filtering capacity
PL05MP1: 4.5" x 10" sediment cartridge, 5 microns, maximum 90 litres per minute filtering capacity

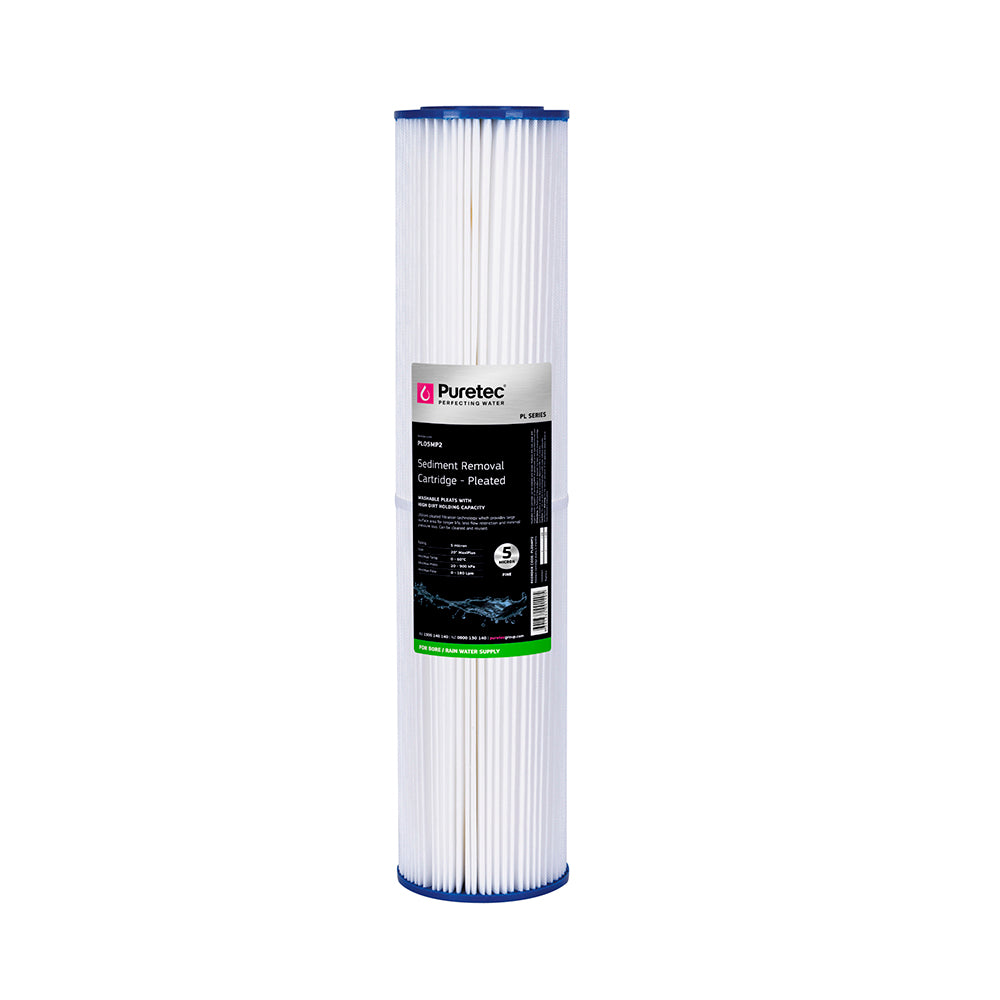

PL05MP2: 4.5” x 20” sediment cartridge, 5 microns, maximum 180 litres per minute filtering capacity
Pleated Washable Sediment Cartridge
5 Micron Replacement Cartridge
Suitable for diverse applications including residential, commercial and industrial use.

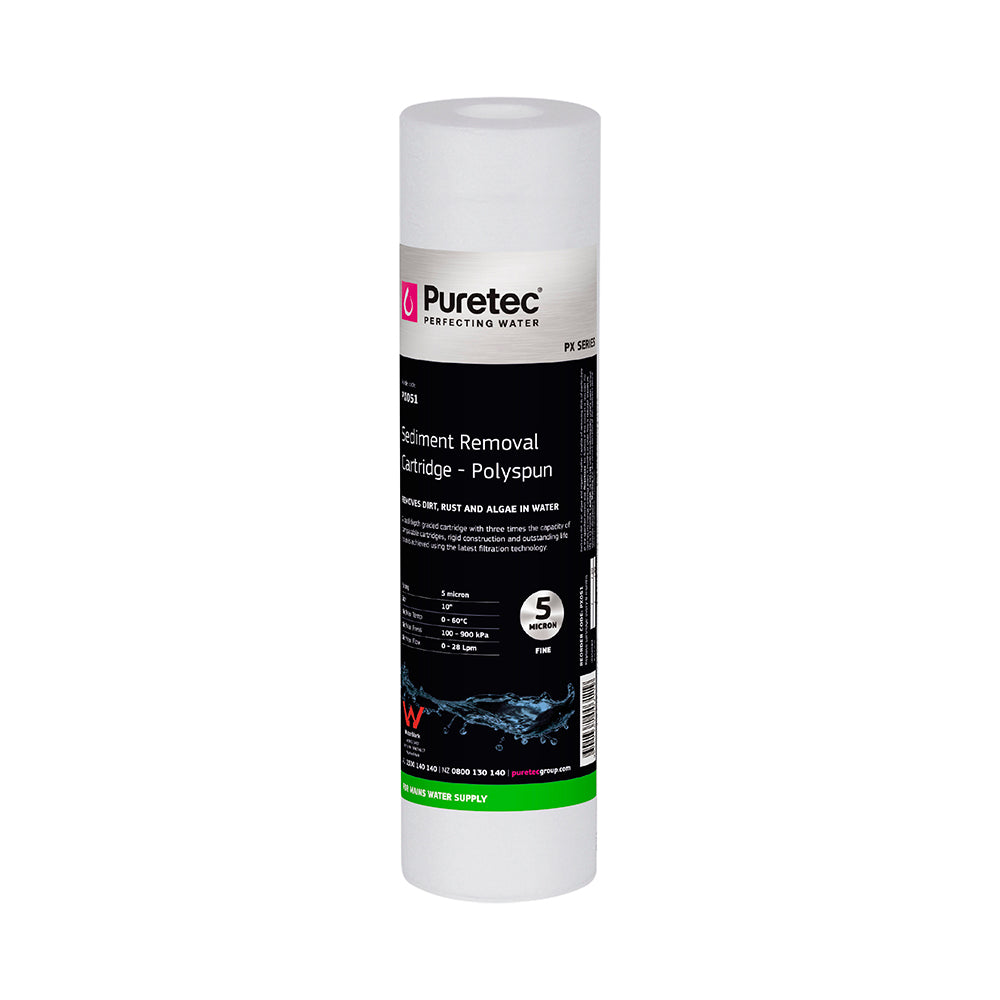

PX051: 2.5” x 10” sediment cartridge, 5 microns, maximum 28 litres per minute filtering capacity
PX05MP1: 4.5” x 10” sediment cartridge, 5 microns, maximum 76 litres per minute filtering capacity

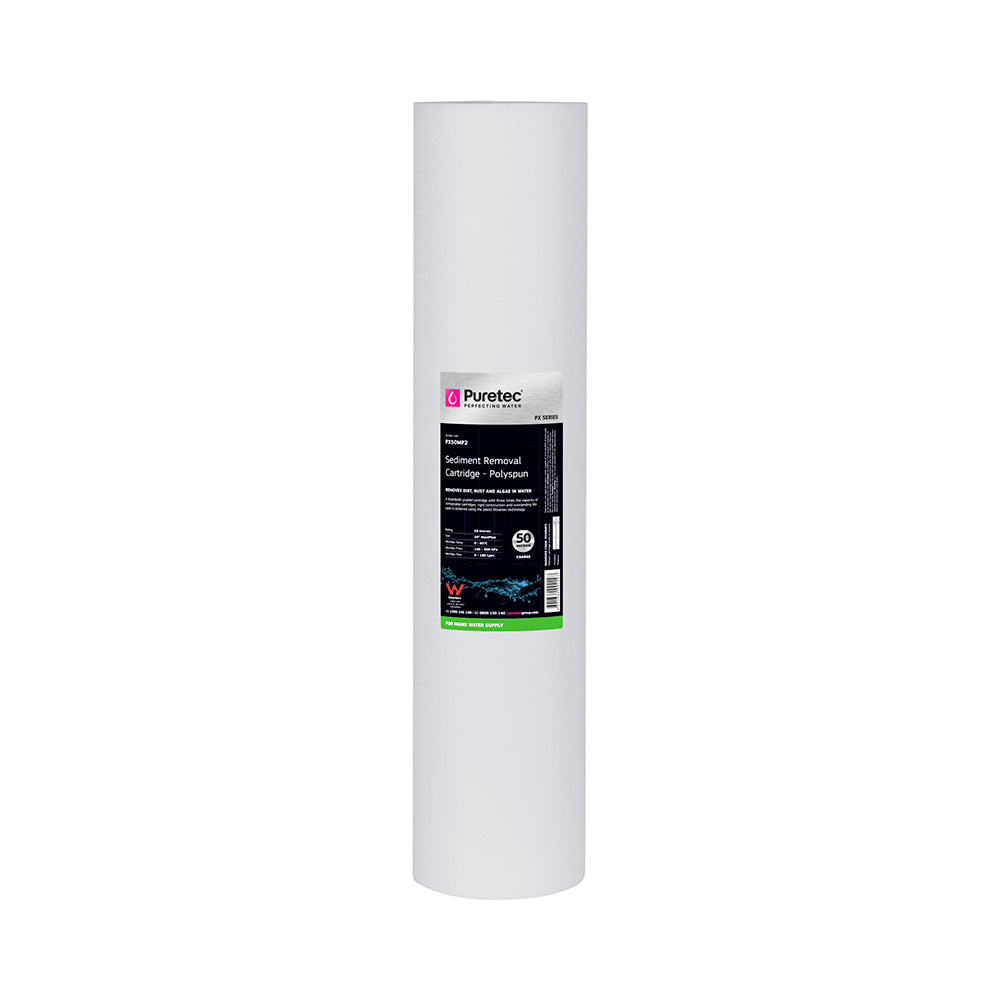

PX05MP2: 4.5” x 20” sediment cartridge, 5 microns, maximum 156 litres per minute filtering capacity
Polyspun Sediment Cartridge
5 Micron Replacement Cartridge
Large sediment-holding capacity.
Protects appliances from damage due to sediment in water.
Designed for use with water, but compatible with many other liquids.

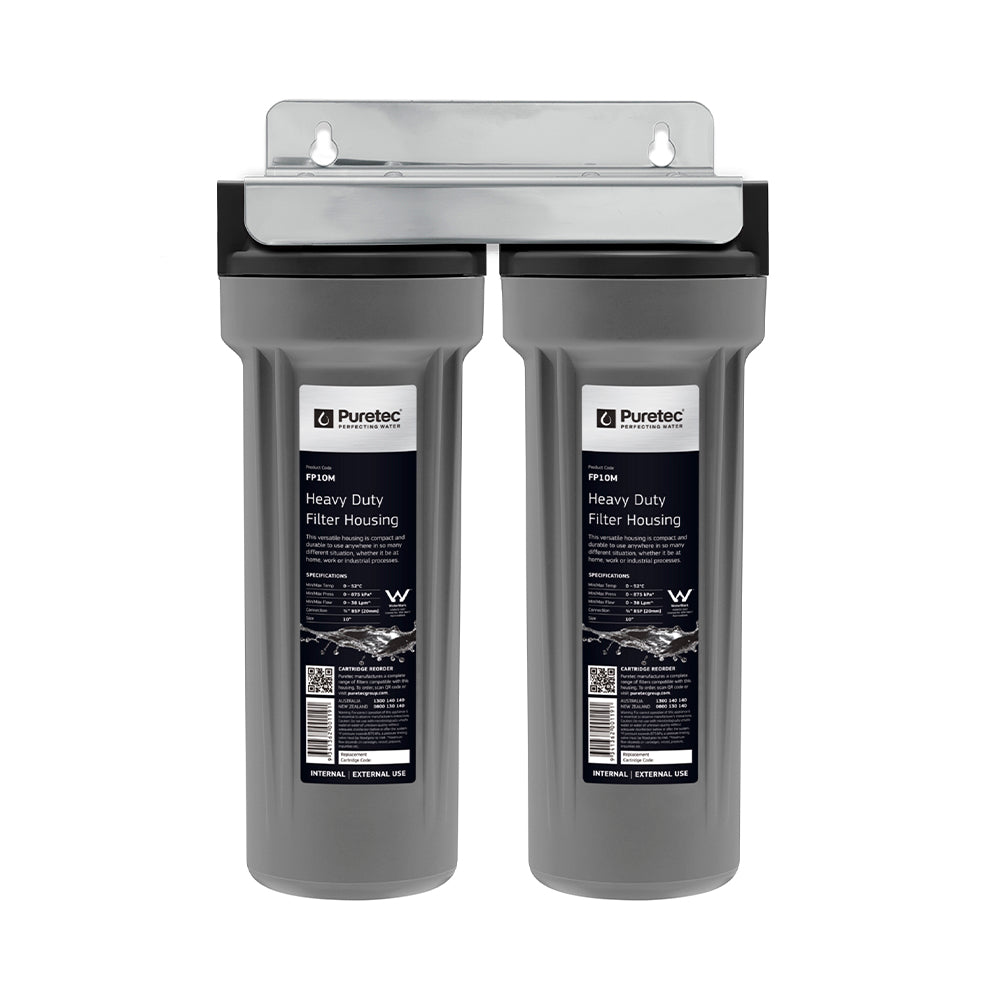

CD13-3: Twin System Housing Assembly, suits all Puretec 10” cartridges
Suits all Puretec 10” cartridges (cartridges not included).
3/4” (20mm) BSP female thread connections.
Includes dual housing assembly and stainless steel bracket.
Does not include plumbing kit or cartridges.
10 year manufacturer’s warranty.

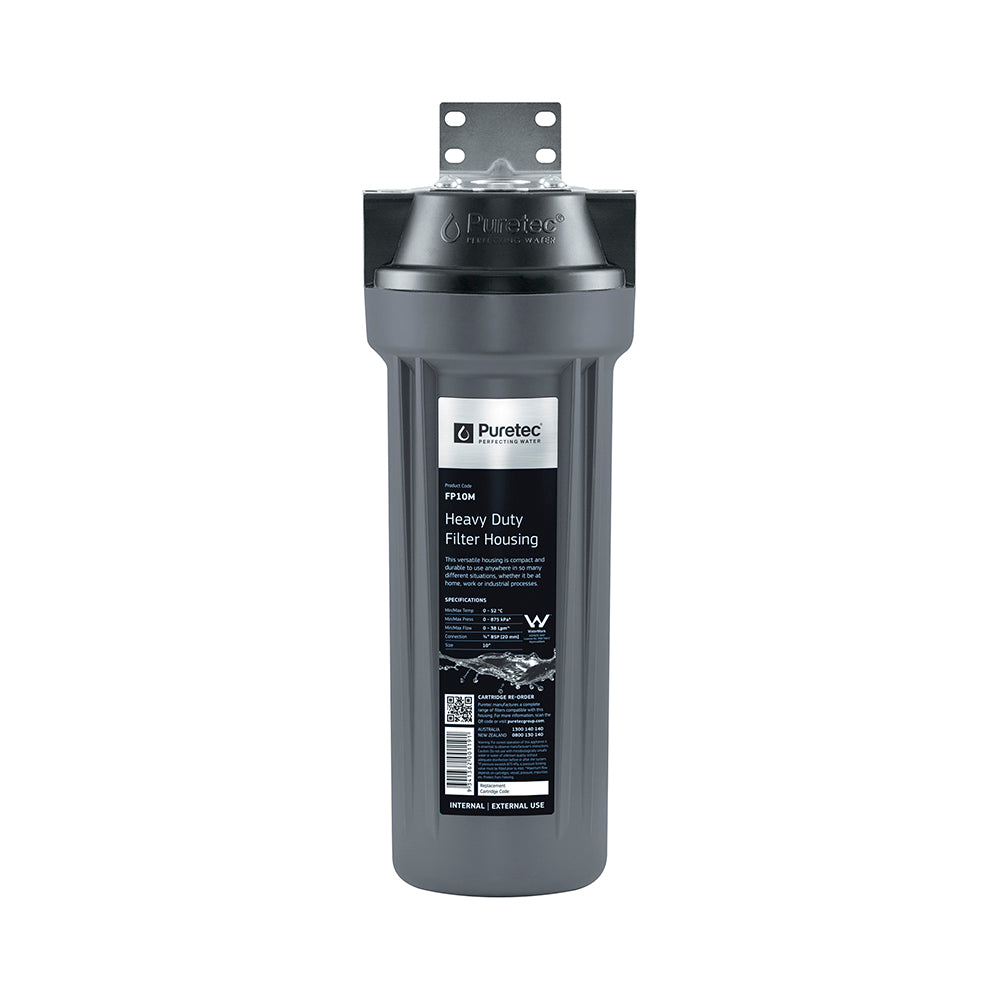

Puretec - Filter Housing Kit, FP Series
The unique advantage with this versatile range of housings is that they are both compact and durable enough to use anywhere in so many different situations, whether it be at home, work or in industrial processes. The FP Series are capable of pressures up to 520 kPa at 52°C and accept a broad range of Puretec cartridges to suit your requirements.
FEATURES & BENEFITS
• Compact, durable, economical design
• Quick and easy installation
• Compact and economical, ideal for duplex systems
• Internal and external use to suit different applications
• Ribbed design provides a robust housing for years of trouble free service
• Available in 10” and 20” heights
• Suitable for flow rates up to 76 litres per minute

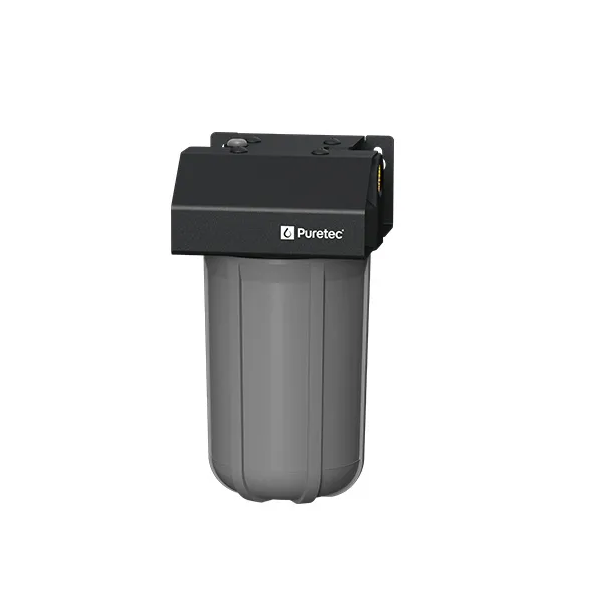

MPX100B: Extra Heavy-Duty Housing Assembly, suits 4.5” x 10” Puretec cartridges
MPX300B: Extra Heavy-Duty Housing Assembly, suits 4.5” x 20” Puretec cartridges
Does not include cartridges – see individual models above for cartridge sizes.
1” (25mm) BSP female thread connections.
Includes extra heavy-duty housing assembly and stainless steel bracket. Does not include plumbing kit or cartridges.
Rust-proof anti-flex aluminium wall mount bracket.
10 year manufacturer’s warranty.
Product Specifications
User Guide & Installation Instructions

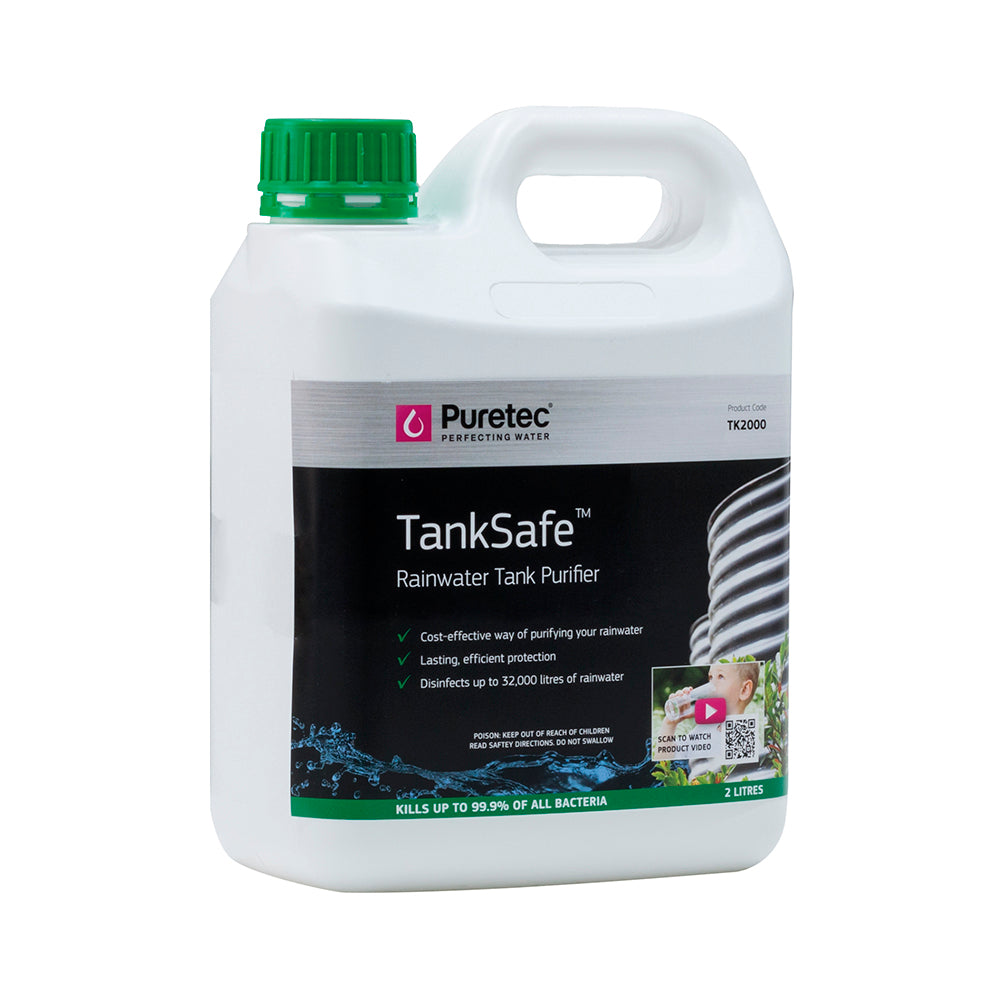

TK2000: 2 Litres, treats up to 32,000 litres of rainwater
TK5000: 5 Litres, treats up to 80,000 litres of rainwater
TK-WTS5PK: Test strips used to measure safe TankSafe dosing. Includes five test strips.
Enjoy safe drinking water from your rainwater tank without sacrificing taste or quality!
TankSafe is a tasteless and odourless alternative to chlorine, killing 99.9% of germs, bacteria, and viruses in stored water.
TankSafe is non-toxic and specifically designed for rainwater tank disinfection.
TankSafe can protect your rainwater supply from bacteria and pathogens for up to 2 months (depending on volume of water consumed), unlike chlorine which will quickly dissipate after dosing.
TankSafe should be dosed until test strips (sold separately) indicate the correct amount has been used.
Standard Dosage Chart
| Volume of water to be treated. | Required dosage of TankSafe. |
| 10,000 Litres | 650 Millilitres |
| 16,000 Litres | 1 Litre |
| 32,000 Litres | 2 Litres |
| 80,000 Litres | 5 Litres |
| 160,000 Litres | 10 Litres |
| 240,000 Litres | 15 Litres |
NOTE: This table is a guide only. TankSafe should be dosed until test strips (sold separately) indicate the correct amount has been used. TankSafe is consumed in the process of neutralising organic material, meaning that more heavily polluted water sources will require a larger initial shock dose. Multiple shock doses may be required. The general rule for dosage is 65 millilitres per 1000 litres of tank volume (depending on pollution level).
TK2000: 2 Litres, treats up to 32,000 litres of rainwater
TK5000: 5 Litres, treats up to 80,000 litres of rainwater
TK-WTS5PK: Test strips used to measure safe TankSafe dosing. Includes five test strips.
Enjoy safe drinking water from your rainwater tank without sacrificing taste or quality!
TankSafe is a tasteless and odourless alternative to chlorine, killing 99.9% of germs, bacteria, and viruses in stored water.
TankSafe is non-toxic and specifically designed for rainwater tank disinfection.
TankSafe can protect your rainwater supply from bacteria and pathogens for up to 2 months (depending on volume of water consumed), unlike chlorine which will quickly dissipate after dosing.
TankSafe should be dosed until test strips (sold separately) indicate the correct amount has been used.
Standard Dosage Chart
| Volume of water to be treated. | Required dosage of TankSafe. |
| 10,000 Litres | 650 Millilitres |
| 16,000 Litres | 1 Litre |
| 32,000 Litres | 2 Litres |
| 80,000 Litres | 5 Litres |
| 160,000 Litres | 10 Litres |
| 240,000 Litres | 15 Litres |
NOTE: This table is a guide only. TankSafe should be dosed until test strips (sold separately) indicate the correct amount has been used. TankSafe is consumed in the process of neutralising organic material, meaning that more heavily polluted water sources will require a larger initial shock dose. Multiple shock doses may be required. The general rule for dosage is 65 millilitres per 1000 litres of tank volume (depending on pollution level).
Puretec BoreSafe™ BLAST5 is a fast-acting bore cleaner designed to remove iron oxide build-up from bore water systems, helping restore flow performance and improve pump efficiency. Iron deposits can create sludge, unpleasant odours, staining, and blockages that place strain on pumps and pipework. BLAST5 works by dissolving iron oxide from metal surfaces, reducing maintenance requirements and extending system life. The biodegradable granular formula is easy to apply and suitable for both new and existing bores where iron is present in the water. Regular maintenance dosing helps maintain a clean bore environment and protect pumping equipment over time.
FEATURES
- Fast and effective removal of iron oxide deposits from bore systems
- Improves water flow and pump efficiency
- Biodegradable granular formula for easy application
- Helps reduce rust, staining, odours and mineral build-up
- Suitable for both new and established bores
- Regular maintenance dosing helps protect pumps and reduce energy costs
SPECIFICATION
- Product Type: Iron build-up bore cleaner
- Form: Granular biodegradable chemical
- Container Sizes: 5kg, 10kg, 20kg
- Application Method: Dissolve in water and recirculate through bore system
- Maintenance Recommendation: Regular dosing to prevent iron accumulation
- Compatibility: Suitable for metal bore components and pipework
