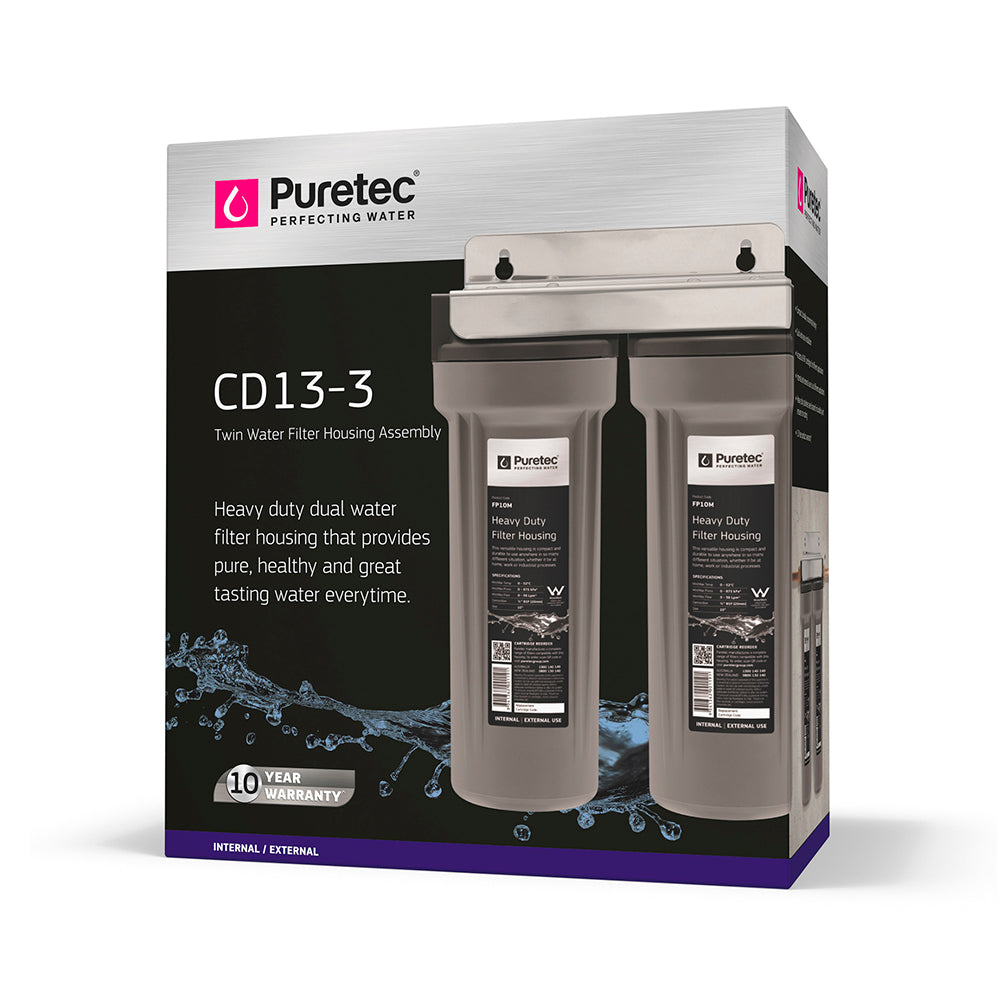

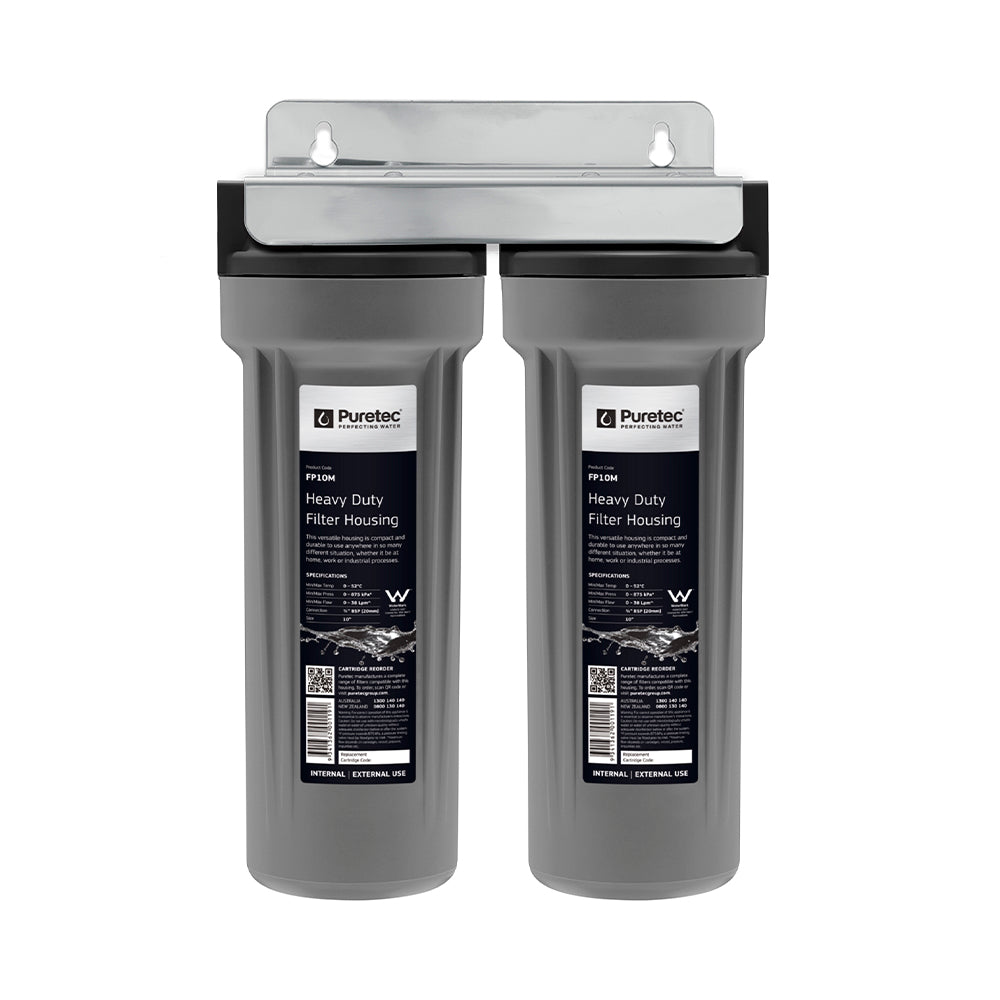

PURETEC CD13-3 TWIN FILTER HOUSING SUITS 10" CARTRIDGES

Puretec CD13-3 is a twin 10" filter housing assembly with 3/4" BSP / 20mm connections. It accepts two compatible 9¾" / 10" cartridges for dual-stage filtration where the selected cartridges suit the water source and application.

✓ Twin 10" Filter Housing Assembly
✓ Suits Compatible 9¾" / 10" Cartridges
✓ 3/4" BSP / 20mm Connections
✓ 0–38 Lpm Flow Range
✓ 200–875 kPa Pressure Range
✓ Internal or External Installation
✓ Cartridges and Plumbing Kit Not Included
✓ 10 Year Puretec Warranty

Puretec CD Series User Guide
Puretec CD Series Specifications

More Information
Product Specifications
Puretec Housing CD13-3 Twin System suits 10" cartridges
PURETEC CD13-3 TWIN FILTER HOUSING SUITS 10" CARTRIDGES
Puretec Housing CD13-3 Twin System suits 10" cartridges
Puretec Housing CD13-3 Twin System suits 10" cartridges FLPUCD13-3
$233.57 /each

Puretec CD13-3 is a twin filter housing assembly that suits compatible 9¾" / 10" cartridges. It has 3/4" BSP / 20mm connections and is used where two cartridges are required in series for sediment, taste, odour or other filtration duties depending on the cartridges selected.

The CD13-3 has a 0–38 Lpm flow range, 200–875 kPa pressure range and 0–52°C temperature range. Cartridges and plumbing kit are not included, and cartridge choice must suit the water source and filtration requirement. Confirm cartridge size, connection size, pressure, available mounting space and installation requirements before ordering.

Puretec CD Series User Guide
Puretec CD Series Specifications

✓ Product Type & Model
Puretec CD13-3 twin filter housing assembly.

✓ Application
Used for dual-stage water filtration with two compatible 9¾" / 10" cartridges.

✓ Cartridge Compatibility
Accepts compatible 9¾" / 10" cartridges for different filtration applications. Cartridges are selected separately to suit the water source and filtration requirement.

✓ Connection
3/4" BSP / 20mm connection.

✓ Flow Range
0–38 Lpm flow range.

✓ Pressure Range
200–875 kPa operating pressure. Where line pressure exceeds 500 kPa, an approved pressure limiting device must be installed.

✓ Temperature Range
0–52°C cold water use. Protect from freezing.

✓ Installation Type
Suitable for internal or external installation. Avoid direct sunlight and protect the housing from water hammer.

✓ Approximate Space Required
300mm wide x 138mm deep x 390mm high.

✓ Product Dimensions
Approximate housing dimensions are 237mm wide x 138mm deep x 337mm high, excluding installation clearance.

✓ Mounting
Wall-mount twin housing assembly with bracket. Allow clearance below the bowls for cartridge replacement.

✓ Included Components
CD13-3 twin housing assembly and mounting bracket.

✓ Not Included
Filter cartridges, plumbing kit, isolation valves, pressure limiting valve, nipple and connecting pipework are not included unless supplied separately.

✓ Recommended Cartridge Selection
Cartridge selection depends on the application. Puretec guide examples include PX051 for dirt, rust and sediment on mains water, GC051 for taste and odour on mains water, PL051 for dirt, rust and sediment on rainwater, and DP101 for taste and odour on rainwater.

✓ Cartridge Maintenance
Replace cartridges every 6–12 months, when water flow is reduced, or when taste or odour returns. Replacement timing depends on cartridge type, water quality and usage.

✓ Installation
Installation must be completed by a licensed plumber and must follow local plumbing requirements. Use PTFE thread seal tape only; liquid pipe sealants must not be used.

✓ Water Quality Note
Do not use with microbiologically unsafe water or water of unknown quality without adequate disinfection before or after the system.

✓ Warranty
10 year Puretec warranty – 1 year parts and labour plus 9 years parts only.
