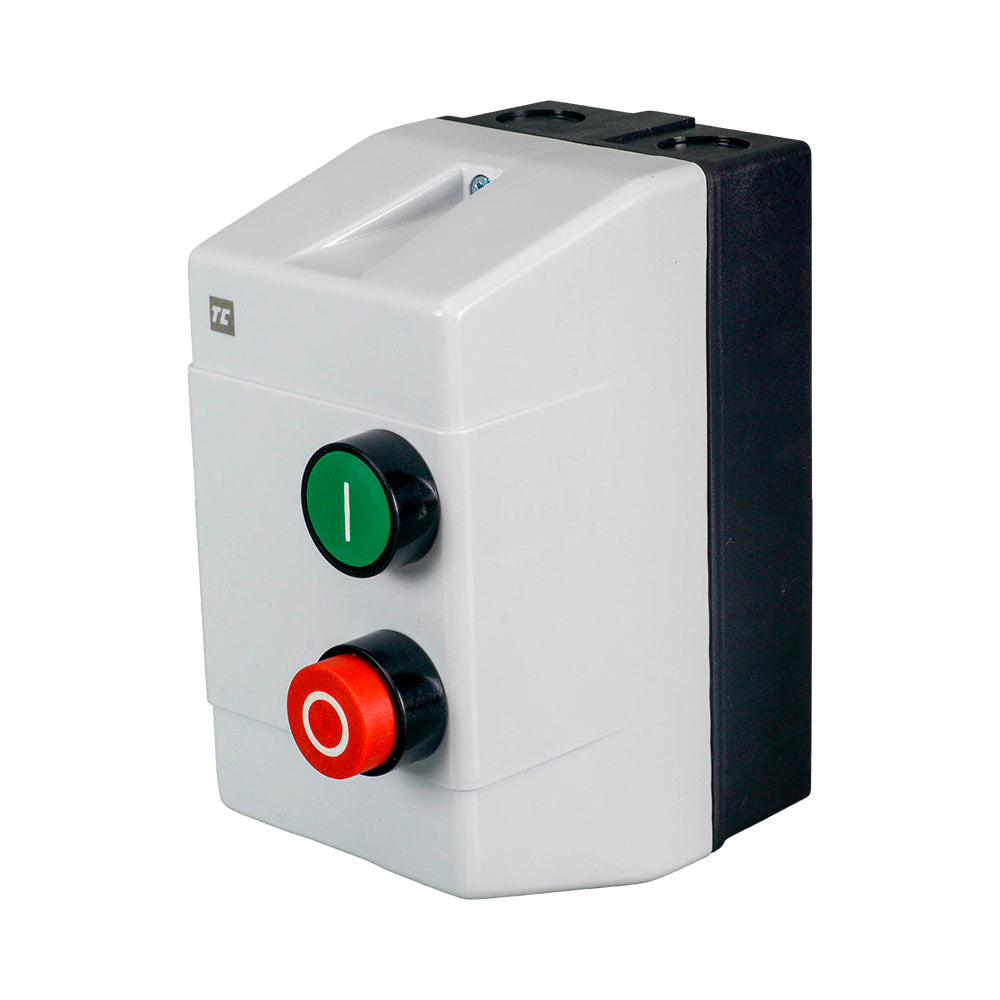

DOL starters with 24VAC control coils are used for Direct-On-Line starting and stopping of suitable electric motors. They include a contactor and overload relay assembly inside an enclosure, with front-mounted start and stop push buttons for local motor control.
These starters are selected by control coil voltage, overload relay range and the motor full-load current. The 24VAC rating refers to the starter control coil, not the motor supply voltage. Confirm the motor current, supply voltage, overload setting and installation requirements with a licensed electrician before ordering.

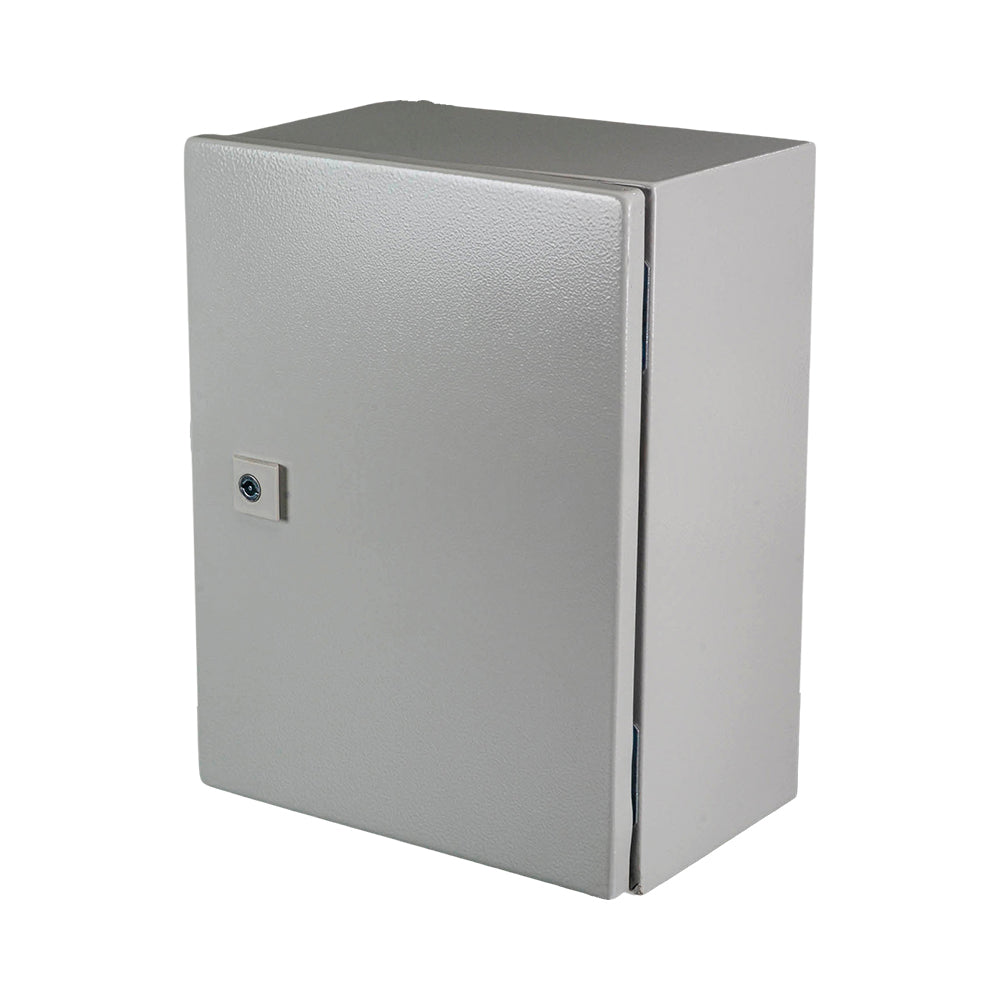

Metal electrical enclosures are used to house and protect suitable electrical, control and automation components in general industrial and commercial installations. This range includes IP65 mild steel wall mount enclosures with single reversible doors, mounting plates, gland plates, earthing stud points and metal locks with keys.
These enclosures are selected by internal height, width, depth, usable depth, lock count and approximate weight. Confirm component fit, cable entry requirements, heat dissipation, site conditions and electrical installation requirements before ordering.

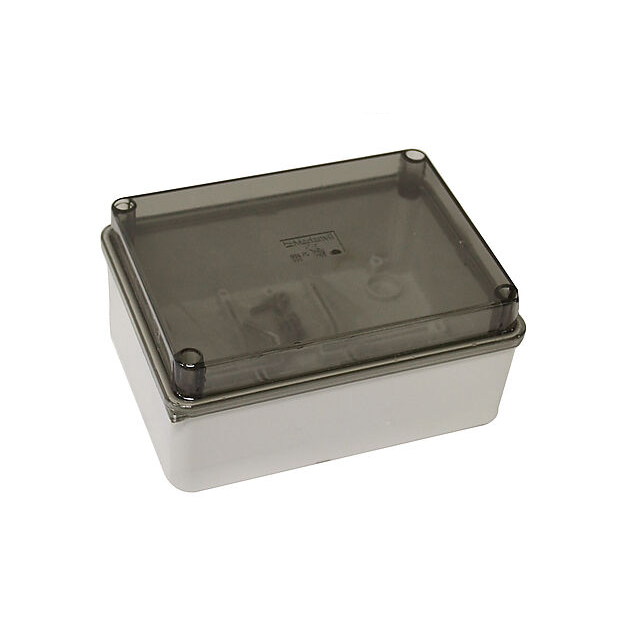

Plastic electrical enclosures with clear lids are used to house and protect suitable electrical, control and automation components in general purpose indoor and exterior applications. This range features IP66 rated PC and ABS blend plastic enclosures with EPDM rubber gaskets, RAL 7035 grey bases and clear lids for visual inspection of suitable internal components without opening the enclosure.
These enclosures are selected by internal height, width, depth and lid screw type. The range includes selected clear lid sizes from 150mm H x 110mm W x 70mm D through to 300mm H x 220mm W x 120mm D. Confirm component fit, cable entry requirements, heat dissipation, site conditions and electrical installation requirements before ordering.

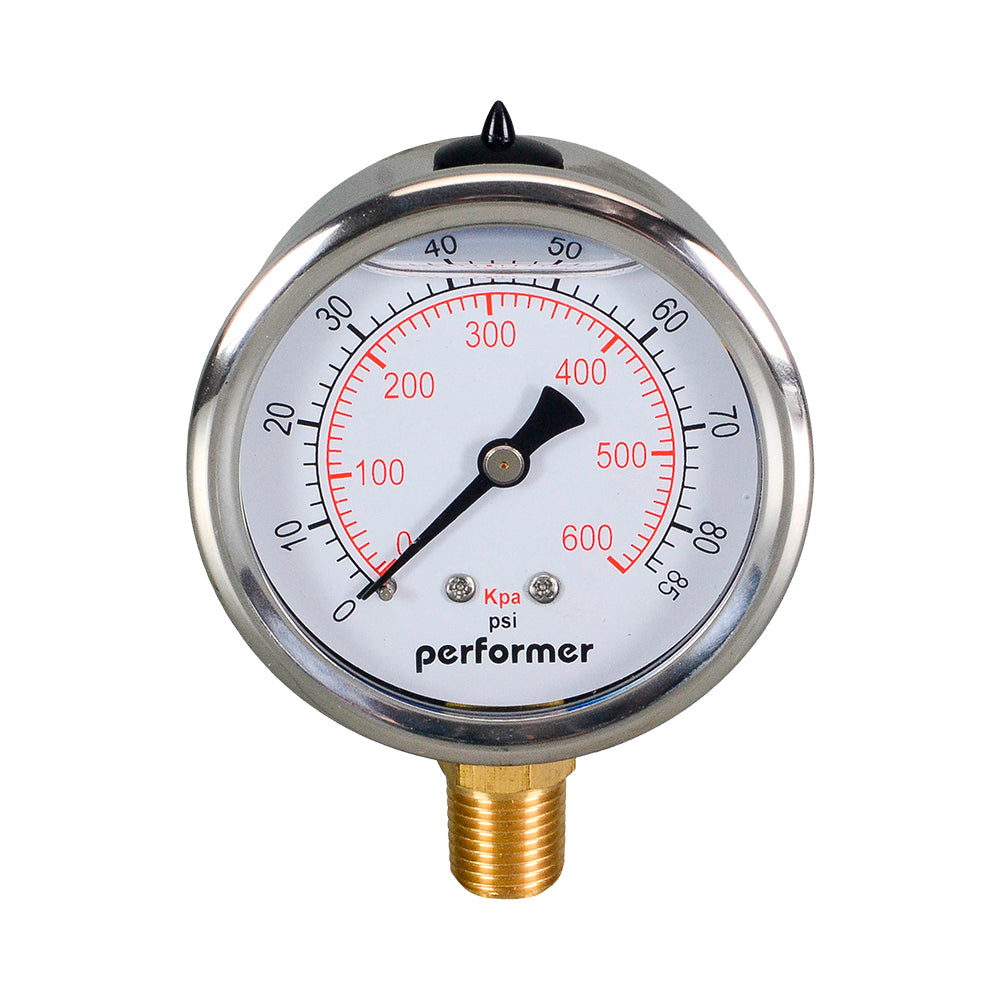

63mm glycerine filled pressure gauges are used to monitor pressure in compatible pump, compressor, hydraulic, pipeline and general industrial systems. The glycerine filling helps dampen vibration and pressure pulsation, making these gauges easier to read in suitable applications where a dry gauge may be affected by movement or vibration.
This range includes Performer® standard 63mm pressure gauges with bottom entry 1/4 inch BSP connections and dual kPa / PSI scales. Select the pressure range to suit the system’s normal operating pressure and maximum expected pressure. Confirm pressure range, thread compatibility, system media and installation requirements before ordering.
Hunter PSR-22 pump start relay is used to activate a compatible irrigation pump from an irrigation controller or decoder system. It provides a relay interface between the controller’s pump start or master valve output and the pump circuit where the relay model suits the pump and installation requirements.
This model is suitable for selected single phase pump start applications, with an approximate rating of 2.2kW at 230 VAC and maximum full load amps of 30A. It includes 24 VAC flying leads, supports conventional wiring or two-wire decoder activation, and should be installed a minimum of 4.5m from the irrigation controller. Confirm pump voltage, phase, full load amps, controller requirements and local electrical requirements before ordering.

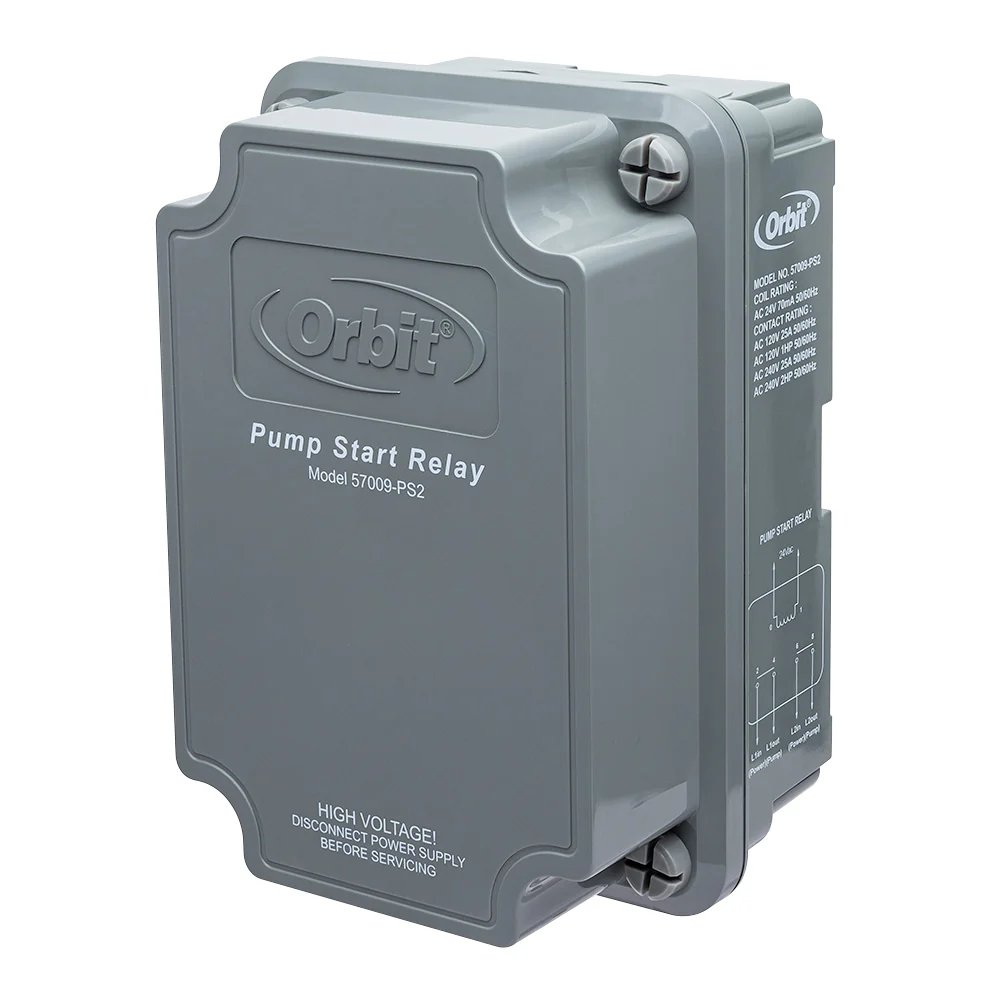

Orbit 57009 pump start relay is used to activate a compatible irrigation pump from a sprinkler controller. It provides a relay interface between the controller’s pump or master valve output and the pump circuit where the relay rating, pump voltage and installation requirements suit the system.
This relay supports 120 VAC pumps up to 1 HP and 240 VAC pumps up to 2 HP, with a 24 VAC coil connection to the controller’s pump or master valve terminal. It includes a water-resistant ABS enclosure and is compatible with selected Orbit, Hydro-Rain, B-hyve and Husqvarna automatic irrigation controllers. Confirm pump voltage, horsepower, controller compatibility and electrical installation requirements before ordering.
Orbit Warranty: 6 years
Orbit 57009 Product Information
Orbit 57009 Mounting Template
24 VAC relay used for compatible low-voltage control applications where a 10A rated, 2 pole NO/NC relay is required. It is suitable for use in control circuits where the relay specifications match the switching, voltage and installation requirements.
This relay is rated for 24 VAC operation with 50 / 60 Hz frequency and 2 pole normally open / normally closed contact arrangement. Confirm coil voltage, contact rating, wiring requirements and system compatibility before ordering. Electrical work must be completed by a suitably qualified person.
