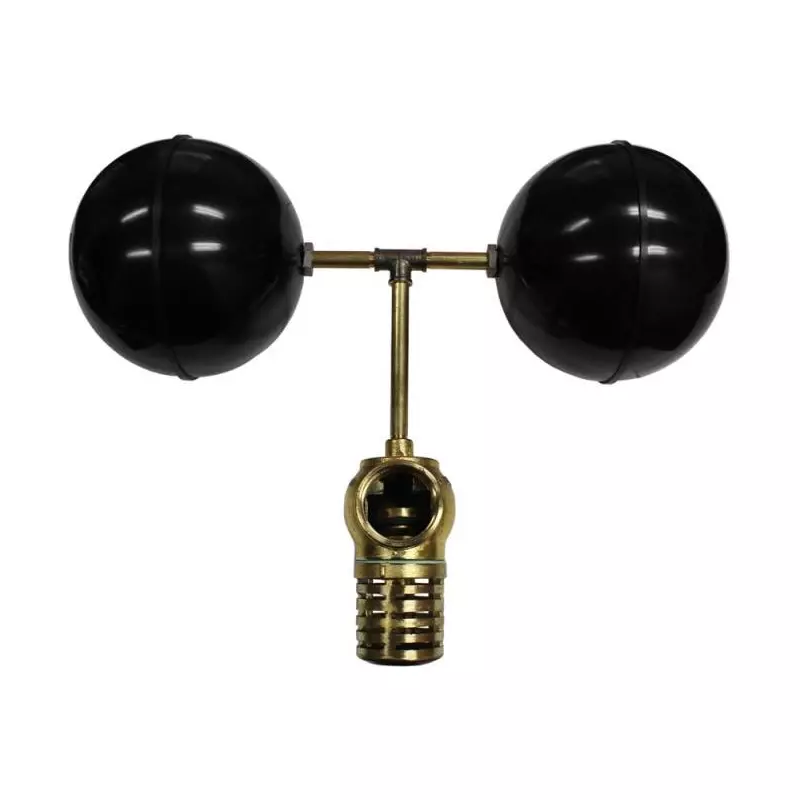

Alderdice floating foot valves retain prime in a pump suction line while following the water level in a dam or river. Two floats support the valve through a drop bar and tee, keeping the intake assembly floating as the level changes. The gunmetal bronze valve has a threaded side outlet, allowing a suction pipe fitting to connect without a bend at the valve.
BSP side outlets are available in 32mm, 40mm and 50mm sizes. The non-return valve closes against reverse flow when pumping stops. The floating arrangement supports the intake at the surface rather than fixing it at one level.
Use the size-specific pressure-loss curves when assessing suction performance. The flow charts are a guide only; they do not provide a fixed flow capacity for every pump installation.
BSP side outlet.
Alderdice Gunmetal Bronze Floating Foot Valve Specifications
Alderdice vertical check valves retain prime and prevent reverse flow in pump pipework. The 40mm and 50mm valves provide non-return connections for matching pump suction lines. Their gunmetal bronze construction follows Alderdice’s pump-valve design, with selection based on connection size and the required pumping conditions.
Provide access for operation or servicing.
BSP connections.
Die-cast aluminium camlocks connect hose and equipment where the joint needs to be disconnected for servicing, moving hoses or changing equipment. The male adaptor enters the female coupling, and closing the two cam arms draws it against the sealing washer. Opening the arms releases the joint without unscrewing the fixed hose or threaded connection.
Type A: Male camlock x female BSP thread.
Type B: Female lever coupling x male BSP thread.
Type C: Female lever coupling x hose tail.
Type D: Female lever coupling x female BSP thread.
Type E: Male camlock x hose tail.
Type F: Male camlock x male BSP thread.
Type DC dust caps cover male camlock ends. Type DP dust plugs fit inside female lever couplings. They help keep dirt out of disconnected fittings during storage and handling.
The range is available in nominal sizes of 40mm, 50mm, 65mm and 80mm. The working pressure is 1724 kPa for 40mm and 50mm fittings, 1034 kPa for 65mm fittings and 862 kPa for 80mm fittings. Select the fitting type and nominal size for the connection being made.
The fittings are made from die-cast aluminium for general irrigation, agricultural and industrial water-transfer applications. The camlock profile follows Mil Spec A-A 59326.
BSP threads are cut to ISO 228.
The NBR sealing gasket has a maximum temperature of 100°C.
Replacement seals for the female couplings are available in our camlock sealing washer range.
The 25mm Anka vacuum breaker admits air into a pipeline when pressure falls below atmospheric pressure. This helps prevent the pipe from being pulled inward as water drains or a pump stops. Once the pressure balances, the valve closes again. Its glass fibre reinforced nylon body is installed upright so the valve can operate correctly.
Glass fibre reinforced nylon.
Pressure: 0-1600kPa at 20°C.
Install in an upright vertical position and keep the air opening unobstructed.
Connections: 25mm (1") connection.
The Apex VisiBall provides a visible indication of water level in a tank or reservoir without batteries or wiring. An internal float raises and lowers a stainless steel tube, moving the visible ball above the tank as the water level changes.
The adjustable Uni-Ball roof joint lets the tube remain vertical on different tank roof angles. The standard indicator includes a 2m tube, a 150mm bottom float and a 115mm top ball.
A 1m extension is available for a maximum assembled height of 3m and includes a twin-float connector and female socket. The extended setup needs two 150mm bottom floats, so add one more 150mm Apex ball float in black or orange, sold separately.
Fit through a 25mm hole and keep the tube vertical so it can move freely. Use the manufacturer wind limits for the selected tube height.
This Bermad 100 Series 80mm basic hydraulic valve uses water pressure to operate its diaphragm-controlled passage. Applying pressure to the control chamber closes the valve; releasing that pressure allows it to open. The body provides hydraulic on/off control for irrigation headworks and similar water systems, using a control arrangement matched to the application.
Glass-filled nylon hydraulic valve body with diaphragm and guided plug.
Provide access for operation or servicing.
Connections: 80mm (3") BSP connections.
Bermad 25mm direct-acting pressure reducing valves adjust downstream water pressure using a selected spring range. The white, red, black and brown spring versions cover different settings, allowing the valve to be chosen for the required outlet pressure. Matching replacement setting springs are available.
Provide access for operation or servicing.
25mm (1") female BSP connections. Maximum inlet pressure: 900kPa.
Adjustable outlet pressure by spring:
White B spring: 50-120kPa.
Red C spring: 100-200kPa.
Black D spring: 150-350kPa.
Brown Q spring: 300-550kPa.
Black fire reel hose is designed for use on fire reels and for general water delivery. It has a black inner wall and a UV-stabilised black outer wall.
The hose has a working-pressure rating of 1000 kPa (145 psi). The 19mm and 25mm sizes have different outside diameters, which are shown in the Specifications tab.
Black HiFlex light corrugated hose is a flexible PVC hose for general-purpose suction, drainage and water transfer.
The hose has a smooth inner wall and corrugated outer wall, with rigid PVC spiral reinforcement. Its flexible construction suits hose routing, and it has UV resistance. It can also be used for dust extraction and light-duty air-seeder applications.
Working pressure differs by hose size. Check the size-specific ratings in the Specifications tab.
Black petrochemical suction hose is designed for environmental waste collection, grease-trap servicing and septic-tank applications.
Its nitrile/PVC construction provides resistance to mineral oils and animal fats. Rigid PVC spiral reinforcement supports the hose, while the flexible construction and UV stability suit its waste-transfer applications.
Working pressure differs by hose size. Suitability for a chemical depends on the particular liquid, concentration and operating temperature.

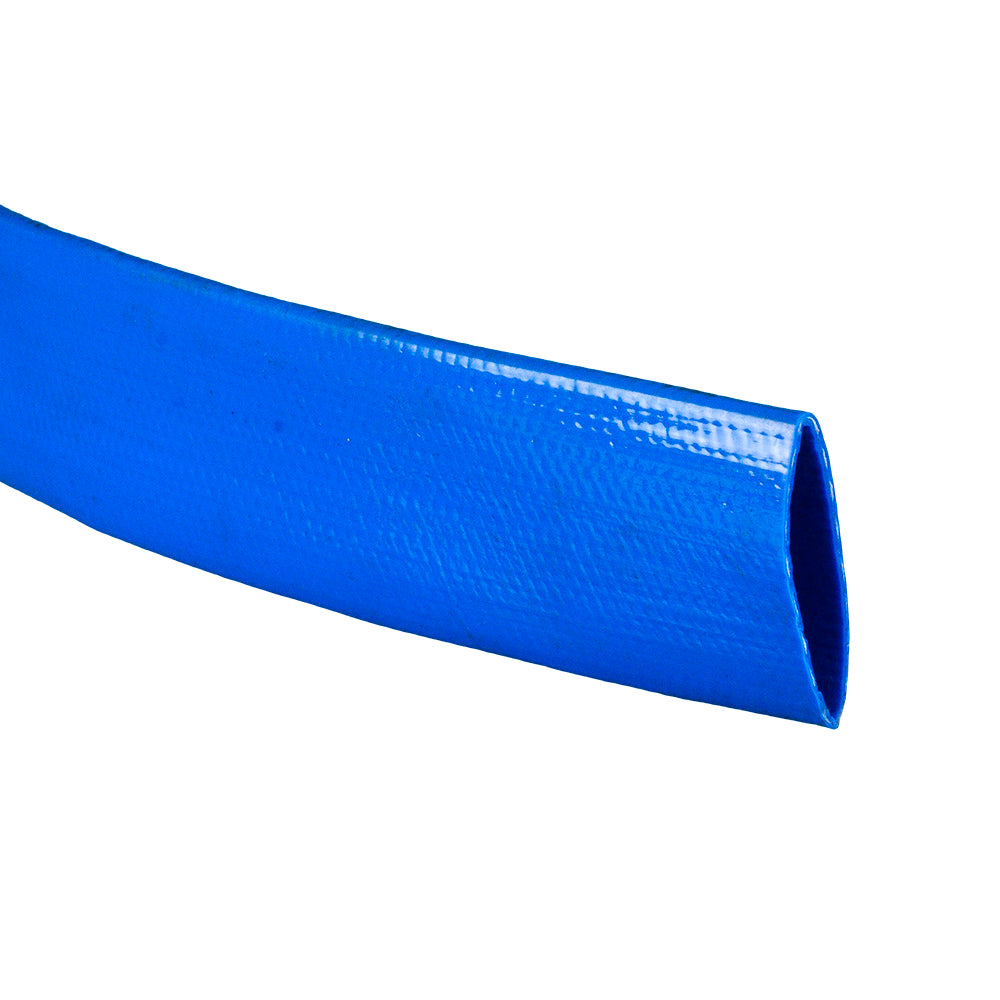

Blue low pressure layflat hose is designed for general-purpose water transfer and discharge. Typical uses include carrying water from pump outlets, pool and general drainage and temporary water-transfer lines.
The hose is made from blue PVC with polyester braid reinforcement and low-pressure stability.
The hose has a working-pressure rating of 400 kPa (58 psi) and a temperature range of 0°C to +50°C.
Blue Line
Working temperature -5 to 60 degrees C
Highly flexible suction and discharge hose designed for the transfer of hydro-carbon based materials such as diesel fuel, petrol, oils, greases and lubricants
Blue hose with a rigid PVC spiral reinforcement
These PVC plugs fit inside the bottom of the bore casing, so they don’t stick out like a cap fitted over the pipe. This helps prevent the end from catching on the sides of the hole as the casing is lowered into the bore. Choose 100mm, 125mm or 150mm to suit Class 9–12 casing.
Sizes: 100mm, 125mm and 150mm.
The plug fits inside the casing rather than over its outside, maintaining a slim end profile for lowering. It also closes the bottom against material entering through the open end; water enters through the bore’s intended intake or screen section. Match the plug to the casing size and class.
This 1.6–3.2mm gravel pack is placed around a bore screen to help hold back surrounding sand while allowing groundwater to reach the screen. It forms part of the bore’s filter system, working with the screen’s slots rather than replacing the screen. Each bag contains 25kg.
Gravel is placed in the space between the bore screen and the drilled hole. The grade must suit both the surrounding formation and the screen slot size so water can enter while sand is retained.
The amount required depends on the drilled-hole diameter, screen diameter and depth of the gravel-pack interval.
BoreSaver Ultra C dissolves iron-oxide build-up and helps remove the associated bacterial slime from bores, pumps and pipework. It is used to rehabilitate an existing bore by loosening deposits so they can be flushed out, helping recover performance lost to iron build-up. This 10kg bucket contains the concentrated crystalline cleaner.
Iron-related bacteria can contribute to rusty, slimy deposits around bore screens and inside pumps and pipework, restricting water flow. Treatment dissolves the iron build-up and helps loosen the associated bacterial slime so it can be pumped out and flushed away.
The quantity needed depends on the bore’s internal diameter, the depth of water being treated and the amount of build-up. Select the treatment amount and method using the Australian application instructions.
Cleaning involves distributing the treatment through the affected area, allowing time for it to work, then pumping out the loosened material and flushing the system. The chosen method determines which parts of the bore and pump are reached.
Follow the product label, application instructions and current safety data sheet for handling, protective equipment and disposal of treatment water.
BoreSaver Ultra C Australian Application Instructions (2022)

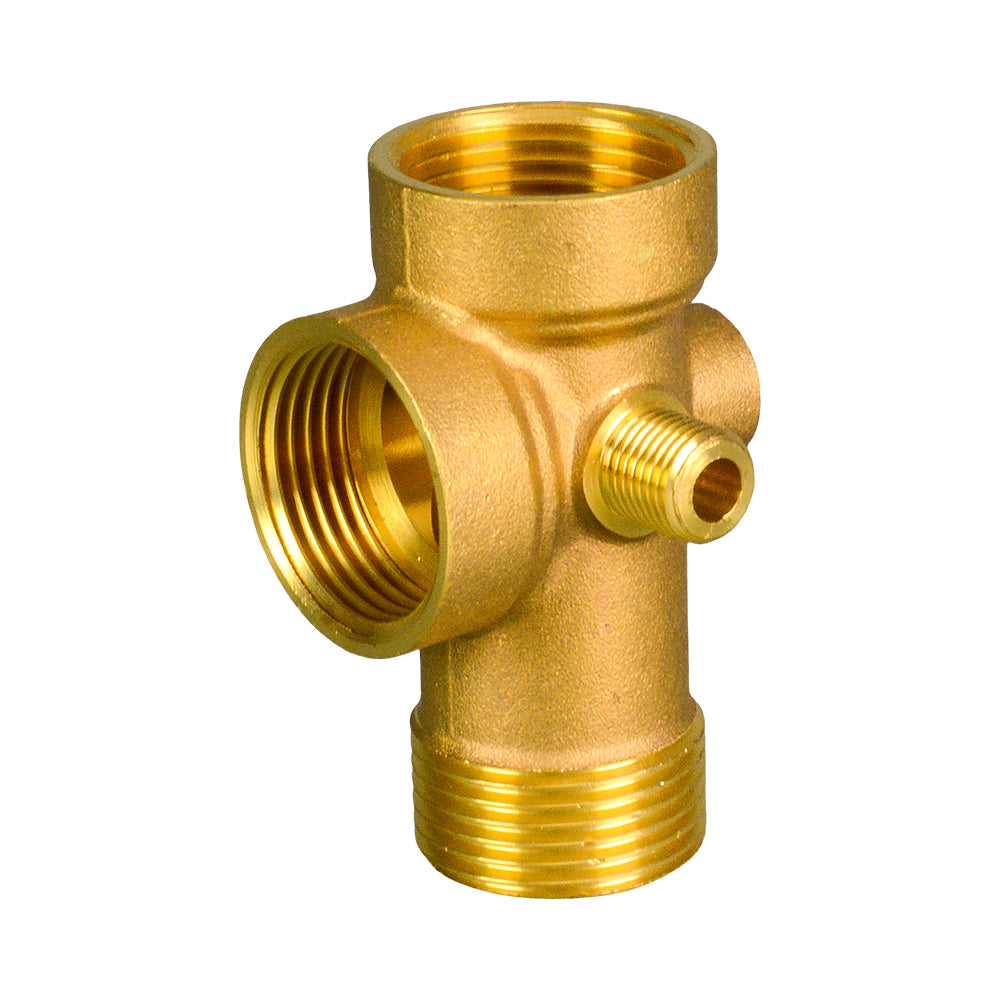

This brass five-way manifold brings the pump delivery connection, pipework and pressure-control fittings together in one compact fitting. Its three 1" BSP ports provide the main water connections, while two smaller 1/4" BSP ports connect pressure-control accessories such as a pressure switch and gauge. It suits Franklin Electric MH-series pump installations.
The manifold provides connection points for a pump pressure system. The pressure switch controls when the pump starts and stops; a gauge shows system pressure. These components connect to the manifold and are sold separately.
The 1" BSP male and female ports are in line, with a second 1" BSP female port branching off at 90°. The two 1/4" BSP side ports face opposite directions: one male and one female.

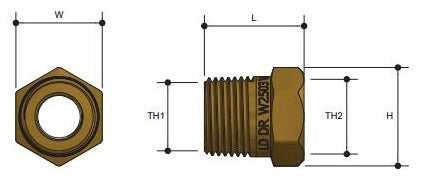

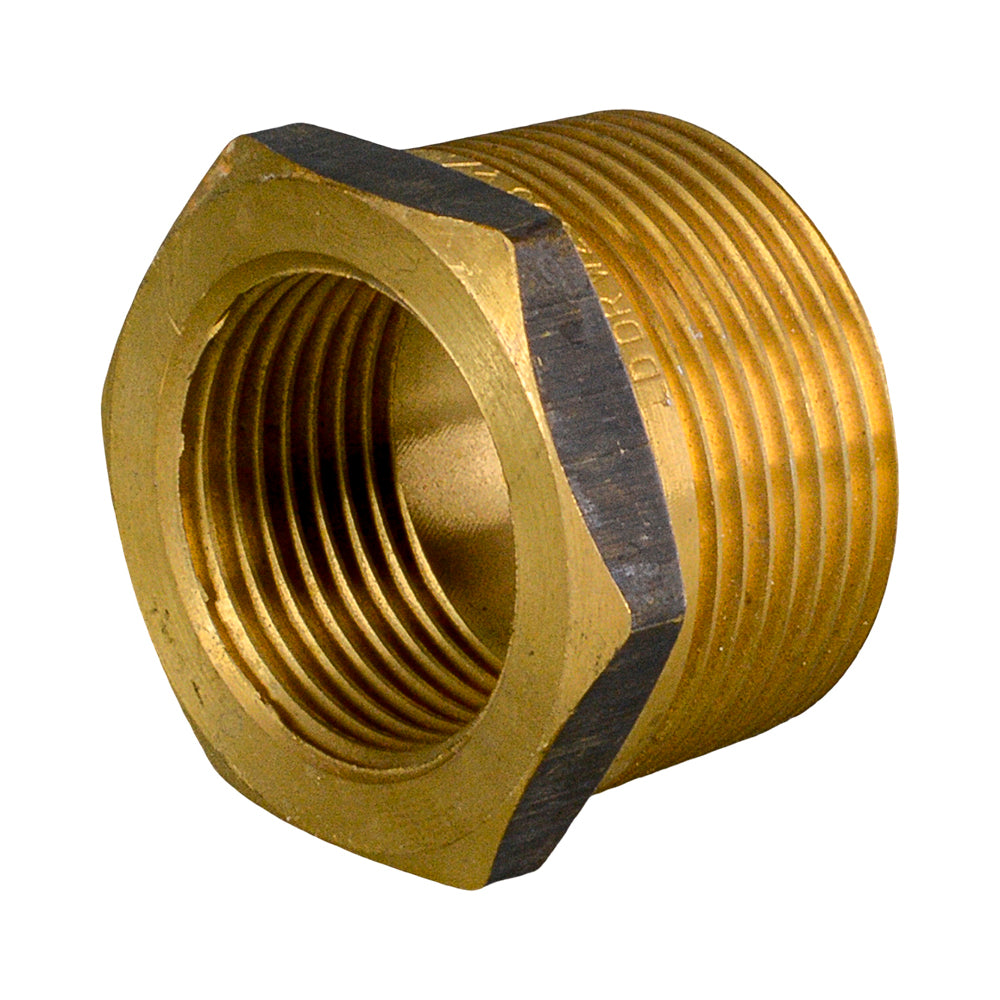

Brass Reducing Bushes have a larger male BSP outside thread and a smaller female BSP inside thread. They reduce a female threaded opening to accept a smaller male BSP fitting.
Made from DR lead free brass, these fittings are suitable for plumbing, irrigation and rural water systems. Use suitable thread sealant or PTFE tape on the bush’s outside male thread and the male thread of the fitting installed into it.
Avoid joining brass, galvanised and stainless steel fittings directly to one another. Use a plastic or other suitable non-conductive fitting or adaptor between different metals to prevent galvanic corrosion where water is present.
Brass Threaded Reducing Bush Male x Female BSP Specifications
Brass Threaded Sockets have female BSP threads at both ends. They join two male threaded fittings or pipe ends in a straight line.
These sockets are also known as threaded couplings.
Made from DR lead free brass, these fittings are suitable for plumbing, irrigation and rural water systems. Use suitable thread sealant or PTFE tape on the mating male BSP threads.
Avoid joining brass, galvanised and stainless steel fittings directly to one another. Use a plastic or other suitable non-conductive fitting or adaptor between different metals to prevent galvanic corrosion where water is present.
Dual check valves use two independently acting checks in series to limit reverse flow and protect a potable water supply in low-hazard applications. Austworld 20mm & 25mm valves have female x female connections; the HR Products 25mm valve has male x female connections. The connection arrangements and minimum operating pressures differ, so each model needs to be selected for its installation.
The Austworld female x female valves operate from 60kPa to 1200kPa. The HR Products male x female valve operates from 220kPa to 1200kPa. Both designs have a working temperature range of 1°C to 60°C and can be installed horizontally or vertically.
Use the correct device for the installation’s assessed hazard level and required backflow protection. These models are intended for low-hazard service. The Austworld valves are for cold-water installations.
Female x female valves operate at 60-1200kPa. The 25mm male x female valve operates at 220-1200kPa.
Brass Dual Check Valve FF Specifications
HR Products Brass Dual Check Valve 25mm MF Specifications
Brass Elbows 90° have female BSP threads at both ends. They accept matching male fittings to change the direction of pipework by 90°.
Made from DR lead free brass, these fittings are suitable for plumbing, irrigation and rural water systems. Use suitable thread sealant or PTFE tape on the mating male BSP threads.
Avoid joining brass, galvanised and stainless steel fittings directly to one another. Use a plastic or other suitable non-conductive fitting or adaptor between different metals to prevent galvanic corrosion where water is present.
Brass capillary wall plate elbows are used to connect copper pipe to a fixed female BSP threaded outlet at 90°. They are commonly used for wall-mounted plumbing outlets where copper pipe needs to finish at a secure threaded connection for a tap, valve, mixer connection, hose cock, irrigation outlet or other compatible male BSP fitting.
Made from DR lead free brass, these lugged wall plate elbows have a capillary socket for copper pipe and a female BSP internal thread for the outlet connection. The lugged base allows the fitting to be fixed securely to a wall, noggin, backing board or mounting surface before the connected tap or fitting is installed.
Brass Capillary Wall Plate Elbow Copper x Female BSP Specifications
Brass Conetite compression elbows are used to change direction between two copper pipe runs using a mechanical nylon olive compression connection. They are commonly used in plumbing, irrigation, water supply and repair work where copper pipe needs to be redirected without soldering.
Made from DR lead free brass with brass compression nuts and nylon olives, these elbows are WaterMark Lead Free approved and tested to AS 3688. Install onto clean, round copper pipe in the matching size and tighten the compression nuts so the nylon olives compress onto the pipe.
Brass Conetite compression x female BSP elbows are used to connect copper pipe to a male BSP threaded fitting, riser, valve or outlet at 90°. They are commonly used in plumbing, irrigation, water supply and repair work where copper pipe needs to transition to a threaded connection without soldering.
Made from DR lead free brass with a brass compression nut and nylon olive, these elbows are WaterMark Lead Free approved and tested to AS 3688. Install onto clean, round copper pipe on the compression end and use suitable thread sealant or PTFE tape on the BSP threaded connection only.
Brass Conetite Elbow Copper Pipe x Female BSP Specifications
Brass flanged bib extensions are used to screw onto an existing 15mm male BSP wall outlet and bring the female threaded connection forward from the wall or finished surface. They are commonly used when a male threaded outlet is recessed, too short, or needs to project further through brickwork, render, cladding, tiles or other finished surfaces before fitting a bib tap, hose cock, garden tap, valve or irrigation connection.
Made from DR lead free brass, these flanged bib extensions provide 15mm female BSP threads at both ends. The flange gives a neat finish against the wall face, while the extension length helps position the outlet where it is easier to connect and service.
Brass Flanged Bib Extension Screwed Female BSP Specifications
Brass flared adaptors copper x male BSP are used to connect copper pipe to a female BSP threaded fitting, valve, outlet or pipe connection. They are commonly used in plumbing, irrigation, water supply and repair work where copper pipe needs to transition to a male threaded connection.
Made from DR lead free brass with a brass compression nut, these flared adaptors are WaterMark Lead Free approved and tested to AS 3688. Install with correctly prepared copper pipe on the flare/compression end and use suitable thread sealant or PTFE tape on the male BSP threaded connection only.
Brass flared elbows copper x female BSP are used to connect copper pipe to a male BSP threaded fitting, riser, valve or outlet at 90°. They are commonly used in plumbing, irrigation, water supply and repair work where copper pipe needs to transition to a female threaded elbow connection.
Made from DR lead free brass with a brass compression nut, these flared elbows are WaterMark Lead Free approved and tested to AS 3688. Install with correctly prepared copper pipe on the flare/compression end and use suitable thread sealant or PTFE tape on the male BSP threaded connection only.
Brass gate valves provide manual isolation in threaded water pipework. Turning the handwheel raises or lowers an internal gate, opening or closing the passage through the valve. The full-bore design provides a clear water path when fully open. Female threaded connections in 15mm-100mm sizes accept matching male fittings.
The handwheel gives multi-turn control of the gate position. The valves are intended to isolate a section of pipework so water flow can be stopped for operation or servicing. Maximum pressure rating is 1600kPa; working temperature range is 1°C to 95°C.
Leave sufficient space around the handwheel to operate the valve and around the body for servicing. Select the correct thread size for the adjoining pipe fittings.
Female threaded connections; maximum pressure 1600kPa.

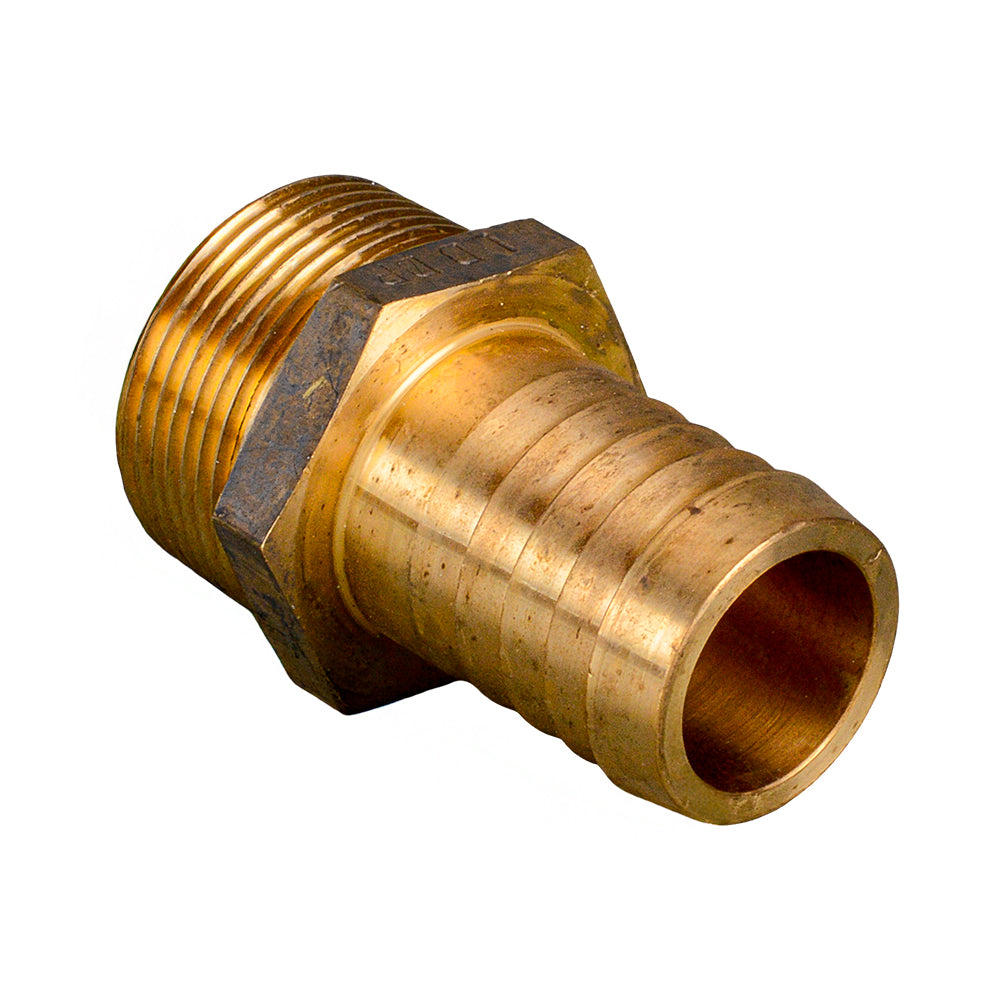

Brass male threaded hose barbs are used to connect flexible hose to BSP threaded fittings, valves, pumps and pipework. They are suitable for plumbing, irrigation, rural water and general water systems where a hose connection is required from a male threaded adaptor.
Made from DR lead free brass, these hose barbs provide a male BSP thread on one end and a hose barb connection on the other. Use suitable thread sealant or PTFE tape on the BSP thread and secure the hose with a suitable hose clamp.
Brass Threaded Hose Barb Male BSP x Hose Barb Specifications

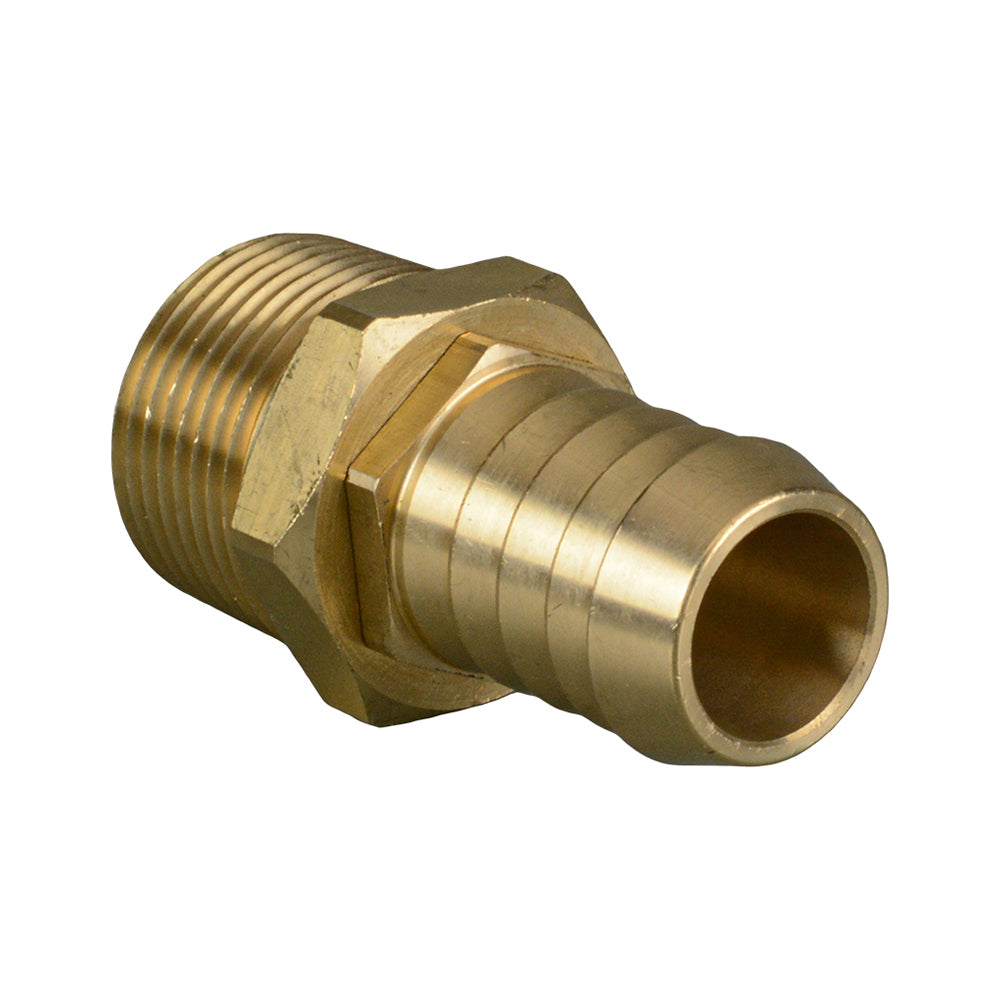

Brass male threaded swivel hose barbs are used to connect flexible hose to BSP threaded fittings, valves, pumps and pipework while allowing the hose barb connection to rotate during installation. They are suitable for plumbing, irrigation, rural water and general water systems where hose alignment is important.
These fittings use brass threaded and hose barb components with a stainless steel circlip and EPDM O-ring. Use suitable thread sealant or PTFE tape on the BSP thread and secure the hose with a suitable hose clamp.
Brass Threaded Swivel Hose Barb Male BSP x Hose Barb Specifications
Brass hose nut and tails are used to connect flexible hose to male BSP threaded fittings, outlets and pipework with a removable nut and sealing washer connection. They are suitable for plumbing, irrigation, rural water and general water systems where a hose tail connection needs to be fitted to a male threaded outlet.
Made with a brass nut, DR lead free brass tail and EPDM washer, these fittings provide a female BSP nut connection on one end and a hose tail connection on the other. Secure the hose with a suitable hose clamp and ensure the washer is correctly seated during installation.
Brass Hose Nut and Tail Female BSP x Hose Tail Specifications
Brass hose taps provide a manually operated water outlet for connecting a garden hose. Standard, wall-mount and vandal-proof taps have 15mm x 20mm or 20mm x 25mm connections. Choose the body style and connection sizes to suit the installation. Vandal-proof versions limit access to operation, while wall-mount versions provide a backplate for fixing the tap in position.
Standard taps use a conventional handle. The wall-mount design has a backplate, while the vandal-proof design uses a removable operating key. The existing range also lists a replacement key as a separate accessory.
Provide access to the operating handle or key, and match the inlet and hose outlet sizes to the installation.
15mm taps have a 20mm hose outlet; 20mm taps have a 25mm hose outlet. Maximum pressure is 1000kPa.
Brass Hose Tap Specifications
Brass Hose Tap Wall Mount Lead Free Specifications
Brass Hose Tap Vandal Proof Specifications
Brass Conetite lugged elbows are used to connect copper pipe to a female BSP wall outlet point at 90° using a mechanical nylon olive compression connection. They are commonly used in plumbing, irrigation, water supply and repair work where copper pipe needs to finish at a fixed threaded outlet without soldering.
Made from DR lead free brass with a brass compression nut and nylon olive, these lugged elbows are WaterMark Lead Free approved and tested to AS 3688. Install onto clean, round copper pipe on the compression end and fix the lugged body securely before connecting a compatible male BSP threaded fitting.
Brass Conetite Lugged Elbow Copper Pipe x Female BSP Specifications
Brass Reducing Nipples have male BSP threads of different sizes at opposite ends. They join female threaded components of different sizes in a straight line.
Made from DR lead free brass, these fittings are suitable for plumbing, irrigation and rural water systems. Use suitable thread sealant or PTFE tape on the male BSP threads before installing into female connections.
Avoid joining brass, galvanised and stainless steel fittings directly to one another. Use a plastic or other suitable non-conductive fitting or adaptor between different metals to prevent galvanic corrosion where water is present.
Brass Threaded Reducing Nipple Male x Male BSP Specifications

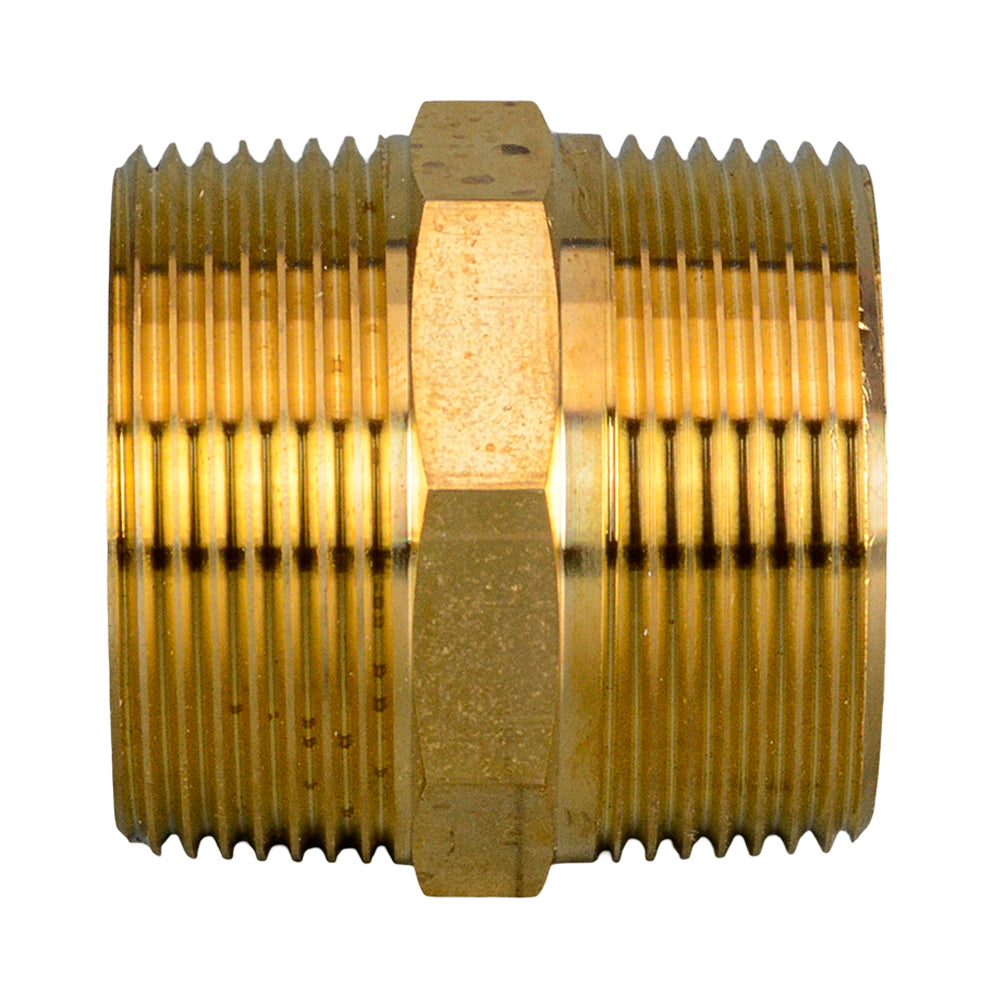

Brass Threaded Nipples have male BSP threads at both ends. They join two female threaded fittings, valves or pipe connections in a straight line.
Made from DR lead free brass, these fittings are suitable for plumbing, irrigation and rural water systems. Use suitable thread sealant or PTFE tape on the male BSP threads before installing into female connections.
Avoid joining brass, galvanised and stainless steel fittings directly to one another. Use a plastic or other suitable non-conductive fitting or adaptor between different metals to prevent galvanic corrosion where water is present.
Brass Threaded Plugs have a male BSP thread. They blank off unused female threaded fittings, outlets or pipe connections.
Made from DR lead free brass, these fittings are suitable for plumbing, irrigation and rural water systems. Use suitable thread sealant or PTFE tape on the male BSP thread before installing into a female connection.
Avoid joining brass, galvanised and stainless steel fittings directly to one another. Use a plastic or other suitable non-conductive fitting or adaptor between different metals to prevent galvanic corrosion where water is present.
Brass swing check valves allow water to pass in one direction and close against reverse flow. Forward water movement lifts the hinged check disc, while reverse flow moves it back onto its seat. Threaded connections in 15mm-100mm sizes suit installations for installations that need automatic non-return operation in brass pipe fittings.
The internal check disc operates without an external handle. Brass construction, an EPDM O-ring and a stainless steel pin support non-return operation, with a maximum pressure rating of 1600kPa.
Install with the flow arrow pointing in the intended direction. Horizontal and vertical installation are permitted; vertical pipework must allow upward flow so the disc can close correctly.
Female threaded connections; maximum pressure 1600kPa.
This 25mm brass swivel union connects threaded pipework to Franklin Electric MH3 and MH5 pumps. The union can be separated at its centre, allowing the connection to be undone without rotating the adjoining pipework. It has a 1" BSP male thread at one end and a 1" BSP female thread at the other.
The swivel connection helps align the fitting during installation and provides a convenient point to disconnect the pump for servicing.
Male end: 1" BSP thread.
Female end: 1" BSP thread.

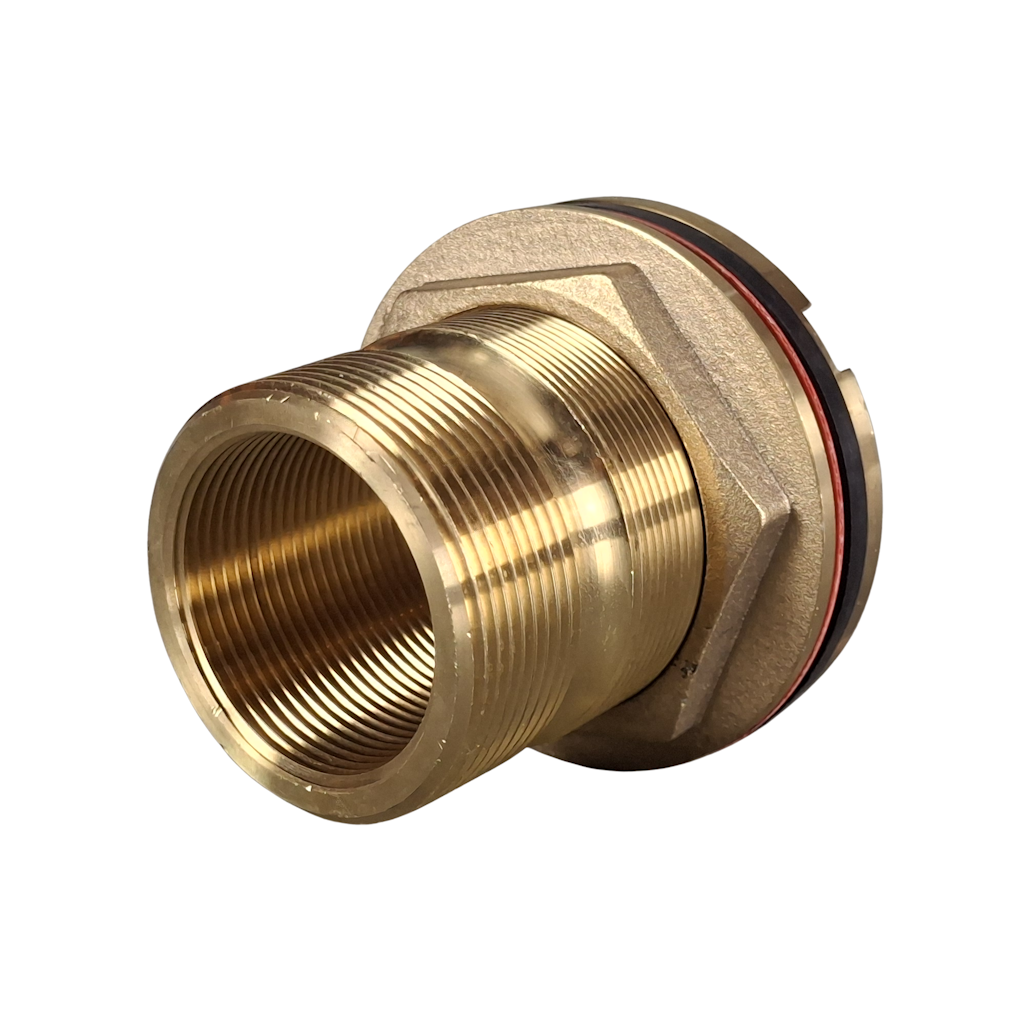

Brass Tank Flange 50mm x 40mm provides a sealed threaded connection through a water tank wall. It has a larger 50mm (2") male BSP outside thread and a smaller 40mm (1 1/2") female BSP inside thread.
Fit the flange through a correctly sized tank-wall opening. The supplied nut and washers secure and seal it against the wall.
The assembly has a DR lead free brass body, brass nut, EPDM washer and fibre washer. Use suitable sealing on connected pipe threads where required.
Avoid joining brass, galvanised and stainless steel fittings directly to one another. Use a plastic or other suitable non-conductive fitting or adaptor between different metals to prevent galvanic corrosion where water is present.
Brass Conetite compression tees are used to create a branch connection between three copper pipe runs using mechanical nylon olive compression connections. They are commonly used in plumbing, irrigation, water supply and repair work where copper pipe needs to be branched without soldering.
Made from DR lead free brass with brass compression nuts and nylon olives, these tees are WaterMark Lead Free approved and tested to AS 3688. Install onto clean, round copper pipe in the matching size and tighten the compression nuts so the nylon olives compress onto the pipe.
Brass Threaded Tees have female BSP threads on all three openings. They accept matching male fittings to create a branch in pipework or a valve assembly.
Made from DR lead free brass, these fittings are suitable for plumbing, irrigation and rural water systems. Use suitable thread sealant or PTFE tape on the mating male BSP threads.
Avoid joining brass, galvanised and stainless steel fittings directly to one another. Use a plastic or other suitable non-conductive fitting or adaptor between different metals to prevent galvanic corrosion where water is present.
Brass Conetite compression unions are used to join two copper pipe ends in a straight line using a mechanical nylon olive compression connection. They are commonly used in plumbing, irrigation, water supply and repair work where copper pipe needs to be joined without soldering.
Made from DR lead free brass with brass compression nuts and nylon olives, these unions are WaterMark Lead Free approved and tested to AS 3688. Install onto clean, round copper pipe in the matching size and tighten the compression nuts so the nylon olives compress onto the pipe.
Brass Y strainers remove larger particles from water before it reaches downstream equipment. A stainless steel screen sits inside the angled branch of the body, allowing the screen to be inspected and cleaned through the cap. Female threaded connections are available in 15mm-50mm sizes, with different screen openings for the smaller and larger sizes.
The 15mm, 20mm and 25mm models use a 350-micron screen; the 32mm, 40mm and 50mm models use a 500-micron screen. A smaller micron value means a smaller screen opening. The strainer is a particle filter rather than a shutoff or non-return valve.
Install with access to the strainer cap and follow the direction of flow marked on the body. Clean the screen as required by the water quality and any increase in pressure loss.
Female threaded connections; maximum pressure 1600kPa.
Butterfly sprinklers for garden and agricultural watering. Water turns the spinner, throwing the spray upwards and around the head. The water then falls onto the plants from above, helping it reach those behind nearer foliage.
Position each head so the spray can clear nearby foliage. How well it reaches behind plants depends on the mounting height and the height and density of the foliage.
Both standard brass inlet sizes operate at 150–250 kPa. At 200 kPa they use 16L/min and reach a 6.1m radius, equivalent to a 12.2m wetted diameter. The chart gives 14.5L/min and a 6.0m radius at 150 kPa, or 18L/min and a 6.2m radius at 250 kPa.
The Raindrop models use 17L/min at 200 kPa, with a maximum operating pressure of 200 kPa. Space them up to 6m apart in a triangular layout with staggered rows, or up to 5m apart in a square layout. These measurements describe the distance between heads rather than the watering radius of one sprinkler.
Rotoframe models have a 15mm or 20mm female BSP inlet and a 5mm nozzle. Both the spinner and frame rotate. At 200 kPa, the manufacturer performance table gives 14.7L/min and a 12m wetted diameter, equivalent to a 6m radius.
The zinc/chrome model has a 15mm male inlet and a 6m watering radius.
Detailed manufacturer specifications and performance data are not available for the basic plastic butterfly sprinkler (15mm female thread).
15mm & 20mm Brass Butterfly Sprinkler Specifications
15mm & 20mm Raindrop Butterfly Sprinkler Specifications
15mm & 20mm Rotoframe Butterfly Sprinkler Specifications
