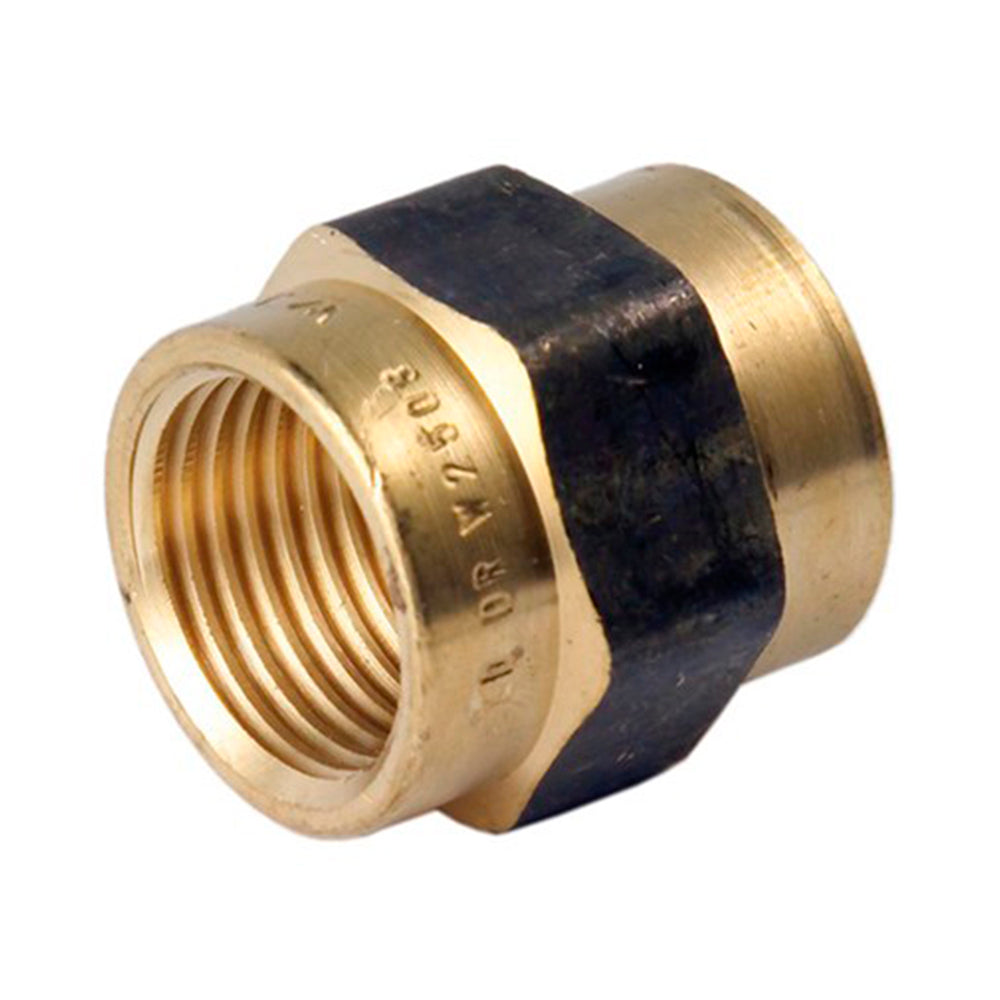

Brass Coupling Threaded Socket BSPF 10mm (3/8")
Brass Coupling Threaded Socket BSPF 10mm (3/8")
Brass Coupling Threaded Socket BSPF 10mm (3/8")
Brass Coupling Threaded Socket BSPF 10mm (3/8")
Brass Coupling Threaded Socket BSPF 10mm (3/8")
Brass Coupling Threaded Socket BSPF 10mm (3/8")

BRASS THREADED SOCKETS FEMALE BSP

Brass female threaded sockets are used to connect two male BSP threaded fittings, pipe ends or threaded components. Suitable for plumbing, irrigation, rural water and general water systems.

✓ Female BSP Threads
✓ DR Lead Free Brass
✓ Straight Threaded Joiner
✓ Use with Thread Seal Tape

Brass Threaded Socket Female BSP Specifications

More Information
Product Specifications
Brass Coupling Threaded Socket BSPF 10mm (3/8")
BRASS THREADED SOCKETS FEMALE BSP
Brass Coupling Threaded Socket BSPF 10mm (3/8")
Brass Coupling Threaded Socket BSPF 10mm (3/8") B02C010
$1.91 /each
Brass Coupling Threaded Socket BSPF 15mm (1/2")
Brass Coupling Threaded Socket BSPF 15mm (1/2") B02C015
$2.03 /each
Brass Coupling Threaded Socket BSPF 25mm (1")
Brass Coupling Threaded Socket BSPF 25mm (1") B02C025
$4.82 /each
Brass Coupling Threaded Socket BSPF 20mm (3/4")
Brass Coupling Threaded Socket BSPF 20mm (3/4") B02C020
$3.09 /each
Brass Coupling Threaded Socket BSPF 32mm (1 1/4")
Brass Coupling Threaded Socket BSPF 32mm (1 1/4") B02C032
$10.45 /each
Brass Coupling Threaded Socket BSPF 40mm (1 1/2")
Brass Coupling Threaded Socket BSPF 40mm (1 1/2") B02C040
$15.13 /each
Brass Coupling Threaded Socket BSPF 50mm (2")
Brass Coupling Threaded Socket BSPF 50mm (2") B02C050
$14.86 /each

Brass female threaded sockets are used to connect two male BSP threaded fittings, pipe ends or threaded components. They are suitable for plumbing, irrigation, rural water and general water systems where a straight female-to-female threaded join is required.

Made from DR lead free brass, these sockets provide a durable connection between compatible BSP threaded fittings. Use suitable thread sealant or PTFE tape when installing male BSP threads into the socket.

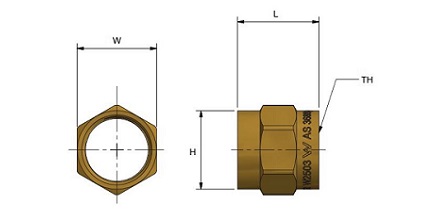

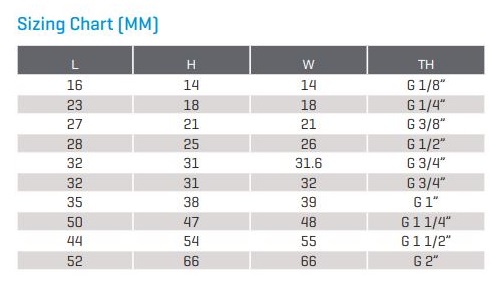

Brass Threaded Socket Female BSP Specifications

✓ Product Type & Size
Brass threaded sockets available in 10mm (3/8"), 15mm (1/2"), 20mm (3/4"), 25mm (1"), 32mm (1 1/4"), 40mm (1 1/2") and 50mm (2") Female BSP sizes.

✓ Material
DR lead free brass.

✓ Thread Type
Female BSP threaded connection.

✓ Pressure Rating
Maximum pressure rating 1600kPa.

✓ Working Temperature
1°C to 95°C.

✓ Certification
WaterMark Lead Free approved and tested to AS 3688.

✓ Applications
Suitable for plumbing, irrigation, rural water and general water systems.

✓ Installation
Use suitable thread sealant or PTFE tape and install with compatible BSP threaded fittings.
