Electrical Conduit & Fittings

Browse our range of electrical conduit and fittings designed to protect and manage electrical and communication cabling in residential, commercial, and infrastructure projects. Our selection includes PVC conduit, bends, pits, glands, bushes, adaptors, and corrugated conduit manufactured for durability, compliance, and reliable long term performance.

Sort

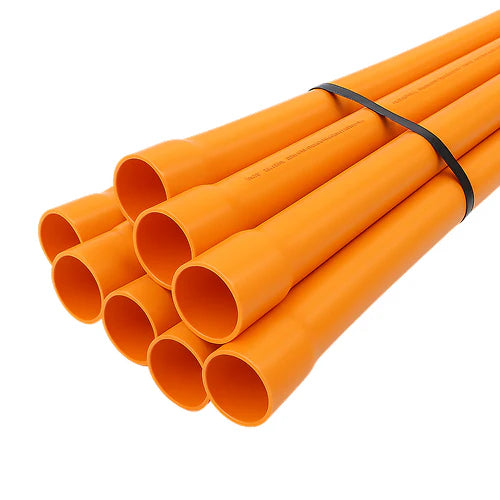

Bundle of orange rigid electrical conduit pipes

Orange heavy duty PVC electrical conduit protects electrical cables in underground runs. The rigid lengths have a socketed end for joining to the next length using suitable PVC solvent cement.

Supplied in 4m lengths, the range includes solid wall and foam core construction.

PVC Electrical Conduit Dimensions

✓ Material & Duty
Orange PVC electrical conduit.
Heavy duty (HD).

✓ Application
Underground electrical cable protection.

✓ Length
4m straight lengths.

✓ Connections
Socketed end for joining to the next length.
PVC solvent-weld joint (SWJ).

✓ Construction
Solid wall: 20mm, 25mm, 32mm, 40mm, 50mm and 63mm.
Foam core: 80mm and 100mm.

✓ Nominal Sizes
20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 80mm, 100mm and 150mm.
Bundle of grey rigid electrical conduit pipes

Grey medium duty PVC electrical conduit protects electrical cables in above-ground runs. The 4m rigid lengths have a socketed end for joining to the next length using suitable PVC solvent cement.

PVC Electrical Conduit Dimensions

✓ Material & Duty
Grey PVC electrical conduit.
Medium duty (MD).

✓ Application
Above-ground electrical cable protection.

✓ Length
4m straight lengths.

✓ Connections
Socketed end for joining to the next length.
PVC solvent-weld joint (SWJ).

✓ Nominal Sizes
20mm, 25mm, 32mm, 40mm and 50mm.

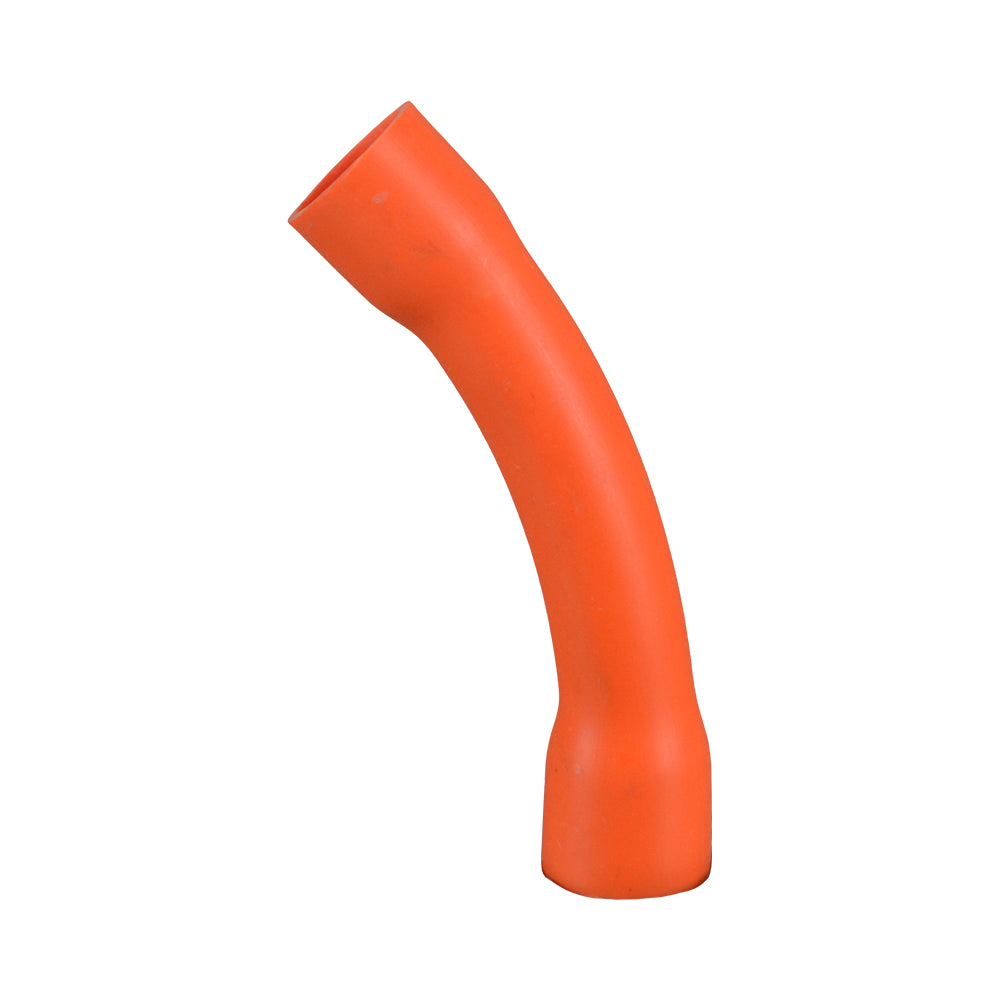

Orange electrical conduit swept bend, side view

Orange heavy duty PVC sweep bends change the direction of an electrical conduit run by 45°. The bends are formed from solid wall heavy duty conduit.

Female sockets at both ends fit over matching electrical conduit and form solvent-weld connections using suitable PVC solvent cement.

PVC Electrical Conduit Dimensions

✓ Material & Duty
Orange PVC electrical sweep bend.
Solid wall heavy duty (HD) construction.

✓ Bend Angle
45°.

✓ Connections
Female socket at both ends.
PVC solvent-weld joint (SWJ).

✓ Nominal Sizes
20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 80mm and 100mm.

✓ Dimensions
Nominal size / Bend radius / Approx. end-to-end length
20mm / 100mm / 115mm
25mm / 140mm / 150mm
32mm / 180mm / 190mm
40mm / 260mm / 270mm
50mm / 280mm / 310mm
63mm / 280mm / 310mm
80mm / 380mm / 470mm
100mm / 500mm / 600mm

✓ Manufacturer Standard
AS/NZS 2053.1 and AS/NZS 2053.2.
Orange electrical conduit right-angle sweeping bend, side view

Orange heavy duty PVC sweep bends change the direction of an electrical conduit run by 90°. The bends are formed from solid wall heavy duty conduit.

Female sockets at both ends fit over matching electrical conduit and form solvent-weld connections using suitable PVC solvent cement.

PVC Electrical Conduit Dimensions

✓ Material & Duty
Orange PVC electrical sweep bend.
Solid wall heavy duty (HD) construction.

✓ Bend Angle
90°.

✓ Connections
Female socket at both ends.
PVC solvent-weld joint (SWJ).

✓ Nominal Sizes
20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 80mm and 100mm.

✓ Dimensions
Nominal size / Bend radius / Approx. end-to-end length
20mm / 100mm / 180mm
25mm / 140mm / 260mm
32mm / 180mm / 320mm
40mm / 260mm / 430mm
50mm / 280mm / 500mm
63mm / 280mm / 500mm
80mm / 380mm / 720mm
100mm / 450mm / 840mm

✓ Manufacturer Standard
AS/NZS 2053.1 and AS/NZS 2053.2.
