Die-cast aluminium camlocks connect hose and equipment where the joint needs to be disconnected for servicing, moving hoses or changing equipment. The male adaptor enters the female coupling, and closing the two cam arms draws it against the sealing washer. Opening the arms releases the joint without unscrewing the fixed hose or threaded connection.
Type A: Male camlock x female BSP thread.
Type B: Female lever coupling x male BSP thread.
Type C: Female lever coupling x hose tail.
Type D: Female lever coupling x female BSP thread.
Type E: Male camlock x hose tail.
Type F: Male camlock x male BSP thread.

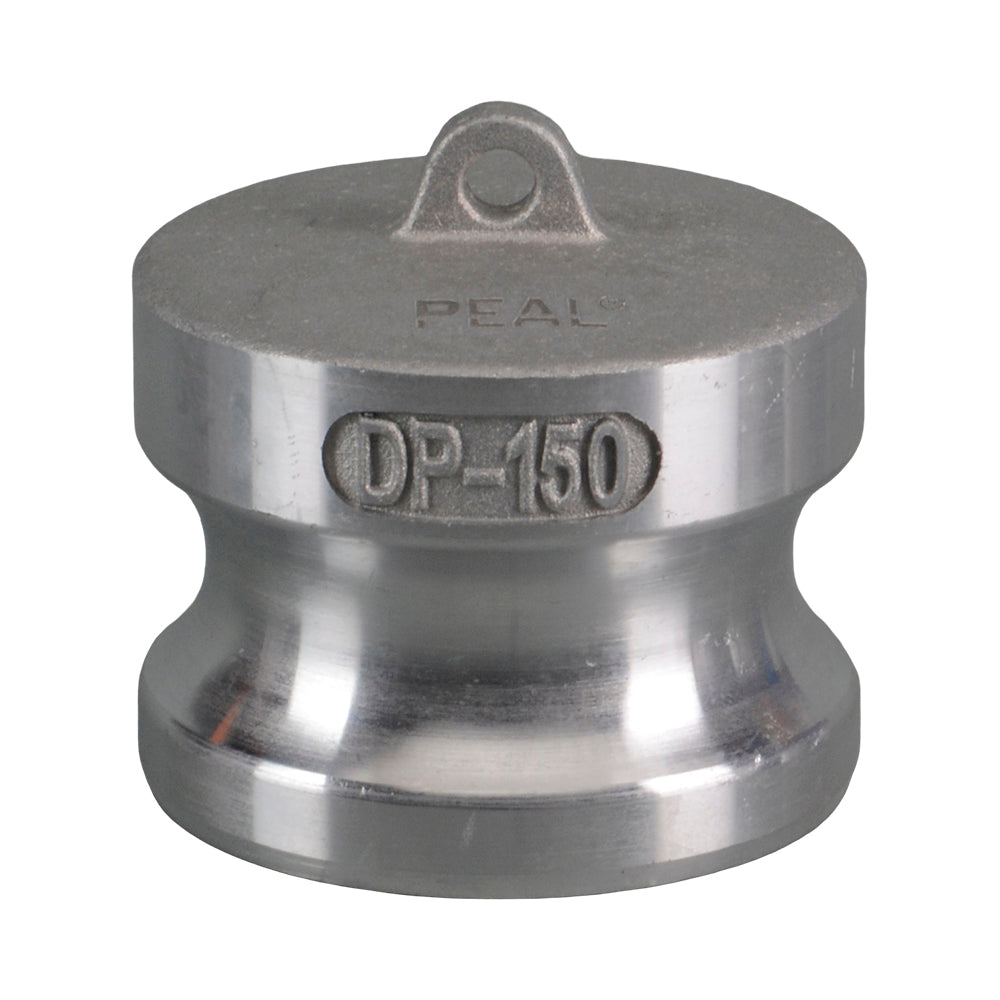

Type DC dust caps cover male camlock ends. Type DP dust plugs fit inside female lever couplings. They help keep dirt out of disconnected fittings during storage and handling.
The range is available in nominal sizes of 40mm, 50mm, 65mm and 80mm. The working pressure is 1724 kPa for 40mm and 50mm fittings, 1034 kPa for 65mm fittings and 862 kPa for 80mm fittings. Select the fitting type and nominal size for the connection being made.
The fittings are made from die-cast aluminium for general irrigation, agricultural and industrial water-transfer applications. The camlock profile follows Mil Spec A-A 59326.
BSP threads are cut to ISO 228.
The NBR sealing gasket has a maximum temperature of 100°C.
Replacement seals for the female couplings are available in our camlock sealing washer range.
