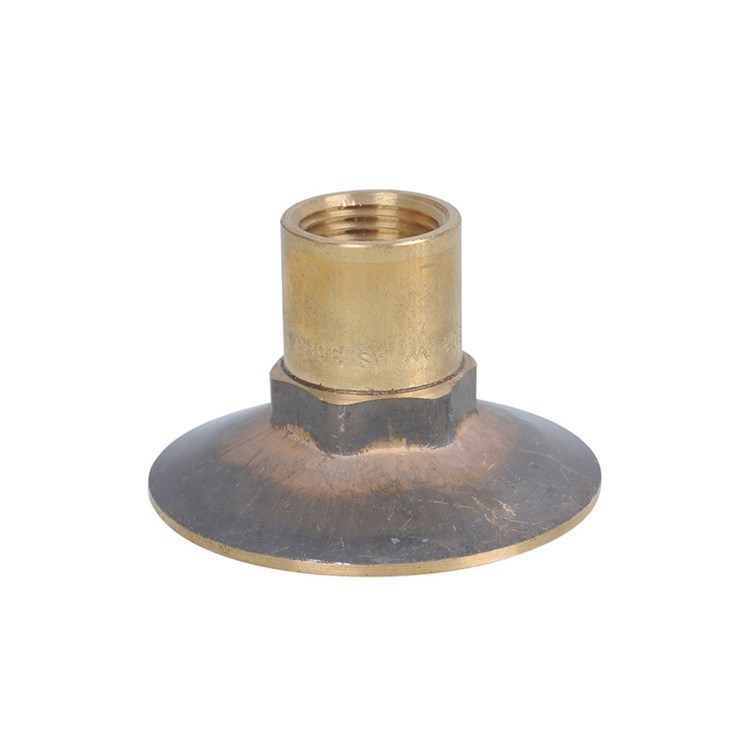

Brass Flanged Bib Extension Screwed 15mm Female BSP, 50mm Length
Brass Flanged Bib Extension Screwed 15mm Female BSP, 50mm Length

BRASS FLANGED BIB EXTENSIONS SCREWED FEMALE BSP

Brass flanged bib extensions screw onto an existing 15mm male BSP wall outlet and extend the female threaded connection forward from the wall. Suitable for bib taps, hose cocks, garden taps, valves and irrigation outlet connections.

✓ Screws onto 15mm Male BSP Outlets
✓ 15mm Female BSP Threads at Both Ends
✓ Extension Length Varies by Model
✓ Flanged Wall Finish
✓ DR Lead Free Brass Body
✓ 1600kPa Maximum Pressure Rating

Brass Flanged Bib Extension Screwed Female BSP Specifications

More Information
Product Specifications
Brass Flanged Bib Extension Screwed 15mm Female BSP, 50mm Length
BRASS FLANGED BIB EXTENSIONS SCREWED FEMALE BSP
Brass Flanged Bib Extension Screwed 15mm Female BSP, 50mm Length
Brass Flanged Bib Extension Screwed 15mm Female BSP, 50mm Length BFBES1550
$6.64 /each

Brass flanged bib extensions are used to screw onto an existing 15mm male BSP wall outlet and bring the female threaded connection forward from the wall or finished surface. They are commonly used when a male threaded outlet is recessed, too short, or needs to project further through brickwork, render, cladding, tiles or other finished surfaces before fitting a bib tap, hose cock, garden tap, valve or irrigation connection.

Made from DR lead free brass, these flanged bib extensions provide 15mm female BSP threads at both ends. The flange gives a neat finish against the wall face, while the extension length helps position the outlet where it is easier to connect and service.

Brass Flanged Bib Extension Screwed Female BSP Specifications

✓ Product Type & Size
Brass flanged bib extensions with 15mm Female BSP threads at both ends. Extension length varies by model.

✓ Connection Type
15mm Female BSP threaded connection at both ends. Designed to screw onto an existing 15mm male BSP threaded wall outlet and provide a 15mm female BSP outlet at the front.

✓ Material
DR lead free brass body.

✓ Function
Extends a 15mm male BSP wall outlet forward from the wall or finished surface so a compatible male BSP bib tap, hose cock, garden tap, valve or irrigation fitting can be connected.

✓ Pressure Rating
Maximum pressure rating 1600kPa, subject to correct installation, compatible fittings and application conditions.

✓ Temperature Range
Working temperature range 1°C to 95°C.

✓ Standards & Approvals
WaterMark Lead Free approved. Tested and certified to AS 3688.

✓ Applications
Suitable for plumbing, irrigation, garden tap outlets, hose cock installations, water supply connections, wall outlet extensions and repair work where a 15mm male BSP outlet needs to be brought forward.

✓ Installation
Apply suitable thread sealant or PTFE tape to the male BSP thread being connected. Screw the bib extension onto the male BSP wall outlet, then connect the required compatible male BSP tap, valve or fitting into the front female BSP thread.
