Brass Hose Tap BSPM 15mm x 20mm outlet (1/2" x 3/4")
Brass Hose Tap BSPM 15mm x 20mm outlet (1/2" x 3/4")
Brass Hose Tap BSPM 15mm x 20mm outlet (1/2" x 3/4")
Brass Hose Tap BSPM 15mm x 20mm outlet (1/2" x 3/4")
Brass Hose Tap BSPM 15mm x 20mm outlet (1/2" x 3/4")
Brass Hose Tap BSPM 15mm x 20mm outlet (1/2" x 3/4")

BRASS HOSE TAPS MALE BSP Range of taps

Brass hose taps provide outdoor water outlets for garden hoses, irrigation timers, hose fittings, washdown points and general water supply connections. This range includes standard, wall mount and vandal proof hose taps.

✓ Standard, Wall Mount and Vandal Proof Options
✓ For Garden Hose and Irrigation Outlets
✓ Male BSP Inlet Connections
✓ Threaded Hose Outlets
✓ Double O-Ring Spindle on Listed Models
✓ Tested to AS/NZS 3718

Brass Hose Tap Standard Male BSP Specifications

Brass Hose Tap Wall Mount Male BSP Specifications

Brass Hose Tap Vandal Proof Male BSP Specifications

Brass Hose Tap BSPM 15mm x 20mm outlet (1/2" x 3/4")

Brass hose taps are used to provide outdoor water outlets for garden hoses, irrigation tap timers, hose fittings, washdown points and general water supply connections. This range includes standard brass hose taps for everyday garden and irrigation use, wall mount hose taps with a backplate for fixed installations, and vandal proof hose taps for public, commercial and exposed locations where casual operation needs to be reduced.

Standard hose taps are a practical choice for most domestic and trade hose outlet points. Wall mount hose taps are suited to installations where the tap body needs to be fixed to a wall, post or mounting surface. Vandal proof hose taps are used where a more controlled outlet is required, such as schools, parks, strata gardens, commercial sites, public areas and shared access locations. Choose the correct tap type, inlet thread and hose outlet size to suit the pipework, wall outlet, hose fitting or irrigation connection being installed.

Brass Hose Tap Standard Male BSP Specifications

Brass Hose Tap Wall Mount Male BSP Specifications

Brass Hose Tap Vandal Proof Male BSP Specifications

✓ Product Type & Size
Brass hose tap range including standard, wall mount and vandal proof models in 15mm x 20mm (1/2" x 3/4") and 20mm x 25mm (3/4" x 1") sizes.

✓ Tap Range
Standard hose taps are used for general garden, hose and irrigation outlet points. Wall mount hose taps include a backplate for fixed mounting. Vandal proof hose taps are designed for exposed or public access locations where casual tap operation needs to be reduced.

✓ Connection Type
Male BSP inlet connection with threaded hose outlet. Inlet and outlet sizes vary by model.

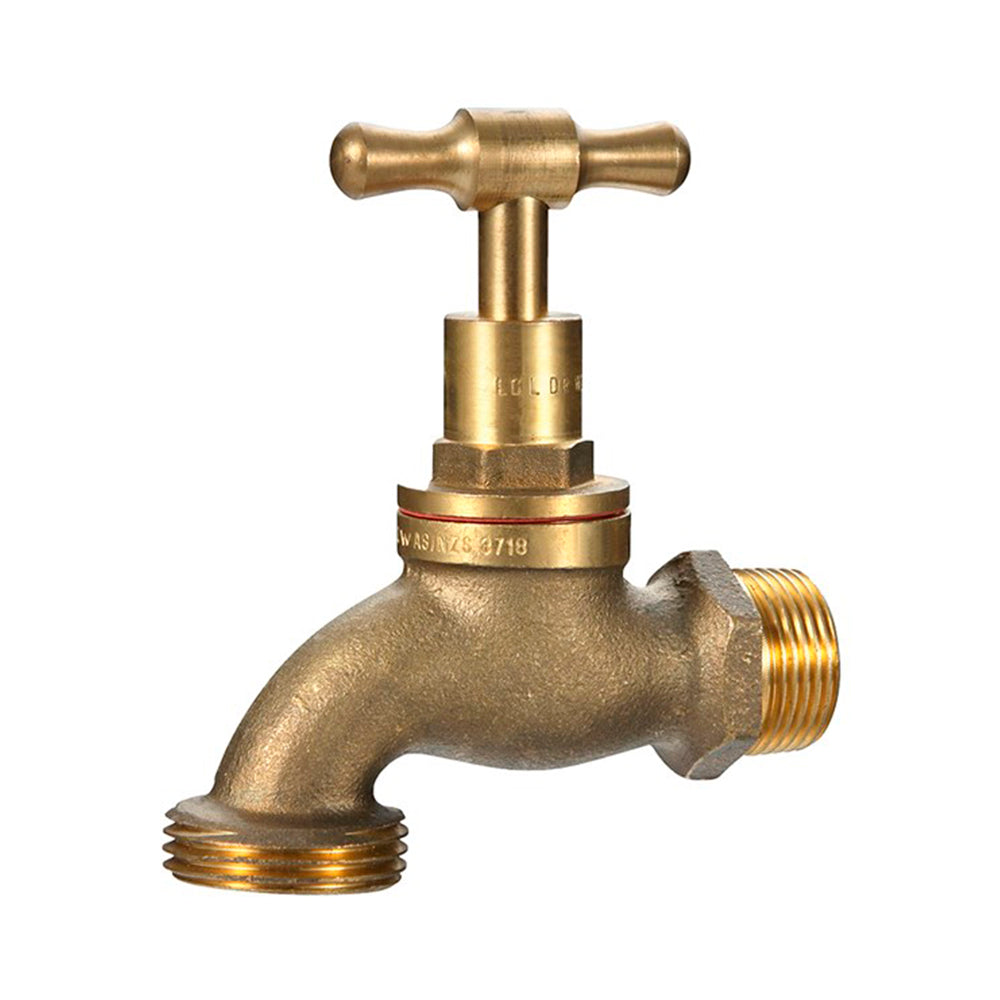

✓ Standard Hose Taps
Suitable for everyday garden hose outlets, irrigation tap timer points, washdown connections and general external water points.

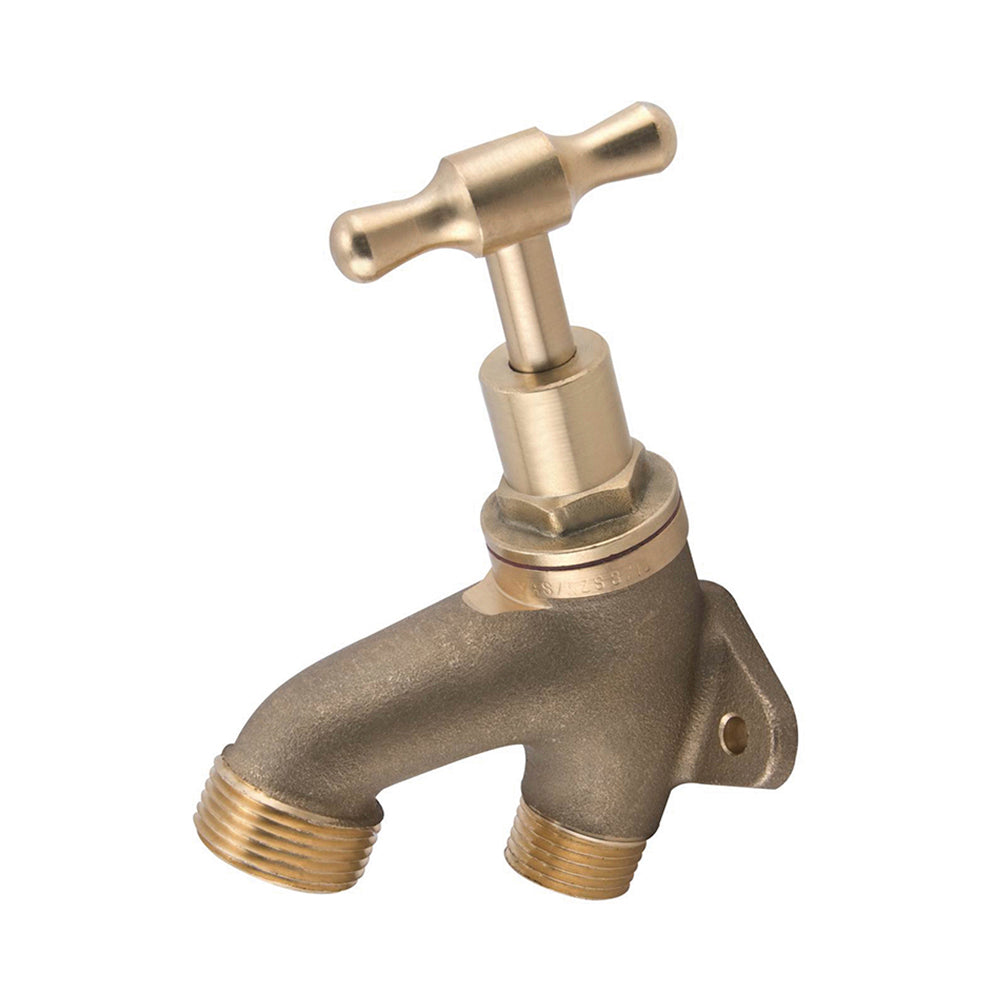

✓ Wall Mount Hose Taps
Suitable for fixed installations where the tap body needs support from a wall, post, mounting board or other suitable surface.

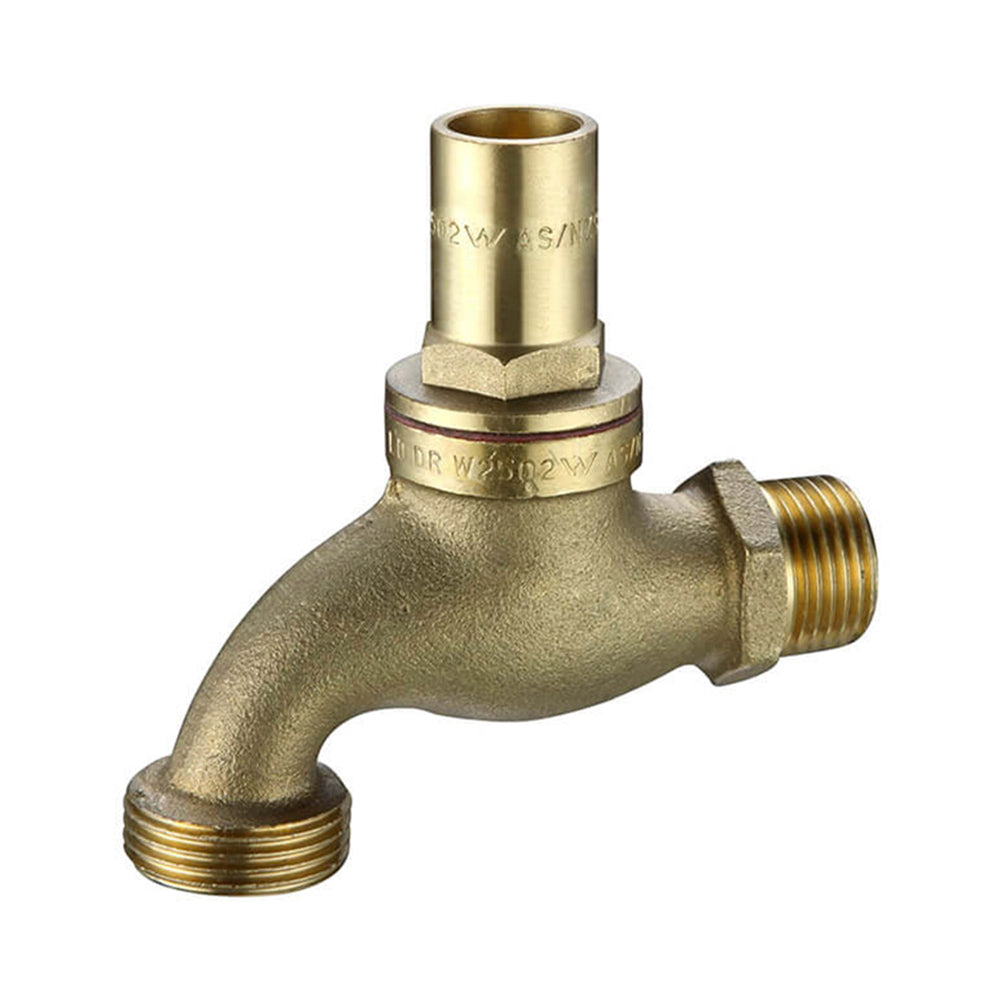

✓ Vandal Proof Hose Taps
Suitable for public, commercial, school, council, park, strata and exposed outdoor locations where unauthorised use needs to be reduced.

✓ Material
DR brass or DR lead free brass body depending on model, with brass or DR brass operating components as listed on the relevant product specification.

✓ Pressure Rating
Standard and vandal proof hose taps are rated to 1000kPa maximum pressure. Wall mount/backplated hose taps are rated to 1600kPa maximum pressure.

✓ Temperature Range
Standard and vandal proof hose taps have a working temperature range of 1°C to 75°C. Wall mount/backplated hose taps have a working temperature range of 0°C to 60°C.

✓ Standards & Approvals
Tested and certified to AS/NZS 3718. WaterMark approval applies to the listed hose tap range, with Lead Free approval where stated for the relevant model.

✓ Applications
Suitable for garden hose points, irrigation controller or tap timer connections, washdown areas, outdoor water outlets, hose cock replacements, commercial service points and general plumbing applications.

✓ Installation
Use suitable thread sealant or PTFE tape on the male BSP inlet thread. Install into a compatible female BSP wall outlet, fitting or pipe connection and ensure the hose outlet size matches the hose fitting, adaptor or irrigation connection being used.
