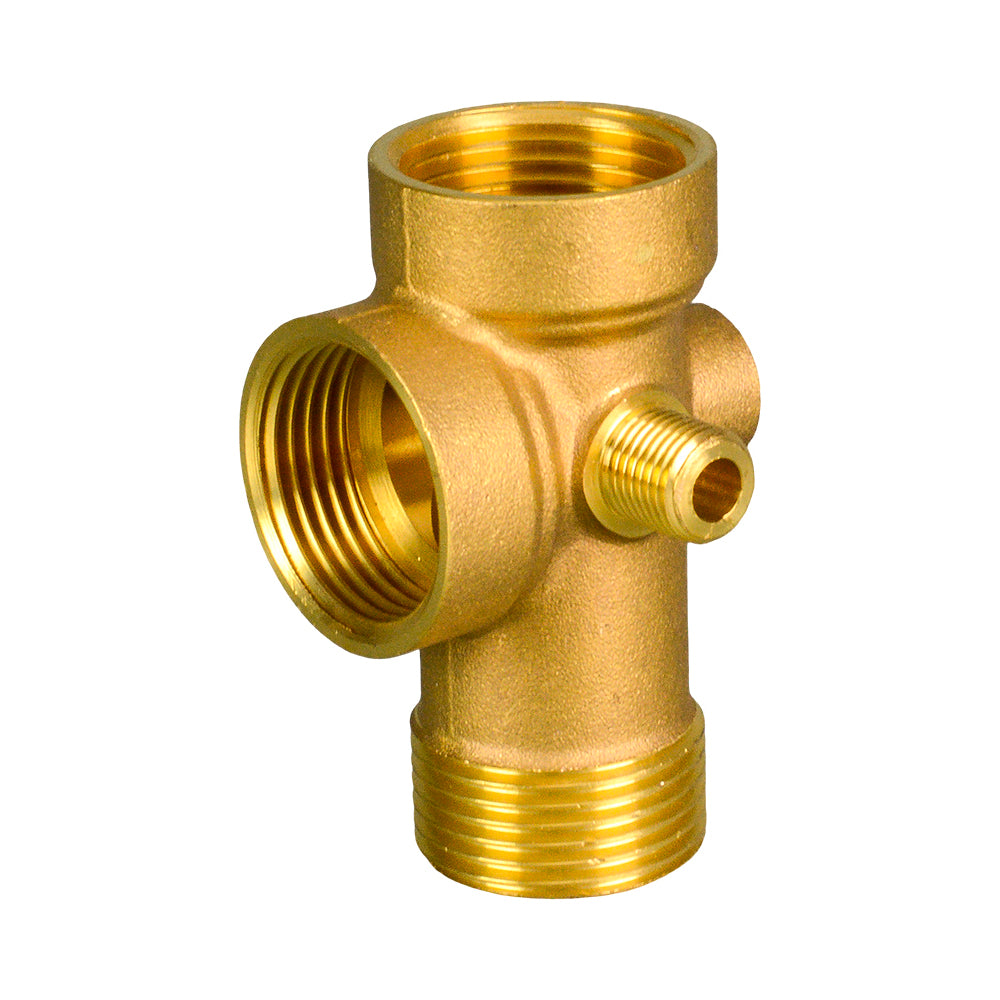

Brass five-way pump manifold showing the large threaded ports and small male side connection.
Brass five-way pump manifold showing the large threaded ports and small male side connection.

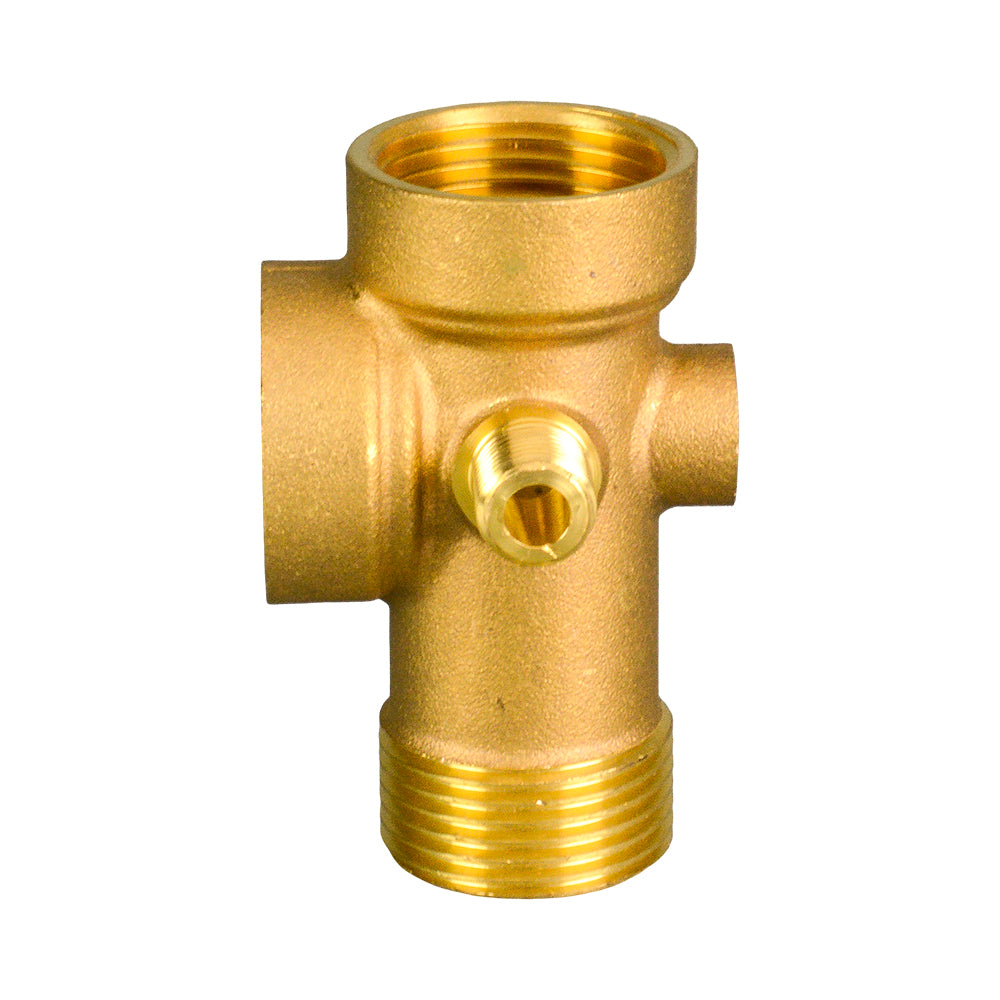

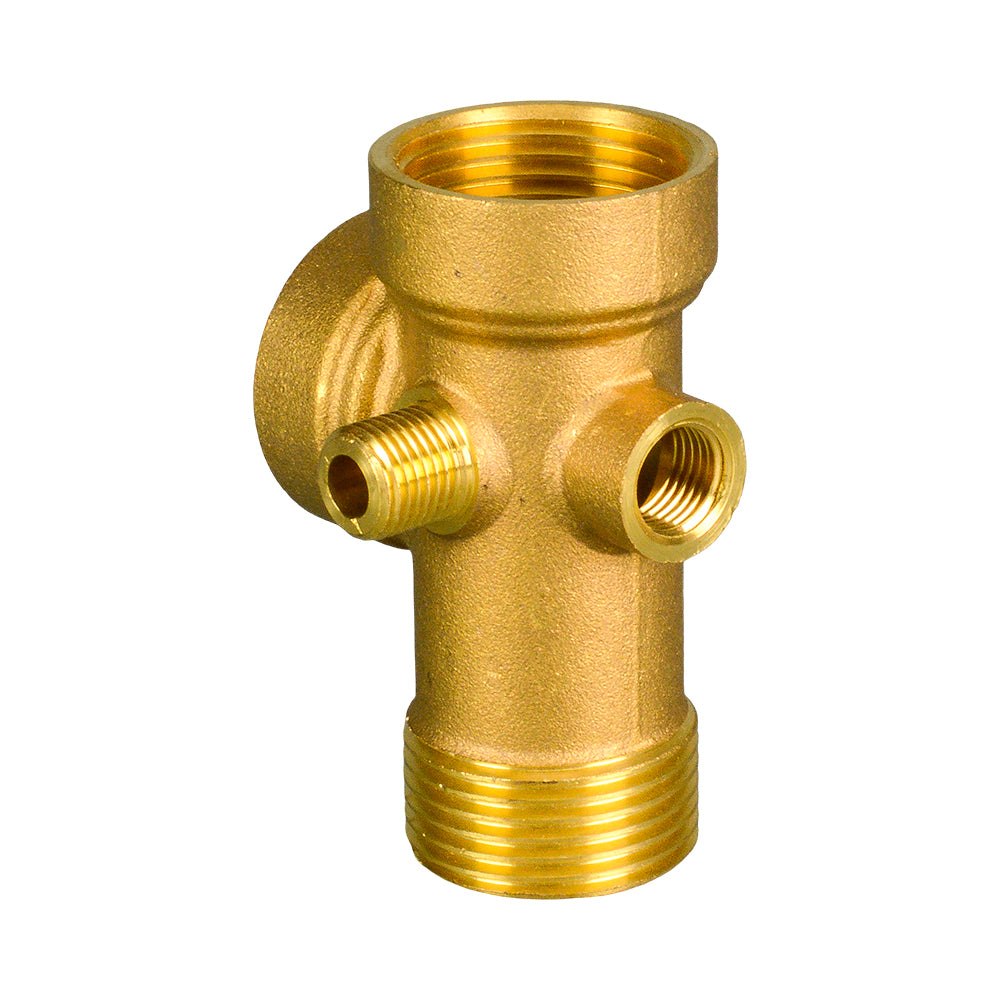

Brass five-way pump manifold showing the smaller male and female side ports.
Brass five-way pump manifold showing the smaller male and female side ports.

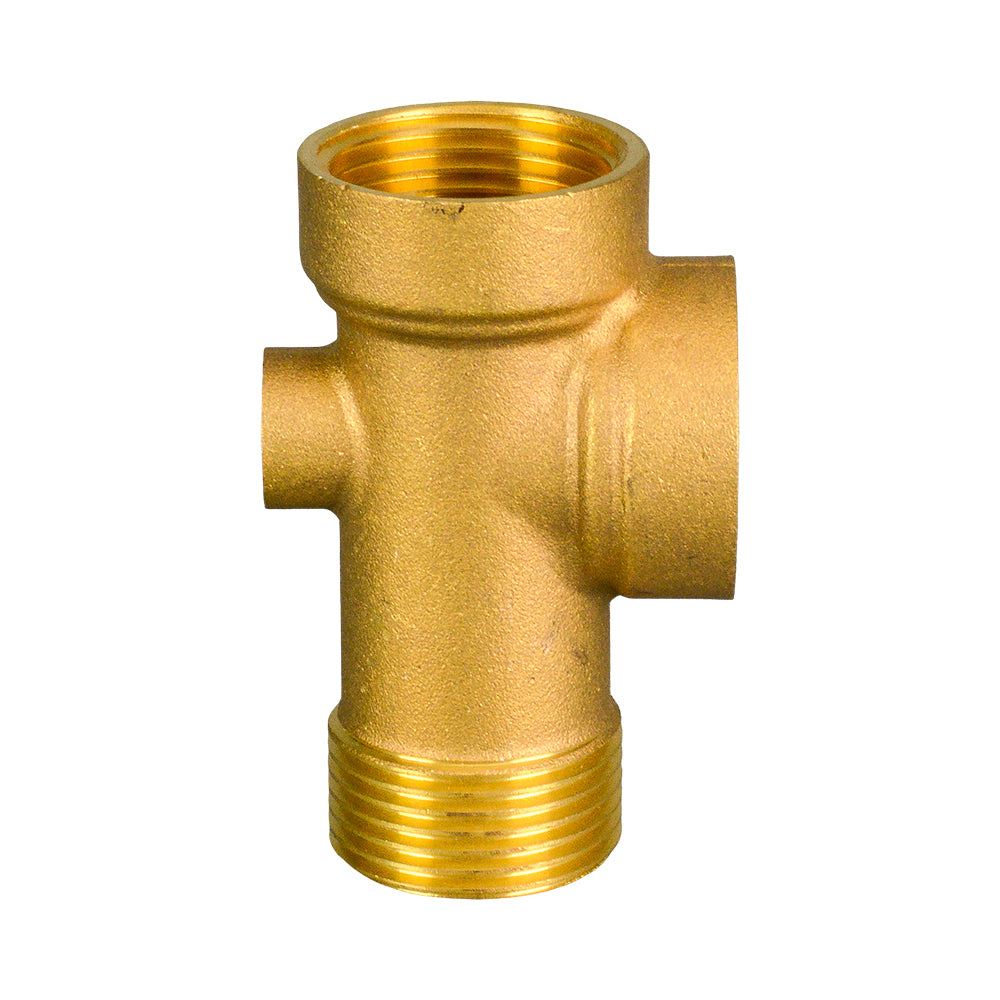

Brass five-way pump manifold showing the rear wall and threaded ends.
Brass five-way pump manifold showing the rear wall and threaded ends.

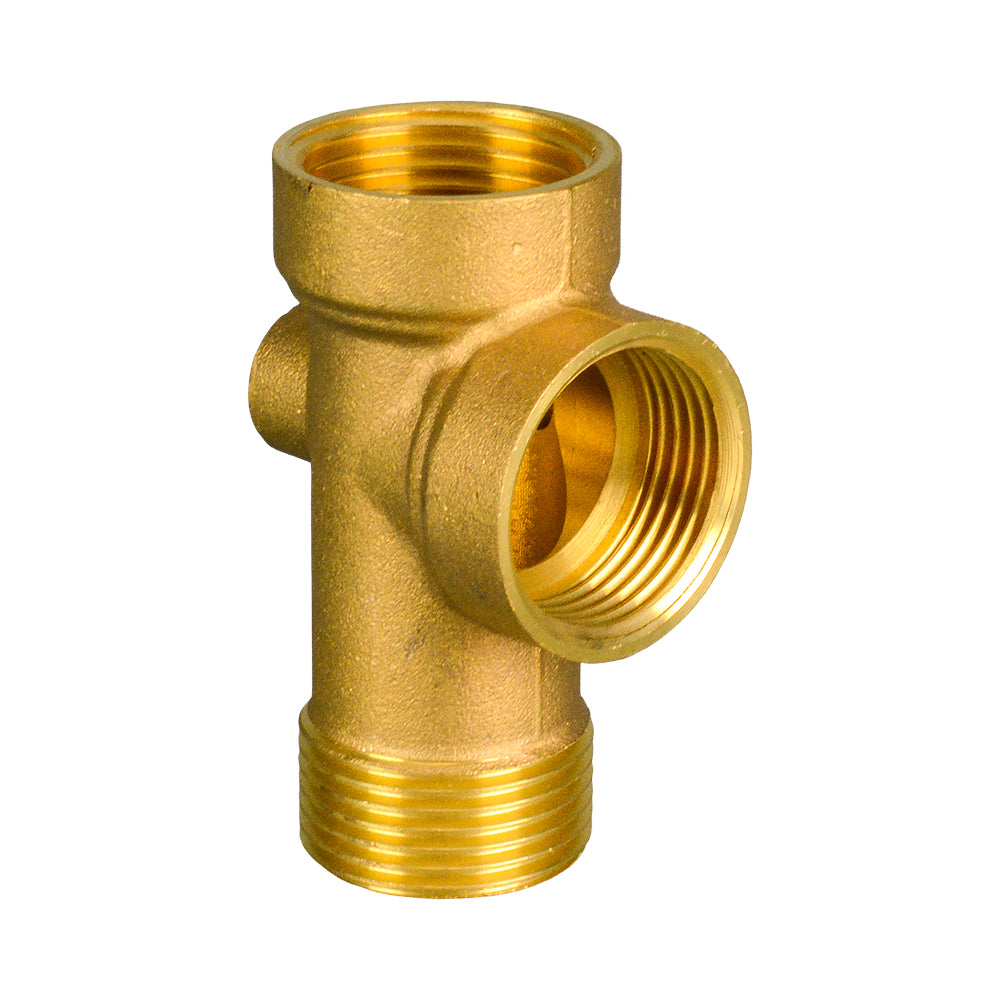

Brass five-way pump manifold viewed into the large side opening.
Brass five-way pump manifold viewed into the large side opening.
Brass five-way pump manifold viewed onto the small male side connection.
Brass five-way pump manifold viewed onto the small male side connection.
Brass five-way pump manifold showing the large threaded ports and small male side connection.
Brass five-way pump manifold showing the smaller male and female side ports.
Brass five-way pump manifold showing the rear wall and threaded ends.
Brass five-way pump manifold viewed into the large side opening.
Brass five-way pump manifold viewed onto the small male side connection.

BRASS 5-WAY PUMP MANIFOLD - 1" BSP

This brass five-way manifold brings the pump delivery connection, pipework and pressure-control fittings together in one compact fitting. Its three 1" BSP ports provide the main water connections, while two smaller 1/4" BSP ports connect pressure-control accessories such as a pressure switch and gauge. It suits Franklin Electric MH-series pump installations.

✓ Main ports: 1" BSP male and female in line; 1" BSP female side branch at 90°
✓ Accessory ports: opposing 1/4" BSP side ports - one male, one female
✓ Brass construction

More Information
Product Specifications
Brass five-way pump manifold showing the large threaded ports and small male side connection.
BRASS 5-WAY PUMP MANIFOLD - 1" BSP
Brass five-way pump manifold showing the large threaded ports and small male side connection.
Brass 5-Way Pump Manifold — 1" BSP PUMPBMN5W
$22.02 /each

This brass five-way manifold brings the pump delivery connection, pipework and pressure-control fittings together in one compact fitting. Its three 1" BSP ports provide the main water connections, while two smaller 1/4" BSP ports connect pressure-control accessories such as a pressure switch and gauge. It suits Franklin Electric MH-series pump installations.

The manifold provides connection points for a pump pressure system. The pressure switch controls when the pump starts and stops; a gauge shows system pressure. These components connect to the manifold and are sold separately.

The 1" BSP male and female ports are in line, with a second 1" BSP female port branching off at 90°. The two 1/4" BSP side ports face opposite directions: one male and one female.

✓ Application
Combining water and pressure-control connections in Franklin Electric MH-series pump installations.

✓ Connections
Main run: 1" BSP male and female ports in line.
Side branch: 1" BSP female port at 90° to the main run.
Accessory ports: opposing 1/4" BSP side ports, one male and one female.

✓ Construction
Brass five-way manifold.
