Brass flared copper elbow with female threaded end and flare nut
Brass flared copper elbow with female threaded end and flare nut
Brass flared copper elbow with female threaded end and flare nut

BRASS FLARED ELBOWS COPPER X FEMALE BSP

Brass flared elbows copper x female BSP are used to connect copper pipe to a male BSP threaded fitting, riser, valve or outlet at 90°. Suitable for plumbing, irrigation, water supply and repair applications.

✓ For Copper Pipe
✓ Copper x Female BSP Connection
✓ 90° Flared Compression Elbow
✓ DR Lead Free Brass Body
✓ WaterMark Lead Free Approved
✓ 1600kPa Maximum Pressure Rating

Brass Flared Elbow Copper x Female BSP Specifications

More Information
Product Specifications
Brass flared copper elbow with female threaded end and flare nut
BRASS FLARED ELBOWS COPPER X FEMALE BSP
Brass flared copper elbow with female threaded end and flare nut

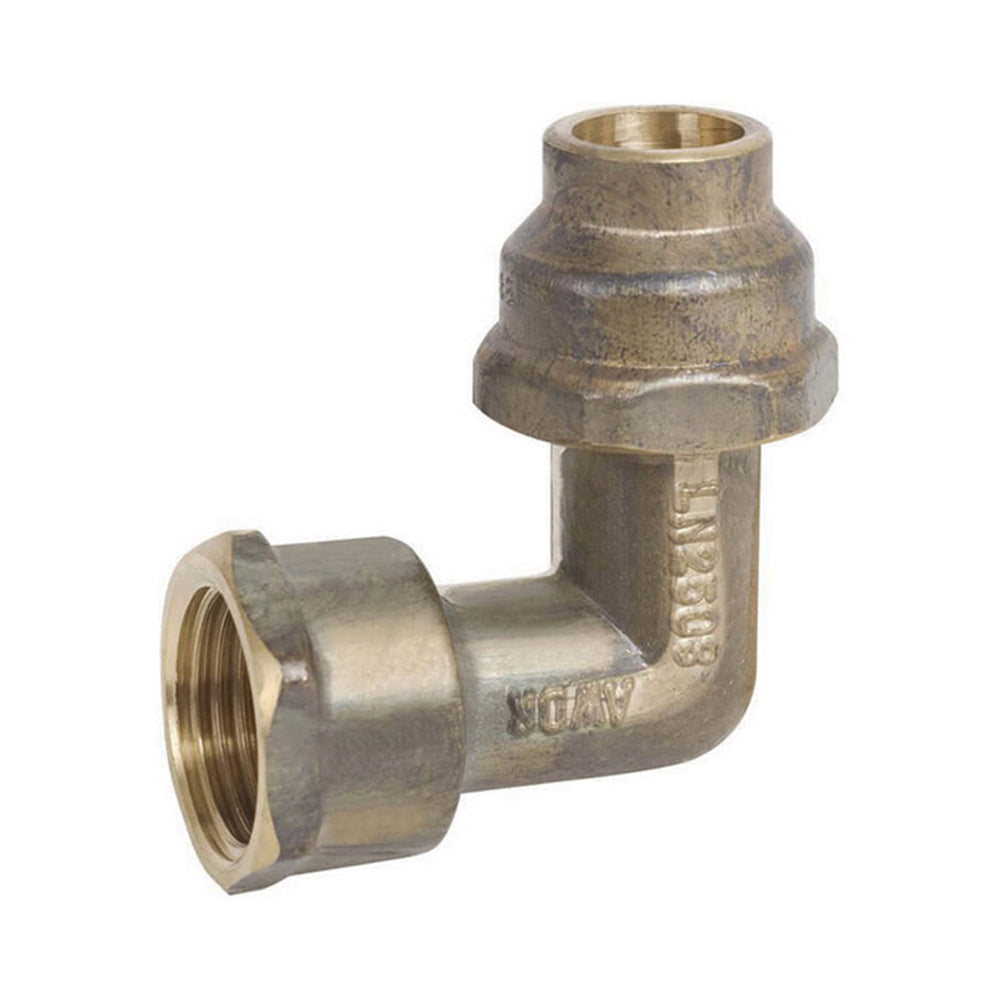

Brass Flared Elbow Copper x BSPF 15mm x 15mm (1/2" x 1/2") B08FE015
$4.64 /each

Brass flared elbows copper x female BSP are used to connect copper pipe to a male BSP threaded fitting, riser, valve or outlet at 90°. They are commonly used in plumbing, irrigation, water supply and repair work where copper pipe needs to transition to a female threaded elbow connection.

Made from DR lead free brass with a brass compression nut, these flared elbows are WaterMark Lead Free approved and tested to AS 3688. Install with correctly prepared copper pipe on the flare/compression end and use suitable thread sealant or PTFE tape on the male BSP threaded connection only.

Brass Flared Elbow Copper x Female BSP Specifications

✓ Connection Type
Copper flare/compression x Female BSP 90° elbow connection for connecting copper pipe to a male BSP threaded fitting, riser, valve or outlet.

✓ Material
DR lead free brass body with brass compression nut.

✓ Pipe Compatibility
Designed for use with correctly prepared copper pipe in the matching nominal size.

✓ Pressure Rating
Maximum pressure rating 1600kPa, subject to correct installation, compatible pipe and application conditions.

✓ Temperature Range
Working temperature range 1°C to 95°C.

✓ Standards & Approvals
WaterMark Lead Free approved. Tested and certified to AS 3688.

✓ Applications
Suitable for copper pipe in compatible plumbing, irrigation, water supply and general repair applications.

✓ Installation
Prepare the copper pipe correctly for the flare/compression connection and tighten the fitting securely. Use suitable thread sealant or PTFE tape on the male BSP threaded connection only.
