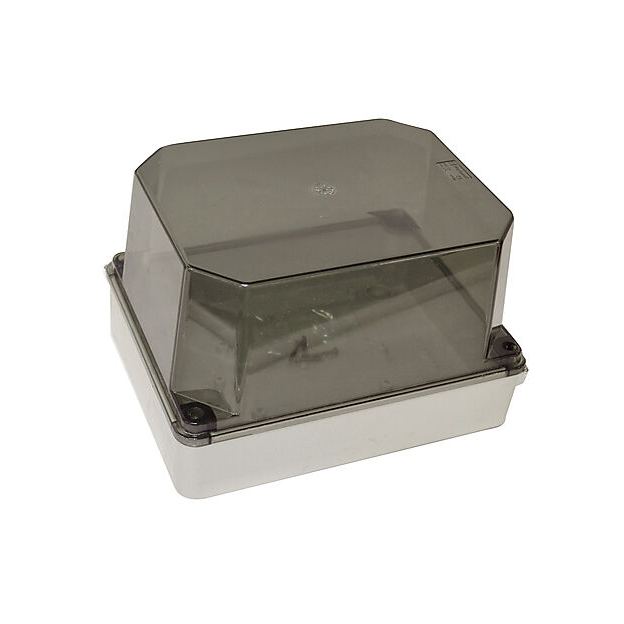

Plastic Electrical Enclosure - Clear Lid 243H X 190W X 155D
Plastic Electrical Enclosure - Clear Lid 243H X 190W X 155D

PLASTIC ELECTRICAL ENCLOSURE 243MM H X 190MM W X 155MM D IP66 CLEAR LID

Plastic IP66 enclosure, 243mm H x 190mm W x 155mm D, with clear lid for suitable electrical and control installations. Features PC and ABS blend plastic construction and EPDM gasket.

✓ 243mm H x 190mm W x 155mm D
✓ IP66 Rated Enclosure
✓ PC and ABS Blend Plastic Body
✓ Clear Lid
✓ Stainless Steel Lid Screws
✓ UV Resistant

Plastic Enclosure Specificationa

More Information
Product Specifications
Plastic Electrical Enclosure - Clear Lid 243H X 190W X 155D
PLASTIC ELECTRICAL ENCLOSURE 243MM H X 190MM W X 155MM D IP66 CLEAR LID
Plastic Electrical Enclosure - Clear Lid 190H X 145W X 135D
Plastic Electrical Enclosure - Clear Lid 190H X 145W X 135D EENCC190145135
$56.23 /each
Plastic Electrical Enclosure - Clear Lid 243H X 190W X 155D
Plastic Electrical Enclosure - Clear Lid 243H X 190W X 155D EENCC243190155
$68.96 /each
Plastic Electrical Enclosure - Clear Lid 150H X 110W X 70D
Plastic Electrical Enclosure - Clear Lid 150H X 110W X 70D EENCC15011070
$24.01 /each
Plastic Electrical Enclosure - Clear Lid 190H X 140W X 70D
Plastic Electrical Enclosure - Clear Lid 190H X 140W X 70D EENCC19014070
$34.28 /each
Plastic Electrical Enclosure - Clear Lid 240H X 190W X 90D
Plastic Electrical Enclosure - Clear Lid 240H X 190W X 90D EENCC24019090
$43.42 /each
Plastic Electrical Enclosure - Clear Lid 300H X 220W X 120D
Plastic Electrical Enclosure - Clear Lid 300H X 220W X 120D EENCC300220120
$67.13 /each

Plastic electrical enclosure 243mm H x 190mm W x 155mm D is an IP66 general purpose enclosure used to house and protect suitable electrical, control and automation components. It has a PC and ABS blend plastic body, EPDM rubber gasket and clear lid.

This enclosure has 243mm x 190mm x 155mm internal dimensions, stainless steel lid screws, RAL 7035 grey colour, UV resistance and IK06 impact resistance. The clear lid allows visual inspection of suitable internal components without opening the enclosure. Confirm component fit, cable entry requirements, site conditions and electrical installation requirements before ordering.

Plastic Enclosure Specificationa

✓ Product Type & Size
Plastic IP66 enclosure, 243mm H x 190mm W x 155mm D internal dimensions.

✓ Material
PC and ABS blend plastic body.

✓ Colour
RAL 7035 grey.

✓ Lid Colour
Clear lid.

✓ Lid Screw Type
Stainless steel lid screws.

✓ Gasket
EPDM rubber gasket.

✓ Environment Protection
IP66 rated.

✓ Impact Resistance
IK06.

✓ Temperature Range
-15°C to +60°C.

✓ Glow Wire Test
650°C.

✓ UV Resistance
UV resistant.

✓ Halogen Free
Yes.

✓ Applications
Suitable for general electrical, control and automation enclosure applications where the enclosure size, IP rating and installation method suit the site requirements.

✓ Installation Note
Confirm component fit, cable entry requirements, heat dissipation, site conditions and electrical installation requirements before ordering. Electrical work must be completed by a suitably qualified person.
