DOL STARTER 24VAC 7-10A

DOL Starter 24VAC 7-10A for Direct-On-Line motor starting and stopping. Suitable where the motor full-load current matches the selected overload relay range.

✓ 24VAC Control Coil
✓ 7-10A Overload Range
✓ Direct-On-Line Motor Starter
✓ Front Start / Stop Push Buttons
✓ Typical 415V AC-3 Rating: 4.00kW / 5.50HP
✓ Licensed Electrical Installation Required

DOL Starter 24VAC Specifications

More Information
Product Specifications
DOL Starter Single or 3 Phase 24v Coil 7 - 10 A
DOL STARTER 24VAC 7-10A
DOL Starter Single or 3 Phase 24v Coil 1.6 -2.5 A
DOL Starter Single or 3 Phase 24v Coil 1.6 -2.5 A GSDOL24V11K
$97.96 /each
DOL Starter Single or 3 Phase 24v Coil 2.5 - 4 A
DOL Starter Single or 3 Phase 24v Coil 2.5 - 4 A GSDOL24V15K
$97.96 /each
DOL Starter Single or 3 Phase 24v Coil 4 - 6 A
DOL Starter Single or 3 Phase 24v Coil 4 - 6 A GSDOL24V22K
$97.96 /each
DOL Starter Single or 3 Phase 24v Coil 5.5 - 8 A
DOL Starter Single or 3 Phase 24v Coil 5.5 - 8 A GSDOL24V37K
$97.96 /each
DOL Starter Single or 3 Phase 24v Coil 7 - 10 A
DOL Starter Single or 3 Phase 24v Coil 7 - 10 A GSDOL24V40K
$97.96 /each
DOL Starter Single or 3 Phase 24v Coil 10 - 13 A
DOL Starter Single or 3 Phase 24v Coil 10 - 13 A GSDOL24V55K
$97.96 /each
DOL Starter Single or 3 Phase 24v Coil 13 - 18 A
DOL Starter Single or 3 Phase 24v Coil 13 - 18 A GSDOL24V90K
$145.51 /each

DOL Starter 24VAC 7-10A is used for Direct-On-Line starting and stopping of suitable electric motors where a 24VAC control coil and 7-10A overload relay range are required.

This starter includes a contactor and overload relay assembly inside an enclosure, with front-mounted start and stop push buttons. The 24VAC rating refers to the control coil, not the motor supply voltage. Confirm the motor full-load current, supply voltage and installation requirements with a licensed electrician before ordering.

DOL Starter 24VAC Specifications

✓ Product Type & Size
DOL motor starter with 24VAC control coil and 7-10A overload relay range.

✓ Control Coil Voltage
24VAC control coil. Supplier coil code B7.

✓ Starter Function
Direct-On-Line motor starting and stopping using a contactor and overload relay arrangement.

✓ Overload Relay Range
7-10A overload relay range.

✓ Typical 415V AC-3 Motor Rating
4.00kW / 5.50HP at 415V, based on the supplier rating table. Confirm motor full-load current before ordering.

✓ Controls

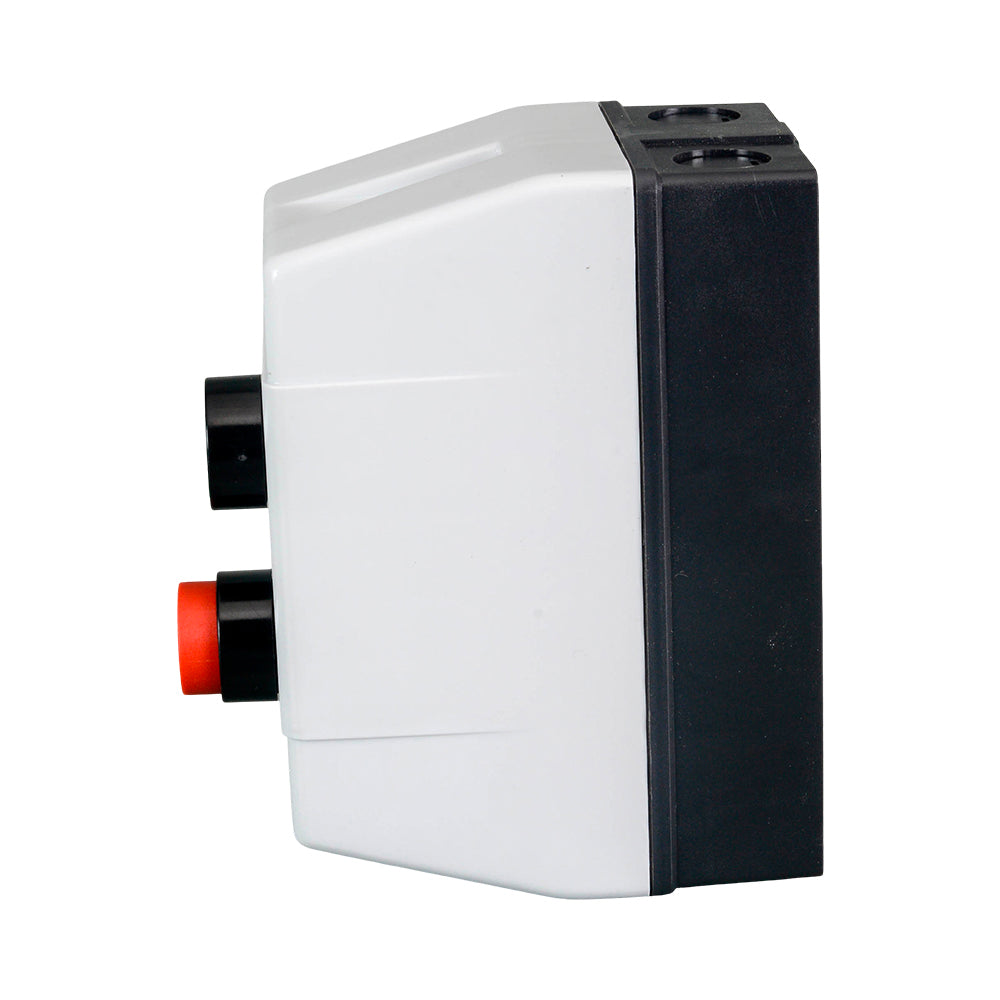

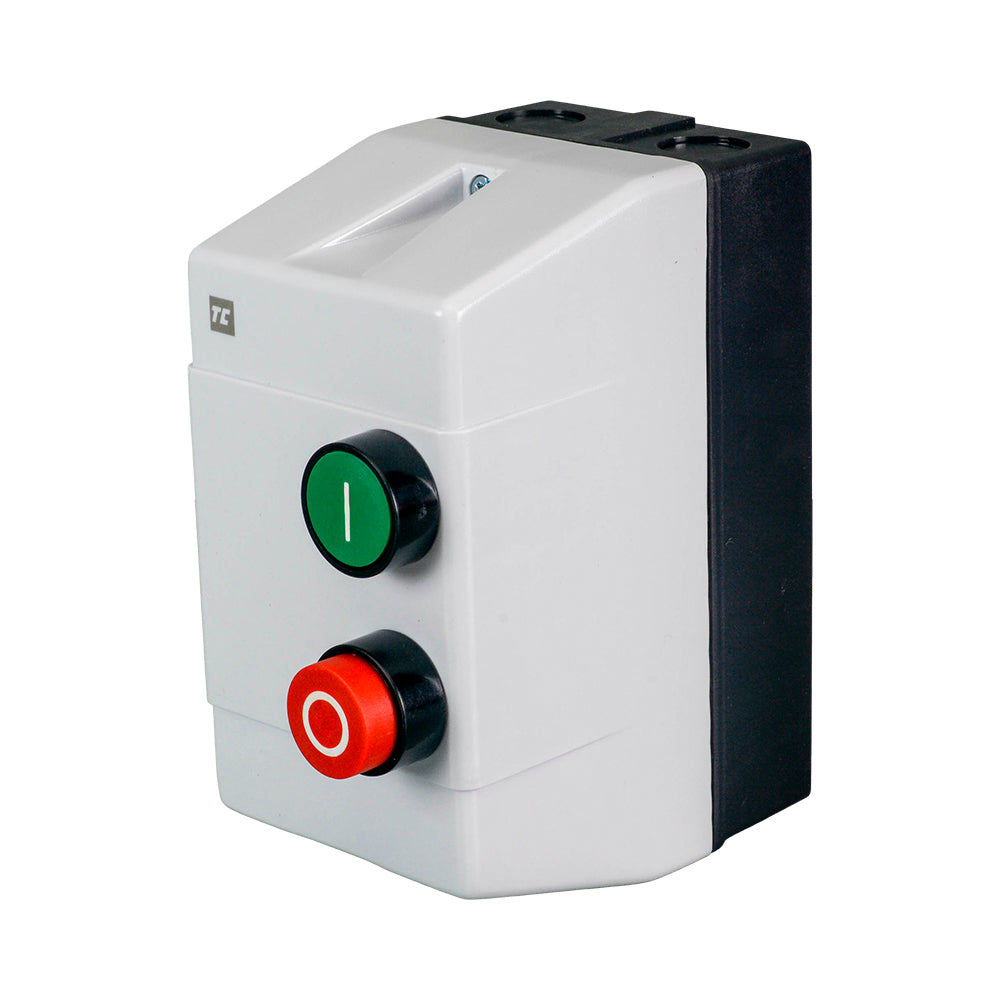

Front-mounted start and stop push buttons. Stop button is projecting and start button is flush.

✓ Enclosure Size
A size enclosure for the listed LE1D123 / LE1D183 starter reference range.

✓ Applications
Suitable for motor control applications where Direct-On-Line starting is appropriate and the motor full-load current suits the 7-10A overload range.

✓ Installation Note
Must be installed, checked and serviced by a licensed electrician. Disconnect power before installation, modification or servicing.
