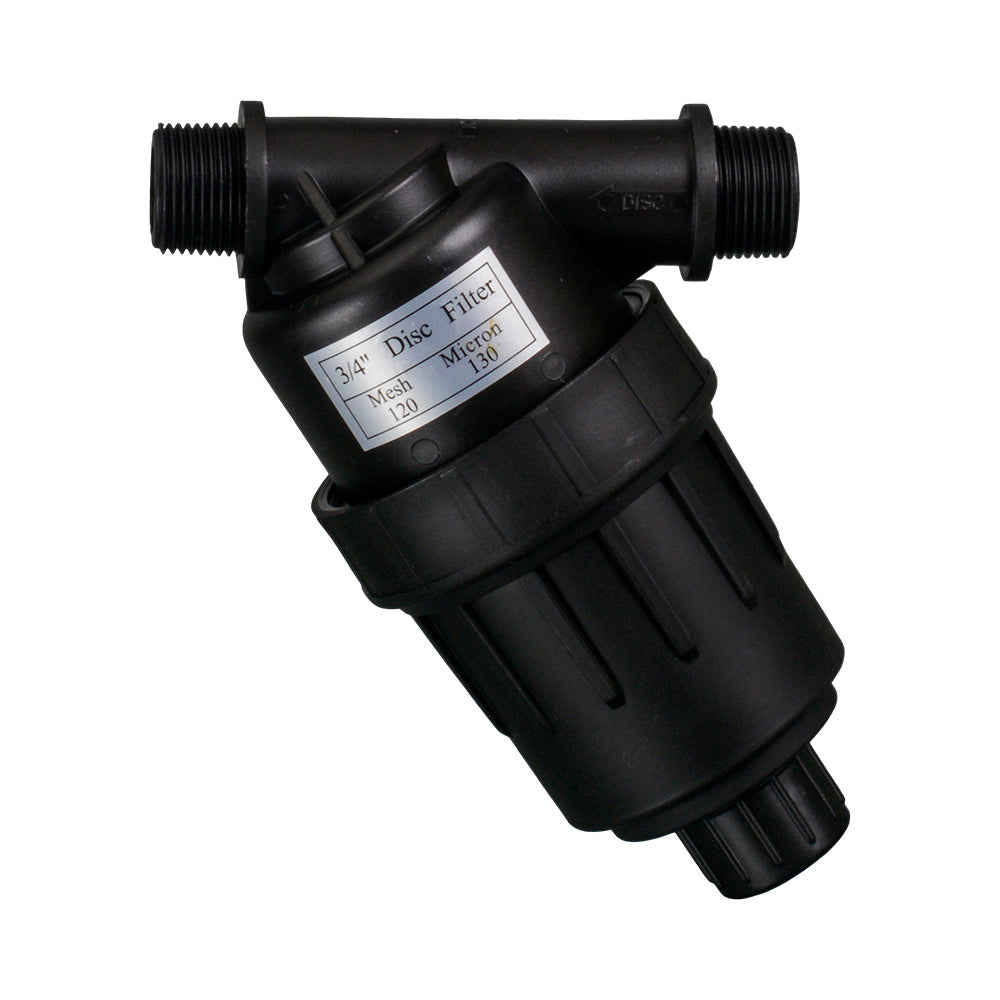

Filter Raindrip Small Plastic Body With 130 Disc (Red) 20mm BSPM
Filter Raindrip Small Plastic Body With 130 Disc (Red) 20mm BSPM

RAINDRIP PLASTIC IRRIGATION DISC FILTERS

Raindrip plastic irrigation disc filters are used to filter suspended particles from irrigation water before it reaches downstream irrigation equipment. Choose the correct Small, Medium or Super body style to suit the connection size, pressure rating and flow requirement.

✓ Plastic Irrigation Disc Filters
✓ Red 120 Mesh / 130 Micron Disc Elements
✓ Helps Protect Valves, Sprinklers & Dripline
✓ Small, Medium and Super Body Styles
✓ UV Stabilised Polypropylene Filter Bodies
✓ BSP Male Threaded Connections
✓ Confirm Size, Flow and Pressure Before Ordering

Raindrip Plastic Disc Filter Specifications

More Information
Product Specifications
Filter Raindrip Small Plastic Body With 130 Disc (Red) 20mm BSPM
RAINDRIP PLASTIC IRRIGATION DISC FILTERS
Filter Raindrip Small Plastic Body With 130 Disc (Red) 20mm BSPM
Filter Raindrip Small Plastic Body With 130 Disc (Red) 20mm BSPM FRPD20130
$25.75 /each
Filter Raindrip Small Plastic Body With 130 Disc (Red) 25mm BSPM
Filter Raindrip Small Plastic Body With 130 Disc (Red) 25mm BSPM FRPD25130
$25.75 /each
Filter Raindrip Medium Plastic Body With 130 Disc (Red) 40mm BSPM
Filter Raindrip Medium Plastic Body With 130 Disc (Red) 40mm BSPM FRPD40130
$119.93 /each
Filter Raindrip Medium Plastic Body With 130 Disc (Red) 50mm BSPM
Filter Raindrip Medium Plastic Body With 130 Disc (Red) 50mm BSPM FRPD50130
$161.14 /each
Filter Raindrip Super Plastic Body With 130 Disc (Red) 50mm BSPM
Filter Raindrip Super Plastic Body With 130 Disc (Red) 50mm BSPM FRSPD50130
$290.53 /each
Filter Raindrip Super Plastic Body With 130 Disc (Red) 80mm BSPM
Filter Raindrip Super Plastic Body With 130 Disc (Red) 80mm BSPM FRSPD80130
$398.97 /each

Raindrip plastic irrigation disc filters are used to filter suspended particles from irrigation water and help protect downstream valves, sprinklers, dripline and irrigation components. This range uses red 120 mesh / 130 micron disc filtration in Small, Medium and Super plastic filter body styles.

The range includes 20mm and 25mm Small disc filters, 40mm and 50mm Medium disc filters, and 50mm and 80mm Super disc filters. Super models include a stainless steel quick release clamp for easier access during cleaning and maintenance. Confirm the connection size, body style, pressure rating, maximum flow and available installation space before ordering.

Raindrip Plastic Disc Filter Specifications

✓ Product Type & Range
Raindrip plastic irrigation disc filters.

✓ Application
Used to filter suspended particles from irrigation water and help protect valves, sprinklers, dripline and other downstream irrigation components.

✓ Supplied Models
Includes 20D130, 25D130, 40D130, 50D130, S50D130 and S80D130.

✓ Filter Type
Disc filtration.

✓ Mesh / Micron Rating
Red 120 mesh / 130 micron disc element.

✓ Body Styles
Small body for 20mm and 25mm filters, Medium body for 40mm and 50mm filters, and Super body for 50mm and 80mm filters.

✓ Pressure Ratings
Small and Super disc filters are rated to 1000 kPa. Medium disc filters are rated to 800 kPa.

✓ Maximum Flow Rates
20mm and 25mm Small disc filters are rated to 5m³/h. 40mm Medium is rated to 15m³/h. 50mm Medium is rated to 18m³/h. 50mm Super is rated to 30m³/h. 80mm Super is rated to 50m³/h.

✓ Filter Surface Area
Small disc filters have 90cm² filter surface area. Medium disc filters have 254cm² filter surface area. 50mm Super has 1200cm² filter surface area. 80mm Super has 1700cm² filter surface area.

✓ Materials
Polypropylene filter body, polypropylene disc element, EPDM O-ring and 304 stainless steel spring on disc filter assemblies. Super filters also include a 304 stainless steel quick release clamp.

✓ Connection
BSP male threaded connections.

✓ Installation
Install in the correct flow direction and allow access for cleaning and maintenance.

✓ Maintenance
Disc elements should be inspected and cleaned as part of normal irrigation system maintenance.

✓ Important Note
These are irrigation filters, not drinking-water treatment products. They are used for suspended particle filtration in irrigation systems.
