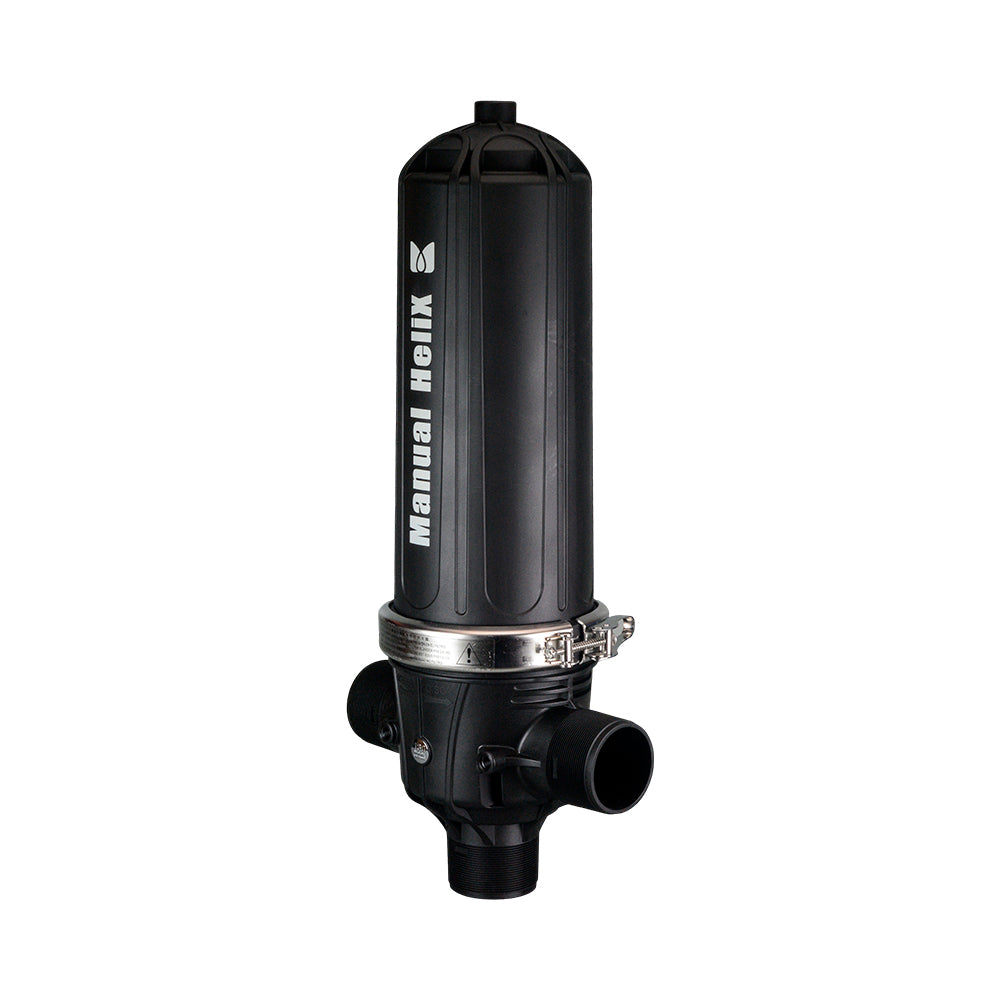

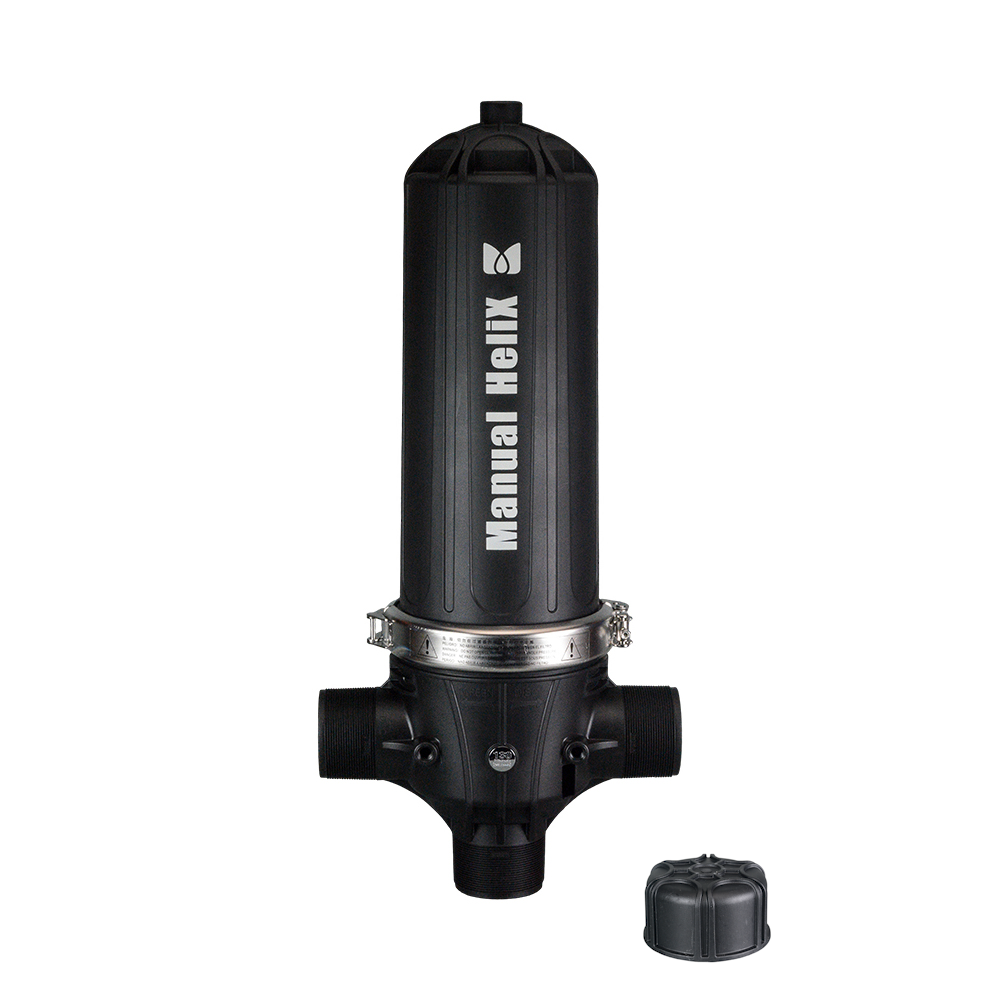

Filter Raindrip Super Plastic Body With 130 Disc (Red) 80mm BSPM

RAINDRIP PLASTIC IRRIGATION DISC FILTER 80MM SUPER 120 MESH / 130 MICRON

Name: Filter Raindrip Super Plastic Body With 130 Disc (Red) 80mm BSPM
Brand: Raindrip
SKU: FRSPD80130
Price: 398.97 AUD
Availability: InStock

Home Water Purification & Irrigation Filters

Raindrip 80mm Super plastic irrigation disc filter is a high-capacity disc filter for larger irrigation systems. It uses a red 120 mesh / 130 micron disc element and helps protect downstream irrigation components from suspended particles.

✓ Super Plastic Irrigation Disc Filter
✓ 80mm BSP Male Connections
✓ Red 120 Mesh / 130 Micron Disc
✓ 1000 kPa Pressure Rating
✓ 50m³/h Maximum Flow
✓ 1700cm² Filter Surface Area
✓ Stainless Steel Quick Release Clamp

Raindrip Plastic Disc Filter Specifications

More Information

Product Specifications

RAINDRIP PLASTIC IRRIGATION DISC FILTER 80MM SUPER 120 MESH / 130 MICRON

Filter Raindrip Small Plastic Body With 130 Disc (Red) 20mm BSPM FRPD20130

$25.75 /each

$25.75 inc GST

Total: $0

Filter Raindrip Small Plastic Body With 130 Disc (Red) 25mm BSPM FRPD25130

$25.75 /each

$25.75 inc GST

Total: $0

Filter Raindrip Medium Plastic Body With 130 Disc (Red) 40mm BSPM FRPD40130

$119.93 /each

$119.93 inc GST

Total: $0

Filter Raindrip Medium Plastic Body With 130 Disc (Red) 50mm BSPM FRPD50130

$161.14 /each

$161.14 inc GST

Total: $0

Filter Raindrip Super Plastic Body With 130 Disc (Red) 50mm BSPM FRSPD50130

$290.53 /each

$290.53 inc GST

Total: $0

Filter Raindrip Super Plastic Body With 130 Disc (Red) 80mm BSPM FRSPD80130

$398.97 /each

$398.97 inc GST

Total: $0

Raindrip 80mm Super plastic irrigation disc filter is a high-capacity irrigation filter used to filter suspended particles from irrigation water and help protect downstream valves, sprinklers, dripline and irrigation components. It uses a red 120 mesh / 130 micron disc element in a Super plastic body with 80mm BSP male threaded connections.

This filter has a 1000 kPa pressure rating, 50m³/h maximum flow and 1700cm² filter surface area. The Super body includes a stainless steel quick release clamp for easier access during cleaning and maintenance. Confirm system flow, connection size, pressure and available installation space before ordering.

Raindrip Plastic Disc Filter Specifications

✓ Product Type & Model
Raindrip Super plastic irrigation disc filter, part number S80D130.

✓ Application
Used to filter suspended particles from irrigation water and help protect valves, sprinklers, dripline and irrigation components.

✓ Filter Type
Disc filter.

✓ Mesh / Micron Rating
Red 120 mesh / 130 micron disc element.

✓ Connection Size
80mm BSP male threaded connections.

✓ Body Style
Super plastic body.

✓ Pressure Rating
1000 kPa.

✓ Maximum Flow
50m³/h.

✓ Filter Surface Area
1700cm².

✓ Gauge Port
1/4" BSP pressure gauge mounting point.

✓ Drain Connection
3/4" BSP drain connection.

✓ Approximate Dimensions
727mm high x 336mm wide x 147mm upper body height.

✓ Materials
Polypropylene filter body, polypropylene disc element, EPDM O-ring, 304 stainless steel spring and 304 stainless steel quick release clamp.

✓ Installation
Install in the correct flow direction and allow access for cleaning and maintenance.

✓ Maintenance
Disc element should be inspected and cleaned as part of normal irrigation system maintenance. The quick release clamp assists access to the filter element.

✓ Compatibility Note
Confirm the 80mm connection size, 120 mesh / 130 micron filtration requirement and system flow before ordering.

RAINDRIP PLASTIC IRRIGATION DISC FILTER 80MM SUPER 120 MESH / 130 MICRON
