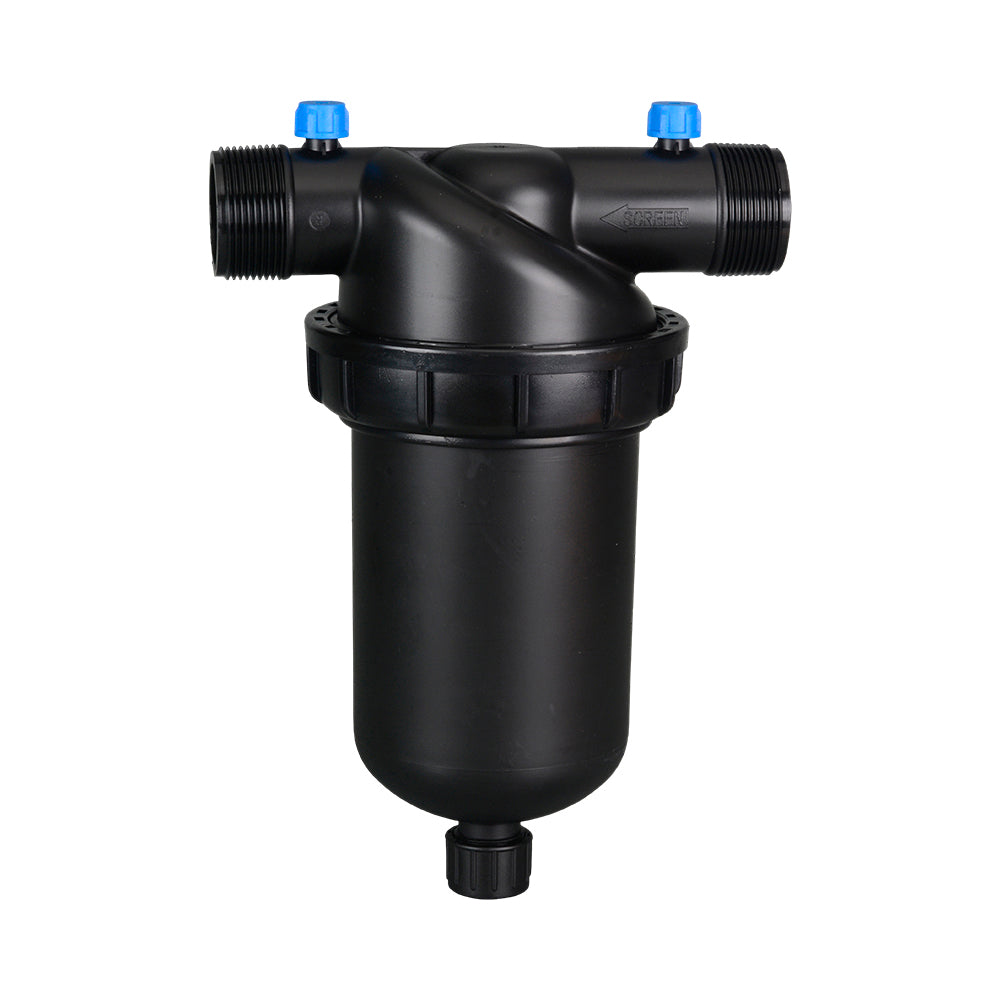

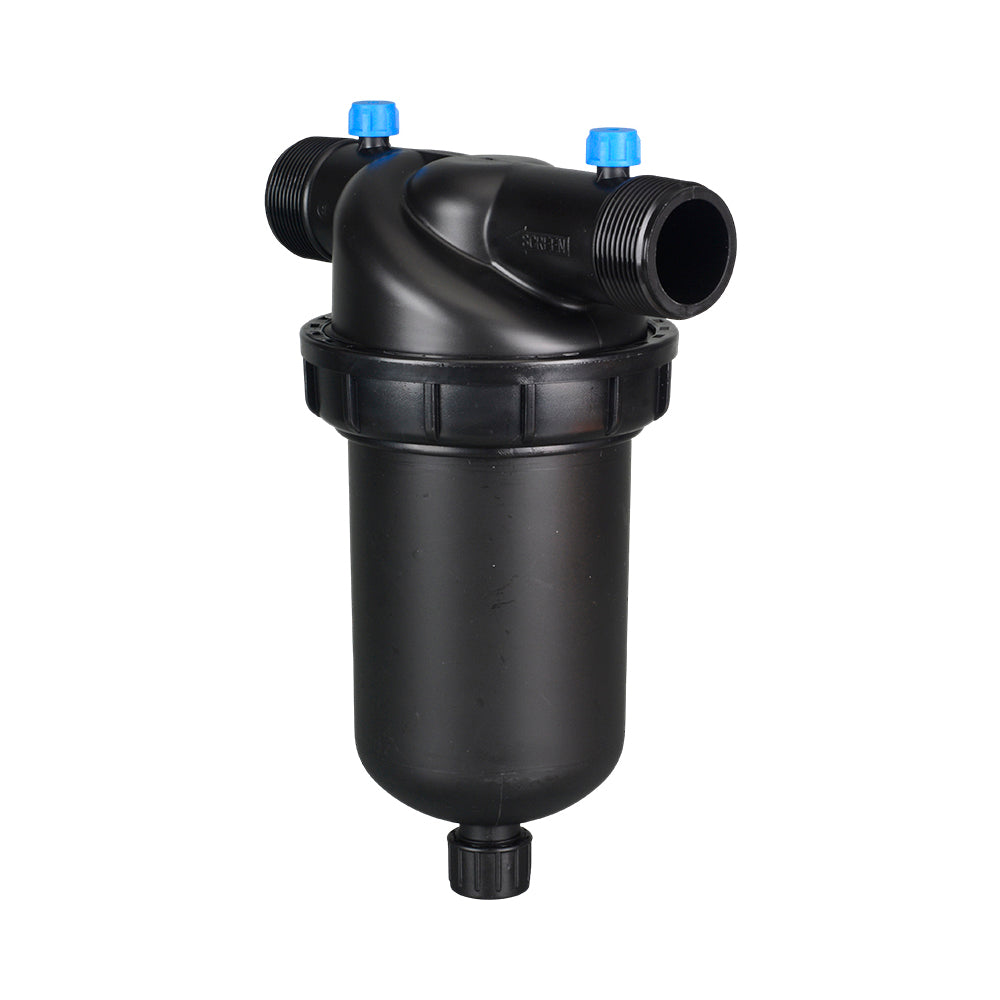

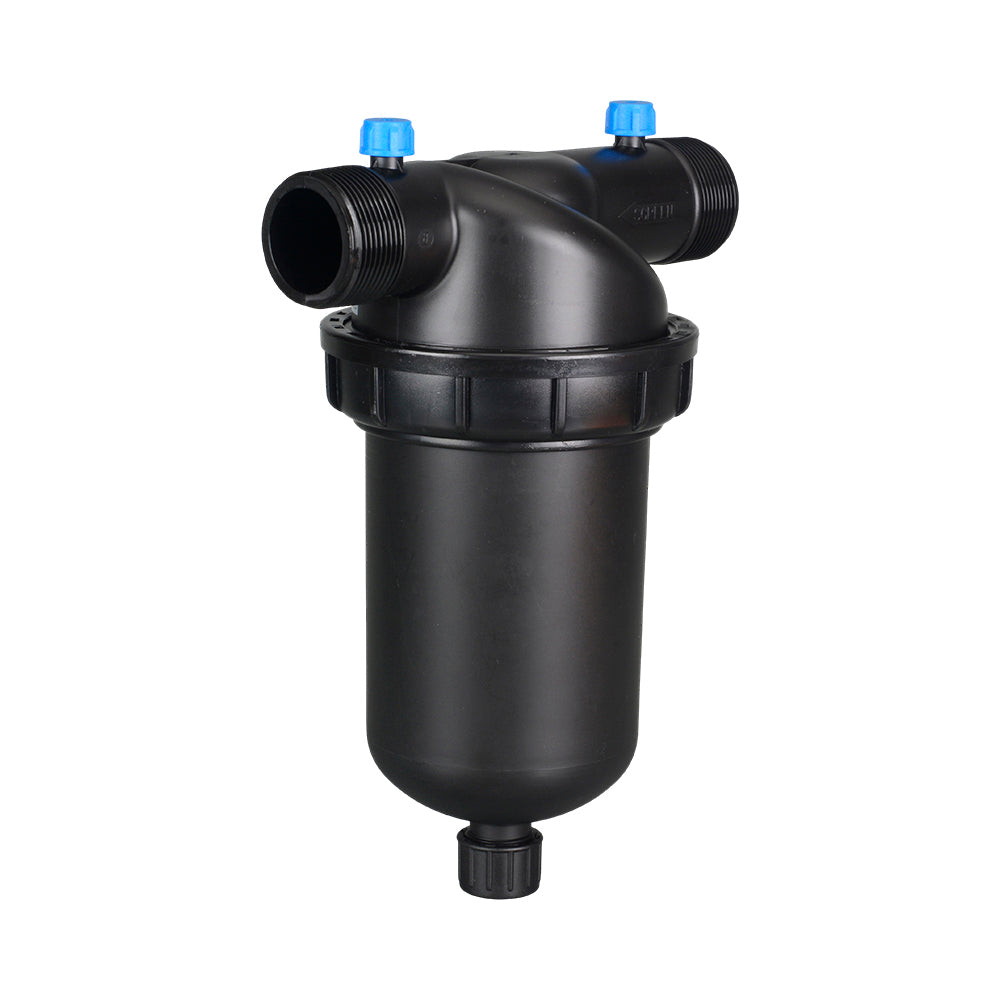

Filter Raindrip Medium Plastic Body With 130 Disc (Red) 40mm BSPM

RAINDRIP PLASTIC IRRIGATION DISC FILTER 40MM MEDIUM 120 MESH / 130 MICRON

Name: Filter Raindrip Medium Plastic Body With 130 Disc (Red) 40mm BSPM
Brand: Raindrip
SKU: FRPD40130
Price: 119.93 AUD
Availability: InStock

Home Water Purification & Irrigation Filters

Raindrip 40mm Medium plastic irrigation disc filter is used to filter suspended particles from irrigation water before downstream irrigation equipment. It has a red 120 mesh / 130 micron disc element and 40mm BSP male threaded connections.

✓ Medium Plastic Irrigation Disc Filter
✓ 40mm BSP Male Connections
✓ Red 120 Mesh / 130 Micron Disc
✓ 800 kPa Pressure Rating
✓ 15m³/h Maximum Flow
✓ 254cm² Filter Surface Area
✓ Pressure Gauge Mounting Points

Raindrip Plastic Disc Filter Specifications

More Information

Product Specifications

RAINDRIP PLASTIC IRRIGATION DISC FILTER 40MM MEDIUM 120 MESH / 130 MICRON

Filter Raindrip Small Plastic Body With 130 Disc (Red) 20mm BSPM FRPD20130

$25.75 /each

$25.75 inc GST

Total: $0

Filter Raindrip Small Plastic Body With 130 Disc (Red) 25mm BSPM FRPD25130

$25.75 /each

$25.75 inc GST

Total: $0

Filter Raindrip Medium Plastic Body With 130 Disc (Red) 40mm BSPM FRPD40130

$119.93 /each

$119.93 inc GST

Total: $0

Filter Raindrip Medium Plastic Body With 130 Disc (Red) 50mm BSPM FRPD50130

$161.14 /each

$161.14 inc GST

Total: $0

Filter Raindrip Super Plastic Body With 130 Disc (Red) 50mm BSPM FRSPD50130

$290.53 /each

$290.53 inc GST

Total: $0

Filter Raindrip Super Plastic Body With 130 Disc (Red) 80mm BSPM FRSPD80130

$398.97 /each

$398.97 inc GST

Total: $0

Raindrip 40mm Medium plastic irrigation disc filter is used to filter suspended particles from irrigation water and help protect downstream valves, sprinklers, dripline and irrigation components. It uses a red 120 mesh / 130 micron disc element in a Medium plastic body with 40mm BSP male threaded connections.

This filter has an 800 kPa pressure rating, 15m³/h maximum flow and 254cm² filter surface area. The Medium body includes pressure gauge mounting points and is suited to irrigation systems where the filter size, flow rate and pressure rating match the installation.

Raindrip Plastic Disc Filter Specifications

✓ Product Type & Model
Raindrip Medium plastic irrigation disc filter, part number 40D130.

✓ Application
Used to filter suspended particles from irrigation water and help protect valves, sprinklers, dripline and irrigation components.

✓ Filter Type
Disc filter.

✓ Mesh / Micron Rating
Red 120 mesh / 130 micron disc element.

✓ Connection Size
40mm BSP male threaded connections.

✓ Body Style
Medium plastic body.

✓ Pressure Rating
800 kPa.

✓ Maximum Flow
15m³/h.

✓ Filter Surface Area
254cm².

✓ Gauge Port
1/4" BSP pressure gauge mounting points.

✓ Drain Connection
3/4" BSP drain connection.

✓ Approximate Dimensions
328mm high x 205mm wide.

✓ Materials
Polypropylene filter body, polypropylene disc element, EPDM O-ring and 304 stainless steel spring.

✓ Installation
Install in the correct flow direction and allow access for cleaning and maintenance.

✓ Maintenance
Disc element should be inspected and cleaned as part of normal irrigation system maintenance.

✓ Compatibility Note
Confirm the 40mm connection size, 120 mesh / 130 micron filtration requirement and system flow before ordering.
