RAINDRIP PLASTIC IRRIGATION DISC FILTER 25MM 120 MESH / 130 MICRON

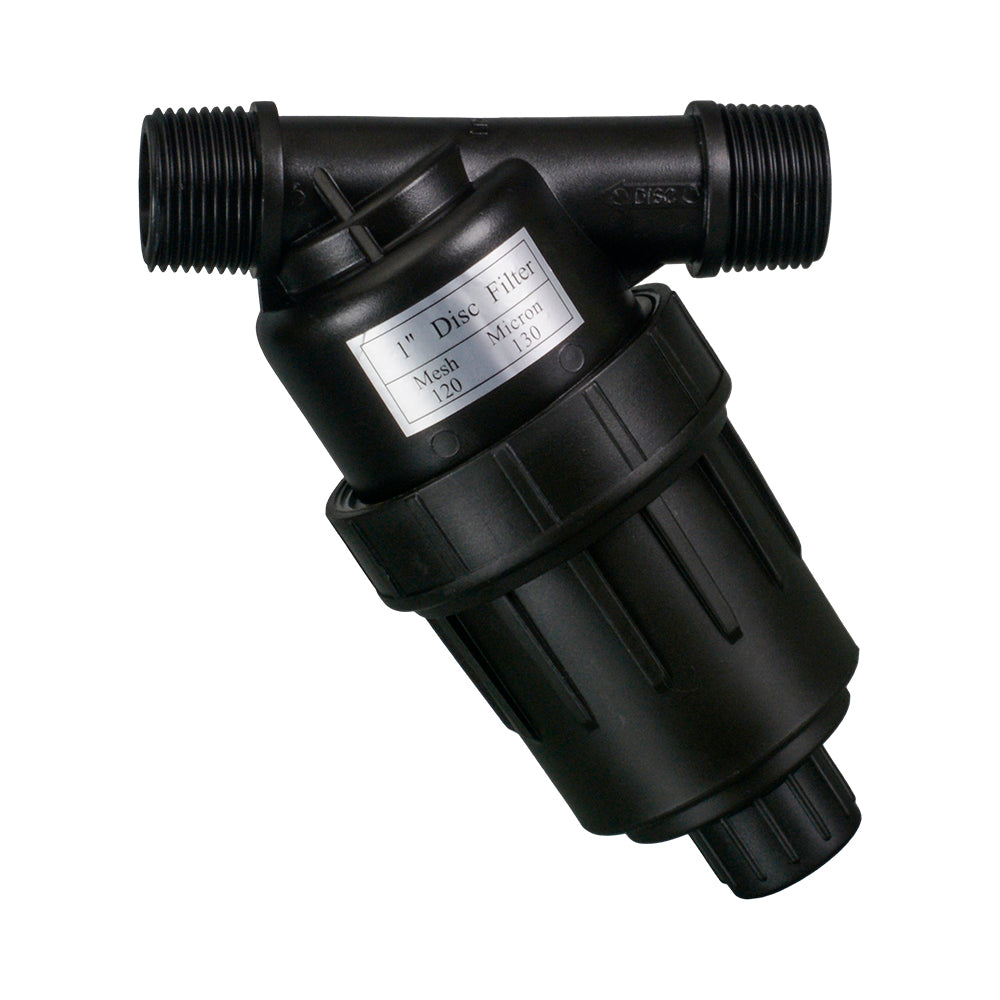

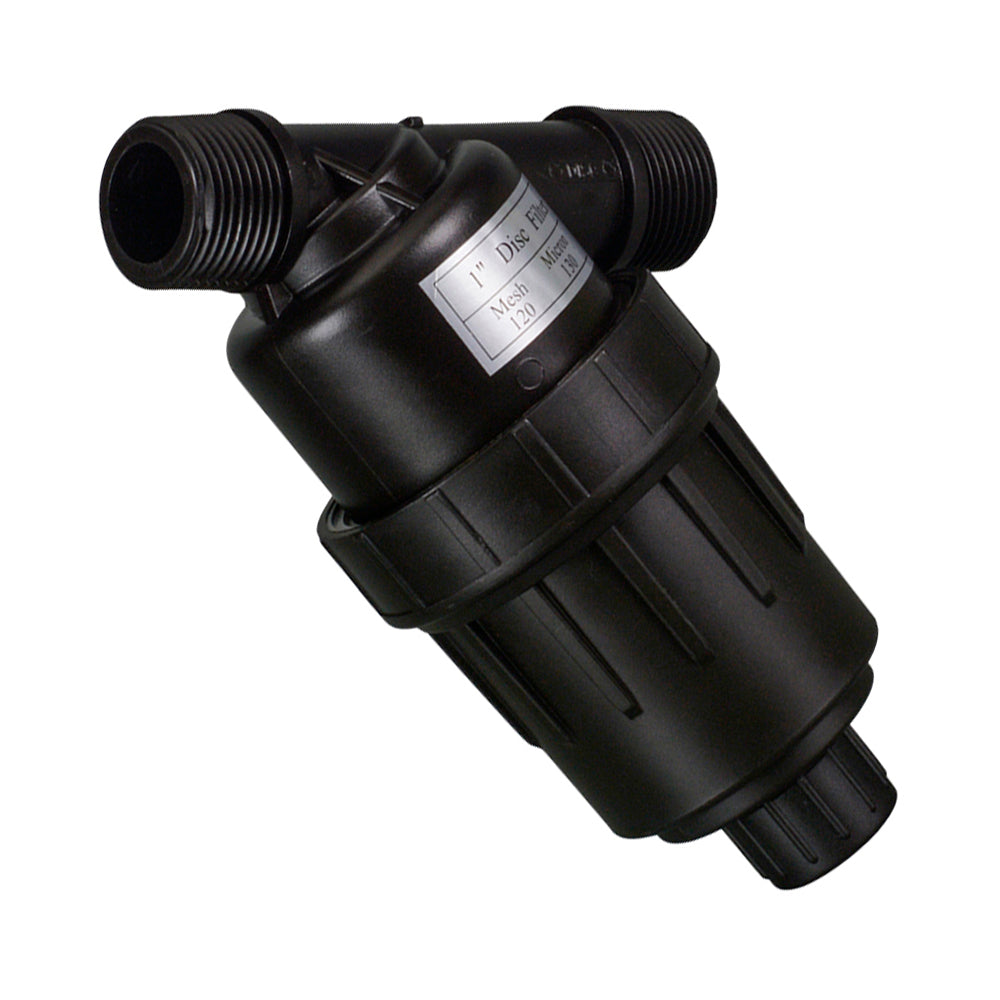

Raindrip 25mm Small plastic irrigation disc filter is used to filter suspended particles from irrigation water before downstream irrigation equipment. It has a red 120 mesh / 130 micron disc element and 25mm BSP male threaded connections.

✓ Small Plastic Irrigation Disc Filter
✓ 25mm BSP Male Connections
✓ Red 120 Mesh / 130 Micron Disc
✓ 1000 kPa Pressure Rating
✓ 5m³/h Maximum Flow
✓ 90cm² Filter Surface Area
✓ Confirm Size and Flow Before Ordering

Raindrip Plastic Disc Filter Specifications

More Information
Product Specifications
Filter Raindrip Small Plastic Body With 130 Disc (Red) 25mm BSPM
RAINDRIP PLASTIC IRRIGATION DISC FILTER 25MM 120 MESH / 130 MICRON
Filter Raindrip Small Plastic Body With 130 Disc (Red) 20mm BSPM
Filter Raindrip Small Plastic Body With 130 Disc (Red) 20mm BSPM FRPD20130
$25.75 /each
Filter Raindrip Small Plastic Body With 130 Disc (Red) 25mm BSPM
Filter Raindrip Small Plastic Body With 130 Disc (Red) 25mm BSPM FRPD25130
$25.75 /each
Filter Raindrip Medium Plastic Body With 130 Disc (Red) 40mm BSPM
Filter Raindrip Medium Plastic Body With 130 Disc (Red) 40mm BSPM FRPD40130
$119.93 /each
Filter Raindrip Medium Plastic Body With 130 Disc (Red) 50mm BSPM
Filter Raindrip Medium Plastic Body With 130 Disc (Red) 50mm BSPM FRPD50130
$161.14 /each
Filter Raindrip Super Plastic Body With 130 Disc (Red) 50mm BSPM
Filter Raindrip Super Plastic Body With 130 Disc (Red) 50mm BSPM FRSPD50130
$290.53 /each
Filter Raindrip Super Plastic Body With 130 Disc (Red) 80mm BSPM
Filter Raindrip Super Plastic Body With 130 Disc (Red) 80mm BSPM FRSPD80130
$398.97 /each

Raindrip 25mm Small plastic irrigation disc filter is used to filter suspended particles from irrigation water and help protect downstream valves, sprinklers, dripline and irrigation components. It uses a red 120 mesh / 130 micron disc element in a Small plastic body with 25mm BSP male threaded connections.

This filter has a 1000 kPa pressure rating, 5m³/h maximum flow and 90cm² filter surface area. It is suited to irrigation systems where the connection size, flow rate and filtration rating match the installation. Confirm pressure, flow direction and access for cleaning before ordering.

Raindrip Plastic Disc Filter Specifications

✓ Product Type & Model
Raindrip Small plastic irrigation disc filter, part number 25D130.

✓ Application
Used to filter suspended particles from irrigation water and help protect valves, sprinklers, dripline and irrigation components.

✓ Filter Type
Disc filter.

✓ Mesh / Micron Rating
Red 120 mesh / 130 micron disc element.

✓ Connection Size
25mm BSP male threaded connections.

✓ Body Style
Small plastic body.

✓ Pressure Rating
1000 kPa.

✓ Maximum Flow
5m³/h.

✓ Filter Surface Area
90cm².

✓ Approximate Dimensions
168mm high x 134mm wide.

✓ Materials
Polypropylene filter body, polypropylene disc element, EPDM O-ring and 304 stainless steel spring.

✓ Installation
Install in the correct flow direction and allow access for cleaning and maintenance.

✓ Maintenance
Disc element should be inspected and cleaned as part of normal irrigation system maintenance.

✓ Compatibility Note
Confirm the 25mm connection size, 120 mesh / 130 micron filtration requirement and system flow before ordering.
