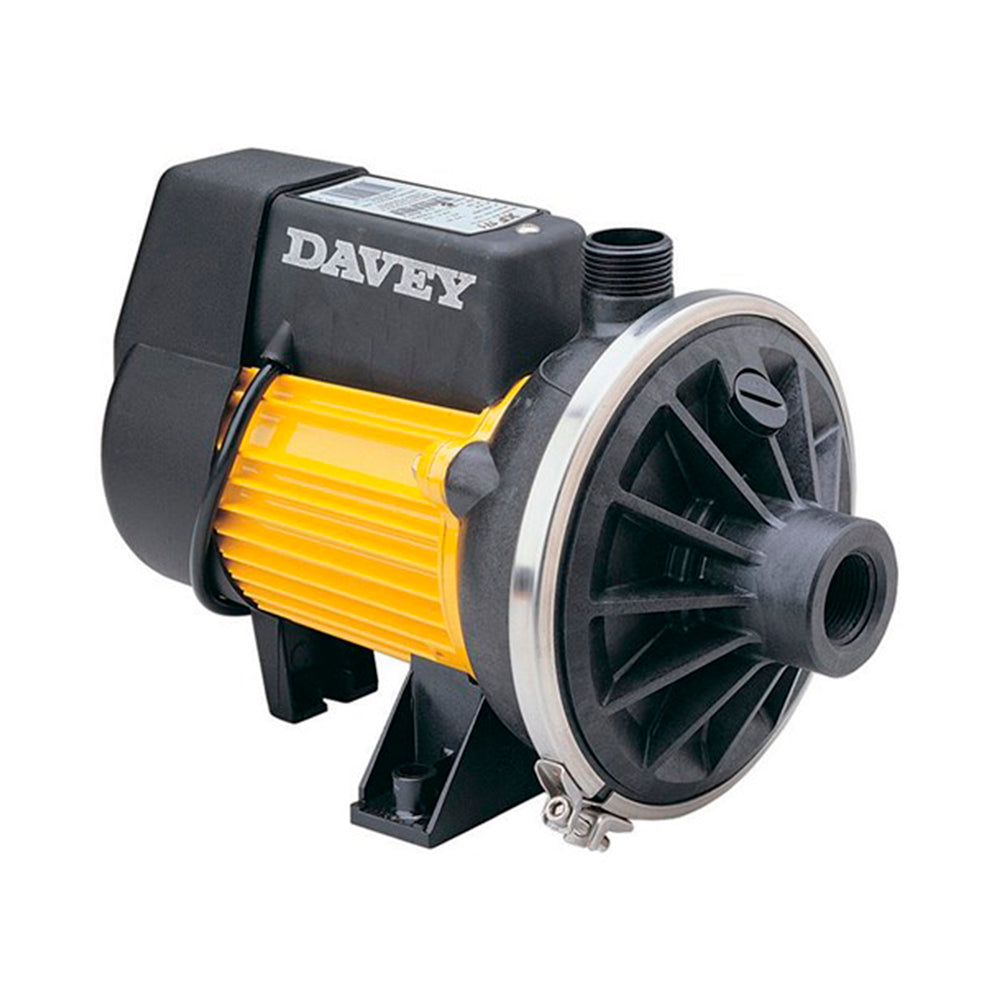

Davey XF171 Single Stage 0.78kW 240V Centrifugal Pump

The Davey XF171 Single Stage Centrifugal Pump is a compact and robust pump designed for reliable water transfer across irrigation, aquaculture, hydroponics, washing systems, and general clean water applications. Engineered to deliver flows up to 175L/min with total heads up to 17 metres, it provides efficient performance for residential, agricultural, and light commercial systems.

Constructed with corrosion resistant components and a durable stainless steel pump shaft, the pump is built for long service life when handling clean or slightly imperfect water conditions. The Davey manufactured TEFC IP55 motor protects against dust, moisture, and environmental exposure, while integrated thermal overload protection ensures reliable operation and motor safety. Its compact design allows easy installation and servicing, reducing downtime when maintenance is required.

FEATURES

• Compact and robust centrifugal pump design
• Single stage configuration for efficient performance
• Flows up to 175L/min
• Maximum head up to 17m
• Corrosion resistant components for durability
• 304 stainless steel pump shaft for long service life
• Davey TEFC IP55 motor for environmental protection
• Built in automatic reset thermal overload protection
• Designed for frequent starts and reliable operation
• High quality mechanical shaft seal for durability
• Easy service design for reduced downtime
• 2m power lead with Australian 10amp plug

SPECIFICATIONS

• Model: XF171
• Pump Type: Single Stage Centrifugal
• Power Input: 0.78kW
• Power Output: 0.53kW
• Voltage: 220–240V
• Phase: Single Phase
• Supply Frequency: 50Hz
• Maximum Flow: 175L/min
• Maximum Head: 17m
• Maximum Suction Lift: 7.5m
• Inlet Size: 1” BSP Female
• Outlet Size: 1” BSP Male
• Enclosure Class: IP55
• Insulation Class: F
• Speed: 2850 RPM
• Maximum Water Temperature: 50°C
• Net Weight: 6.7kg

APPLICATIONS

• Irrigation systems
• Aquaculture water circulation
• Water transfer applications
• Hydroponic systems
• Washing and cleaning systems
• General clean water pumping
