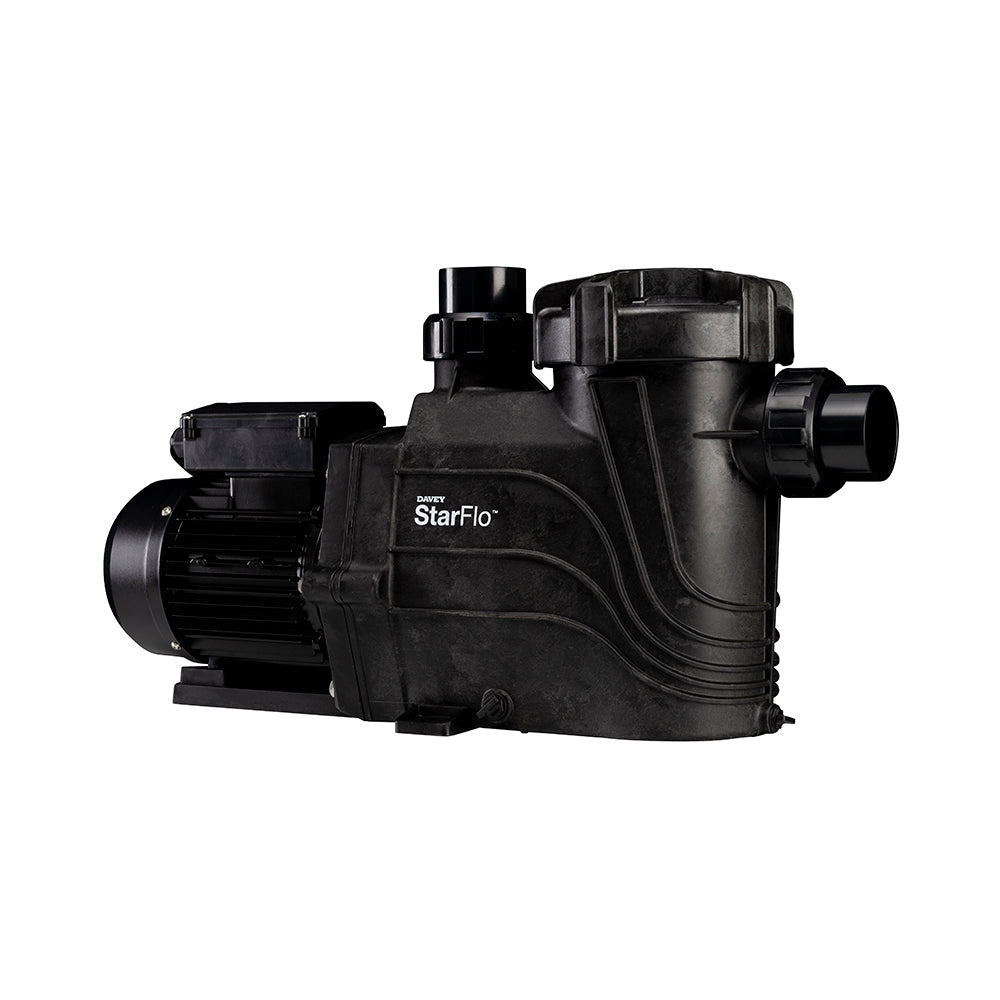

The Davey StarFlo DSF300 is a single-speed pool circulation pump for filtration, sanitising systems and solar heating. Its multi-fit design and 40mm and 50mm barrel unions suit replacement installations, in-ground and above-ground pools, large swim spas and plunge pools.
The motor has an electrical input of 1.1kW and a shaft output of 0.75kW. Available flow depends on the system head, pipework, filter condition and connected equipment; use the DSF300 performance curve to select the operating point.
Inlet: 40mm and 50mm PVC barrel-union connections.
Outlet: 40mm and 50mm PVC barrel-union connections.
The included barrel unions and multi-fit design help with replacement installations. Check the dimension drawing and existing pipework before choosing a replacement. A 3m power lead with an Australian 10amp three-pin plug is included.
The corrosion-resistant, UV-resistant construction includes a Noryl impeller, 316 stainless steel motor shaft and silicon carbide/Viton mechanical seal. The totally enclosed motor has self-resetting thermal overload protection. The water circuit is double insulated and has an equipotential bonding point.
A removable clear strainer lid provides basket access, and drain plugs allow water to be drained for maintenance. The pump is serviceable.
The pump uses a 220–240V single-phase, 50Hz supply. Maximum water temperature is 40°C and maximum ambient temperature is 50°C. Sound level is 62dBA at 1m.
Three-year Davey warranty, subject to its terms.
