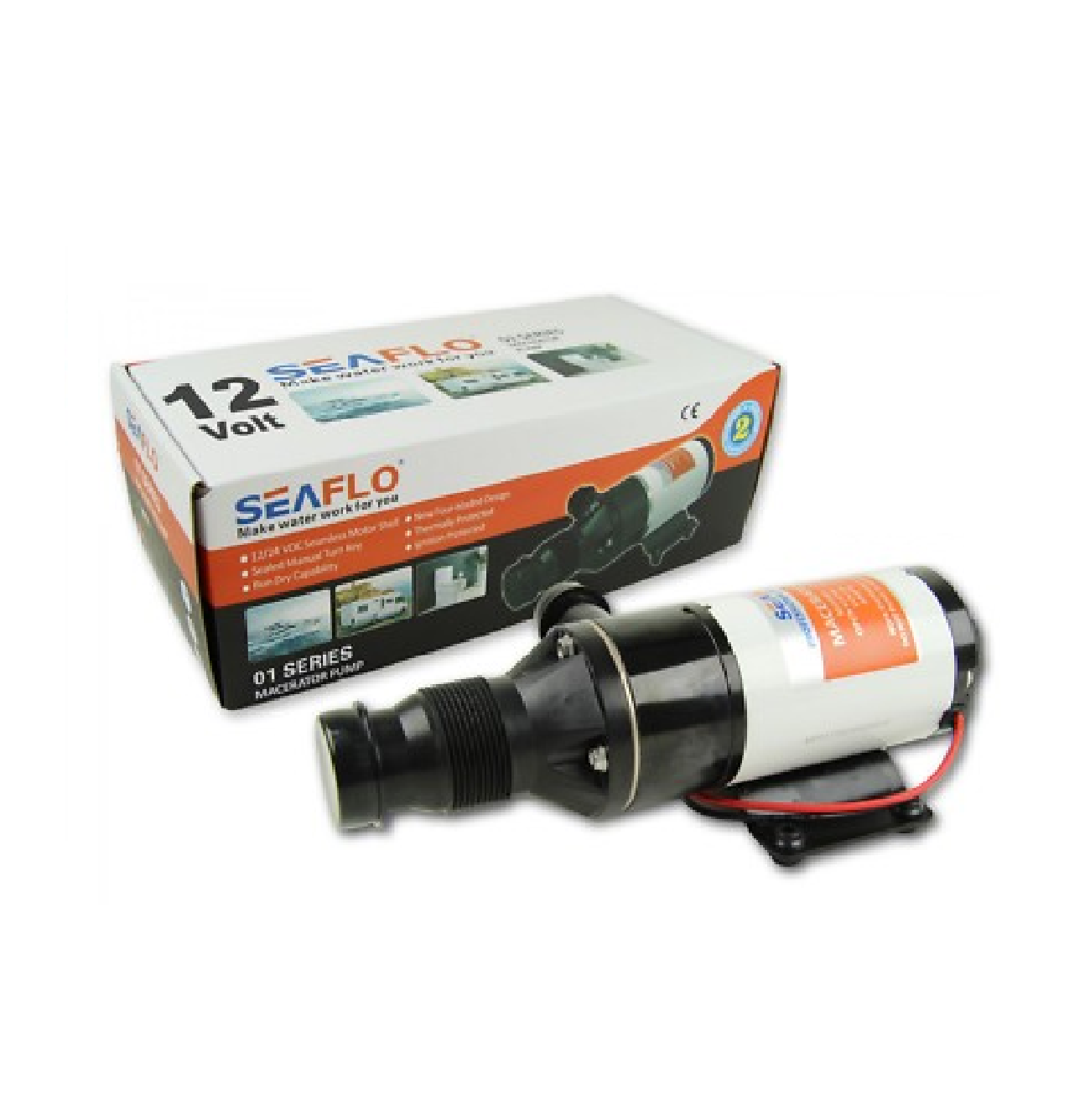

The Seaflo 12V Macerator Pump is a heavy duty waste transfer pump designed for marine toilets, recreational vehicles, and holding tank applications. Featuring a powerful four blade stainless steel chopper system, the pump efficiently breaks down waste and solids to allow smooth discharge without clogging, making it ideal for emptying toilets, fish boxes, livewell tanks, and marine holding systems.
Delivering flow rates up to 45 litres per minute, the pump provides fast and reliable waste transfer performance. The motor is triple sealed with sealed bearings, o ring protection, and a durable corrosion resistant coating to protect against harsh marine environments and moisture exposure. A thermally protected motor provides safe operation and allows short dry run periods during priming, while ignition protection enhances safety in marine installations.
Designed for reliability and emergency use, the pump also includes a manual blending function to assist operation when required. The compact design and standard hose connections allow easy installation across a wide range of marine and mobile systems.
Note: Not suitable for pumping hard objects, rags, or cloth wipes.
FEATURES
- Powerful four blade stainless steel macerator chopper
- High flow performance up to 45 L/min
- Triple sealed motor for corrosion protection
- Thermal overload protection for motor safety
- Ignition protected design for marine environments
- Manual blending function for emergency operation
- Compact and durable construction
- Designed for waste and holding tank applications
- Easy installation with standard hose connections
SPECIFICATIONS
- Model: SFMP1-120-01
- Pump Type: Macerator Waste Pump
- Voltage: 12V DC
- Maximum Current: 12A
- Maximum Flow: 45 L/min
- Outlet Size: 1" Hose Barb
- Inlet Size: 1 1/2" MNPT
- Motor Protection: Thermal Protection
- Construction: Corrosion Resistant Coated Motor
APPLICATIONS
- Marine toilet systems
- Boat holding tanks and waste systems
- Recreational vehicles and caravans
- Fish boxes and livewell emptying
- Portable sanitation systems
- Marine and mobile waste transfer
SFMP1-120-01 (12V DC, max draw 12A)
45 L/m flow rate, 1" hose barb outlet, 1 1/2" MNPT inlet
Manual and Specifications.
