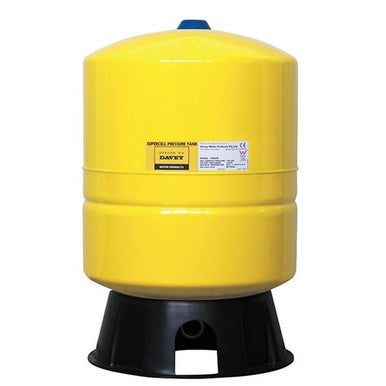

DAVEY Pressure Tank SupercellP 60litre 1000 kPa - Free-standing (24060P)

The Davey Supercell 24060P 60L Free Standing Pressure Tank (1000kPa)  is a high-performance hydro-pneumatic pressure vessel designed to provide consistent water pressure while reducing pump cycling and extending pump life. Ideal for domestic, rural, and light commercial systems, it improves system efficiency and protects connected equipment.

Constructed with a heavy-duty deep drawn steel shell and a high-quality butyl rubber diaphragm, the tank separates air and water to prevent waterlogging and maintain stable pressure performance. Its vertical free standing design with horizontal inlet connection allows for straightforward installation in pump sheds, plant rooms, or utility areas.

FEATURES

• 60L capacity for improved system stability
• Free standing vertical configuration
• 1000kPa maximum pressure rating
• Heavy duty steel construction
• Corrosion resistant epoxy primed polyurethane finish
• High quality butyl rubber diaphragm (potable water approved)
• Virgin polypropylene inner liner for extended tank life
• Reduces pump starts and energy consumption

SPECIFICATIONS

• Model: 24060P
• Capacity: 60 Litres
• Maximum Pressure: 1000kPa
• Configuration: Free Standing (Vertical)
• Inlet Size: 1” BSP Female
• Diaphragm Material: Butyl Rubber
• Tank Material: Steel with polypropylene liner
• Application Type: Potable and non potable water systems

APPLICATIONS

• Household pressure pump systems
• Rainwater harvesting systems
• Rural water supply systems
• Booster pump systems
• Irrigation systems
• Light commercial water supply

Product Specification - 8L -> 100L : 1000kPa

Product Specification - 200L : 1000kPa

Product Specification - 1600kPa & 2000 kPa range
