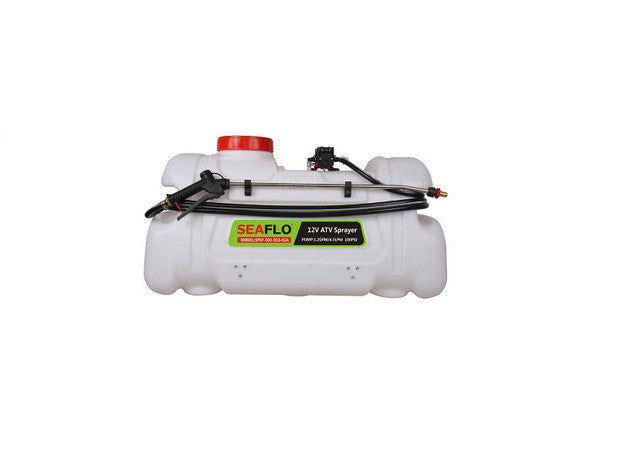

The Seaflo AG 100L ATV spot sprayer combines a 100L tank, 12V diaphragm pump, spray hose and hand spray gun for weed and pest control, fertiliser application and property maintenance. It mounts on a suitable ATV, utility vehicle or trailer and sprays without manual pumping.
Model: SFSP-100-013-01A. Tank dimensions are 910mm long x 410mm wide x 475mm high.
The supplied equipment includes a 6m spray hose, stainless steel lance with adjustable nozzle, lance storage clips, water inlet filter and a 2.5m battery cable with a DC quick-plug and battery clips. The pump provides spraying without manual pumping.
Maximum pump flow is 5LPM. The pump pressure limit is 100psi (about 690kPa). Maximum flow and maximum pressure are separate limits; flow decreases as pressure rises, and actual delivery through the spray nozzle depends on its setting.
The 10mm internal-diameter spray hose is rated to 20bar (2000kPa). This is the hose rating, rather than the operating pressure of the sprayer.
The HDPE tank has a filling lid and carry handles. Filtration helps keep sediment out of the pump. Use liquids compatible with the complete sprayer and follow the chemical label for mixing and application.
Secure the unit to a suitable support and account for the filled tank weight when selecting a mounting position. Clean the tank, filter, hose and gun after use in accordance with the liquid and sprayer instructions.
The pump uses a 12V DC supply and draws up to 5A. The supplied battery cable is 2.5m long.
One-year warranty, subject to its terms.
