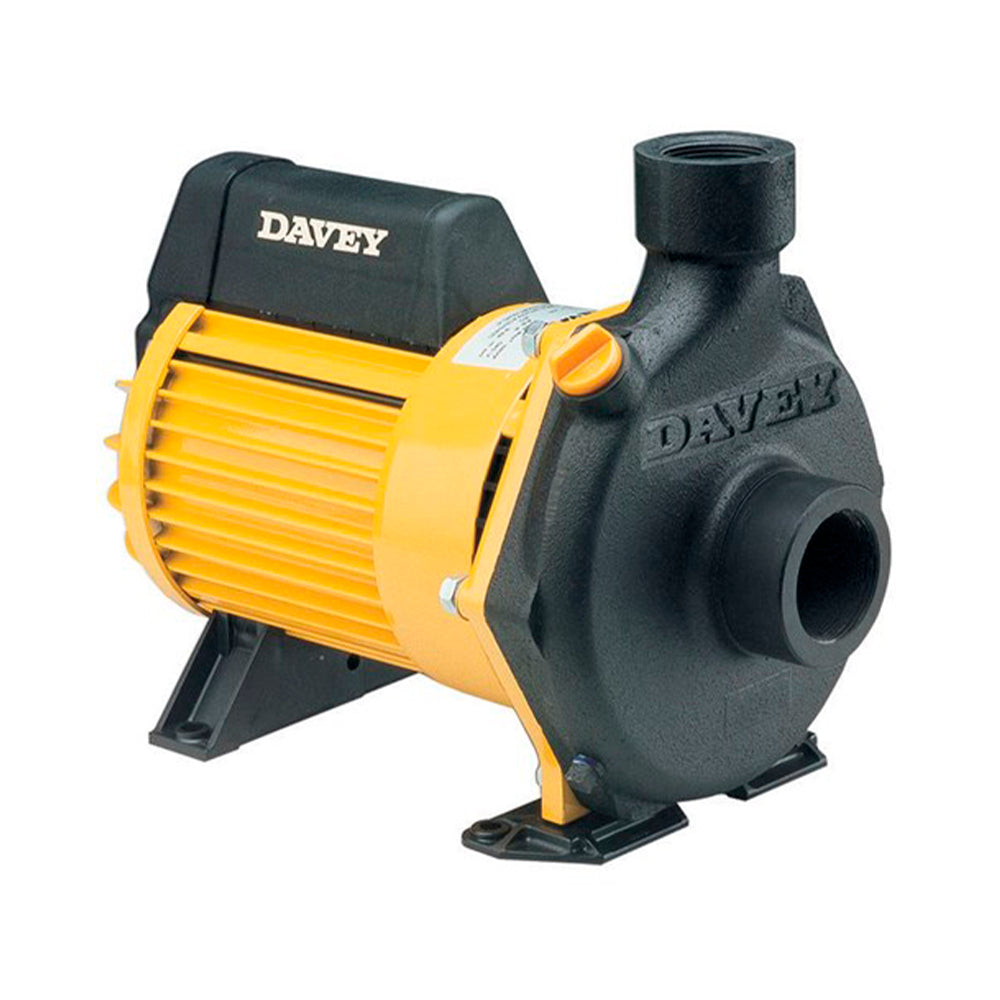

Davey Dynaflo 6220-3 Cast Iron Casing (360 LPM Max Flow, 2.2kW, 3 Phase)
Davey Dynaflo 6220-3 Cast Iron Casing (360 LPM Max Flow, 2.2kW, 3 Phase)

DAVEY DYNAFLO 6220-3 CAST IRON TRANSFER PUMP 360 LPM 2.2KW 3 PHASE

Three phase cast iron transfer pump for water transfer, tank filling, sprinkler supply and garden reticulation, with 360 LPM max flow, 2" inlet and 1½" outlet.

✓ 360 LPM Maximum Flow
✓ 38.7m Maximum Total Head
✓ Three Phase 380–415V Operation
✓ 2" BSP Female Inlet
✓ 1½" BSP Female Outlet
✓ Davey 2 Year Warranty

Davey 6220-3 Specifications
Davey 6220-3 Installation & User Manual

More Information
Product Specifications
Davey Dynaflo 6220-3 Cast Iron Casing (360 LPM Max Flow, 2.2kW, 3 Phase)
DAVEY DYNAFLO 6220-3 CAST IRON TRANSFER PUMP 360 LPM 2.2KW 3 PHASE
Davey Dynaflo 6220-3 Cast Iron Casing (360 LPM Max Flow, 2.2kW, 3 Phase)
Davey Dynaflo 6220-3 Cast Iron Casing (360 LPM Max Flow, 2.2kW, 3 Phase) PUDA62203
$1,259.12 /each

The Davey Dynaflo 6220-3 is a three phase single stage centrifugal transfer pump designed for water supply, water transfer, tank filling, sprinkler supply and garden reticulation. It delivers flow rates up to 360 LPM with a maximum total head of 38.7m.

The Dynaflo 6220-3 includes a 2" BSP female inlet and 1½" BSP female outlet, making it suitable for higher flow transfer and irrigation applications. The cast iron pump casing features a baked polyester finish inside and outside for long service life.

The Davey manufactured three phase motor includes IP56 protection for reliable operation in farm, irrigation and light commercial applications. Correct installation, priming, pipework support and three phase electrical connection are required for safe and reliable pump operation.

Davey 2 Year Warranty

Davey 6220-3 Specifications
Davey 6220-3 Installation & User Manual

✓ Model
Davey Dynaflo 6220-3 / 62203 transfer pump.

✓ Pump Type & Application
Single stage centrifugal transfer pump suitable for water supply, water transfer, tank filling, sprinkler supply, garden reticulation, dairies and factory floor washdown.

✓ Phase
Three phase operation.

✓ Performance
Capacities up to 360 LPM with a maximum total head of 38.7m.

✓ Inlet Size
2" BSP female inlet.

✓ Outlet Size
1½" BSP female outlet.

✓ Maximum Suction Head
7.0m maximum suction head.

✓ Power Details
Three phase 380–415V, 50Hz supply with 2.63kW input power, 2.2kW output power, 4.5A full load current and 24A locked rotor current.

✓ Motor Protection
IP56 motor protection rating. Three phase models must be wired with suitable contactor and overload protection.

✓ Water Temperature
Suitable for water temperatures from 1°C to 50°C.

✓ Maximum Casing Pressure
105m maximum casing pressure.

✓ Priming
Pump body and suction line must be filled through the priming plug before operation.

✓ Installation Requirement
Three phase power connection must be carried out by an authorised electrician.

✓ Pump Casing
Cast iron pump casing with baked polyester finish.

✓ Impeller
Glass filled polycarbonate impeller.

✓ Shaft
304 stainless steel shaft.

✓ Seal
Ceramic stationary seal ring and carbon rotating seal ring with nitrile rubber elastomer.

✓ Net Weight
29.7kg net weight.

✓ Warranty
Davey 2 Year Warranty.
