Hunter EZ-LR Long Range Decoder Single Station (compatible with EZ-DM and PC-DM)

HUNTER EZ-LR LONG RANGE SINGLE STATION DECODER

Name: Hunter EZ-LR Long Range Decoder Single Station (compatible with EZ-DM and PC-DM)
Brand: Perth Irrigation
SKU: CNHEZLR
Price: 9999.00 AUD
Availability: InStock

Irrigation Controllers & Timers

The Hunter EZ-LR Long Range Decoder is a single station decoder for longer Hunter EZ Decoder System two-wire runs. It is used where the valve station is located further from the controller than a standard EZ-1 installation.

✓ Long Range Single Station EZ Decoder
✓ Each Decoder Controls One Irrigation Valve Station
✓ Compatible with EZ-DM and PC-DM Modules
✓ IP68 Waterproof Decoder Design
✓ Built-In Status LED for Diagnostics
✓ 3 Year Hunter Warranty

Hunter EZ Decoder System Brochure
Hunter EZ Decoder System Specifications
Hunter Pro-C / HPC Controller PC-DM Decoder Module Installation Guide
Hunter ICC2 / HCC Controller EZ-DM Decoder Module Installation Guide
Hunter EZ-1 Decoder Installation Guide
Hunter EZ-LR Decoder Installation Guide

More Information

Product Specifications

Product Videos

HUNTER EZ-LR LONG RANGE SINGLE STATION DECODER

Hunter EZ-1 Decoder Single Station (compatible with EZ-DM and PC-DM) CNHEZ01

$159.25 /each

$159.25 inc GST

Total: $0

Hunter EZ-LR Long Range Decoder Single Station (compatible with EZ-DM and PC-DM) CNHEZLR

$9,999 /each

$9,999 inc GST

Total: $0

Hunter PC-DM Decoder Module for Pro-C / HPC (compatible with EZ-1 and EZ-LR) CNHPCDM

$456.85 /each

$456.85 inc GST

Total: $0

Hunter EZ-DM Decoder Module for ICC2 / HCC (compatible with EZ-1 and EZ-LR) CNHEZDM

$560.27 /each

$560.27 inc GST

Total: $0

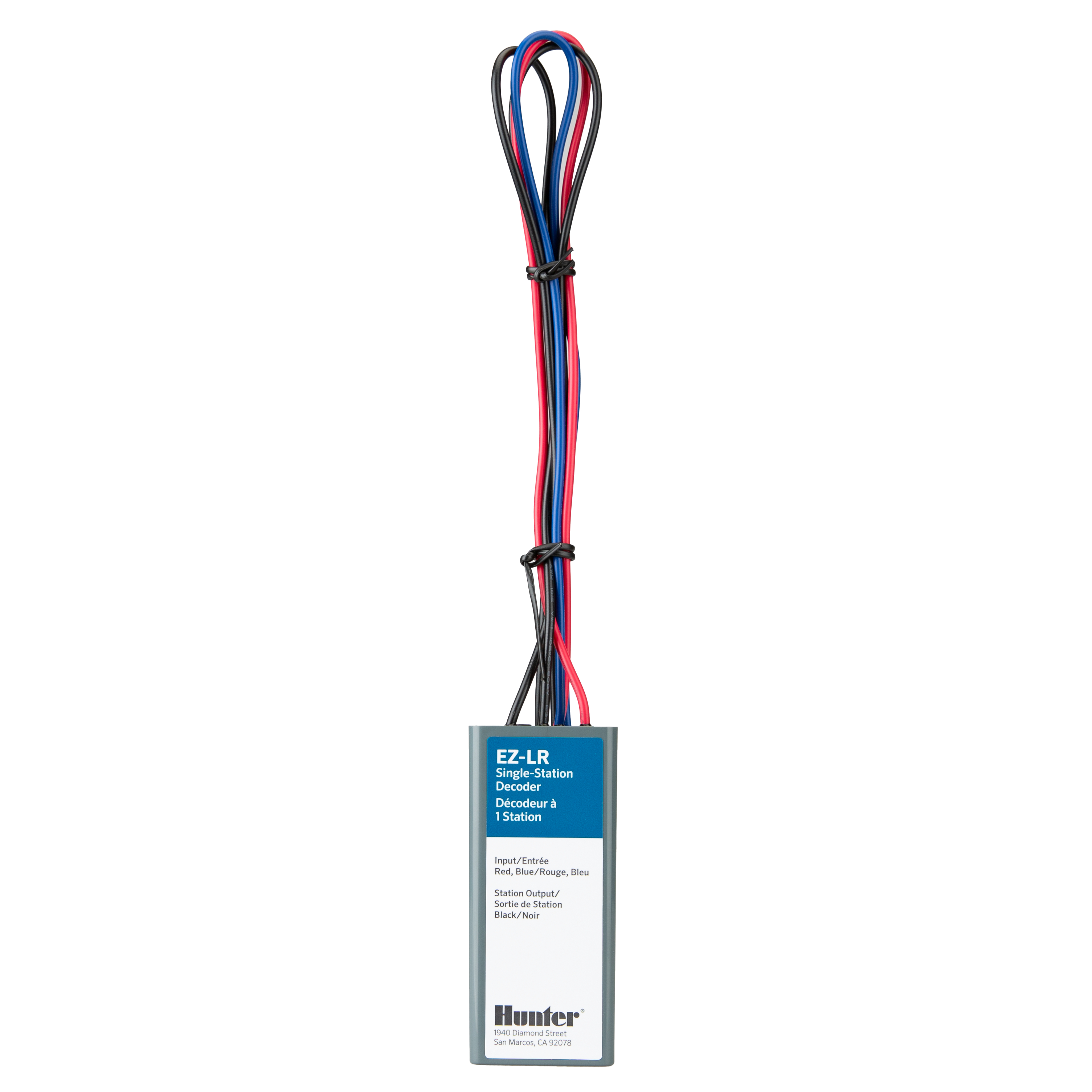

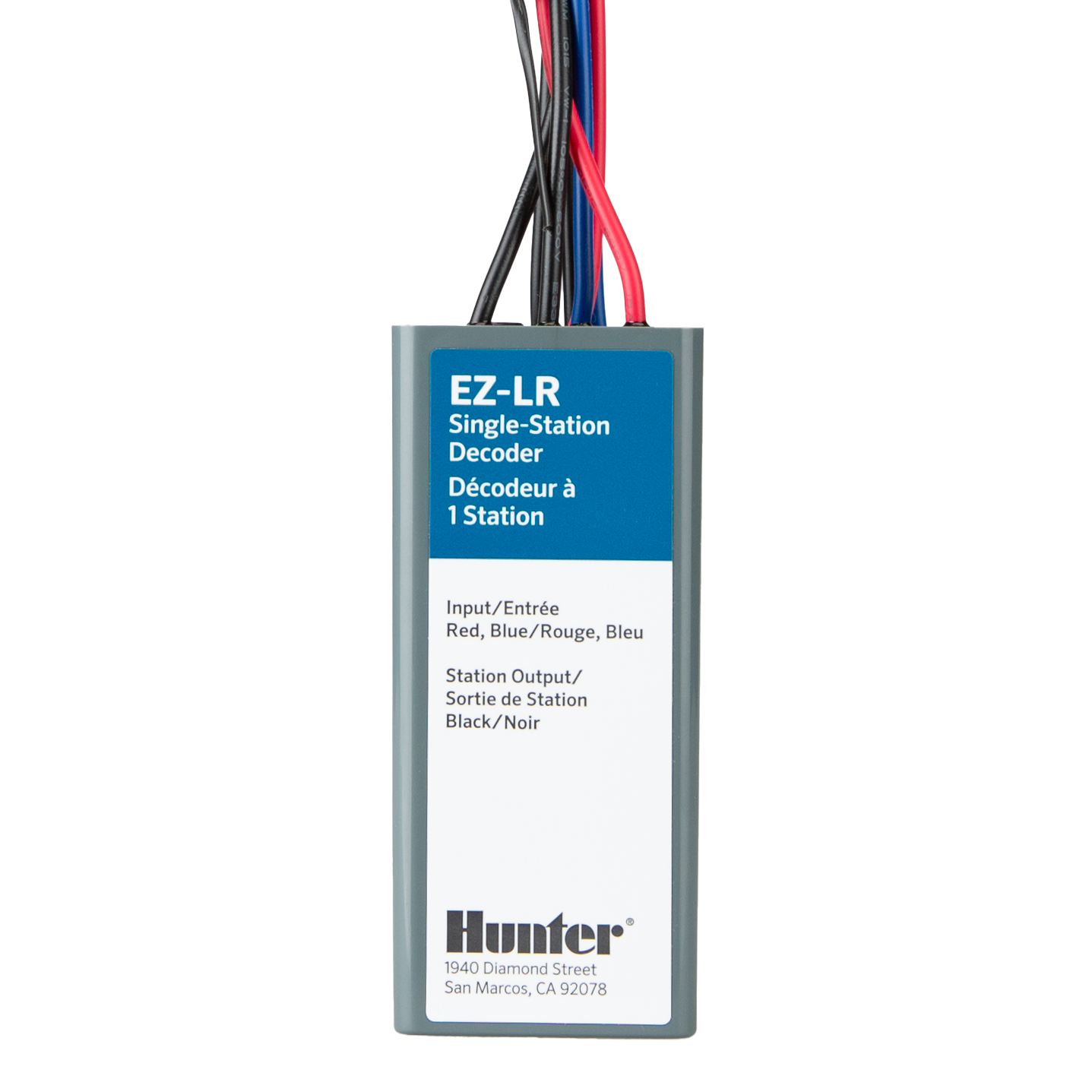

The Hunter EZ-LR Decoder is a long range single station decoder for Hunter EZ Decoder System two-wire irrigation installations. Each decoder controls one irrigation valve station and is designed for projects where a valve station needs to be controlled over a longer two-wire path than the standard EZ-1 decoder.

The EZ-LR is compatible with Hunter EZ-DM and PC-DM decoder output modules. Use EZ-DM with compatible ICC2, HCC and MCC controllers. Use PC-DM with compatible Pro-C and HPC controllers.

EZ-LR decoders are compact, waterproof and include a built-in status LED for field diagnostics. They are programmed through the compatible decoder output module without needing to enter individual decoder serial numbers, helping simplify setup and servicing.

3 Year Hunter Warranty

✓ Decoder Type & Station Capacity
Long range single station decoder for Hunter EZ Decoder System installations. Each decoder controls one irrigation valve station.

✓ Module / Controller Compatibility
Use EZ-DM with compatible ICC2, HCC and MCC controllers. Use PC-DM with compatible Pro-C and HPC controllers. Compatible with Hunter EZ-DM and PC-DM decoder output modules.

✓ Application
Designed for extended two-wire decoder irrigation runs where one valve station is required at the decoder location.

✓ Long Range Function
Provides longer two-wire path capability than the standard EZ-1 decoder. Final wiring distance depends on wire size and the number of active solenoids.

✓ Electrical & Solenoid Compatibility
For use with Hunter 24VAC solenoids. Two-wire voltage: 24VAC, 50/60Hz. Operating output: proprietary low-voltage, high-frequency output to solenoid.

✓ Waterproof Rating & Diagnostics

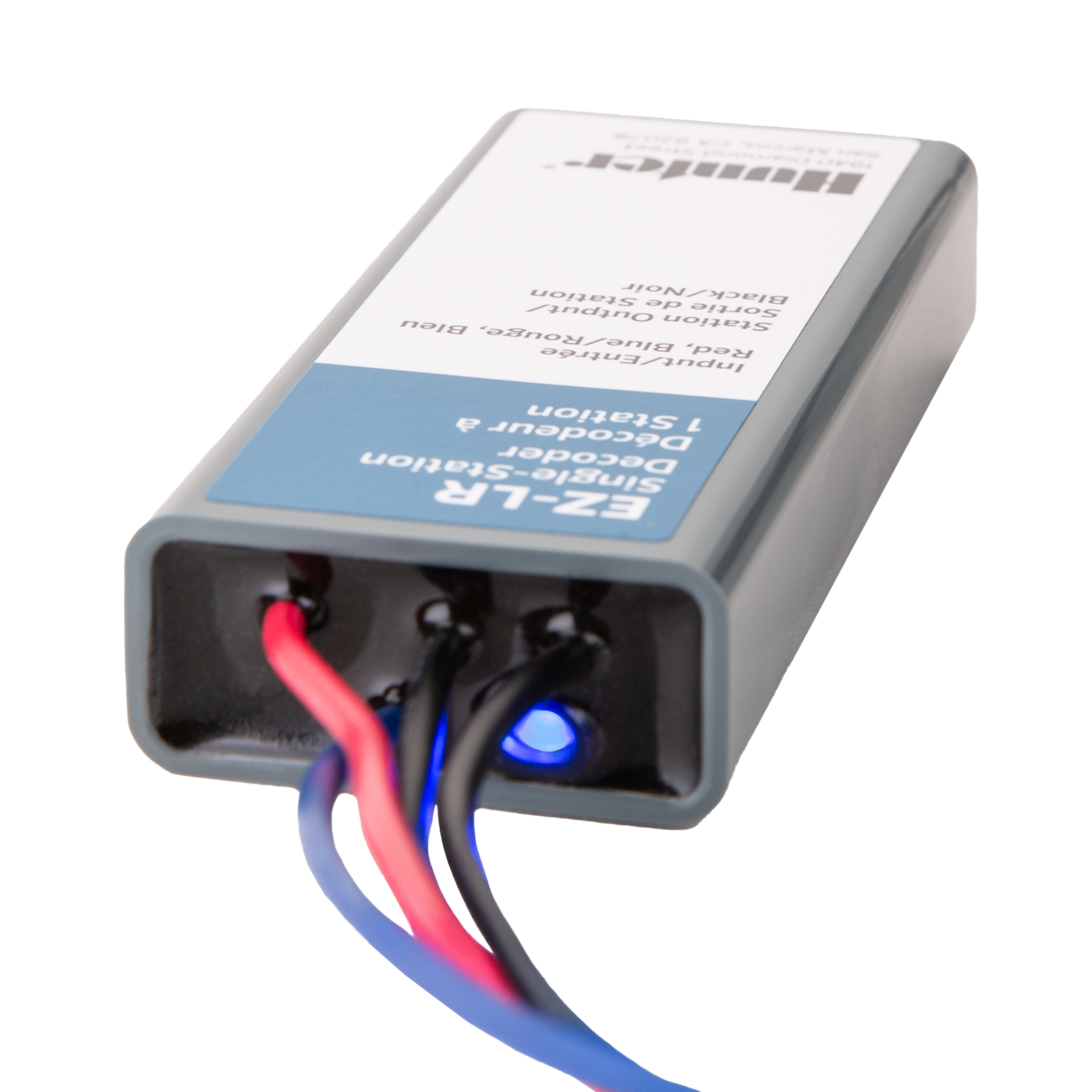

IP68 submersible decoder design. Built-in status LED assists with field diagnostics.

✓ Programming, Wiring & Grounding
Programmed through the compatible decoder output module without needing to enter individual decoder serial numbers. Uses standard EZ Decoder System wire colours. No special wire or connectors are required, although waterproof connections are encouraged. No special in-line grounding or surge arrestors are required for the EZ Decoder System. Ground the controller as usual.

✓ Warranty
3 Year Hunter Warranty.
