The Hunter PC-DM is the EZ decoder output module for compatible Pro-C and HPC controllers. It fits inside the controller and sends power and station commands along one shared two-wire path to EZ-1 or EZ-LR field decoders at the valves.
PC-DM supports station numbers up to 32. The four-station base reserves stations 1–4 for conventional wiring, leaving stations 5–32 for up to 28 decoder stations. The conventional outputs may be left unused, but their numbers cannot be reassigned to decoders.
Add one PCM-300 in the first expansion slot when seven conventional outputs are needed. Conventional stations then use numbers 1–7 and decoder stations use 8–32, giving up to 25 decoder stations. The table shows the available station numbers for each layout.
PC-DM station-number layouts
| Layout | Conventional station numbers | Decoder station numbers |
|---|---|---|
| Four-station base | 1–4 available | 5–32: up to 28 |
| Base + PCM-300 | 1–7 available | 8–32: up to 25 |

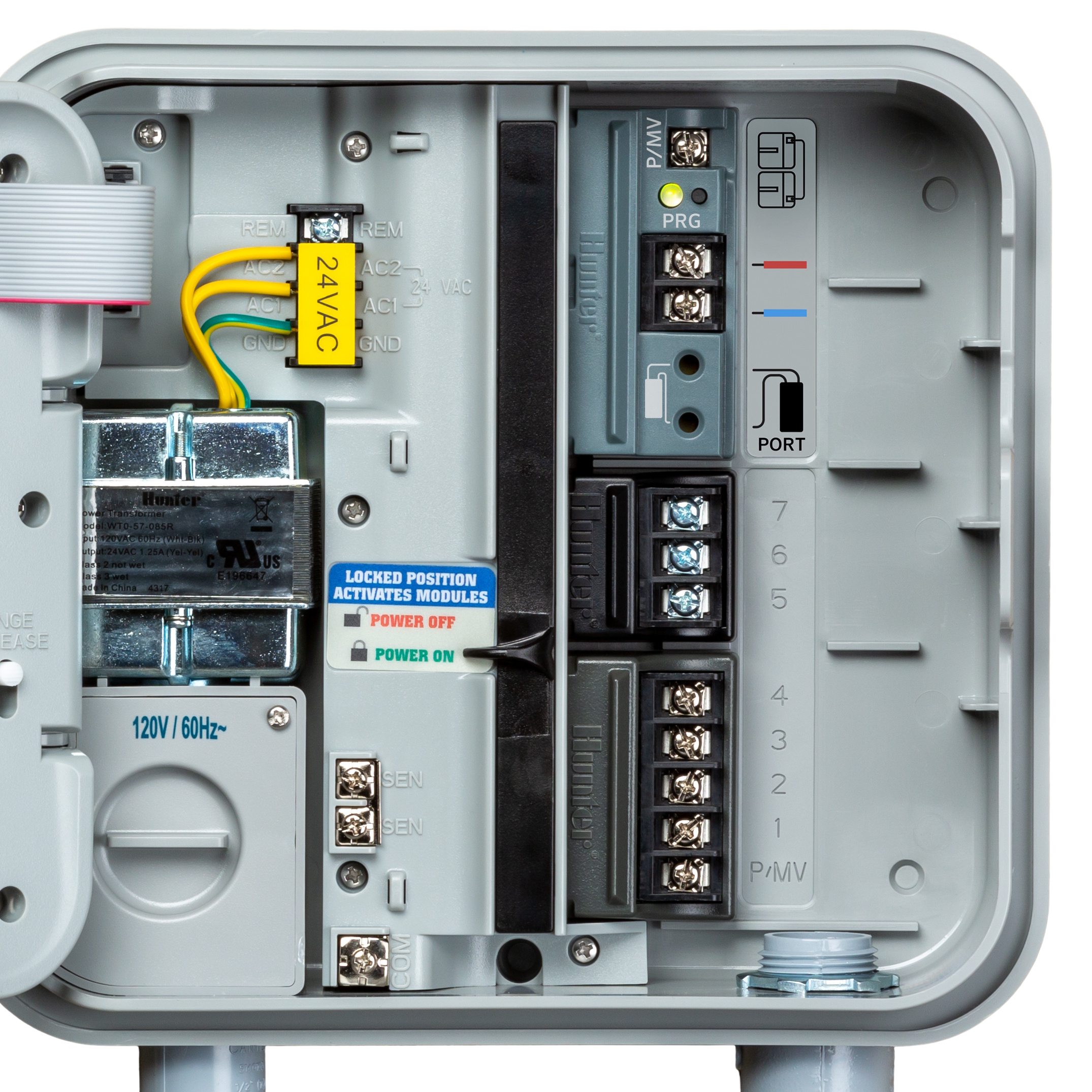

Install PC-DM in the upper two station-output slots. These are also used by PCM-900 or PCM-1600, so those larger conventional modules cannot be fitted alongside PC-DM. PCM-300 is an option for a hybrid layout and is not required for every PC-DM installation.
Check the existing controller model and date code before ordering. Hunter lists PC-DM compatibility with P2C controllers and PC-400 controllers dated February 2020 or newer. Older Pro-C generations have different compatibility. The layouts here assume a compatible four-station Pro-C or HPC base.

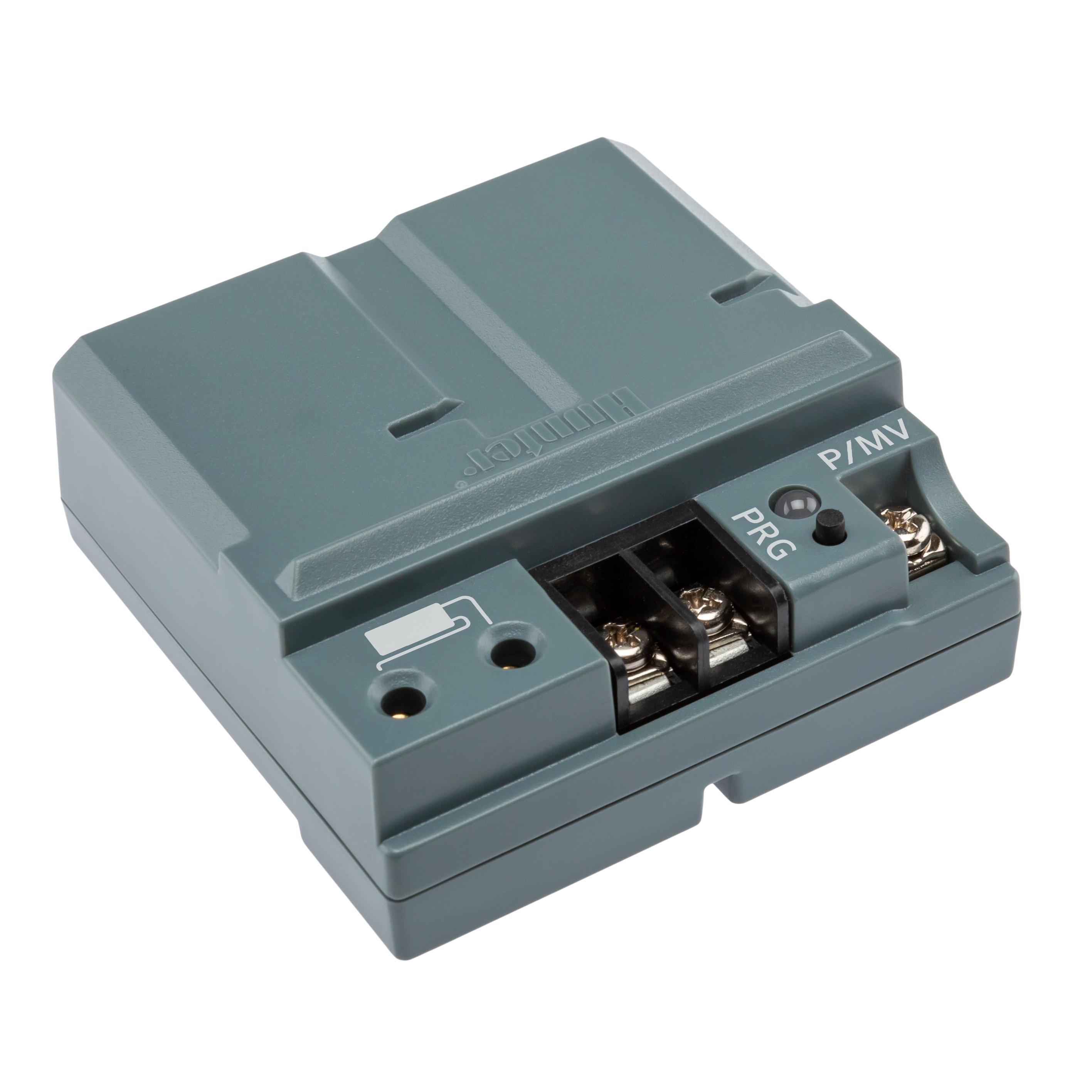

The module has one two-wire path connection, a programming port, PRG button and status LED. Assign each field decoder its station number through the programming port following the installation guide. Decoder assignment for a pump/master valve is also available using Hunter’s procedure.
Use adequately sized direct-burial irrigation cable and waterproof splices. Cable run and active solenoid load must stay within the applicable wiring table. Field decoders, valves and cable are separate items.
3 Year Hunter Warranty.
Hunter Pro-C / HPC Controller PC-DM Decoder Module Installation Guide
Hunter EZ Decoder System Specifications
Hunter EZ Decoder System Brochure
Hunter ICC2 / HCC Controller EZ-DM Decoder Module Installation Guide
Hunter EZ-1 Decoder Installation Guide
Hunter EZ-LR Decoder Installation Guide
How two-wire decoder systems work
Conventional valve wiring uses a separate station wire from the controller to each watering station, together with a shared common wire. A two-wire decoder system uses a shared pair of field wires to carry power and control signals to decoders near the valves.
The decoder output module fits inside the compatible controller. Each field decoder taps into the shared two-wire cable and connects to its local valve solenoid. The decoder is programmed with a station number. When that station starts, the matching decoder operates its connected solenoid.
The two-wire cable can branch in different directions to reach separate valve locations. At each split, join each conductor separately using suitable waterproof irrigation connectors. Cable sizing must account for the furthest decoder and the solenoids running at the same time across the shared path.
For example, decoders programmed as stations 5 and 6 can share the same two-wire cable. Starting station 5 operates the solenoid connected to the decoder assigned to station 5. The controller’s watering schedule determines when each station runs.
In a hybrid system, some stations use conventional wires and others use decoders. The output module, conventional modules and controller determine which station numbers are available to each wiring method. Give each decoder a unique station assignment and avoid assigning a decoder to a station already used by conventional wiring.
