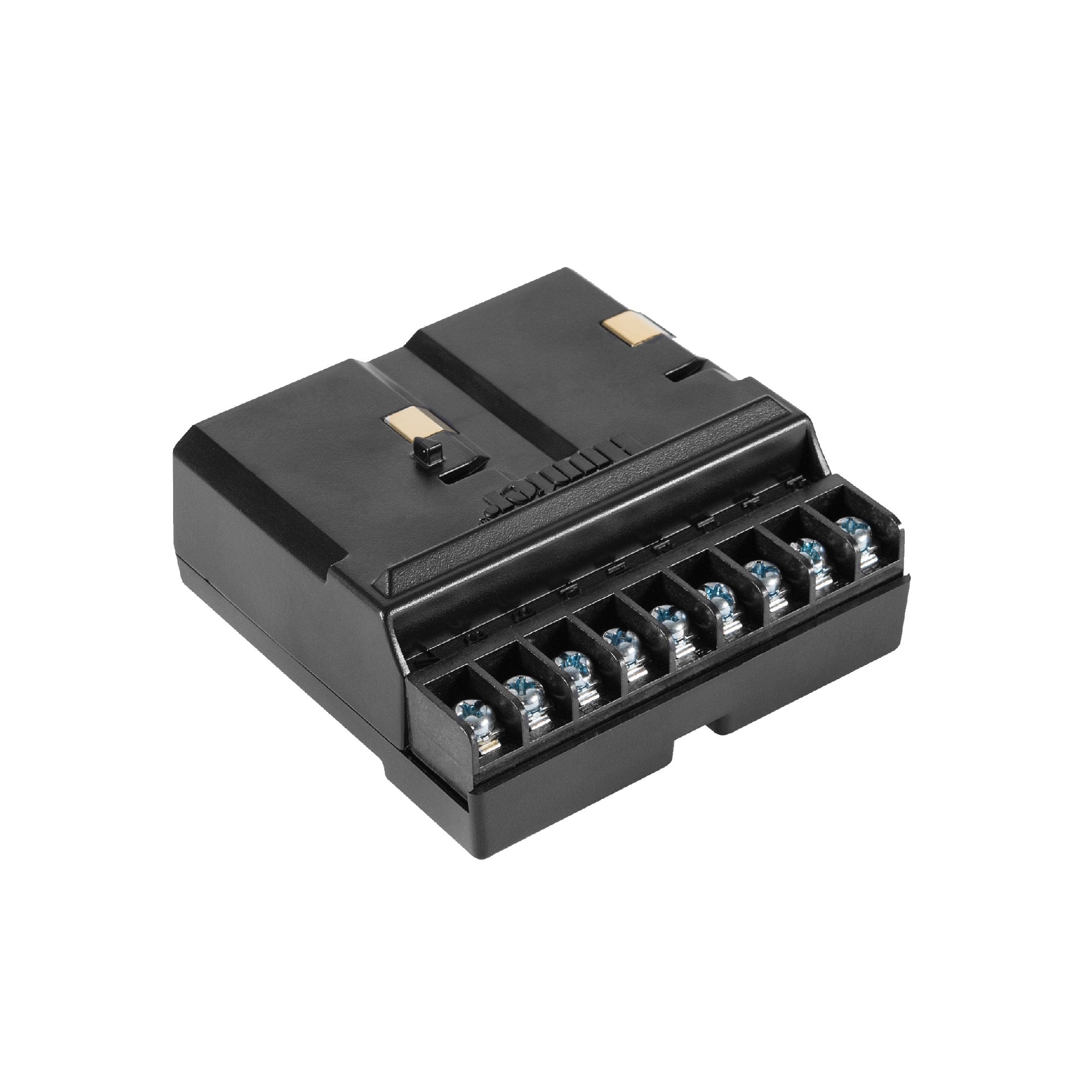

HUNTER PRO-C / HPC 9 STATION EXPANSION MODULE PCM-900

The Hunter PCM-900 9 Station Expansion Module is used with compatible Pro-C and HPC controllers after the PCM-300 module has been installed.

✓ 9 Station Plug-In Expansion Module
✓ Compatible with Pro-C and HPC Controllers
✓ Requires PCM-300 Installed First
✓ Expands Compatible Controllers to 16 Stations
✓ For Conventional Wired Station Expansion
✓ 2 Year Hunter Warranty

Hunter Pro-C / HPC Controller PCM-1600 Expansion Module Installation Guide

Hunter Pro-C Controller User Manual
Hunter Pro-C Controller Specifications
Hunter HPC Controller Installation Guide
Hunter HPC Controller Specifications

More Information
Product Specifications
Product Videos
Hunter Pro-C / HPC 9 Station Expansion Module (PCM-900)
HUNTER PRO-C / HPC 9 STATION EXPANSION MODULE PCM-900
Hunter Controller Pro-C Modular 4 Station Base (Max 23 Stations Conventional, 32 Stations Decoder)
Hunter Controller Pro-C Modular 4 Station Base (Max 23 Stations Conventional, 32 Stations Decoder) CNHPROC04
$350.97 /each
Hunter Controller HPC Wi-Fi Modular 4 Station Base (Max 23 Stations Conventional, 32 Stations Decoder)
Hunter Controller HPC Wi-Fi Modular 4 Station Base (Max 23 Stations Conventional, 32 Stations Decoder) CNHPROCHW
$460.41 /each
Hunter Pro-C / HPC 3 Station Expansion Module (PCM-300)
Hunter Pro-C / HPC 3 Station Expansion Module (PCM-300) CNHPROC03X
$88.84 /each
Hunter Pro-C / HPC 9 Station Expansion Module (PCM-900)
Hunter Pro-C / HPC 9 Station Expansion Module (PCM-900) CNHPROC09X
$358.39 /each
Hunter Pro-C / HPC 16 Station Expansion Module (PCM-1600)
Hunter Pro-C / HPC 16 Station Expansion Module (PCM-1600) CNHPROC16X
$427.94 /each
Hunter PC-DM Decoder Module for Pro-C / HPC (compatible with EZ-1 and EZ-LR)
Hunter PC-DM Decoder Module for Pro-C / HPC (compatible with EZ-1 and EZ-LR) CNHPCDM
$456.85 /each
Hunter EZ-1 Decoder Single Station (compatible with EZ-DM and PC-DM)
Hunter EZ-1 Decoder Single Station (compatible with EZ-DM and PC-DM) CNHEZ01
$159.25 /each
Hunter EZ-LR Long Range Decoder Single Station (compatible with EZ-DM and PC-DM)
Hunter EZ-LR Long Range Decoder Single Station (compatible with EZ-DM and PC-DM) CNHEZLR
$9,999 /each
Hunter HPC-FP Hydrawise Wi-Fi Upgrade Panel for Pro-C (PANEL ONLY)
Hunter HPC-FP Hydrawise Wi-Fi Upgrade Panel for Pro-C (PANEL ONLY) CNHPROCHWFP
$454.74 /each

The Hunter PCM-900 9 Station Expansion Module is a plug-in station module for compatible Hunter Pro-C and HPC modular irrigation controllers. It is used to add 9 conventional wired station outputs where a larger station count is required.

The PCM-900 is used after a PCM-300 has been installed in the first expansion slot. With the 4 station base controller, PCM-300 and PCM-900 installed, compatible Pro-C and HPC controllers can be expanded to 16 conventional wired stations.

This module must be installed in the correct upper expansion slots and will not fit or operate in other station output slots. The controller will automatically recognise the correct station count once the module is installed and secured with the power lock.

This module is designed for conventional wired irrigation station expansion. For decoder-based expansion, a Hunter PC-DM Decoder Module with compatible EZ-1 or EZ-LR decoders is required instead.

2 Year Hunter Warranty

Hunter Pro-C / HPC Controller PCM-1600 Expansion Module Installation Guide

Hunter Pro-C Controller User Manual
Hunter Pro-C Controller Specifications
Hunter HPC Controller Installation Guide
Hunter HPC Controller Specifications

✓ Model
Hunter PCM-900 9 Station Expansion Module.

✓ Module Type
Plug-in station expansion module for compatible Hunter Pro-C and HPC controllers.

✓ Station Expansion
Adds 9 conventional wired station outputs.

✓ Controller Compatibility
Compatible with suitable Hunter Pro-C and HPC modular irrigation controllers.

✓ Application
Designed for conventional wired irrigation station expansion.

✓ Installation Position
Installs after the PCM-300 module has been fitted in the first expansion slot.

✓ Module Selection / Installation Order
The PCM-300 must be installed in the first expansion slot before any other PCM modules can be installed. After the PCM-300 is installed, you can install up to two additional PCM-300 modules for smaller expansions, a PCM-900 module to expand to 16 stations, or a PCM-1600 module to expand to 23 stations.

✓ Final Station Capacity
Used with a 4 station base controller and PCM-300 module to expand compatible controllers to 16 conventional wired stations.

✓ Installation
Slides into the compatible controller output slots and locks into place using the controller power lock.

✓ Decoder Wiring
PCM modules are for conventional wired station expansion only. Decoder-based expansion requires the compatible Hunter PC-DM Decoder Module and EZ-1 or EZ-LR decoders.

✓ Dimensions
Approximately 75mm high x 75mm wide x 30mm deep.

✓ Warranty
2 Year Hunter Warranty.
