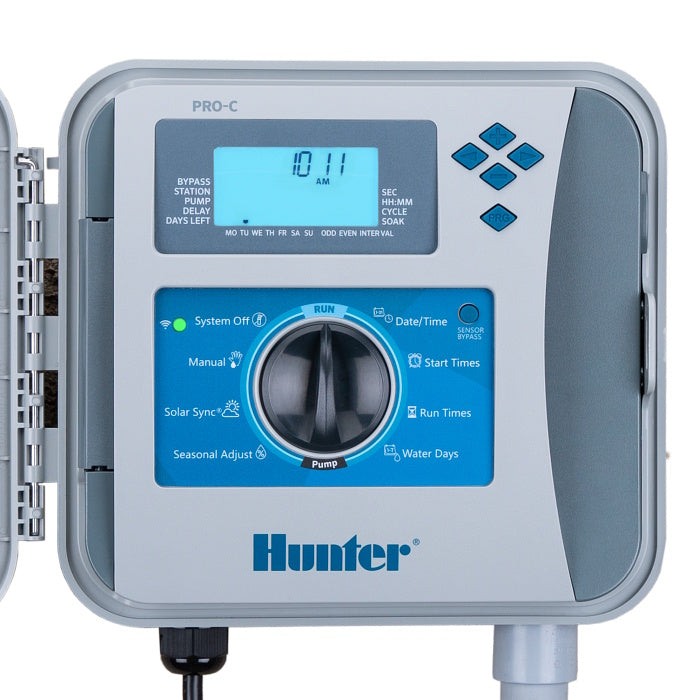

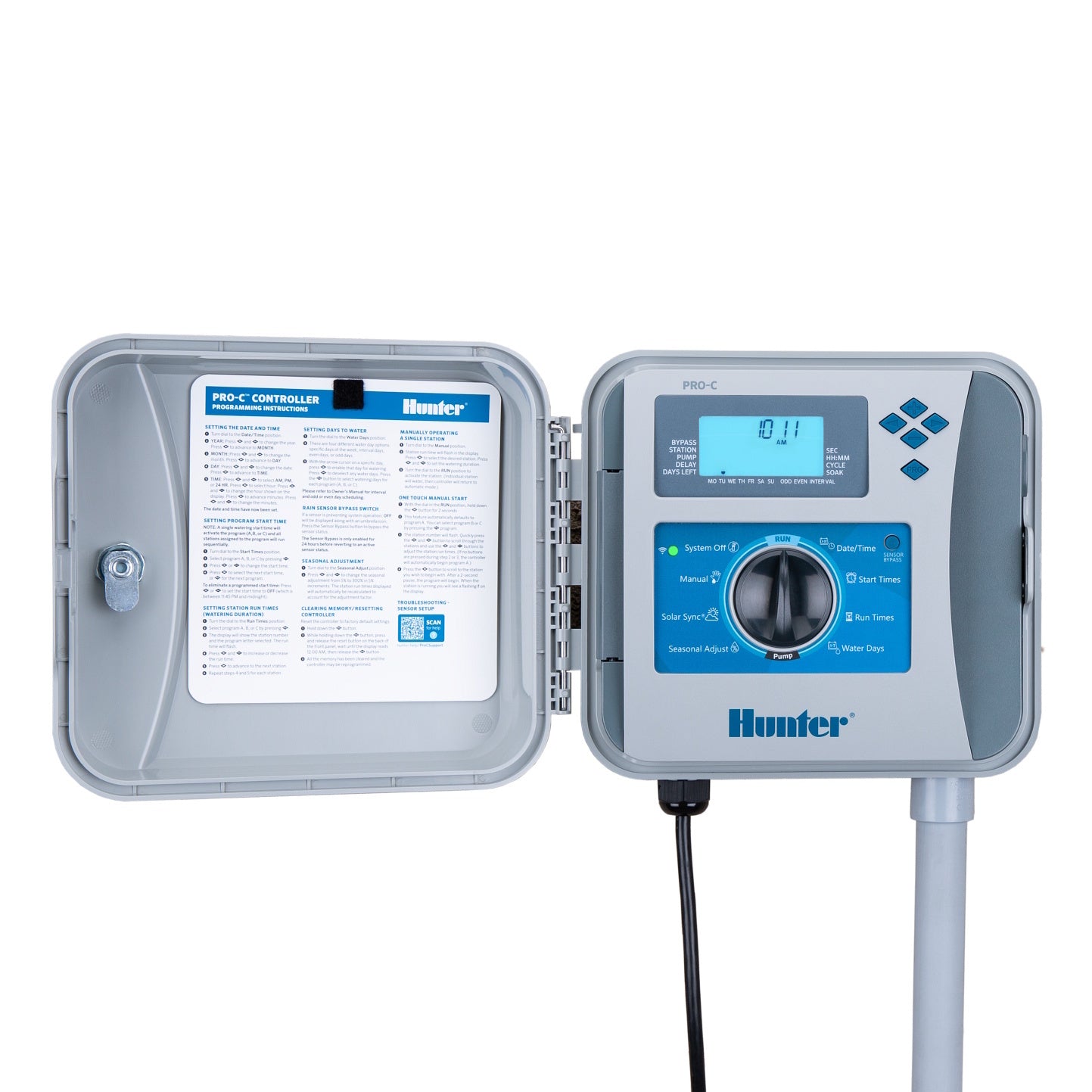

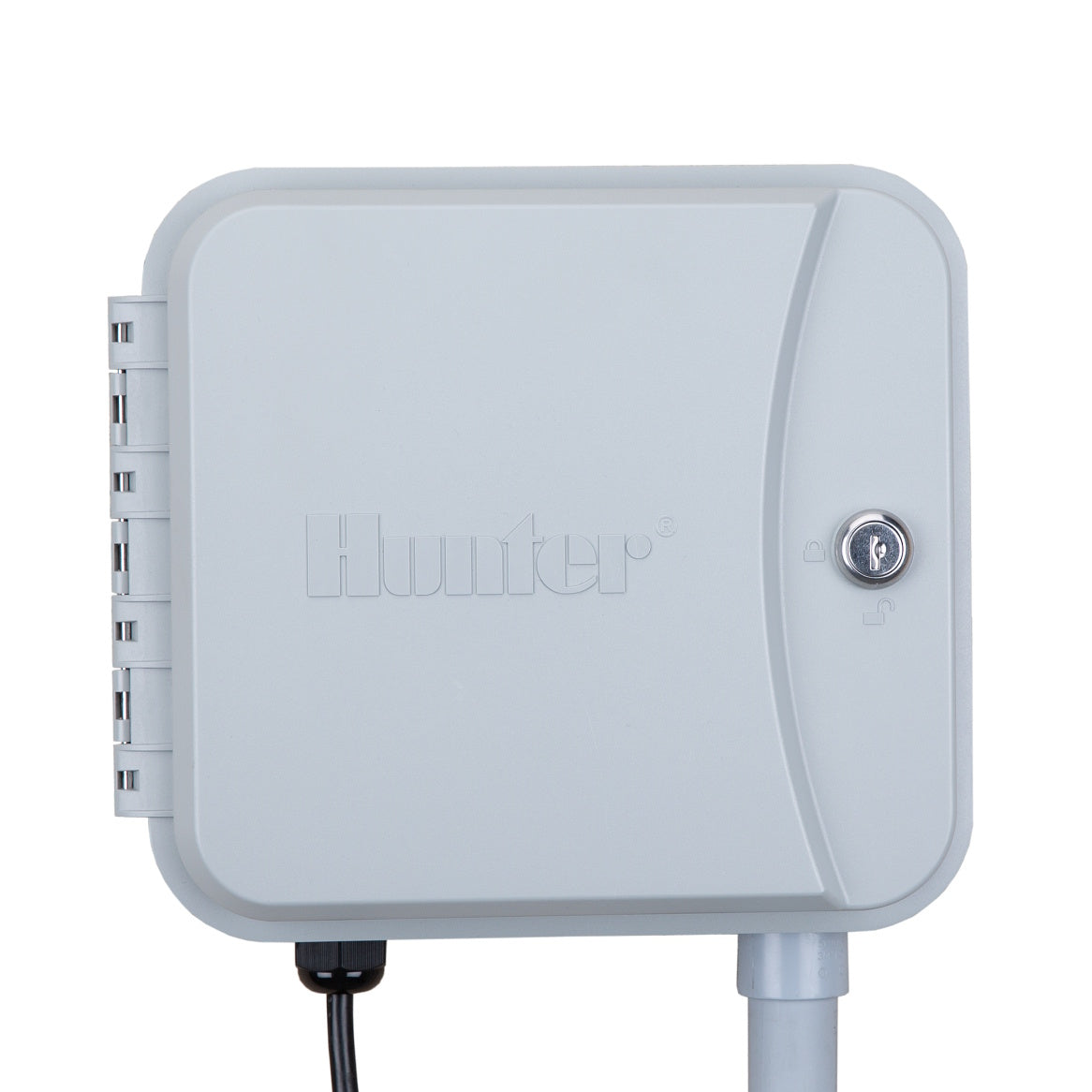

The Hunter Pro-C Modular 4 Station Base Controller provides local irrigation control through a dial and backlit display, with modular expansion for residential and light commercial systems.

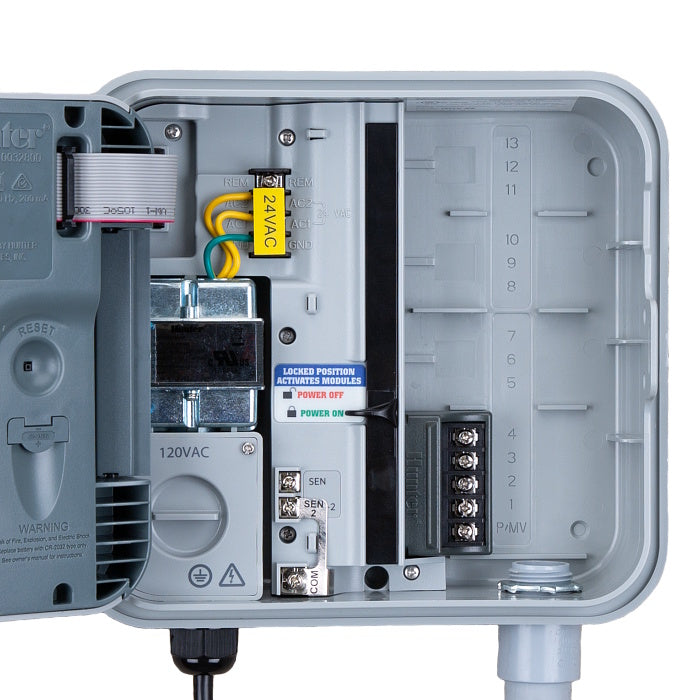

The controller includes four conventional stations and a separate P/MV output for a master valve or pump start relay. The table shows the modules added to this four-station base to reach each final conventional station count. Expansion modules are purchased separately.
Conventional station expansion
Totals include the four stations supplied with the controller. Expansion modules are purchased separately.
| Total stations | Modules to add |
|---|---|
| 4 stations | No expansion module |
| 7 stations | 1 x PCM-300 |
| 10 stations | 2 x PCM-300 |
| 13 stations | 3 x PCM-300 |
| 16 stations | 1 x PCM-300 + 1 x PCM-900 |
| 23 stations | 1 x PCM-300 + 1 x PCM-1600 |
Install PCM-300 in the first expansion slot before PCM-900 or PCM-1600. The PCM-900 or PCM-1600 then occupies the upper two expansion slots.
The optional PC-DM module and EZ-1 or EZ-LR field decoders enable two-wire operation, where a shared pair of wires connects the controller to decoders at the valves. Capacity is up to 32 total stations: four conventional outputs and up to 28 decoder stations. Adding one PCM-300 changes this to seven conventional outputs and up to 25 decoder stations. PC-DM occupies the upper two expansion slots, so it replaces the PCM-900 or PCM-1600 arrangement. The module and decoders are purchased separately.
The Pro-C provides 3 independent programs with 4 start times per program and normal station run times from 1 minute to 6 hours. Scheduling options include a seven-day calendar, odd/even dates and interval watering.
Optional Seconds Mode provides run times from 1 second to 5 minutes in 1-second increments. Seasonal adjustment, Cycle and Soak, delay between stations and programmable off provide further control.
An optional Solar Sync sensor provides weather-based adjustment, while suitable Clik sensors can interrupt watering. QuickCheck assists with wiring diagnostics, and non-volatile memory retains programming. Compatible ROAM and ROAM LR remotes provide on-site manual control.
For Wi-Fi control while retaining the Pro-C dial, the PC-WIFI module provides Centralus online management on compatible P2C controllers. This is a separate upgrade path from the HPC-FP Hydrawise panel. Upgrade hardware is purchased separately.
The optional HPC-FP replacement panel upgrades compatible Pro-C controllers manufactured March 2014 or newer to Hydrawise Wi-Fi control with a touchscreen. The panel is purchased separately. Expansion compatibility depends on the existing controller base.
2 Year Hunter Warranty.
Controller and expansion documents
Hunter Pro-C Controller User Manual
Hunter Pro-C Controller Specifications
Hunter Pro-C Controller PCM-1600 Expansion Module Installation Guide
Hunter Pro-C Controller PC-DM Decoder Module Installation Guide
EZ Decoder System documents - for optional PC-DM installation
Hunter EZ Decoder System Brochure
Hunter EZ Decoder System Specifications
Hunter EZ-1 Decoder Installation Guide
Hunter EZ-LR Decoder Installation Guide
HPC-FP Hydrawise upgrade panel
Hunter HPC-FP Replacement / Retrofit Panel Specifications
Hunter HPC-FP Replacement / Retrofit Panel Specifications
How watering programs work
The Pro-C has three separate watering programs, labelled A, B and C. Each program is its own watering schedule, with separate watering days, start times and station run times. Choose days of the week, odd/even dates or an interval between watering days.
Each station controls a watering zone, such as a lawn or garden bed. Within each program, select the stations to water and set how long each one runs. Normal station run times range from 1 minute to 6 hours.
Each program allows up to four start times on its selected watering days. Each start time begins the whole program, watering its stations one after another for their set run times.
For example, Program A could start at 6am, water the lawn for 10 minutes, then water a garden bed for 5 minutes. That needs one start time. Add another start time to repeat the same sequence later that day. Programs B and C can have their own schedules. Use only the programs and start times you need.
Avoiding common programming mistakes
- Avoid unintended repeat cycles. One start time runs the whole program. Each additional start repeats it. Set unused start times to OFF. You do not need a separate start time for each station.
- Check all programs. A station included in more than one active program can water again under each schedule. Keep it in multiple programs only when that extra watering is intended.
- Space start times for the whole cycle. Allow time for the complete watering cycle, including all stations and any programmed delays, before scheduling another start. If programs overlap, the later program waits for the first to finish, so watering can start and finish later than expected.
How two-wire decoder wiring works
Conventional valve wiring uses a separate station wire from the controller to each watering station, together with a shared common wire. A two-wire decoder system uses a shared pair of field wires to carry power and control signals to decoders near the valves.
The PC-DM output module fits inside the compatible controller. Each EZ-1 or EZ-LR field decoder connects to the shared cable and a local valve solenoid. It is programmed with a station number. Starting that station operates the valve connected to its decoder.
The cable can branch in different directions to reach separate valve locations. At each split, join each conductor separately using suitable waterproof irrigation connectors inside a valve box. Both branches remain part of the shared two-wire path.
With a compatible four-station base, PC-DM provides decoder stations 5 to 32. Stations 1 to 4 remain conventional outputs. Adding one PCM-300 extends the conventional outputs to station 7 and moves the decoder range to stations 8 to 32. These share a 32-station total. Follow the PC-DM guide for module placement.
Choose cable size for the distance to the furthest decoder and the number of solenoids running at the same time on the shared path. More simultaneous solenoids reduce the permitted distance. Include a master valve if it is operated through a decoder. Use the EZ-1 or EZ-LR wiring tables in the guides above.
