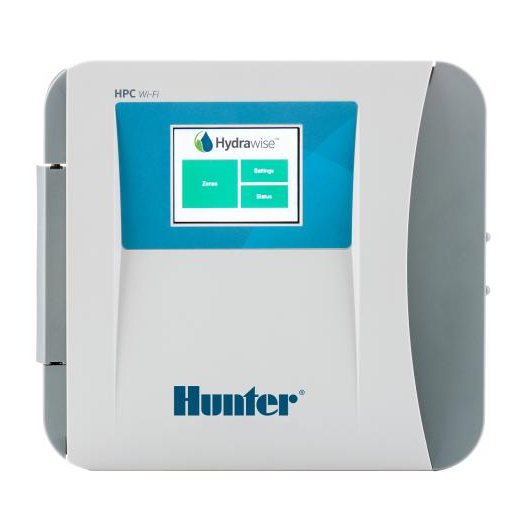

HUNTER HPC-FP REPLACEMENT PANEL FOR HPC / HYDRAWISE UPGRADE FOR PRO-C (PANEL ONLY)

The Hunter HPC-FP is a replacement front panel for HPC controllers and a Hydrawise Wi-Fi upgrade panel for compatible Pro-C controllers. Use it to replace a faulty HPC panel or add app, web and touchscreen control to a compatible Pro-C manufactured March 2014 or newer. This is the panel only. A cabinet, transformer and station modules are not included.

✓ Replacement Front Panel for HPC Controllers
✓ Hydrawise Upgrade for Compatible Pro-C Models from March 2014
✓ Built-In Wi-Fi and Full-Colour Touchscreen
✓ App and Web Access with Online Weather Adjustment
✓ Panel Only: Cabinet, Transformer and Station Modules Not Included
✓ 2 Year Hunter Warranty

Hunter Hydrawise Wi-Fi Network Requirements & Troubleshooting
Hunter HPC-FP Replacement / Retrofit Panel Specifications
Hunter HPC Controller Specifications
Hunter HPC Controller Installation Guide
Hunter HPC Controller Door Card

The Hunter HPC-FP has two uses: replacing the front panel of an existing HPC controller, or upgrading a compatible Pro-C controller to Hydrawise. It allows serviceable controller cabinet and base hardware to be retained.

For an HPC with a faulty or damaged front panel, HPC-FP is the replacement panel listed by Hunter. The transformer, base module, station modules and ribbon cable are separate components. Replacing the front panel does not replace these parts.

For a Pro-C upgrade, check the controller model and manufacturing date before ordering. Hunter specifies compatible Pro-C models manufactured March 2014 or newer. The retrofit changes the control panel. It does not mean every older base supports all current PCM expansion modules or PC-DM. Check the expansion hardware separately against the controller generation.

The panel includes Wi-Fi connectivity and a full-colour touchscreen. Online app and web management, weather-based scheduling and alerts require a suitable 2.4 GHz Wi-Fi network and internet access. Local operation is available at the panel.

Compatible Clik sensors can interrupt watering. An added HC Flow Meter can provide water-use monitoring and flow alerts on a suitable controller system. Select sensor and expansion hardware for the actual base being upgraded.

This is the panel only. A controller cabinet, transformer and station modules are not included. For a new complete modular controller, compare the HPC. For a Pro-C upgrade, follow the retrofit guide for the compatible controller.

2 Year Hunter Warranty.

Panel and controller documents
Hunter Hydrawise Wi-Fi Network Requirements & Troubleshooting
Hunter HPC-FP Replacement / Retrofit Panel Specifications
Hunter HPC Controller Specifications
Hunter HPC Controller Installation Guide
Hunter HPC Controller Door Card

Expansion documents for compatible bases
Hunter HPC Controller PCM-1600 Expansion Module Installation Guide
Hunter HPC Controller PC-DM Decoder Module Installation Guide

EZ Decoder System documents
Hunter EZ Decoder System Brochure
Hunter EZ Decoder System Specifications
Hunter EZ-1 Decoder Installation Guide
Hunter EZ-LR Decoder Installation Guide

How two-wire decoder wiring works

Decoder operation depends on the controller base behind the panel. Fitting HPC-FP to an older Pro-C does not by itself make that base compatible with PC-DM. Check the base model and its expansion compatibility before choosing decoder equipment.

Conventional valve wiring uses a separate station wire from the controller to each watering station, together with a shared common wire. A two-wire decoder system uses a shared pair of field wires to carry power and control signals to decoders near the valves.

The PC-DM output module fits inside the compatible controller. Each EZ-1 or EZ-LR field decoder connects to the shared cable and a local valve solenoid. It is programmed with a station number. Starting that station operates the valve connected to its decoder.

The cable can branch in different directions to reach separate valve locations. At each split, join each conductor separately using suitable waterproof irrigation connectors inside a valve box. Both branches remain part of the shared two-wire path.

With a compatible four-station base, PC-DM provides decoder stations 5 to 32. Stations 1 to 4 remain conventional outputs. Adding one PCM-300 extends the conventional outputs to station 7 and moves the decoder range to stations 8 to 32. These share a 32-station total. Follow the PC-DM guide for module placement.

Choose cable size for the distance to the furthest decoder and the number of solenoids running at the same time on the shared path. More simultaneous solenoids reduce the permitted distance. Include a master valve if it is operated through a decoder. Use the EZ-1 or EZ-LR wiring tables in the guides above.

✓ Application
Front-panel replacement for an HPC controller, or Hydrawise retrofit for a compatible Pro-C controller.

✓ Warranty
2 Year Hunter Warranty.

✓ Product Type & Important Note
Manufacturer Stock Code: HI-HPCFP
Replacement front panel for Hunter HPC controllers and Hydrawise Wi-Fi retrofit panel for compatible Hunter Pro-C controllers. Panel only. Controller cabinet, transformer and station modules are not included.

✓ Controller Compatibility
HPC: Replacement front panel. Pro-C upgrade: Compatible models manufactured March 2014 or newer.

✓ Programming & Watering Schedules
Standard Hydrawise Programming: 6 independent programs with 6 start times per program.
Station Run Time: Up to 24 hours.
Offline Programming: 6 programs with up to 6 start times per program at the touchscreen.
Station Capacity: Determined by the existing controller base and compatible expansion hardware. The panel does not supply station outputs.

✓ Smart Control & Hydrawise® Features
Adds Hydrawise® cloud-based irrigation management, remote controller access, controller alerts and weather-based irrigation scheduling.

✓ Wi-Fi Connectivity
Enables compatible Pro-C controllers to connect to Hydrawise® software. Requires a suitable 2.4 GHz Wi-Fi network. Supported security protocols include WPA/WPA2 Personal.

✓ Display
7cm full-colour touchscreen display provides simple controller operation at the panel.

✓ Sensor Compatibility
Supports compatible Clik sensors and HC Flow Meter when used with a suitable Pro-C system.

✓ Installation
Front-panel replacement for an HPC, or retrofit installation in a compatible Pro-C.

✓ Expansion Compatibility
A face-panel upgrade does not by itself establish PCM-1600 or PC-DM compatibility. Verify the existing controller base and date code before selecting expansion hardware.
