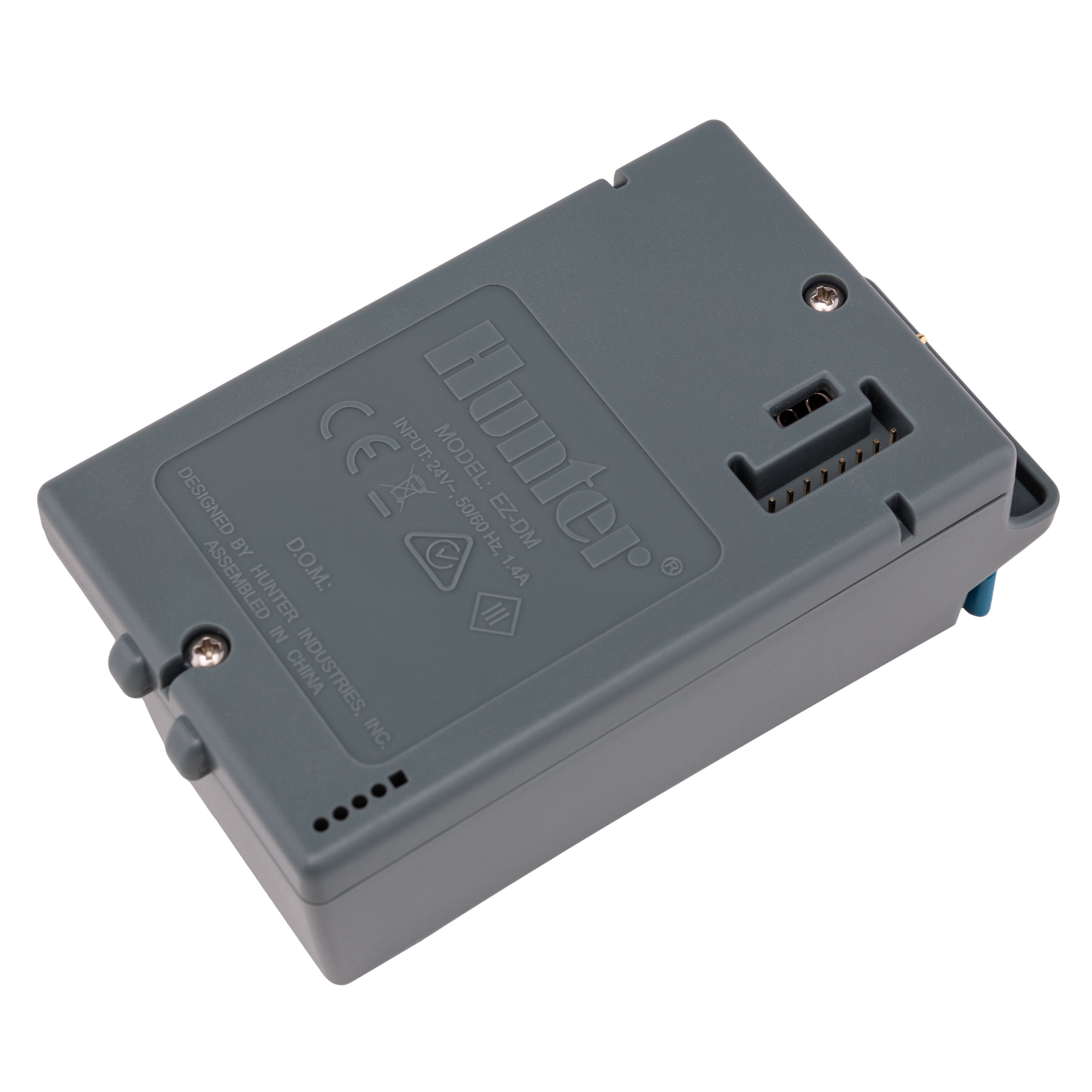

The Hunter EZ-DM is the decoder output module for compatible ICC2 and HCC controllers. It sends power and station commands along two-wire cabling to EZ-1 or EZ-LR field decoders installed near the valves. The controller, output module and field decoders have separate roles.
The module provides two wire-path connections. Both share the same controller station-number range, up to 54 stations plus pump/master-valve operation. Two paths do not provide two separate sets of 54 station numbers.

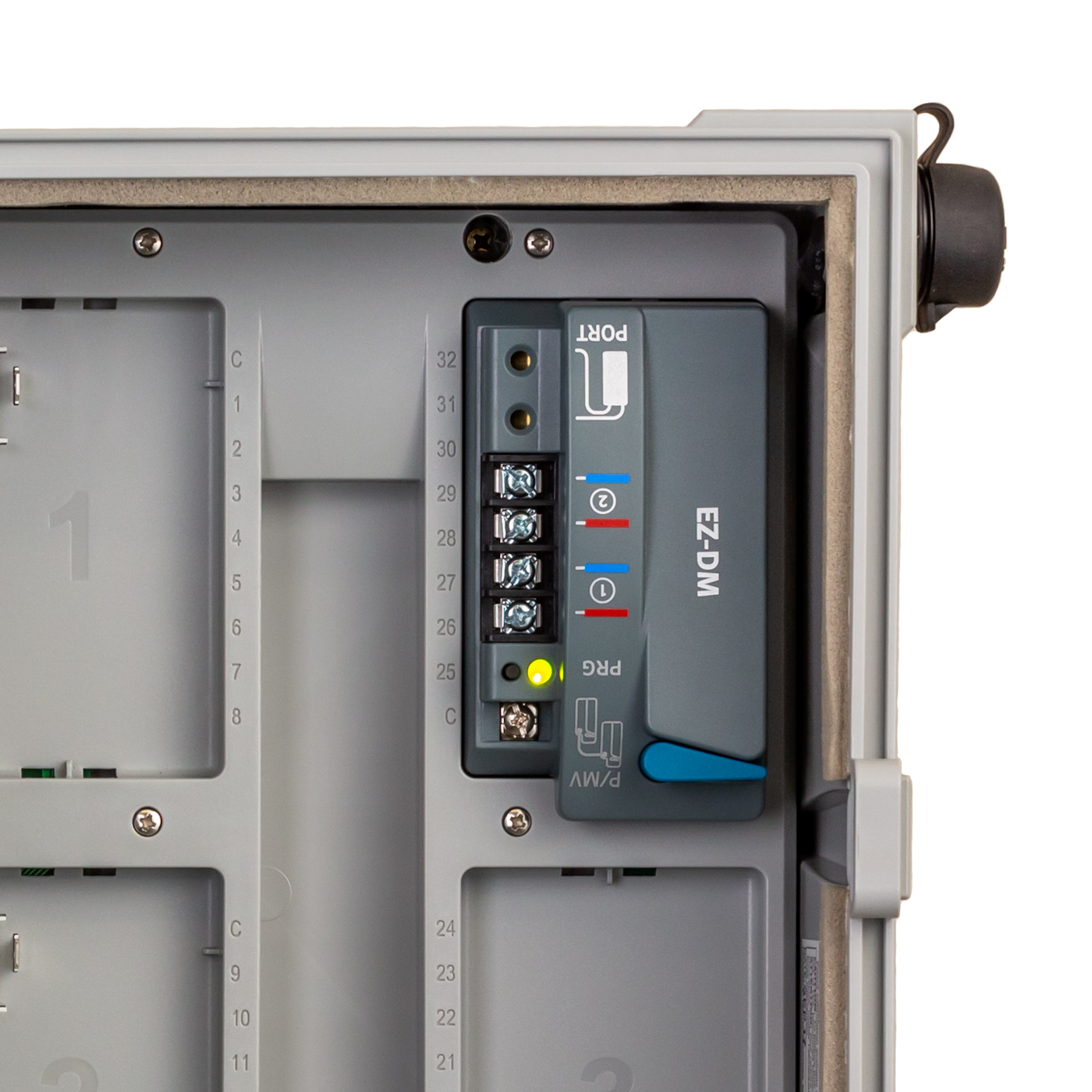

For an all-decoder layout, install EZ-DM in the first module slot and reset the controller as directed in the installation guide. Station numbers 1–54 can then be assigned to field decoders.
For hybrid wiring, retain compatible ICM-400 or ICM-800 conventional modules in the lower-numbered slots and place EZ-DM in the next available slot, as Hunter recommends. Conventional modules retain the station numbers marked for their slots. Assign decoders only to the remaining station numbers up to 54.
For example, an eight-station conventional module can operate stations 1–8, with decoders assigned to stations 9–54 for up to 46 decoder stations. That remains 54 total station numbers. Reusing a conventional station number for a decoder can activate both outputs together.
EZ-DM station-number examples
| Example layout | Conventional station numbers | Decoder station numbers |
|---|---|---|
| All decoder | None | 1–54: up to 54 |
| Eight conventional outputs retained | 1–8 | 9–54: up to 46 |

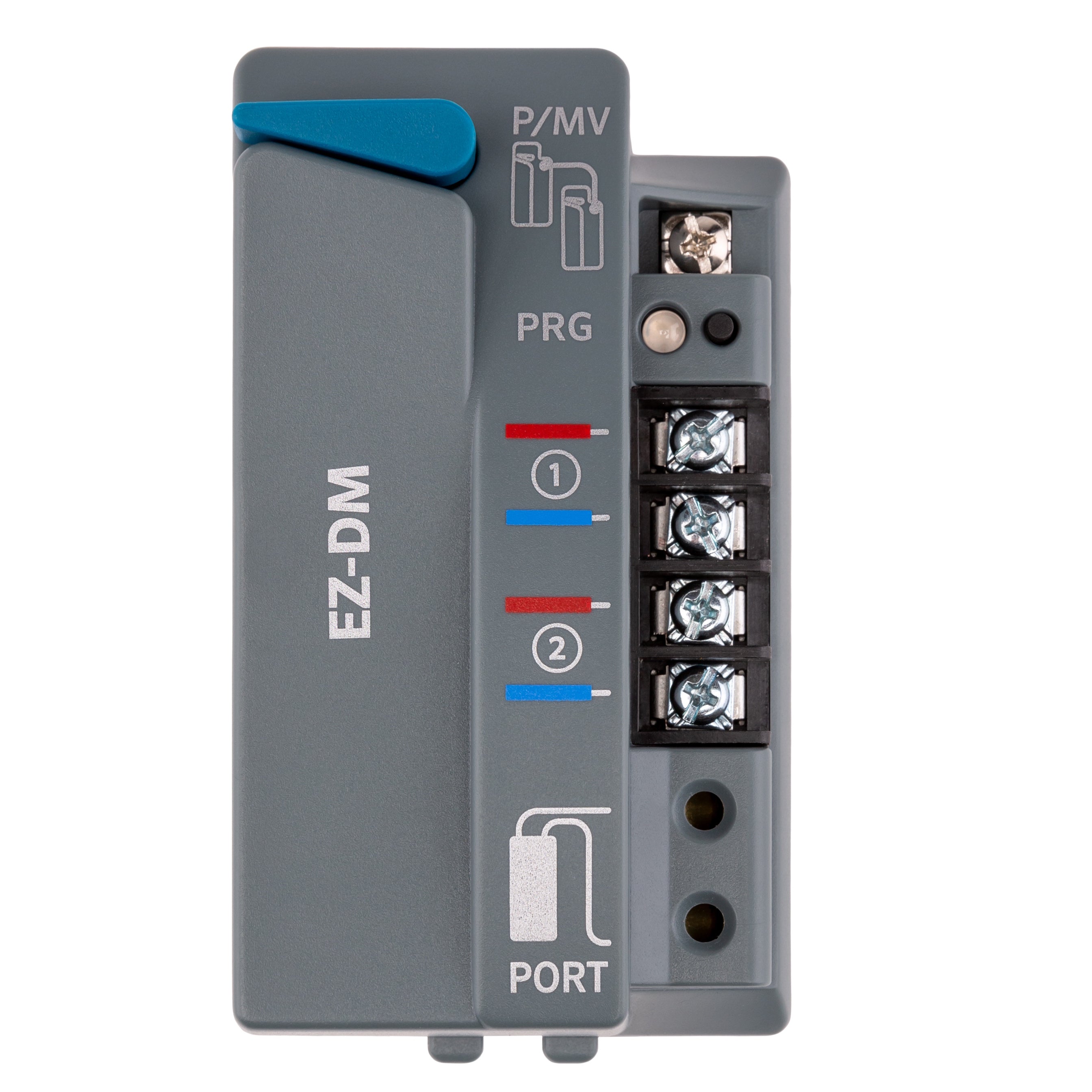

A programming port, PRG button and status LED let each decoder be assigned its station number without entering individual serial numbers. Pump/master-valve decoder operation uses Hunter’s separate assignment and jumper procedure. The controller’s ordinary P/MV output can also be wired directly as specified.
Use direct-burial irrigation cable sized for the distance and active solenoid load. Tee-splicing is permitted. Use waterproof irrigation splices to protect the connections. Existing conventional cable may be suitable for conversion when its condition, size and routing meet the installation requirements.
Compatible MCC controllers can also use EZ-DM. Confirm the exact controller and module combination for an existing installation. The compatibility explained here focuses on the ICC2 and HCC controllers sold in this range.
3 Year Hunter Warranty.
Hunter ICC2 / HCC Controller EZ-DM Decoder Module Installation Guide
Hunter EZ Decoder System Specifications
Hunter EZ Decoder System Brochure
Hunter Pro-C / HPC Controller PC-DM Decoder Module Installation Guide
Hunter EZ-1 Decoder Installation Guide
Hunter EZ-LR Decoder Installation Guide
How two-wire decoder systems work
Conventional valve wiring uses a separate station wire from the controller to each watering station, together with a shared common wire. A two-wire decoder system uses a shared pair of field wires to carry power and control signals to decoders near the valves.
The decoder output module fits inside the compatible controller. Each field decoder taps into the shared two-wire cable and connects to its local valve solenoid. The decoder is programmed with a station number. When that station starts, the matching decoder operates its connected solenoid.
The two-wire cable can branch in different directions to reach separate valve locations. At each split, join each conductor separately using suitable waterproof irrigation connectors. Cable sizing must account for the furthest decoder and the solenoids running at the same time across the shared path.
For example, decoders programmed as stations 5 and 6 can share the same two-wire cable. Starting station 5 operates the solenoid connected to the decoder assigned to station 5. The controller’s watering schedule determines when each station runs.
In a hybrid system, some stations use conventional wires and others use decoders. The output module, conventional modules and controller determine which station numbers are available to each wiring method. Give each decoder a unique station assignment and avoid assigning a decoder to a station already used by conventional wiring.
