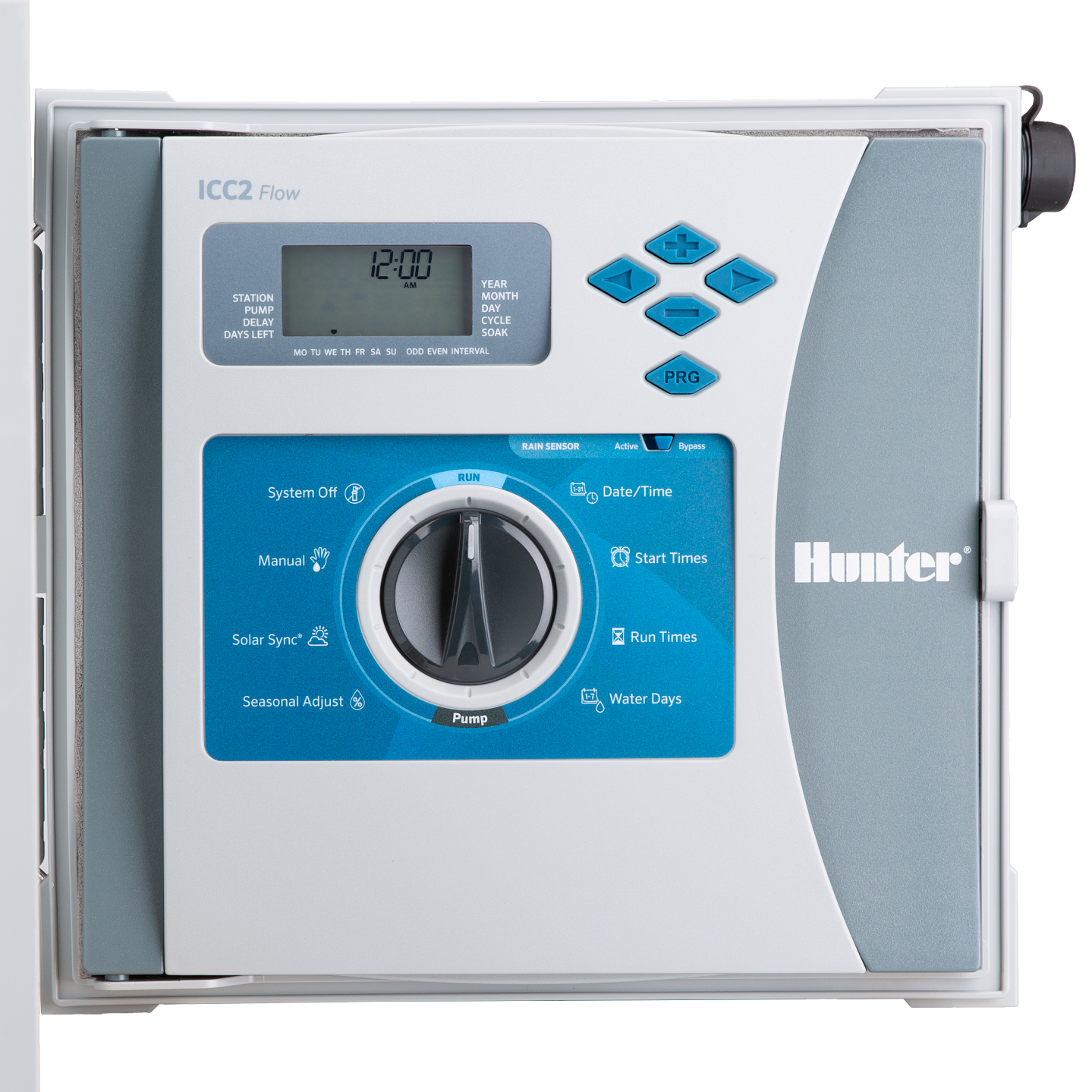

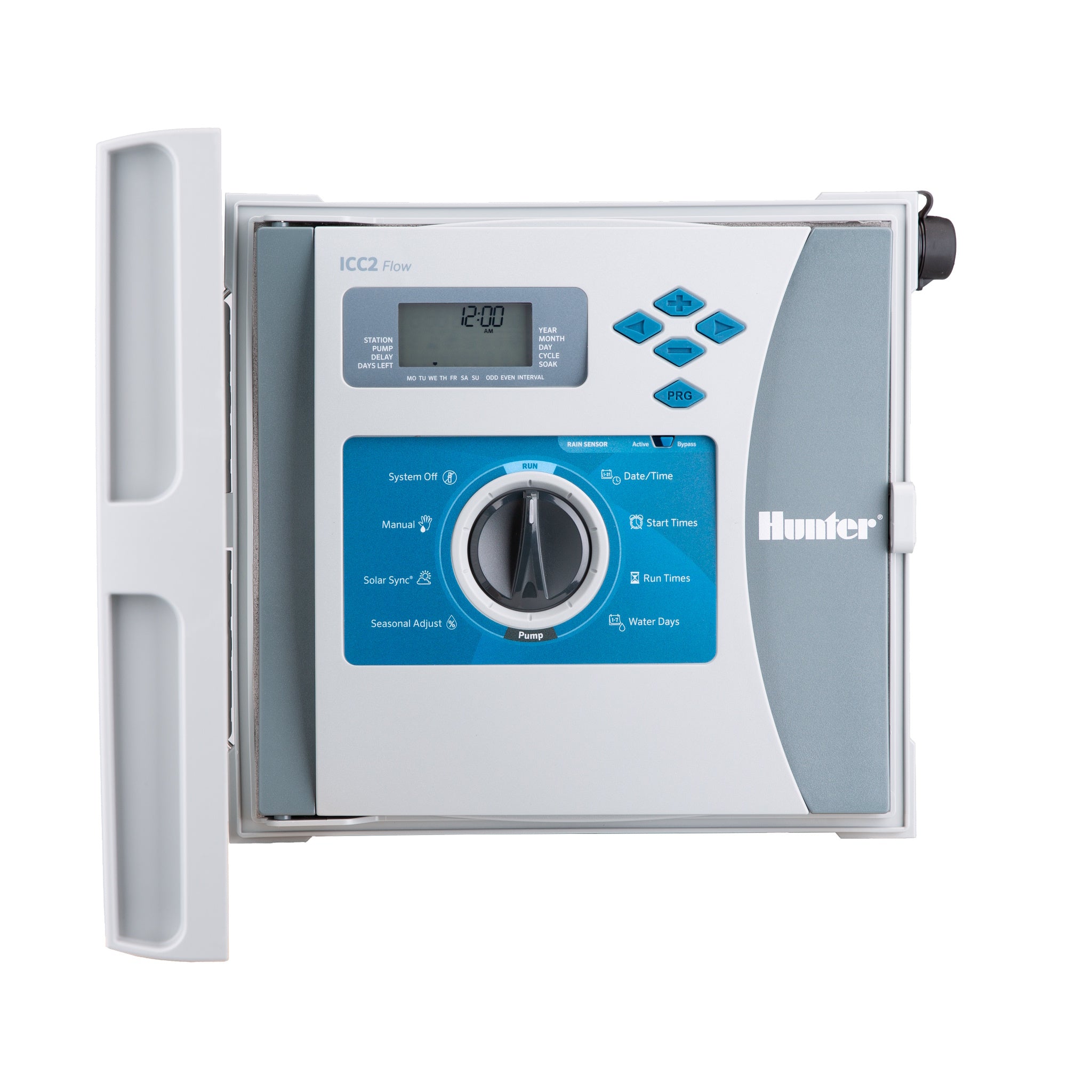

Hunter ICC2 modular controllers provide automatic watering for larger gardens, commercial landscapes and municipal sites. The dial, buttons and display provide local programming and manual operation without an internet connection.
The ICC2 provides 4 separate programs, labelled A, B, C and D, with 8 start times per program and station run times from 1 minute to 12 hours. Scheduling options include days of the week, odd/even dates and intervals up to 31 days. Seasonal adjustment changes run times by percentage. Cycle and Soak splits watering into shorter cycles, and a delay between stations allows a pause between valve operations.
Up to two programs can operate at the same time, plus the separate pump/master-valve output. Plan overlapping watering only where the water supply and electrical load can support it.
The supplied ICM-800 module provides eight conventional station outputs. The controller also has a separate P/MV output for a master valve or pump start relay. Add ICM modules to expand to 38 conventional stations in plastic cabinets or 54 in metal cabinets. Additional ICM-400, ICM-800 and ICM-2200 modules provide four, eight and 22 more outputs respectively.
Conventional station expansion
Examples below show modules added to the supplied eight-station base. The factory-fitted ICM-800 is already included in that base and is not counted again. These are common configurations, rather than every possible combination.
| Final conventional capacity | Additional modules | Plastic cabinet | Metal cabinet |
|---|---|---|---|
| 8 stations | No additional module | Yes | Yes |
| 12 stations | 1 x ICM-400 | Yes | Yes |
| 16 stations | 1 x ICM-800 | Yes | Yes |
| 24 stations | 2 x ICM-800 | Yes | Yes |
| 32 stations | 3 x ICM-800 | Yes | Yes |
| 38 stations | 1 x ICM-800 + 1 x ICM-2200 | Yes | No |
| 40 stations | 4 x ICM-800 | No | Yes |
| 48 stations | 5 x ICM-800 | No | Yes |
| 54 stations | 3 x ICM-800 + 1 x ICM-2200 | No | Yes |

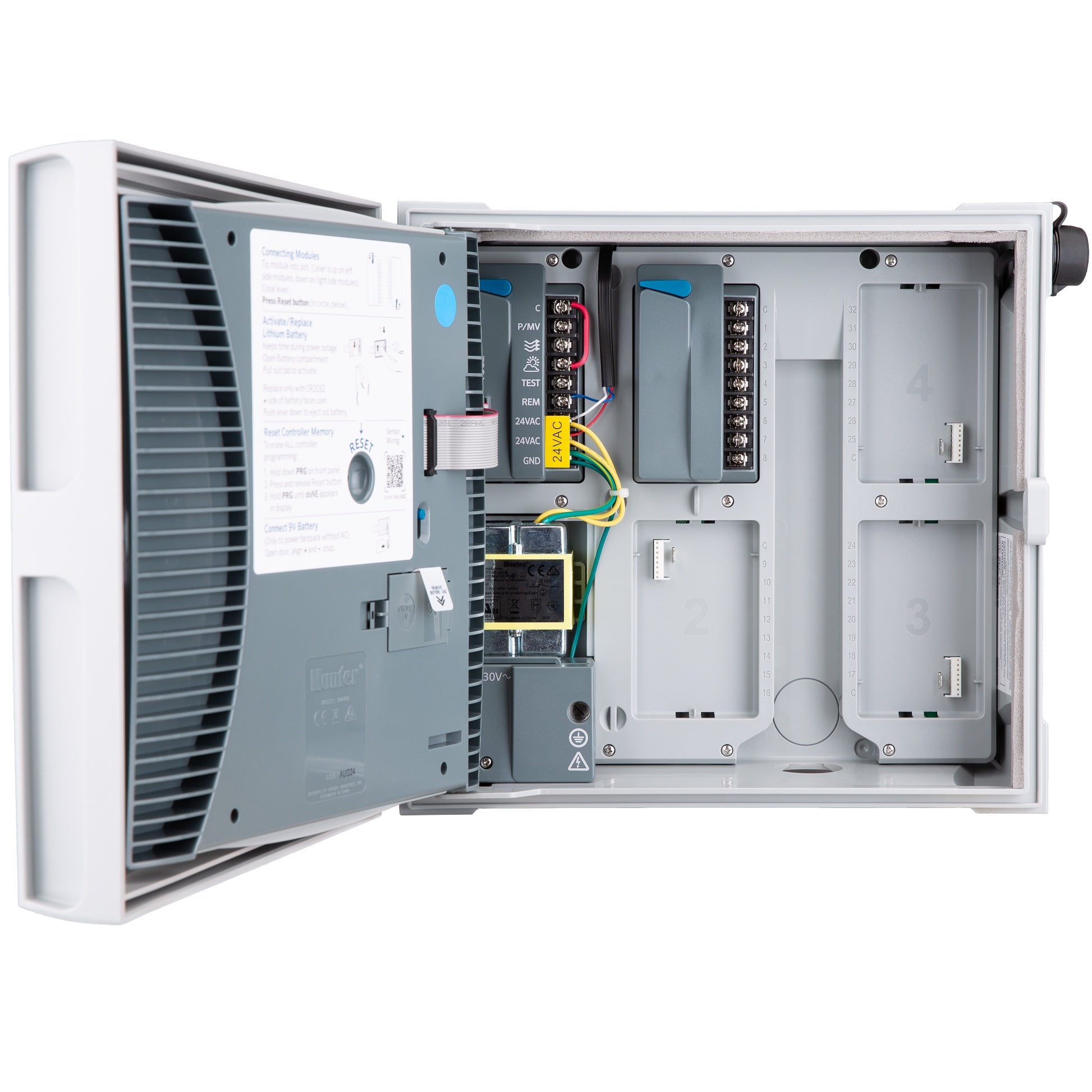

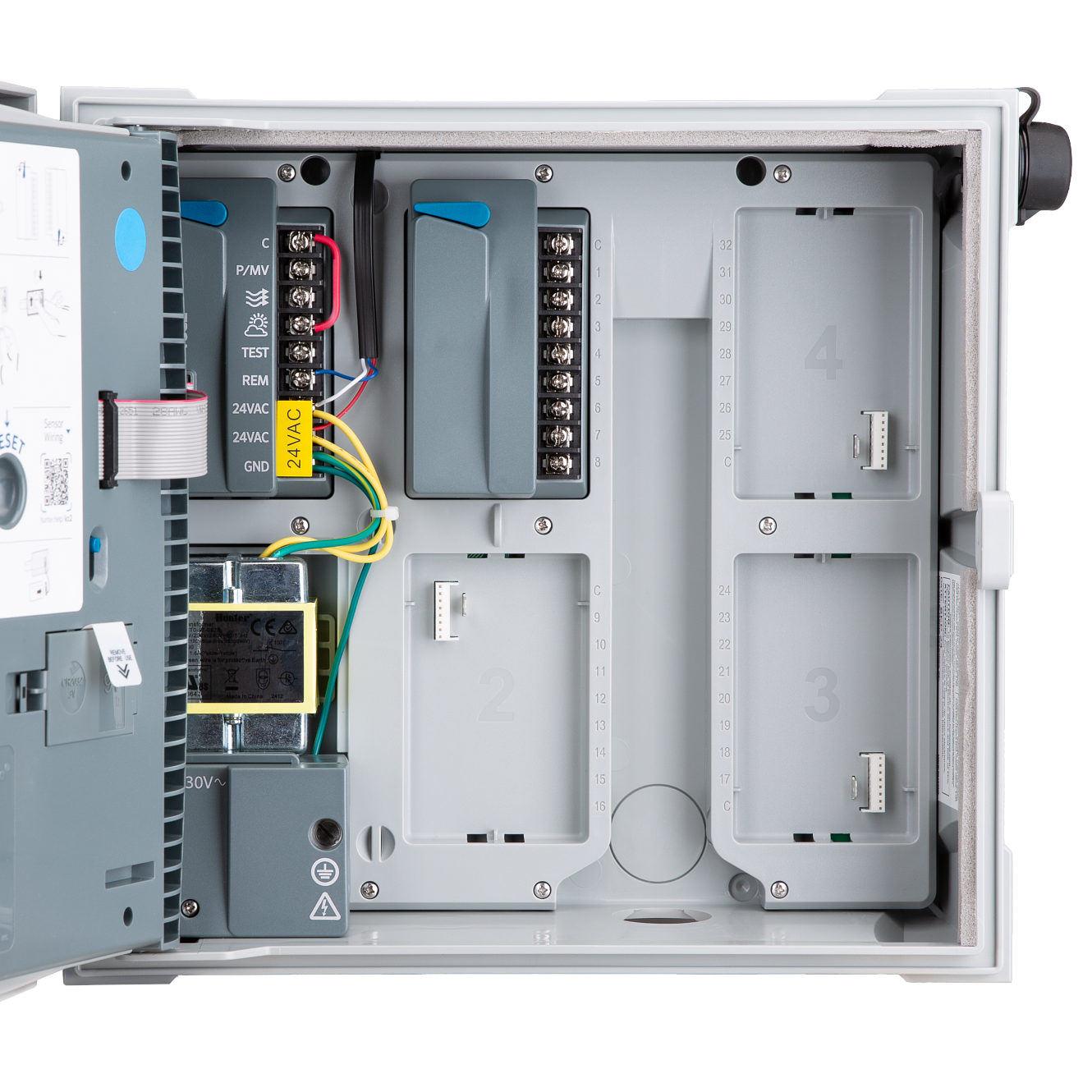

Install standard modules in slot order. ICM-2200 is limited to one per controller and must occupy the last two slots: slots 3 and 4 in plastic cabinets, or slots 5 and 6 in metal cabinets. Fill every earlier slot with an ICM-800 before fitting ICM-2200. Press the Reset button on the back of the control panel after module changes so the controller recognises the new station count.
For two-wire operation, add an EZ-DM (ICC2 / HCC) output module and compatible EZ-1 or EZ-LR field decoders. All-decoder operation supports up to 54 stations. In a hybrid system, conventional and decoder outputs share the same 54 station numbers, rather than providing 54 extra stations on top of the conventional outputs. Keep conventional modules in the lower-numbered slots and install EZ-DM in the next available slot, as described in its guide. The EZ-DM page explains slot use, station assignments and the field-decoder options.
The ICC2 includes a dedicated flow-sensor input and built-in flow monitoring. Connect and configure a compatible HC Flow Meter, purchased separately, to measure flow and generate high/low-flow alarms. A separate weather-sensor input accepts suitable Clik sensors or an optional Solar Sync sensor for weather-based run-time adjustment.
Centralus online management requires a separate compatible communication module. A prewired SmartPort supports optional ROAM or ROAM LR handheld remotes. Non-volatile memory retains programming, and Easy Retrieve saves a separate schedule backup. QuickCheck helps locate faults on conventional station wiring and does not diagnose EZ field decoders.

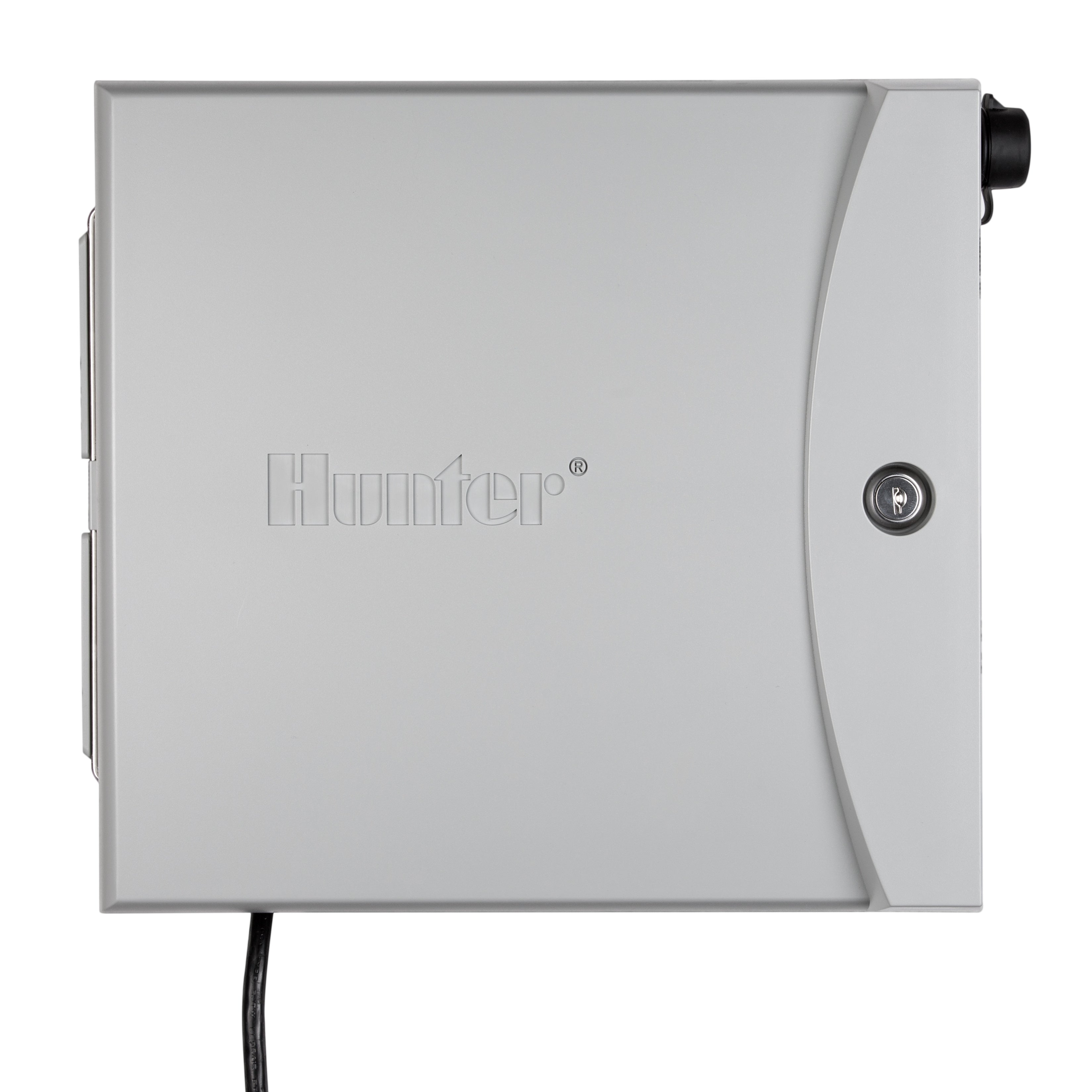

Both the plastic and metal wall-mount cabinets are rated IP55 for outdoor installation. The plastic model is supplied corded. The controller operates compatible 24VAC irrigation solenoids from an internal transformer. Follow the installation instructions for power supply, mounting and wiring.
For an original ICC installation, the ICC-FPUP2 kit provides a retrofit route to the ICC2 platform. For Hydrawise control on an existing compatible ICC or ICC2 installation, consider the HCC-FPUP kit. An ICC-FPUP2 kit can replace failed control electronics in an original ICC while upgrading it to ICC2. See Hunter ICC2 Retrofit Kit Installation Instructions and Hunter HCC / HCC-FPUP Installation and Quick Start Guide.
5 Year Hunter Warranty.
Controller documents
Hunter ICC2 Controller User Manual
Hunter ICC2 Controller Installation Guide
Hunter ICC2 Controller Programming Guide
Hunter ICC2 Controller Specifications
Hunter ICC2 Controller Door Card
Optional EZ Decoder System documents
Hunter EZ Decoder System Brochure
Hunter ICC2 / HCC Controller EZ-DM Decoder Module Installation Guide
Hunter EZ Decoder System Specifications
Hunter EZ-1 Decoder Installation Guide
Hunter EZ-LR Decoder Installation Guide
How watering programs work
The ICC2 has four separate watering programs, labelled A, B, C and D. Each program is its own watering schedule, with its own watering days, start times and station run times.
Each station controls a watering zone, such as a lawn or garden bed. Within a program, choose the stations to water and set how long each one runs.
Each program allows up to eight start times. One start begins the whole program, running its selected stations in sequence for their set run times. Another program can run at the same time where the controller and installation allow it.
For example, one program could start at 6am, water the lawn for 10 minutes, then a garden bed for 5 minutes. That needs one start time. Add another start time to repeat the same sequence later that day. Use only the programs and start times needed.
Avoiding common programming mistakes
- Avoid unintended repeat cycles. Each additional start time repeats the whole program. Set unused start times to OFF. You do not need a separate start time for each station.
- Check all programs. A station included in more than one active program can water again under each schedule. Keep it in multiple programs only when that extra watering is intended.
- Plan overlapping watering. This controller can run two programs at once. Overlapping schedules can therefore increase the flow required from the water supply. Allow for complete program durations and any master valve. For decoder wiring, count all solenoids running at the same time on the shared path when checking cable range.
How two-wire decoder wiring works
Conventional valve wiring uses a separate station wire from the controller to each watering station, together with a shared common wire. A two-wire decoder system uses a shared pair of field wires to carry power and control signals to decoders near the valves.
The EZ-DM output module fits inside the compatible controller. Each EZ-1 or EZ-LR field decoder connects to the shared cable and a local valve solenoid. It is programmed with a station number. Starting that station operates the valve connected to its decoder.
The cable can branch in different directions to reach separate valve locations. At each split, join each conductor separately using suitable waterproof irrigation connectors inside a valve box. Both branches remain part of the shared two-wire path.
EZ-DM supports up to 54 total stations in both plastic and metal cabinet models. In a hybrid installation, conventional outputs and decoder stations share those 54 station numbers. Assign decoders to numbers not already used by conventional outputs. Follow the EZ-DM guide for the module layout.
Choose cable size for the distance to the furthest decoder and the number of solenoids running at the same time on the shared path. More simultaneous solenoids reduce the permitted distance. Include a master valve if it is operated through a decoder. Use the EZ-1 or EZ-LR wiring tables in the guides above.
