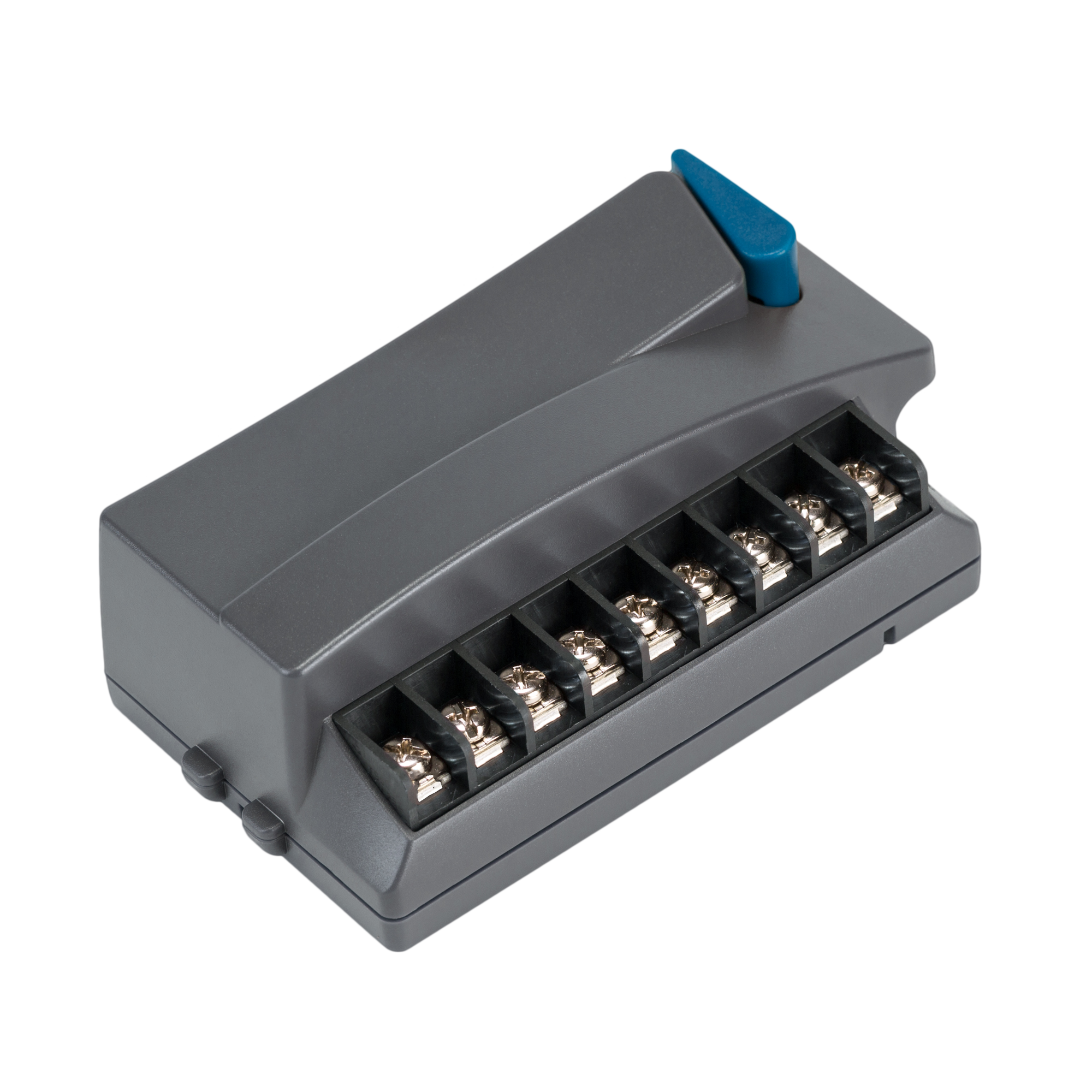

The Hunter ICM-800 adds 8 conventional wired station outputs to compatible ICC2 and HCC controllers. It plugs into one station-output slot and can be combined with suitable ICM modules for the required station capacity.
Each output operates a conventional wired watering station. The ICM-800 rating is the number of outputs it adds, not the controller’s final station count. Maximum conventional capacity is 38 stations in plastic ICC2/HCC cabinets or 54 in metal cabinets, using the appropriate module layout.
ICM-400 and ICM-800 each occupy one module slot. ICM-2200 occupies two slots and is limited to one per controller. Install ICM-2200 last in slots 3 and 4 for plastic cabinets or slots 5 and 6 for metal cabinets.
ICM-800 configuration examples
Modules below are added to a compatible eight-station ICC2 or HCC base. The factory-fitted eight-station module is already included in the base and is not counted again. The examples shown use ICM-800.
| Final conventional capacity | Modules added to the eight-station base | Plastic cabinet | Metal cabinet |
|---|---|---|---|
| 16 stations | 1 x ICM-800 | Yes | Yes |
| 24 stations | 2 x ICM-800 | Yes | Yes |
| 32 stations | 3 x ICM-800 | Yes | Yes |
| 38 stations | 1 x ICM-800 + 1 x ICM-2200 | Yes | No |
| 40 stations | 4 x ICM-800 | No | Yes |
| 48 stations | 5 x ICM-800 | No | Yes |
| 54 stations | 3 x ICM-800 + 1 x ICM-2200 | No | Yes |
Install standard modules in slot order. ICM-2200 occupies the last two slots: slots 3 and 4 in plastic cabinets or slots 5 and 6 in metal cabinets. Use ICM-800 modules in the earlier slots for the maximum-capacity layouts shown. Hunter’s ICC2 instructions specifically require ICM-800 modules in every slot before ICM-2200. Press Reset after changing modules so the controller recognises the station count.
ICM-800 includes enhanced surge suppression for conventional station wiring.
Lock the module in place with the controller’s blue locking lever, then press the Reset button on the back of the facepack so the controller recognises the new outputs. Follow the controller installation instructions when connecting the station and common wires.
For the alternative two-wire expansion route, use an EZ-DM (ICC2 / HCC) output module with EZ-1 or EZ-LR field decoders. ICM modules provide conventional wired outputs and do not take the place of EZ field decoders. The EZ-DM page explains hybrid slot layouts and the shared station-number limit.
5 Year Hunter Warranty.
