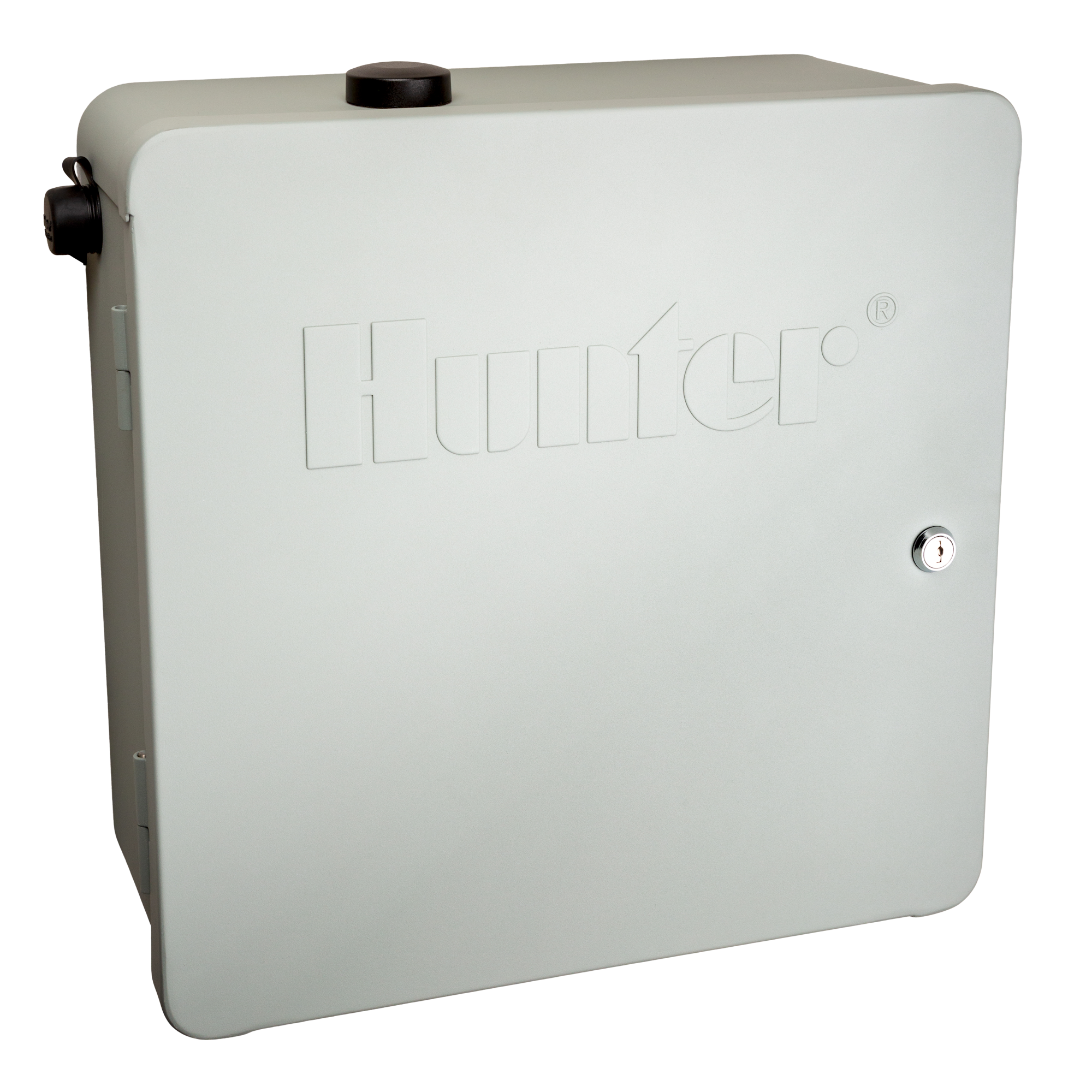

HUNTER ACC2 DECODER 75–225 STATION METAL CABINET CONTROLLER

The Hunter ACC2 Decoder manages watering across large commercial landscapes, sports turf and municipal sites using a shared two-wire cable. The 75-station base includes one A2C-D75 output module. Add A2C-D75 modules to expand to 225 stations, and select separately sold ICD-100 (1 station), ICD-200 (2 stations), ICD-400 (4 stations), ICD-600 (6 stations) field decoders to operate the valves.

✓ 75 Decoder Stations in the Base Controller
✓ Expansion to 225 Stations with A2C-D75
✓ Operates up to 20 Solenoids at the Same Time (30 with Additional Modules, Maximum 20 per Module). Includes Pump / Master-Valve Loads
✓ 32 Programs with up to 10 Start Times per Program
✓ Station Run Times from 15 Seconds to 12 Hours
✓ Built-In Flow Monitoring & Flow Management. Flow Sensor Required for Measurement
✓ 5 Year Hunter Warranty

Hunter ACC2 Decoder Owner’s Manual
Hunter ACC2 Conventional and Decoder Specifications
Hunter ICD Decoder Specifications
Hunter ACC2 Decoder Design Guide

Hunter ACC2 decoder controller showing display and dial panel

The Hunter ACC2 Decoder A2C-75D-M provides two-wire decoder irrigation control for large landscapes with multiple watering areas. It combines flexible scheduling, simultaneous station operation and flow management in a grey steel outdoor wall-mount cabinet. The full-colour backlit display and dial provide local programming and manual operation. The facepack reverses for access during installation and servicing.

There are 32 separate programs with up to 10 start times per program and station run times from 15 seconds to 12 hours. Select days of the week, odd or even dates, or interval watering. Choose Stack to make a program wait until it can run by itself, or Overlap to allow it to run alongside other programs and operate multiple watering stations at the same time. Blocks let selected stations start together. Non-Water Windows reserve periods when automatic irrigation is prevented.

Up to 20 Hunter solenoids can operate together with the included output module. With multiple modules installed, the controller supports up to 30 in total, with a maximum of 20 per module. Include pump/master-valve loads. Cable length, solenoid current and configured limits can reduce these numbers.

Seasonal adjustment changes run times by percentage across the controller, by program or through a preset monthly schedule. Cycle and Soak divides watering into shorter cycles with pauses for absorption. A delay between stations allows a pause between valve operations.

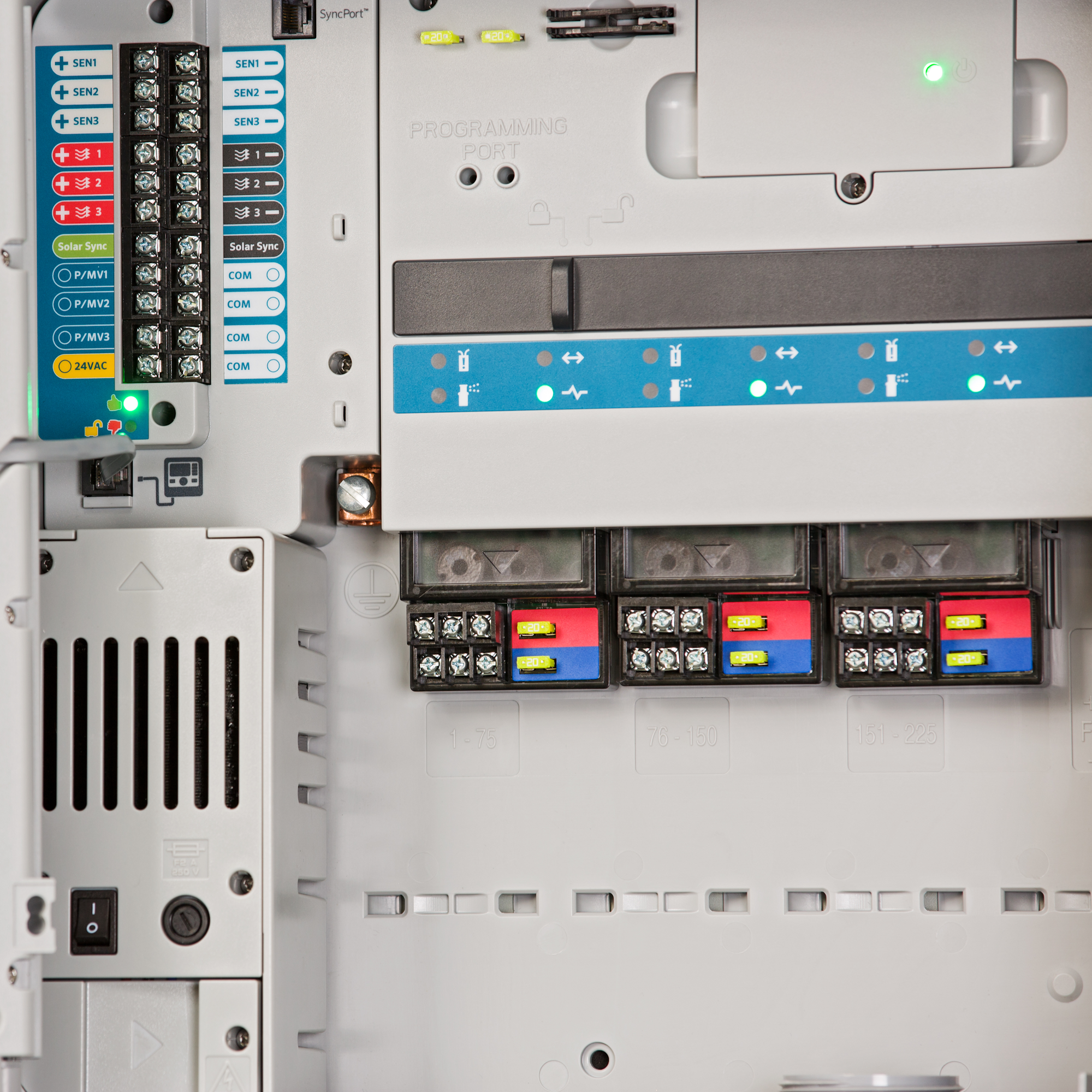

The base includes one A2C-D75 output module for 75 watering stations. Add one A2C-D75 for 150 stations or two for 225. Field decoders are purchased separately. Choose ICD-100 (1 station), ICD-200 (2 stations), ICD-400 (4 stations), ICD-600 (6 stations) to suit the valves at each location.

Station expansion

Additional A2C-D75 modules Total stations
0 75
1 150
2 225

The table shows additional modules beyond the supplied base. Follow Hunter’s module installation sequence and isolate controller power before fitting or servicing modules.

Three flow-sensor inputs are built in. With suitable flow sensors installed and configured, Flow Monitor measures actual flow and detects abnormal high or low flow. Flow Manager schedules stations within the available flow for each area, allowing suitable stations to water together. Entered station flow values can also be used for flow management. An A2C-F3 module adds three more hardwired flow inputs, giving six in total.

Three pump/master-valve outputs are built in. Up to six can be configured across the system, with ICD decoders allowing pump or master-valve control over the two-wire path.

Three Clik sensor inputs support sensor-based watering control. Add a separately sold Hunter Solar Sync sensor for automatic run-time adjustment from local weather measurements. Conditional Response lets the installer configure actions in response to sensor conditions, such as changing the water source when a level sensor is triggered.

Decoder diagnostics include inventory, status, solenoid finding, wire testing and firmware updates. An ICD-SEN sensor decoder can return compatible sensor signals over the two-wire path. Follow the manual for the supported sensor and connection.

Easy Retrieve saves controller settings for later restoration. Detailed alarm logs help trace watering, flow and electrical problems.

Add the separately sold A2C-WIFI module for Centralus access through an internet-connected 2.4GHz Wi-Fi network. Use a smartphone, tablet or computer browser to change schedules, operate watering manually and view controller status, alarms and irrigation history. Flow reporting requires the appropriate sensors and setup. Hunter also provides LAN and cellular connection options.

For conventional station wiring, see the ACC2 Conventional controller.

5 Year Hunter Warranty.

Controller and system documents

Hunter ACC2 Decoder Owner’s Manual
Hunter ACC2 Conventional and Decoder Specifications
Hunter ICD Decoder Specifications
Hunter ACC2 Decoder Design Guide
Hunter A2C-D75 Installation Guide
Hunter ACC2 ICD Decoder Installation
Hunter ACC2 Decoder Troubleshooting Guide
Hunter ACC2 Decoder Programming Door Card
Hunter ACC2 Decoder Brochure

Centralus Wi-Fi documents

Hunter A2C-WIFI Installation Guide
Hunter Centralus System Overview

How watering programs work

ACC2 has 32 separate watering programs. Each program is its own schedule, with its own watering days, station run times and up to 10 start times. You can select days of the week, odd or even dates, or an interval between watering days.

Each station controls a watering zone, such as a lawn or garden bed. Within a program, choose the stations to water and how long each runs. Station run times range from 15 seconds to 12 hours.

A start time begins the whole program. With individual stations listed in the program, the controller runs them in sequence for their set run times. For example, Program 1 could start at 6am, water a lawn station for 10 minutes, then a garden-bed station for 5 minutes. That needs one start time. Add another start time to repeat the same sequence later that day. Other programs can have their own schedules.

ACC2 also lets you put several stations into a block so they water together. Select a block in a program when simultaneous watering is intended and the water supply and electrical capacity support it.

Avoiding common programming mistakes

  • Avoid unintended repeat cycles. Each extra start time runs the same program again. Leave unused start times off. Check whether a station also appears in another active program.
  • Choose Stack or Overlap deliberately. Stack makes a program run by itself, so it may begin later if another program is still running. Overlap allows programs to run together, subject to the configured station limits and electrical capacity.
  • Allow for the whole watering cycle. Include all station run times, soak periods and delays when planning starts. Simultaneous watering must also suit the available flow and pressure. Current protection can suspend stations when the combined electrical load is too high.

How two-wire decoder wiring works

Conventional wiring uses a separate station wire from the controller to each watering station, together with a shared common wire. A two-wire system uses one shared pair of field wires to carry power and control signals to decoders near the valves. This reduces the number of separate wires running back to the controller on large sites.

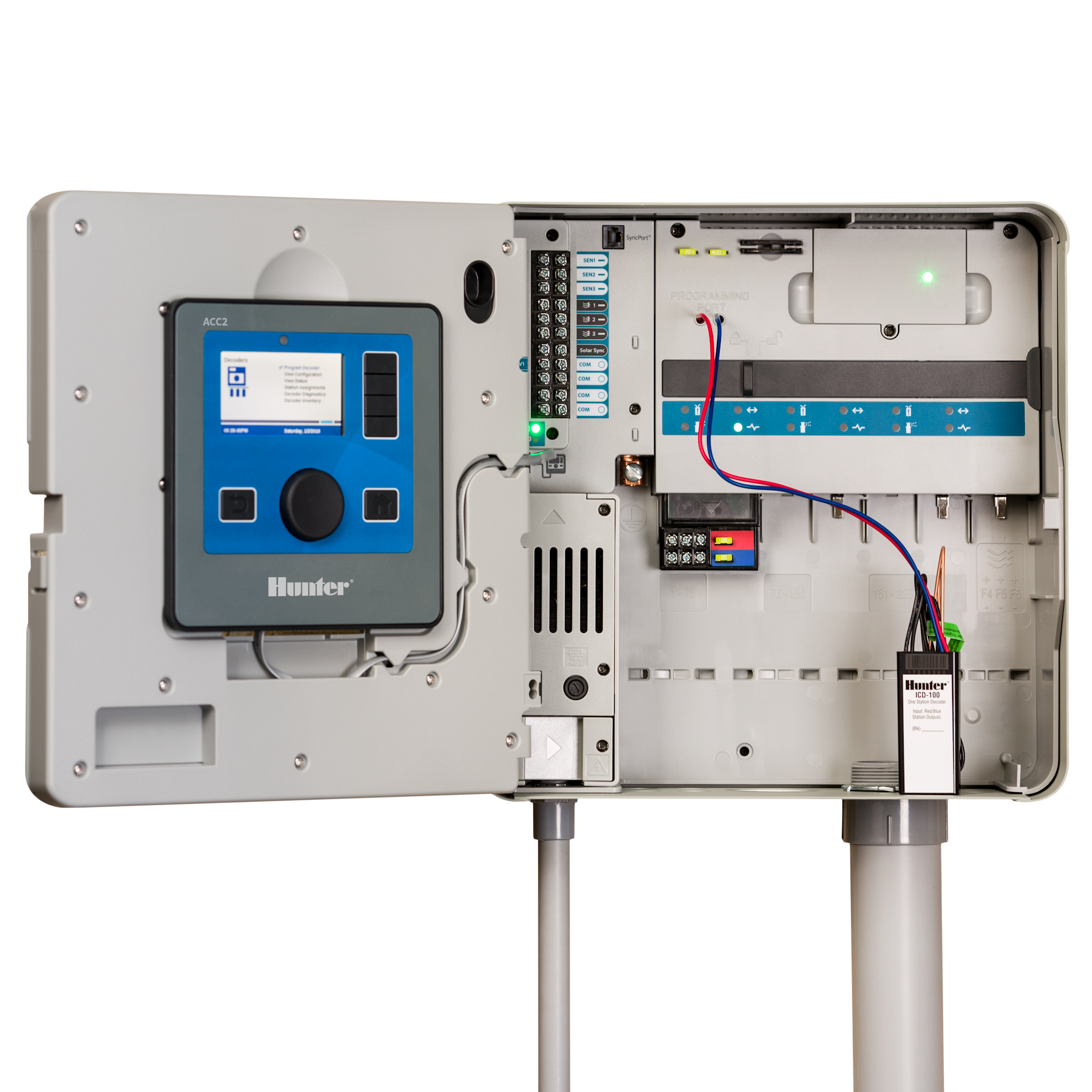

The A2C-D75 output module fits inside the ACC2 Decoder controller. An ICD field decoder connects to the shared cable near a valve or group of valves. Each decoder output connects to a local 24VAC valve solenoid and is assigned a station number. Starting that station operates its assigned valve.

The shared cable can branch in different directions to reach separate valve locations. At each split, join the red wires together and the blue wires together in separate waterproof splices inside a valve box. Use Hunter IDWIRE or an approved substitute and the specified decoder-path connectors. Both branches remain part of the shared two-wire path.

Each A2C-D75 adds 75 stations of controller capacity and provides three cable connections. Those connections share the module’s station allocation. With additional modules installed, the Station Assignments settings can allocate more than 75 stations to one module’s field wiring while keeping within the controller’s total installed capacity. Follow the design guide for assignments and loading.

Cable size, the complete route to the end of each branch and the solenoids operating at the same time determine the permitted distance. The published maximums are 3km on 2mm² IDWIRE1 and 4.5km on 4mm² IDWIRE2, subject to Hunter’s design limits. The separate decoder-to-solenoid lead has a maximum recommended length of 45m.

Provide earth grounding at least every 12 decoders or every 300m of two-wire cable, whichever comes first. Follow Hunter’s design guide for the grounding hardware and placement. Leave approximately 1.5m of cable slack at decoder locations for service access. The linked design guide covers cable sizing, simultaneous loads, branching, waterproof splices and grounding.

ACC2 Decoder uses the ICD decoder system. EZ-1 and EZ-LR decoders belong to a different Hunter system and are incompatible with these output modules.

✓ Application
Commercial, municipal and sports turf irrigation with two-wire decoder valve control.

✓ Warranty
5 Year Hunter Warranty.

✓ Model & Station Capacity
Model A2C-75D-M.
One A2C-D75 output module included for 75 decoder stations. ICD field decoders sold separately.
Expands to 225 stations using A2C-D75 modules.

✓ Programming & Watering Schedules
32 independent programs. Up to 10 start times per program.
Station run times from 15 seconds to 12 hours.
Watering days selected by day of week, odd/even dates or interval.
Program stacking or overlap. Blocks for simultaneous station groups.
Seasonal adjustment by controller, program, monthly schedule or optional Solar Sync sensor.
Cycle and Soak, delay between stations, Non-Water Windows and Calendar Days Off.

✓ Control & Connectivity

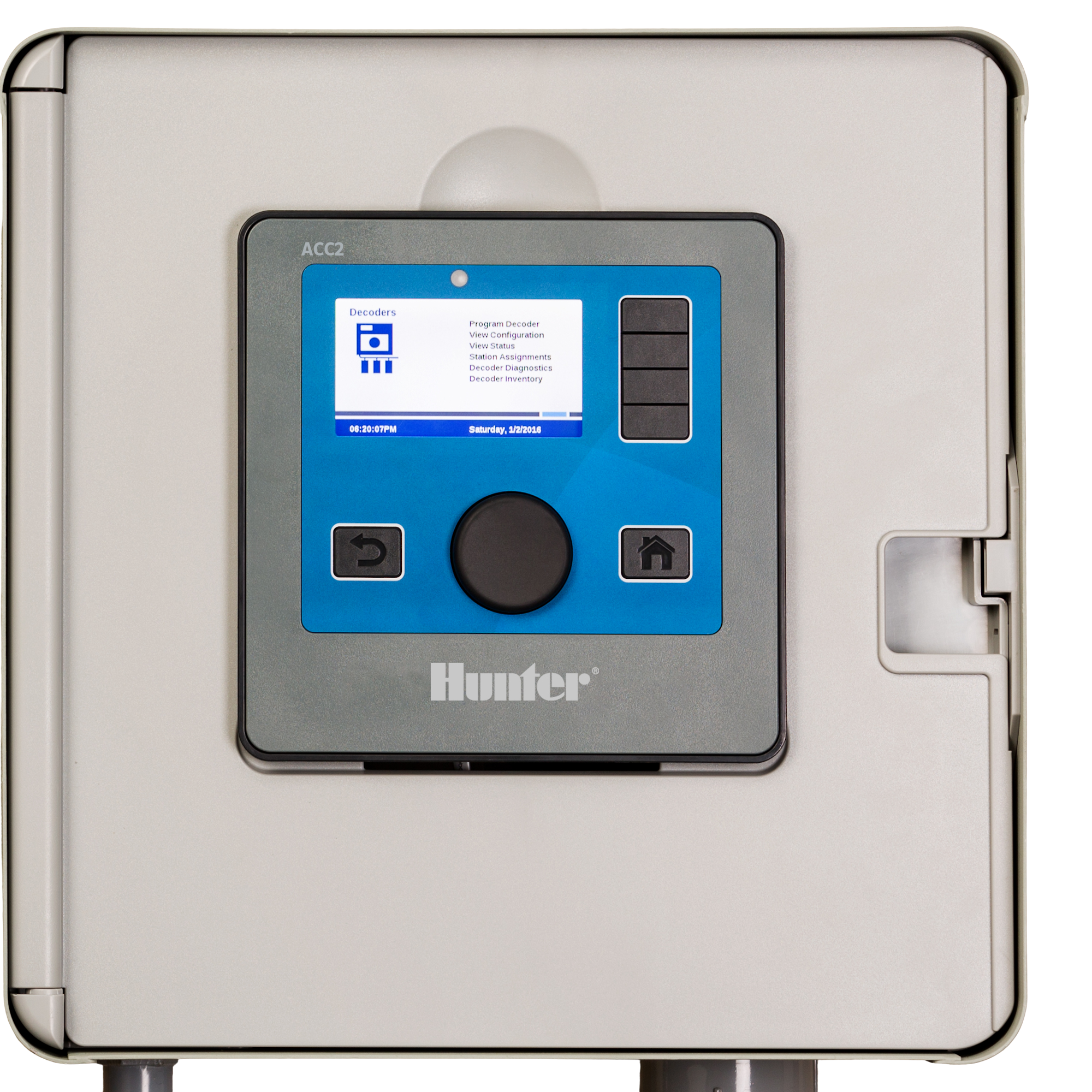

Full-colour backlit display and dial for local programming and manual operation. Reversible facepack.
Centralus browser access requires a separately sold communication module and network connection.
A2C-WIFI connects through an internet-connected 2.4GHz Wi-Fi network. Hunter also provides LAN and cellular options.

✓ Simultaneous Operation
Up to 20 Hunter solenoids can operate together with the included output module. With multiple modules installed, the controller supports up to 30 in total, with a maximum of 20 per module. Include pump/master-valve loads. Cable length, solenoid current and configured limits can reduce these numbers.
Current sensing can suspend stations when the combined electrical load is too high.

✓ Station Expansion
75, 150 or 225 stations with one, two or three A2C-D75 modules in total. One module is supplied.
Three two-wire cable connections per module share its station allocation. Station Assignments supports reallocation across installed modules.

✓ Flow Monitoring & Management
Three hardwired flow inputs included. A2C-F3 adds three inputs for six in total.
Flow Monitor detects abnormal measured flow with suitable sensors and setup.
Flow Manager schedules against available flow using configured station flow values.
ICD-SEN supports compatible sensor signals over the two-wire path.

✓ Sensors & Pump / Master Valve Control
Three Clik sensor inputs and one Solar Sync input.
Three dedicated 24VAC pump/master-valve outputs, up to 0.8A each.
Three pump/master-valve outputs are built in. Up to six can be configured across the system, with ICD decoders allowing pump or master-valve control over the two-wire path.
Conditional Response for configured sensor-triggered actions.

✓ Decoder Wiring & Diagnostics
ICD-100, ICD-200, ICD-400 and ICD-600 field decoders. ICD-SEN for compatible sensors.
Up to 3km on 2mm² IDWIRE1 or 4.5km on 4mm² IDWIRE2, subject to cable design and simultaneous load.
Maximum recommended decoder-to-solenoid lead length 45m.
Waterproof decoder-path splices. Approximately 1.5m cable slack at decoder locations.
Provide earth grounding at least every 12 decoders or every 300m of two-wire cable, whichever comes first. Follow Hunter’s design guide for the grounding hardware and placement.
Decoder inventory, status, wire test, solenoid finder and firmware update tools.

✓ Memory & Diagnostics
Easy Retrieve controller settings backup and restore. Detailed alarm logs.

✓ Installation & Electrical
Grey steel IP55 outdoor wall-mount cabinet.
Transformer input 120/230VAC, 50/60Hz. Maximum input current 2A at 120VAC or 1A at 230VAC.
Transformer output 24VAC, approximately 3A.
UL, cUL, FCC, CE, UKCA, RCM and ISED approvals.

✓ Dimensions
Approximately 40cm high x 40cm wide x 18cm deep.
