Orbit Tap Timer - 1 Station (max 680kPa)
Orbit Tap Timer - 1 Station (max 680kPa)

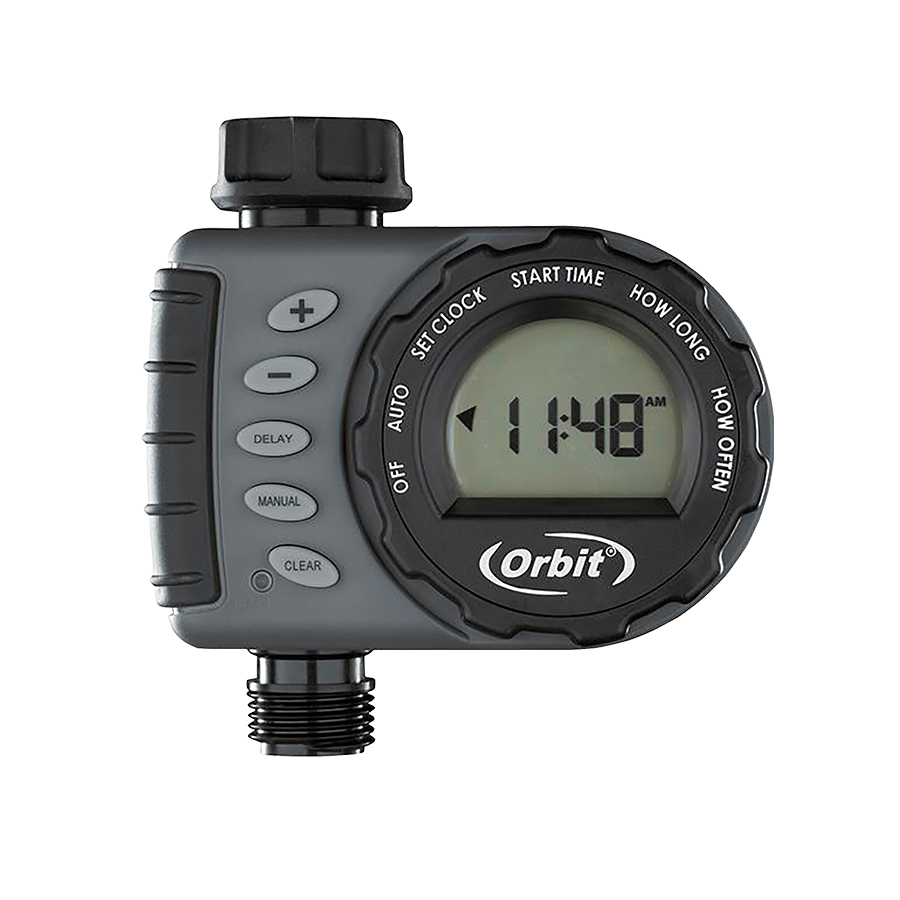

ORBIT 1 STATION TAP TIMER

Orbit 1 station tap timer for simple automatic garden watering from a standard outdoor tap. Designed for hose-end sprinklers, garden beds and drip watering. Includes LCD programming, 4 start times, manual On/Off and up to 72 hour rain delay.

✓ 1 Station Hose-End Tap Timer
✓ Single Outlet Garden Watering Control
✓ Large LCD Screen
✓ 4 Watering Start Times
✓ 1 to 360 Minute Watering Duration
✓ Up to 72 Hour Rain Delay
✓ 680kPa Maximum Operating Pressure

Orbit Tap Timer 1 Station Specifications
Orbit Tap Timer 2 Station Specifications

More Information
Product Specifications
Product Videos
Orbit Tap Timer - 1 Station (max 680kPa)
ORBIT 1 STATION TAP TIMER
Orbit Tap Timer - 1 Station (max 680kPa)
Orbit Tap Timer - 1 Station (max 680kPa) CNOTT
$91.55 /each
Orbit Tap Timer - 2 Station (max 680kPa)
Orbit Tap Timer - 2 Station (max 680kPa) CNOTTDP
$126.30 /each

The Orbit 1 Station Tap Timer is a simple hose-end irrigation timer for turning a garden tap into an automatic watering point. It is suited to garden beds, lawn sprinklers, pots and basic drip or hose watering systems where a fixed irrigation controller is not required.

This single outlet tap timer uses a large LCD screen and simple dial-style programming for everyday garden watering. It supports 7 day and interval programming, with up to 4 watering start times and watering durations from 1 to 360 minutes.

Manual On/Off control allows watering to be started or stopped at the timer without changing the stored program. A rain delay function can also pause watering for up to 72 hours when irrigation is not required.

Suitable for cold water irrigation systems only. Maximum operating pressure: 680kPa.

Orbit Tap Timer 1 Station Specifications
Orbit Tap Timer 2 Station Specifications

✓ Product Type & Model
Orbit 1 Dial 1 Outlet Hose End Tap Timer, product code 96781.

✓ Application
Single outlet tap timer for garden taps, sprinklers, garden beds, pots, drip watering and hose-end irrigation systems.

✓ Programming
Large LCD screen with simple programming. Supports 7 day and interval programs.

✓ Watering Schedule
4 watering start times, with watering duration from 1 to 360 minutes.

✓ Manual & Rain Delay
Manual On/Off function at the timer. Rain delay can pause watering for up to 72 hours.

✓ Pressure Rating
Minimum operating pressure: 170kPa. Maximum operating pressure: 680kPa.

✓ Construction
High quality construction with long battery life.

✓ Important Use Note
For use in cold water irrigation systems only.
