Orbit Tap Timer - 2 Station (max 680kPa)
Orbit Tap Timer - 2 Station (max 680kPa)

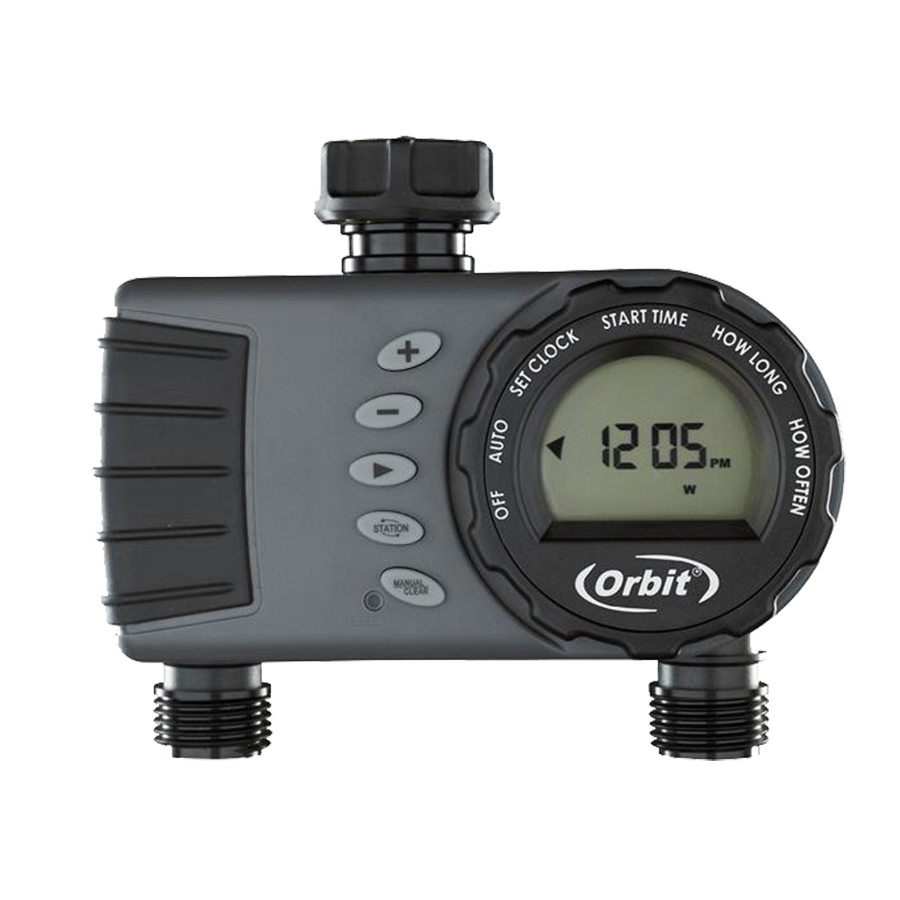

ORBIT 2 STATION TAP TIMER

Orbit 2 station tap timer for automatic garden watering from one outdoor tap. Designed for two hose-end watering outlets. Includes simple programming, 3 start times, manual bypass, 1 to 7 day rain delay and 680kPa maximum operating pressure.

✓ 2 Station Hose-End Tap Timer
✓ Two Outlet Garden Watering Control
✓ 3 Independent Start Times
✓ 1 to 360 Minute Watering Duration
✓ Manual Bypass for Faucet Use
✓ 1 to 7 Day Rain Delay
✓ 680kPa Maximum Operating Pressure

Orbit Tap Timer 1 Station Specifications
Orbit Tap Timer 2 Station Specifications

More Information
Product Specifications
Product Videos
Orbit Tap Timer - 2 Station (max 680kPa)
ORBIT 2 STATION TAP TIMER
Orbit Tap Timer - 2 Station (max 680kPa)
Orbit Tap Timer - 2 Station (max 680kPa) CNOTTDP
$126.30 /each
Orbit Tap Timer - 1 Station (max 680kPa)
Orbit Tap Timer - 1 Station (max 680kPa) CNOTT
$91.55 /each

The Orbit 2 Station Tap Timer is a hose-end irrigation timer for running two watering outlets from one garden tap. It is suited to garden beds, lawn sprinklers, pots and basic drip or hose watering systems where two separate tap outlets are required.

This two outlet tap timer provides simple programmed watering with days-of-the-week scheduling, interval programming and watering durations from 1 to 360 minutes. It includes 3 independent start times, allowing flexible watering times for standard garden use.

The timer includes manual bypass for easy faucet use, along with a built-in rain delay that can pause watering for 1 to 7 days. It is weather resistant, IP35 certified and fitted with an overmolded brass hose faucet swivel.

The Orbit 2 Station Tap Timer operates using two AA batteries, which are not included. Suitable for cold water irrigation systems only. Maximum operating pressure: 680kPa.

Orbit Tap Timer 1 Station Specifications
Orbit Tap Timer 2 Station Specifications

✓ Product Type & Model
Orbit 1 Dial 2 Outlet Hose End Tap Timer, product code 96782.

✓ Application
Two outlet tap timer for garden taps, sprinklers, garden beds, pots, drip watering and hose-end irrigation systems.

✓ Programming
Days-of-the-week programming and interval programming, with watering options from every hour up to every 7th day.

✓ Watering Schedule
3 independent start times, with watering duration from 1 to 360 minutes.

✓ Manual & Rain Delay
Manual bypass for easy faucet use. Rain delay can pause watering from 1 to 7 days.

✓ Pressure Rating
Minimum operating pressure: 170kPa. Maximum operating pressure: 680kPa.

✓ Power Supply
Requires two AA batteries. Batteries not included.

✓ Construction & Protection
Weather resistant construction, overmolded brass hose faucet swivel and IP35 certification.

✓ Important Use Note
For use in cold water irrigation systems only.
