ORBIT B-HYVE TAP TIMER BLUETOOTH WITH WIFI HUB GENERATION 2

Complete Gen 2 B-Hyve smart hose tap watering kit with Bluetooth tap timer and matching Gen 2 WiFi hub for app control and WiFi remote access.

✓ Complete Gen 2 Timer & Hub Kit
✓ Product Code 96204
✓ B-Hyve App Control
✓ Bluetooth Tap Timer Setup
✓ WiFi Access with Gen 2 Hub
✓ 689 kPa Maximum Timer Pressure

Orbit B-Hyve Range Brochure
Orbit B-Hyve Tap Timer Hub Gen 2 User Manual

Product Descriptions
Product Specifications
Orbit B-Hyve Tap Timer Bluetooth with Wifi Hub Gen 2 (96204) - max 689 kPa
ORBIT B-HYVE TAP TIMER BLUETOOTH WITH WIFI HUB GENERATION 2
Orbit B-Hyve Tap Timer Bluetooth with Wifi Hub Gen 2 (96204) - max 689 kPa
Orbit B-Hyve Tap Timer Bluetooth with Wifi Hub Gen 2 (96204) - max 689 kPa CNOBHTTWIFI2
$250.42 /each
Orbit B-Hyve Tap Timer Bluetooth Gen 2 TIMER ONLY (96205) - max 689 kPa
Orbit B-Hyve Tap Timer Bluetooth Gen 2 TIMER ONLY (96205) - max 689 kPa CNOBHTTBT2
$159.50 /each
Orbit B-Hyve Wifi Hub Gen 2 HUB ONLY (96527)
Orbit B-Hyve Wifi Hub Gen 2 HUB ONLY (96527) CNOBHTTHUB2
$127.04 /each

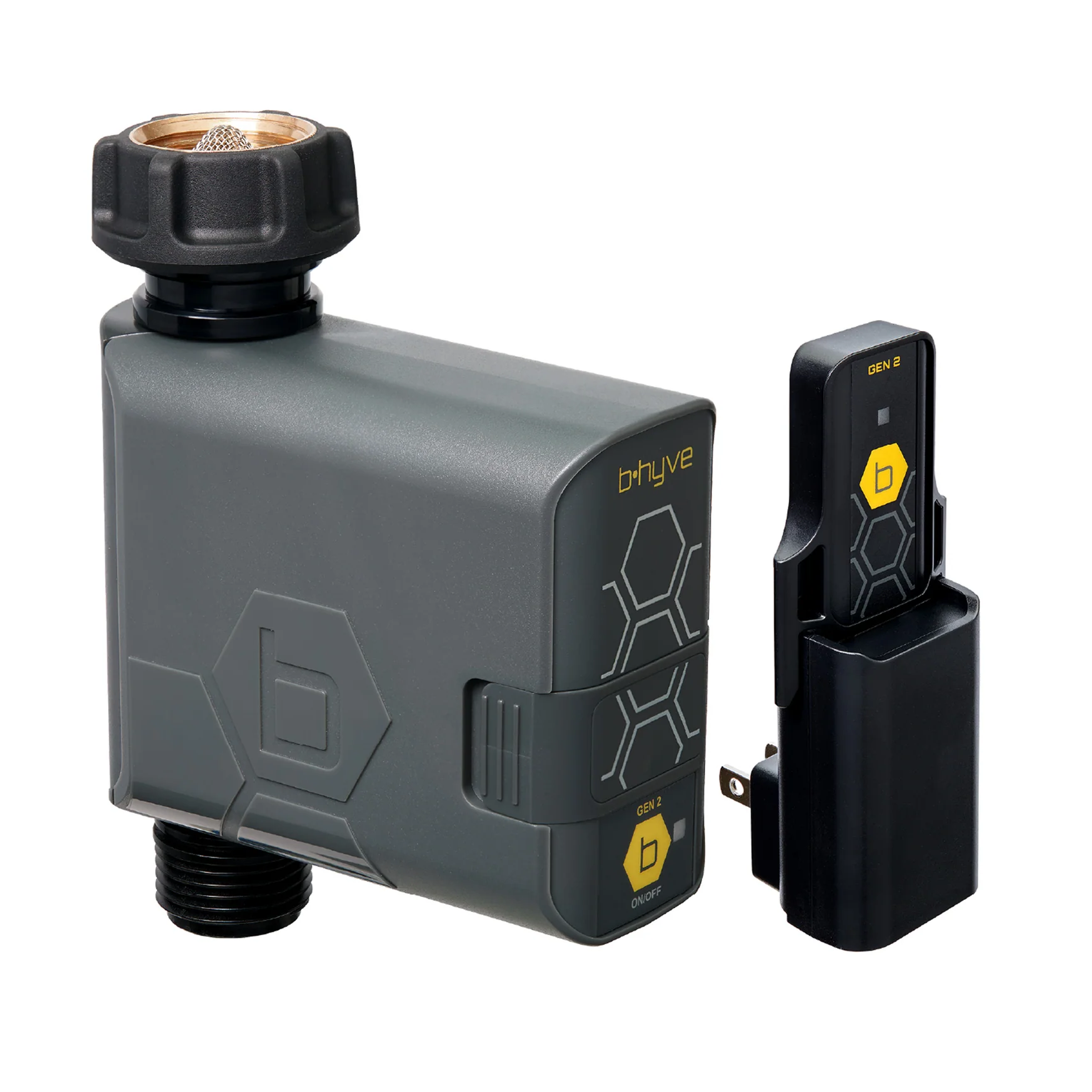

The Orbit B-Hyve Tap Timer Bluetooth with WiFi Hub Gen 2 is a smart hose tap watering kit for residential garden irrigation. It includes the Gen 2 Bluetooth tap timer and matching Gen 2 WiFi hub for B-Hyve app-based watering control.

The tap timer is designed for hose tap watering control, while the included Gen 2 WiFi Hub connects the system to the home network for WiFi remote access and smart watering features. The Gen 2 hub is added through the B-Hyve app as a Gen 2 Hub and plugs into an indoor outlet within range of the timer and WiFi signal.

The Gen 2 timer has a maximum operating pressure of 689 kPa and is suitable for standard hose tap watering applications. Use Gen 2 timers and Gen 2 hubs together when setting up this product family.

Orbit B-Hyve Range Brochure
Orbit B-Hyve Tap Timer Hub Gen 2 User Manual

✓ Model / Product Code
Orbit B-Hyve Tap Timer Bluetooth with WiFi Hub Gen 2, product code 96204.

✓ Product Type
Complete Gen 2 smart hose tap watering kit with Bluetooth tap timer and WiFi hub.

✓ Included Components
Includes Gen 2 B-Hyve tap timer and Gen 2 WiFi hub.

✓ Gen 2 Compatibility
Complete Gen 2 kit includes the matching Gen 2 Bluetooth Tap Timer 96205 and Gen 2 WiFi Hub 96527.

✓ Application
Suitable for smart hose tap watering in residential garden irrigation systems.

✓ App Control

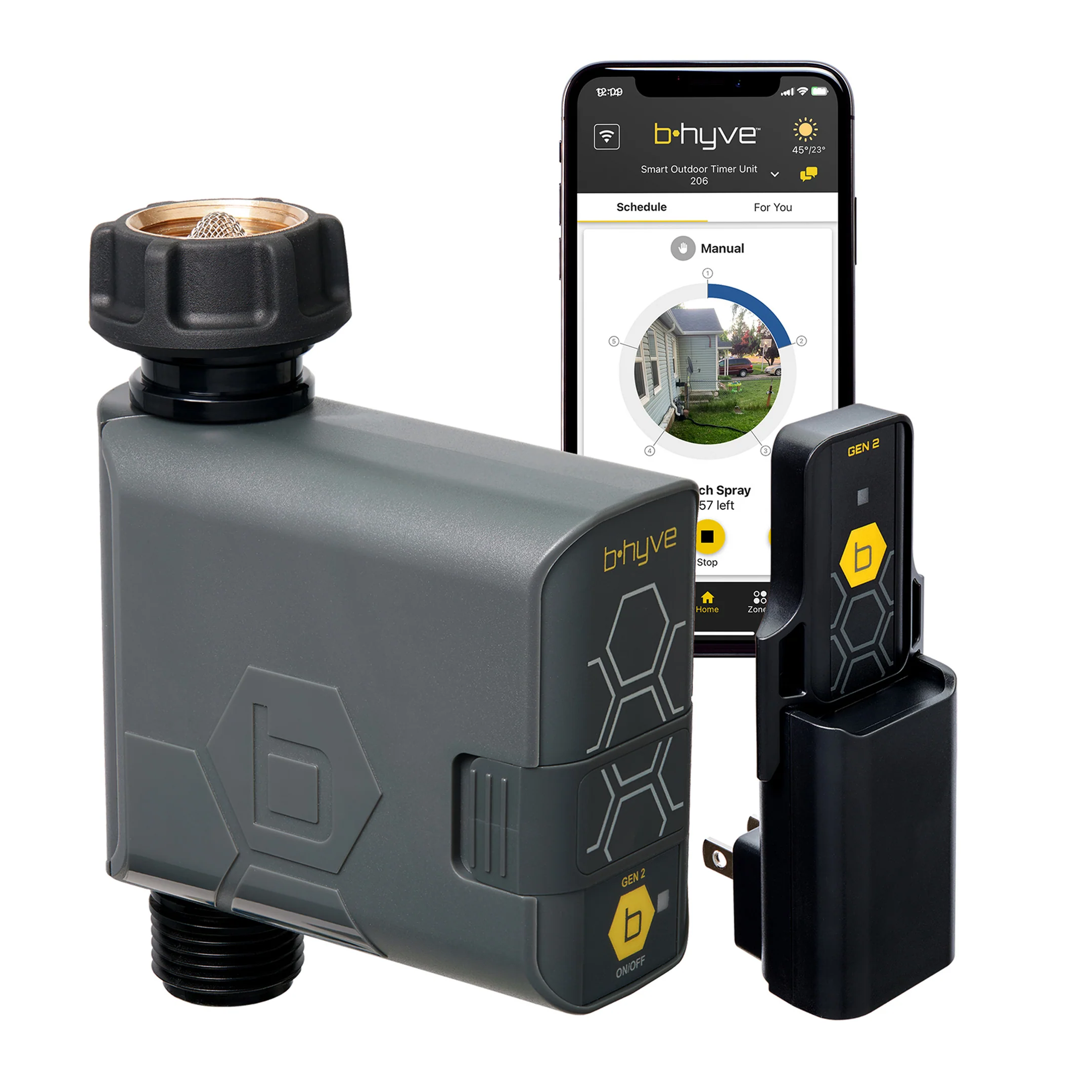

Designed for setup and control through the B-Hyve app on compatible Apple iOS and Android smart devices.

✓ Bluetooth Operation
The tap timer uses Bluetooth for app-based local connection and setup.

✓ WiFi Operation
WiFi remote access and smart watering features require connection to the home network via the included Gen 2 WiFi Hub.

✓ Smart Watering
B-Hyve smart watering features can use local weather and site information to help manage watering through the B-Hyve app.

✓ Timer Maximum Pressure
689 kPa maximum operating pressure.

✓ Timer Use
For outdoor hose tap watering applications. Do not place the timer in an underground valve box.

✓ Hub Model
BH1G2.

✓ Hub Installation
Plugs into an indoor outlet within range of the B-Hyve device and WiFi signal.

✓ Hub Use
Gen 2 WiFi Hub is for indoor use only.

✓ Hub Range
300 ft / 91m range without interference.

✓ Hub Operating Temperature
0°C to 40°C operating temperature range.

✓ Hub Storage Temperature
-20°C to 60°C storage temperature range.

✓ Hub Operating Humidity
0–90% operating humidity range.

✓ Hub Electrical Input
100–240V, 50/60Hz, 0.2A.

✓ Hub Electrical Output
5V, 1.0A.
