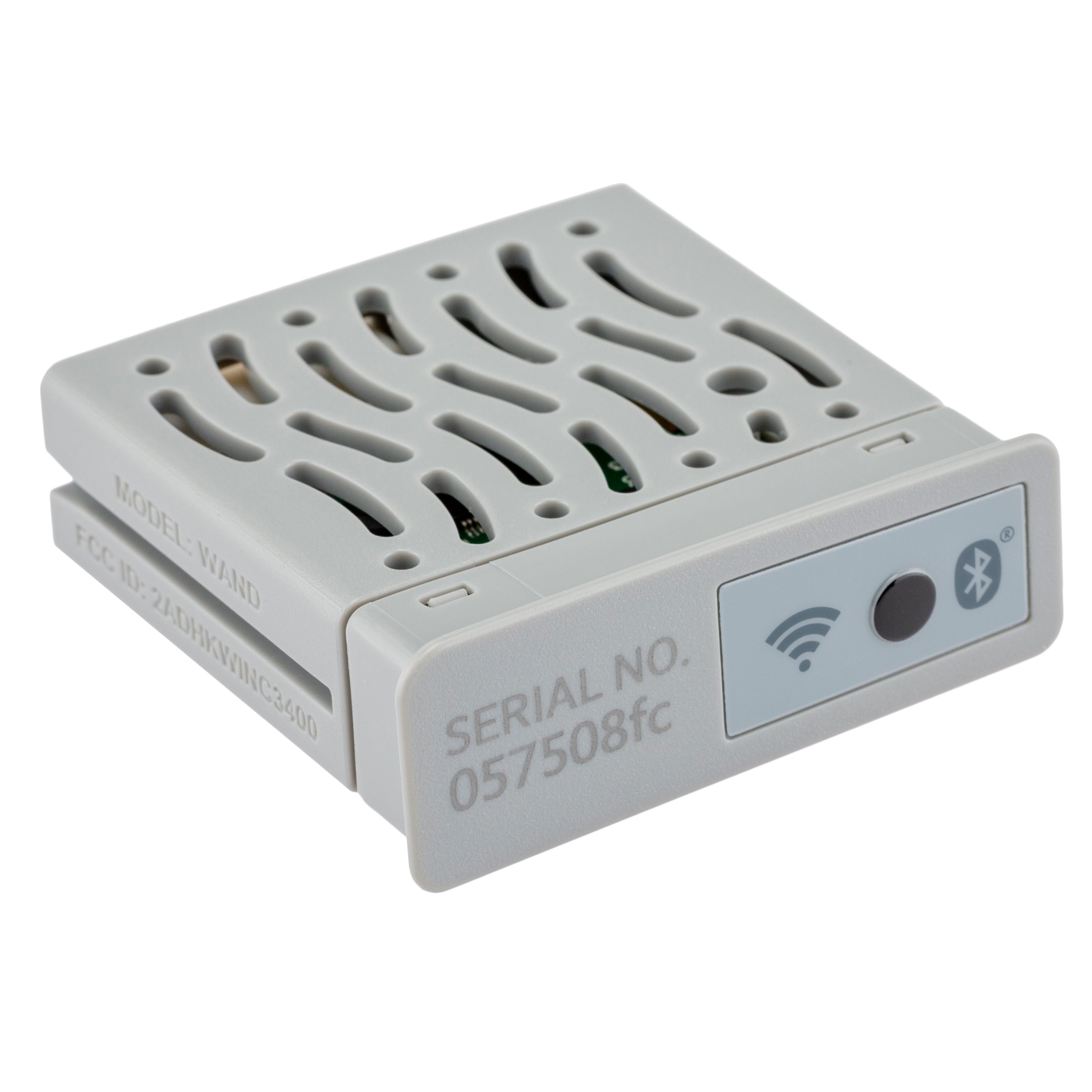

Hunter WAND Wi-Fi module with vented grey housing
Hunter WAND Wi-Fi module with vented grey housing

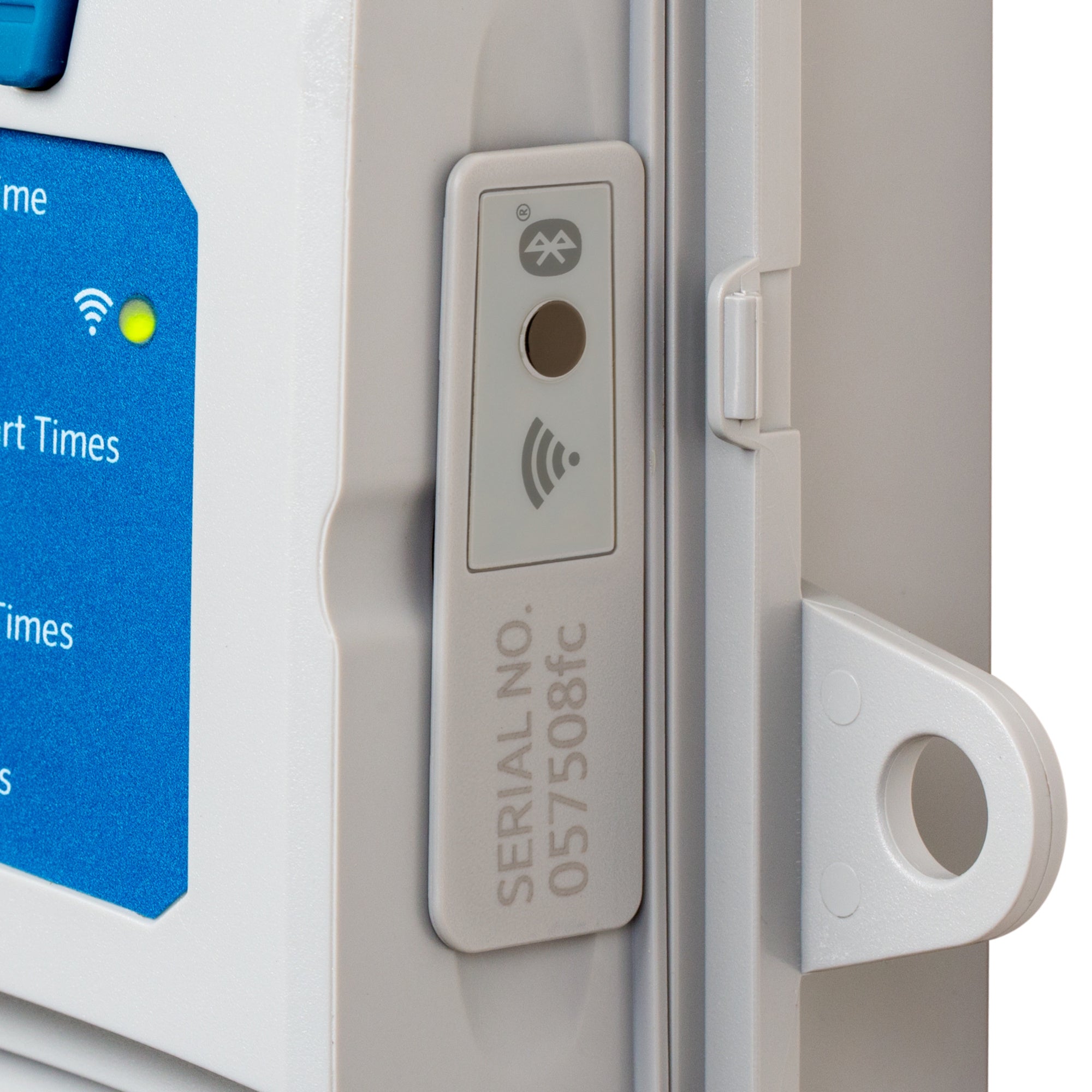

Hunter WAND Wi-Fi module fitted beside X2 controller panel
Hunter WAND Wi-Fi module fitted beside X2 controller panel
Hunter WAND Wi-Fi module with vented grey housing
Hunter WAND Wi-Fi module fitted beside X2 controller panel

HUNTER WAND HYDRAWISE WI-FI MODULE FOR X2 CONTROLLERS

The Hunter WAND plugs into an X2 controller to add Hydrawise Wi-Fi irrigation management. Manage watering through the app or web browser with online weather-based adjustment and controller alerts. Bluetooth provides nearby manual watering, Wi-Fi setup and schedule transfer through the Hydrawise app. The X2 controller is purchased separately.

✓ Plug-In Upgrade for Hunter X2 Controllers
✓ Hydrawise App and Web Management
✓ Online Weather-Based Watering Adjustment
✓ Bluetooth Setup and Nearby Manual Watering
✓ Rapid Programming Schedule Transfer
✓ 2 Year Hunter Warranty

WAND module documents
Hunter X2 WAND Network Requirements & Troubleshooting
Hunter X2 WAND Quick Start Guide
Hunter X2 WAND Specifications

Compatible X2 controller specifications
Hunter X2 Controller Specifications

Hunter WAND Wi-Fi module with vented grey housing
Hunter X2 controller with outer cover open
Hunter Controller X2 4 Station CNHX204
$185.34 /each
Hunter X2 controller with outer cover open
Hunter Controller X2 6 Station CNHX206
$212.59 /each
Hunter X2 controller with outer cover open
Hunter Controller X2 8 Station CNHX208
$273.33 /each
Hunter X2 controller with outer cover open
Hunter Controller X2 14 Station CNHX214
$461.55 /each

The Hunter WAND adds Hydrawise connectivity to a compatible X2 controller. Online management provides app and web access, weather-based watering adjustment, controller status and alerts. It requires a suitable 2.4 GHz Wi-Fi network and internet access for online services.

With Bluetooth, a nearby smartphone can set up the Wi-Fi connection through the Hydrawise app, operate watering manually when Wi-Fi is unavailable, and check connection diagnostics. Bluetooth local control has a different purpose from accessing the controller over the internet when away from the property.

Rapid Programming transfers a schedule prepared in Hydrawise through WAND into the X2’s memory using Bluetooth. Remove WAND after the transfer for standalone operation. This is useful when setting up multiple controllers with the same or similar schedules.

In normal online operation, Hydrawise manages the active schedule and the original dial-and-button schedule is inactive. Standard Hydrawise programming supports three programs with six start times per program and station run times up to 24 hours. Manual station, program and test functions remain available at the controller.

Keep the X2 dial in RUN for Hydrawise operation. OFF stops watering. Removing WAND normally restores the original local schedule and settings, unless they have been replaced using Rapid Programming.

Install the module in the X2’s Wi-Fi connection compartment following the setup guide. Bluetooth, SoftAP and WPS provide Wi-Fi setup options. WAND does not add station outputs or change the X2’s fixed station capacity.

2 Year Hunter Warranty.

WAND module documents
Hunter X2 WAND Network Requirements & Troubleshooting
Hunter X2 WAND Quick Start Guide
Hunter X2 WAND Specifications

Compatible X2 controller documents
Hunter X2 Controller Quick Start Guide
Hunter X2 Controller Specifications
Hunter X2 Controller Door Card
Hunter X2 Controller Hidden Feature Card
Hunter X2 Controller Wiring Diagram

✓ Application
Adds Hydrawise irrigation management and Bluetooth functions to compatible Hunter X2 controllers.

✓ Warranty
2 Year Hunter Warranty.

✓ Model & Controller Compatibility
Model: Hunter WAND plug-in Wi-Fi and Bluetooth module.
Manufacturer Stock Code: HI-X2WAND.
Compatible Controllers: Hunter X2 4, 6, 8 and 14 station models.
Station Capacity: WAND does not add station outputs. Capacity remains that of the X2 controller.

✓ Hydrawise Programming & Control
Online Access: Hydrawise app and website provide schedule management and remote access.
Standard Programming: 3 independent programs with 6 start times per program.
Station Run Time: Up to 24 hours.
Online Features: Weather-based watering adjustment, controller status and alerts.
Internet: Required for online management and weather-based functions.

✓ Bluetooth Functions
Wi-Fi Setup: Connect a nearby smartphone through the Hydrawise app to configure the controller’s Wi-Fi connection.
Manual Watering: Nearby smartphone operation when Wi-Fi is unavailable.
Diagnostics: Check connection status and network information.
Rapid Programming: Transfer a schedule prepared in Hydrawise through WAND into the X2’s memory. Remove WAND after transfer for standalone operation.

✓ Controller Operation
Hydrawise Control: During normal online operation, Hydrawise manages the active schedule. The original dial-and-button schedule is inactive.
Local Manual Functions: Manual station, manual program and test functions remain available at the controller.
Dial Position: Leave the X2 in RUN for Hydrawise operation. OFF stops watering.
Module Position: WAND remains installed for ongoing Hydrawise operation.
WAND Removal: Normally restores the original local programs and settings, unless replaced using Rapid Programming.

✓ Wi-Fi Connection
Network: Suitable 2.4 GHz Wi-Fi network with medium-to-high signal strength at the controller.
Setup Methods: Bluetooth Wi-Fi setup, SoftAP or WPS.
Wireless Standards: Wi-Fi b/g/n and Bluetooth 5.0.

✓ Installation
Remove the X2 Wi-Fi cover and insert WAND in the controller’s module connection compartment.

✓ Approvals
UL, cUL, FCC, CE and RCM.

✓ Dimensions & Weight
Dimensions: Approximately height 20mm x width 50mm x depth 50mm.
