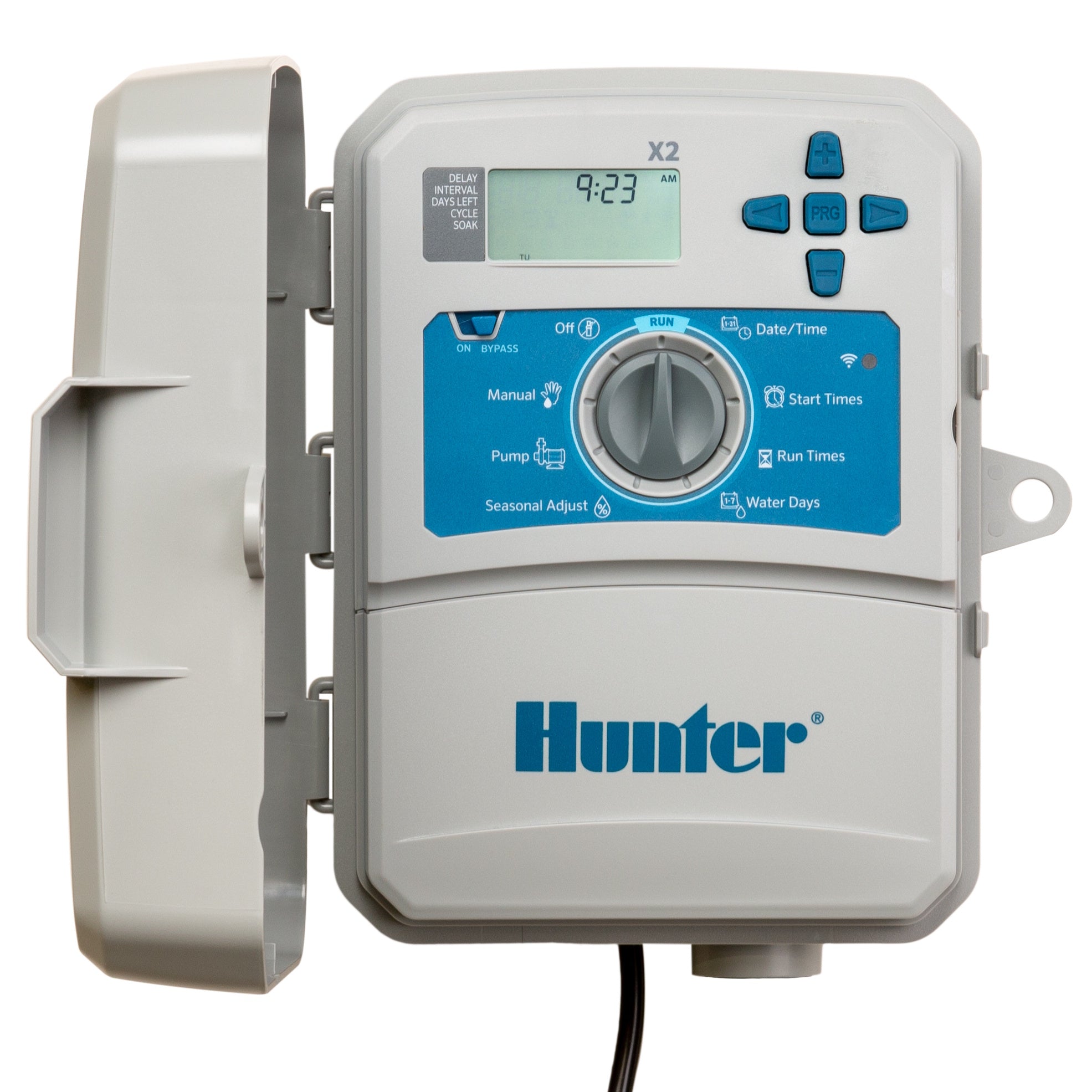

Hunter X2 controller with outer cover open
Hunter X2 controller with outer cover open

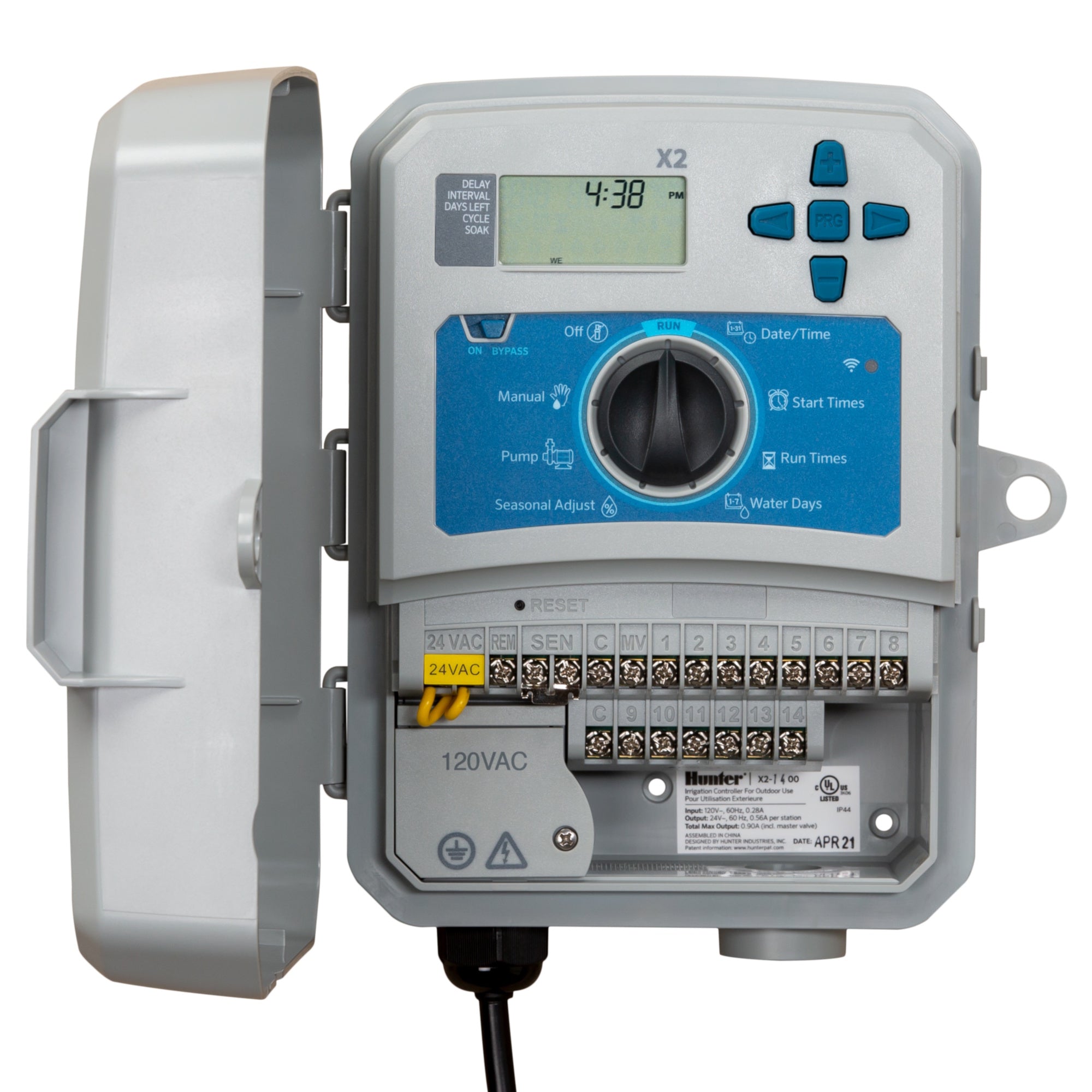

Hunter X2 controller showing wiring terminals below dial panel
Hunter X2 controller showing wiring terminals below dial panel

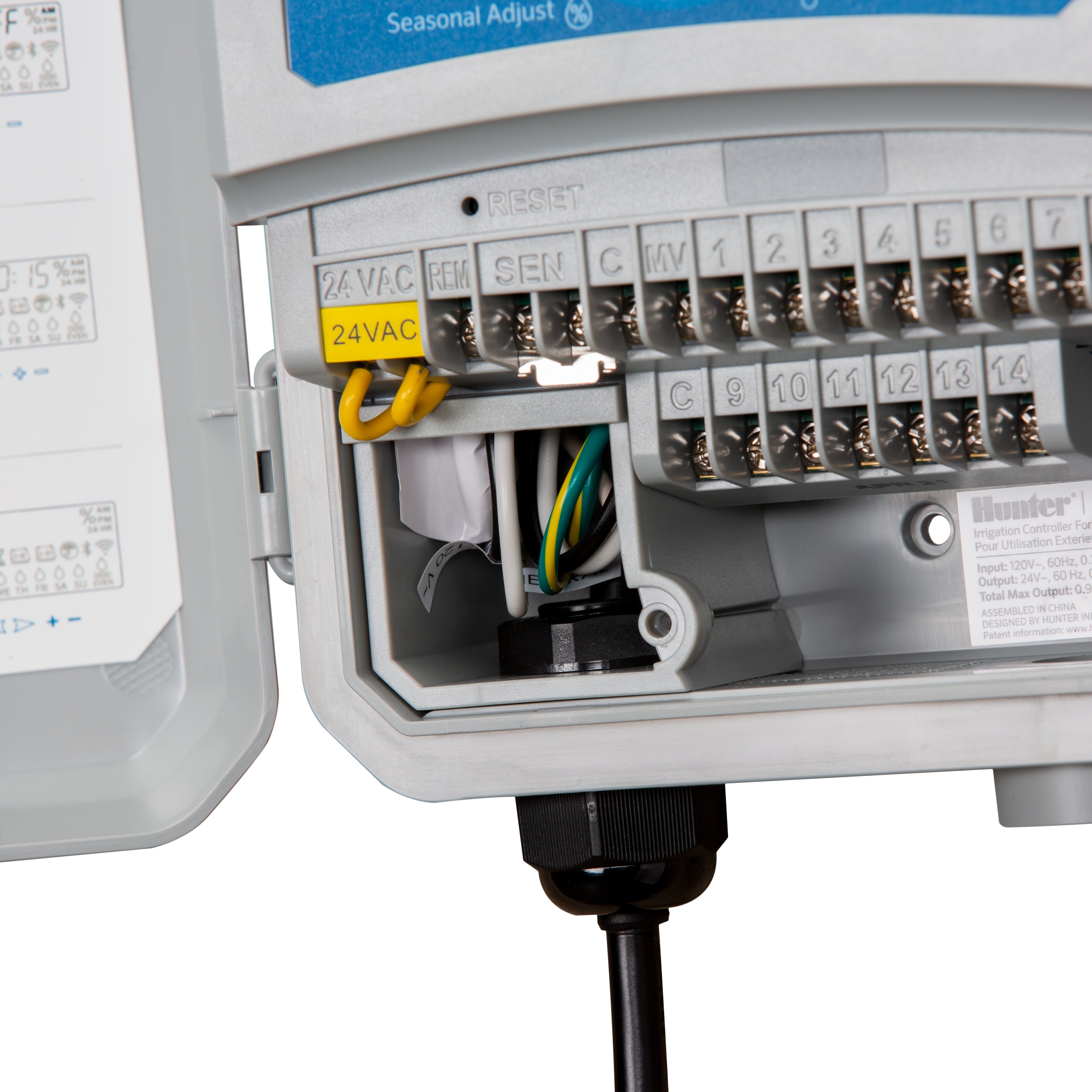

Close-up of Hunter X2 controller wiring terminals
Close-up of Hunter X2 controller wiring terminals

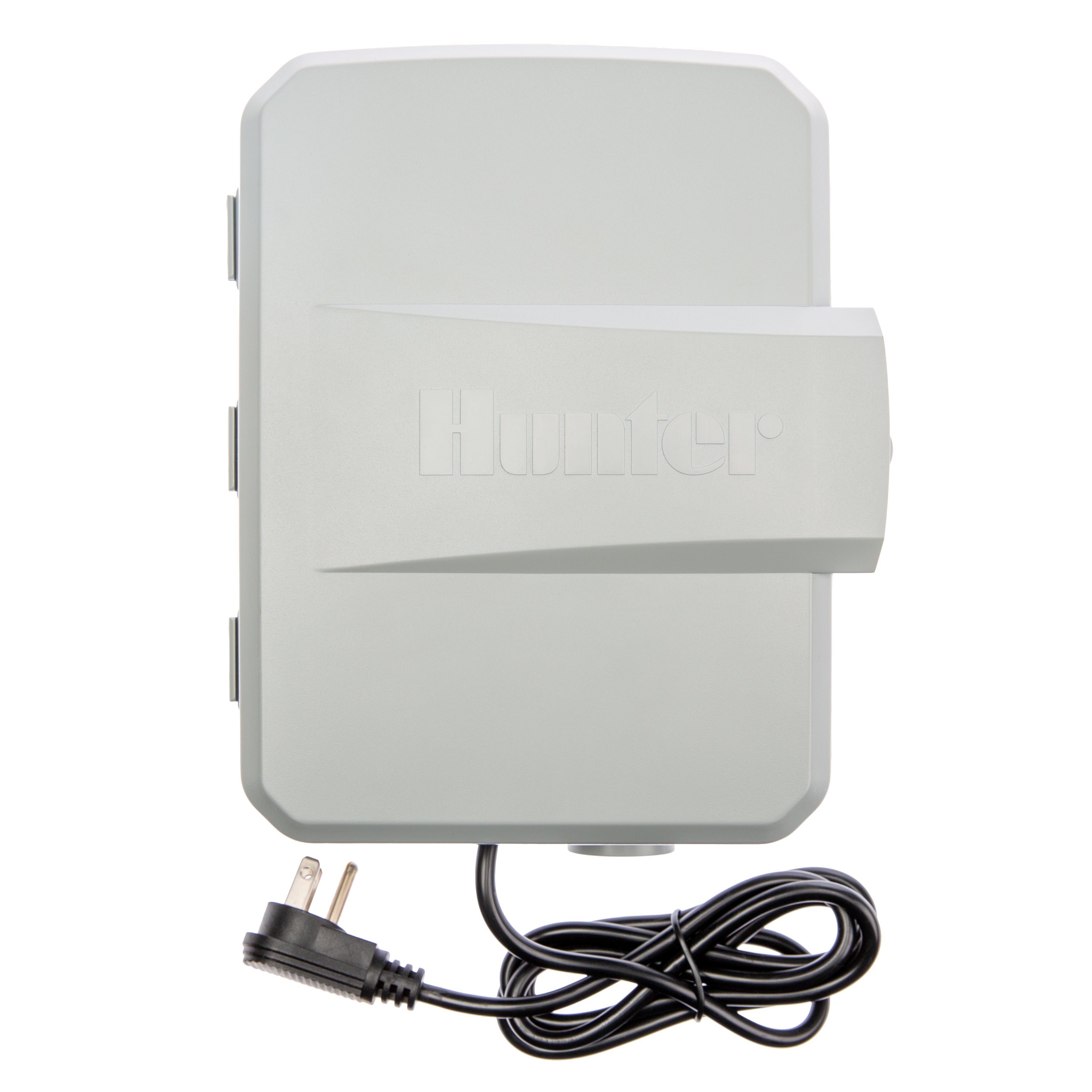

Hunter X2 controller with cover closed and power lead
Hunter X2 controller with cover closed and power lead

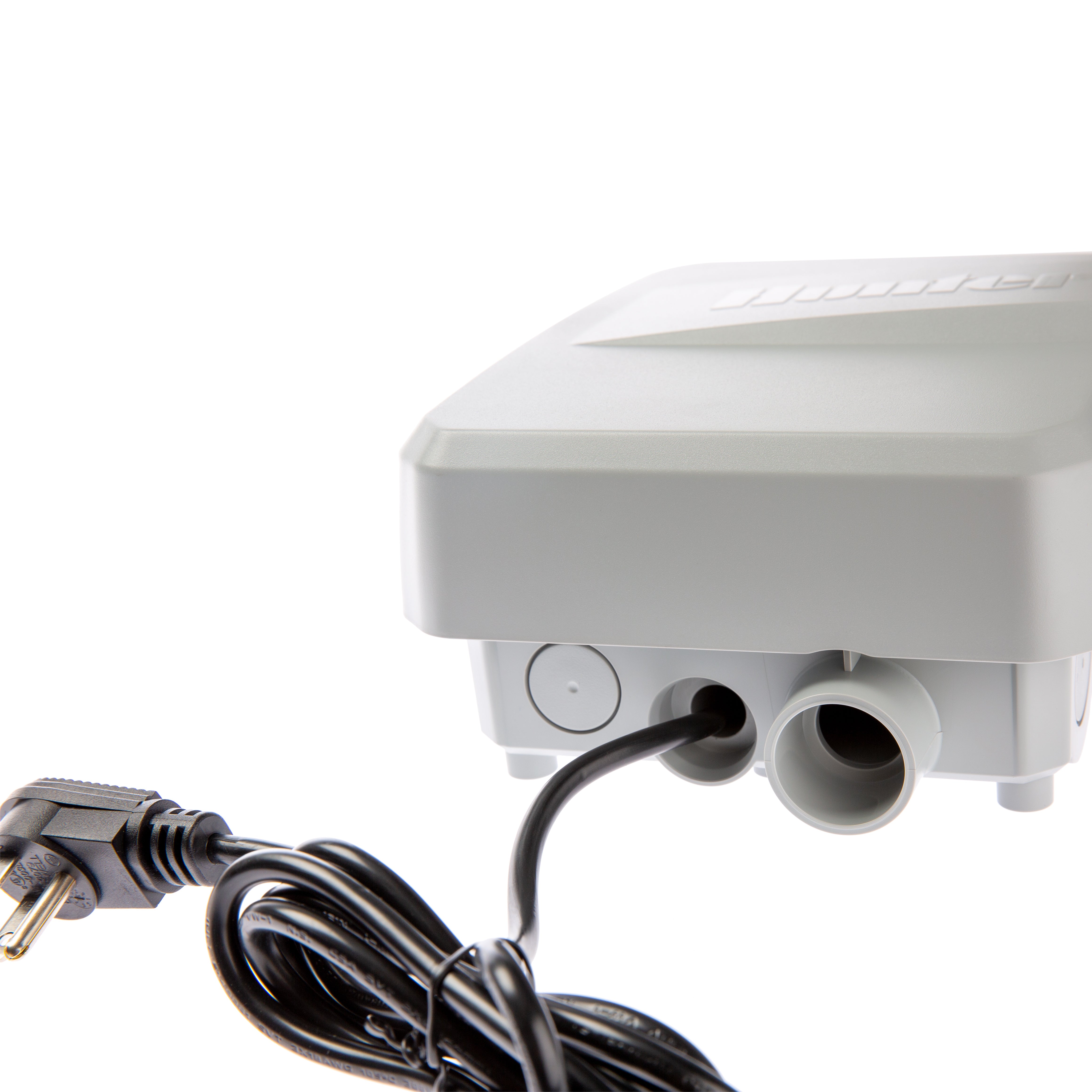

Bottom of Hunter X2 controller showing cable entry and power lead
Bottom of Hunter X2 controller showing cable entry and power lead
Hunter X2 controller with outer cover open
Hunter X2 controller showing wiring terminals below dial panel
Close-up of Hunter X2 controller wiring terminals
Hunter X2 controller with cover closed and power lead
Bottom of Hunter X2 controller showing cable entry and power lead

HUNTER X2 OUTDOOR CONTROLLER 14 (COMPATIBLE WITH WAND WI-FI MODULE)

The Hunter X2 14 Station Outdoor Controller provides automatic irrigation control for up to 14 watering zones in residential and light commercial systems. Program locally through the dial and buttons, or add the optional WAND Wi-Fi module for Hydrawise app and web control with weather-based watering adjustment. WAND is sold separately.

✓ 14 Fixed Stations with Separate Pump / Master-Valve Output
✓ Local Control: 3 Programs with 4 Start Times per Program
✓ Local Station Run Times from 1 Minute to 6 Hours
✓ Optional WAND Adds Hydrawise Wi-Fi Control
✓ With WAND: 3 Programs, 6 Start Times per Program & Run Times up to 24 Hours
✓ 2 Year Hunter Warranty

Controller documents
Hunter X2 Controller Quick Start Guide
Hunter X2 Controller Specifications
Hunter X2 Controller Door Card
Hunter X2 Controller Hidden Feature Card
Hunter X2 Controller Wiring Diagram

Optional WAND Wi-Fi upgrade
Hunter X2 WAND Network Requirements & Troubleshooting
Hunter X2 WAND Quick Start Guide
Hunter X2 WAND Specifications

Hunter X2 controller with outer cover open
Hunter X2 controller with outer cover open
Hunter Controller X2 4 Station CNHX204
$185.34 /each
Hunter X2 controller with outer cover open
Hunter Controller X2 6 Station CNHX206
$212.59 /each
Hunter X2 controller with outer cover open
Hunter Controller X2 8 Station CNHX208
$273.33 /each
Hunter X2 controller with outer cover open
Hunter Controller X2 14 Station CNHX214
$461.55 /each

The Hunter X2 14 Station Outdoor Controller provides local dial and button programming for residential and light commercial irrigation. It has 14 fixed station outputs, a backlit display and a separate P/MV output for a master valve or pump start relay. Station expansion modules are not supported. Add WAND separately for Hydrawise control.

Without WAND, the X2 provides 3 independent programs with 4 start times per program and station run times from 1 minute to 6 hours. Scheduling options include days of the week, odd/even dates and interval watering.

Add the optional WAND module for Hydrawise app and web access, weather-based adjustment, controller status and alerts. It requires a suitable 2.4 GHz Wi-Fi network and internet access for online functions. Standard Hydrawise programming provides three programs with six start times per program and station run times up to 24 hours.

WAND also provides Bluetooth connection to a nearby smartphone through the Hydrawise app. Use it to set up the Wi-Fi connection, operate watering manually when Wi-Fi is unavailable, and check connection diagnostics. Remote access from away from the property and online weather-based adjustment require Wi-Fi and internet access.

For standalone installations, Rapid Programming lets you transfer a schedule prepared in Hydrawise into the X2 through WAND using Bluetooth. Remove WAND after the transfer and the X2 runs the transferred schedule on its own. This is useful when setting up several controllers with the same or similar schedules.

During normal online WAND operation, Hydrawise manages the active schedule. The original dial-and-button schedule is inactive. Manual station, program and test functions remain available at the controller. Keep the dial in RUN for Hydrawise operation. OFF stops watering. Removing WAND restores the original local programs and settings, unless these have been replaced using Rapid Programming.

Seasonal adjustment, Cycle and Soak, delay between stations and programmable rain off provide further control. The sensor input supports suitable Clik sensors, including Rain-Clik and Soil-Clik. Solar Sync is not compatible, with or without WAND.

QuickCheck, short-circuit protection and Easy Retrieve assist with fault finding and schedule backup. Optional ROAM and ROAM LR remotes provide on-site manual operation.

2 Year Hunter Warranty.

Controller documents
Hunter X2 Controller Quick Start Guide
Hunter X2 Controller Specifications
Hunter X2 Controller Door Card
Hunter X2 Controller Hidden Feature Card
Hunter X2 Controller Wiring Diagram

Optional WAND Wi-Fi upgrade
Hunter X2 WAND Network Requirements & Troubleshooting
Hunter X2 WAND Quick Start Guide
Hunter X2 WAND Specifications

How watering programs work

Without WAND, the X2 has three separate watering programs, labelled A, B and C. Each program is its own watering schedule, with separate watering days, start times and station run times. Choose days of the week, odd/even dates or an interval between watering days.

Each station controls a watering zone, such as a lawn or garden bed. Within each program, select the stations to water and set how long each one runs. Station run times range from 1 minute to 6 hours.

Each program allows up to four start times on its selected watering days. Each start time begins the whole program, watering its stations one after another for their set run times.

For example, Program A could start at 6am, water the lawn for 10 minutes, then water a garden bed for 5 minutes. That needs one start time. Add another start time to repeat the same sequence later that day. Programs B and C can have their own schedules. Use only the programs and start times you need.

Avoiding common programming mistakes

  • Avoid unintended repeat cycles. One start time runs the whole program. Each additional start repeats it. Disable or remove starts you do not need.
  • Check all programs. A station included in more than one active program can water again under each schedule. Keep it in multiple programs only when that extra watering is intended.
  • Space start times for the whole cycle. Allow time for the complete watering cycle, including all stations and any programmed delays, before scheduling another start.
  • With WAND, edit the Hydrawise schedule. The active schedule is managed in Hydrawise. Changing the original dial-and-button program will not change the connected watering schedule. Check the app for suspended watering or weather-related skips.
✓ Application
Residential garden reticulation and light commercial irrigation systems.

✓ Warranty
2 Year Hunter Warranty.

✓ Model Specifications
Model: X2-1401-A, 14 station outdoor controller.
Manufacturer Stock Code: HI-X21401A
Station Capacity: 14 fixed station outputs. Station expansion modules are not supported.
Pump / Master Valve: Separate P/MV output for a master valve or pump start relay.

✓ Programming & Watering Schedules
Using the controller without WAND
Programs: 3 independent programs.
Start Times: 4 per program.
Station Run Time: 1 minute to 6 hours.
Watering Days: Day-of-week, odd/even dates or interval watering.
Seasonal Adjustment: 10% to 200%.
Other Timing Functions: Cycle and Soak, delay between stations, programmable rain off up to 99 days, and Hide Programs setting.

With WAND and Hydrawise - standard programming
Programs: 3 independent programs.
Start Times: 6 per program.
Station Run Time: Up to 24 hours.
Schedule Management: Through Hydrawise, with weather-based adjustment and remote access when online.

✓ Manual Operation
Manual Watering: Single station, manual program, one-touch start and advance, and test operation.

✓ Control & Connectivity
Local Control: Dial and button programming without WAND.
Optional Wi-Fi: Hunter WAND module, sold separately, enables Hydrawise app and web control.
Bluetooth with WAND: Nearby smartphone connection through the Hydrawise app for Wi-Fi setup, manual watering without Wi-Fi, and connection diagnostics.
Rapid Programming: Transfer a schedule prepared in Hydrawise to the X2 over Bluetooth through WAND. Remove WAND after transfer for standalone operation.
Network: Suitable 2.4 GHz Wi-Fi network with medium-to-high signal strength at the controller. Internet access required for online services.
WAND Operation: Hydrawise manages the active schedule. The previous local schedule is inactive. Manual station, program and test functions remain available at the controller.
Dial Position with WAND: RUN enables Hydrawise operation. OFF stops watering.
WAND Removal: Restores the original dial-and-button programs and settings, unless replaced using Rapid Programming.

✓ Sensors & System Control
Sensor Inputs: 1.
Compatible Sensors: Suitable Hunter Clik sensors, including Rain-Clik and Soil-Clik.
Sensor Override: Programmable sensor override.
Solar Sync: Not compatible, with or without WAND.

✓ Remote Compatibility
Handheld Remotes: Hunter ROAM and ROAM LR with the appropriate SmartPort connection.

✓ Installation & Construction
Installation: Outdoor wall mounting.
Enclosure: Plastic cabinet. IP44 rating.
Display: Backlit display with dial and buttons.
Compliance: RCM approved.

✓ Power Supply & Valve Outputs
Operating Supply: 230VAC Australian models with internal transformer.
Transformer Output: 24VAC, 1A.
Station Output: 24VAC, 0.56A.
P/MV Output: 24VAC, 0.28A.
Valve Type: Compatible 24VAC irrigation solenoids.

✓ Memory, Diagnostics & Protection
Schedule Backup: Easy Retrieve saves controller scheduling and setup for later restoration.
Diagnostics: QuickCheck field-wiring diagnostics.
Protection: Short-circuit detection skips the faulty station.

✓ Dimensions & Weight
Dimensions: Approximately height 230mm x width 190mm x depth 100mm.
