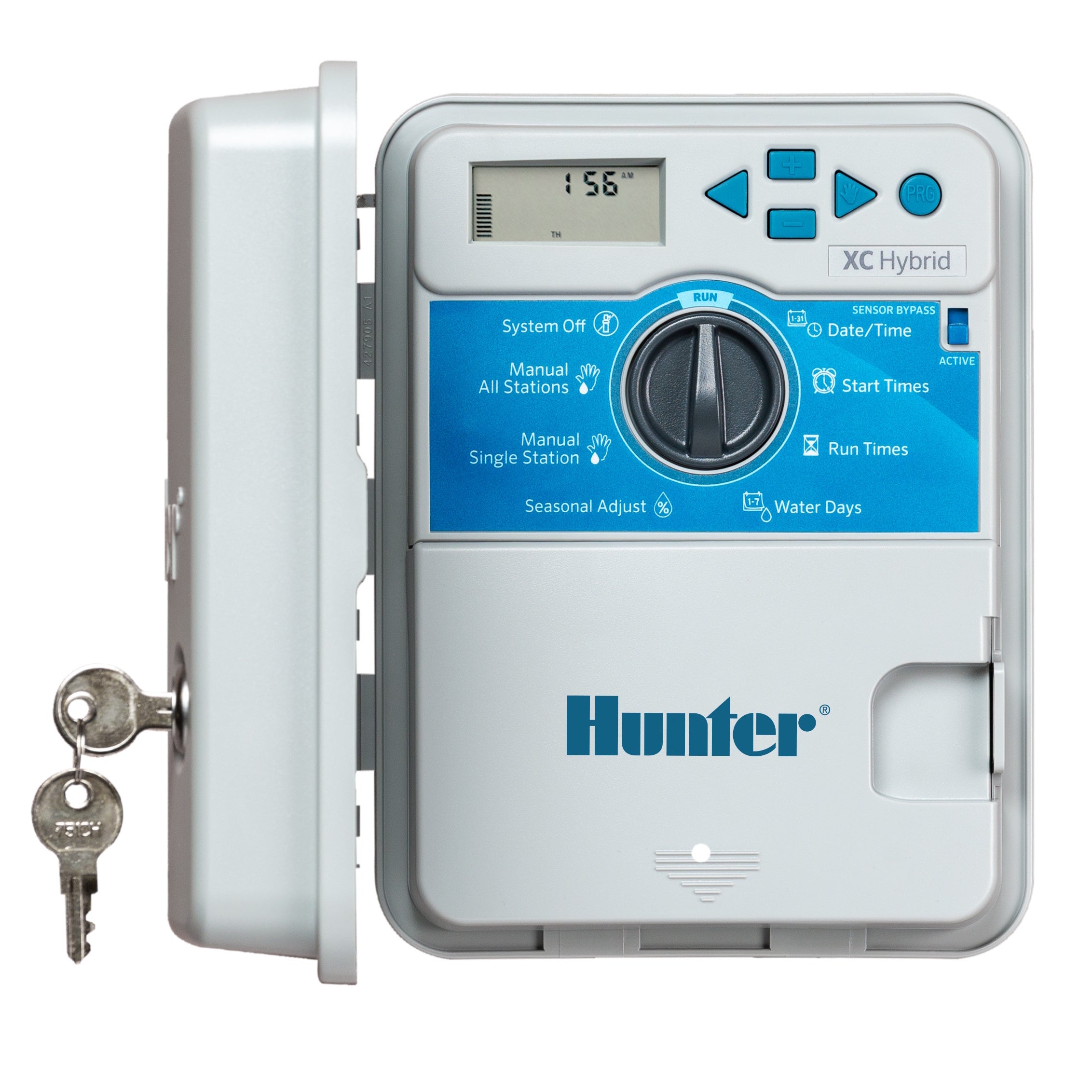

The Hunter XC Hybrid 6 Station Outdoor Controller is a battery-operated irrigation controller for sites where mains power is unavailable or difficult to access. It is suited to remote or isolated irrigation areas such as gardens, parks, road verges, medians, roundabouts and other outdoor watering applications.
This 6 station XC Hybrid model runs on six AA alkaline batteries and is designed to operate Hunter DC-latching solenoids. Standard 24VAC irrigation solenoids will not operate with this controller, so the correct DC-latching solenoids must be used when installing or replacing valves.
The XC Hybrid uses familiar Hunter dial-based programming with 3 independent programs, 4 start times per program and station run times up to 4 hours. It also includes seasonal adjustment, manual watering, programmable rain off, sensor bypass and Easy Retrieve™ memory backup for restoring a saved watering schedule.
The controller can also accept a compatible wired rain, freeze or wind sensor input. If AC power becomes available later, the XC Hybrid can be powered by an optional plug-in transformer, but the station output remains DC and the system must still use DC-latching solenoids.
2 Year Hunter Warranty
Hunter XC Hybrid Controller Brochure
Hunter XC Hybrid Controller Quick Start Guide
Hunter XC Hybrid Controller User Manual
Hunter XC Hybrid Controller Door Card
Hunter XC Hybrid Controller Specifications
