HOLMAN MISTING TAP TIMER

Holman Misting Tap Timer for short-burst misting and plant cooling applications. Designed for greenhouses, vertical gardens and outdoor misting setups. Includes cyclical ON/OFF timing, 7 day scheduling, manual operation and 600kPa pressure rating.

✓ Battery-Operated Misting Tap Timer
✓ Cyclical ON/OFF Misting Control
✓ 7 Day Scheduling
✓ Set Duration in Hours, Minutes or Seconds
✓ Great for Greenhouses & Vertical Gardens
✓ 600kPa Maximum Pressure Rating
✓ 2 Year Holman Replacement Guarantee

Controller Holman Misting Tap Timer

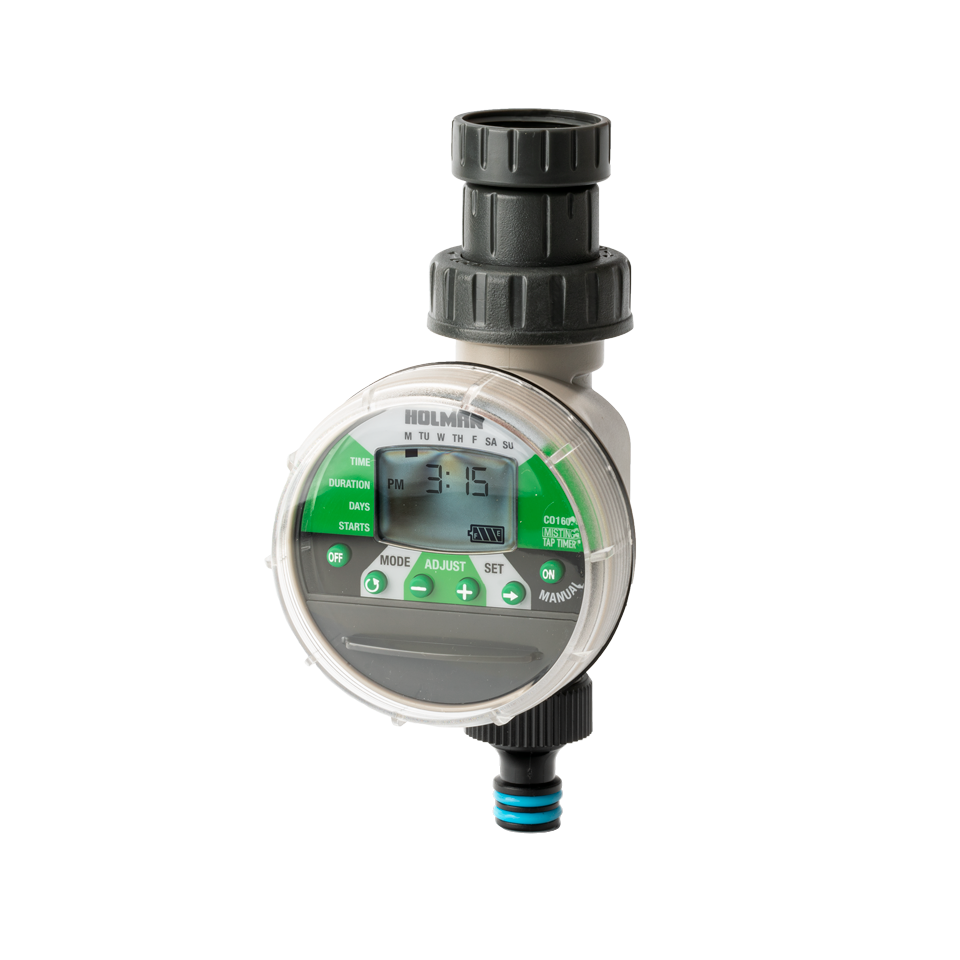

The Holman Misting Tap Timer is a battery-operated tap timer designed for short-burst misting and cooling applications. It is suited to greenhouses, vertical gardens, GreenWalls™, patios, pots, outdoor plant areas and other misting setups where watering needs to run for short repeated intervals.

Unlike a standard tap timer that simply runs for one longer watering period, this misting timer operates on a cyclical ON/OFF pattern. A start time and stop time set the active watering window, while the ON and OFF durations control how long the misting runs and rests within that window.

The timer allows misting duration to be set in hours, minutes or seconds, making it useful for greenhouse humidity control, plant cooling and regular short-cycle misting. It also includes 7 day scheduling, manual operation, suspend mode, low battery warning and an easy-to-read digital display.

The timer is designed for above-ground cold water irrigation use only, with a 600kPa maximum pressure rating. As with most tap timers, avoid freezing conditions and remove or protect the timer if very cold weather is expected.

2 Year Holman Replacement Guarantee

✓ Product Type & Model
Holman Misting Tap Timer, model CO1609.

✓ Application
Battery-operated tap timer for misting systems, greenhouses, vertical gardens, GreenWalls™, patios, pots, outdoor plant areas and short-cycle watering applications.

✓ Timing System
Runs on a cyclical ON/OFF pattern. Start and stop times set the active watering window, while ON and OFF times control how long the timer waters and rests during that window.

✓ Scheduling
7 day scheduling with selectable watering/misting days, start time and stop time.

✓ ON/OFF Duration Control
Misting duration and rest duration can be set using hours, minutes or seconds, allowing short-burst misting intervals down to the second.

✓ Manual & Suspend Operation
Manual operation allows watering or misting to start immediately using the pre-set ON time. Suspend mode can pause all timer operations without deleting the stored program.

✓ Power Supply & Battery Indicator
Operates using 1 x 9V alkaline battery. Includes low battery warning on the display.

✓ Connection & Installation

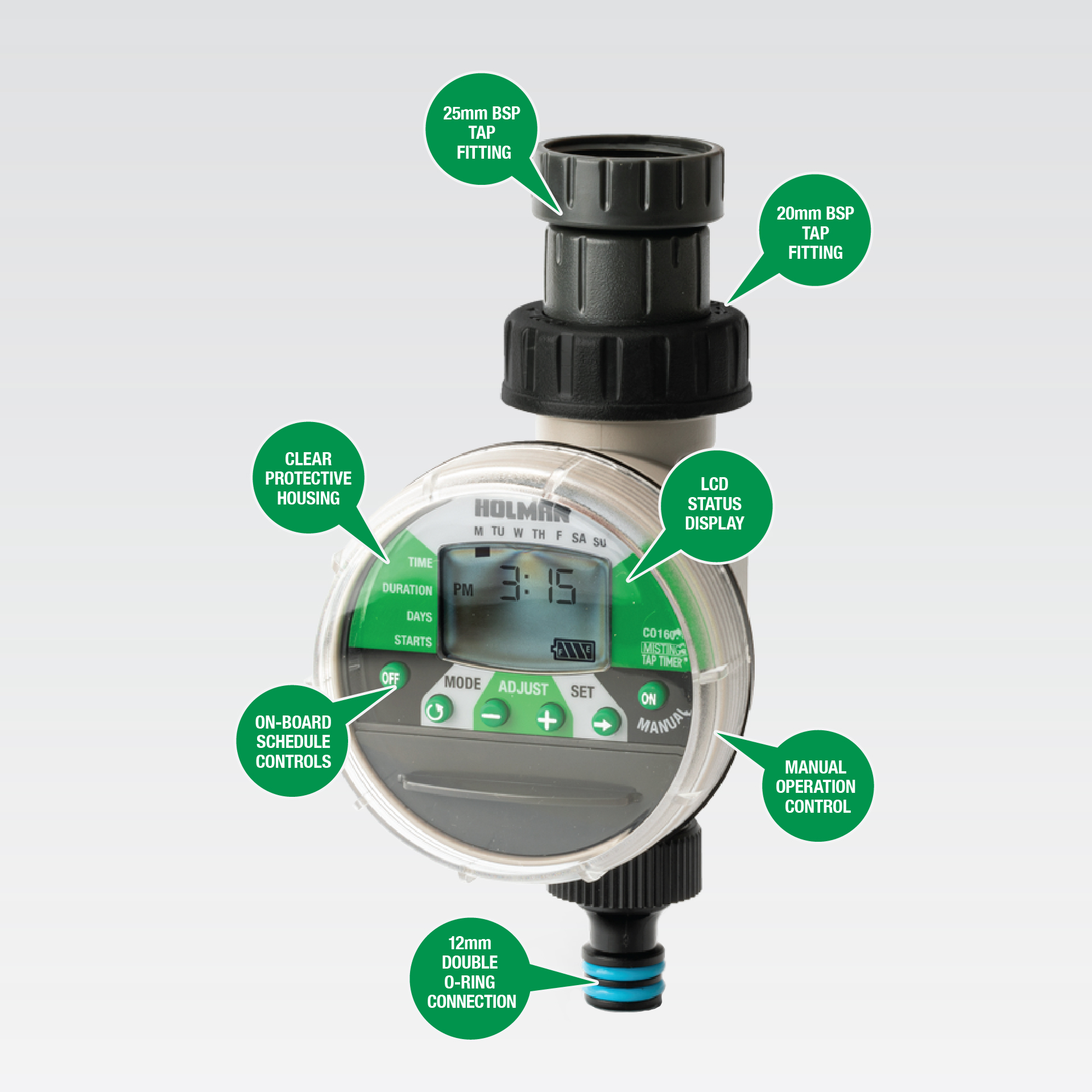

25mm BSP tap fitting with 12mm hose connection. Above-ground installation only. Ensure the washer and internal filter are installed before use.

✓ Pressure Rating
Minimum pressure: 100kPa. Maximum pressure: 600kPa.

✓ Flow Rate
Approximate flow rates: 17.8LPM at 100kPa, 21.8LPM at 200kPa, 27.8LPM at 300kPa, 32.0LPM at 400kPa and 35.8LPM at 500kPa.

✓ Material, Colour & Dimensions
Plastic construction, grey colour. Approximate dimensions: 111mm x 85mm x 165mm. Weight: 0.24kg.

✓ Maintenance & Use Note
For above-ground cold water irrigation use only. Internal filter should be removed and cleaned every few months. Minimum working temperature: 3°C. Avoid freezing conditions.

✓ Guarantee
2 Year Holman Replacement Guarantee.
