RAIN BIRD LNK2 WIFI MODULE FOR ESP CONTROLLERS

Plug-in WiFi upgrade module for compatible Rain Bird ESP controllers, providing Rain Bird App access, remote irrigation control and weather-based watering adjustments.

✓ Plug-In WiFi Upgrade Module
✓ Suits Compatible Rain Bird ESP Controllers
✓ Rain Bird App Remote Access
✓ 2.4GHz WiFi Connection
✓ Weather-Based Watering Adjustments
✓ Smart Home Compatible

Rain Bird LNK Wi-Fi Module Brochure
Rain Bird LNK Wi-Fi Module User Manual
Rain Bird LNK Wi-Fi Module Specifications
Rain Bird LNK Wi-Fi Module Alexa Smart Home Integration

Controller Rain Bird LNK2 WiFi Module for ESP Controllers

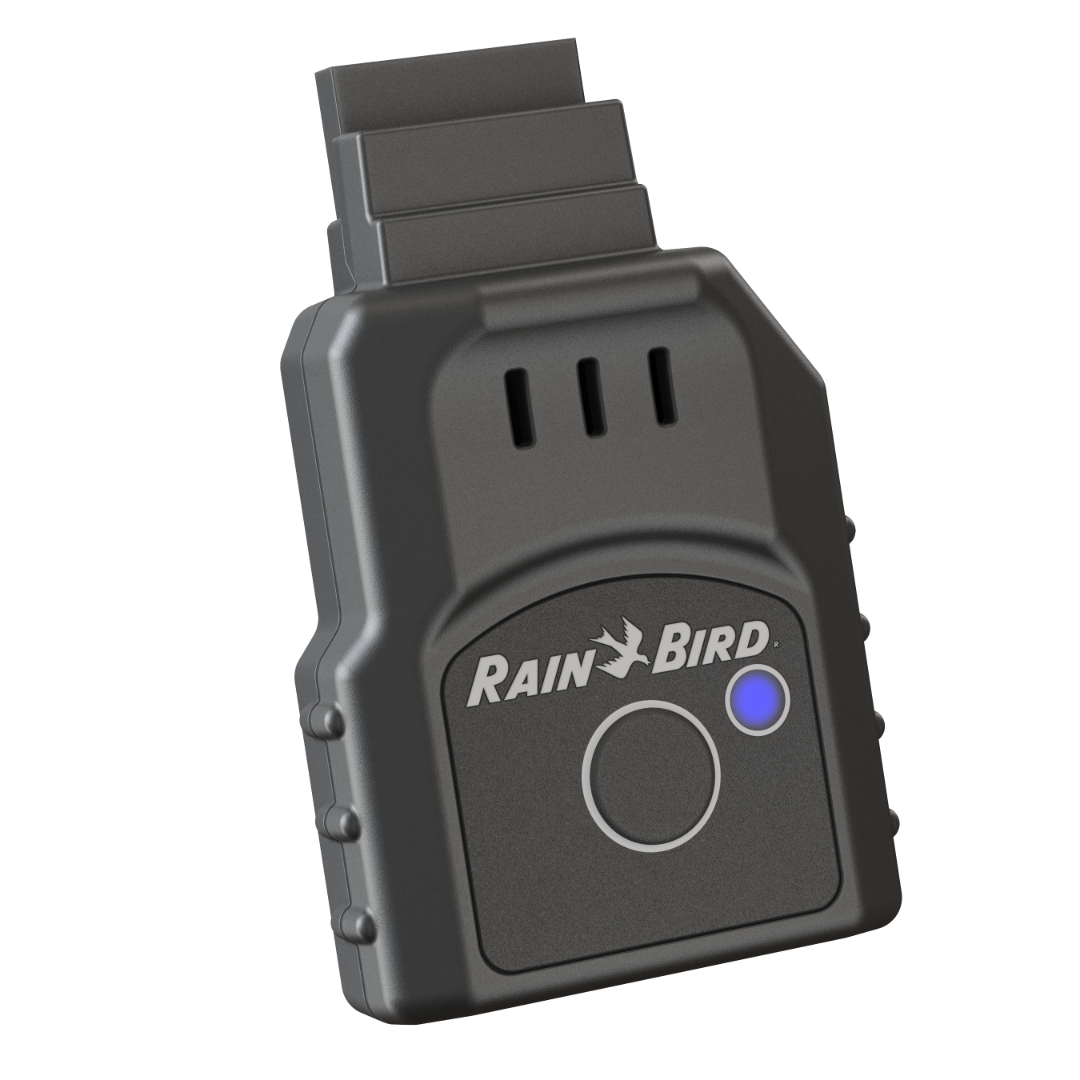

The Rain Bird LNK2 WiFi Module is a plug-in WiFi upgrade for compatible Rain Bird irrigation controllers. It connects directly to the controller accessory port, allowing smartphone access through the Rain Bird App without replacing the existing controller.

Once installed, the LNK2 WiFi Module provides remote irrigation access, mobile programming, weather-based watering adjustments, manual watering control, schedule viewing and app notifications. It is compatible with 2.4GHz WiFi networks and uses Bluetooth Low Energy during setup.

The LNK2 WiFi Module is compatible with Rain Bird ESP-TM2, ESP-ME3, ESP-RZXe, ESP-LXME2, ESP-LXIVM and compatible ESP-ME controllers manufactured after November 2, 2016 with the LNK Ready WiFi symbol on the front panel.

Rain Bird LNK Wi-Fi Module Brochure
Rain Bird LNK Wi-Fi Module User Manual
Rain Bird LNK Wi-Fi Module Specifications
Rain Bird LNK Wi-Fi Module Alexa Smart Home Integration

✓ Model
Rain Bird LNK2 WiFi Module.

✓ Product Type
Plug-in WiFi module for compatible Rain Bird irrigation controllers.

✓ Controller Compatibility
Compatible with Rain Bird ESP-TM2, ESP-ME3, ESP-RZXe, ESP-LXME2, ESP-LXIVM and compatible ESP-ME controllers manufactured after November 2, 2016 with the LNK Ready WiFi symbol on the front panel.

✓ Installation
Connects directly into the accessory port on compatible Rain Bird controllers. Tool-free installation.

✓ App Control

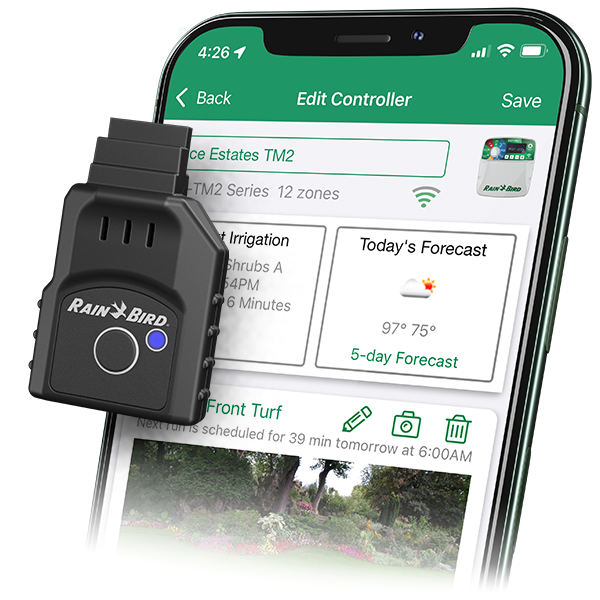

Provides mobile access through the Rain Bird App for controller setup, programming, schedule changes and manual watering.

✓ Remote Access
Allows irrigation control and monitoring from a compatible Apple iOS or Android smart device when connected to the internet.

✓ Weather-Based Adjustments
Supports automatic weather-based watering adjustments through the Rain Bird App when connected to a WiFi network.

✓ Smart Home Compatibility
Supports smart home voice control where available through compatible services and Rain Bird App integration.

✓ WiFi Requirement
Requires 2.4GHz WiFi. Not compatible with 5GHz WiFi networks.

✓ Wireless Communication
WiFi 2.4GHz IEEE 802.11 b/g/n, channels 1–11 only.

✓ Bluetooth
Bluetooth v4.0 BLE used during setup.

✓ Electrical Requirements
24–25.5VAC, 50–60Hz, 0.1A.

✓ Operating Temperature
-10°C to 65°C operating temperature.

✓ Operating Humidity
95% maximum relative humidity in a non-condensing environment.

✓ Dimensions
1.13" wide x 1.83" high x 0.48" deep.

✓ Certifications
RCM.

✓ Setup Requirement
Requires the Rain Bird App, compatible controller, 2.4GHz WiFi network and compatible Apple iOS or Android smart device.
