RAIN BIRD ESP-ME3 MODULAR OUTDOOR CONTROLLER 4-22 STATIONS

The Rain Bird ESP-ME3 Modular Outdoor Controller provides local dial and button programming for residential and light commercial irrigation. It includes 4 stations and expands to 22 with ESP-ME modules. Add a separate LNK2 Wi-Fi module for Rain Bird app control and online weather-based adjustment.

✓ 4 Station Base. Expandable to 22 Stations with ESP-ME Modules
✓ 4 Programs with 6 Start Times per Program
✓ Station Run Times from 1 Minute to 6 Hours
✓ Optional LNK2 Adds Wi-Fi and Rain Bird App Control
✓ Flow Sensor Input. Compatible Sensor Purchased Separately
✓ 3 Year Rain Bird Trade Warranty

Rain Bird ESP-ME3 Controller 230V Installation and Programming Guide
Rain Bird ESP-ME3 Controller Brochure
Rain Bird ESP-ME3 Controller Specifications
Rain Bird ESP-ME3 Controller Quick Reference
Rain Bird LNK2 Wi-Fi Module Specifications

Rain Bird ESP-ME3 controller with cover open and green dial panel

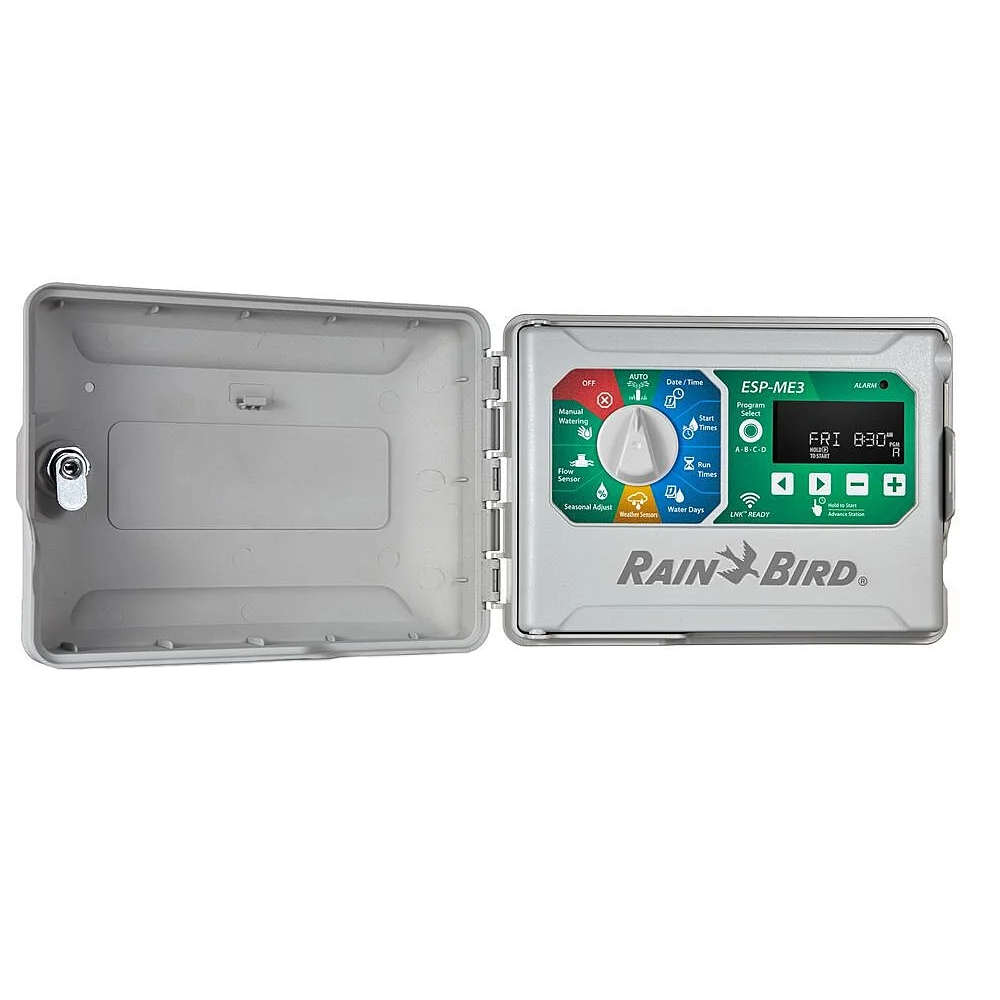

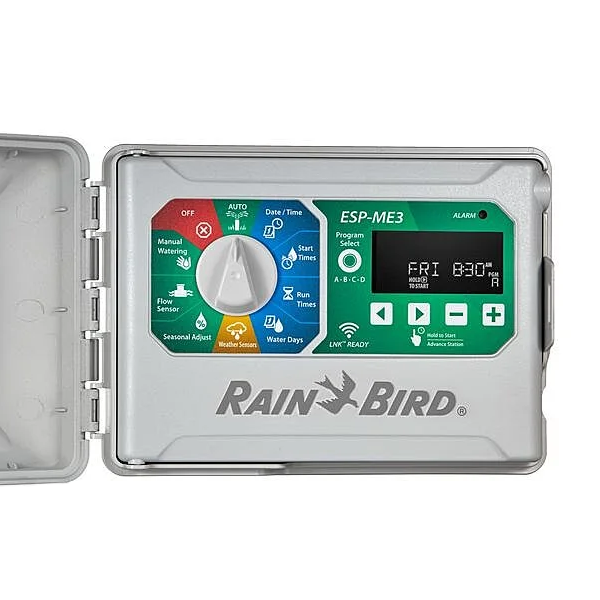

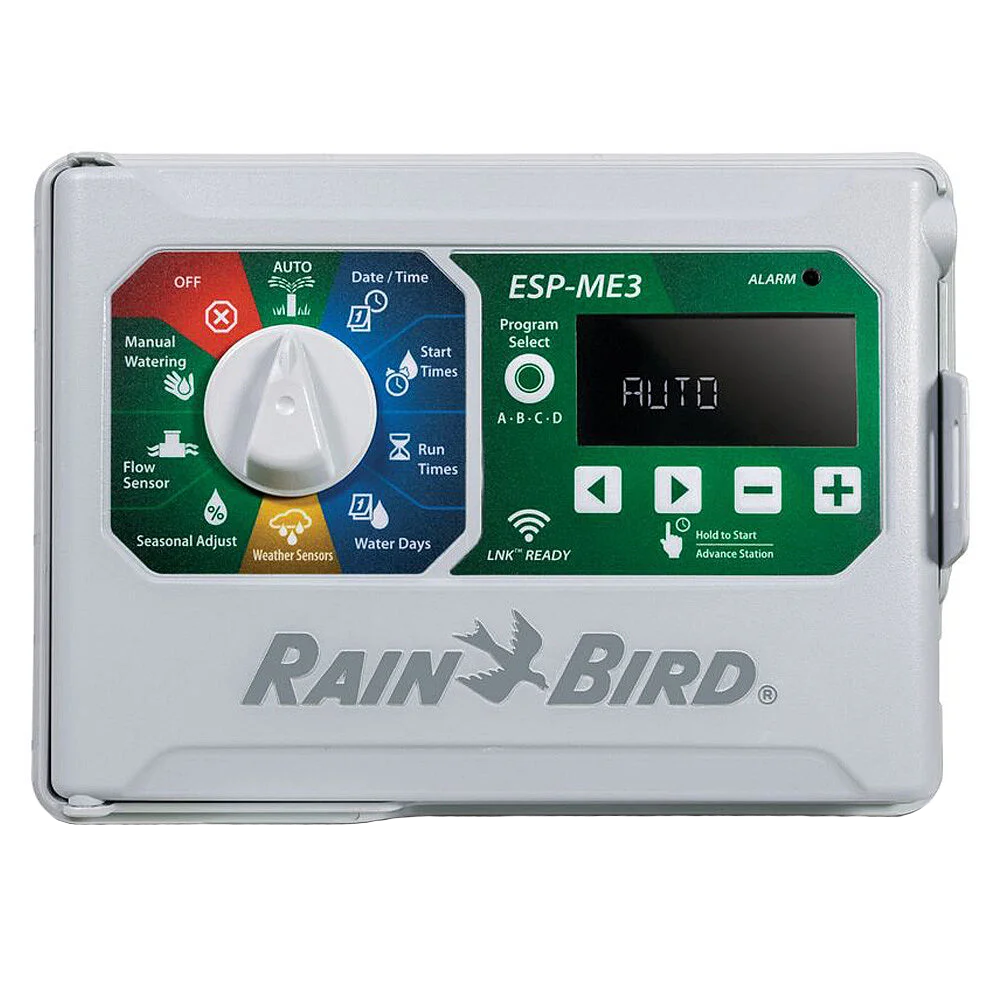

The Rain Bird ESP-ME3 Modular 4 Station Base Outdoor Controller manages residential and light commercial irrigation through a dial, buttons and backlit display. It starts with four station outputs and a separate master-valve / pump-start circuit. Add ESP-ME modules as more watering zones are required.

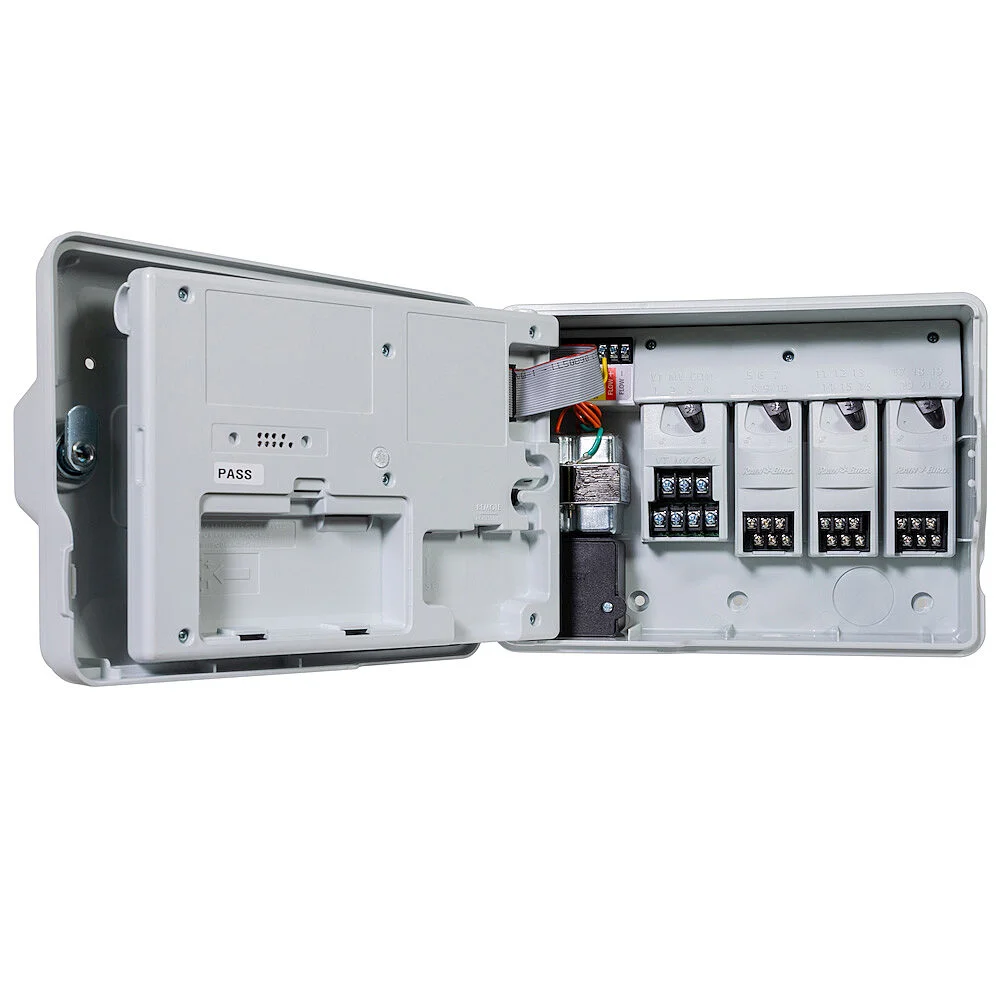

Three expansion bays accept a 3 station module or 6 station module each. Expansion modules are purchased separately. For straightforward station sequencing, Rain Bird recommends placing 6-station modules before any 3-station module. Each expansion bay can accept either module size. The table shows recommended layouts from left to right.

Recommended ESP-ME3 module layouts

Bay 1 contains the supplied four-station base (stations 1–4). The table shows recommended module layouts in Bays 2, 3 and 4, from left to right. Modules are purchased separately.

Total stations Bay 2
Stations 5–10
Bay 3
Stations 11–16
Bay 4
Stations 17–22
4 None None None
7 3-station None None
10 6-station None None
13 6-station 3-station None
16 6-station 6-station None
19 6-station 6-station 3-station
22 6-station 6-station 6-station

A 6-station module uses all six station numbers assigned to its bay. A 3-station module uses only the first three: 5–7 in Bay 2, 11–13 in Bay 3, or 17–19 in Bay 4. The remaining numbers in that bay are skipped.

There are 4 independent programs, A, B, C and D, with 6 start times per program. Station run times range from 1 minute to 6 hours. Choose weekdays, odd/even calendar dates or a cyclic interval from 1 to 30 days. Manual watering can run one station, a program or a test of all stations.

Add the optional LNK2 Wi-Fi module for Rain Bird app access, remote control and online weather-based seasonal adjustment. Online functions require a suitable 2.4GHz Wi-Fi network and internet access. Bluetooth assists module setup. Nearby access without site internet uses the module’s Wi-Fi hotspot. The controller can also be programmed locally without the module.

A compatible wired flow sensor is purchased separately. Once installed and configured, it lets the controller learn normal station flow and respond to detected high flow by skipping an affected automatically scheduled station.

Seasonal adjustment changes run times from 5% to 200%, globally or by program. Delay Watering suspends eligible watering for up to 14 days. Stations set to ignore the rain sensor are not delayed. Permanent Days Off can exclude weekdays from odd/even or cyclic schedules.

A compatible normally closed rain or rain/freeze sensor can stop scheduled watering, with bypass available globally or by station. Other controls include adjustable delay between stations and master-valve operation set by station.

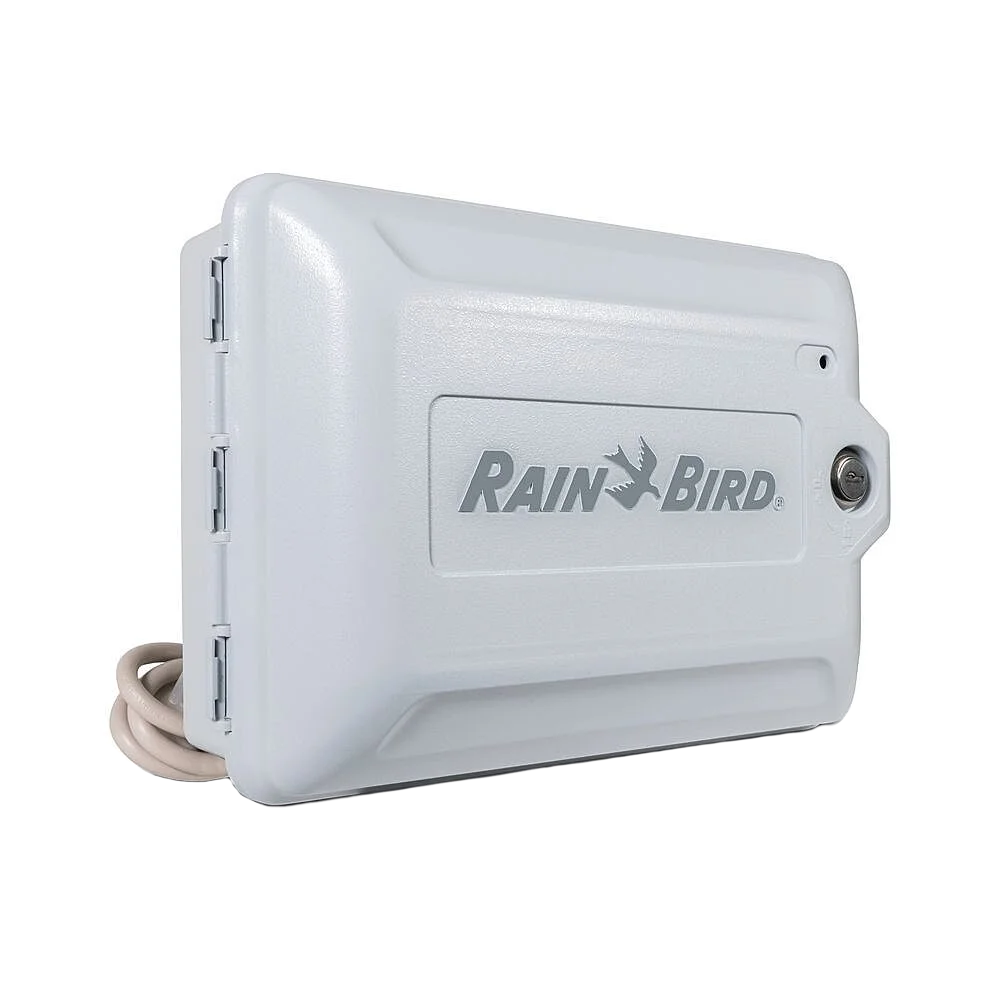

The Australian outdoor model uses a 230VAC supply and a weather-resistant locking cabinet. Non-volatile memory retains schedules, an internal lithium battery maintains the clock, and Contractor Default saves a schedule backup. A separate 9V battery can power the detached panel for programming. Battery power does not operate irrigation valves. Short detection identifies electrical faults with an alarm indicator.

3 Year Rain Bird Trade Warranty.

Controller documents
Rain Bird ESP-ME3 Controller 230V Installation and Programming Guide
Rain Bird ESP-ME3 Controller Brochure
Rain Bird ESP-ME3 Controller Specifications
Rain Bird ESP-ME3 Controller Quick Reference

Optional LNK2 Wi-Fi module
Rain Bird LNK2 Wi-Fi Module Brochure
Rain Bird LNK2 Wi-Fi Module User Guide
Rain Bird LNK2 Wi-Fi Module Specifications
Rain Bird LNK2 Amazon Alexa Integration Guide

How watering programs work

The ESP-ME3 has four separate watering programs, labelled A, B, C and D. Each program is its own schedule, with separate watering days, start times and station run times.

Each station controls a watering zone, such as a lawn or garden bed. Within each program, choose which stations will water and set how long each runs. Run times range from 1 minute to 6 hours.

Each program allows up to six start times on its selected watering days. One start time begins the whole program. The controller waters its stations one after another for their set run times.

For example, Program A could start at 6am, water the lawn for 10 minutes, then water a garden bed for 5 minutes. That needs one start time. Add another start time to repeat the same sequence later that day. Programs B, C and D can have different schedules. Use only the programs and start times you need.

Avoiding common programming mistakes

  • Avoid unintended repeat cycles. One start time runs the whole program. Each extra start repeats it. Turn unused start times OFF.
  • Check all programs. A station included in more than one active program can water again under each schedule. Use multiple programs for the same station only when that extra watering is intended.
  • Allow time for the whole watering cycle. Overlapping start times are queued rather than running stations together. A later cycle can therefore finish later than expected. Allow for every station, seasonal adjustment and any delay between stations when spacing starts.
✓ Application
Residential and light commercial irrigation with modular station expansion.

✓ Warranty
3 Year Rain Bird Trade Warranty.

✓ Model Specifications
Included Capacity: 4 station outputs.
Maximum Capacity: 22 stations with separately purchased expansion modules.
Pump / Master Valve: Separate master-valve / pump-start circuit.

✓ Programming & Watering Schedules
Programs: 4 independent programs, A, B, C and D.
Start Times: 6 per program.
Station Run Time: 1 minute to 6 hours.
Watering Days: Weekdays, odd/even dates or cyclic intervals of 1 to 30 days.
Seasonal Adjustment: 5% to 200%, globally or by program.
Delay Watering: Up to 14 days. Does not delay stations set to ignore the rain sensor.
Permanent Days Off: For odd, even and cyclic schedules.
Program Operation: Overlapping starts are queued. Programs run consecutively.
Other Timing: Adjustable delay between stations.

✓ Manual Operation
Manual Watering: Single station, individual program or test of all stations.

✓ Control & Connectivity
Local Control: Dial, buttons and backlit LCD.
Optional Wi-Fi: Separate LNK2 module for Rain Bird app control.
Online Functions: Suitable 2.4GHz Wi-Fi network and internet access required.
Bluetooth with LNK2: Setup assistance. Nearby access uses its Wi-Fi hotspot.

✓ Expansion & Module Configuration
Included: 4 station base and separate master-valve / pump-start circuit.
Maximum: 22 stations with three 6-station expansion modules.
Expansion Bays: Three. Each accepts a compatible 3-station or 6-station module.
Module Supply: Purchased separately.
Recommended Layout: Place 6-station modules before any 3-station module for straightforward station sequencing. Each expansion bay accepts either size.
Station Numbers: Fixed by bay. A 3-station module can leave unused station numbers.

✓ Sensors & System Control
Flow Monitoring: Compatible wired flow sensor required and purchased separately. Learn flow and configure monitoring before use.
Rain Sensor: Compatible normally closed rain or rain/freeze sensor.
Sensor Bypass: Global or by station.
Master Valve / Pump Start: Separate circuit with operation set by station.

✓ Installation & Construction
Installation: Indoor/outdoor wall mounting of the outdoor model.
Cabinet: Weather-resistant with locking door.

✓ Power Supply & Valve Outputs
Operating Supply: 230VAC Australian model.
Valve Operation: Compatible 24VAC irrigation solenoids.

✓ Memory, Diagnostics & Protection
Schedule Retention: Non-volatile memory.
Clock Backup: Internal lithium battery.
Saved Schedule: Contractor Default save/restore.
Detached Programming: Separate 9V battery, not included. Battery power does not operate valves.
Diagnostics: Electronic short detection and alarm indicator.

✓ Dimensions
Approximately 195mm high x 272mm wide x 112mm deep.
